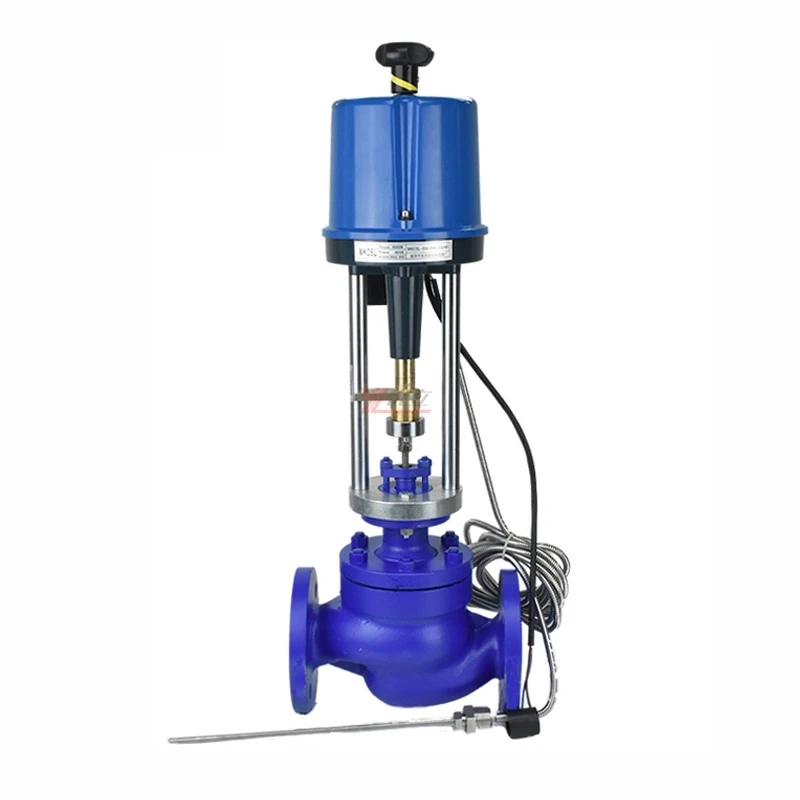

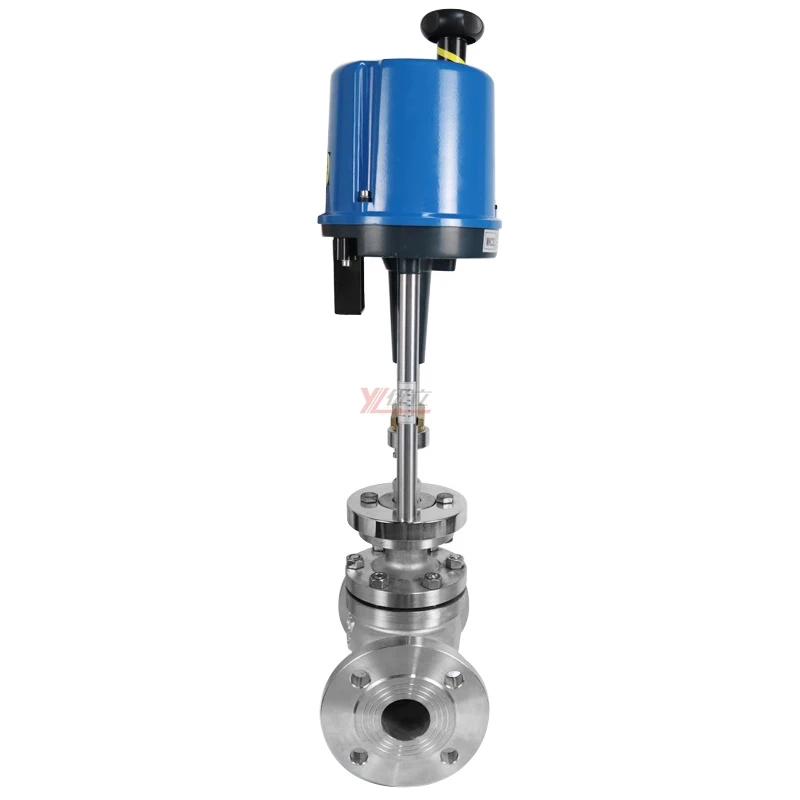

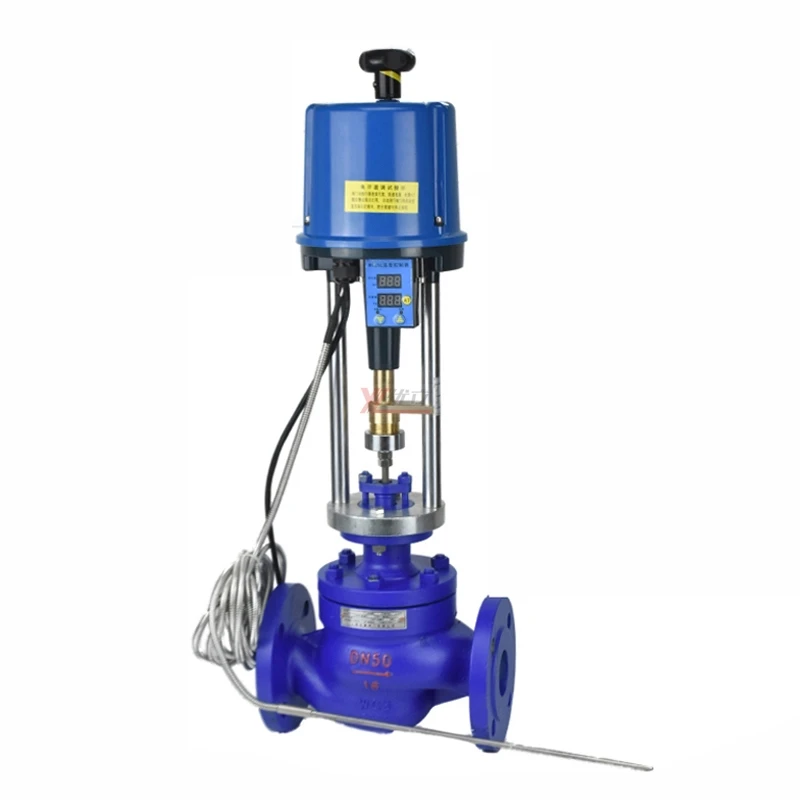

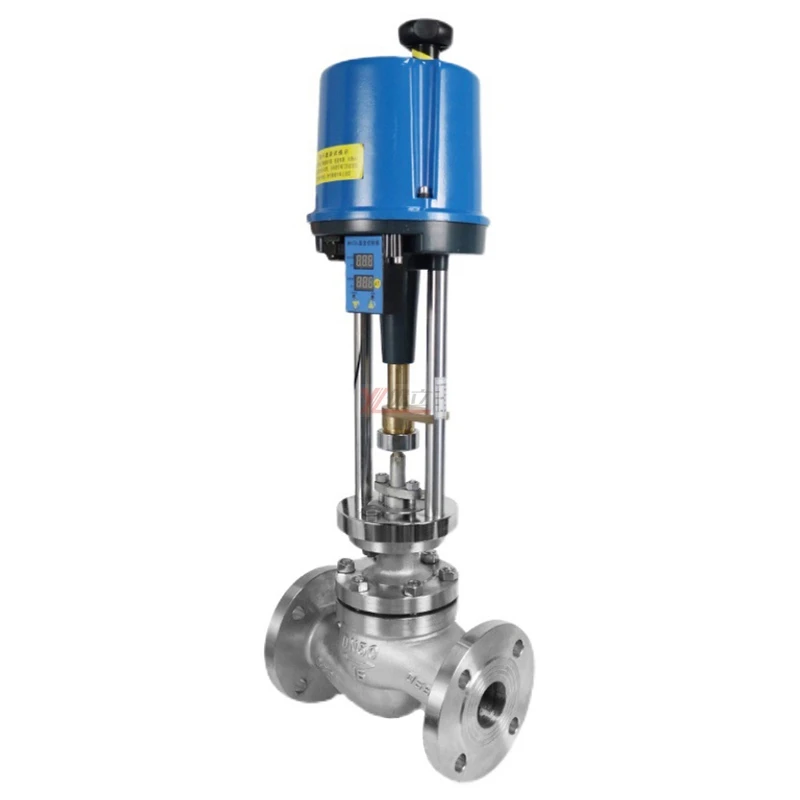

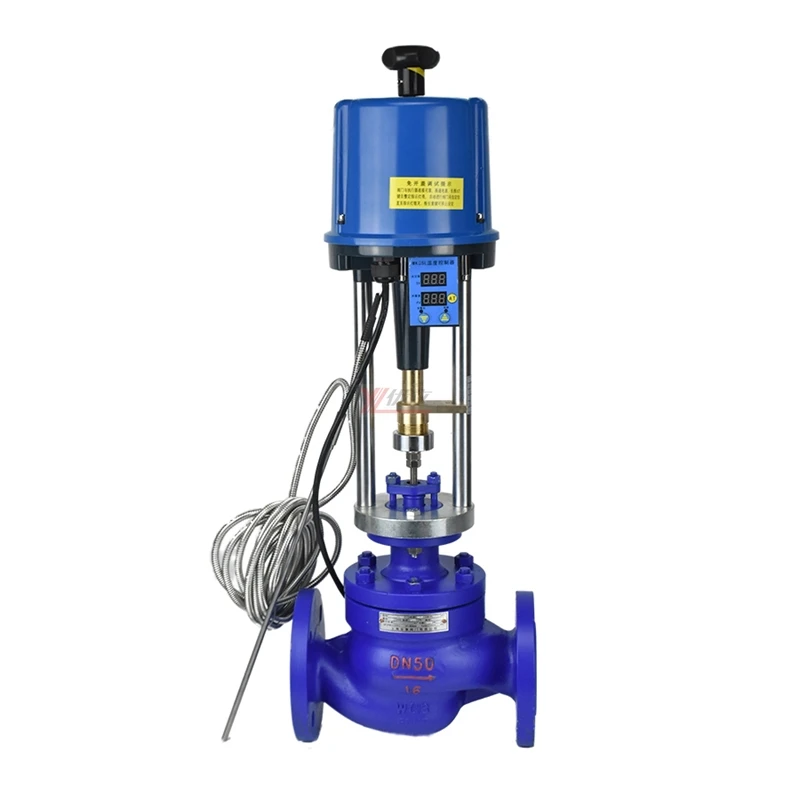

Взрывозащищенный Электрический регулирующий клапан Интеллектуальный с регулировкой расхода пара
64 692,56 ₽ - 65 789,04 ₽
YOULI ZZWPE ANSI 150LB 304 316 из нержавеющей стали 1 6 МПа WCB самостоячий AC220V Электрический регулирующий регулятор температуры клапан
- Категория: >>>
- Поставщик: Wenzhou Youli Machinery Co. Ltd.
Сохранить в закладки 1601191803302:
Описание и отзывы
Характеристики
Product Description
Body material | WCB,SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M) etc. |
Full port | 1/2"-12",DN15-DN300 |
Working pressure | ANSI CLASS 150-300,JIS10K-20K,PN16-PN64 |
Medium temperature | - 20 ℃ ~ + 200°C,Optional(- 20℃ ~ + 450°C) |
Connection type | Thread,Flanged |
Thread Standard | BSPT,Optional(NPT, BSP, BSPP) |
Sealing | PTFE |
Type of Electric Control Valve | Single Seat,Option(Double Seat,Sleeve Seat) |
Electric actuator | 381LSA/XA-08,381LSA/XA-20381LSB/XB-30,381LSB/XB-50381LSC-65, 381LSC-99381LSC-160,381LSC-260 |
Power Supply | 220VAC,50Hz |
Intrinsic flow characteristics | Straight line, equal percentage (inherent adjustable ratio 50:1) |
Input signal | 4-20mA,1-5VDC |
Usage | Regulating type, ON-OFF type |
Explosion proof level | EXdIIBT4 |
Waterproof level | IP55 |
Lag | ≤1%FS(with positioner ),≤3%~5%FS(without positioner ) |
Basic error | ≤±1%FS(with positioner ),≤±5%FS(without positioner ) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1PC |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
Control valve is a type of valve that uses compressed gas as the power source, cylinder as the actuator, and uses valve positioners, converters, solenoid valves, holding valves, gas storage tanks, gas filters and other accessories to drive the valve, achieving switch or proportional adjustment. It receives control signals from industrial automation control systems to complete the adjustment of various process parameters such as flow rate, pressure, temperature, and liquid level of the pipeline medium. The characteristics of pneumatic control valves are simple control, fast response, and intrinsic safety, without the need for additional explosion-proof measures.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc
Product Paramenters
Related Products
Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
