Ветрогенератор 10 кВт с подветровым ветром электрическая мельница Электрогенератор турбина 120 В 240 400
- Категория: >>>
- Поставщик: Qingdao HenryD Wind Power Equipment Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601192157218:
Описание и отзывы
Характеристики
FD7.5-10kw Wind turbine : US$4600.00/set:
(LOW WIND PLACE, LARGER BLADES ROTOR)

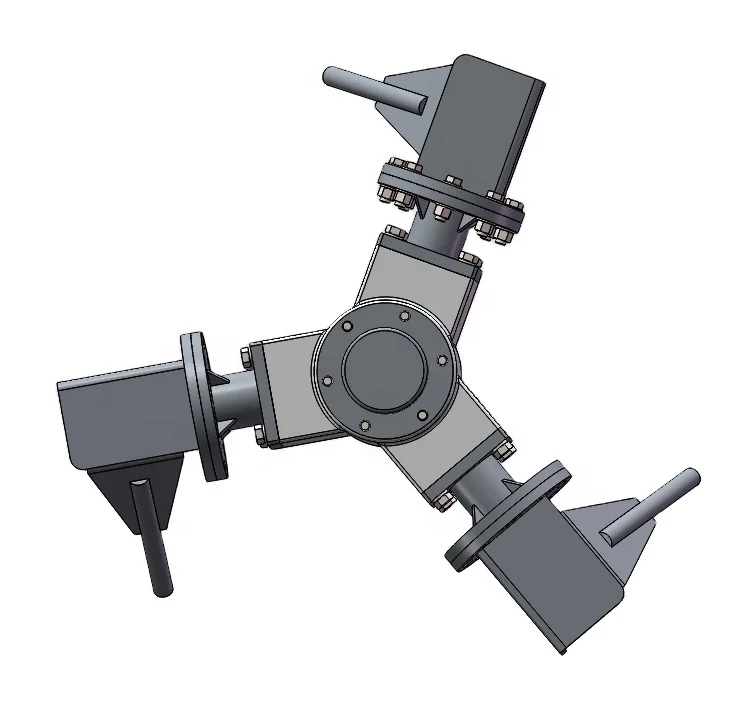

FD7.5-10kw variable pitch wind turbine: US$7200.00
Including blades, nose cone, hub, generator with nacelle, tail.

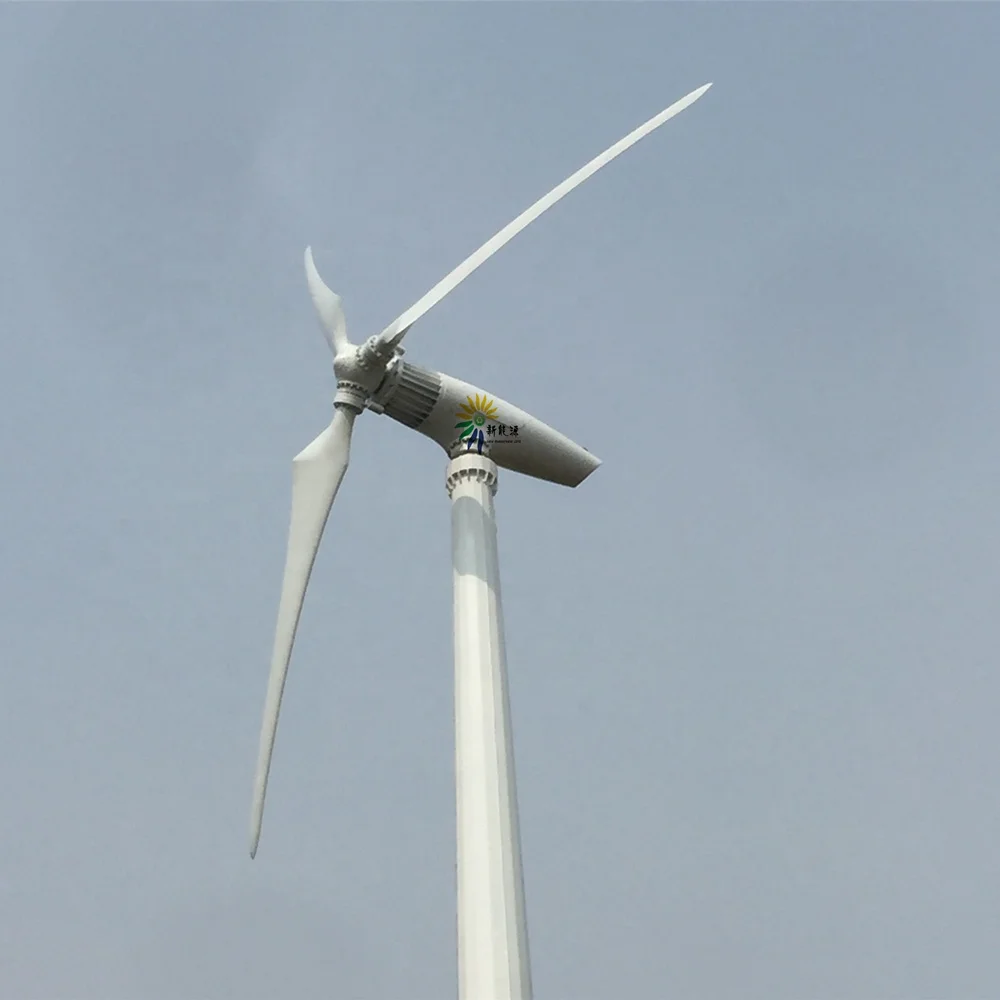

TL-10kw Gravity Rotating Tail Design wind turbine
Free maintenance
Slender and Fine Cast Steel Generator housing, Mold Production
Flexible solutions for different applications
Over-speed multi-protection/ Gravity Tail control / Automatic yaw /
Auto braking system/manual braking system on the controller
Product Description
1. 10kw wind turbine off grid system
Use wind energy to generate electricity and charge into storage battery group. Through the multi-voltages power supply system, the electricity can be changed into DC and AC used for illumination,
home appliances, communication devices and electric tools.
Wind turbine on grid system including: wind turbine with tower + PWM on grid controller with
dump load + grid tie inverter
Technical Data
2.10kw 20kw wind turbine technical data
Power | 10KW | 20KW |
blade diameter | 7.2m | 9.6m |
rated rotor speed | 180 rpm | 140rpm |
rated speed | 10m/s | 11m/s |
rated Power | 10KW | 20KW |
max Power | 12kw | 22kw |
Generator type | 3-phase AC PM | 3-phase AC PM |
Output voltage | 240V/360V | 240V/360V |
Start up wind speed | 3(m/s) | 3(m/s) |
Work wind speed | 3-30(m/s) | 3-30(m/s) |
Survival wind speed | 50(m/s) | 50(m/s) |
Tower height | 12(m) | 15(m) |
Wind turbine weight | 350kg | 800kg |
control system | Wind solar system control, off grid control, on grid system control | Wind solar system control, off grid control, on grid system control |
Isolation class | B | B |
Stator material | QZY-2/180/470 | QZY-2/180/470 |
Blades type | 3 pcs FRB | 3pcs FRB |
Over speed protection | Auto yaw, electromagnetic braking | Auto yaw, electromagnetic braking |

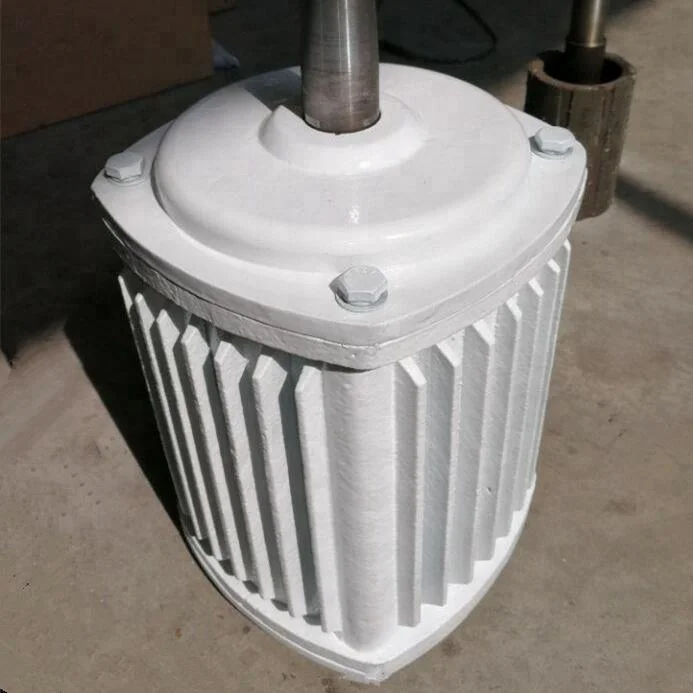

permanent magnet alternator
FRB blades with protection film

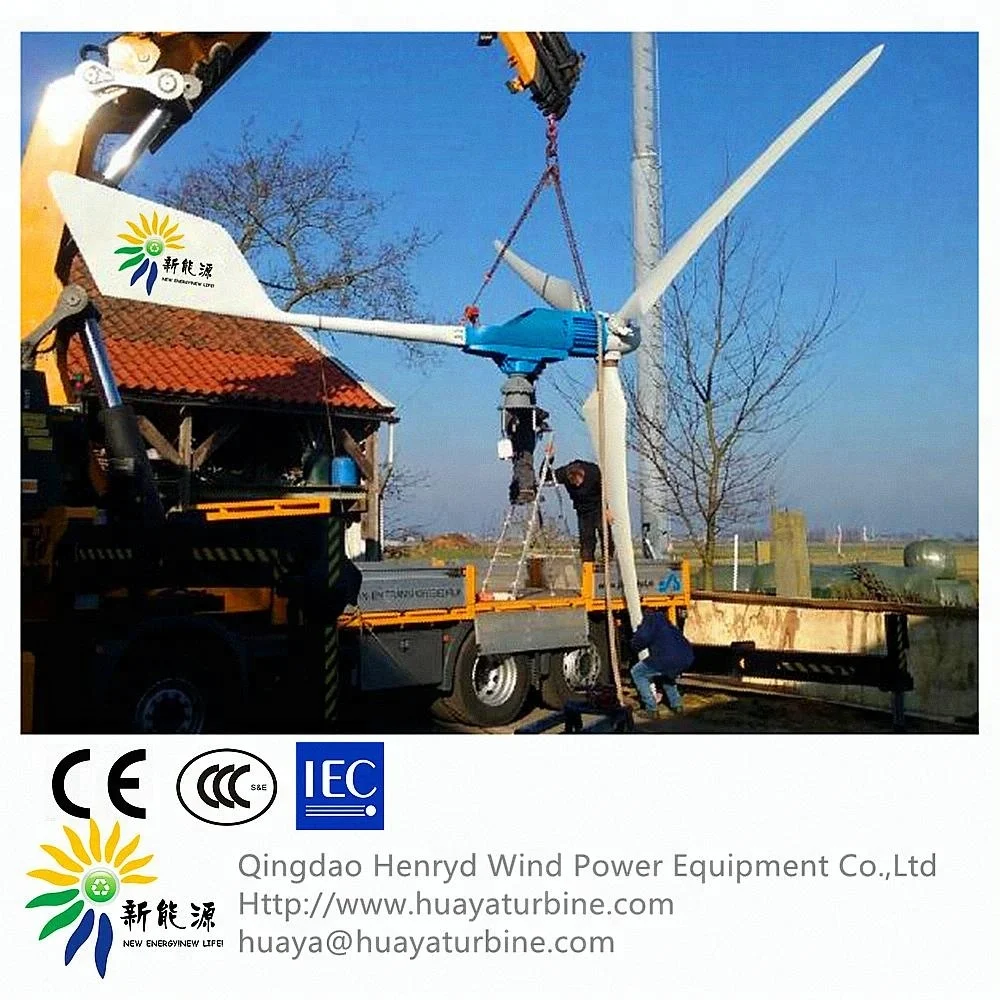

10kw wind turbine assembly
3. Wind turbine PWM off grid controller with dump load
Model | FKJ-GT 10KW |
Power of the equipped wind turbine (W) | 10K |
Operating mode | Continuous |
Function | Commutation, control |
Operating environment | Temperature -30~60℃, humidity≤80% |
PWM unloading voltage (DCV) | 570±5V |
three-phase dump load voltage (DCV) | 600±5V |
three-phase dump load delay time (min) | 10-20 minutes |
Low voltage indicator (V) | ≤200V |
Self-provided connecting wire of the three-phase dump load (mm²) | >4mm²BVR cable |
Self-provided connecting wire of the PWM dump load(mm²) | >4mm²BVR cable |
Noise (1m) | <40dB |
Degree of protection | IP20(Indoor) |
Cooling method | Forced air cooling |
PWM unloading fuse (A) | 32A |
DC output fuse (A) | 40A |
4. Wind turbine pure sine wave inverter/grid tie inverter
off grid system inverter
grid tie inverter 5*two sets, single phase output
Application
• Household, Garden, farm
• Telecom sites.
• Rural electrification programs. Island , sentry, island, sight lighting
The on grid tie wind turbine generator is often hybrid used with solar panels for commercial/
residential.

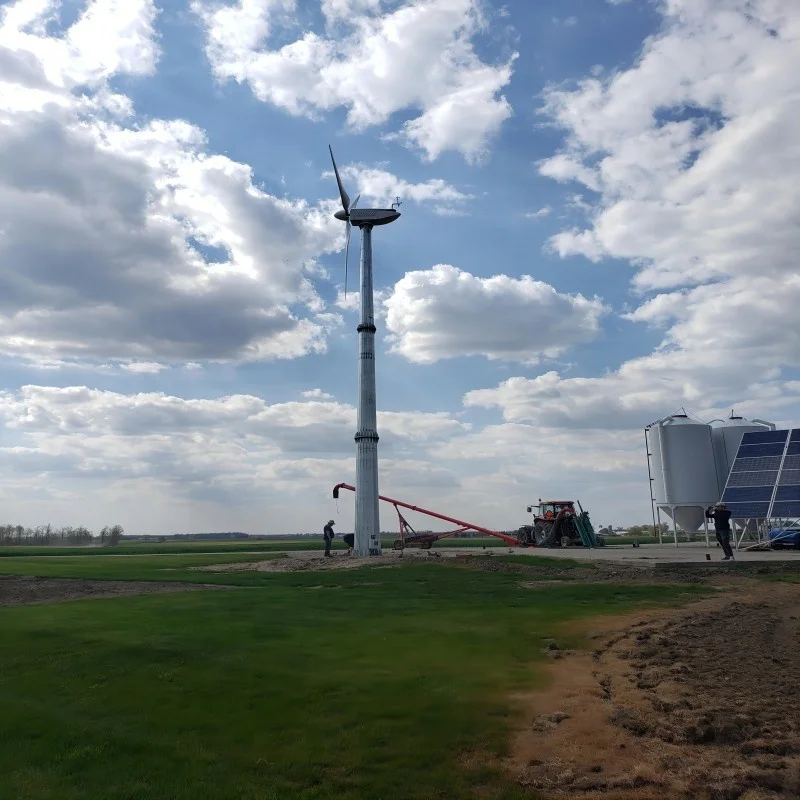

Wind solar hybrid system
Packaging & Shipping
1.10kw wind turbine generator for home use inner foam protection outer Plywooden case.
2. Tower with soft package only .
3. controller invertor with inner carton box outer plywooden case.
4.Pakage size and weight please refer to our sales.
5.Shipping by sea with FCL LCL.
If you have any request in package and shipping please tell our sales we will do according to
your request.
Our Services
System Design Service
We can design diffirent system for customers according their request For example, on-grid or off-grid
system , solar wind hybrid system or solar wind diesel generator system like below
After Sale Service
Our main off grid/grid tie 5kw wind turbine generator are free 3 years warranty, controller and
invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company,
do not charge a fee to customers, free warranty if any damage outside the warranty period, the company
will charge a fee for labor costs and materials.
(3) the warranty period, company's quality problems caused by the maintenance of the freight borne by
the company, if not under warranty or man-made damage, the freight charges by the customer.
Company Information
We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in
China. We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine
exporter, but we are the leading wind turbine manufacture and designer now.
We manufacture 300w-30kw fixed pitch wind turbine;
2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;
1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;
On grid system/off grid system, wind solar hybrid system; Water heating system;
For more details, pls contact with us via e-mail.
Certifications of our company
FAQ
1. Wind turbine model selection
It depends your local annual average wind speed, daily/monthly home power consumption.
Low average wind speed place, select larger blades rotor, higher rated working voltage;
Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind
turbine.
The safety and steady working system is the first choice.
2. Wind turbine tower selection
Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.
Guy wire tower cost is lower, easy to delivery. But the installation area is larger;
Tilting up tower is for 500w-5kw wind turbine. Easy installation, small installation area. But the delivery cost
is higher.
Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.
Stand alone tower for the installation place with crane.
The tower height: Make sure blades rotor is higher than wind turbine surrounding barrier height.
3. Working system selection
On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;
Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;
Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.
Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.
For more question, pls contact with us directly. We will give you a professional response.
Why select us:
We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage
in different wind condition.
I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working
system to different user according to their different situation and request.
In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and
manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
Похожие товары
Генератор ветровой турбины мощностью 3/5/6 лопастей 400 Вт 600 800 12 В 24
11 939,90-13 135,03 ₽
Высокоэффективный Настройка новой энергии ветрогенератора с хорошим качеством
953 564,25-1 017 135,20 ₽

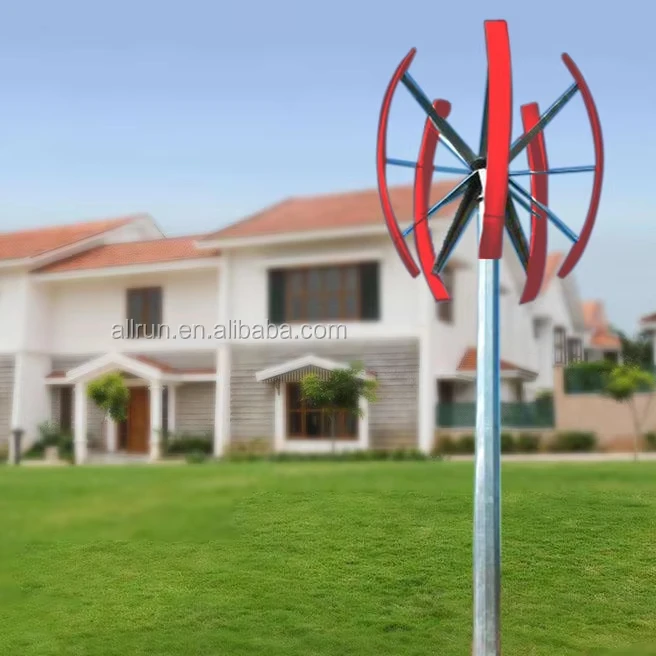

Вертикальный ветрогенератор с низким уровнем шума 1000 Вт 12 В 24 48 для домашнего использования бесплатным контроллером ветровой турбины MPPT
29 242,64-33 056,90 ₽

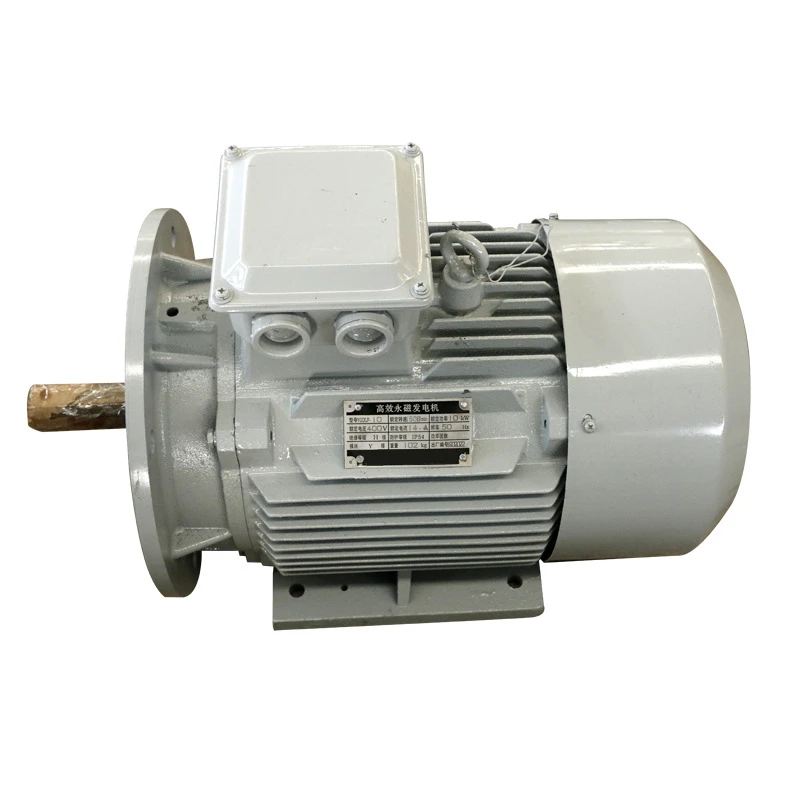

Генератор 10 квт по заводской цене генератор с постоянным магнитом 1800 об/мин
203 427,04-238 391,07 ₽
Бесхвостый ветряной генератор с низким уровнем шума мощность ветра по ветру переменным шагом 2 5 кВт 3 шт. лезвия защитной пленкой
165 284,47-171 641,57 ₽

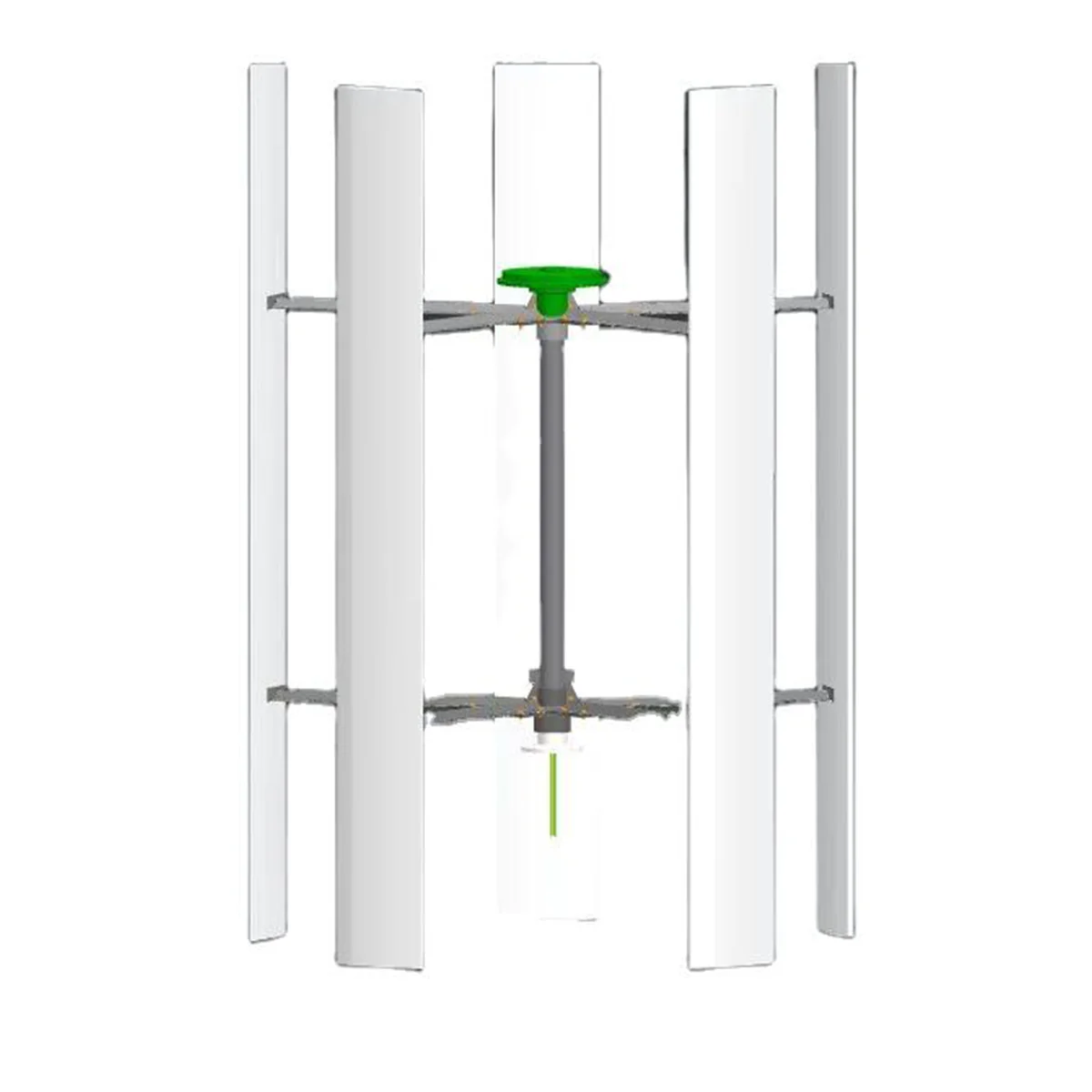

Магнитный ветрогенератор с низким уровнем шума H-образный 10 кВт вертикальной осью
