Новая технология высокое качество инвертор 40 кВА однофазный солнечный 5 кВ высокого качества
21 929,68 ₽ - 31 578,74 ₽
30 кВА 20 40 48 В 240 15 кВт Электрический Солнечный Инвертор 50 220 380 7 5 однофазный преобразователь в трехфазный инвертор
- Категория: >>>
- Поставщик: Guangdong Xindun Power Technology Co. Ltd.
Сохранить в закладки 1601192754903:
Описание и отзывы
Характеристики
Inverter Feature
1.Support 100% three phase unbalanced load
2.3 times peak power,strong load impact resistance
3.IGBT high stability performance
4.Suitable for any kinds of batteries,wifi monitoring
Why Choose XD-HDSX Series Inverter
How to Use Inverter?

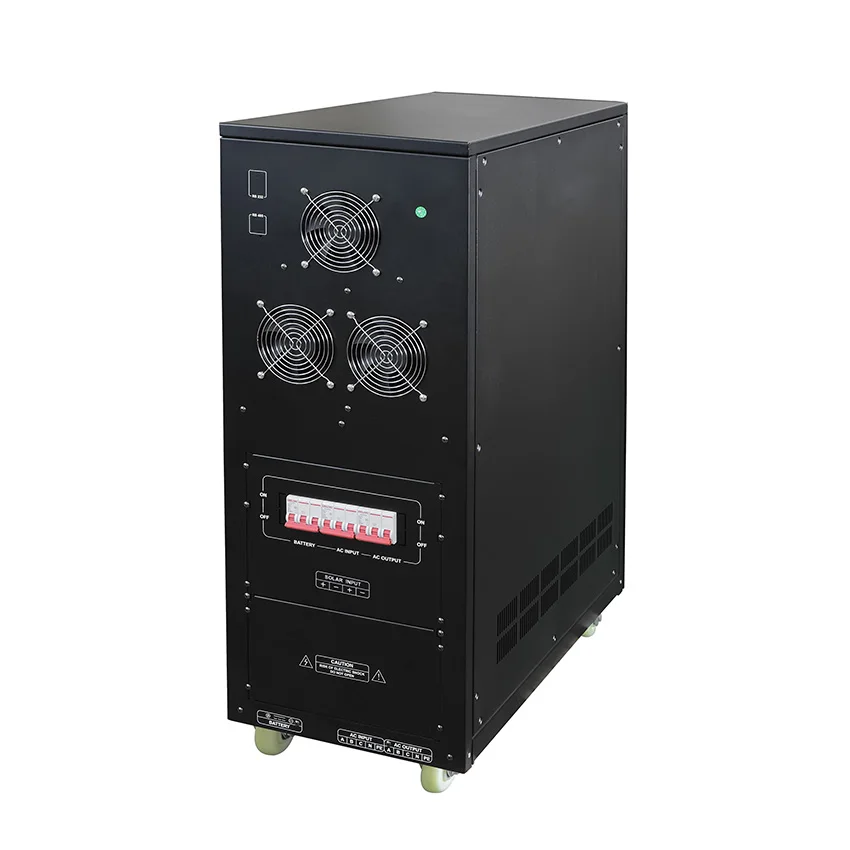

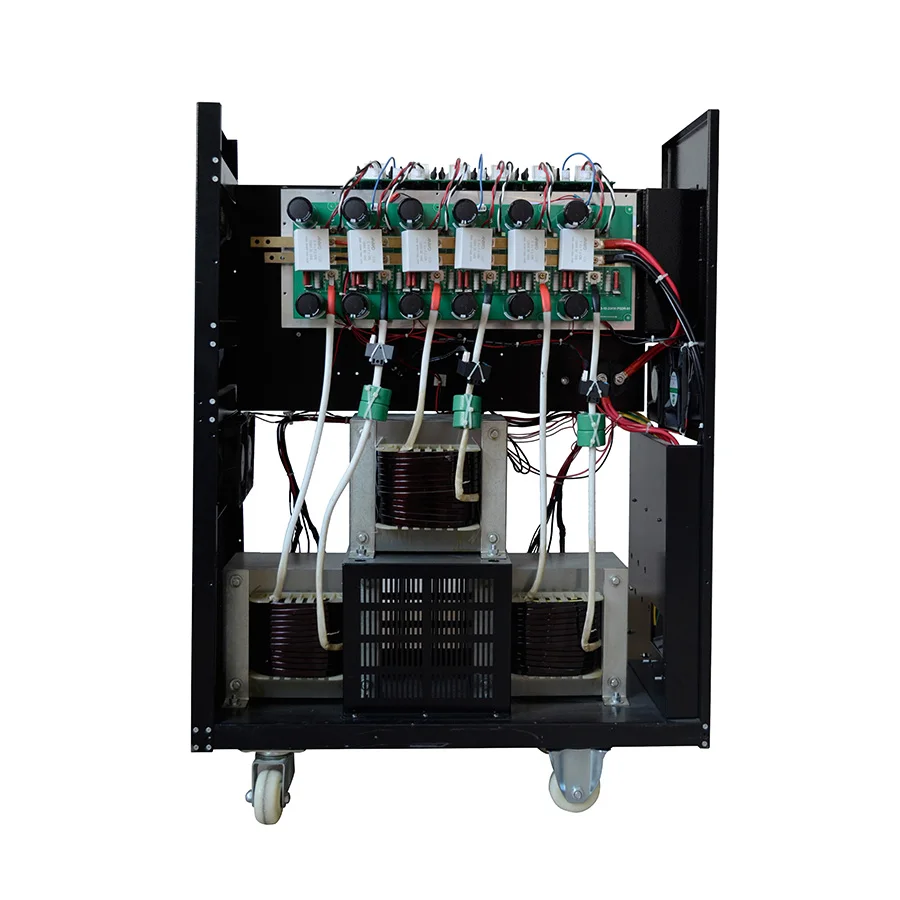

Inverter details
Inverter Technical Parameters
three phase solar inverter power range is form 3.2KW to 160KW, If you want to know the parameters of other power, please contact us to get >>>>>>>>
| Specification | |||||||
| Model: HDSX/HDSX-T | 80248/96/192 | 10348/96/192 | 12348/96/192 | 16396/192 | 20396/192 | 24396/192 | |
| Rated Power | 10KVA/8KW | 12.5KVA/10KW | 15KVA/12KW | 20KVA/16KW | 25KVA/20KW | 30KVA/24KW | |
| Peak Power(20ms) | 24KVA | 30KVA | 36KVA | 48KVA | 60KVA | 72KVA | |
| Start Motor | 5HP | 6HP | 7HP | 10HP | 10HP | 15HP | |
| Battery Voltage | 48/96/192VDC | 96/192VDC | |||||
| Size(L*W*Hmm) | 725*365*1010 | ||||||
| Packing Size(L*W*Hmm) | 785*425*1135 | ||||||
| N.W.(kg) | 112 | 122 | 134 | 160 | 176 | 189 | |
| G.W.(kg)(Wooden Packing) | 136 | 146 | 158 | 184 | 200 | 213 | |
| Installation Method | Tower | ||||||
| Parameter | |||||||
| Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | |||||
| AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | ||||||
| AC Input Frequency Range | 45Hz-55Hz(50Hz)/ 55Hz-65Hz(60Hz) | ||||||
| Max AC charging current | 0-45A(Depending on the model) | ||||||
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Phase | 3/N/PE | ||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||
| Output Voltage(Battery Mode) | 380Vac/400Vac±2%(customized 190Vac/200Vac) | ||||||
| Output Frequency(Battery Mode) | 50/60Hz ±1% | ||||||
| Output Wave(Battery Mode) | Pure Sine Wave | ||||||
| Output waveform distortion | Linear load≤3% | ||||||
| Efficiency(AC Mode) | >99% | ||||||
| Output Voltage(AC Mode) | Conforming to AC input | ||||||
| Output Frequency(AC Mode) | Conforming to AC input | ||||||
| No load loss(Battery Mode) | ≤2.5% rated power | ||||||
| No load loss(AC Mode) | ≤2%rated power( charger does not work in AC mode) | ||||||
| No load loss(Energy saving Mode) | ≤10W | ||||||
| Phase | 3/N/PE | ||||||
| Battery Type | VRLA Battery | Charge Voltage :13.8V; Float Voltage:13.7V(Single battery voltage) | |||||
| Customize battery | Charging and discharging parameters of different types of batteries can be customized according to user requirements (charging and discharging parameters of different types of batteries can be set through the operation panel) | ||||||
| Protection | Battery undervoltage alarm | 11V(Single battery voltage) | |||||
| Battery undervoltage protection | 10.5V(Single battery voltage) | ||||||
| Battery overvoltage alarm | 15V(Single battery voltage) | ||||||
| Battery overvoltage protection | 17V(Single battery voltage) | ||||||
| Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | ||||||
| Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | ||||||
| Temperature protection | >90°C(Shut down output) | ||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||
| Inside Solar controller (Optional) | Charging Mode | MPPT or PWM | |||||
| Charging current | PWM: 10A-60A(48V System); 50A/100A(96V System); 50A/100A(192V System) MPPT: 10A-100A(48V System); 50A/100A(96V System) | ||||||
| PV Input Voltage Range | PWM: 60V-88V(48V System); 120V-176V(96V System); 240V-352V(192V System) MPPT: 60V-120V(48V System); 120V-240V(96V System); 240V-360V(192V System) | ||||||
| Max PV Input Voltage(Voc) (At the lowest temperature) | PWM: 100V(48V System); 200V(96V System); 400V(192V System) MPPT: 150V(48 System); 300V(96V System); 450V(192V System) | ||||||
| PV Array Maximum Power | 48V System: 560W(10A)/1120W(20A)/1680W(30A)/2240W(40A)/2800W(50A)/3360W(60A)/ 4480W(80A)/5600W(100A); | ||||||
| Standby loss | ≤3W | ||||||
| Maximum conversion efficiency | >95% | ||||||
Safe Packaging
Inverter Application case
Feedback from Customers
About Xindun Power
We never use poor-quality products in the market. The Most Reliable Inverter Manufacturer in China. 15 Years of Production and Sales Experience. Suitable for personal use or for agents to select suppliers.
|
FAQ
Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.
Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.
Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.
Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.
Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.
Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.
Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.
Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
Похожие товары
Низкочастотный сетчатый солнечный инвертор 30 кВА 40 на сетке постоянного тока в переменный для системы солнечных панелей
119 297,46 ₽

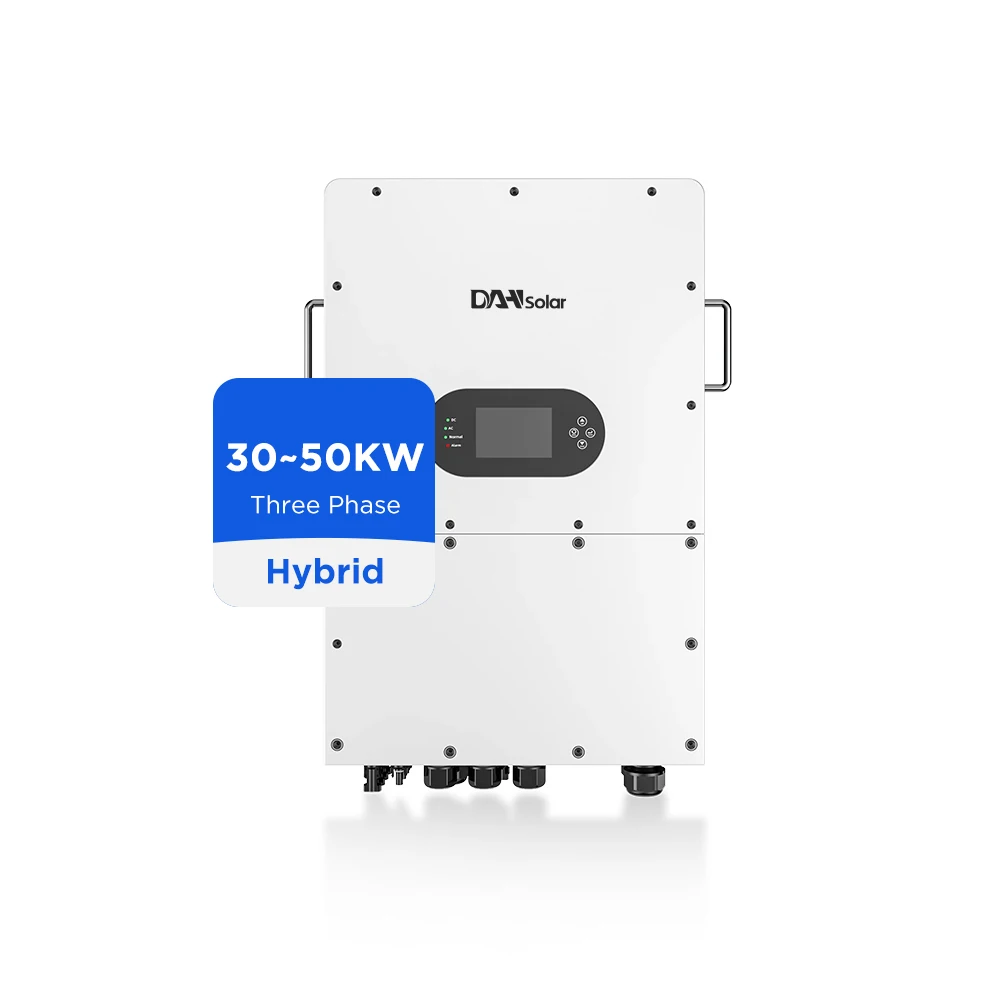

DAH Солнечный 3-фазный гибридный солнечный инвертор высокого напряжения 30 кВА 40 50 соединение
304 493,61 ₽ - 357 782,73 ₽
Гибридный солнечный инвертор 30 кВт 35 40 50 Инвертор солнечной энергии кВА с контроллером заряда Mppt
35 087,49 ₽ - 36 183,98 ₽

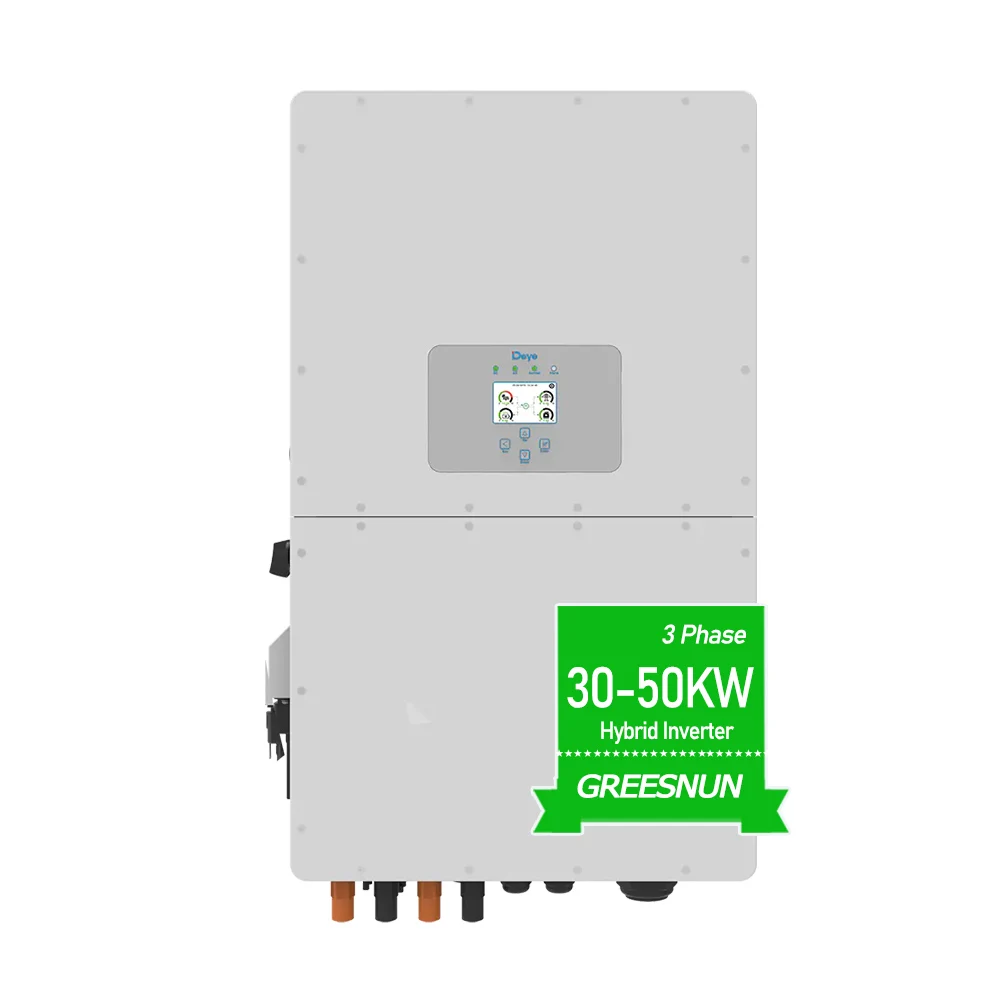

Deye 3-фазный гибридный солнечный инвертор 30 кВт 35 40 50 Инвертор солнечной энергии кВА
