Телекоммуникационная система солнечной энергии гелевая батарея 2v 6v 12v бесплатная услуга OEM предлагаемая дизайна покупателем этикетка предлагается 5 лет

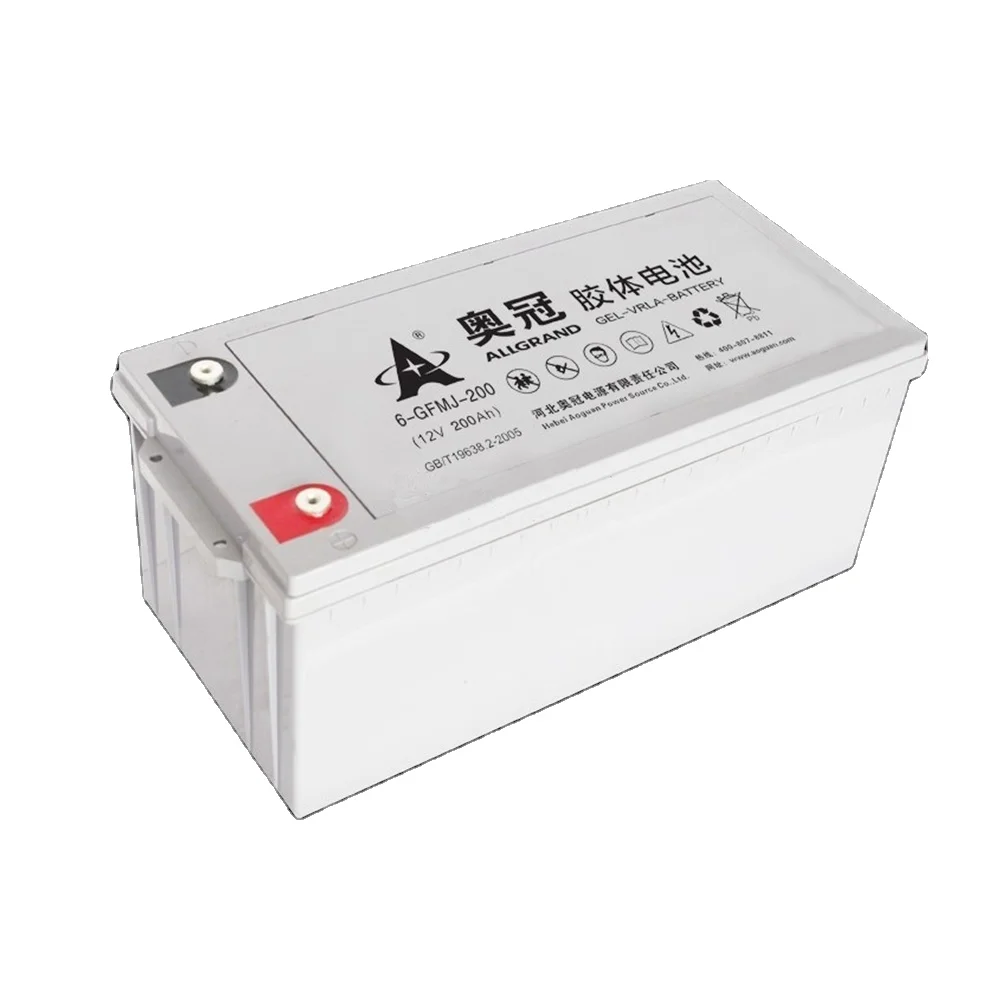

 12v 200ah GEL maintenance free storage battery for solar system, wind system

1. PARAMETERS

2. FEATURES

Long Shelf Life

A low self-discharge rate, up to approximately 3% per month, may allow storage of fully charged batteries

for up to a year, depending on storage temperatures, before charging becomes critical.

Deep Discharge Recovery

Special separators, advanced plate composition and a carefully balanced electrolyte system ensure that

the battery has the ability to recover from excessively deep discharge.

Low Pressure Valve Regulators

All batteries feature a series of low pressure one-way relief valves. These valves safely release any

excessive accumulation of gas inside the battery and then reseal.

High Discharge Rate

Low internal resistance allows discharge currents of up to ten times the rated capacity of the battery.

Relatively small batteries may thus be specified in applications requiring high peak currents.

Wide Operating Temperature Range

batteries may be discharged over a temperature range of -40°C to +60°C (-40°F to + 140°F) and charged

at temperatures ranging from -20°C to +50°C (-4°F to +122°F).

Rugged Construction

The high impact resistant battery case is made of nonconductive ABS plastic. The case materials impart

great resistance to shock, vibration, chemicals and heat. Flame Retardant (FR) battery cases and lids

are available where the end application dictates.

Long Service Life

Have a design life of up to 8 years in standby applications. In cyclical applications up to 1,000 charge/

discharge cycles can be expected depending on average depth of discharge.

3. Battery construction

4. Battery in manufacturing

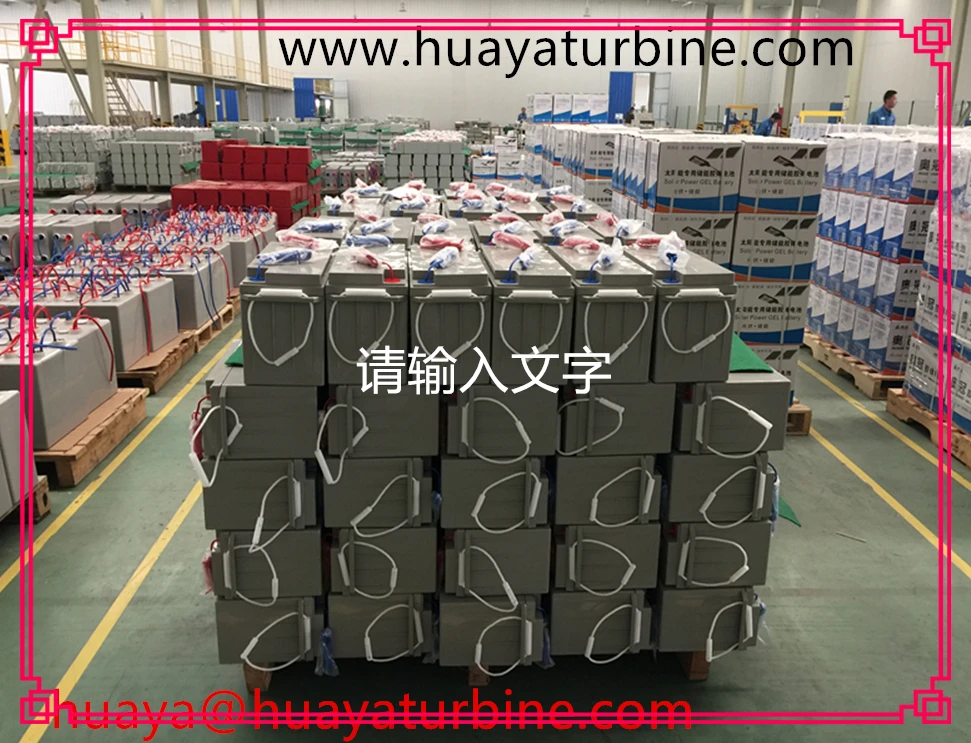

Battery in charging before packing

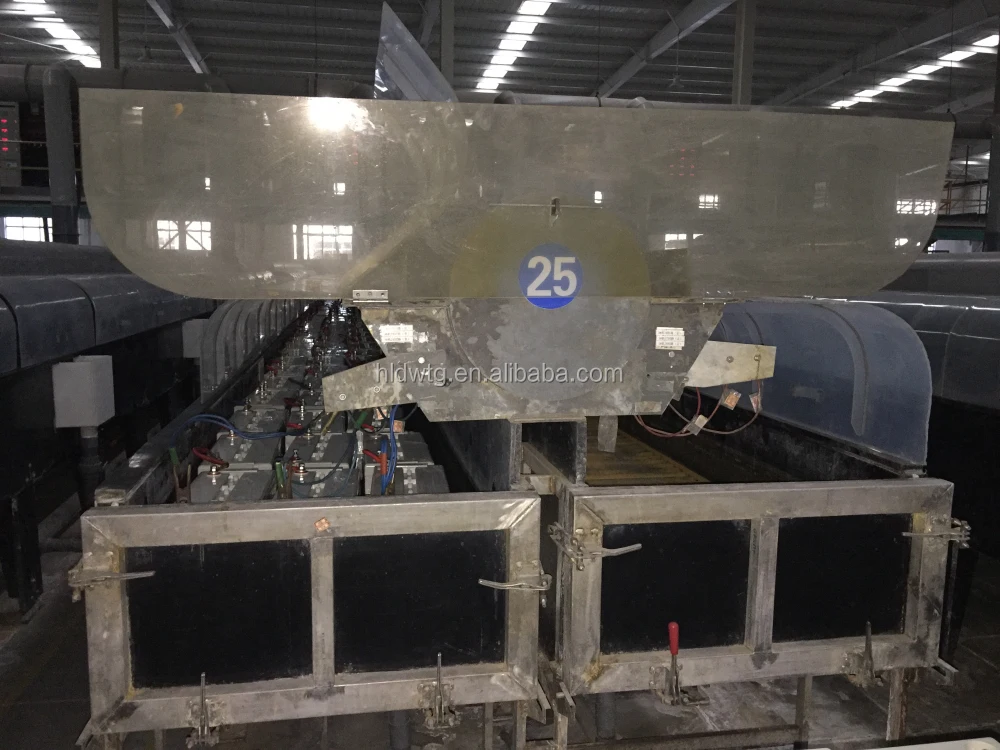

Battery in production line

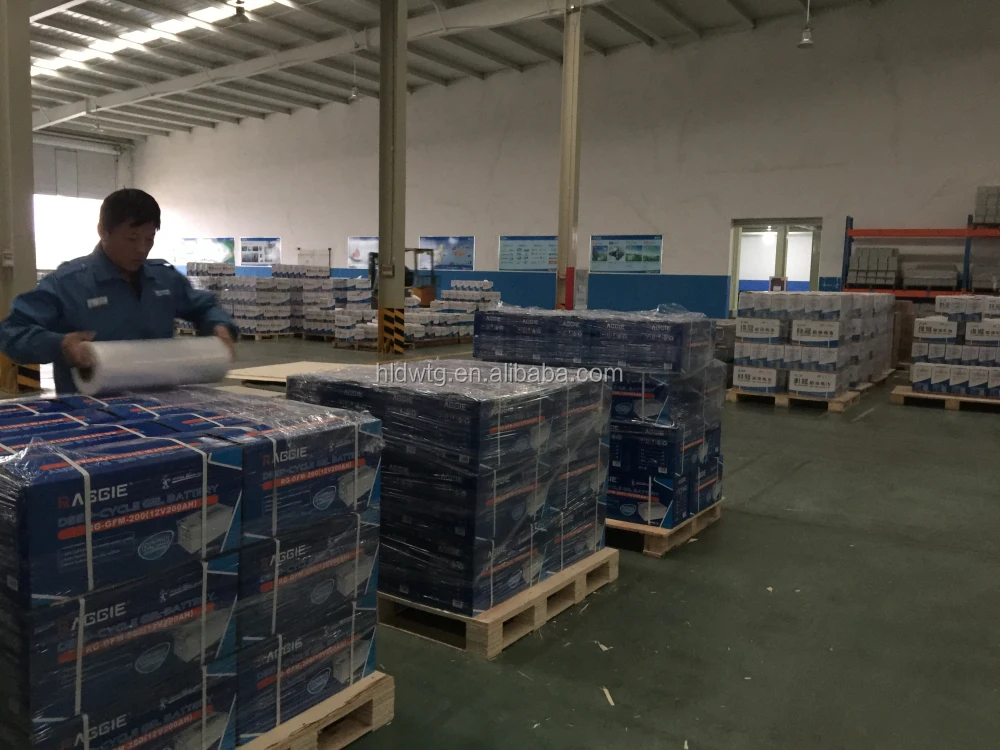

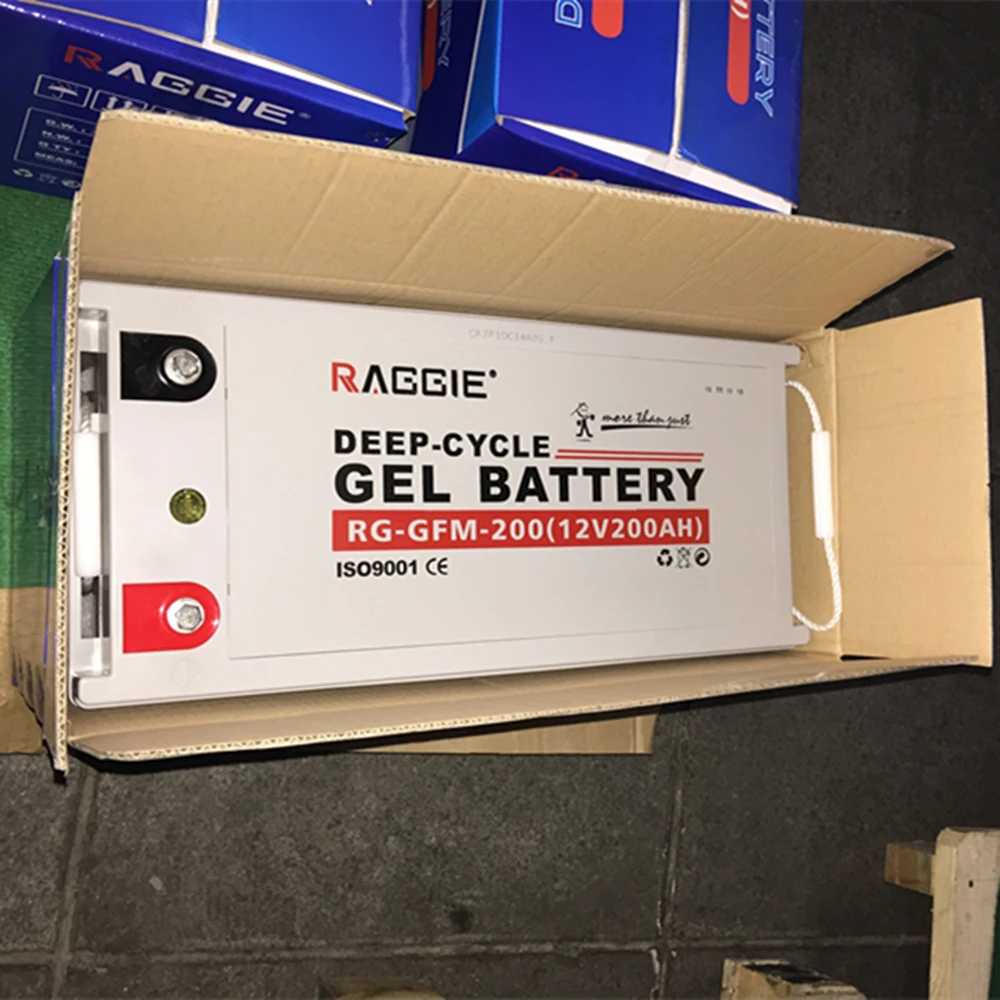

Battery in packing

5. GEL storage battery application

Wind power system off grid

Wind solar hybrid power system off grid

Solar power system

1 pcs battery packed in one carton

72 pcs in one pallat

OEM Service Offered

 Design Service Offered

 Buyer Label Offered

3 years guarantee

We started to manufacture wind turbine in 1994. In 2004, there are only 4 small wind turbine manufactures in China.

We keep improving and develop in the small wind turbine field. We are not the leading small wind turbine exporter,

but we are the leading wind turbine manufacture and designer now.

 We manufacture 300w-30kw fixed pitch wind turbine;

2kw, 3kw, 5kw, 10kw, 20kw, 30kw, 50kw, 60kw pitch controlled wind turbine;

1kw, 2kw, 3kw, 5kw Vertical axis wind turbine;

On grid system/off grid system, wind solar hybrid system; Water heating system;

For more details, pls contact with us via e-mail.

1. Wind turbine model selection

It depends your local annual average wind speed, daily/monthly home power consumption.

Low average wind speed place, select larger blades rotor, higher rated working voltage;

Rich wind place select speed limited wind turbine: variable pitch wind turbine, stall out vertical axis wind

 turbine.

The safety and steady working system is the first choice.

2. Wind turbine tower selection

Now we have guy wire tower, stand alone tower, tilting up tower, hydraulic tower.

Guy wire tower cost is lower, easy to delivery. But the installation area is larger;

Tilting up tower is for 500w-5kw wind turbine.  Easy installation, small installation area. But the delivery cost is higher.

Hydraulic tower: It is used for no crane place. Easy installation and put down. The cost is higher.

Stand alone tower for the installation place with crane.

The tower height:  Make sure blades rotor is higher than wind turbine surrounding barrier height.

3. Working system selection

On grid system: wind turbine with tower + PWM controller with dump load + grid tie inverter;

Off grid system: wind turbine with tower + PWM charge controller with dump load + battery group + inverter;

Wind solar hybrid on/off grid system: Safety and reliable than only wind or solar system.

Wind turbine water heating system: work in rich wind place. Average wind speed higher than 8m/s.

For more question, pls contact with us directly.  We will give you a professional response.

Why select us:

We are the wind turbine designer and manufacture. We know our wind turbine advantage and disadvantage

 in different wind condition.

I have more than 10 years wind turbine sales experience. We provide the right wind turbine and working

system to different user according to their different situation and request.

In 2004, there are 4 small wind turbine manufacture. Now there are so much trading company and

manufacture, we know Chinese small wind turbine market well and can provide user more useful advise.
