Product Description
Punching hole shutter door machine | rolling shutter door machine | garage door end slat Rolling shutter door machine roller shutter door frame making machine
industrial garage door rolling shutters slats forming machine China good Supplier Roller Shutter Door Rolling Forming Machine
We are the professional shutter door roll forming machine manufacturer in China, we ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common shutter door rolling thickness from 0.7-1.2mm, material use PPGI or GI. Size can customize as customer's need.
Machine spections
Working flow of China good Supplier Roller Shutter Door Rolling Forming Machine
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
| Part details | Item Name | Specification |
| Material | Raw material | Galvanized steel |
| Thickness | 0.8-1 mm | |
| Puncher | Weight capacity | 25 T |
| Machine | Roller station | 14 |
| Shaft diameter | 55 mm | |
| Shaft material | 45# steel with 0.05mm chrome | |
| Roller material hardness 30-40 HRC | Cr 12 | |
| Machine size | About 4.5×0.8×1 m | |
| Machine weight | About 1.5 ton | |
| Machine color | As customer' request | |
| Working speed | 8-20 m/min | |
| Cutter | Hardness | 50-65 HRC |
| Cutting tolerance | ± 1 mm | |
| Material | Cr 12 | |
| Operate | Hydraulic cutting | |
| Power | Driving way | Chain 1 inch |
| Main power | 4 kw | |
| Pump power | 3 kw | |
| Voltage | 380v/50HZ,3P or customize as customer' request | |
| Control system | PLC brand | Delta made in Twaiwan |
| Screen | Touchable screen | |
| Language | Chinese and English or add language as customer need | |
| Decoiler | Operation | Manual |
| Weight capicatity | 3 ton | |
| Price | Free as gift | |
| Receiving table | Operation | Manual |
| Length | 3 m | |
| Price | Free as gift |
Details Images of China good Supplier Roller Shutter Door Rolling Forming Machine

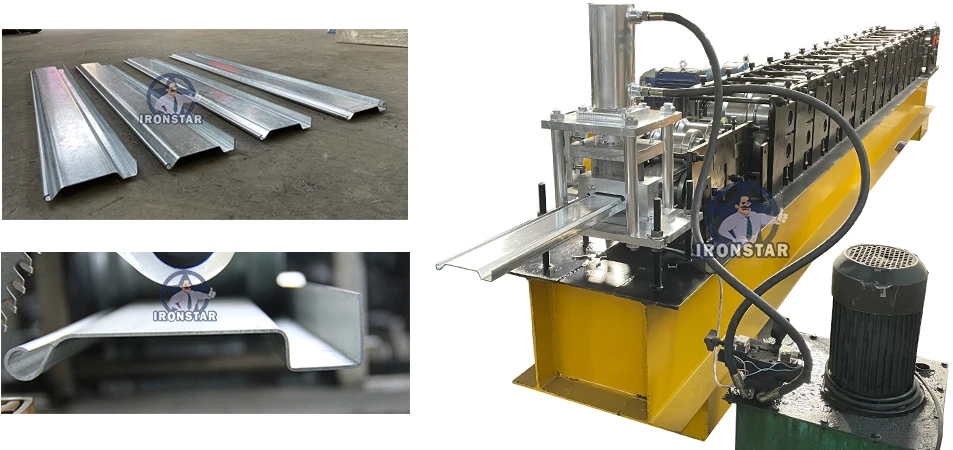

hydrualic cutter, plc touch screen panel , electric box, motors of
China good Supplier Roller Shutter Door Rolling Forming Machine

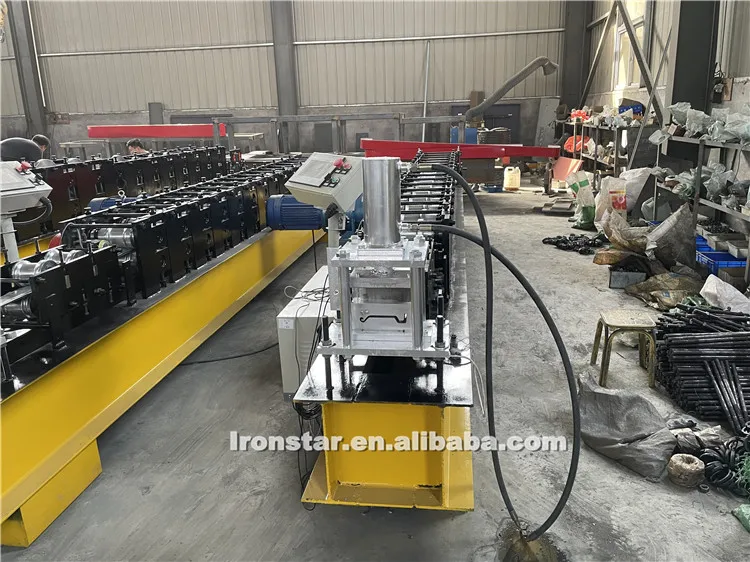

feeding part, roll forming rollers, steel frame of
China good Supplier Roller Shutter Door Rolling Forming Machine

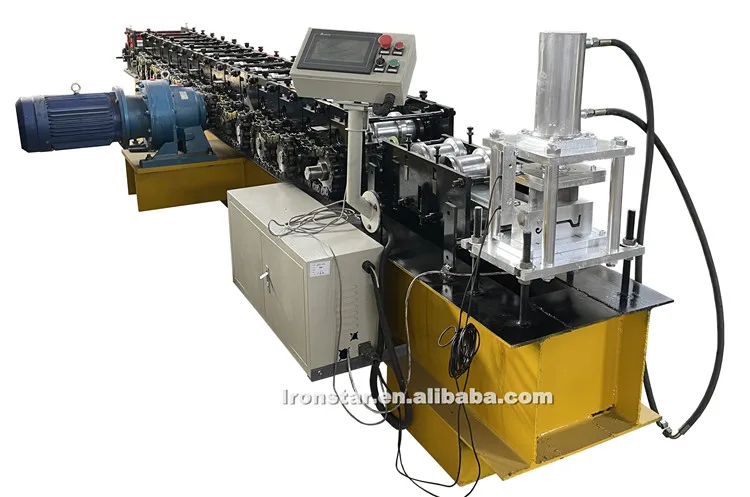

hydraulic cutter of
China good Supplier Roller Shutter Door Rolling Forming Machine
rolling forming part of
China good Supplier Roller Shutter Door Rolling Forming Machine

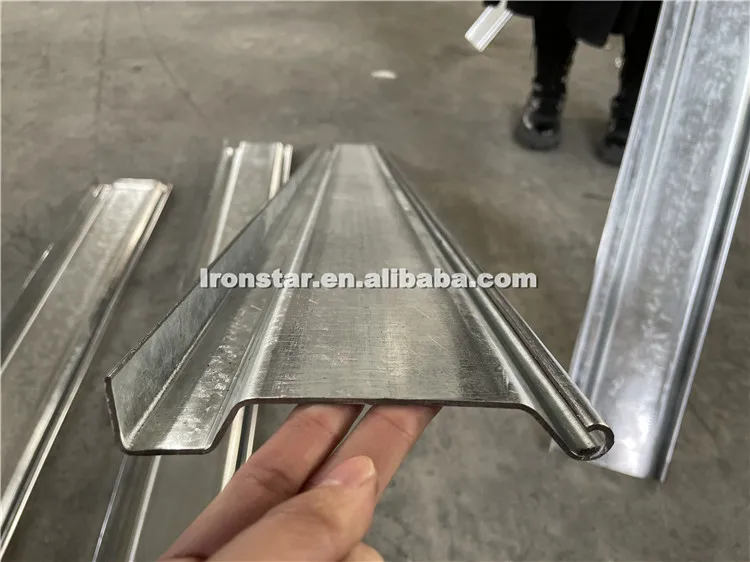

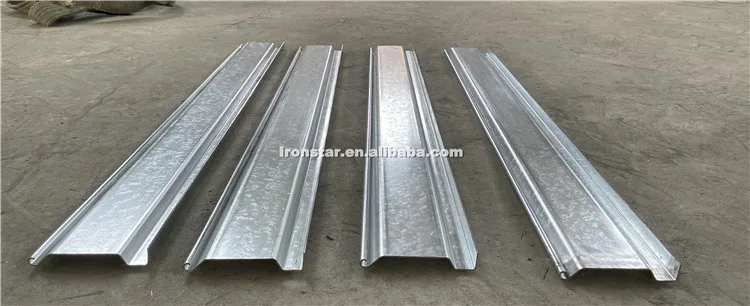

Other profile design or machine colors are customized
Machine Videos etc.
Contact Nona to get more videos and details of this China good Supplier Roller Shutter Door Rolling Forming Machine and other roll forming machines.
More for you choose
1. Shutter door roll forming line
Shutter door machine | rolling shutter machine | rolling shutter strip making machine
We are the professional shutter door roll forming machine manufacturer in China, we ship shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common shutter door rolling thickness from 0.7-1.2mm, material use PPGI or GI. Size can customize as customer's need. Machine details show below:
2. U guide rail shutter roll forming machine
U guide rail roll forming machine machine | slide rail forming machine | shutter door track machine
We are the professional u guide rail roll forming machine manufacturer in China, we ship u guide rail roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common u guide rail rolling thickness from 1-2 mm, material use galvanized steel. Size can customize as customer's need.
3. Door frame roll forming machine
Door frame roll forming machine | steel door frame bending machine | window frame making machine
We are the professional door frame roll forming machine manufacturer in China, we ship door frame roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common door frame rolling thickness from 1-2 mm, material use galvanized steel. Size can customize as customer's need.
4. Austria shutter door roll forming machine
Austria shutter door roll forming machine | Austria shutter door machine | Austria shutter former
We are the professional Austria shutter door roll forming machine manufacturer in China, we ship Austria shutter door roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common Austria shutter door rolling thickness from 0.3-0.6 mm, material use PPGI. Size can customize as customer's need.
5. Austria shutter door seaming machine
Austria shutter door seaming machine | shutter door seaming machine | slat door bitten machine
We are the professional Austria shutter door seaming machine manufacturer in China, we ship Austria shutter door seaming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Oman etc. Common shutter door rolling thickness from 0.3-0.6 mm, material use PPGI. Austria shutter door seaming machine common length include 4m, 6m, 8m long, size can customize as customer's need.
Company Information
Tianjin Ironstar Industry Co., ltd is one professional roll forming machine manufacturer with 26 years working experience and 400 workers provide service for you. Products mainly include: of China good Supplier Roller Shutter Door Rolling Forming MachineTrapezoidal steel roof/wall panel roll forming machine, Glazed metal tile roofing roll forming machine, C U channel roll forming machine, Angle bead light keel roll forming machine, Omega truss roll forming machine and T bar roll forming machine, roll up Shutter slat door roll forming machine, door frame roll forming machine, C&Z shape interchangeable roll forming machine, Cap ridge roll forming machine, water gutter roll forming machine, metal sheet cutting machine, metal sheet bending machine for door frame or gutter, metal sheet slitting machine, metal roof or wall board curving machine, metal floor deck roll forming machine, and etc. Roll forming machines above can be customized according to your demands.
We machine sell
FAQ
1. Q: How to visit our company to see our China good Supplier Roller Shutter Door Rolling Forming Machine and other roll forming machines:
A: Fly to Beijing Airport: By fast train From Beijing South station to Cangzhou west station(1hour), then we can pick up you to factory(40min).
A:Fly to Shanghai Airport: By fast train From Shanghai Hongqiao station to Cangzhou west station(4.5 hours), then we can pick up you to factory(40min).
2. Q: What should I provide if I want to customized machine?
A: U need provide profile drawing, material, thickness, voltage and your special requirements.
3. Q: What is the Warranty?
A: Within 24 months, all technical staff are ready to serve you at any time.
4. Q: What can you do if the machine broken?
A: Our machine's warranty period is 24 months, if the broken parts can't repair, we will send new parts replace the broken parts free, but you need pay the express cost if after warranty period. we can negotiate to solve the problem, and we supply the technical support for whole life of equipment.
5. Q: If need technician to workshop to debug and teach, how to do?
A: We sent technician to your country to fix the machine. Buyer should bear cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 100 USD/day.
