Model No. | Body Dimension (L*W*H) | Total Dimension (L*W*H) | Axis | Brake | |||
WK-300RE | 300*210*210cm | 350*210*250 cm | one | no | |||
WK-350RE | 350*210*210cm | 450*210*250 cm | two | yes | |||

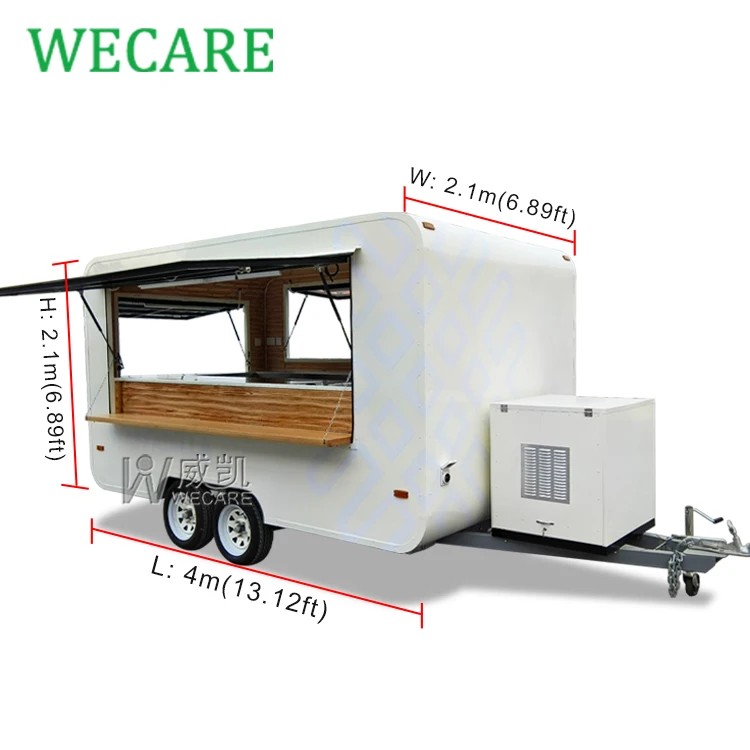

WK-400RE | 400*210*210cm | 500*210*250 cm | two | yes | |||
WK-500RE | 500*210*210cm | 580*210*250 cm | two | yes | |||
WK-600RE | 600*210*210cm | 700*210*250 cm | two | yes | |||
More custom sizes |
Chassis | Integral steel frame construction: square tube :100*50*4mm + 60*40*2mm |
Suspension components: 5-leaf springs with axle; treated with rust resistant protective coating | |
Standard speed(Kilometer/hour): 40KM/H. Special made chassis is optional for higher speed (80-100KM/H) | |
Body | Wall frame is welded by square tubes: 40*60*2mm |
external wall is high quality galvanized sheet with colorful painting.(contact us for the color book) | |
middle layer is 5cm heat insulation | |
internal wall is High quality stainless steel | |
one selling window available in front, normial size is 2000*1100mm. Other window size is available. | |
with waterproof sealing strip | |
Electric accessories | General control, automatic power failure protector |
Two rows of led spotlights on the ceiling and selling window | |
All standard sockets,quantity as needed | |
high visibility tail light signal system.(brake, turn, back) | |
Floor | 3 layers: 2mm non-slip embossed aluminum + 10mm plywood or pvc +1mm galvanized sheet |
Wheel | double axles(four wheel); 14 or 15 inch tires; one guide wheel |
Water sinks | Double sinks with hot and cold water taps. 3 compartment sink is optional |
A fresh water tank, a waste water tank (25L/tank standard). Other capacity tank is available. | |
12V mini water pump | |
on/off control switch |
