Считыватель карт Mifare для городского автобуса RFID системы оплаты проезда с оборудованием и программным обеспечением

Считыватель карт Mifare для городского автобуса RFID системы оплаты проезда с оборудованием и программным обеспечением

Категория: >>>
Поставщик: Shenzhen Cardlan Technology Co. Ltd

Цена:27 552,10 ₽ - 38 572,94 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Application

Unattended payment terminal android nfc reader with bus ticket scanners

Support RFID card, CPU card, Mifare classic

mifare desfare card etc;

Support GPRS, WIFI wireless communication etc.

Can be used for electronic payment or card validation.

It can be used in Scenic spots/amusement park card payment

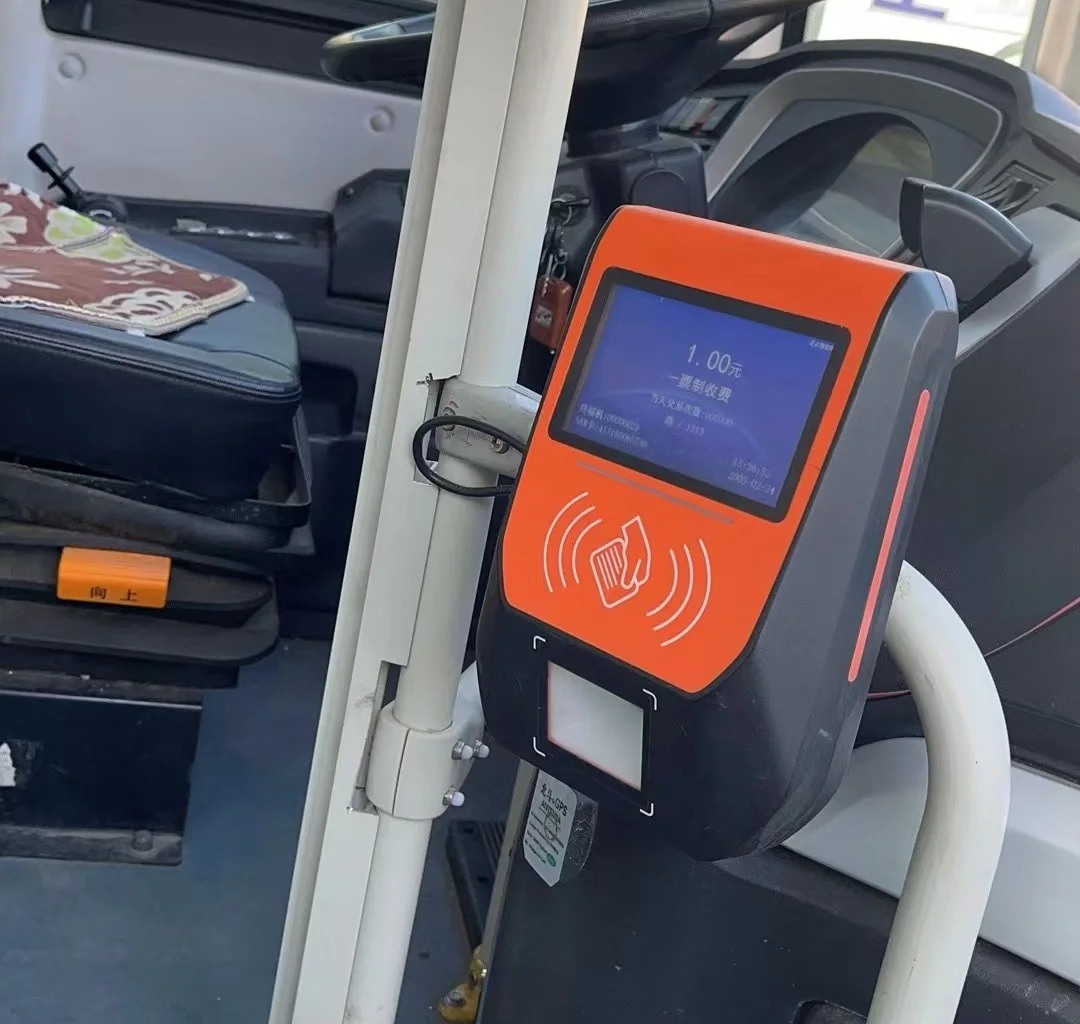

Application for Public transport fare collection

with following advantages:

1.Improving passenger onboarding efficiency;

2.Saving labor cost;

3.Provid more convenient and mobility for bus company to management;

4.Easy to install and maintenance;

5.Enter into mobile payment new era;

1.Support wireless communication;
2.Support data real time uploading or USB local data collection;
3.Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
4.Support GPS positionning and stop announcement;

Best choice for Safety school bus system

1.Support consumption details and statistics query, according to card No., time, operator No., etc.

2.Dustproof&waterproof IP54,Anti impact IK8 protection;

3.With External USB keyboard support different consumption amount setting.

Can be used for membership clubs/loyalty programme.

Product Description

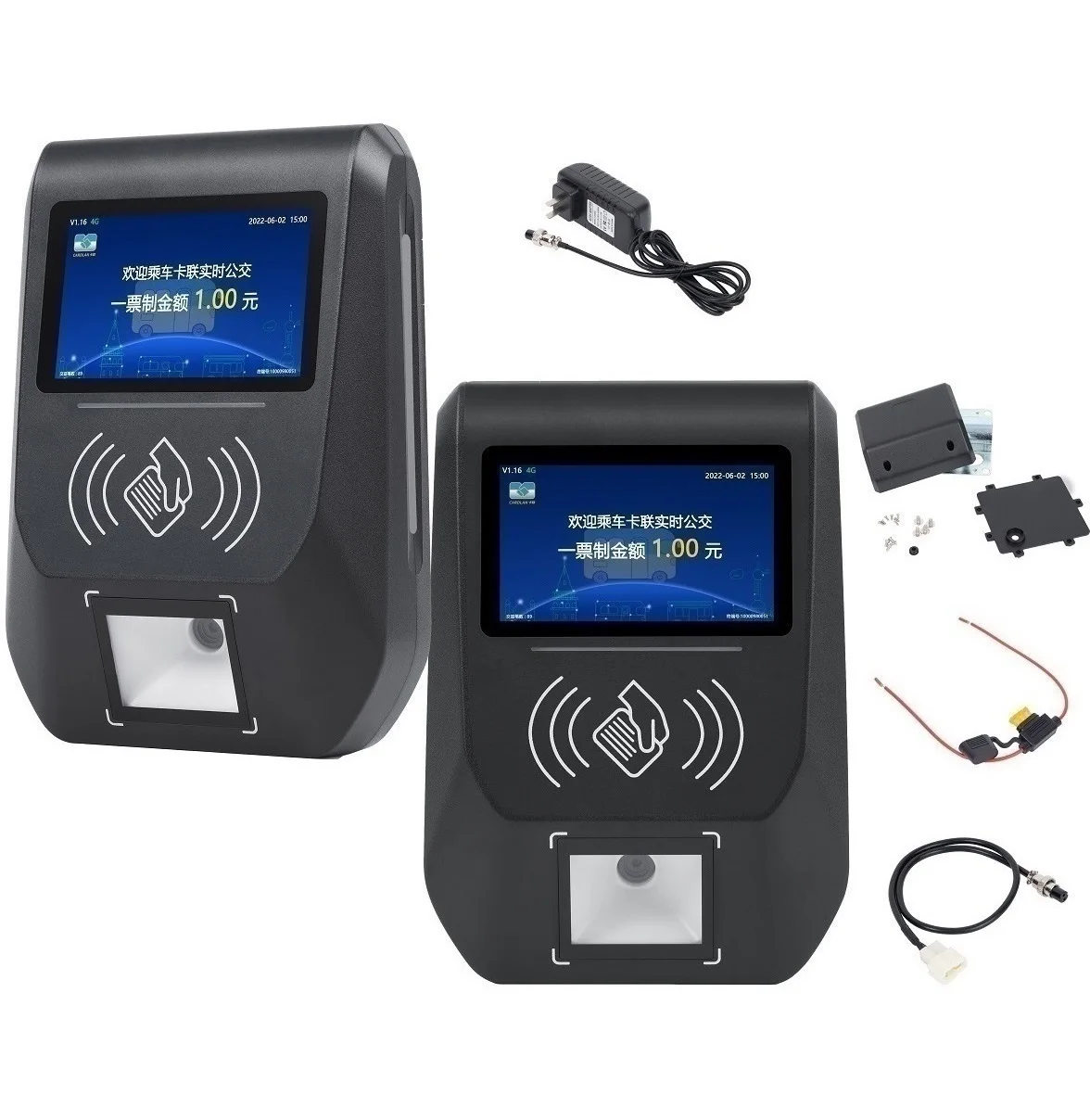

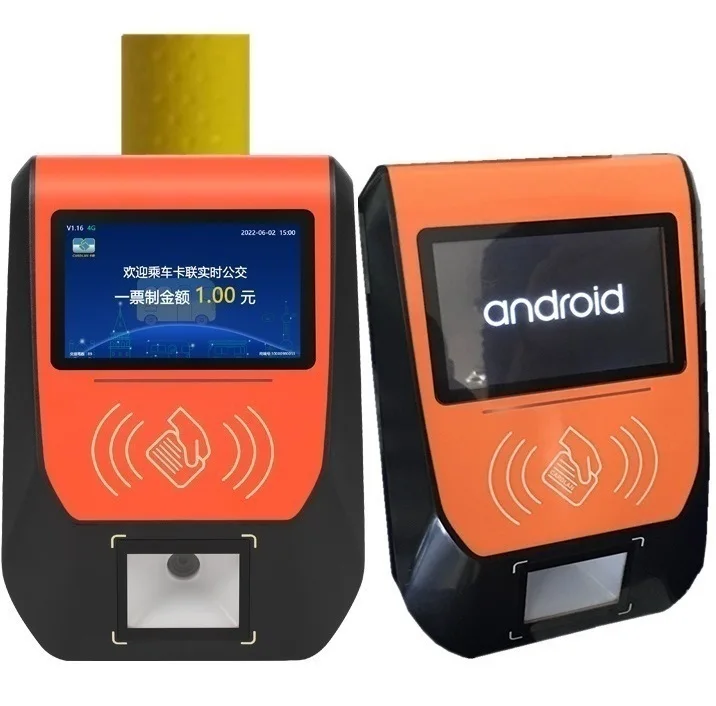

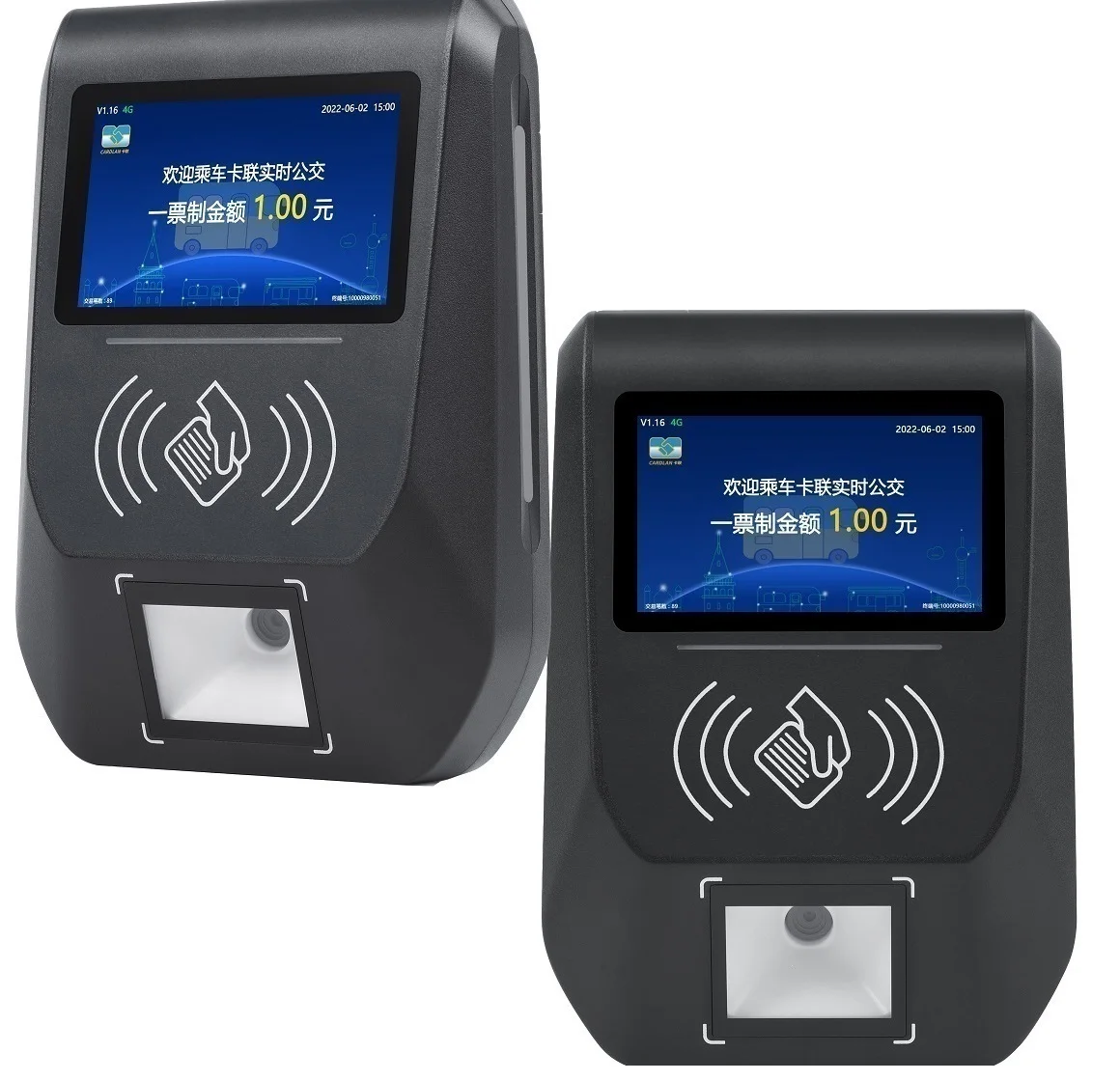

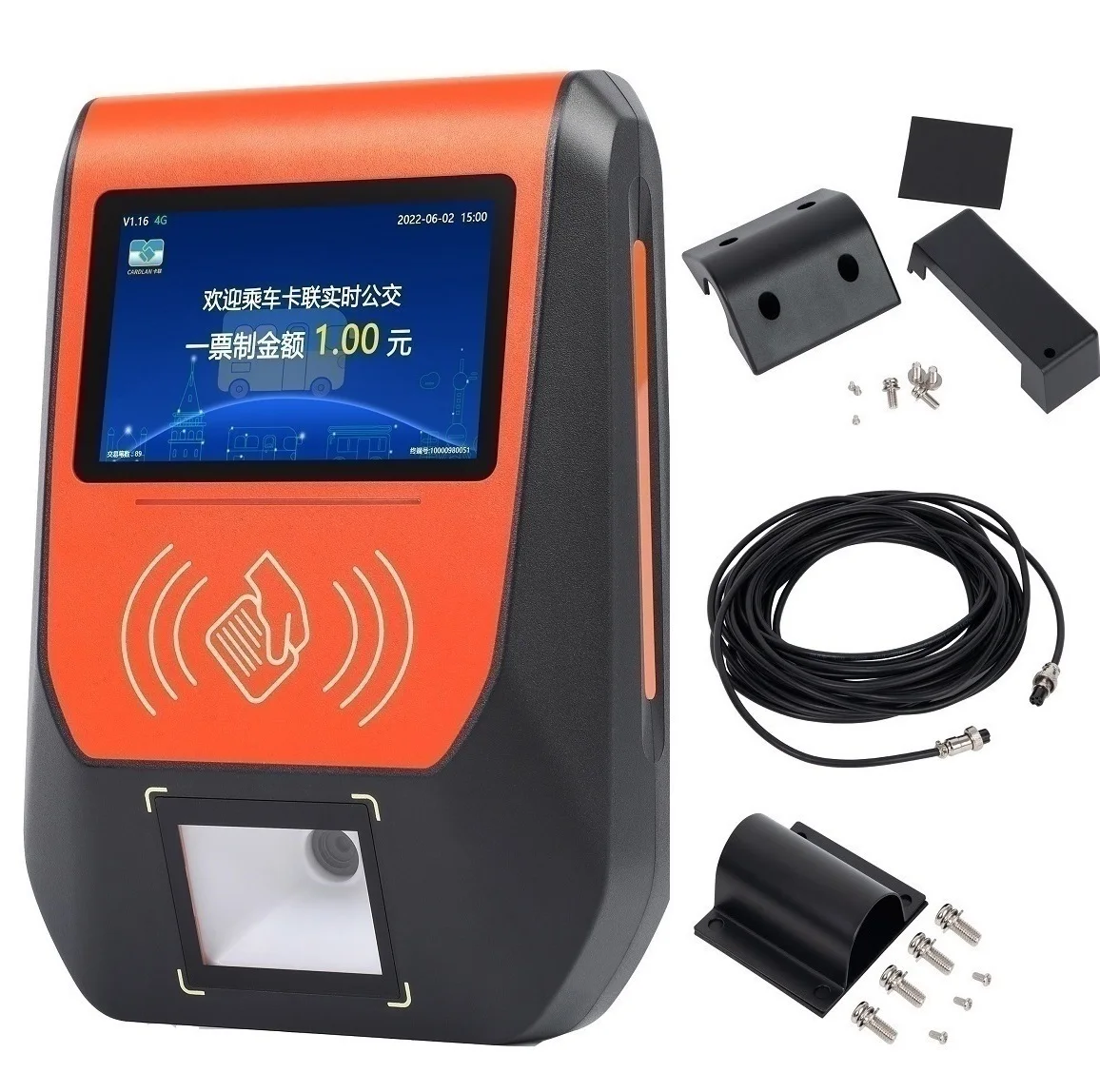

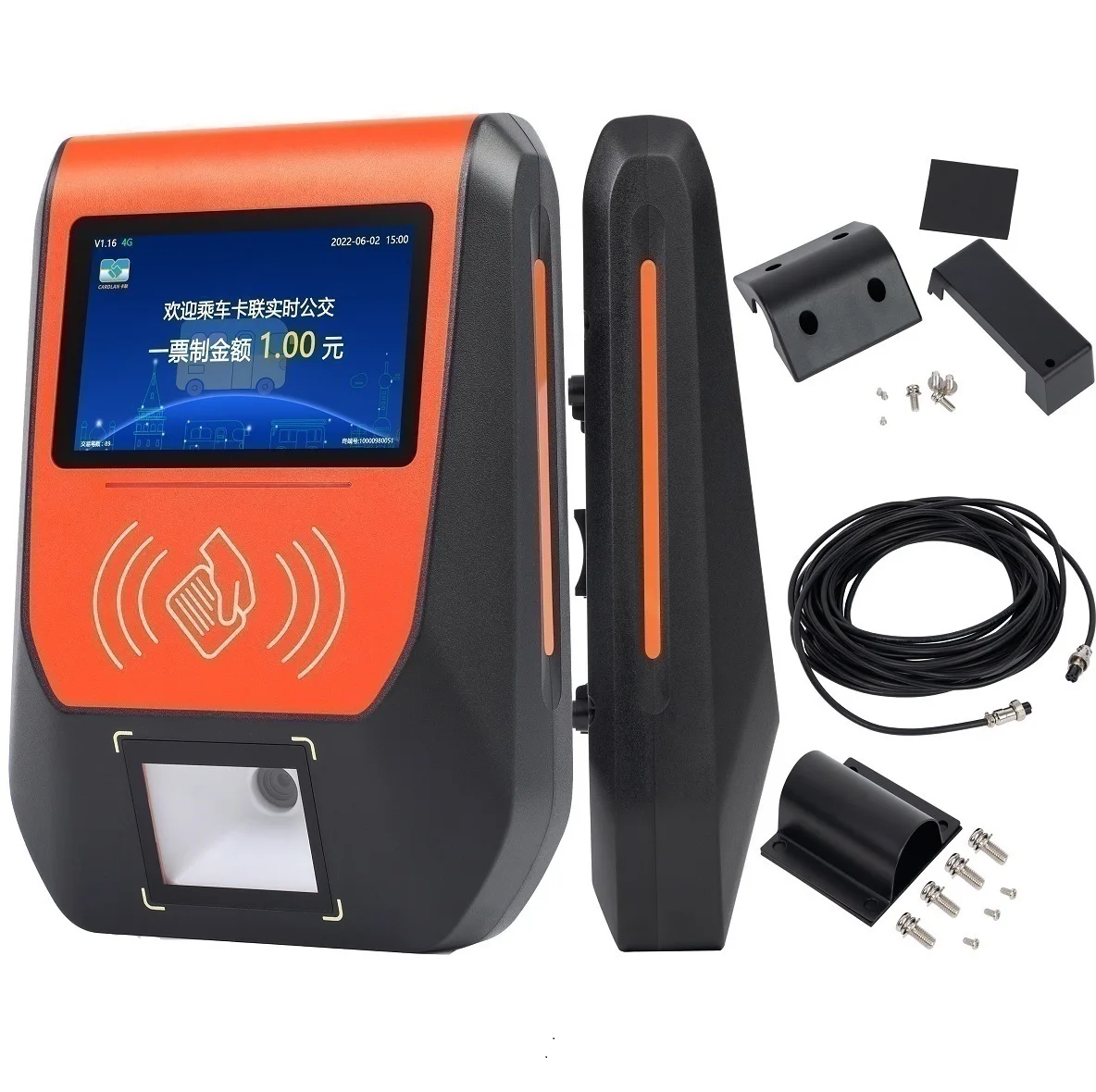

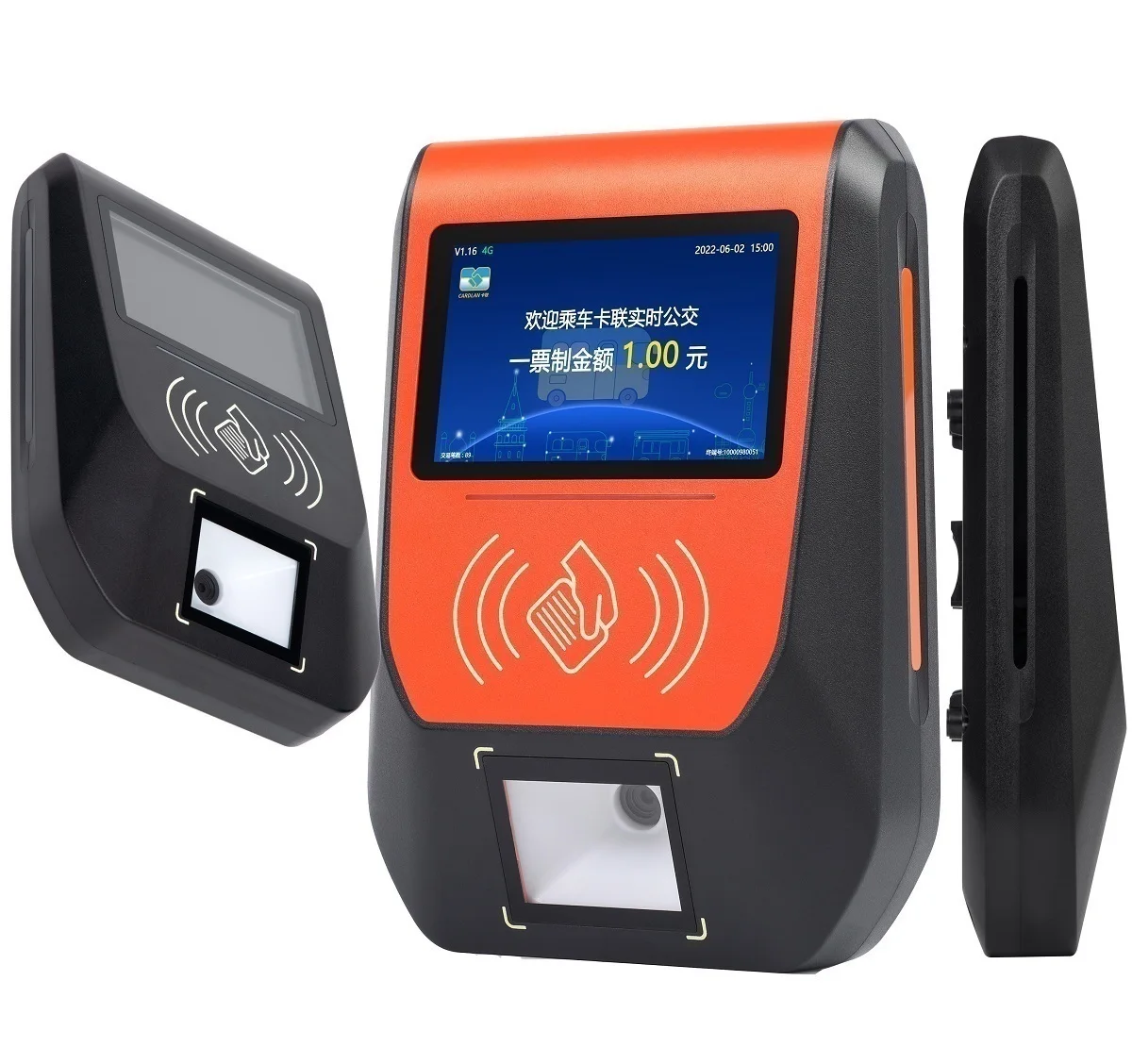

Smart Bus Validator	CL-A0618K	Operating System	Android 13
CPU	Quad-core 64-bit Cortex-A53 processor, main frequency up to 2.0GHz	Data storage	eMMC 16G(default),Max support 128G TF card
Working temperature	-25℃~65℃	Housing material	240x170x74.7mm
Display	5.1 inch TFT-LCD,800*480	Scanning	Wide angel/QR /customized
Scan distance	0CM -15CM
Data capacity	more than 2 million detailed data for console storage, extensible	Communication interface	USB-HOST,USB-OTG,HDMI,RS485 and TTL-232 optional
Support card type	MiFare Classic, MiFare Desfire, support CPU card	Card capacity	5 million pcs
Working frequency	13.56Mhz	Reading distance	0~50mm
RFID support standard	ISO-14443 Type A/B	Printing module	Support external POS58printer (need 5pinaviation plug turn DB9 cable)
Position way	GPS,beidou \t(optional)	Working mode	Stand-alone or connect to server
Power consumption	≤10 W	Wireless communication	2G,3G,4G
Warning function	Warning when card balance is insufficient or data memory is full	Data collection mode	2G,3G,4G and USB collection,WIF and bluetooth optional

Detailed Images

Product certificate

Our Company

Shenzhen Cardlan Technology Co., Ltd (Be short for: Cardlan) was established in 2006,

with registered capital of 10 million RMB, located in Shenzhen, China.

We belong to national high-tech enterprises, double soft certified enterprise and the first batch of national MOHURD Interconnection certified enterprises.

Our high-tech business structure is Hardware + SW + Network, we are engaged in developing, manufacturing and selling Smart City All-in-one system and matched high quality hardware devices.

Cardlan is one of the earliest members on developing RFID IC card system throughout China and Asia. Adhering to the management spirit of Wisdom Creates Value, Quality Wins Respect, Cardlan is committed to technology innovation and developing of informatization industry, trying to build an international brand for Smart City all-in-one system.

YOU ARE WELCOME TO CONTACT US FOR ANY SOLUTION ANYTIME!

We welcome software/engineering company to inquiry our hardware and SDK to develop your own system and applications.

We can also provide a complete set of system including hardware and software to meet customers' different requests.

For Operating system, We have Android and Linux OS for option depends on customers' demand.

We can also send our after-sales engineer team to your country for device installation and problem shooting.
