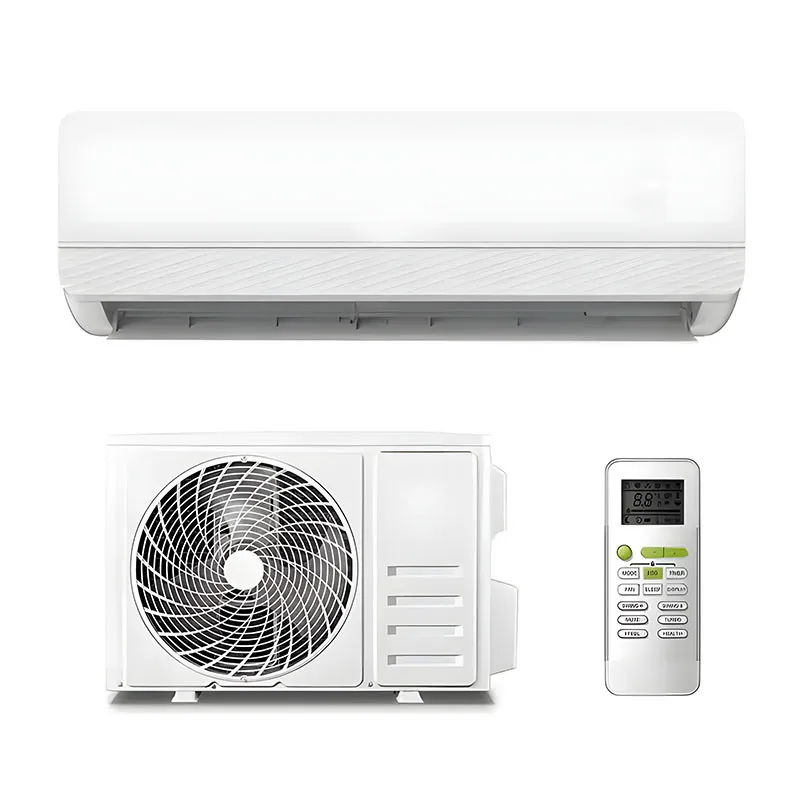

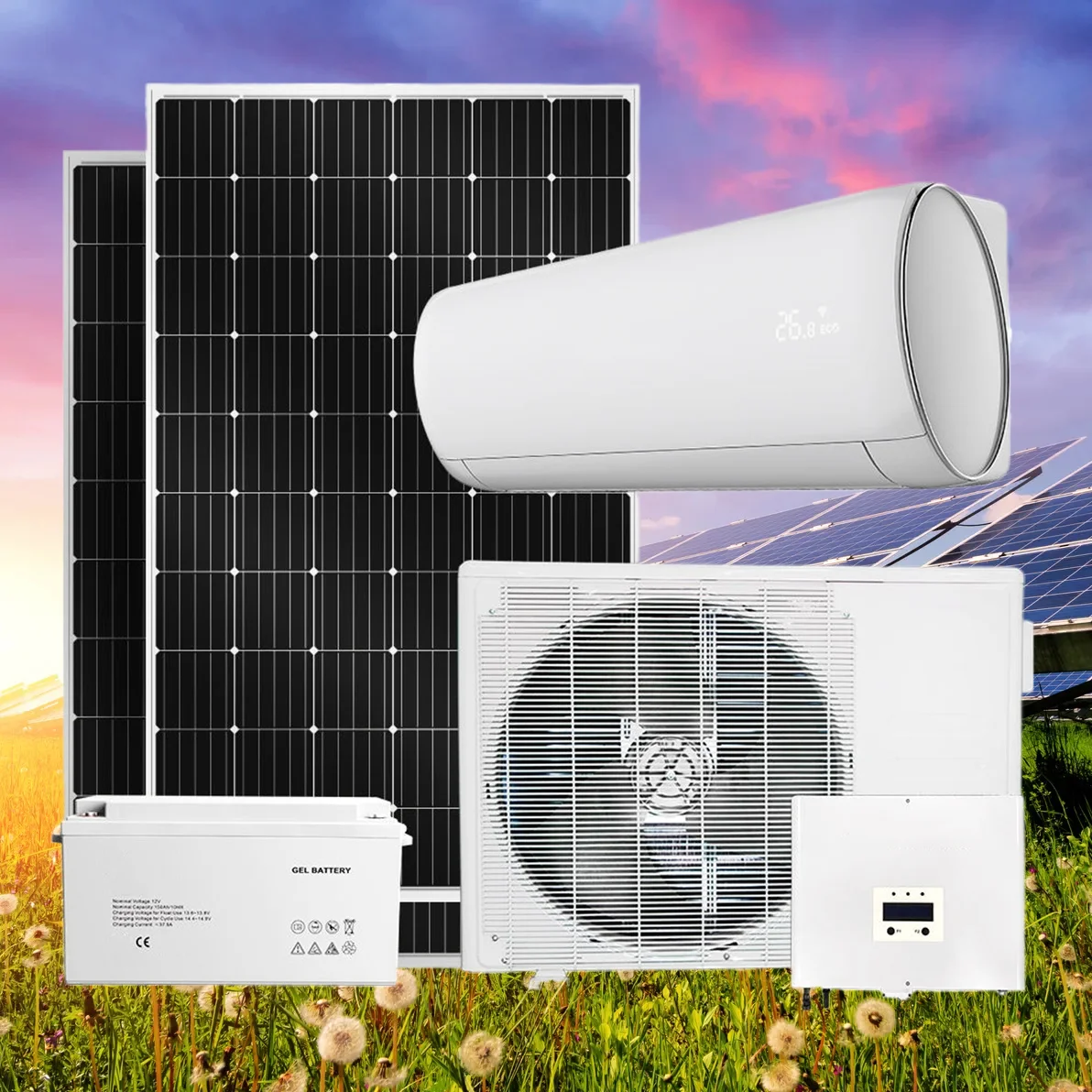

Кондиционер на солнечной батарее переменного тока DC Гибридный 18000btu 2 л.с. сплит блок с системой питания
- Категория: >>>
- Поставщик: Haining Fadi Solar Energy Co. Ltd.
Сохранить в закладки 1601194898819:
Описание и отзывы
Характеристики
Product Description
Model | FD-ON/52GW | |
Capacity | 18000Btu | |
Power Supply | ||
AC Power (Ph-V-Hz) | 1Ph 208V-240V/50-60HZ | |
DC Power (PV in Series) (V) | 80-380V | |
DC Power Current (A) | ＜/=12A | |
Rated Cooling | ||
Capacity (W) | 5070(1200-6000) | |
Power input (W) | 1400(220-2100) | |
Rated Heating | ||
Capacity (W) | 6100(1200-6800) | |
Power input (W) | 1770(220-2500) | |
T1 EER (W/W)/(BTU/W) | 3.60/12.35 | |
COP (W/W)/(BTU/W) | 3.45/11.75 | |
Dehumidification capacity (L/h) | 1.7 | |
Compressor | ||
Type | 2xRotary Inverte | |
Brand | Highly | |
Indoor noise level (Turbo)(dB(A)) | 46 | |
Indoor unit | ||
Dimension(W×H×D)(mm) | 1080×330×237 | |
Packing(W×H×D)(mm) | 1140×300×382 | |
Net weight/Gross weight(kg) | 15.0/18.5 | |
Outdoor noise level (dB(A)) | 55 | |
Outdoor unit | ||
Dimension(W×H×D)(mm) | 802×564×323 | |
Packing(W×H×D)(mm) | 910×622×405 | |
Packing(W×H×D)(mm) | 37/42 | |
Refrigerant type | R410A | |
Max Design pressure(MPa) | 4.3/1.5 | |
Refrigerant copper pipe | ||
Gas side/Liquid side (inch) | 1/2 1/4 | |
Max.refrigerant pipe length(m) | 20 | |
Max.difference in level(m) | 10 | |
Refrigerant connction copper pipe length(m) | 4 | |
Connection wire length(m) | 5 | |
Electronic Expansion Valve | Yes | |
Loading QTY 40”Hq/20"GP(sets) | 160/75 | |
Adviced Solar Panel(Pcs) | (3-6)*330W in series | |
How It Works

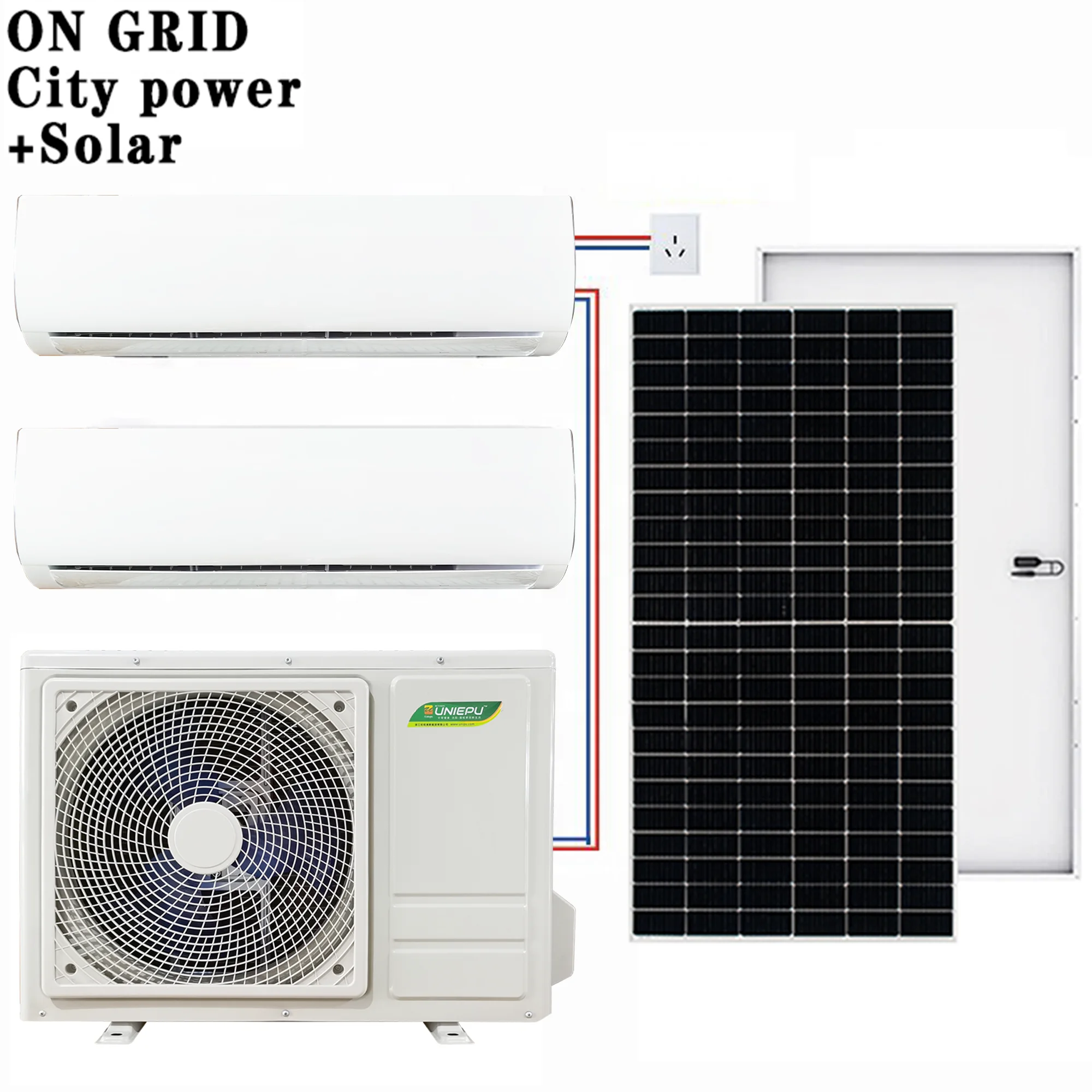

AC/DC Hybrid Solar Air Conditioner
100% DC Inverter = No Wasted Energy
1.9,000, 12,000 18,000, 24,000 BTU Capacity
2.All DC = No Inverter.
3.48v Solar Power
4.Cool or Heat up to 250 ft^2
5.Variable Capacity
6.Anti-Corrosion Technology
7.Eco-Friendly R410a Refrigerant
8.Washable Filters
9.Digital Wireless Remote
10.Quiet Indoor Unit(As Low As 26dB)
1.9,000, 12,000 18,000, 24,000 BTU Capacity
2.All DC = No Inverter.
3.48v Solar Power
4.Cool or Heat up to 250 ft^2
5.Variable Capacity
6.Anti-Corrosion Technology
7.Eco-Friendly R410a Refrigerant
8.Washable Filters
9.Digital Wireless Remote
10.Quiet Indoor Unit(As Low As 26dB)
Saolar Panel
Module Type FAD-72L9
1.Maximum Power (Pmax):450
2.Open-circuit Voltage (Voc):49.30
3.Maximum Power Voltage (Vmp):42.11
4.Short-circuit Current (lsc):11.35
5.Maximum Power Current (lmp):10.69
6.Module Efficiency (%):20.70
7.Weight:23.5kg
8.Dimension (L×WxT):2094*1038*30mm
Accessories (optional)

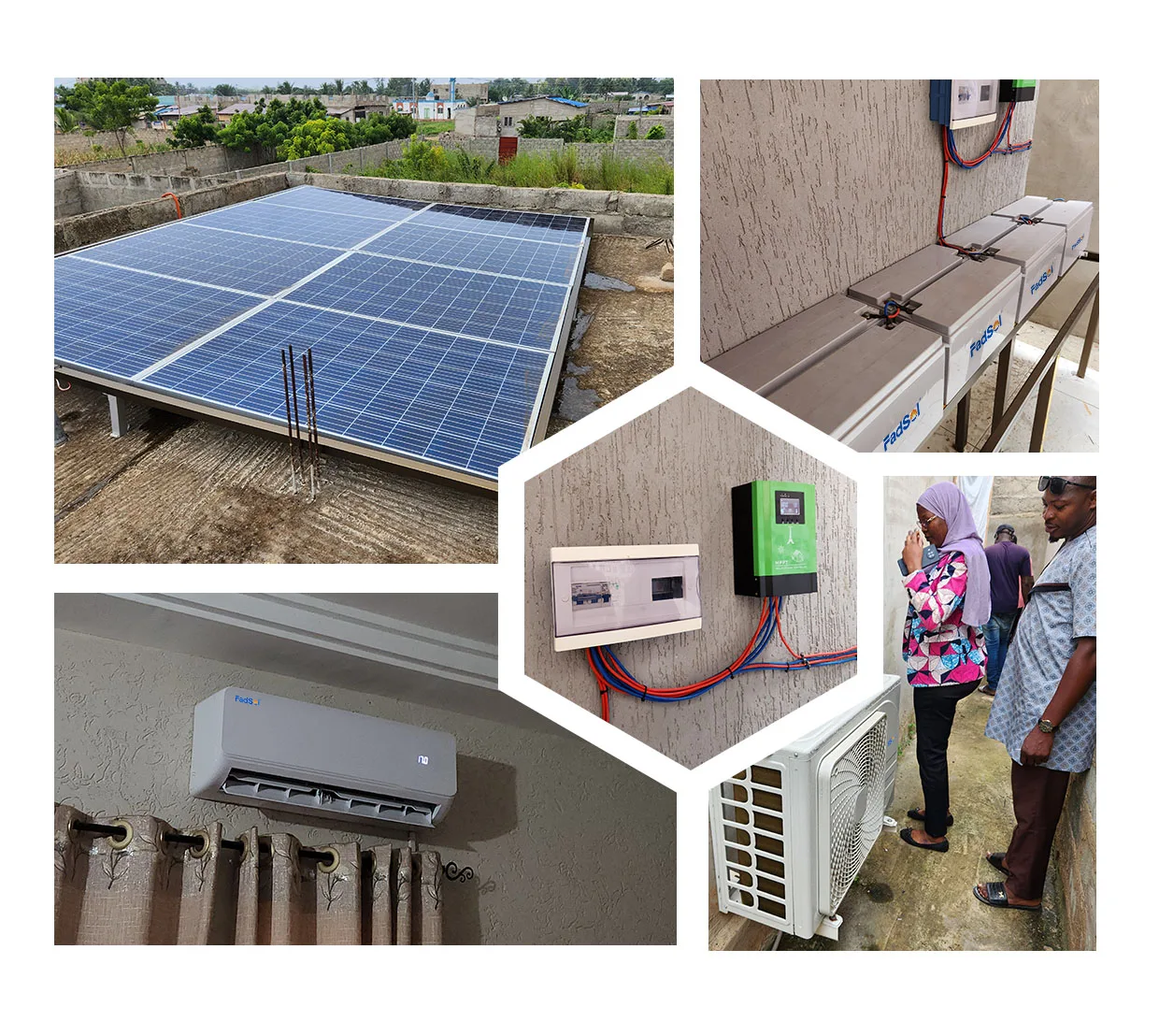

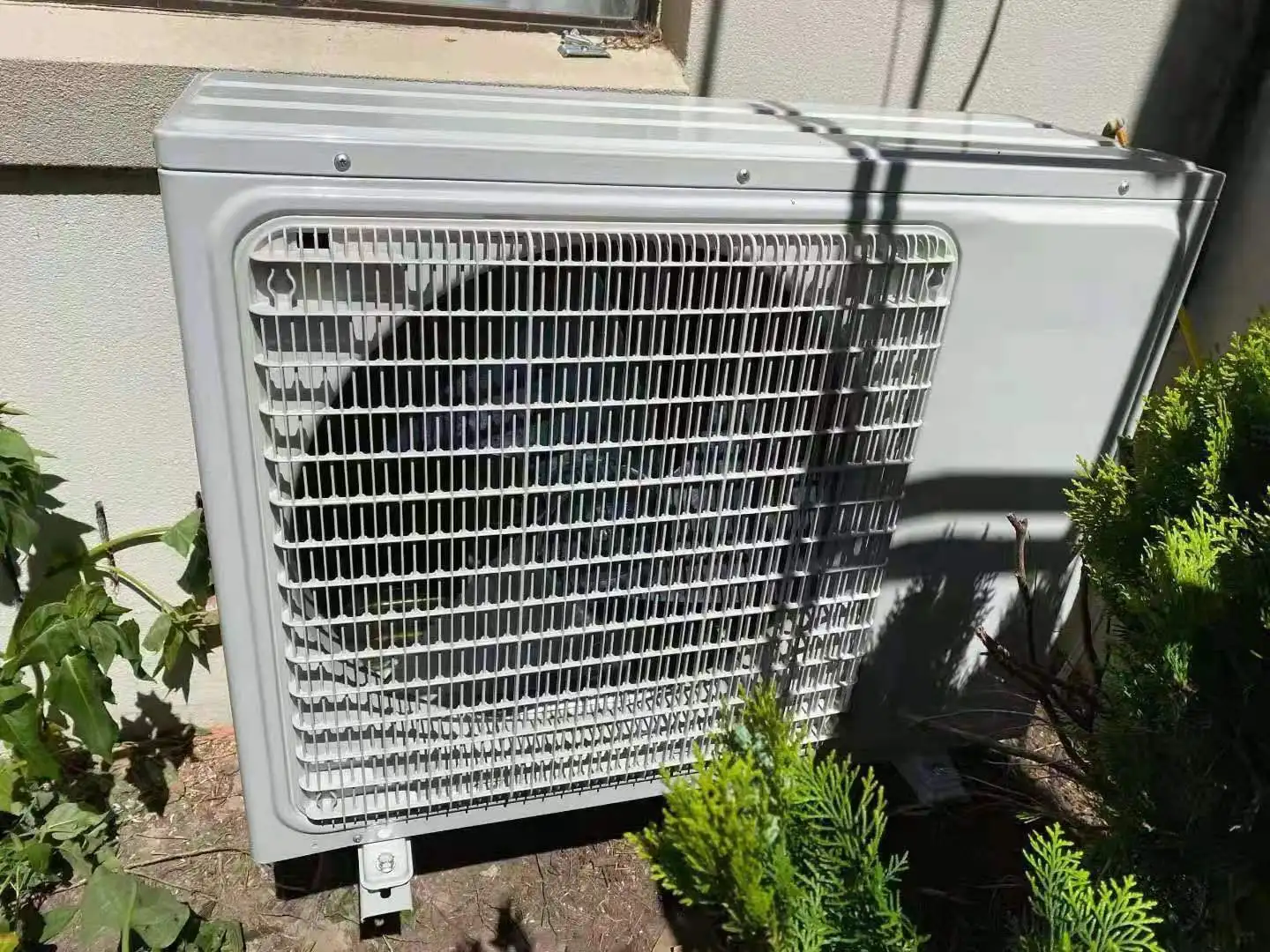

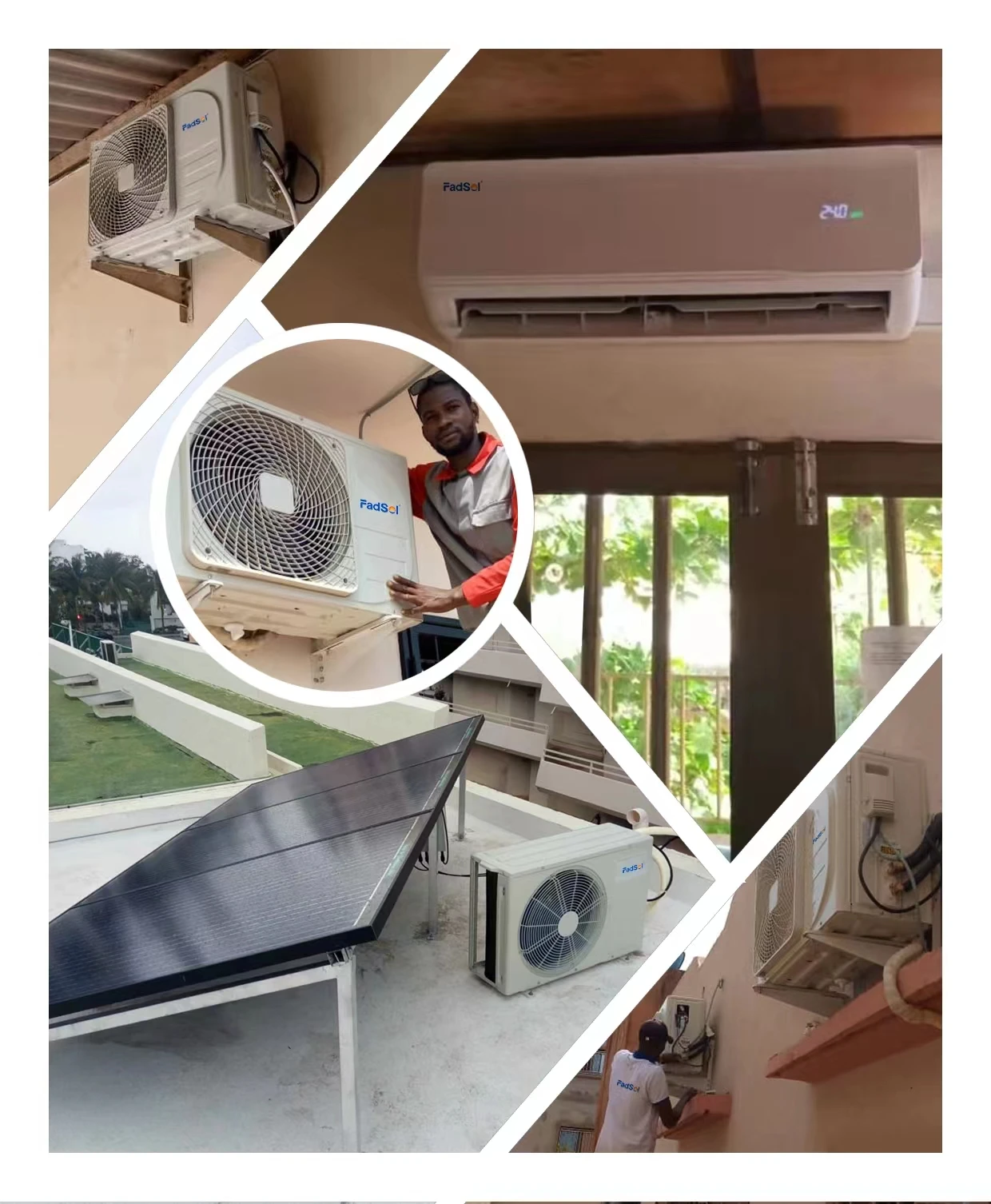

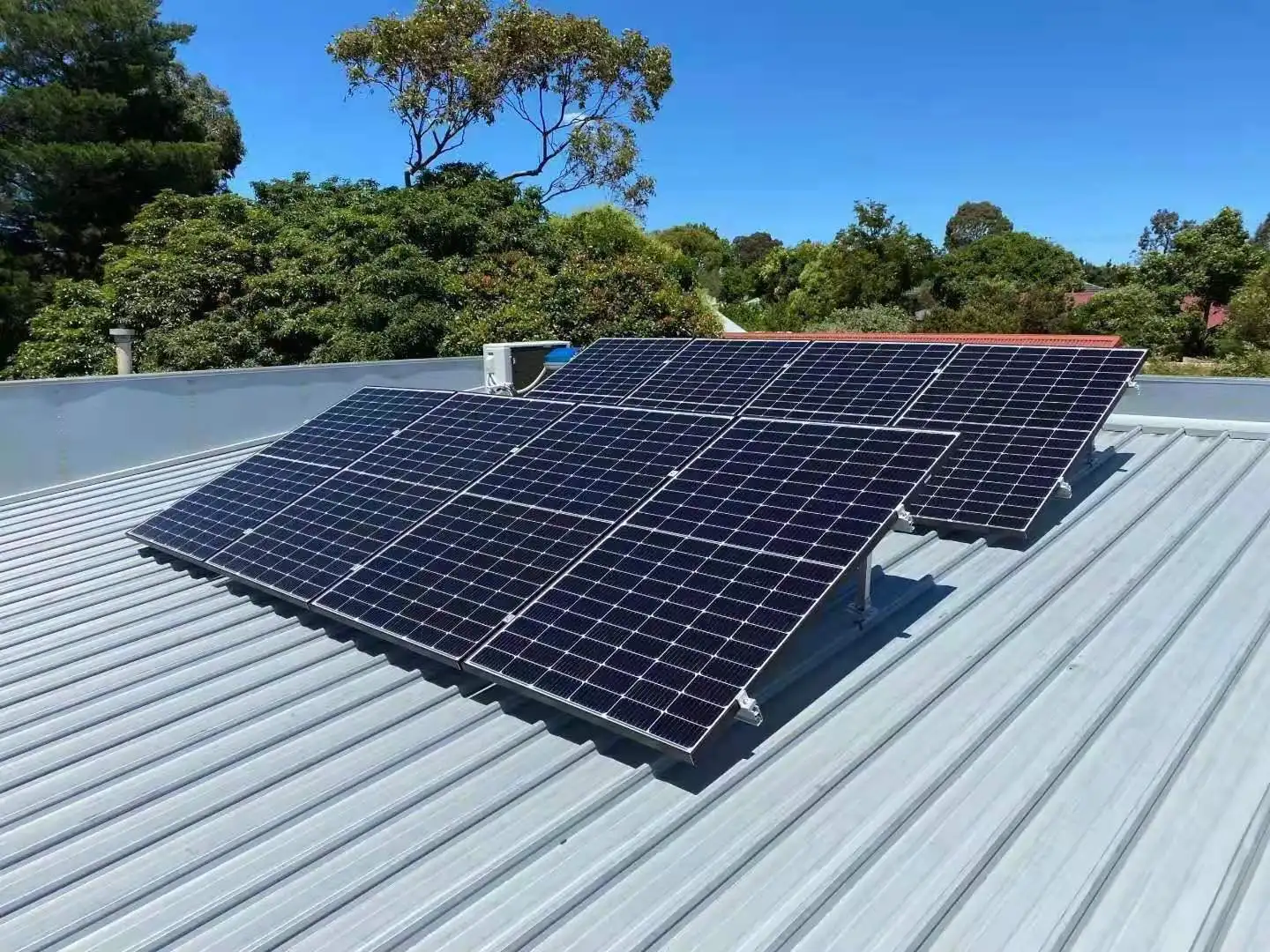

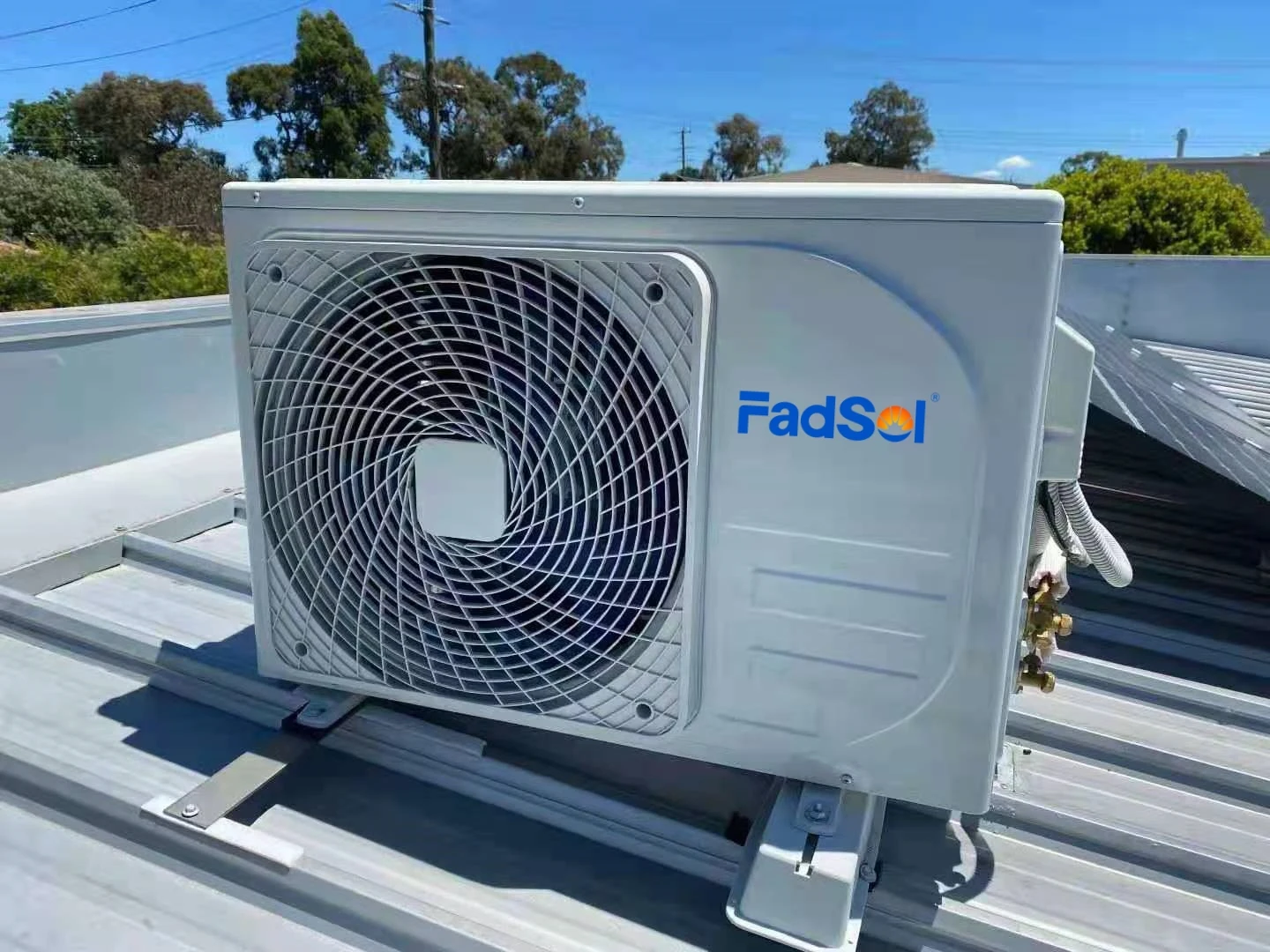

Customer Photos
Packing&Delivery
Company Profile
Quality assurance and customer satisfaction lead Haining Fadi Solar Energy Co., Ltd's top belief. Fadi solar energy is one of the
most professional manufacturers producing energy conservation and environment-friendly products, such as solar water heater, solar
panel etc. Through several years' development, Fadi has been the outstanding one in the solar energy industry.
most professional manufacturers producing energy conservation and environment-friendly products, such as solar water heater, solar
panel etc. Through several years' development, Fadi has been the outstanding one in the solar energy industry.
FAQ
1.How to claim the warranty and extended warranty?
Please refer to the warranty card you received from where you have ordered the product from. Any extended warranty, if purchased,
will only take effect after the default warranty has expired.
2.Can the unit firmware be upgraded?
The firmware including ARM, DSP, IoT and BMS can be upgraded online through
BLUETTI APP.
3.Can it be charged and discharged at the same time?
Yes, the unit supports pass-through charging function for both AC and DCoutputs.
4.What is the UPS switching latency?
No delay for online UPS; 20ms from offline UPS.
5.Can I connect my two AC300+B300 units with a Fusion Box(P020A) toachieve double the output power, voltage and capacity?
Only Fusion Box Pro(P030A) can be connected two set of AC300+B300 powerstation.
6.Can I use third-party solar panels to charge the unit?
Yes, the third-party solar panels are available as long as they contain MC4connectors, besides the voltage (in series or parallel)
is between 12V to 150Vand the maximum combined input power from the two PV input ports is2400W. If the open circuit voltage of the
panels is between 150V-550V, you canchoose D300S to drop down the voltage of the panels to achieve solar charging.
7.How do I know whether my appliance can work well with the power station?
8.How can I connect the product to my main panel?
To install the grid-tie power system, an electrician with a professional techniciancertificate is required, connect the wires of critical equipment from your mainelectrical box to the BLUETTI Sub Panel (optional purchase), then connectAC300 to the Sub Panel.
Please refer to the warranty card you received from where you have ordered the product from. Any extended warranty, if purchased,
will only take effect after the default warranty has expired.
2.Can the unit firmware be upgraded?
The firmware including ARM, DSP, IoT and BMS can be upgraded online through
BLUETTI APP.
3.Can it be charged and discharged at the same time?
Yes, the unit supports pass-through charging function for both AC and DCoutputs.
4.What is the UPS switching latency?
No delay for online UPS; 20ms from offline UPS.
5.Can I connect my two AC300+B300 units with a Fusion Box(P020A) toachieve double the output power, voltage and capacity?
Only Fusion Box Pro(P030A) can be connected two set of AC300+B300 powerstation.
6.Can I use third-party solar panels to charge the unit?
Yes, the third-party solar panels are available as long as they contain MC4connectors, besides the voltage (in series or parallel)
is between 12V to 150Vand the maximum combined input power from the two PV input ports is2400W. If the open circuit voltage of the
panels is between 150V-550V, you canchoose D300S to drop down the voltage of the panels to achieve solar charging.
7.How do I know whether my appliance can work well with the power station?
Calculate how much the continuous loads are for your appliances are in total.As long as they do not exceed the rated output power of the power station, itshould work.Professional technical and recommendation supported.
8.How can I connect the product to my main panel?
To install the grid-tie power system, an electrician with a professional techniciancertificate is required, connect the wires of critical equipment from your mainelectrical box to the BLUETTI Sub Panel (optional purchase), then connectAC300 to the Sub Panel.
