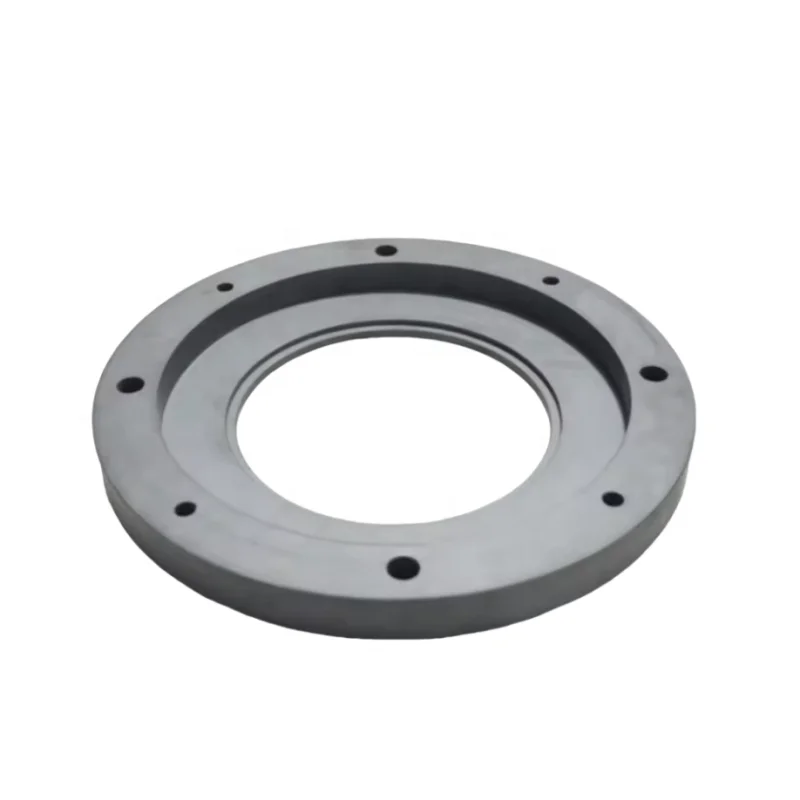

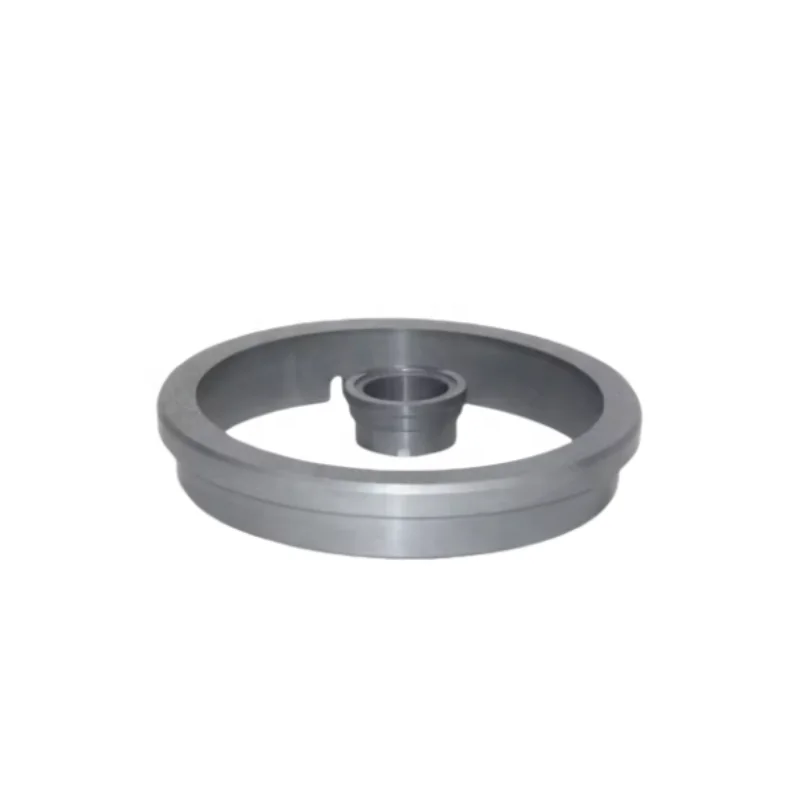

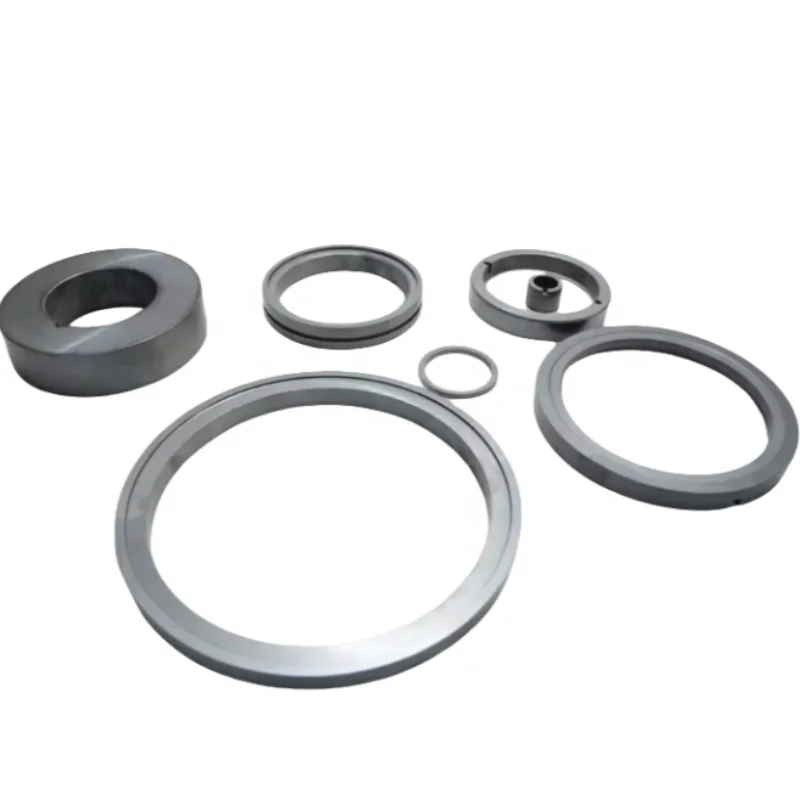

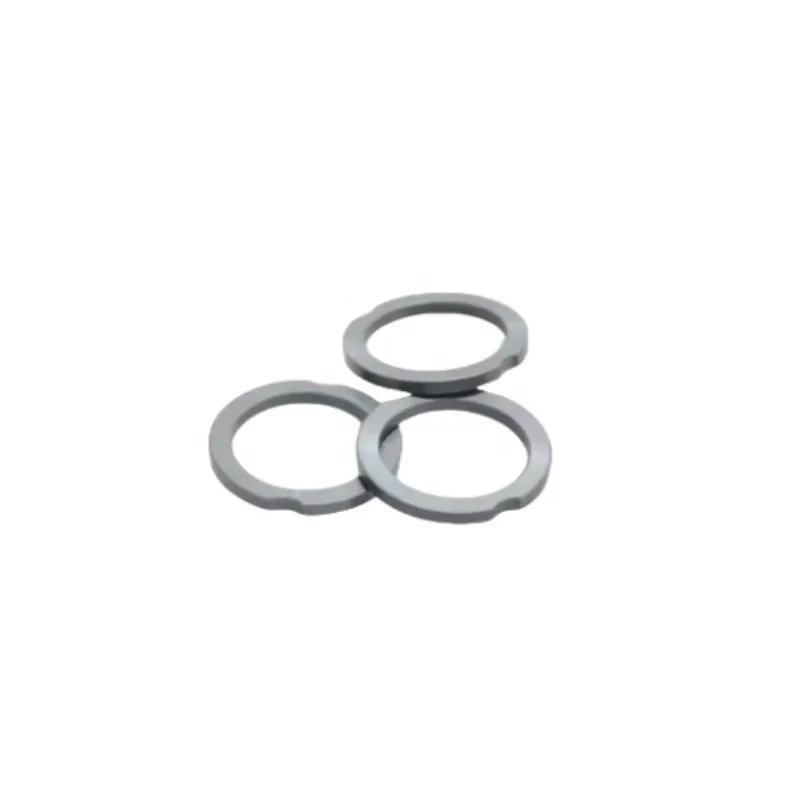

Супер прочное механическое уплотнение водяного насоса SSIC керамическое с высокой точностью
- Категория: >>>
- Поставщик: Sichuan Chuangyili Technology Co. Ltd.Sichuan Ltd.
Сохранить в закладки 1601194978562:
Описание и отзывы
Характеристики
Products Description
SSIC
The pressure-free sintering sub-micron silicon carbidepowder is sintered in a vacuum at a high temperature of 2160℃, High corrosion resistance is guaranteed due to its high density and its reliable under high temperature. These features combined with excelent
surface finish characteristics can be applied to petrochemical, aerospace, and other extreme fields.
SSIC+C
The material of pressure-free sintered silicon carbide is made of by Sl-co-priced bonding atomic crystals and flexible carbon sintered ina vacuum at 2150℃, With corrosion resistance, wear resistance, high conductivity, high temperature and stable performance, SSlC+C are even less friction, and more suitable for instantaneousdrying or long-term semi-drying working conditions. Therefore, SSlC+C has awider range of application in the new energy chemical, marine and defense military fields.
SIC
The SlC use free silicon (content less than12%)added to reaction sintering sub-micronsilicon carbide powder and react with free silicon in a vacuum sintering furnace at 1500℃. Compared with other mechanicalseal, the silicon carbide seal ring has the advantages of low friction, low cost, light quality and many.
Parameter | Measurements | RB SIC | SSIC | SSIC+C |
Density | g/cm3 | ≥3.03 | 3.08~3.15 | 2.95~3.05 |
Indicated Porosity | % | ≤1% | ≤1% | ≤1% |
Crystal Size | µm | ≤10 | ≤10 | ≤10 |
Hardness | Rockwell | ≥90 | ≥92 | ≥92 |
Compressive Strength | MPa | 3000 | 3000 | ≥2200 |
Transverse Strength | MPa | ≥350 | 400 | ≥200 |
Maximum Temperature | ℃ | 1200 | 1600 | 1500 |
Elastic Modulus | GPa | 350 | 400 | ≥250 |
Thermal Conductivity | W/m*k | 30~130 | 30~130 | 30~130 |
Coefficient of Thermal Expansion | 1 x 10-6 / ℃ | 4~5 | 4~5 | 4~5 |
Company Profile
WHO WE ARE ?
Chuangyili Technology, aka, Champ Sealing, is one of the first domestic leader who devoted into silicon carbide ceramics, the researchers of Champ technology Co. have been exploring the application and production process of silicon carbide ceramics in the field of mechanic seals since 2003. After accumulating a great amount of experimental data and production experience during 12 years of research time, Sichuan Champ Technology Co., Ltd. was officially founded in 2015. Since its inception, Champ sees science and technology as the foundation, builds quality as the cornerstone to win the market, gains respect by reliability. Champ has become the most rusted supplier China-sealing holding (No.1 producer in China), Dayu sealing and other major manufacturers. Now Champ has an annual output capacity of can generate revenue of 50 million. At the same time of obtaining market recognition, Champ has never stopped research and development, which seize the opportunity of the silicon carbide era and national strategic demands.We have the ambition to achieve success at global stage and introduce China's intellectual manufacturing to the world. In 2020,Champ attended the Shanghai International Pump Valve Exhibition as a representative of the silicon carbide sealing industry, which was also the first few industrial leaders of China's silicon carbide ceramics field who exhibits their research results. Champ has attracted the attention of experts, domestic and abroad, with the processing capacity of the large-scale, non-normal shaped parts and split sealing rings.
Features At A Glance
Silicon carbide crystals have properties such as high hardness, high temperature, wear resistance, thermal conductivity and good
conductivity under high frequency. It's widely used in aerospace, semiconductors and valve seals. Professionals believe that we are
running in to the "silicon carbide era."
Product Configuration
Oil Pump
SSIC Bullet Shield
Mechanical Seal
Sales And Service Network
FAQ
Q1：Can you make rings according to our blueprint?
A1：YES WE CAN !
Q2: How long you can deliver our goods to us?
A2: With in 25 days if your order size is <1000.
Q3: How much is the deliver cost?
A3: Our price covers the shipping cost to port, international shipping cost is TBD where you are.
Q4: My order is super super hurry, what is the fastest time you can deliver?
A4: Around 15 days, you may pay a extral fee to cut in line. Our long standing customer can make 5~10% order as Urgent, with no charge.
Похожие товары

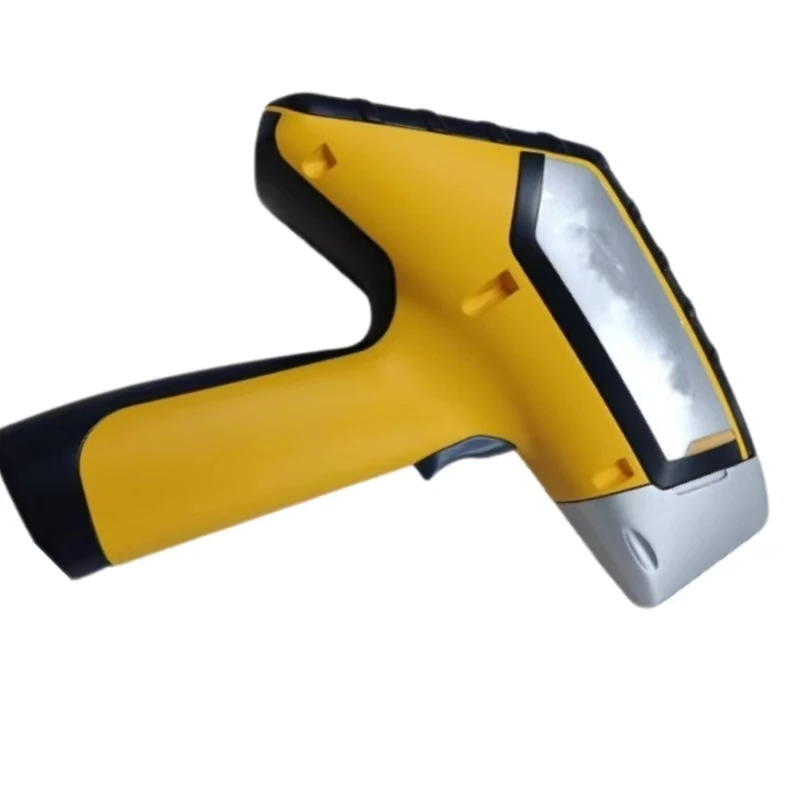

Эффективный ручной спектрометр для быстрого восстановления керамического материала на месте
2,00-3,00 $

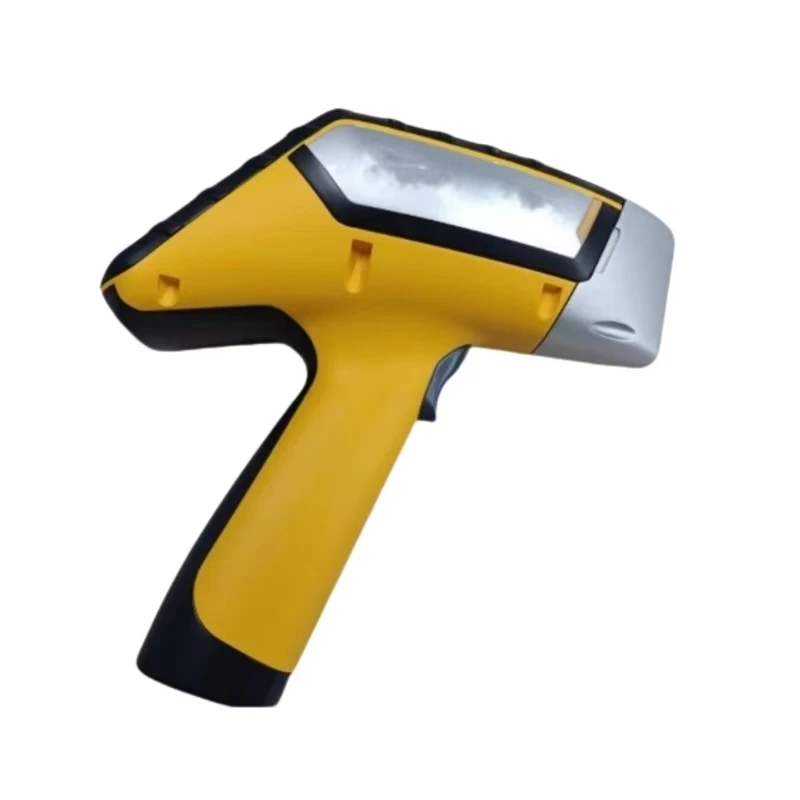

Эффективный ручной спектрометр для быстрого восстановления керамического материала на месте
2,00-3,00 $
Эффективный ручной спектрометр для быстрого восстановления керамического материала на месте
2,00-3,00 $

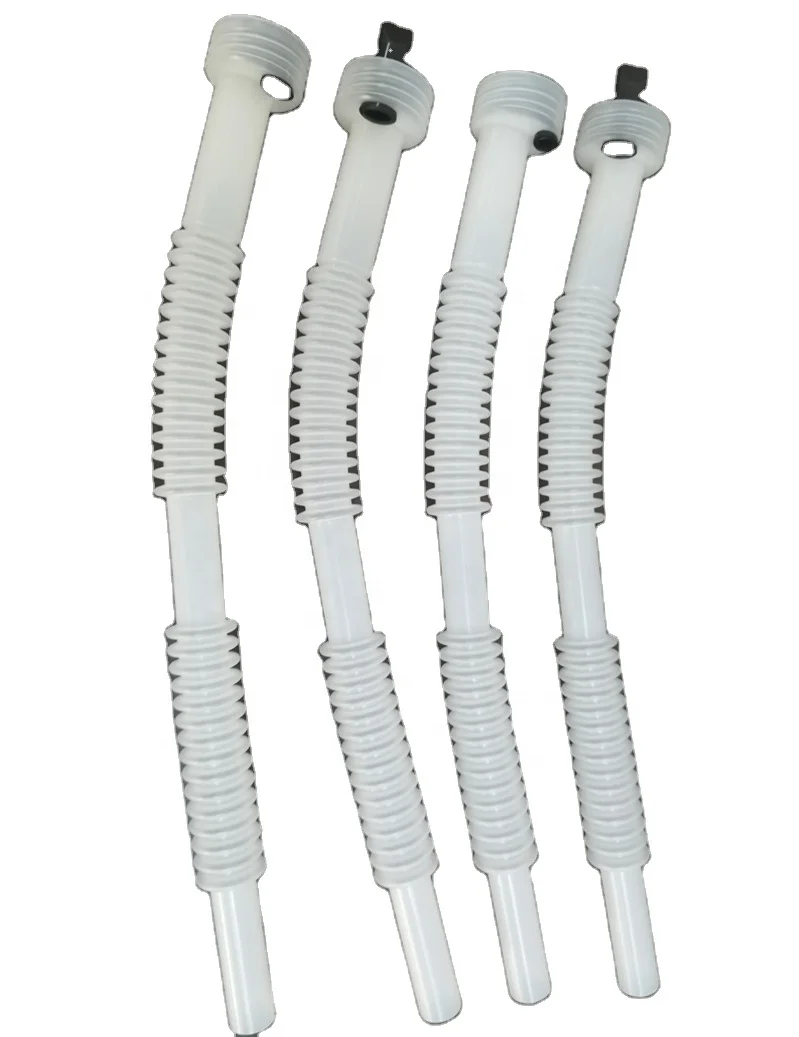

Гибкая полиэтиленовая пластиковая выдувная труба высококачественный производственный продукт
0,20 $

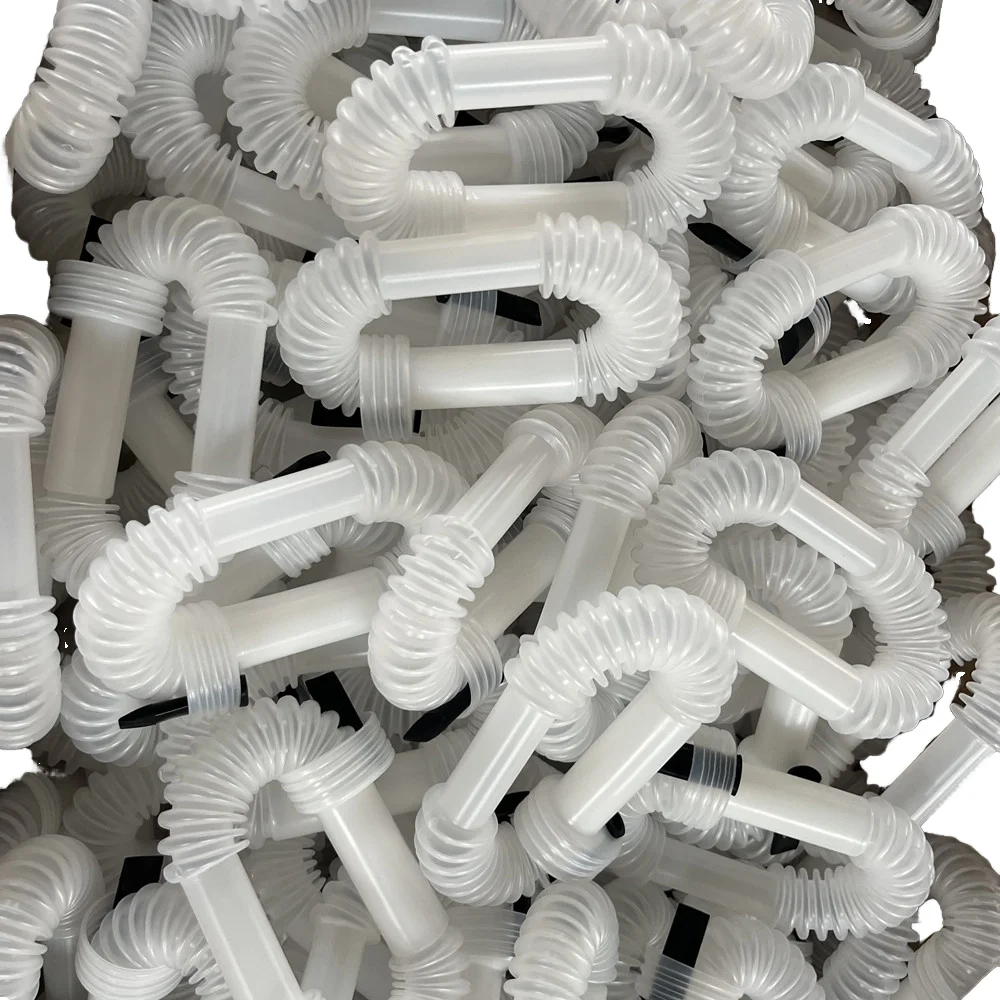

Высококачественные выдувные пластиковые трубы для выхлопных труб производственный продукт услуг
0,20 $

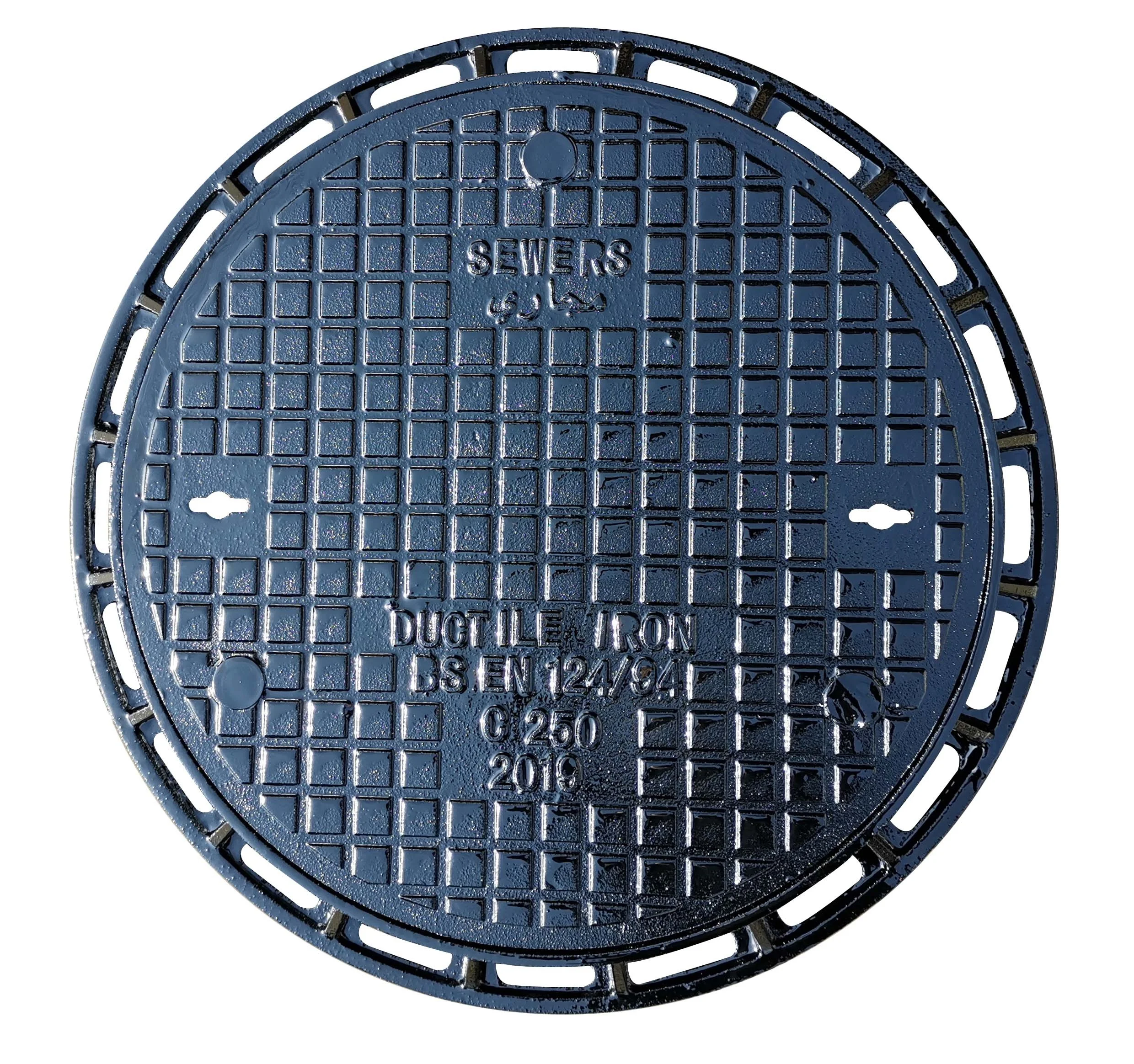

Круглый чугунный люк EN124 хорошего качества и по низкой цене
