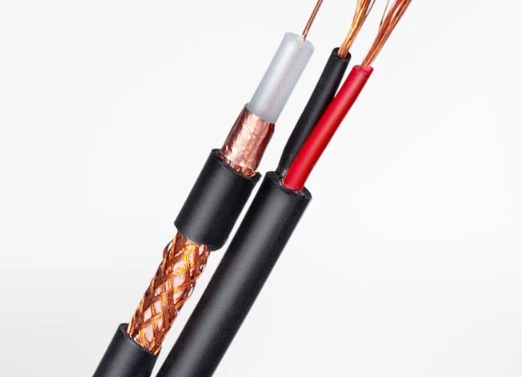

RG59+2C coaxial power supply integrated monitoring cable. 1. Characteristics. Video power supply integrated all-in-one line, convenient wiring.
2. Scope of application: It is suitable for video transmission and signal control of monitoring system.

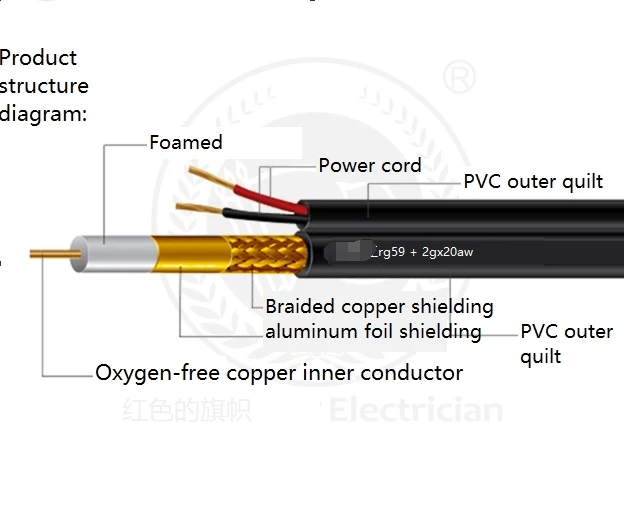

3. Product description: Video cable specifications: The inner conductor uses a single bare copper wire. Foamed polyethylene insulation. Aluminum foil shield. Copper braided mesh shield. Polyvinyl chloride sheath. The long-term allowable working temperature should not exceed 70 ℃.
Power cord specifications: Stranded copper wire with inner conductor. Poly (vinyl alcohol) insulation. Poly (vinyl alcohol) sheath. The long-term allowable working temperature should not exceed 70 ℃.
