Machine Overview

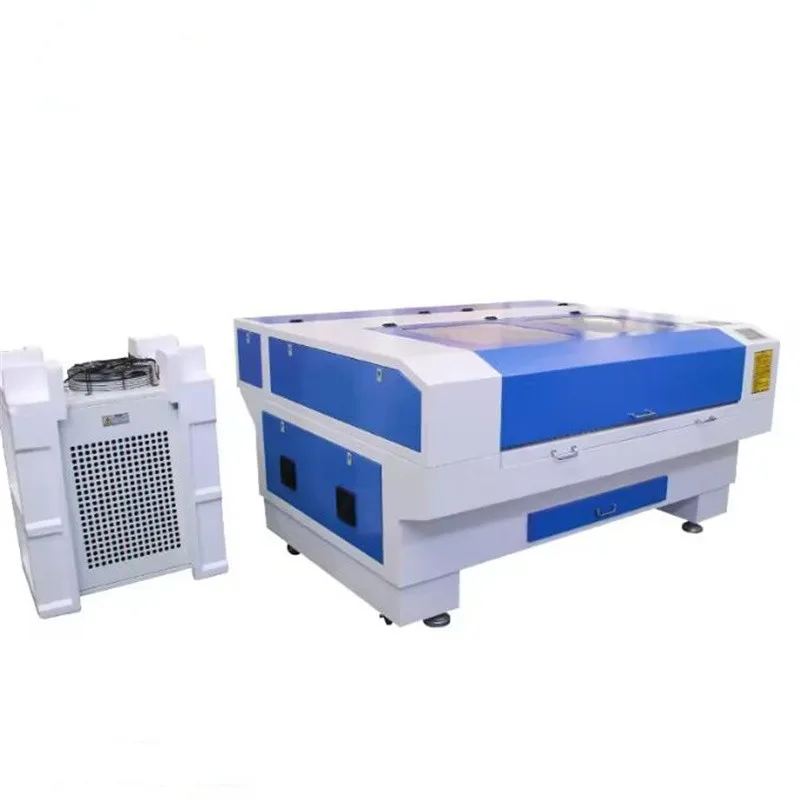

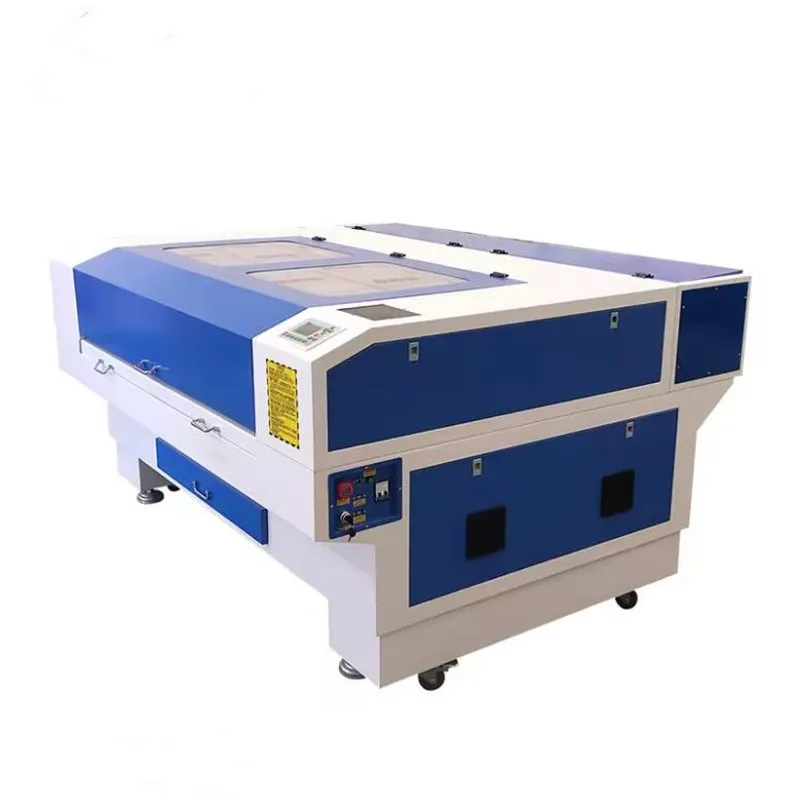

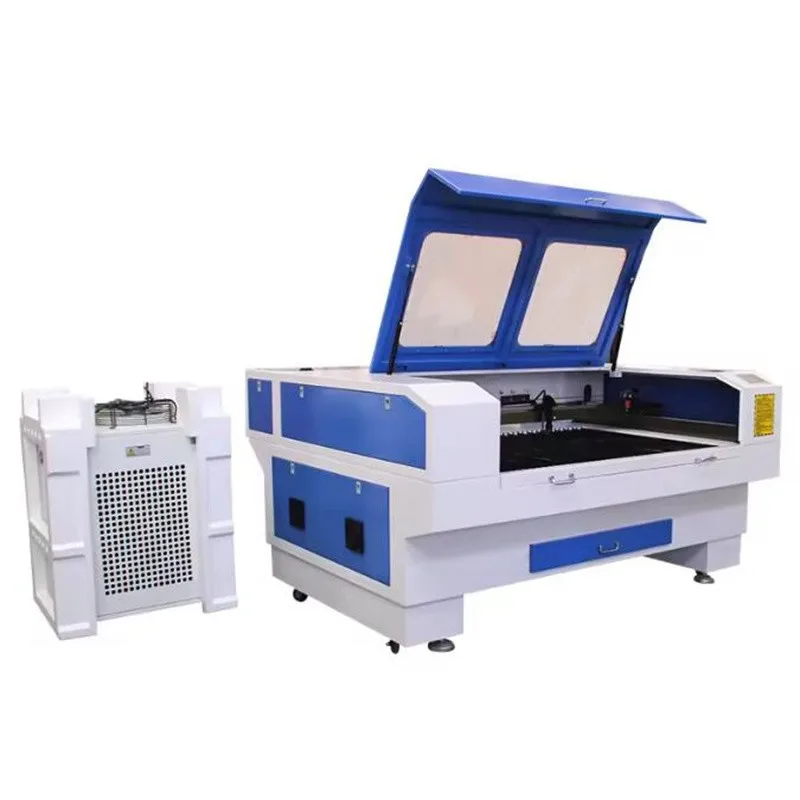

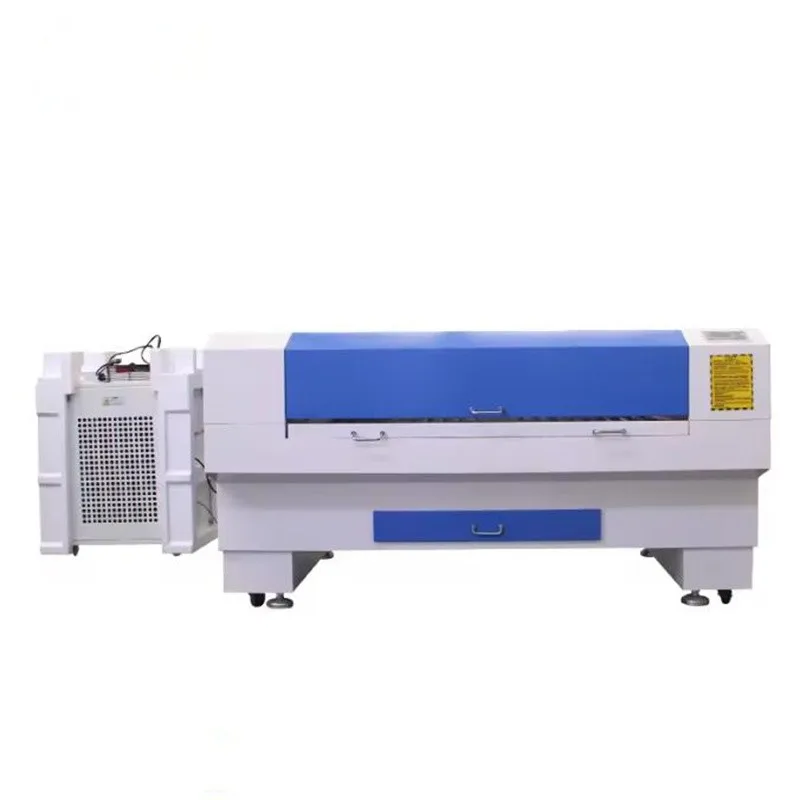

CO2 Laser Engraving & Cutting Machine
This small sized CO2 laser machine fits the small to medium business that needs high quality laser machine at a great price! Both engraving and cutting process can be achieved in the same project. The operator's safety and working conditions are seriously taken into consideration with this protective lid design, since the machine will stop working once the lid open. Moreover, the fume and gas that produced during machine working will be quickly captured and directly exhausted through the hose, which effectively protected the workshop condition from fume pollution. Available machine work sizes for this lid design like 300*500mm, 400*600mm, 600*900mm, 1300*900mm, 1600*1000mm.
Machine Parameters
Model | Automan CO2 Laser Engraving & Cutting Machine |
Working size | 400*600mm / 600*900mm / 1300*900mm /1600*1000mm |
Laser tube | CO2 laser with 60w/80W/100W/130W/150W (lifespan: 10,000 hours) |
Laser wavelength | 10.6um |
Cooling mode | Industrial water cooling chiller |
Function | Cutting & Engraving on nonmetals |
Cutting speed | 0-500mm/s |
Engraving speeed | 0-1500mm/s |
Positioning accuracy | Within 0.01mm |
Resolution ratio | 1000dpi |
Min shaped letter | 1*1mm |
Positioning mode | Red light pointer |
Software | RDWorks |
Control system | Ruida |
Format support | BMP, PLT, DST, DXF, DST, AI |
Motor | Stepper motor |
Transmission | Belt+ linear guide rails |
Table | Blade table/ Honey-comb table (either) |
Working voltage | AC220-240V, 50-60Hz |
Details Images
Frame structure
The cross beam made by high-strength aluminum alloy, small resonance, smooth operation, fast speed.

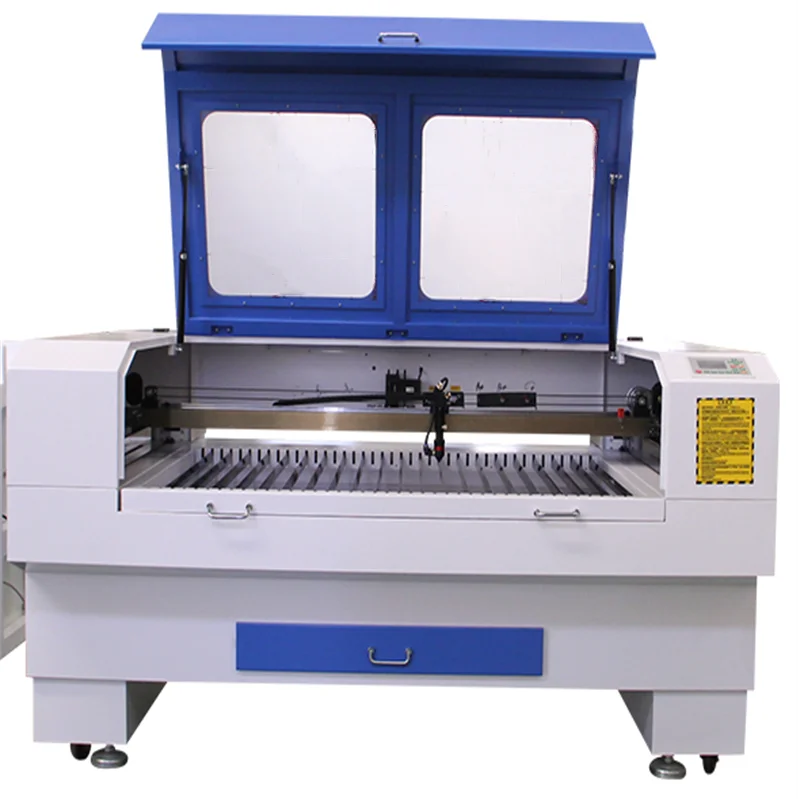

Green organic glass window cover, clear working process show. Machine will stop working once the lid open.
Funnel design under the table to collect scraps.
Green organic glass window cover, clear working process show. Machine will stop working once the lid open.
Funnel design under the table to collect scraps.
Ruida Controller & RDWorks software
Ruida controller support over 12 languages.
Color screen + Keys.
Real-time display the working path on screen.
USB data transmission.
128M storage. Easy to operate.
Format support: BMP, PLT, DST, DXF.
Anti-static interference.
Break-point Recovery and restoring from power off.
Color screen + Keys.
Real-time display the working path on screen.
USB data transmission.
128M storage. Easy to operate.
Format support: BMP, PLT, DST, DXF.
Anti-static interference.
Break-point Recovery and restoring from power off.
Control cabinet
Electrical layout with CE standard.
Neat and clear wiring lines markings.
High soft cables, anti-interference.
Air filter.
EMI Filter.
Neat and clear wiring lines markings.
High soft cables, anti-interference.
Air filter.
EMI Filter.
Stepper motor
High torque, good stability, high precision, low failure rate, low noise, over current/ over voltage protection.
Transmission
Arc-gear synchronous 3M belt, made by Nylon and glass fiber, stable transmission, shock absorption, low noise, wear resistance.
Taiwan Linear guide rail and block, wear and shock resistance, stable running, high precision, long service time.
Taiwan Linear guide rail and block, wear and shock resistance, stable running, high precision, long service time.
Laser tube
Long lifetime to be 10000 hours.
The third generation laser tube.
Beam quality: >95% TEM00 mode.
Optical resonator advantage: enhance power.
Advanced radioactive materials coated lenses.
Alternative technique: metal-glass sintering.
The third generation laser tube.
Beam quality: >95% TEM00 mode.
Optical resonator advantage: enhance power.
Advanced radioactive materials coated lenses.
Alternative technique: metal-glass sintering.
Industrial water chiller
To cooling the laser tube efficiently.
0.3℃ precisely temperature control.
Multi-alarms function.
Machine with Water protection.
Compressor time-delay protection.
Compressor over-current protection.
0.3℃ precisely temperature control.
Multi-alarms function.
Machine with Water protection.
Compressor time-delay protection.
Compressor over-current protection.
Laser head
Red light pointer, accurate positioning.
Imported USA lens.
Equipped with a flame-retardant blowing device to ensure smooth cutting and avoid material burning.
Imported USA lens.
Equipped with a flame-retardant blowing device to ensure smooth cutting and avoid material burning.
Working table: Aluminum blade table / Honeycomb table (either)
Aluminum blade table:
Surface through anti-oxidation treatment, high strength, heavy-load bearing, good durability, suitable for large board cutting and engraving.
Honeycomb table:
Ensures precise cutting, convenient feeding, ideal for fabrics and leather cutting.
Surface through anti-oxidation treatment, high strength, heavy-load bearing, good durability, suitable for large board cutting and engraving.
Honeycomb table:
Ensures precise cutting, convenient feeding, ideal for fabrics and leather cutting.
Air compressor
Effectively reduce the cutting burrs.
Dissipate the heat from laser cutting process, avoid fire.
Increase the cutting thickness.
Dissipate the heat from laser cutting process, avoid fire.
Increase the cutting thickness.
Exhaust fan
Mounted to machine back through large diameter outlet, high efficiency.
Extract smoke fume out of machine.
Extract smoke fume out of machine.
Extra Optional Devices
Auto up-down table
0-500mm height adjustment platform enables thick or high objects that need enough vertical space to be engraved or cut, like sponge, EVA, rubber, etc.
Auto electric lifting, convenient and fast.
Auto electric lifting, convenient and fast.
CCD camera positioning
Designed for shoe and garment industry.
Auto scan marking point.
Auto edge search, positioning and cutting.
Auto scan marking point.
Auto edge search, positioning and cutting.
Chuck rotary device
Used for carving on surface of special-shaped cylinders, like goblet, gourd, tapered, vases, etc.
4 wheel rollers rotary device
Used for engraving on surface of standard cylinders, like bottle, thermos, cup, bamboo, tube, etc.
Upgrade to CO2 mixed laser for both metals and nonmetals cuting
With O2 assist, the 150W-300W laser can cut 0-3mm Steel plate.
Dynamic auto-focus laser cutting head.
Dynamic auto-focus laser cutting head.
Samples Show
Machine Producing Procedure
Recommend Machines
FAQ
1. How can you guarantee machine quality?
Our machines are certificated by CE.
We offer demo or sample carving before order.
We support quality inspection from the 3rd party.
2. Does the machine can be customized following on my requirements?
Sure, we are able to provide you custom solutions. Let's make your work easy!
3. What is the payment term?
We need 30% initial payment through T/T, Alibaba trade assurance, Paypal or Western Union, and balance before your machine
delivery.
4. How long is the machine delivery?
We promise on-time delivery and your machine will be completed in 8-20 days. We will keep you updated in this period.
5. Can you arrange the shipment for me?
We can arrange the shipment for you by sea, air or train. Also provide door to door service.
6. What after-sales service do you offer?
We supply English manuals and videos.
Free online training through Whats App, Wechat, Skype, Team viewer, ANY DESK, Email, etc.
Overseas on-site training in your workshop.
Two years warranty for machine and parts.
Whole lifetime technical support.
Our machines are certificated by CE.
We offer demo or sample carving before order.
We support quality inspection from the 3rd party.
2. Does the machine can be customized following on my requirements?
Sure, we are able to provide you custom solutions. Let's make your work easy!
3. What is the payment term?
We need 30% initial payment through T/T, Alibaba trade assurance, Paypal or Western Union, and balance before your machine
delivery.
4. How long is the machine delivery?
We promise on-time delivery and your machine will be completed in 8-20 days. We will keep you updated in this period.
5. Can you arrange the shipment for me?
We can arrange the shipment for you by sea, air or train. Also provide door to door service.
6. What after-sales service do you offer?
We supply English manuals and videos.
Free online training through Whats App, Wechat, Skype, Team viewer, ANY DESK, Email, etc.
Overseas on-site training in your workshop.
Two years warranty for machine and parts.
Whole lifetime technical support.
