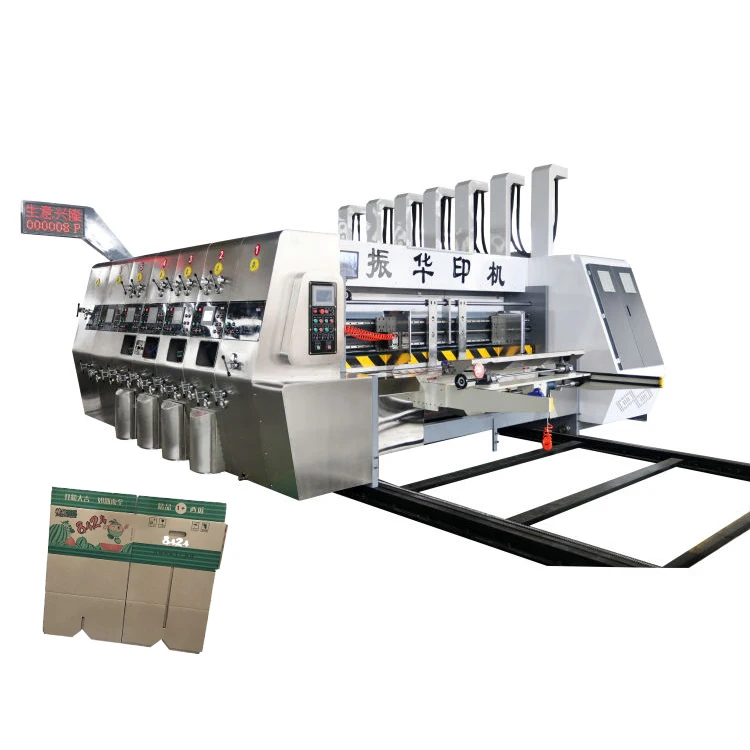

Распродажа флексографическая машина для вырубки автоматическая изготовления картонных коробок из гофрированного картона
4 769 705,40 ₽
Высокая скорость плоская кровать картонная коробка резак машины автоматическая машина для изготовления бумаги
- Категория: >>>
- Поставщик: Tianjin YongLiQi Paper Machinery Co. Ltd.
Сохранить в закладки 1601195693809:
Описание и отзывы
Характеристики

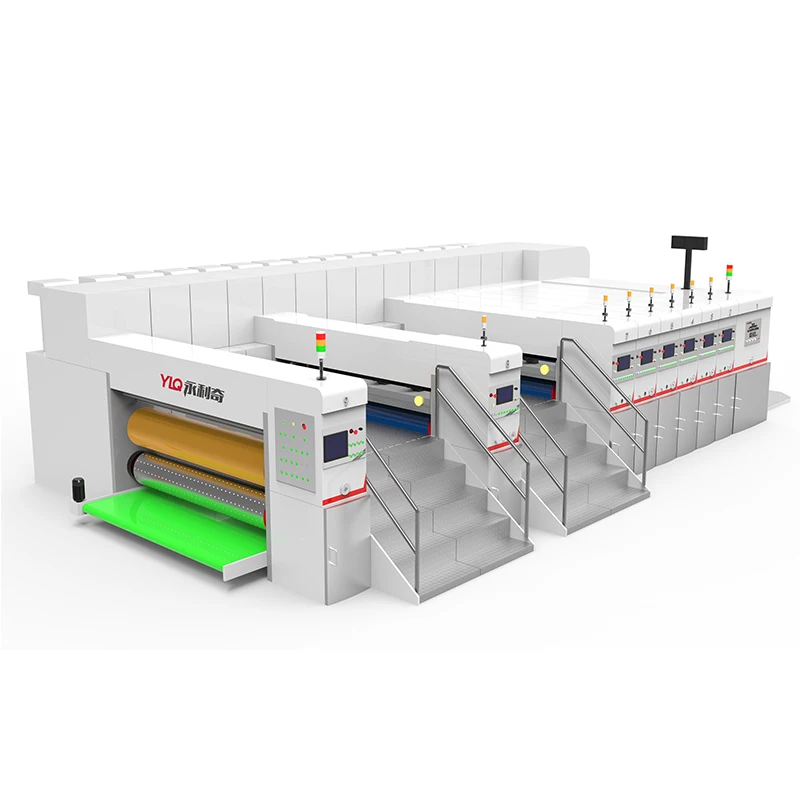

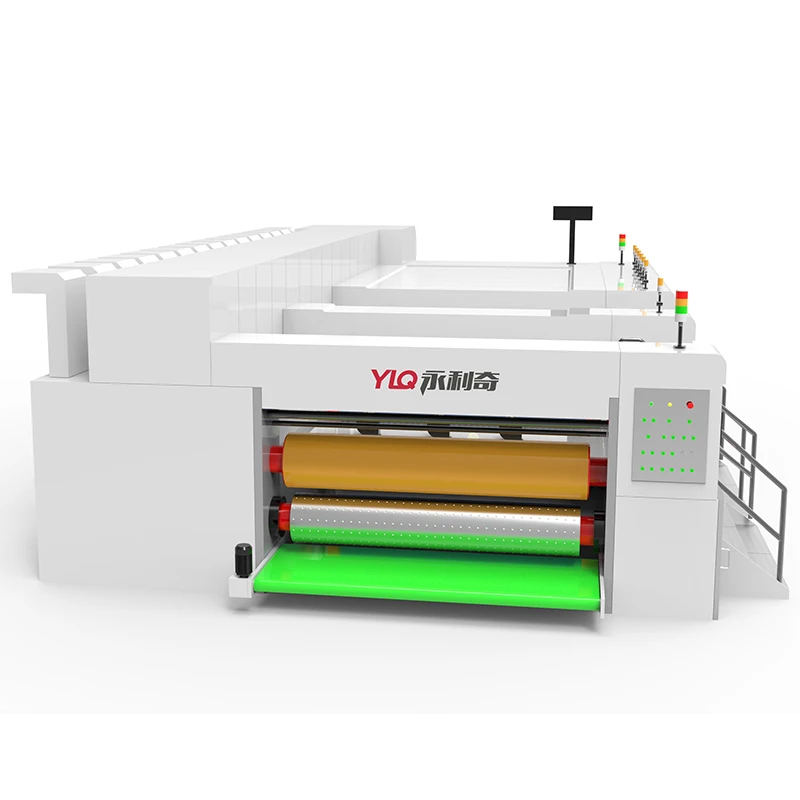

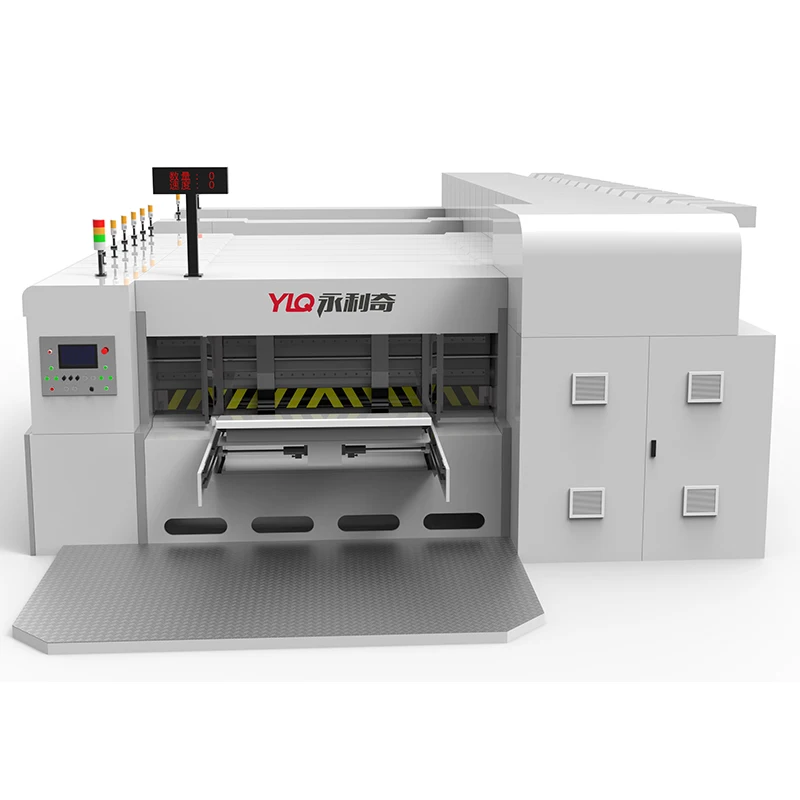

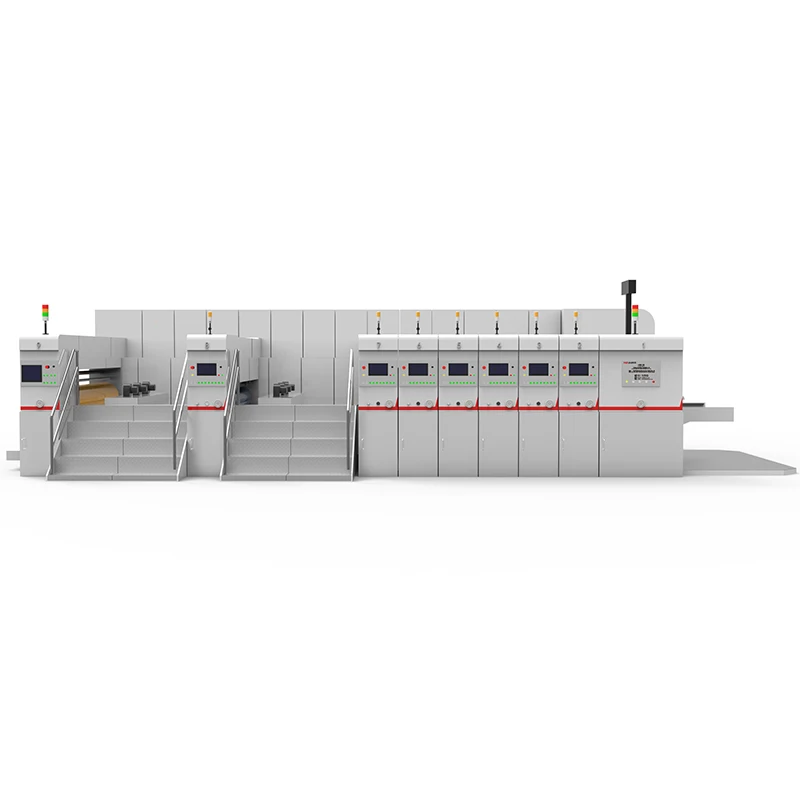

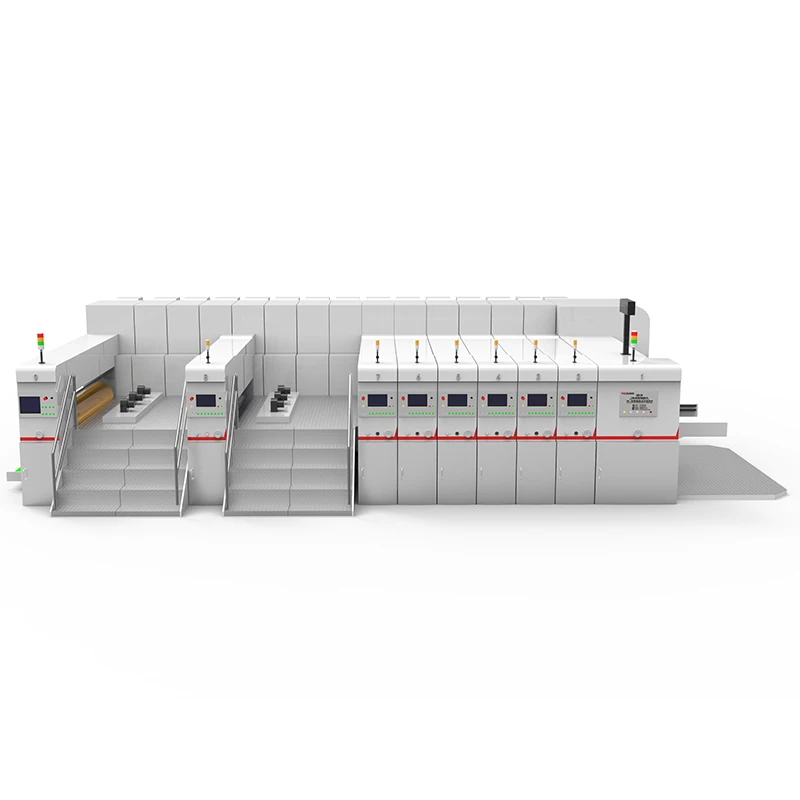

High Speed Flat Bed Cardboard Carton Box Cutter Machinery Automatic Paper Making Craft Die Cutting Machine
Product Description
Drying Unit：
● Infrared (IR) drying system, segmented, and automatically adjusted according to the size of the board. ● Paper jam sensing protection device for safer operation.
● (Optional ultraviolet (UV) drying system).
Varnishing Unit：
● Water-based varnish can be optionally used for a wider range of applications.
Dwelling Unit：
● Built-in hot air drying to ensure drying effect.
● Extended drying section to ensure complete drying of the board before die-cutting.
Die-Cutting Unit：
● 40mm anvil roller with mechanical reversing and lateral shifting structure.
● Independent motor-driven servo compensation for
anvil roller, controlling its speed with a compensation range of ±3.5mm.
anvil roller, controlling its speed with a compensation range of ±3.5mm.
● Micro-suction system for the anvil roller to maintain a flat surface.
● (Optional independent servo drive).
● (Optional computerized/manual die-cutting with slotting attachment.
Feeding Unit：
● Servo non-pressure feeding (optional). ● Multiple fans, multiple brush rows, static electricity removal.
● (Optional independent dust removal unit).
Printing Unit：
● Fully vacuum suction transmission, boat-shaped design for stronger suction and high registration accuracy.
● Independent servo
control of printing phase.
● Machine equipped with plate correction function for convenient and accurate operation.
● Ink recycling device to save 10%-15% ink. ● (Optional carbon fiber doctor blade ink supply system).
Specification
Machine Features
Each unit of the machine can be automatically or independently separated, making operation more convenient. Continuous ringing alerts during movement ensure the safety of operators. It adopts a vacuum suction delivery device. The color registration of the printing unit is controlled by servo, and optional infrared (IR) or ultraviolet (UV) drying devices can be equipped to achieve high-quality printing.
Efficient: Order storage, multi-function machine. Intelligent: Intelligent computerized control, remote
maintenance.
maintenance.
Economical: Ink-saving system, frequency conversion segmented vacuum suction, segmented drying.
Model | YGFQ-920 |
Max.design speed (pcs/min) | 350 |
Production speed for coated paper (pcs/min) | 100-200 |
Production speed for normal paper (pcs/min) | 120-250 |
Max.feeding size（mm） | 900×2000 |
Min.feeding size（mm） | 280×600 |
Max.printing area（mm） | 900×1950 |
Skip feeding（mm） | 1200×1200 |
Related Products
Company Profile
Tianjin Yongliqi Paper Machinery Co., Ltd. With a professional team dedicated to research and development as well as after-sales service, the company is committed to the research, development, and manufacturing of digital intelligent high-end printing equipment.
After more than a decade of technological innovation and development, the company's products have been continuously updated and have emerged as a prominent player in the industry, with products selling well across China and exporting to Europe, the Americas, the Middle East, South east Asia, Africa, and other regions, connecting the world with premium corrugated equipment.
Yongliqi has always adhered to the mentality of "always benefiting others" and provided competitive corrugated printing solutions and services. We continuously create optimal value for customers and strive to build an industry legend. We are com mitted to being pragmatic and realistic, relying on what we see. We vow to become the industry leader and have been working hard towards that goal.
Packing & Delivery
FAQ
Q: What is the specific warranty of machinery?
A: We offer a lifetime warranty and １ year of free maintenance
A: We offer a lifetime warranty and １ year of free maintenance
Q: How about the after-sale service?
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, FB, Linkin, Wts, IG.
All-round after-sales Service System
Engineers team provides solutions in the field of Mechanic/ Electric/ Operation.TM online for 24 hours.
Online Quick Responsive service: Email, skype, MSN, FB, Linkin, Wts, IG.
Q: Are you a manufacturer, trading company or a third party?
A: We are a manufacturer, with our own factory and quality monitoring department, so the price will be cheaper and the after-sales service will be more guaranteed．
Warmly welcome to visit our company.
A: We are a manufacturer, with our own factory and quality monitoring department, so the price will be cheaper and the after-sales service will be more guaranteed．
Warmly welcome to visit our company.
