Тепловой насос MACON источник воздуха 10 кВт тепловой evi china от к воде
1 300,00-1 400,00 $
2024 Лидер продаж китайский тепловой насос водонагреватель быстрый нагрев Энергосбережение
- Категория: >>>
- Поставщик: Haining Meisheng New Energy Co. Ltd.Haining Ltd.
Сохранить в закладки 1601195790322:
Описание и отзывы
Характеристики
Product Description

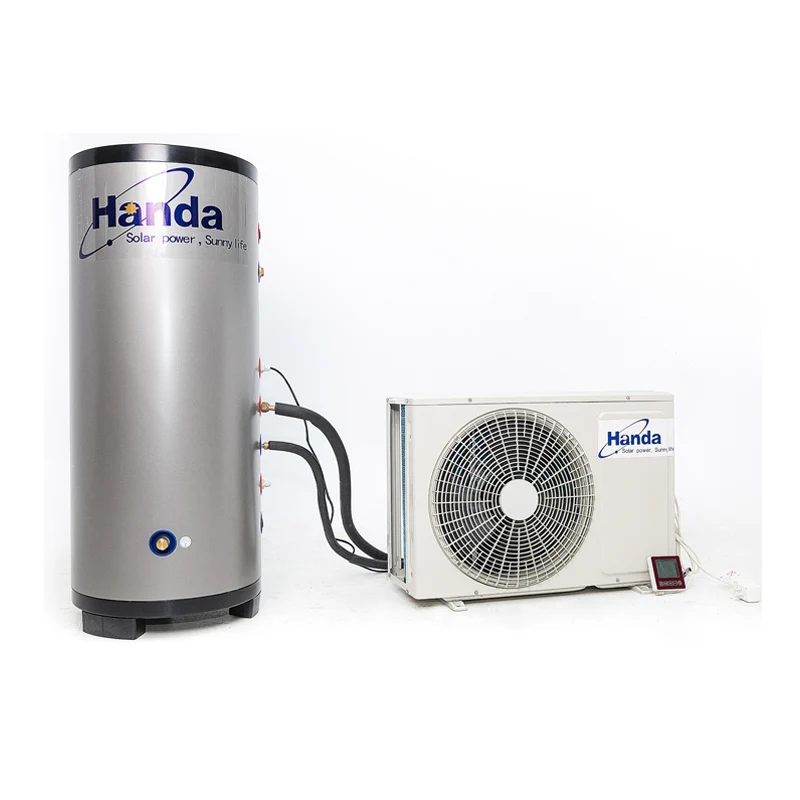

The refrigerant circle domestic split heat pump adopts refrigerant circle the water tank to heat water, outdoor and indoor split
design, no water system outside, any freezing and damage to water system. The compact design with small dimension makes the heat
pump convenient to be delivered, stored and installed at any place. Suitable for family, villa, office, and restaurant and hotel.
design, no water system outside, any freezing and damage to water system. The compact design with small dimension makes the heat
pump convenient to be delivered, stored and installed at any place. Suitable for family, villa, office, and restaurant and hotel.
Features
● Fast water heating at temperatures up to 60°C.
● Mitsubishi or Panasonic Rotary type compressor, low vibration, low noise and high reliability.

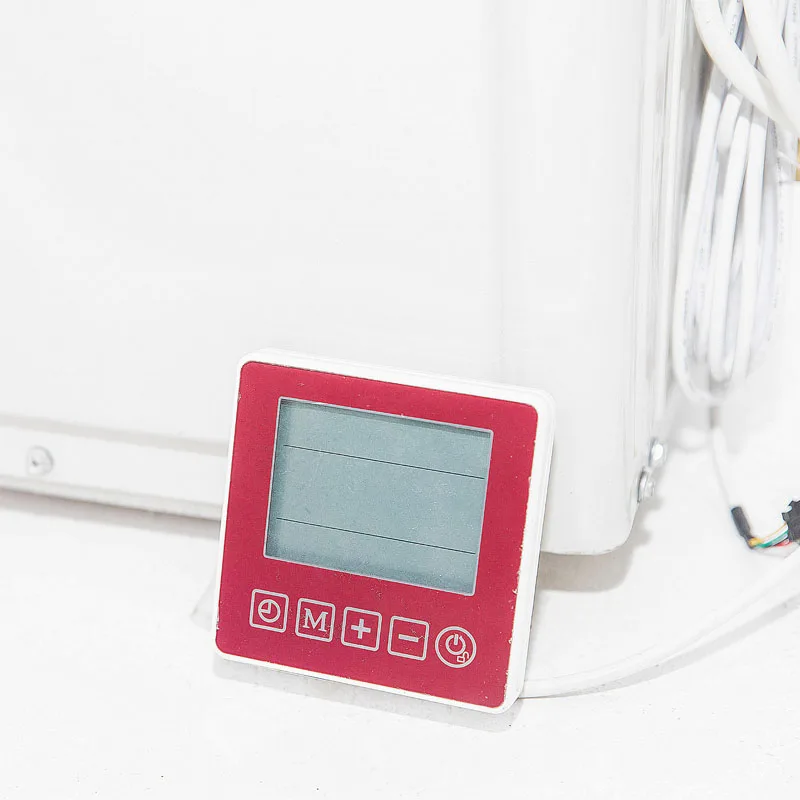

● Multifunction LCD wired controller.
● Durable, long life time up to 15 years, extremely low maintenance cost.
● High efficiency up to COP 4.5, saving 75% energy compare to tradition electric heater.
● High efficiency up to COP 4.5, saving 75% energy compare to tradition electric heater.
● Automatically defrosting.
● Simple installation: Rooftop, balcony, yard or basement can be suitable places for the installation.
Details Images
Specification
Model | KQN-100L | KQN-150L | KQN-200L | KQN-260L | KQN-300L | KQN-400L | KQN-500L | |
Type | F-1P | F-1P | F-1P | F-1.5P | F-1.5P | F-2P | F-2P | |
Size (L*W*H） | 780*260*530mm | 780*260*530mm | 780*260*530mm | 780*260*530mm | 780*260*530mm | 840*290*610mm | 840*290*610mm | |
Compressor | Panasonic (2P17S225ANQ) | Panasonic (2P17S225ANQ) | Panasonic (2P17S225ANQ) | (2K22S225BUA) | (2K22S225BUA) | (2V32S225AUA) | (2V32S225AUA) | |
Rated Power | 900W | 900W | 900W | 1350W | 1350W | 1800W | 1800W | |
Heating capacity | 3700W | 3700W | 3700W | 4900W | 4900W | 6800W | 6800W | |
Hot water production | 80L/h | 80L/h | 80L/h | 120L/h | 120L/h | 160L/h | 160L/h | |
Refrigerant | R22 | R22 | R22 | R22 | R22 | R22 | R22 | |
Max water output temperature | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | 60℃ | |
Net weight | 27kg | 27kg | 27kg | 34kg | 34kg | 44kg | 44kg | |
Accessory | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | connection pipe（9.5*6.3) plug etc. | |
Water tank dimension | φ470*1020mm | φ470*1020mm | φ500*1540mm | φ570*1560mm | φ570*1560mm | φ700*1520mm | φ700*1520mm | |
Inner tank material and thickness | SUS304/1.0mm | SUS304/1.0mm | SUS304/1.2mm | SUS304/1.2mm | SUS304/1.2mm | SUS304/1.5mm | SUS304/1.5mm | |
Outer tank material and thickness | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | colorful steel/0.45mm | |
Insulation layer | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | PU foam 50mm | |
Stainless steel 316 coil | φ9.5/18m | φ9.5/18m | φ9.5/21m | φ9.5/28m | φ9.5/28m | φ9.5/40m | ||
Caliber | DN15(G1/2") | DN15(G1/2") | DN15(G1/2") | DN20(G3/4") | DN20(G3/4") | DN20(G3/4") | DN20(G3/4") | |
Accessory | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar | check valve, MG bar |
Packing & Delivery
carton
Company Profile
Haining Meisheng New Energy Co., Ltd is the leading solar water heater and solar thermal equipment manufacturer in China, provide
high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical
persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect
after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia,
Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over
50 countries, and have found favor in the eyes of customers. We also provide design-system or customized products which is
suitable for customers local market. If you are interested in our products, please do not hesitate to contact us with more
information. We are looking forward to cooperating with you!
high-quality solar water heaters, production lines and related accessories. Our company has a number of highly qualified technical
persons, internationally advanced testing equipment and the first-class production equipment and technology and operates a perfect
after-sales service system. our products are exported to overseas countries and regions such as Mexico, USA, Turkey, Australia,
Germany, UK, France, Portugal, Hungary, Romania, Malta, Syria, New Zealand, Sweden, South Africa, Spain, UAE, Viet Nam, etc.over
50 countries, and have found favor in the eyes of customers. We also provide design-system or customized products which is
suitable for customers local market. If you are interested in our products, please do not hesitate to contact us with more
information. We are looking forward to cooperating with you!
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2019,sell to Eastern Europe(20.00%),Northern Europe(20.00%),Western Europe(20.00%),Southern Europe(10.00%),South America(10.00%),Central America(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar water heater,solar collector,Solar water heater accessories,Pre-heated solar water heater,Compact non-pressure solar water heater
4. why should you buy from us not from other suppliers?
Focus on High Quality, reliable manufacturing products. We make solar manufacturing equipment for solar production line raw materials if needed. We have many stable and cooperative foreign companies, understand foreign markets and characteristics.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Zhejiang, China, start from 2019,sell to Eastern Europe(20.00%),Northern Europe(20.00%),Western Europe(20.00%),Southern Europe(10.00%),South America(10.00%),Central America(10.00%),North America(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
solar water heater,solar collector,Solar water heater accessories,Pre-heated solar water heater,Compact non-pressure solar water heater
4. why should you buy from us not from other suppliers?
Focus on High Quality, reliable manufacturing products. We make solar manufacturing equipment for solar production line raw materials if needed. We have many stable and cooperative foreign companies, understand foreign markets and characteristics.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
Похожие товары

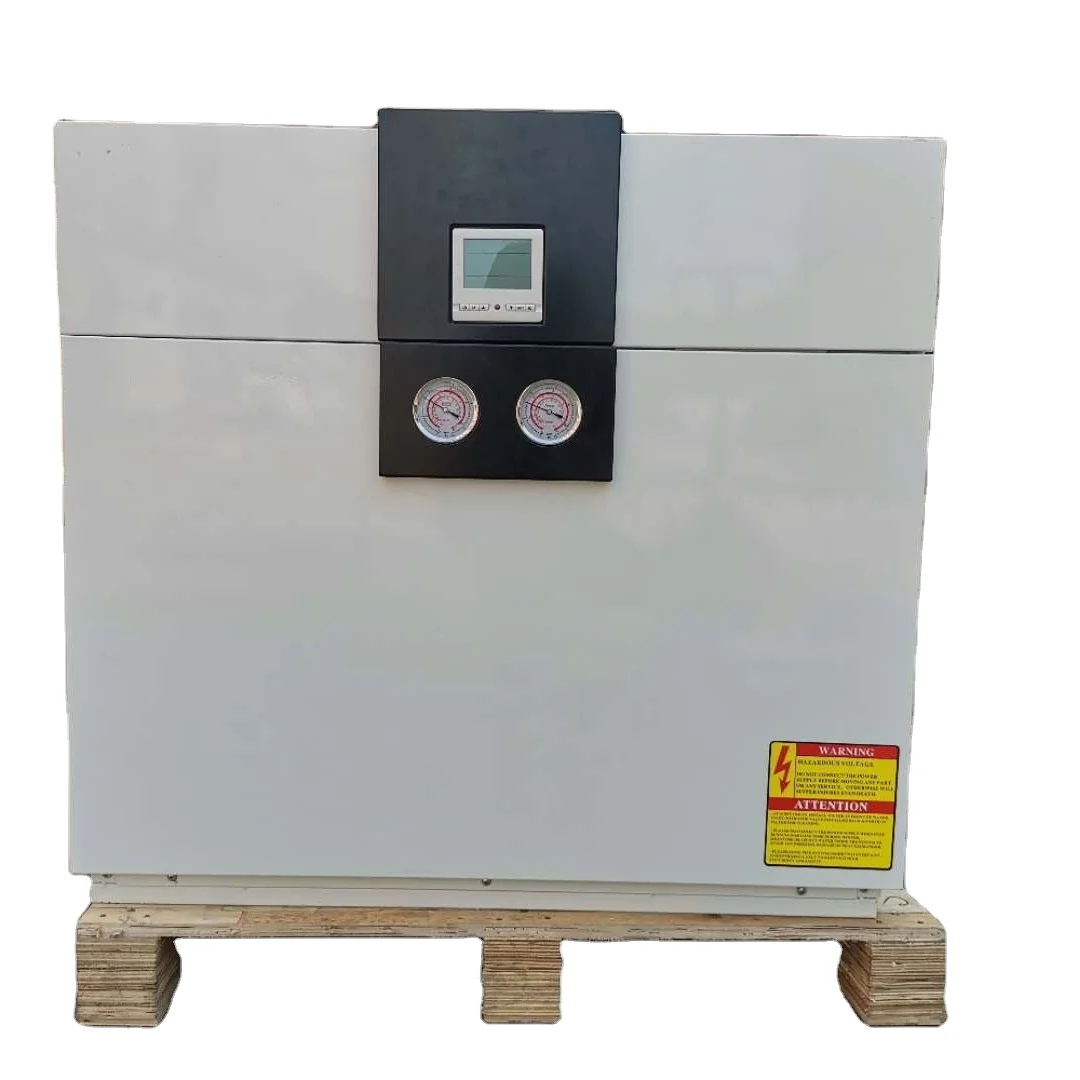

Тепловой насос заземления 36 кВт водяной тепловой по заводской цене
