Высокоточная многоцветная термобумага для продольной флексографской печати
22 000,00-28 000,00 $

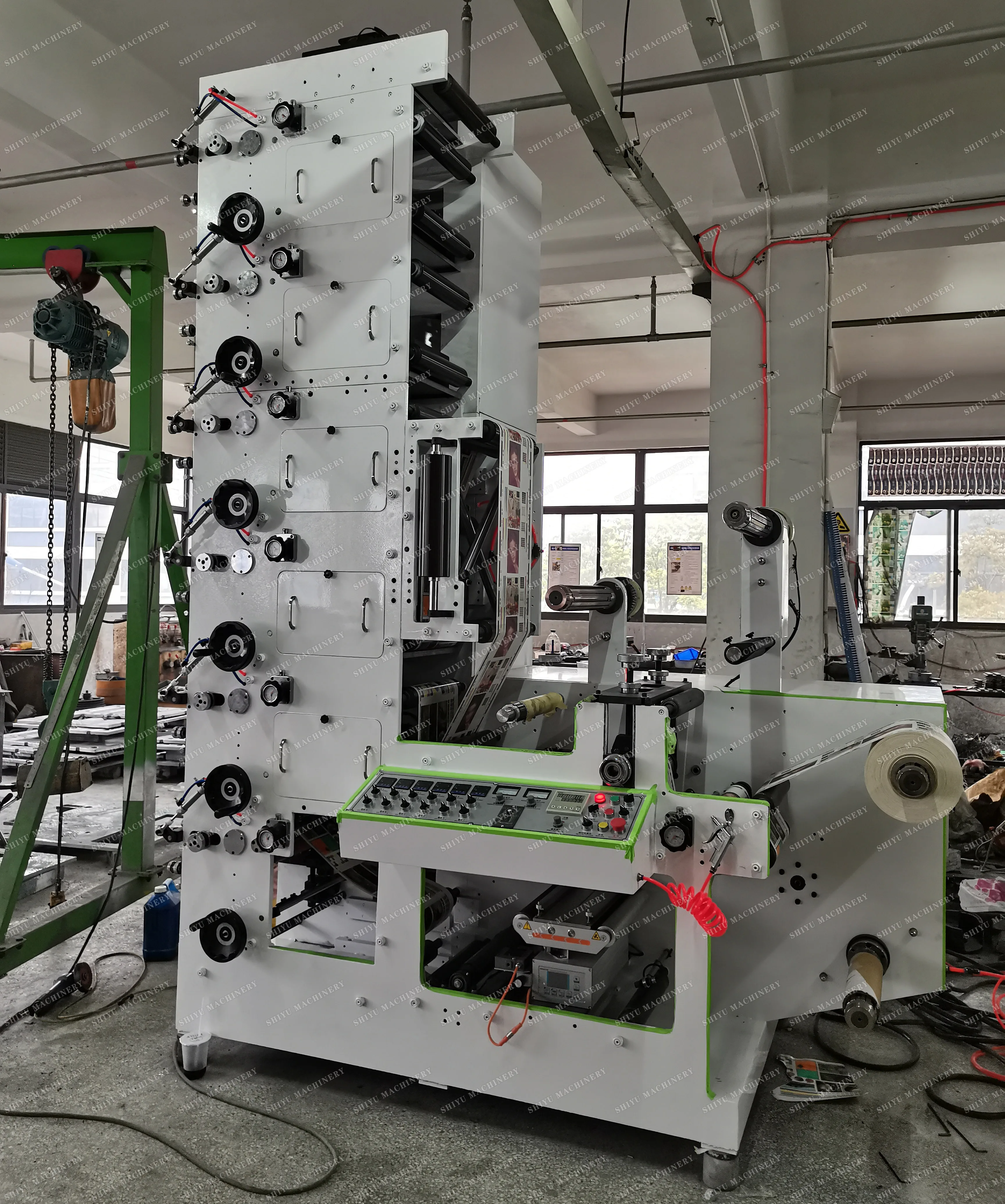

Высокоточная многоцветная машина для флексографической печати
- Категория: >>>
- Поставщик: Shanghai Shiyu Machinery Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601195833478:
Описание и отзывы
Характеристики
The main equipment of 4 Colour SY320 sticker label flexo printing machine for sale :
1. The main motor is equipped with a frequency conversion stepless speed regulation device imported from Japan. This device can reduce mechanical shock and power consumption, thus prolonging the machine’s lifespan and reducing operating costs.
2. Winding and unwinding are controlled by magnetic brake and clutch.
3. Unwind tension controller is Japan’s Mitsubishi automatic tension controller. This guarantees stable and reliable winding and unwinding.
4. The anilox roll has a strong resistance to abrasion and corrosion, thus having a long lifespan. This frees users from the
troubling of regularly replacing the rolls. When the printing of one color and the 360°circular register regulation is adopted.
Each printing unit can be taken apart and used independently.
5. It is equipped with a drying device which enables the ink to rapidly condense to avoid ink blurring or shedding and brings convenience to the cutting operation of the printed products.
6. Customers can choose to install an infrared or UV drying device. They can also specify the color of the equipment.
7. The flexographic printing machine is equipped with a deviation correction sensor that can automatically control the material feeding device and making the printing accurate and stable.
Usages:1. The main motor is equipped with a frequency conversion stepless speed regulation device imported from Japan. This device can reduce mechanical shock and power consumption, thus prolonging the machine’s lifespan and reducing operating costs.
2. Winding and unwinding are controlled by magnetic brake and clutch.
3. Unwind tension controller is Japan’s Mitsubishi automatic tension controller. This guarantees stable and reliable winding and unwinding.
4. The anilox roll has a strong resistance to abrasion and corrosion, thus having a long lifespan. This frees users from the
troubling of regularly replacing the rolls. When the printing of one color and the 360°circular register regulation is adopted.
Each printing unit can be taken apart and used independently.
5. It is equipped with a drying device which enables the ink to rapidly condense to avoid ink blurring or shedding and brings convenience to the cutting operation of the printed products.
6. Customers can choose to install an infrared or UV drying device. They can also specify the color of the equipment.
7. The flexographic printing machine is equipped with a deviation correction sensor that can automatically control the material feeding device and making the printing accurate and stable.
An ideal machine to print different label materials such as plastic films, aluminum foil, tissue paper, self adhesive stickers,
vinyl, pvc and carton weight boards etc.
Model | 320 | ||||||
Printing Speed | 80m/min | ||||||
Printing Color | 5colors | ||||||
Max.Web Width | 320mm | ||||||
Max. Printing Width | 310mm | ||||||
Max. Feeding Diameter | 600mm | ||||||
Max.Rewinder Diameter | 600mm | ||||||
Printing Perimeter | Between 175~355mm | ||||||
Registration Accuracy | ±0.1mm | ||||||
Voltage | 380V/220V 50HZ | ||||||
Total Power | 25kw | ||||||
Weight of Machine | About 2200kg | ||||||
control panel
Power Supply, Stop Button, Start Button and Emergency Stop.Temperature Controller for each Heating Oven.and bottom roller tension control
Unwinding Unit
Standard Cantilever unwinding station,maximum unwind diameter: 600mm air shaft roller.Electromagnetic power brake.
IR dryer
1).Each Printing Unit comes with 1 Unit Infrared Heating Drying Oven. 2).Infrared Heating Drying Oven is placed on material and after each printing station.
Printing Unit
Printing station comes with ink rubber roller, ceramic anilox cylinder, printing plate cylinder, scrapper blade and ink
container.helical gear
container.helical gear
web guide
Detection mode: Edge checking, Control paper move straightly. can control material go straightly,then output final product with good edge.
Die Cutting Unit
Rotary die cutting. Magnetic cylinder need to be customized according to your label size Flexible dies can be customized according to your demand
Похожие товары

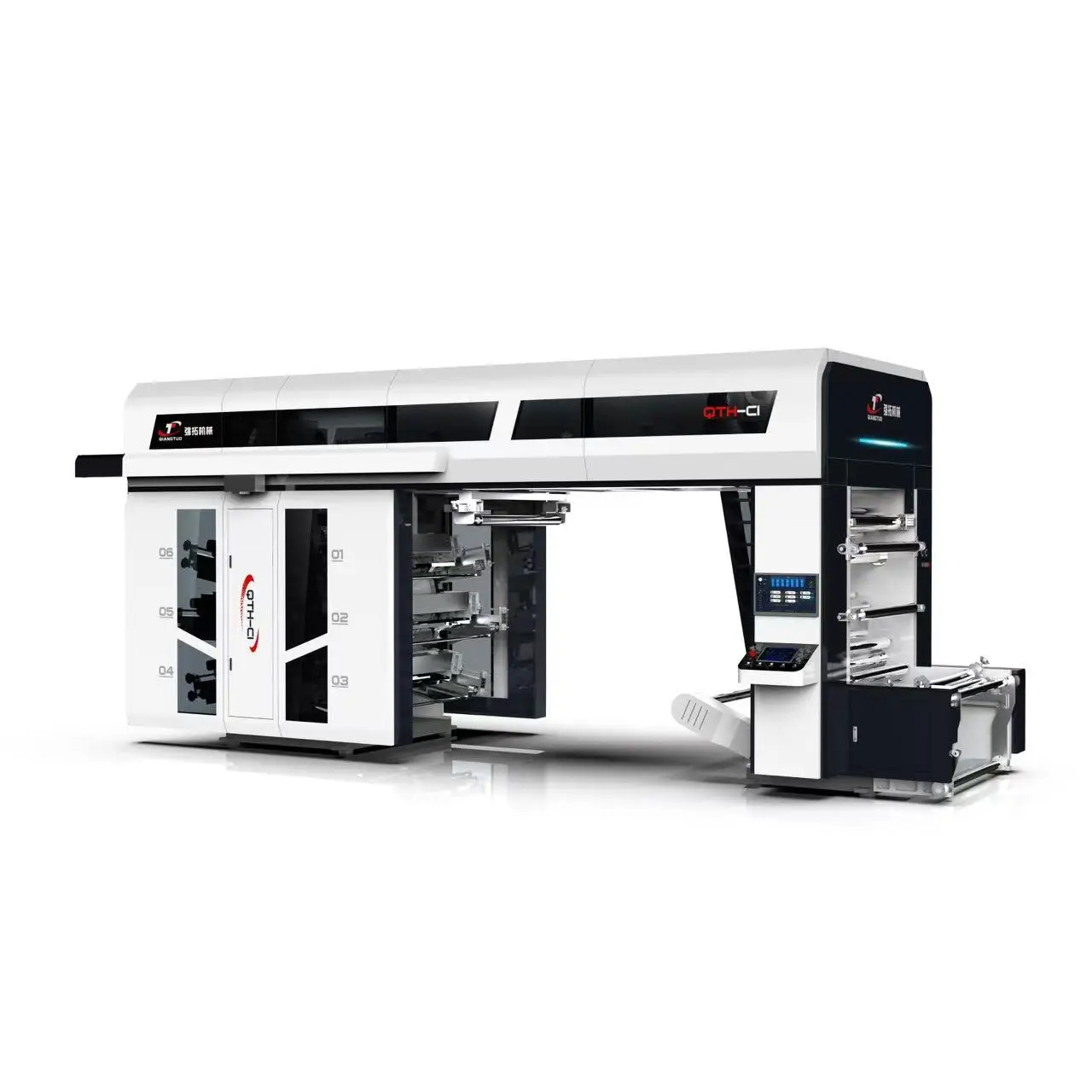

8 цветов полноразмерные сервоприводные Флексографические центральные печатные принтеры производство бумаги пластика
40 000,00-60 000,00 $

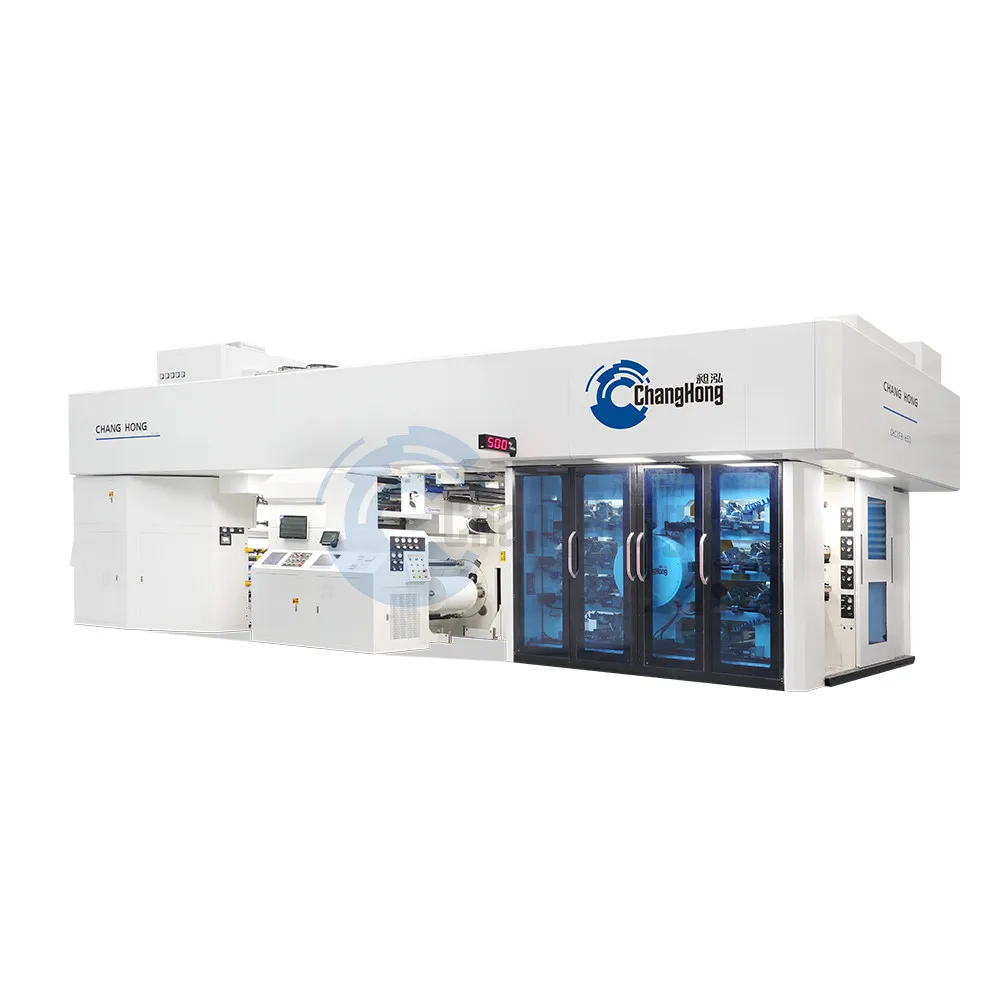

Высокая скорость ci Гибкая упаковочная печатная машина ПВХ
80 000,00-85 000,00 $

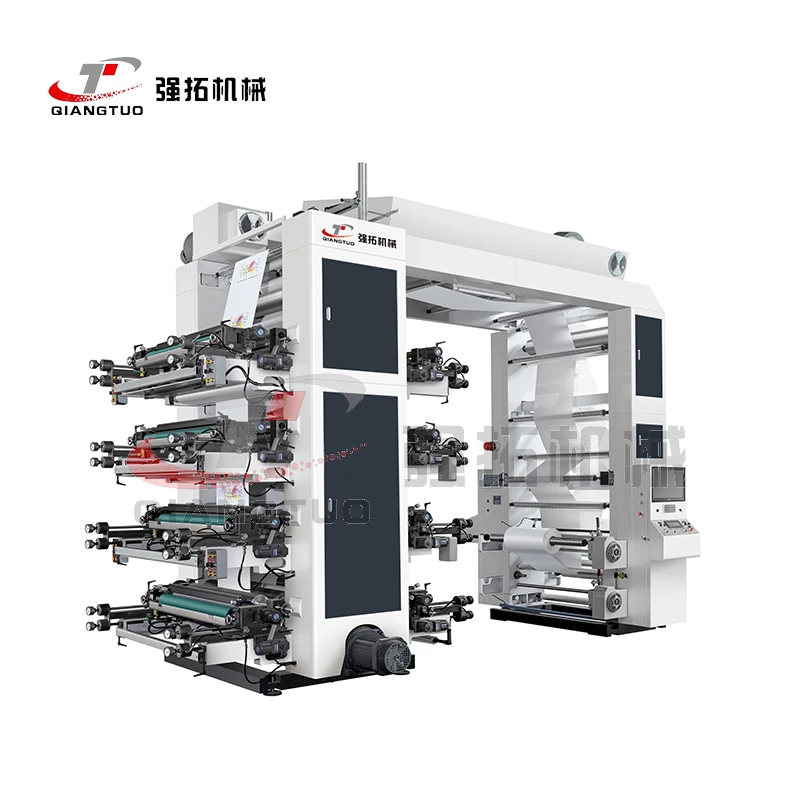

QIANGTUO ремень вождения автоматический PE BOPP PVC OPP YTB-Тип 8 видов цветов Флексографические принтеры
48 500,00-55 000,00 $
4 вида цветов автоматический принтер для флексографических этикеток УФ-сушилка структура стека печатных
12 000,00 $
Автоматический принтер для печати сатиновых этикеток на ткани ленточный флексографский пресс
4 550,00 $

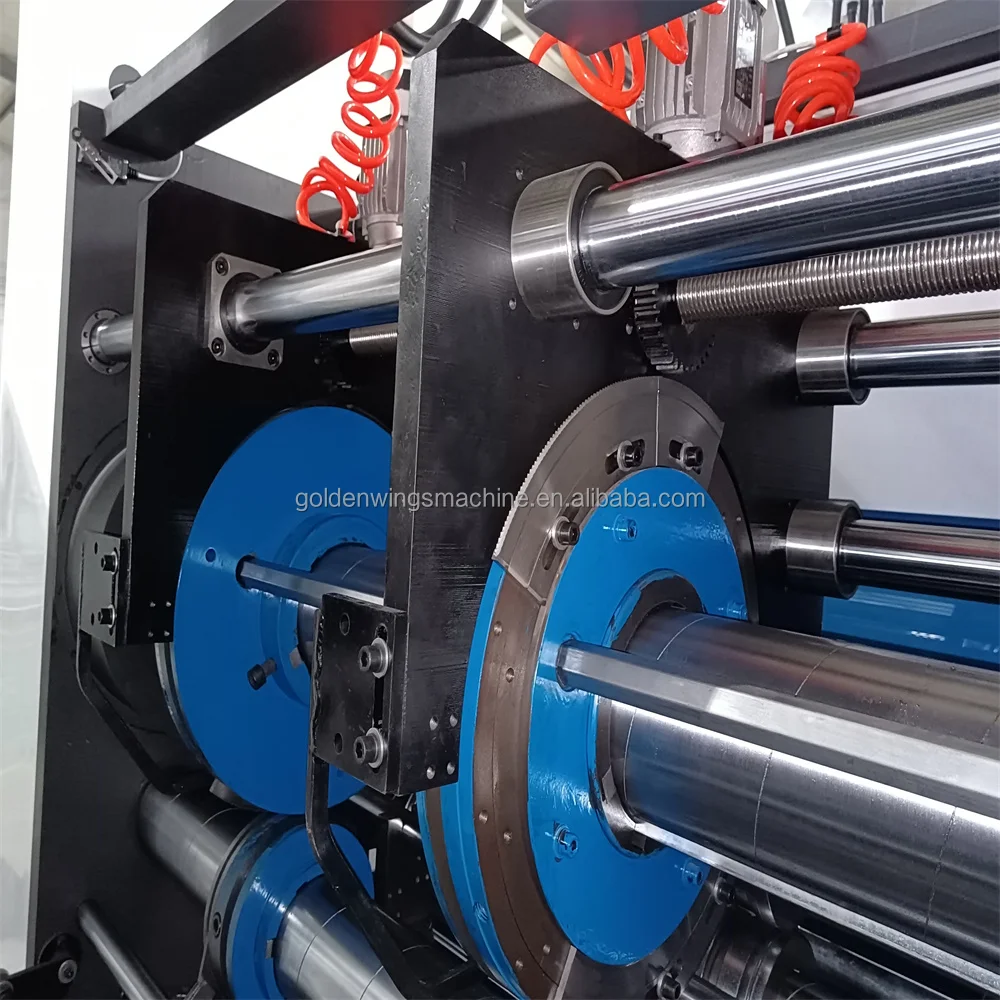

Высокопроизводительная машина для зачистки гофрированного картона ZHENHUA SYKM автоматическое оборудование вырубки
