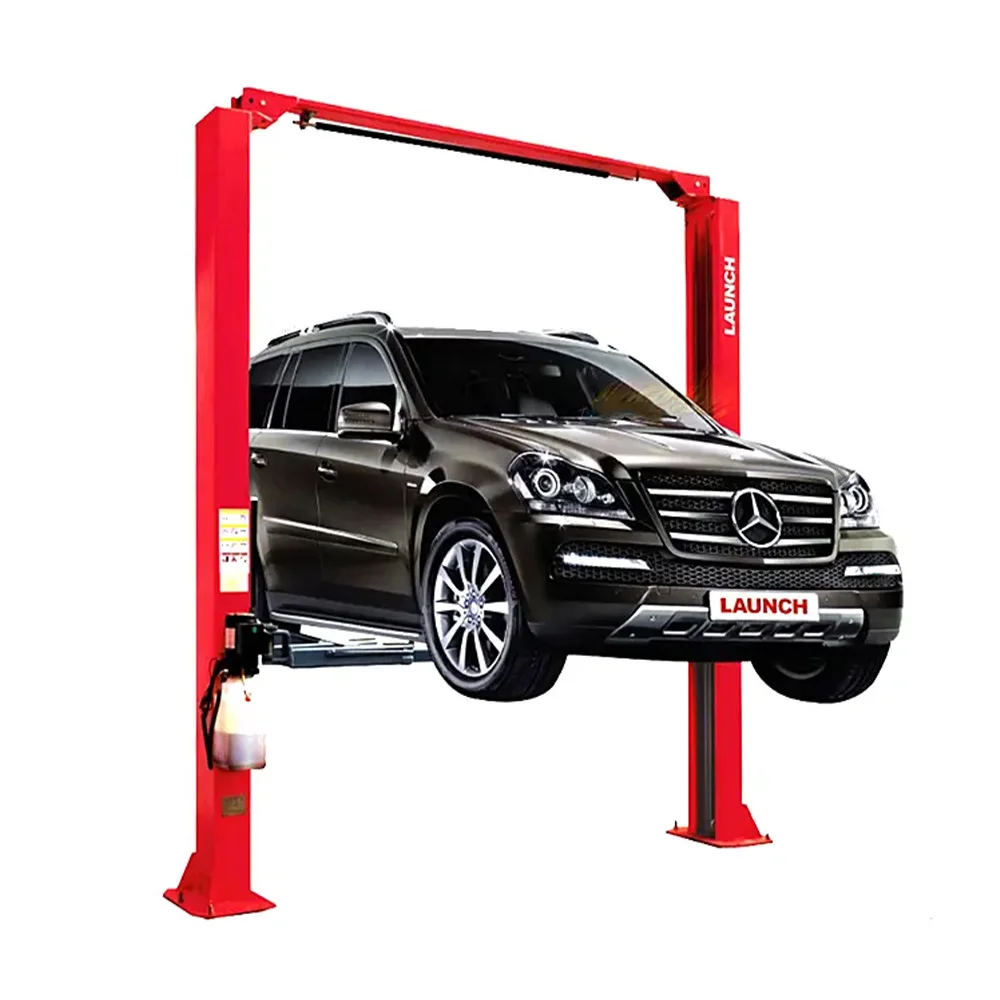

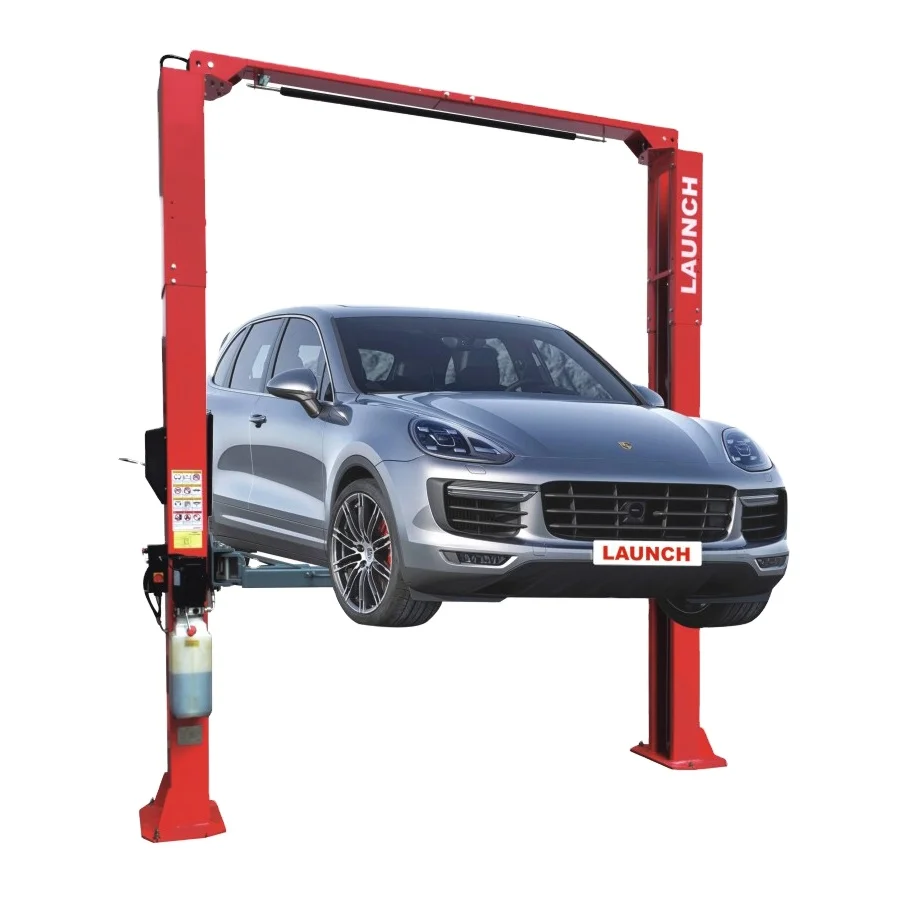

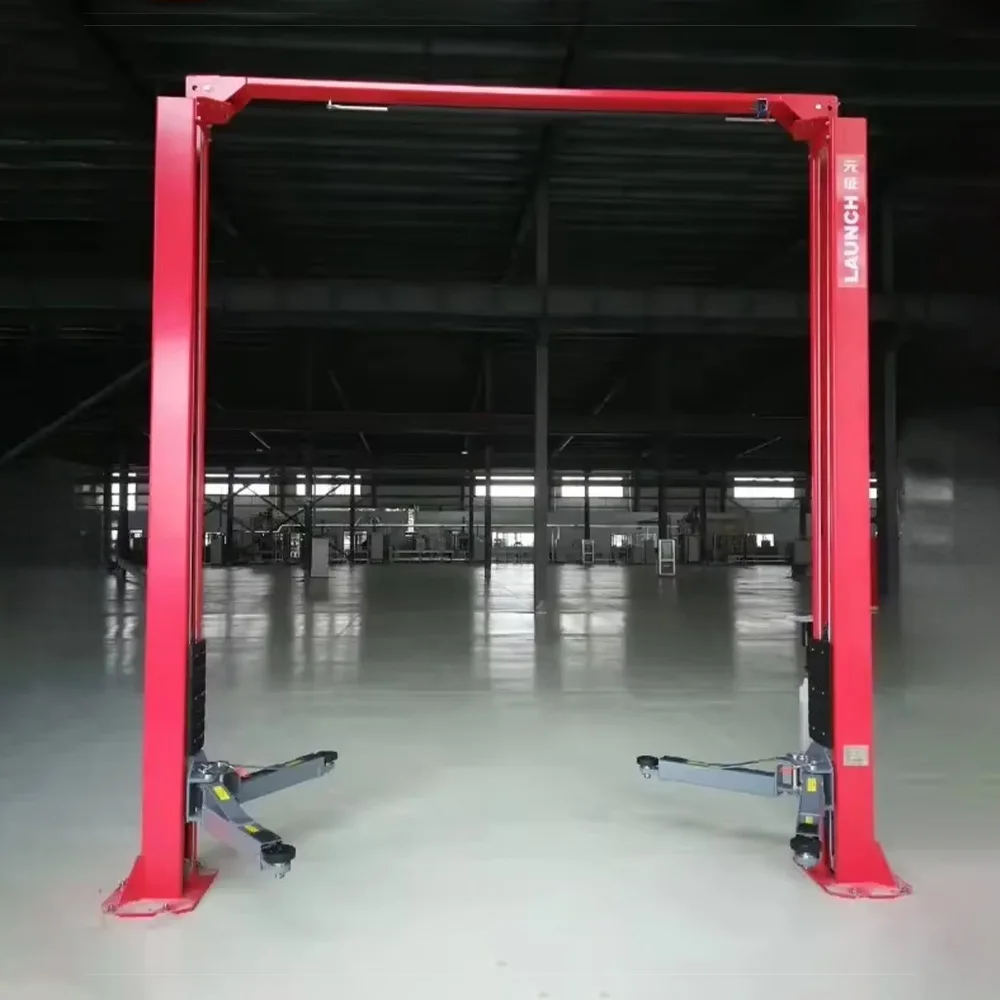

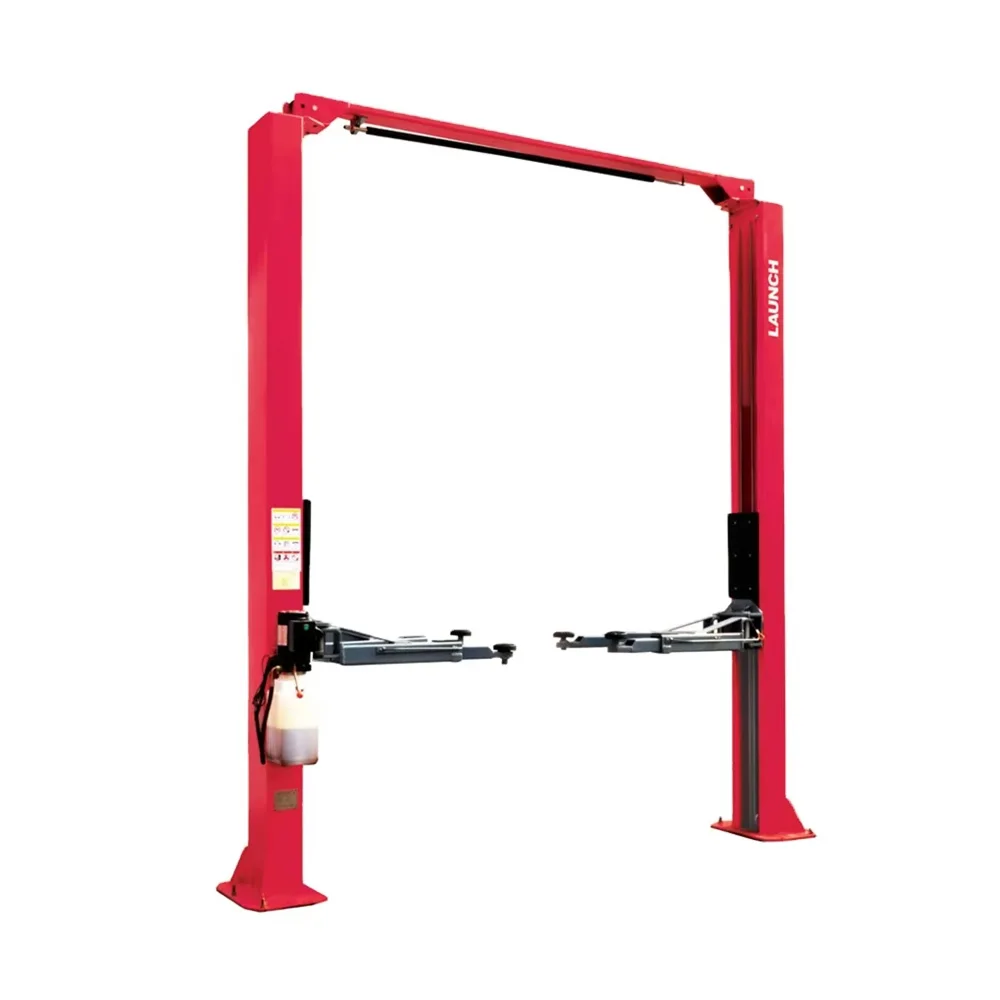

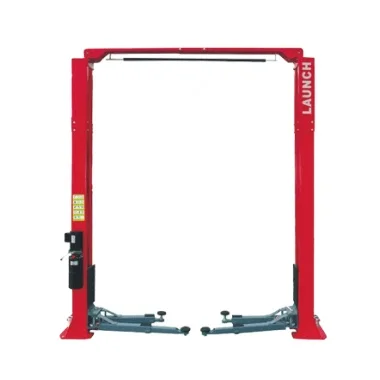

TLT245AT 4 5 T двухштыревое автомобильное подъемное сверхмощное двухцилиндровое гидравлическое оборудование
- Категория: >>>
- Поставщик: Shenzhen Hilson Electromechanical Equipment Co. Ltd.
Сохранить в закладки 1601196148513:
Описание и отзывы
Характеристики
Product Description
TLT245AT Features:
● This machine is applicable for the lifting of various large SUVs, business travel cars and other super wide and high special vehicles.
● Single-side manual lowering device ,safe and easy operation.
● Width between two columns reaches 3350mm,overall height reaches 4810mm .
● Three-section long arm(adjustment range：950mm～1800mm).
● The cable and oil pipe are fully concealed; with decent and elegant appearance.
● Double hydraulic cylinder drive makes stable and smooth lifting and lowering.
● Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
● 24V low voltage control box（IP54 level）ensures operator's safety .
● Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
● Door rubber pad protects car door from being damaged in collision.
● More lifting pads with different height meets the requirements for light lorries and SUVs.
● Symmetric and asymmetric installation types are optional.
● Passed 115% dynamic loading test and 150% static loading test .
● CE certificated.
● Single-side manual lowering device ,safe and easy operation.
● Width between two columns reaches 3350mm,overall height reaches 4810mm .
● Three-section long arm(adjustment range：950mm～1800mm).
● The cable and oil pipe are fully concealed; with decent and elegant appearance.
● Double hydraulic cylinder drive makes stable and smooth lifting and lowering.
● Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle from tilting.
● 24V low voltage control box（IP54 level）ensures operator's safety .
● Cylinder travel limit switch effectively protects cylinder and extends its lifespan.
● Door rubber pad protects car door from being damaged in collision.
● More lifting pads with different height meets the requirements for light lorries and SUVs.
● Symmetric and asymmetric installation types are optional.
● Passed 115% dynamic loading test and 150% static loading test .
● CE certificated.
TLT245AT Parameters:
● Rated load:5000kg
● Lifting height:1850mm
● Initial height:110mm
● Lifting time:≤50s
● Lowering time:≥20s≤40s
● Passing width for symmetric installation:3050mm
● Overall width for symmetric installation:4110mm
● Passing width for asymmetric installation:2888mm
● Overall width for asymmetric installation:4130mm
● Overall height：4810mm
● Motor power:3.0kW
● Motor voltage:3 phase/380vor Single phase/220V
● Working noise:≤75dB（A）
● Working oil pressure:20M Pa
● Rated load:5000kg
● Lifting height:1850mm
● Initial height:110mm
● Lifting time:≤50s
● Lowering time:≥20s≤40s
● Passing width for symmetric installation:3050mm
● Overall width for symmetric installation:4110mm
● Passing width for asymmetric installation:2888mm
● Overall width for asymmetric installation:4130mm
● Overall height：4810mm
● Motor power:3.0kW
● Motor voltage:3 phase/380vor Single phase/220V
● Working noise:≤75dB（A）
● Working oil pressure:20M Pa
Product packaging
Why Choose Us
Customer Review
Company Profile
Shenzhen Hilson Electromechanical Equipment Co., Ltd. was founded on March 29, 2004, with a registered capital of 10 million. It is an officially authorized first-class distributor of Launch. The company has a full range of LAUNCH products, a large number of stock inventory, fast delivery, perfect quality assurance and after-sales service. In recent years, the company's annual sales have reached as much as 27 million, the enterprise has a good development prospects and development situation. Our company provides a variety of automotive diagnostic tools and automotive equipment testing tools, covering scanners, car key programming, ECU tuning, service light reset, airbag reset and so on. Such as X-431 series. As a first-class agent of LAUNCH, our company provides customers with quality and quantity-assured products based on the principle of "Quality First, Reputation First". We are committed to be the leader in the automotive diagnostic industry and the top and most trusted supplier in China.
Certifications
The first-class distributor of Launch
LAUNCH TECH CO.LTD hereby authorizes Shenzhen Hilson to enjoy primary distributor rights and sell the designated products of Launch on the designated e-commerce websites.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004,sell to Domestic Market(83.00%),South America(6.00%),North America(5.00%),Western Europe(3.00%),Eastern Europe(3.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
X-431 PAD V ELITE; X-431 PAD VII; X-431 PRO; CRP123X/CRP129X; CRP 919E BT
4. Why should you buy from us not from other suppliers?
The company as LAUNCH authorized first-class agents, complete products, has a full range of LAUNCH products, with a large number of spot inventory, fast delivery, perfect quality assurance and after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2004,sell to Domestic Market(83.00%),South America(6.00%),North America(5.00%),Western Europe(3.00%),Eastern Europe(3.00%). There are total about 5-10 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
X-431 PAD V ELITE; X-431 PAD VII; X-431 PRO; CRP123X/CRP129X; CRP 919E BT
4. Why should you buy from us not from other suppliers?
The company as LAUNCH authorized first-class agents, complete products, has a full range of LAUNCH products, with a large number of spot inventory, fast delivery, perfect quality assurance and after-sales service.
5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,Credit Card,PayPal;
Language Spoken:English,Chinese
Похожие товары
AUTOKE 3500 кг ультратонкий ножничный автомобильный подъемник, лидер продаж, оборудование для ремонта автомобиля
178 210,23 ₽ - 189 010,85 ₽
Подъемный два стоечные подъемники для автомобилей гидравлический автомобильный способствующее оборудование в Китае (стандарты CE, аттестация Шанхай fanbao QJY3.8-G
88 565,09 ₽ - 105 846,08 ₽
Заводская поставка, 2-х почтовый автомобильный подъемник, гидравлическое автомобильное подъемное оборудование
93 965,40 ₽ - 106 386,11 ₽
Портативное подъемное гидравлическое подъемное оборудование
257 054,76 ₽ - 308 465,71 ₽
PULI PL-4.0-2DAS более широкий и высокий гидравлический автомобильный подъемник грузоподъемности 4 т 2-стоечное автомобильное подъемное оборудование
105 630,07 ₽
Эко-путь стационарный автоподъемник для мастерских 4000 кг 1,4 м авто ножничный подъемник оборудование
86 404,96 ₽ - 91 805,27 ₽

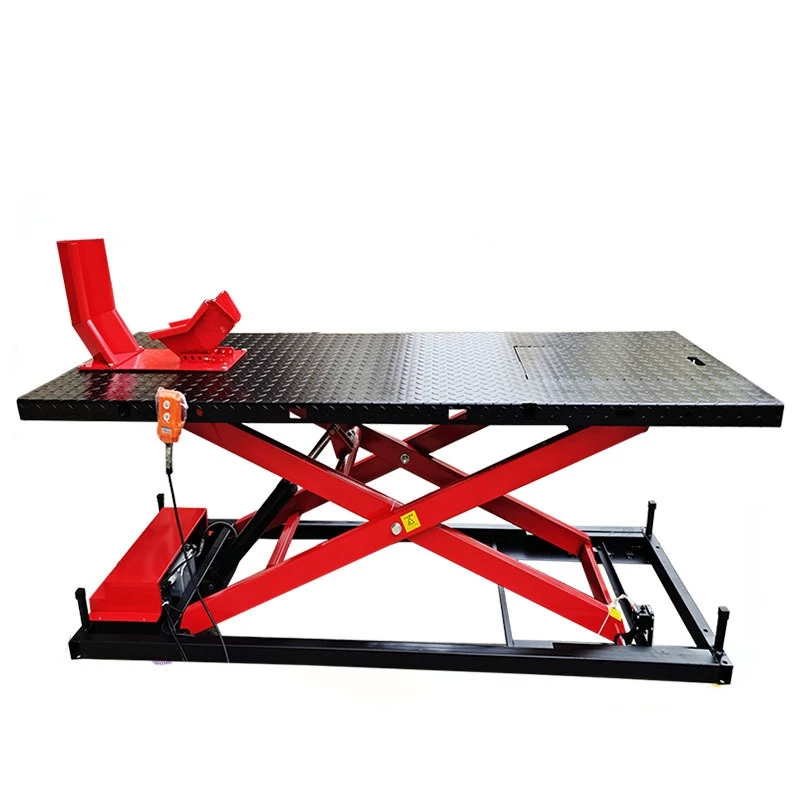

Мотоцикл подъемник ножницы гидравлический мотоцикл подъемник мотоцикл техническое обслуживание оборудования
