Оптовая продажа с завода, ультразвуковая ручная сварка, ультразвуковые системы для сварки бумажных стаканчиков
54 217,95 ₽

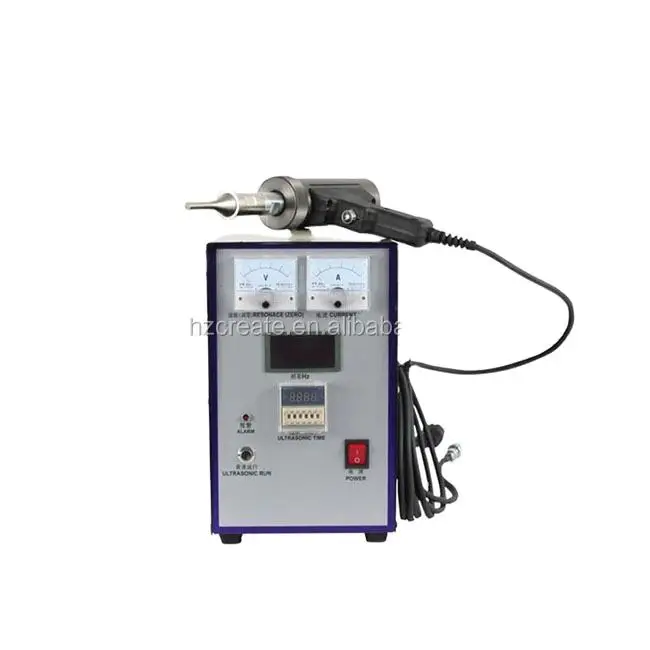

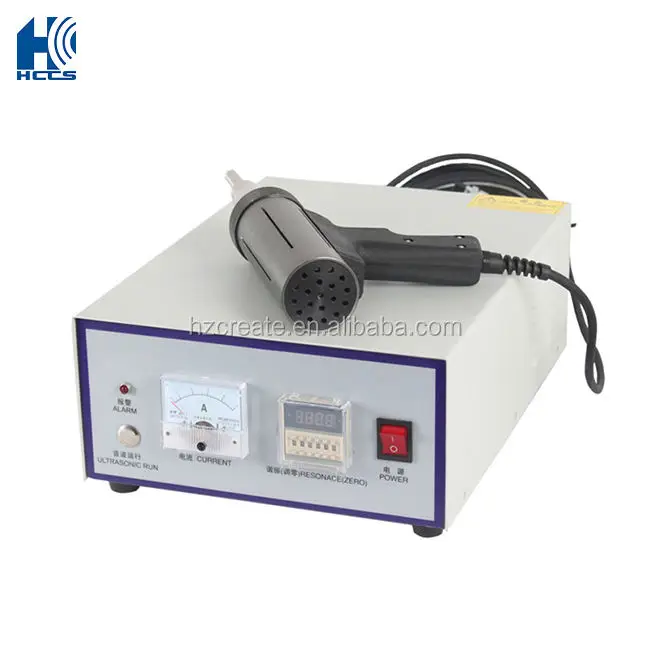

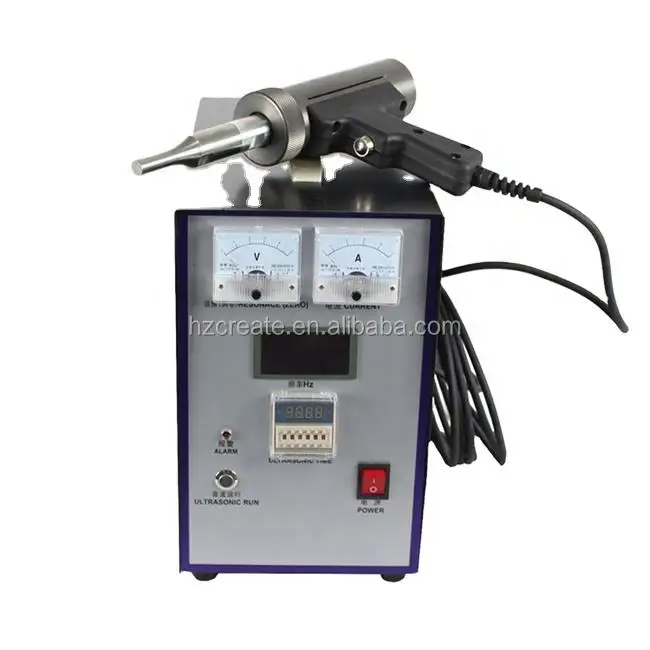

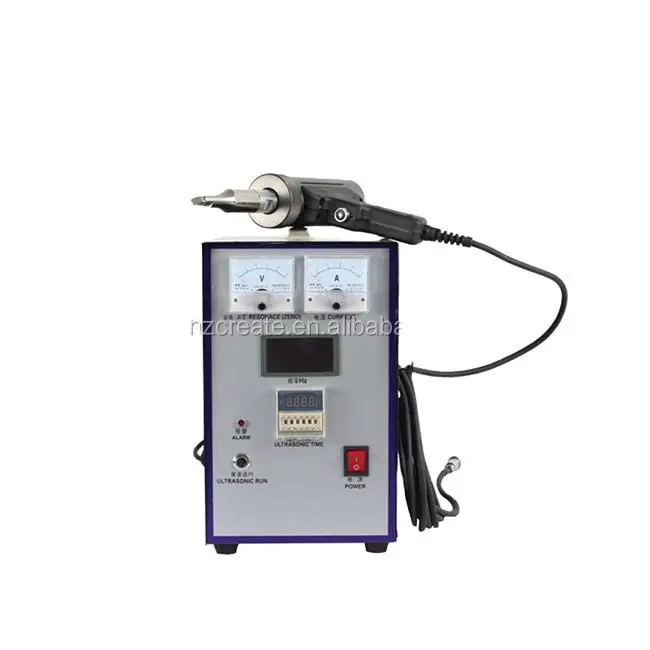

Ультразвуковой ABS PP пластиковый сварочный аппарат ручной портативный точечный
- Категория: >>>
- Поставщик: Hangzhou Create Ultrasonic Technology Co. Ltd.
Сохранить в закладки 1601196318617:
Описание и отзывы
Характеристики
Product introduction：
The ultrasonic welding machine converts the 50/60HZ current into high-frequency alternating current through the ultrasonic generator, and inputs the electric energy into the ultrasonic transducer to generate mechanical motion of the same frequency. The mechanical motion is transmitted to the ultrasonic welding head through the amplitude modulator device, and the welding head transmits the received vibration energy to the joint of the workpiece to be welded. In this area, the energy is frictionally converted into heat, which melts the plastic. The short-term pressure maintained on the workpiece after the vibration stops makes the two weldments solidify as a whole in a molecular link. Generally, the welding time is less than 1 second, and the obtained welding strength is comparable to that of the plastic itself.Product Usage：
Portable plastic spot welding machine is suitable for ABS, PP, PE, PC, PUC, PMMA, PS, PPS, PBT, PETG and other plastic materials; suitable for spot welding, pressure welding, riveting, drilling, circle flower, dot marking, Sealing, screw embedding, decal welding and other processes; also used in plastics, electronics, electrical appliances, auto parts, packaging, environmental protection, medical, non-woven clothing, stationery, daily necessities, plastic toys, sporting goods, communication equipment and other industries.
Advantages of handheld ultrasonic plastic welding machine:
1. Novel portable structure design, easy to operate and move.
2. Hand-held operation, flexible and practical.
3. Unique handle design, there are straight grip and gun handle to choose from, the shell material is plastic and aluminum alloy.
4. Small size and light weight.
5. Frequency 20KHz, 28KHz, 30KHz, 35KHz optional.
6. Strong power, optional power from 200W-1200W.
The cable connection line adopts a special customized ultra-foldable connection line
1. Novel portable structure design, easy to operate and move.
2. Hand-held operation, flexible and practical.
3. Unique handle design, there are straight grip and gun handle to choose from, the shell material is plastic and aluminum alloy.
4. Small size and light weight.
5. Frequency 20KHz, 28KHz, 30KHz, 35KHz optional.
6. Strong power, optional power from 200W-1200W.
The cable connection line adopts a special customized ultra-foldable connection line
Item No. | HC-HJ-100 | HC-HJ-300 | HC-HJ-500 | HC-HJ-800 | HC-HJ-1000 | HC-HJ-1200 |
Power(W) | 100w | 300w | 500w | 800w | 1000w | 1200w |
Input Voltage(V) | 110v-240v | 110v-240v | 110v-240v | 110v-240v | 110v-240v | 110v-240v |
Input Frequency(HZ) | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz | 50Hz-60Hz |
size of generator (CM) | 25*24*12 | 32*15*15.5 | 40*28*14 | 40*28*14 | 44*20*32 | 44*20*32 |
N.T of machine | 4kg | 4.5kg | 14kg | 14kg | 15kg | 16kg |
welding head diameter | as customized | as customized | as customized | as customized | as customized | as customized |
Cable Length (m) | 2M | 2M | 3M | 3M | 3M | 3M |
Use renderings：
product category
Our Advantages
Product production process
Company Profile
Packing&shipping
FAQ
1. Are your ultrasonic machine manufacturer or trader?
A:Yes, we are manufacturer. Welcome to visit us.
2. What is the MOQ of ultrasonic machine ?
A: 1pcs as you need.
3. Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
4. Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
5. Could we as your agent?
A: Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
6. When will you send out the ultrasonic machine after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
7. How about the quality guarantee period of ultrasonic machine ?
A: One year! Except for the horn.
8. How can you guarantee the production quality?
A: We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each ultrasonic machinebefore the delivery, Third part inspection acceptable.
A:Yes, we are manufacturer. Welcome to visit us.
2. What is the MOQ of ultrasonic machine ?
A: 1pcs as you need.
3. Can I ge a lower price if I order large quantities?
A: Yes, cheaper prices with more bigger size orders.
4. Could you advise to us the design based on our special requirements or based on our object samples?
A: Of course, we can do. Please tell us your idea or your application.
If you have sample object,send it to us or send detail pictures.
5. Could we as your agent?
A: Of course.We are looking for sole agent in Country who have the willing to cooperate with us for long business term.
6. When will you send out the ultrasonic machine after receiving the order?
A: Based on the order quantity, the goods will be send out within 2 -7days.
7. How about the quality guarantee period of ultrasonic machine ?
A: One year! Except for the horn.
8. How can you guarantee the production quality?
A: We have more than 10 years production experience and we have strictly quality control system in our production process. 4 times inspection for each ultrasonic machinebefore the delivery, Third part inspection acceptable.
Похожие товары
Автоматический сварочный аппарат с ушной петлей, 28 кГц, 300 Вт, автоматический ультразвуковой преобразователь для маски лица с ушной петлей, 28 кГц
6 072,42 ₽ - 6 885,68 ₽
Ультразвуковые сварочные аппараты в медицинской промышленности для сборки медицинских устройств
195 184,62 ₽ - 206 028,21 ₽
Оптовая продажа, высокое качество, хит продаж, дешевый, 2000e, 35 кГц, серия печатных плат, ультразвуковой генератор для резки пищевых продуктов
45 543,08 ₽
28 кГц портативный датчик деталей для пластиковых сварочных аппаратов, используемый в точечной сварке, ультразвуковой сварочный преобразователь
6 072,42 ₽ - 6 939,90 ₽

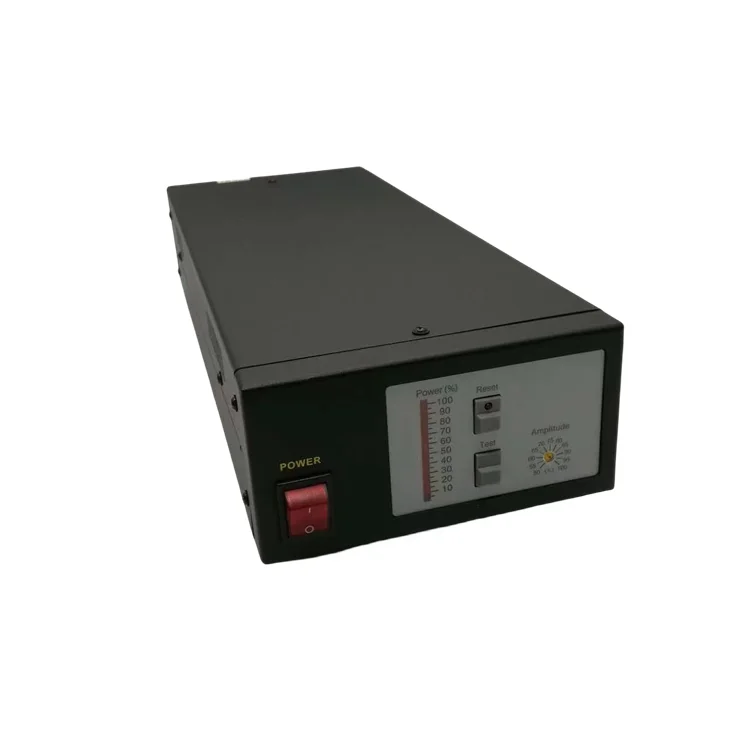

15 кГц 2600 Вт горячий продукт используется для привода ультразвукового преобразователя для вибрации ультразвуковой генераторной системы
195 184,62 ₽ - 216 871,80 ₽

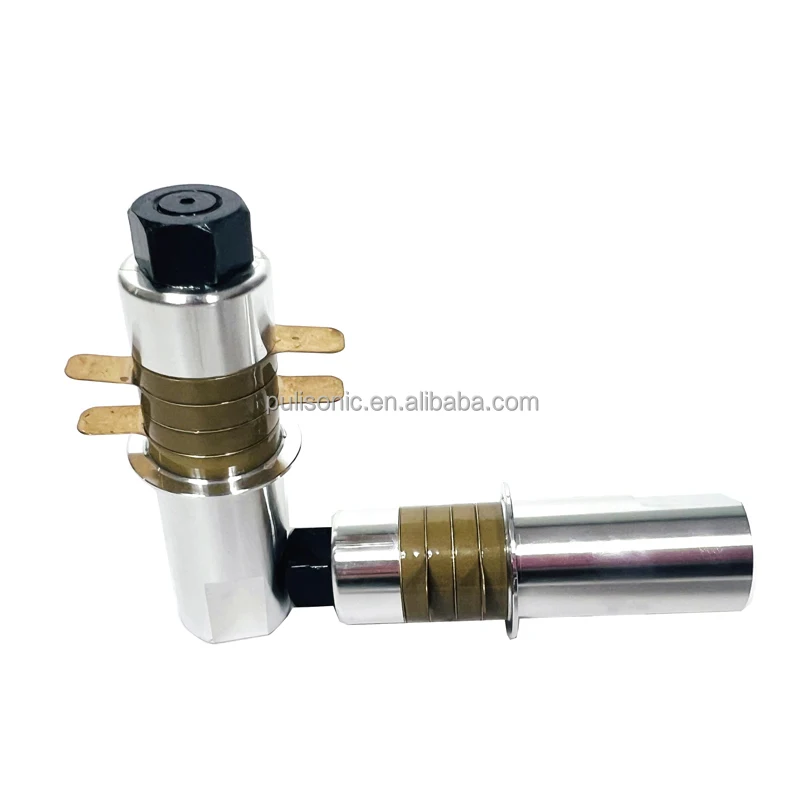

28 кГц 200 Вт пьезоэлектрический ультразвуковой преобразователь для портативного пластикового сварочного аппарата излучатель
5 421,80 ₽ - 7 373,65 ₽

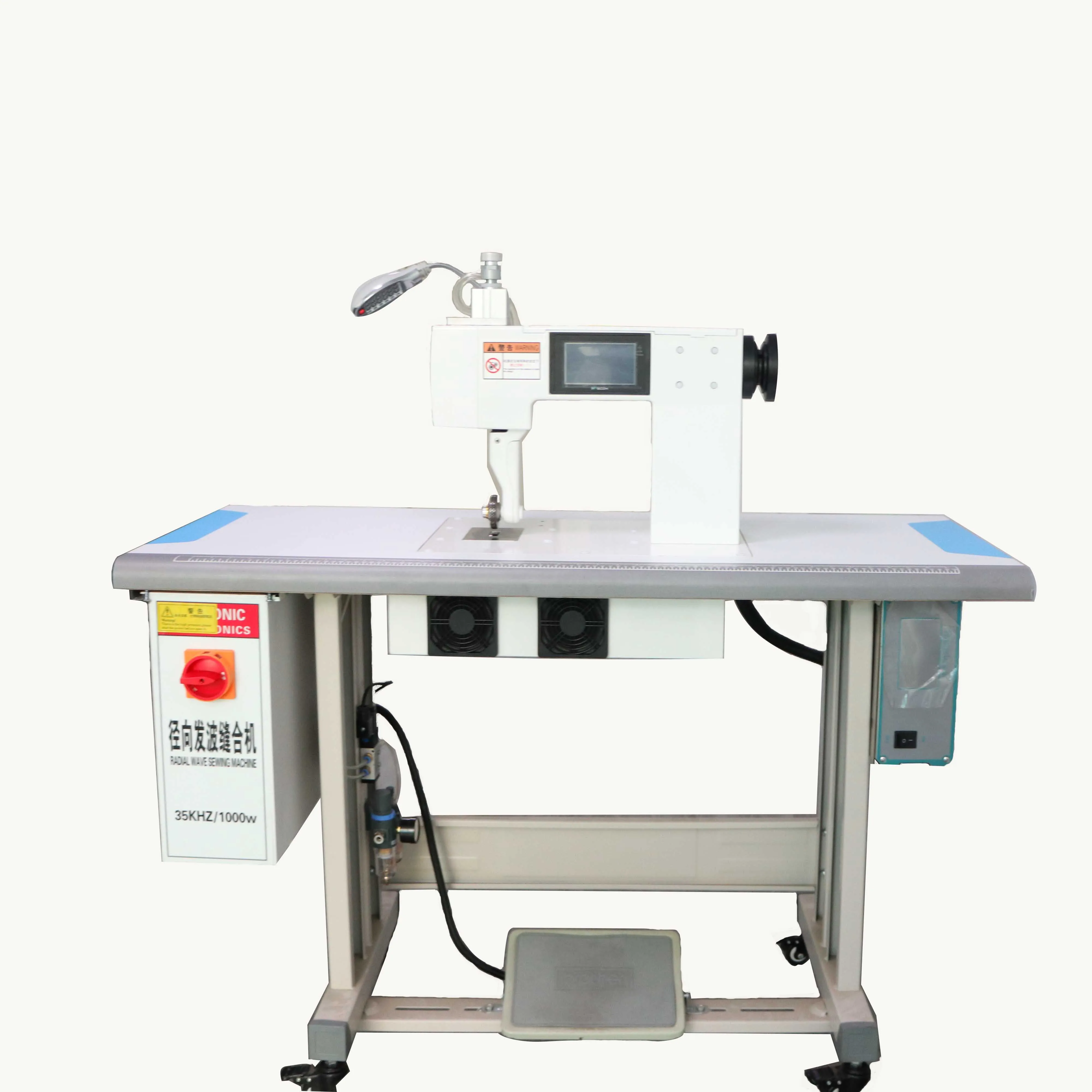

Высококачественная ультразвуковая Нетканая швейная кружевная машина ультразвуковая стеганая машина для шитья
