Автоматическая система управления дверями для жилых домов оператор раздвижных дверей
15 350,78 ₽ - 17 543,75 ₽
Автоматический механизм контроллера раздвижных дверей безопасности с датчиком для коммерческой раздвижной системы Гаражных Дверей
- Категория: >>>
- Поставщик: Guangzhou CN Electrical Equipment Co. Ltd.
Сохранить в закладки 1601196321055:
Описание и отзывы
Характеристики
Product Description

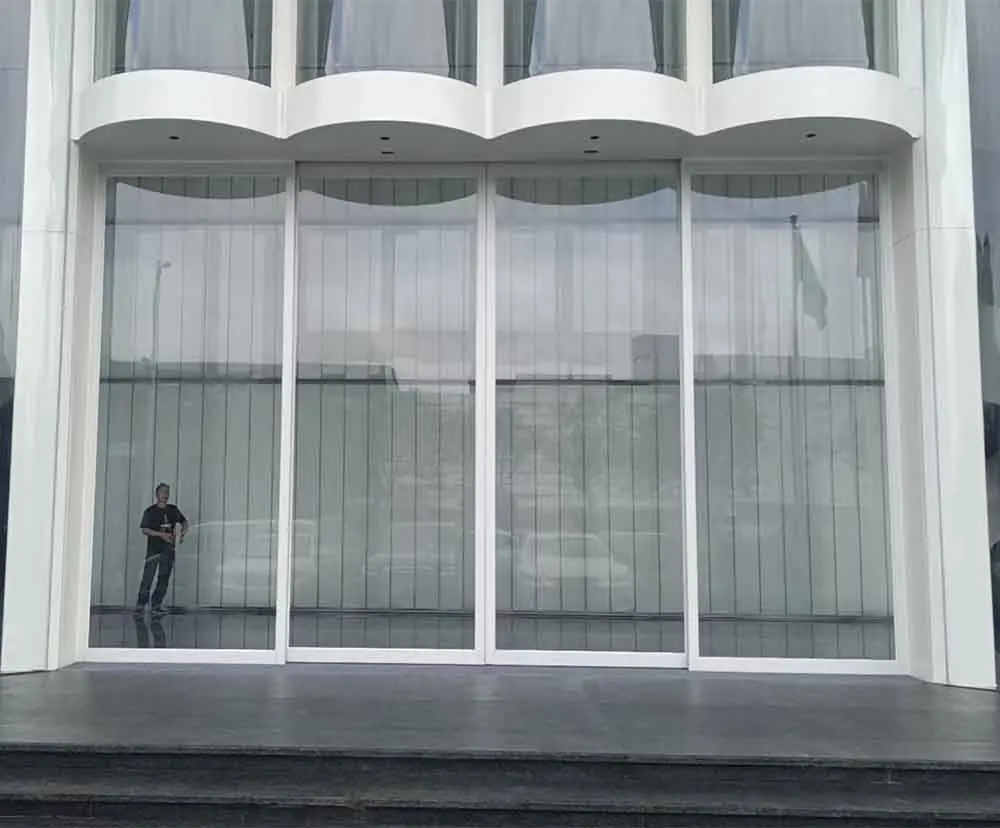

Commercial Entrance Electrical Slide Doors Aluminum Frame Automatic Sliding Glass Door
What Are Automatic Doors?
An automatic door, sometimes called an auto door, is a door that opens by itself when it senses the approach of a person.
Automatic doors are everywhere: at the supermarket, the airport, in schools, office blocks, hotels and other venues too. In fact, they have become so widely used that it is hard to imagine a world without them. Could you really imagine trying to open a heavy door yourself as you leave the supermarket with a trolley full of shopping, and the kids in tow?
Because you're used to seeing them so often, you've probably never stopped and wondered exactly how automatic doors work. If you're a business owner looking to improve access to your shop, office, factory or any other kind of building, read on to learn exactly why automatic doors open when somebody approaches, and how automatic doors work.
How Do Automatic Doors Work?
Automatic doors rely on the use of a sensor to detect the approach of a person. When the sensor picks up an approaching object, it will send a signal to the opening mechanism to open the door.
There are various types of sensor available. The best sensor will depend on the type of automatic door used at your premises, as well as its location.
Motion Detection
One of the more common methods for operating an automatic door is through motion detection.
A motion detector, or optical sensor, will be installed on the sides or above the door. This sensor will then look for movement in front of the automatic door, and signal the opening mechanism when it is detected.
Pressure Sensors
They are installed in a mat or pad on the ground, and will detect the change in weight when a person steps on it. These can be programmed with a weight threshold, to ensure that animals such as cats or dogs cannot trigger the pressure sensor and open the automatic door.
Another advantage is that the sensor will continue to detect a stationary, or slow moving person. For example, an elderly person. With a motion detector, the doors could close if they remain still for long enough, whereas a pressure sensor will prevent that from happening.
Access Control Systems
A modern method of control for automatic doors. These systems allow an automatic door to work by the use of a keycard, a fob, or nowadays a smartphone.
component
Specification
Passage width LW: | 1200-6000mm | Closing speed: | 10-50cm/s |
Passage height: | 2000-4000mm | Hold time - open: | 0-180s |
Panel weight max.: | 6*100kg | Motor: | 60V/180W Brush motor |
Cross-section of Head profile(H*D): | Min. 200*120mm | Voltage, frequency: | 230V, 50/60Hz |
Max. Door weight: | Single-leaf 1*150kg Bi-parting 2*120kg | Power consumption: | Max. 250W |
Opening width: | Single-leaf 600-3000mm Bi-parting 1200-6000mm | Main power connection: | 90-240VAC, 50/60Hz, 10A |
Opening and closing force: | Max. 150N(adjustable) | Ambient temperature: | -20 to +50 |
Features
1. Compatible profile and hardware
2. Optional dual motor driving mode available, ability of driving heavy loaded telescopic door
3. Customized driving system available for super heavy telescopic doors
4. Double overlapped or triple overlapped sliding
5. Highly customized for super heavy load
6. Intelligent microprocessor, automatic self diagnostic, self-monitoring system
7. Super quiet and smooth, high efficiency brush DC motor
8. Expansion interface for backup power and emergency control
9. Automatically rebound, avoid clamping unit and damage
10. Easy Installation
Packing & Delivery
Packing and Delivery :
1. Standard export packing and MDF batten cover corners.
2. We have professional trucks to transport the goods to our export port ( Guangzhou Port).
Company Profile
Guangzhou CN Electrical Equipment Co., Ltd ( hereinafter referred to as : CN Electric) is the professional manufacturer in reserch and produce automatic sliding door, revolving door, safety inspection door, passage brake machine, ATM Cabin, household automatic door, automatic windows, biological recognition and other intelligent devices. CN Electric also is a global famous supplier in the field of automatic door.
Our company attaches great importance to the quality and progress of our products. Every year, we spend a lot of energy and financial resources to train professional technicians and improve their independent research and development, design and production capabilities to meet the needs of most customers.After years of management, we have become one of the industry leaders.
Our factory is equipped with state of the art hydraulic press brake bending machines, automatic cutting machines for cutting aluminium and MDF boards and complete equipment like drilling, milling, bearing and lamination press machines, processing and manufacturing any type of doors and movable walls as per customer choice.
FAQ
1.Are you trading company or manufacturer?
We are automatic door manufacturer for many years.
2. Have your partition wall products come in standard sizes?
No, actually all of our movable partition wall sizes are supported customized.
No, actually all of our movable partition wall sizes are supported customized.
3.Are your products guaranteed?
Yes. The warranty of CN products is 1 year for free maintenance and lifelong service. And we have established a 24-hour service system for whole day service.
4.Do you provide samples ? is it free or extra?
Free samples can only be provided if the order is large enough. A small quantity can only be a trial order.
Free samples can only be provided if the order is large enough. A small quantity can only be a trial order.
5.Payment terms.
30% -50%deposit and balance before shipment, T/T, Western Union or Cash accepted.
6 : What is your warranty ? What do we do in case of problems?
3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
3 years quality warranty is provided, including frame unfading nor peel-off, hardware and accessories working properly under correct operation. In case of our quality problem, we will provide replacement by international courier. Immediate delivery of replacement parts with available in stock, and if not stocking, the time should be depending on material ordering time which is normally 10-15 days.
