Строительная пластиковая труба круговая и плоская сильфонная одностеновая гофрированная экструдер машина
- Категория: >>>
- Поставщик: Qingdao Fullwin Plastic Machinery Co. Ltd.
Сохранить в закладки 1601196510963:
Описание и отзывы
Характеристики
In the continuous upgrading of equipment, please contact us to obtain the latest configuration list.
FULLWIN plastic single-wall corrugated pipe production line developed by our company adopts gears to run moulds and templates so as to realize water circulating cooling air of the products,which ensures high-speed moulding, even corrugation , smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of up-market cars,Production speed 20-30m/min.
Item | Name | Quanitty |
1 | Vacuum Feeder And Hopper Dryer | 1 set |
2 | Single Screw Extruder (PLC control system) | 1 set |
3 | New Design Die head | 1 set |
4 | Core Bar And Mouth Mould | 1 set |
5 | Corrugated Pipe Forming Mould（12-32mm） | 1 set |
6 | Corrugated Pipe Forming Machine | 1 set |
7 | Double Station Winding Machine | 1 set |
8 | Free Spare Parts | 19 pcs |
Machine Detail
Multiple Innovative Designs
1. Vacuum Feeder and Hopper Dryer
Suitable for granules material (Dry raw materials are easier to plasticise.)
Vacuum Feeder: Automatic vacuum suction
Vacuum Feeder: Automatic vacuum suction
Material: External plastic spraying, internal parts contacting raw materials are stainless steel.
Drying feed hopper: Hot air dryer , water jacket type cooling system
Material: Q235-A
Drying feed hopper: Hot air dryer , water jacket type cooling system
Material: Q235-A
2. Single Wall Screw Extruder
（1）High plasticification rate and stable production efficiency.
（2）High performance gearbox with longer using life and less noise.
（3）The electric part of extrusion machine:
ABBconverter, Omron temperature control.
All the parts using domestic and foreign well-known brands.
（4）ALL the machine updated to PLC control system, which is easy to operate and observe.
（3）The electric part of extrusion machine:
ABBconverter, Omron temperature control.
All the parts using domestic and foreign well-known brands.
（4）ALL the machine updated to PLC control system, which is easy to operate and observe.
3. Fullwin New Design Die Head
Fullwin's unique die head with innovative materials provide efficient insulation while reducing power consumption 30%.
4.Core Bar And Mouth Mould
Fullwin new design,the core bar and mouth mould fit together,when change size,no lile the old design change the core bar and mouthe separately , it will be save more than 1.5hours for the clean the waste material and heat it again.

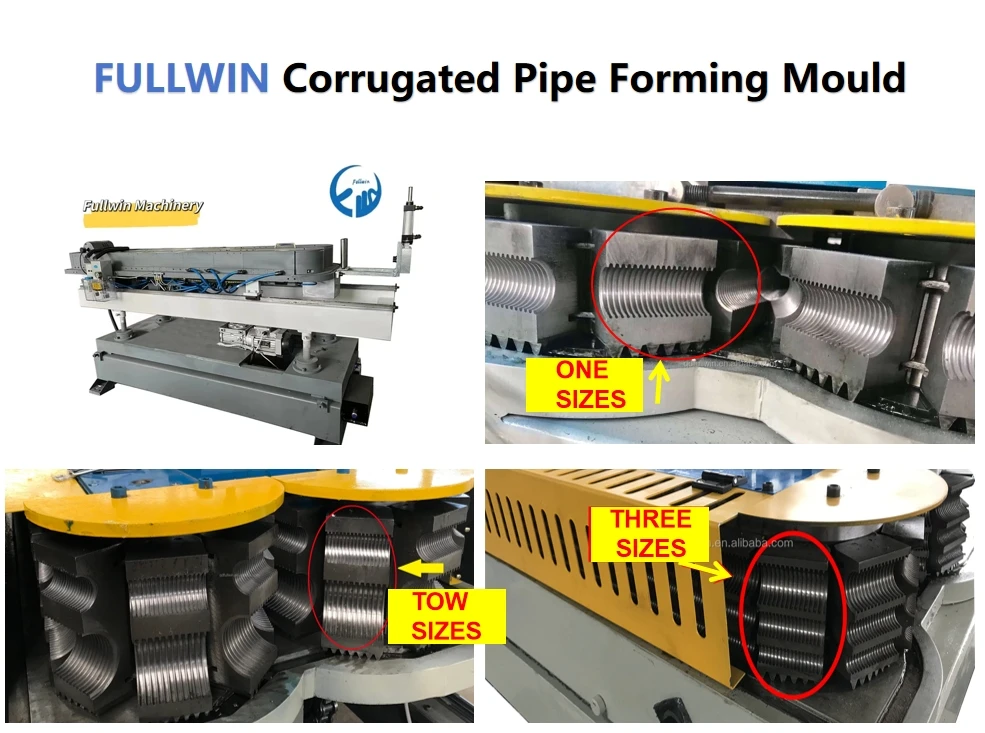

5. Corrugated pipe forming mould
（1）Can carve customer's logo.
（2） Can choose single and double cavity or three cavity in one set of mould. When changing the size, just need to move up and down
the forming machine, no need to move out all set of mould, which can save a lot of time for customer.
（3）Mould is made of 38CrMoAlA, same material as screw barrel, hardness 63.4HRC Longer service life compared to the old 45#steel.
（4）Mould length: 56.55mm
（5）Quantities: 72 pairs+4pairs spare
the forming machine, no need to move out all set of mould, which can save a lot of time for customer.
（3）Mould is made of 38CrMoAlA, same material as screw barrel, hardness 63.4HRC Longer service life compared to the old 45#steel.
（4）Mould length: 56.55mm
（5）Quantities: 72 pairs+4pairs spare
6.Corrugated pipe forming machine
(1) The plate of the moulding machine is made of the same material as the module, with a hardness 63.4 HRC, which can ffectively
reduce wear and tear and have a longer ervice life compared with 45# steel.
reduce wear and tear and have a longer ervice life compared with 45# steel.
(2) The forming machine has a large water-cooled side plate, which provides an even better cooling effect. This greatly improves the speed of the corrugated pipe and guarantees
thequality of the pipe.
thequality of the pipe.
(3) Up and down movement can be adjusted by electric motor, left and right movement can be adjusted manually, and the moving distance of the platform is 800mm.
(4) The forming machine is blow moulding with pneumatic cutting and is controlled by PLC.
7.Double station Winding machine
（1）Can balance the speed between pipe producing and rewinding. The device will stop rewinding when the pipe production is slow to
prevent the pipe from getting too tight or disconnected.
prevent the pipe from getting too tight or disconnected.
（2）The machine is equipped with a counter to adjust the winding speed
inductively.
inductively.
（3）Double stations increase efficiency
High Speed Single Wall Corrugated Pipe Extruder，More Than 100 Units Are Sold Every Year.
Contact Us For The Most Professional ServicesSingle-wall Corrugated Pipe Machine
Production speed :20-35m/min Pipe Diameter :12-50mm Application :
shisha hookah pipe,electric conduit pipe, construction material etc
shisha hookah pipe,electric conduit pipe, construction material etc
Shrinkable Pipe Machine
FullWin Vacuum design more Higher precision.
Application:Air conditioning,washing machine drain pipe,toys and water pipes
PVC/WPC Board Machine
Advantages：PVC WPC board have waterproof,fireproof,moth-proof,non-deformation etc. Widely used in bedroom , bathroom , kitchen ,
vila , residential , hotel , school , hospital decoration etc.
vila , residential , hotel , school , hospital decoration etc.
PE/PP/WPC Profile Machine
The molded products have a wood-like look and feel. Widely used in outdoor decking floor,railings,walking trails, outdoor tables and chairs, and pallets. flooring and other decorative materials etc.
PP Hollow Corrugated Sheet Machine
Thickness: 1.6mm-18mm.Width: 915-1800mm.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
The size error is small, can nail, can gouge, corrosion resistance, flame retardant strong and many other advantages.
PP Building Template Board Machine
PP hollow building formwork is one of the new construction materials that can replace steel formwork and bamboo glue formwork.
PP/PE/HDPE/PPR Pipe Machine
Diameter : 315-630mm 630-1200mm
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
Can be used to produce PPR hot and cold water pipes,PP/PE/HDPE pipes, silicon core tubes.
PVC Fiber Reinforce Hose Machine
For pressure or corrosive gas and liquid transportation,widely used in achinery, petroleum,chemical industry, agricultural irrigation,construction,civil and other fields.
PVC Suction Hose Machine
The hose has compression resistance, corrosion resistance, negative pressure resistance, bending resistance,suitable for the transportation of gas, liquid, powder particles.Mainly used in Iindustry, agriculture, construction and irrigation and other fields.
PET/PP Packing Belt Machine
Its products have good plasticity, strong breaking tensile force, bending resistance, light specific gravity, and are widely used in various fields of strapping.
Похожие товары

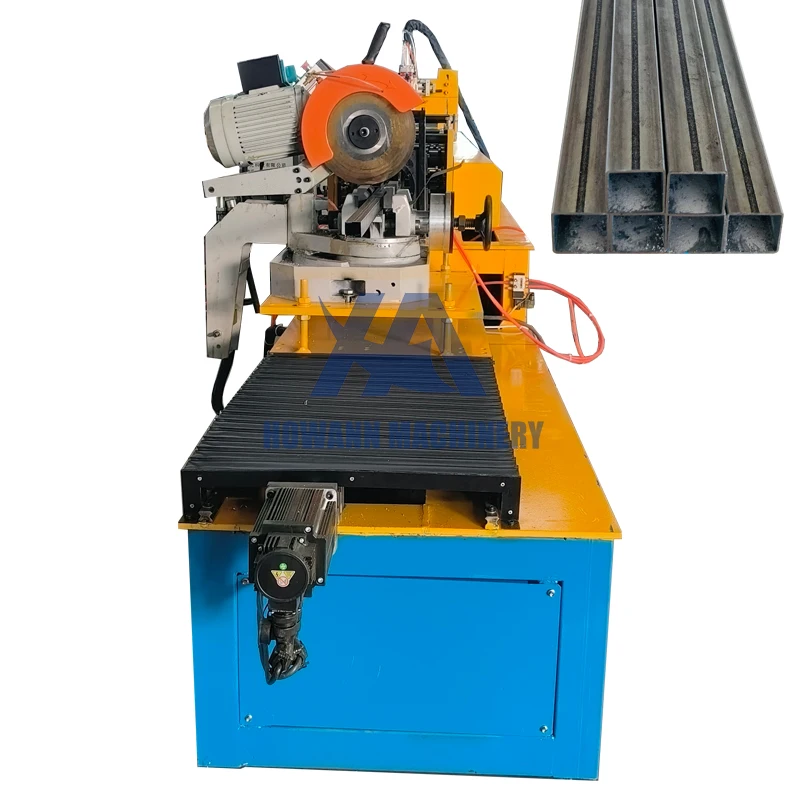

Высококачественная стальная трубчатая квадратная машина, Формовочная квадратная машина, металлическая квадратная трубчатая машина
2 114 796,88 ₽ - 2 762 183,68 ₽

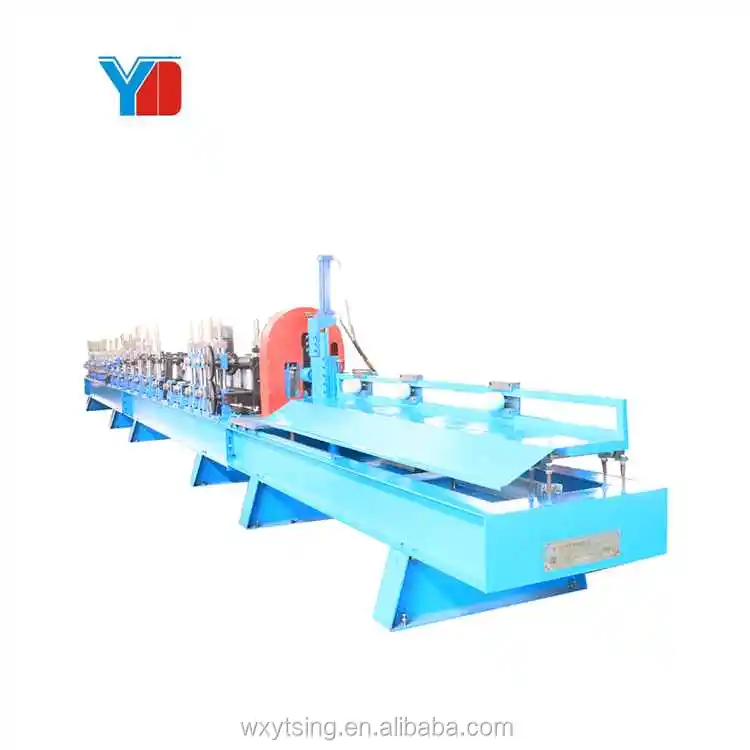

Jiangsu производитель, автоматическая машина для формовки рулона квадратной трубы, высокое качество
