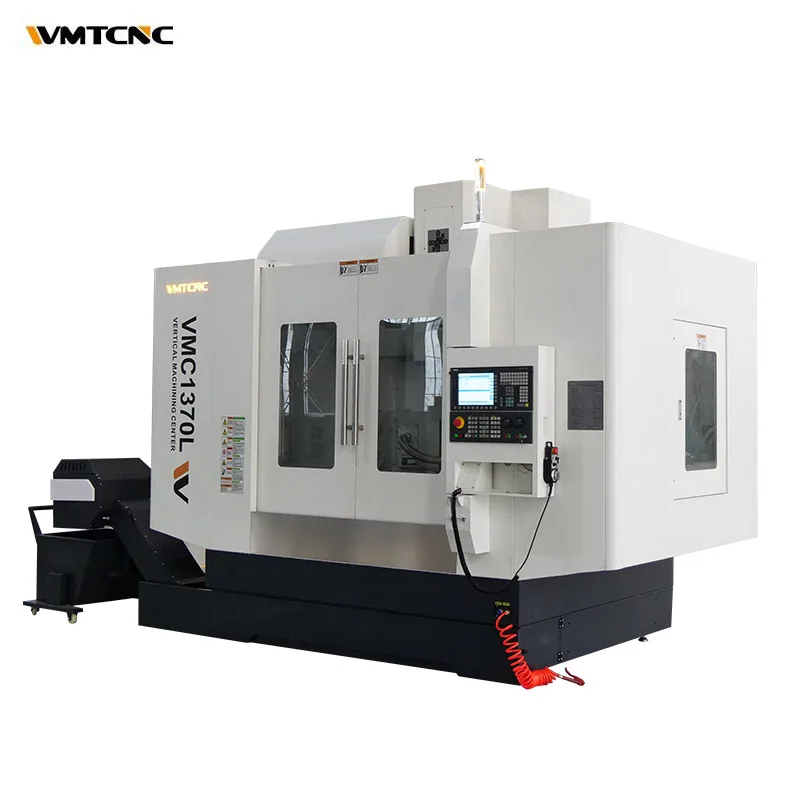

Большой вертикальный фрезерный станок с ЧПУ 3/4/5
- Категория: >>>
- Поставщик: WMT CNC Industrial Co. Ltd.
Сохранить в закладки 1601196896733:
Описание и отзывы
Характеристики
Product Description
Main Features:
1. CNC high precision machining center VMC1370L is with Taiwan high speed spindle 8000rpm.
2. VMC1370L is with linear guideways on X/Y/Z axes.

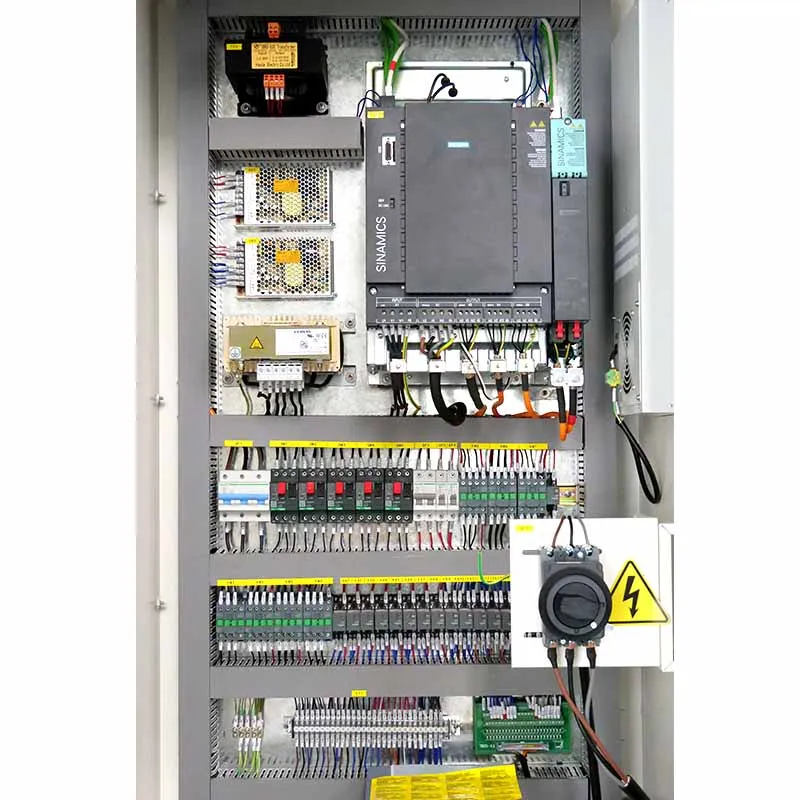

3. The machine center is with closed protection and electric cabinet, safe and beautiful.

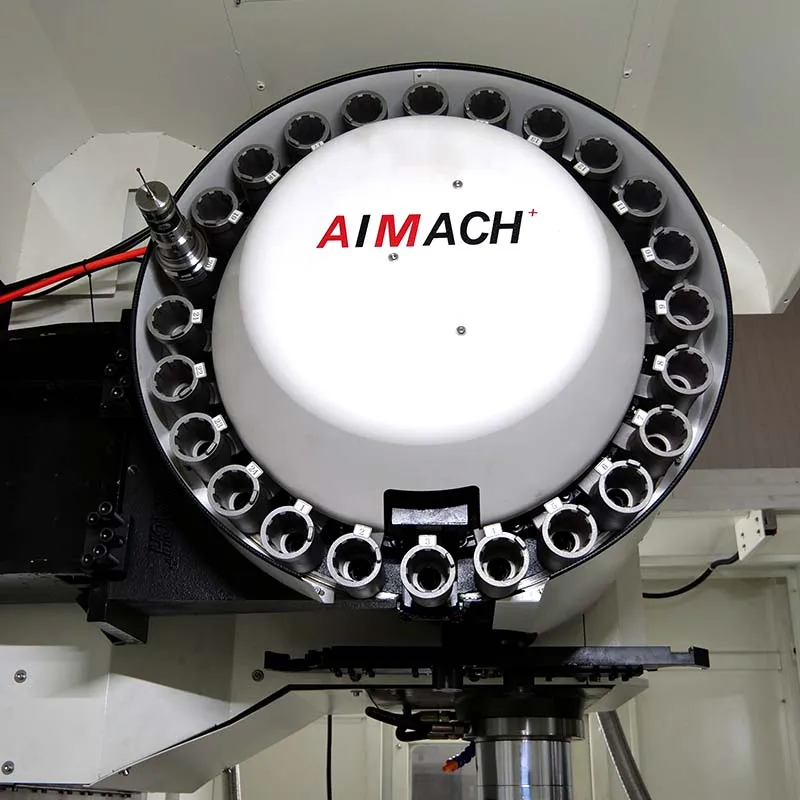

4. The machine is with round disc type tool magazine, tool change time is about 2s, and with Taiwan Hiwin ball screw.
1. CNC high precision machining center VMC1370L is with Taiwan high speed spindle 8000rpm.
2. VMC1370L is with linear guideways on X/Y/Z axes.
3. The machine center is with closed protection and electric cabinet, safe and beautiful.
4. The machine is with round disc type tool magazine, tool change time is about 2s, and with Taiwan Hiwin ball screw.
Specification | ||
Worktable | ||
Worktable size (L×W) | 1400×700mm | |
T-slots size (N×W×D) | 5-18x110mm | |
Travel | ||
X/Y/Z axis travel | 1300/700/700mm | |
Machining range | ||
Distance from spindle center to column | 750mm | |
Distance from spindle nose to worktable surface | 110-810mm | |
Spindle | ||
Spindle taper | BT40 | |
Spindle power | 11kw | |
Max. spindle speed | 8000rpm | |
Feed | ||
Max. feed speed | 10m/min | |
Rapid feed speed (X/Y/Z) | 24/24/20m/min | |
Ball screw (diameter+lead) | ||
X/Y/Z axis ball screw | 4512 | |
Tool magazine | ||
Tool magazine capacity | 24T | |
Max. length of tool | 300mm | |
Tool change time | 1.5s | |
Positioning accuracy (National standard) | ||
Positioning accuracy (X/Y/Z) | ±0.008mm | |
Re-positioning accuracy(X/Y/Z) | ±0.003mm | |
Machine dimension | ||
L×W×H | 3200×2540×2600mm | |
Machine weight | ||
Max. loading of worktable | 1000kg | |
Machine weight | 8200kg | |

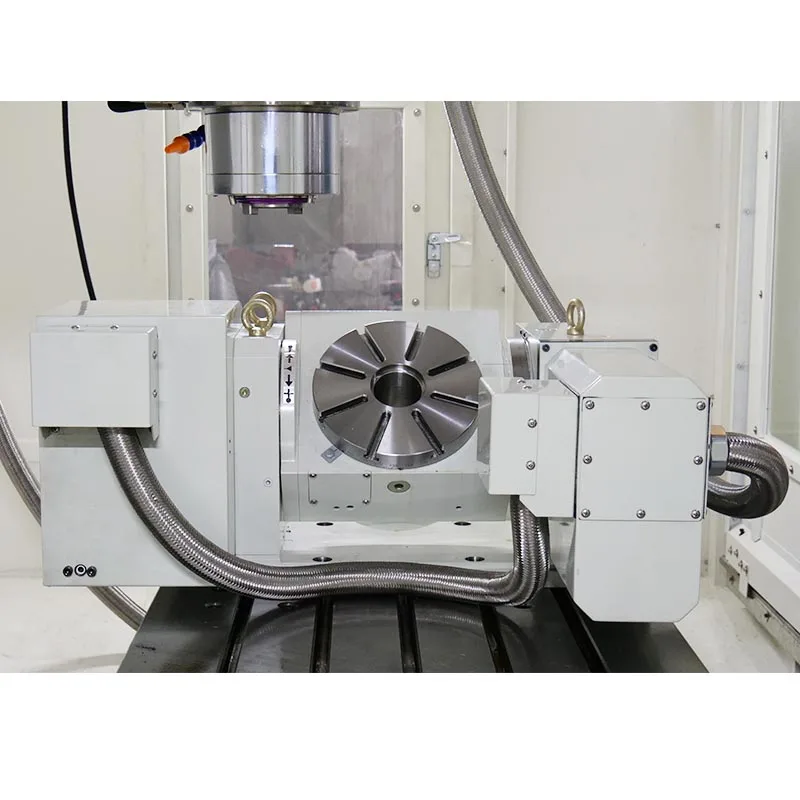

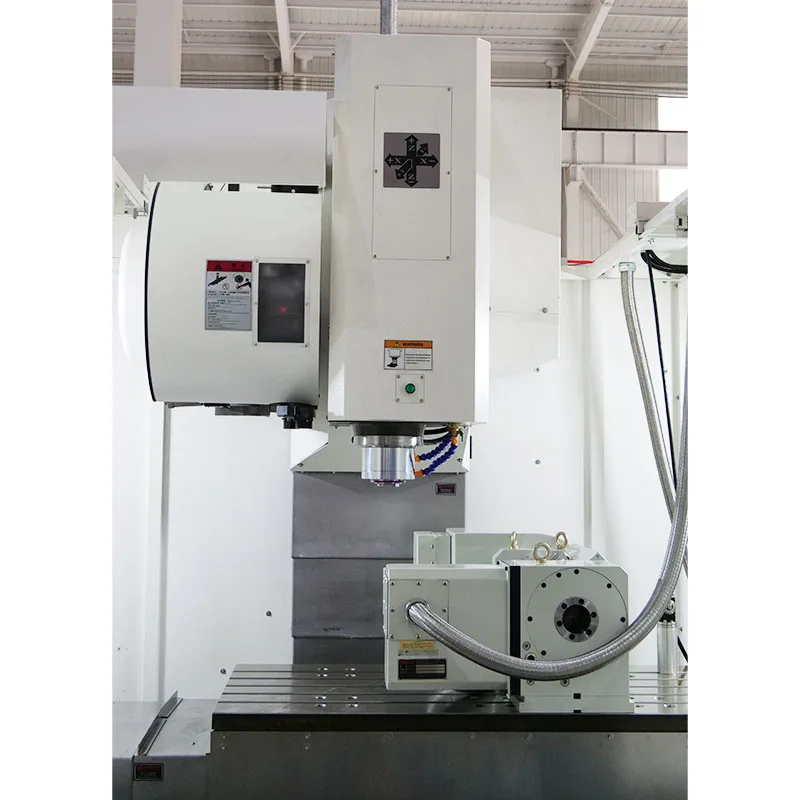

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
Fanuc heavy duty taiwan large cnc milling machine VMC1370L 3/4/5 axis cnc vertical machining center factory price ce certified
Fanuc heavy duty taiwan large cnc milling machine VMC1370L 3/4/5 axis cnc vertical machining center factory price ce certified
Fanuc heavy duty taiwan large cnc milling machine VMC1370L 3/4/5 axis cnc vertical machining center factory price ce certified
Fanuc heavy duty taiwan large cnc milling machine VMC1370L 3/4/5 axis cnc vertical machining center factory price ce certified
Fanuc heavy duty taiwan large cnc milling machine VMC1370L 3/4/5 axis cnc vertical machining center factory price ce certified
Похожие товары

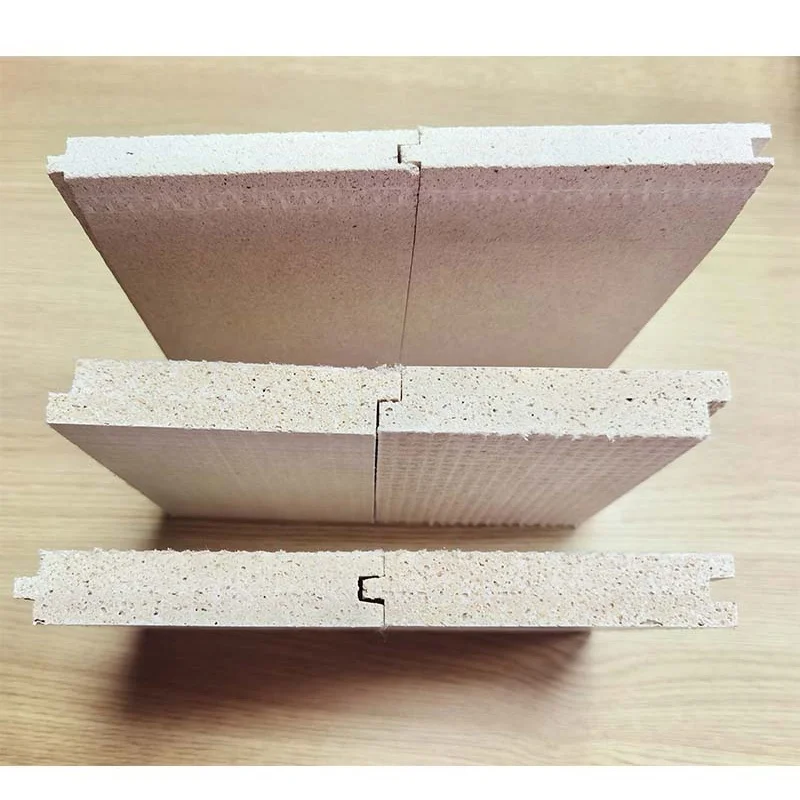

Огнеупорная панель из окиси

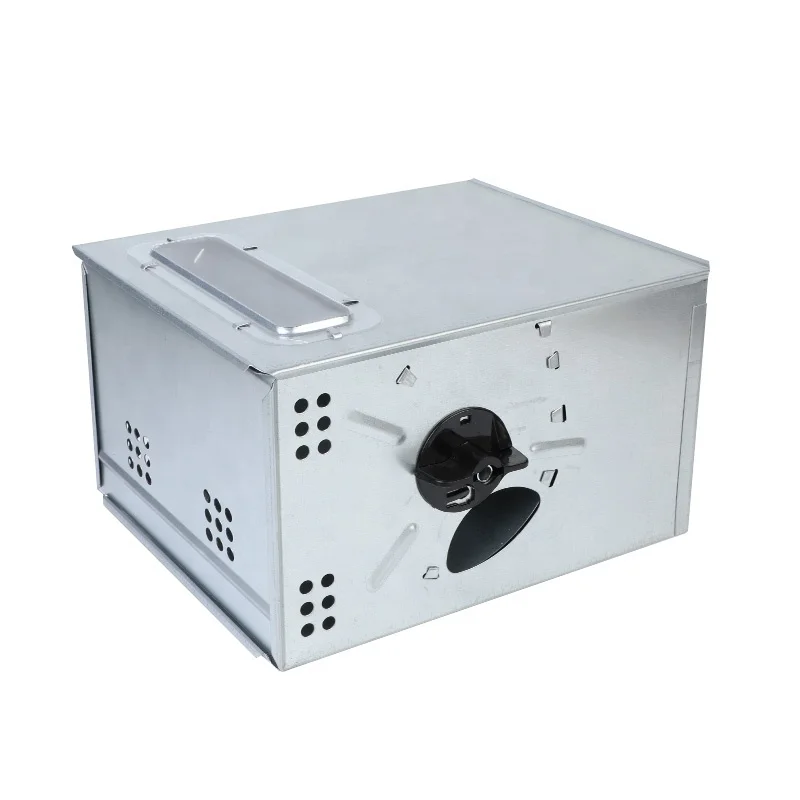

Многоразовые металлические ловушки для мыши из нержавеющей стали ловушка с ручкой и автоматическим
634,49 ₽ - 661,84 ₽

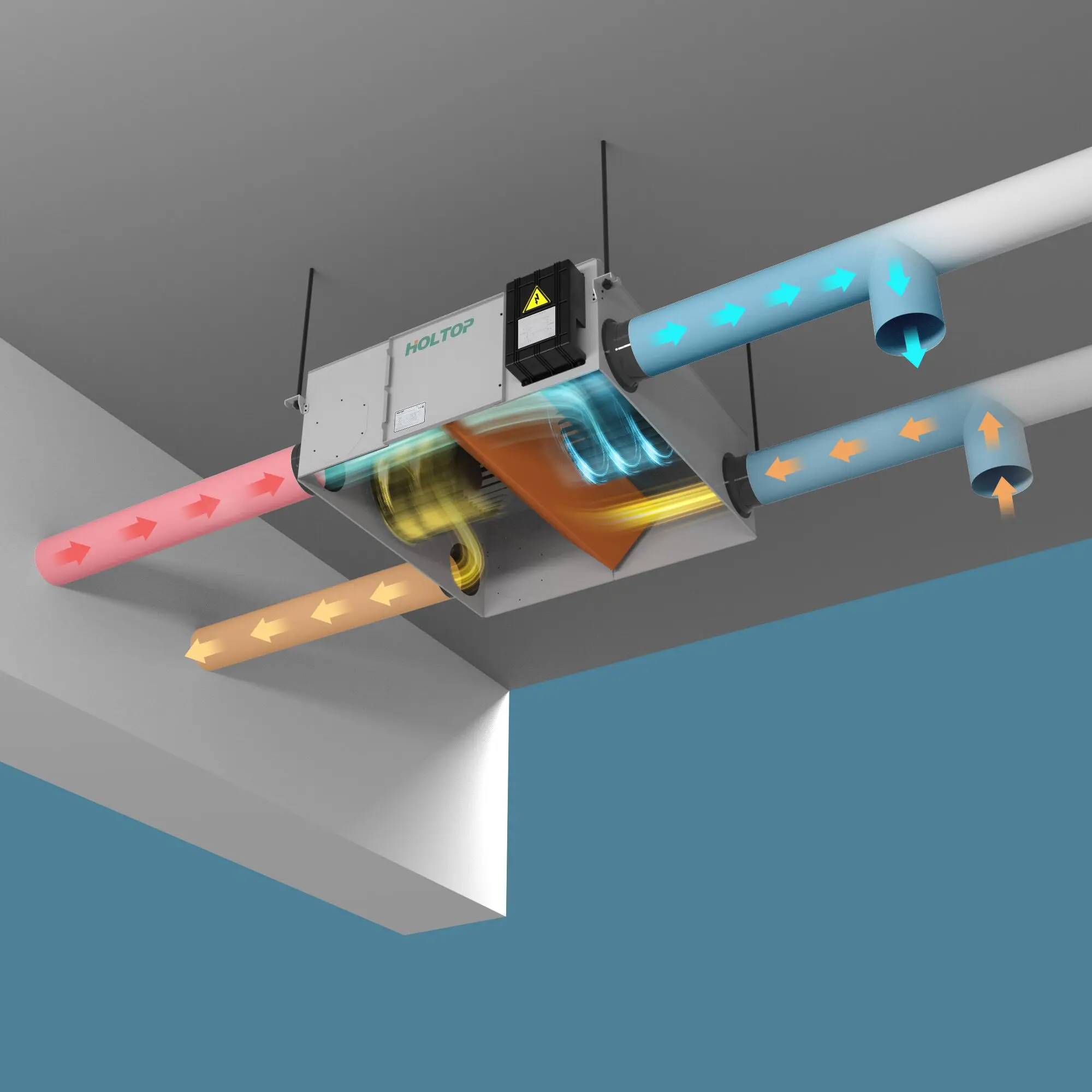

Теплообменная вентиляционная система с рекуперацией
Заводская цена автомат с игрушечными
14 439,93 ₽ - 15 315,08 ₽

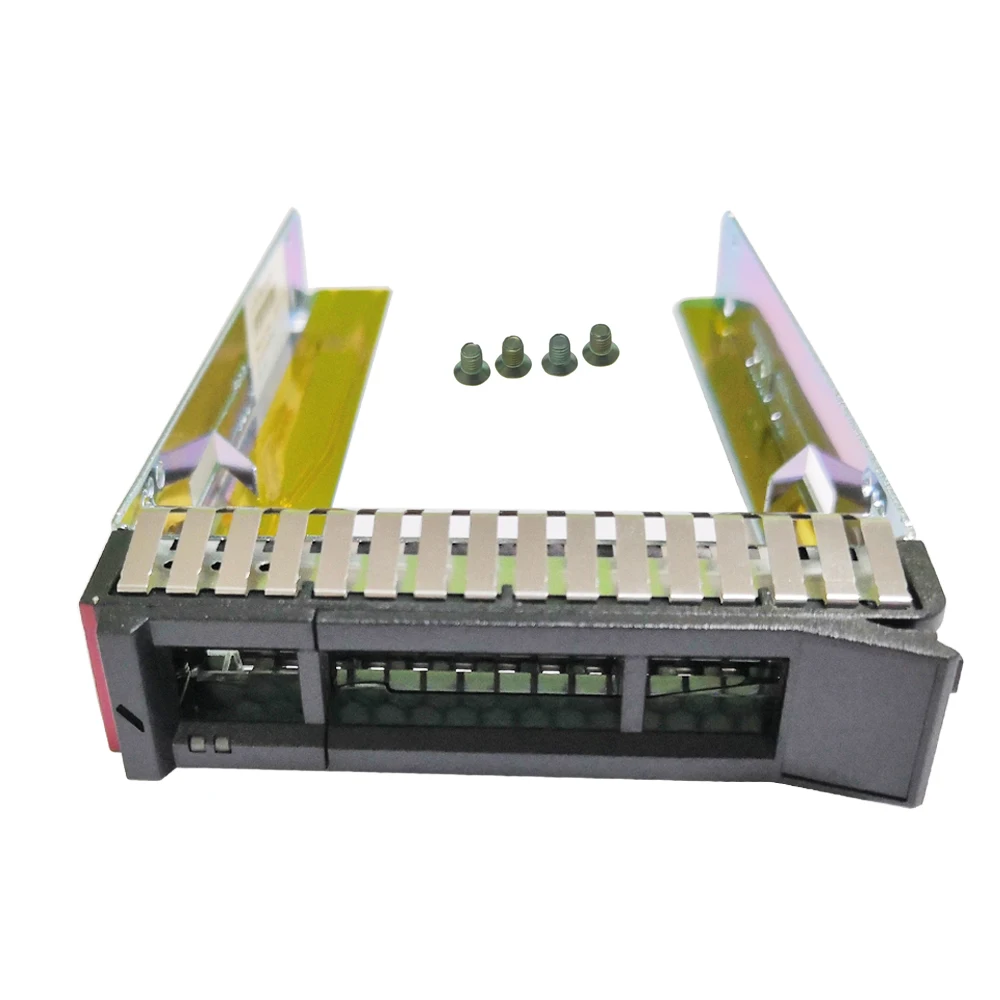

SR550 SR650 SR570 SR590 HR630X HR650X 2 5 'SAS SATA Сервер лоток Caddy

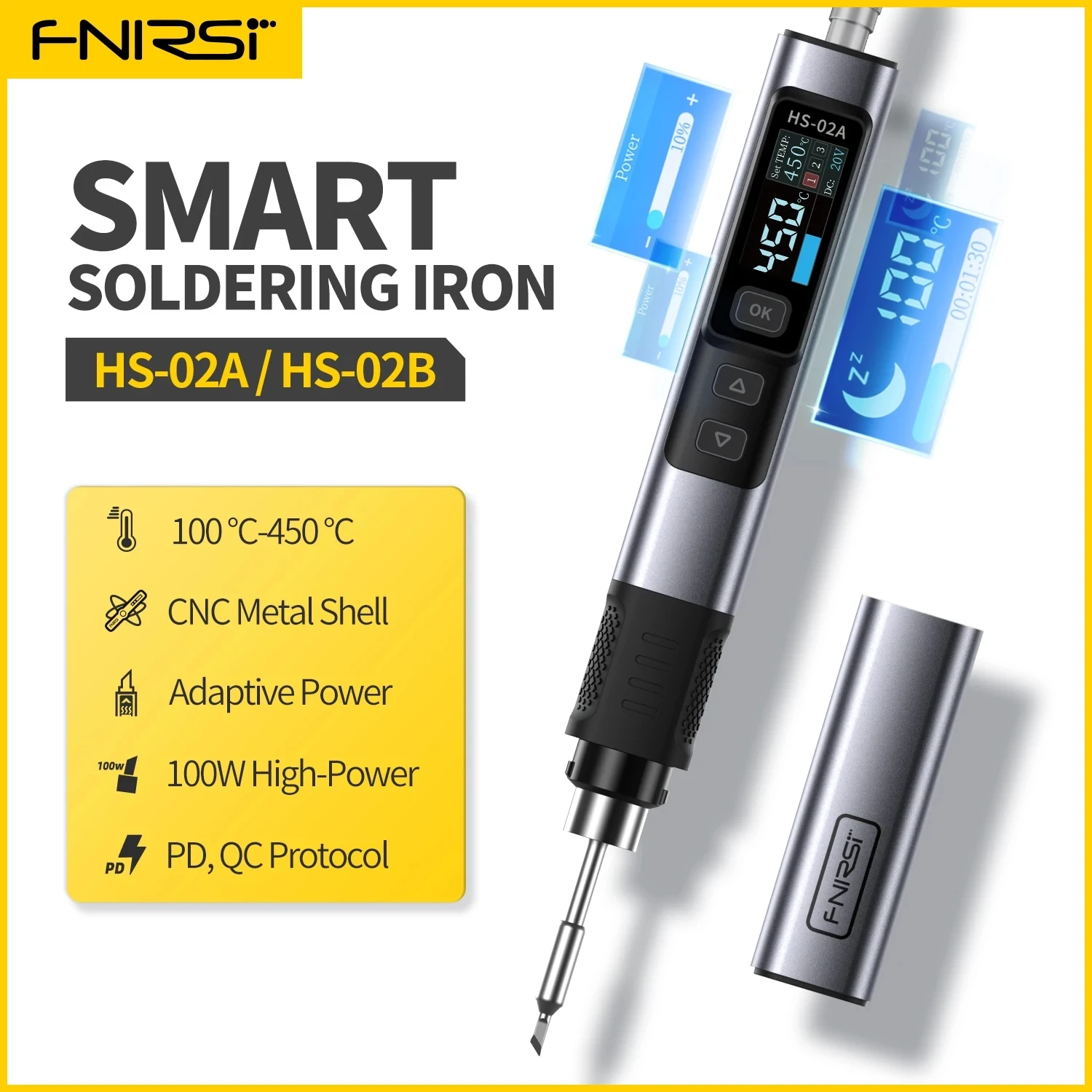

FNIRSI HS-02 паяльник с регулируемой температурой DC 24 В Сварочная паяльная станция для передела PD 100 Вт портативный ремонтный
