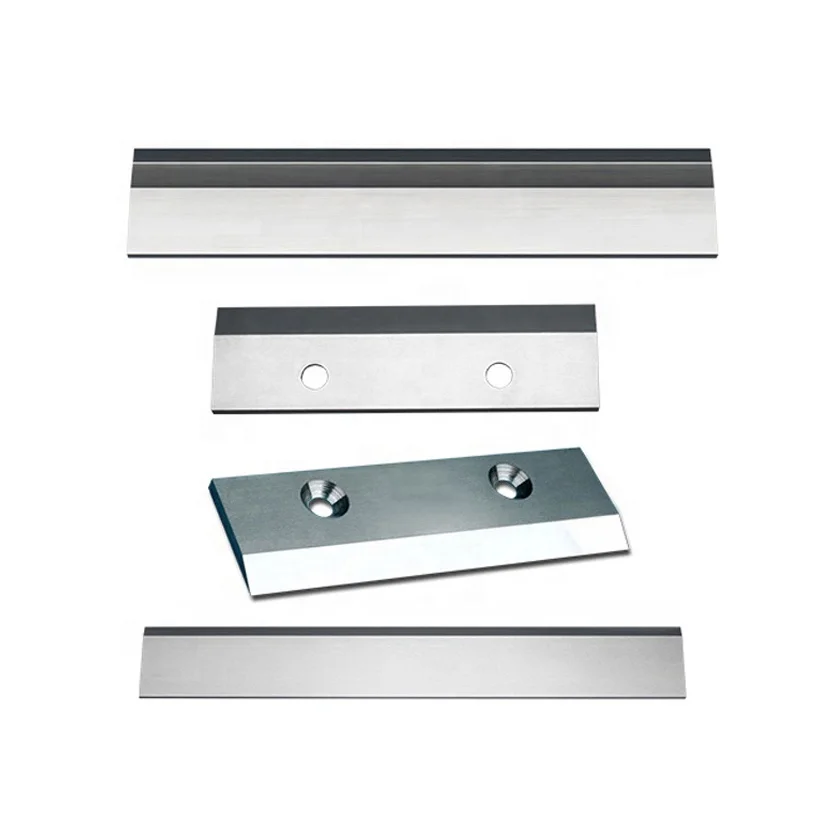

Режущий инструмент HSS, керамический длинный резак, доктор, лезвие для облицовки известью, грязевой фильтр, распродажа
986,84 ₽

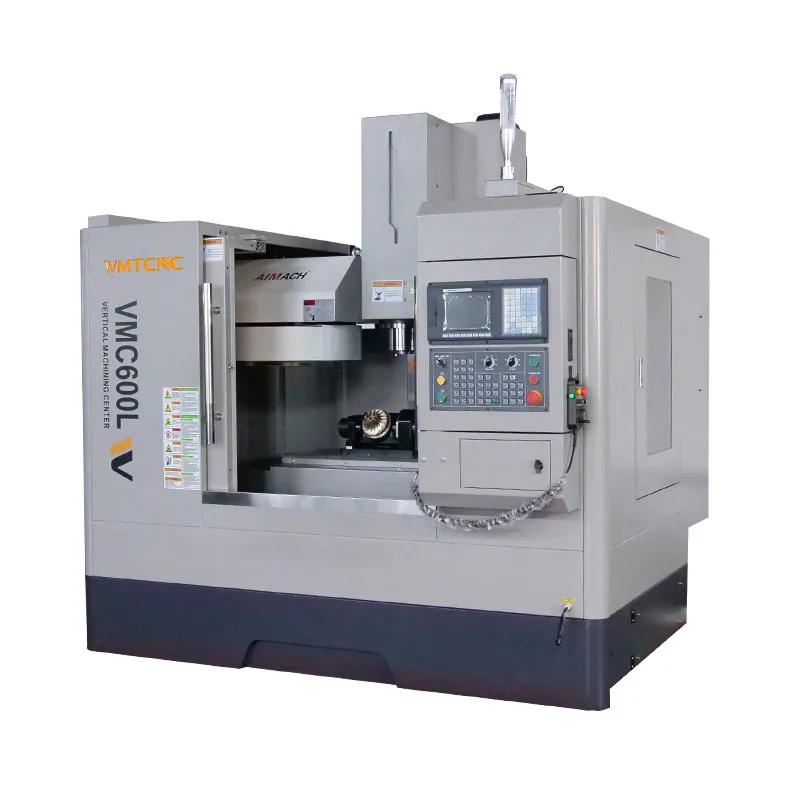

CE Сертифицированный VMC600L 5 осевой фрезерный станок с ЧПУ центр обрабатывающий от китайского производителя
- Категория: >>>
- Поставщик: WMT CNC Industrial Co. Ltd.
Сохранить в закладки 1601196952518:
Описание и отзывы
Характеристики
Product Description
Main Features:
1. As one new product of independent design & development, VMC600L is a multi-purpose machine which could mill surface & drill holes.
1. As one new product of independent design & development, VMC600L is a multi-purpose machine which could mill surface & drill holes.
2. This machine adopts domestic/overseas branded numerical control system and realizes full-screen edition in Chinese.
3. Spindle adopts imported frequency converters, which could fulfill variable speed control & constant linear speed cutting
functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
functions; machining body adopts ultrasonic frequency hardening treatment; both X-axle & Z-axle adopts step/servo motor, which could process feeding motion by directly connecting shaft coupling & ball screws.
4. With high power, pleasant rigidity, high precision & storage, high price-quality ratio and long cycle life, the machine is
widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics &
astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
widely applied to instruments, meters, light industries, electronics, home appliances, medical instruments, aeronautics &
astronautics and etc. industries, it is one small-medium precision & complex machine for processing various materials (especially non-ferrous metals & stainless steel) as well as an ideal equipments for large automation production.
Specification | VMC600L |
Worktable | |
Worktable size (L×W) | 800×400mm |
T-slots size (N×W×D) | 3-14x100mm |
Travel | |
X/Y/Z axis travel | 600/400/450mm |
Machining range | |
Distance from spindle center to column | 550mm |
Distance from spindle nose to worktable surface | 100-550mm |
Spindle | |
Spindle taper | BT40 |
Spindle power | 5.5kw |
Max. spindle speed | 8000rpm |
Feed | |
Max. feed speed | 10m/min |
Rapid feed speed (X/Y/Z) | 30/30/25m/min |
Ball screw (diameter+lead) | |
X/Y/Z axis ball screw | 3210 |
Tool magazine | |
Tool magazine capacity | 12T/16T(optional) |
Max. length of tool | 300mm |
Tool change time | 7s/2.5s |
Positioning accuracy (National standard) | |
Positioning accuracy (X/Y/Z) | ±0.005mm |
Re-positioning accuracy(X/Y/Z) | ±0.003mm |
Machine dimension | |
L×W×H | 1900×1700×2240mm |
Machine weight | |
Max. loading of worktable | 300kg |
Machine weight | 3500kg |

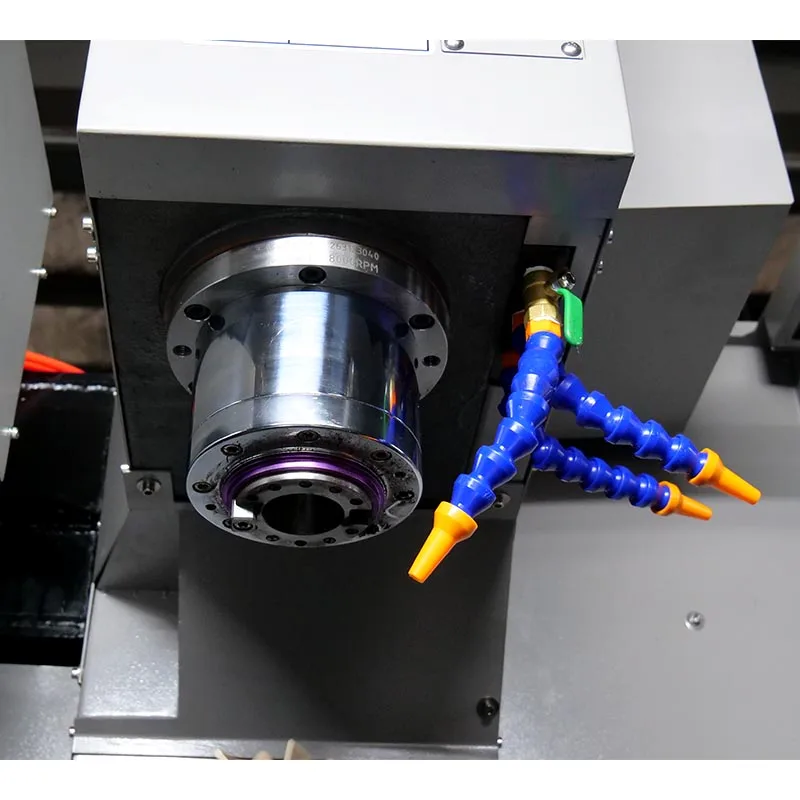

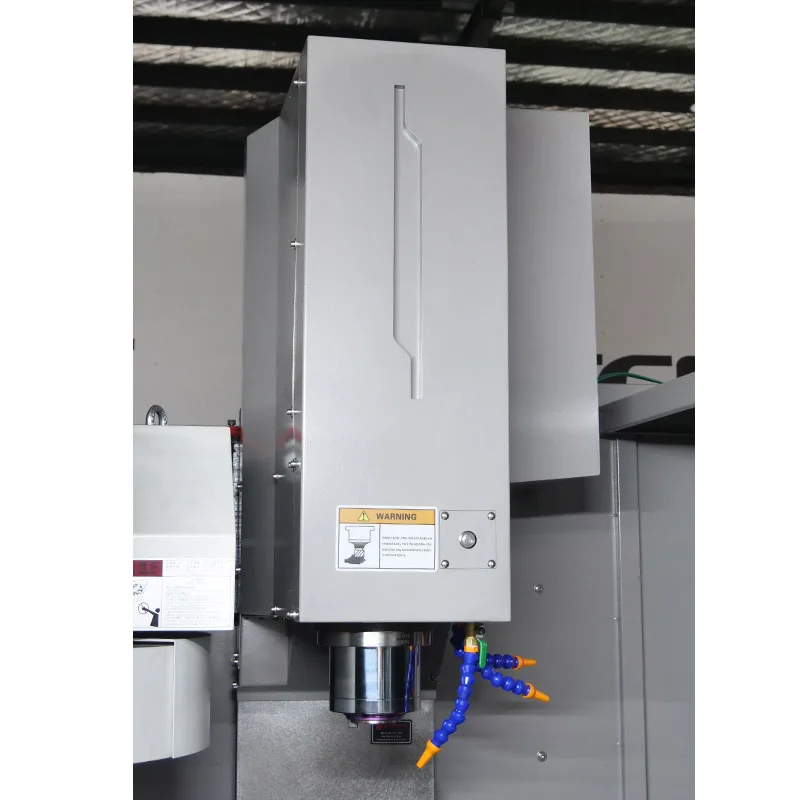

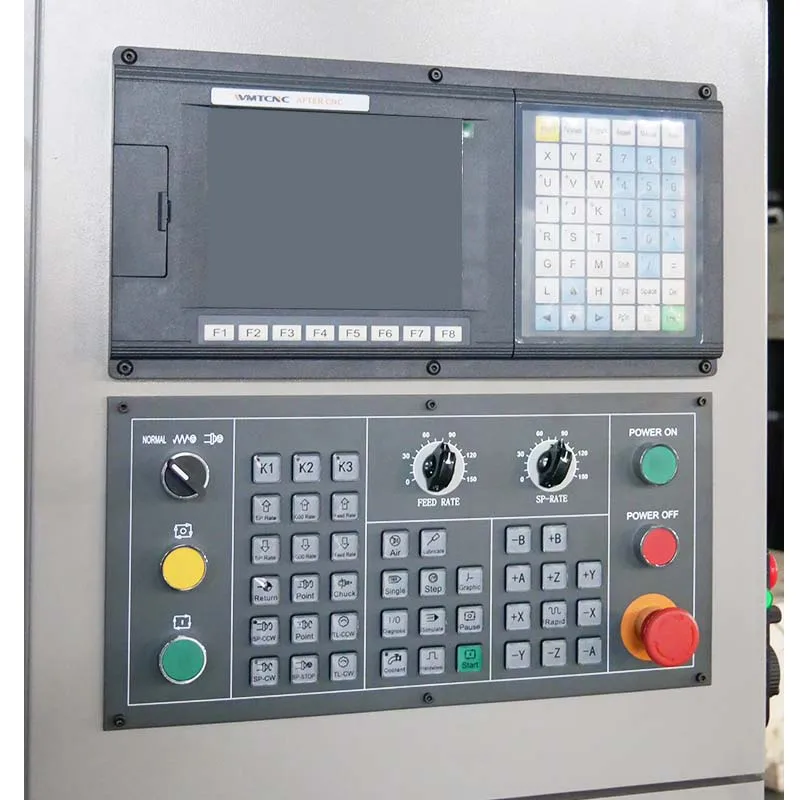

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure.All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don’t have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What’s the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.
CE certified VMC600L 5 axis cnc milling machine center cnc machining center from China manufacturer
CE certified VMC600L 5 axis cnc milling machine center cnc machining center from China manufacturer
CE certified VMC600L 5 axis cnc milling machine center cnc machining center from China manufacturer
Похожие товары
Срезы для формовочного типа Ruifeng, 100 мм/6 мм/16 мм, класс A
10 964,84 ₽ - 16 447,26 ₽

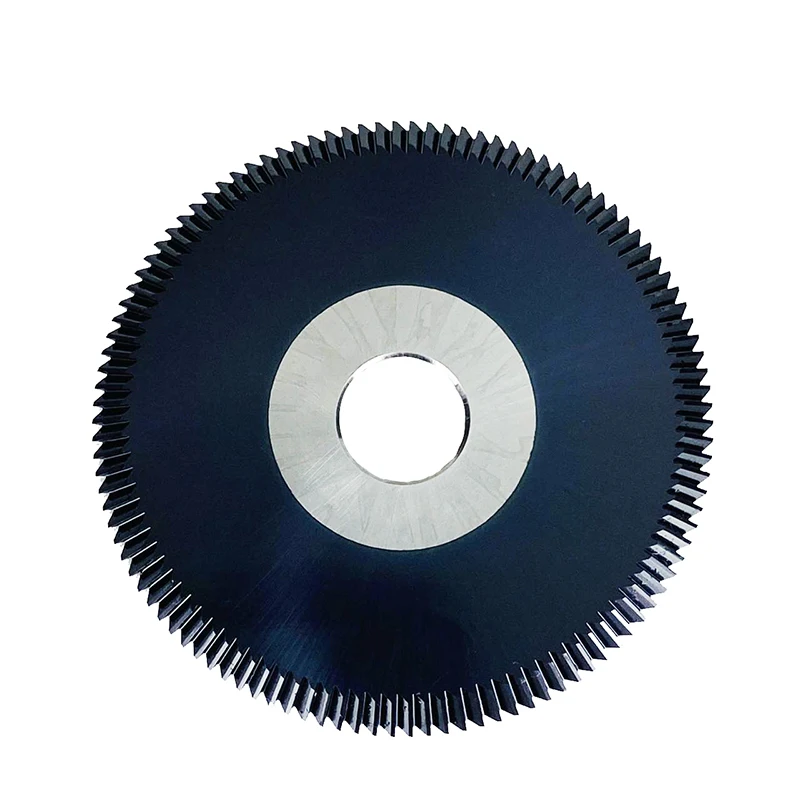

Высококачественные металлические лезвия Keyline для машины для резки Silca

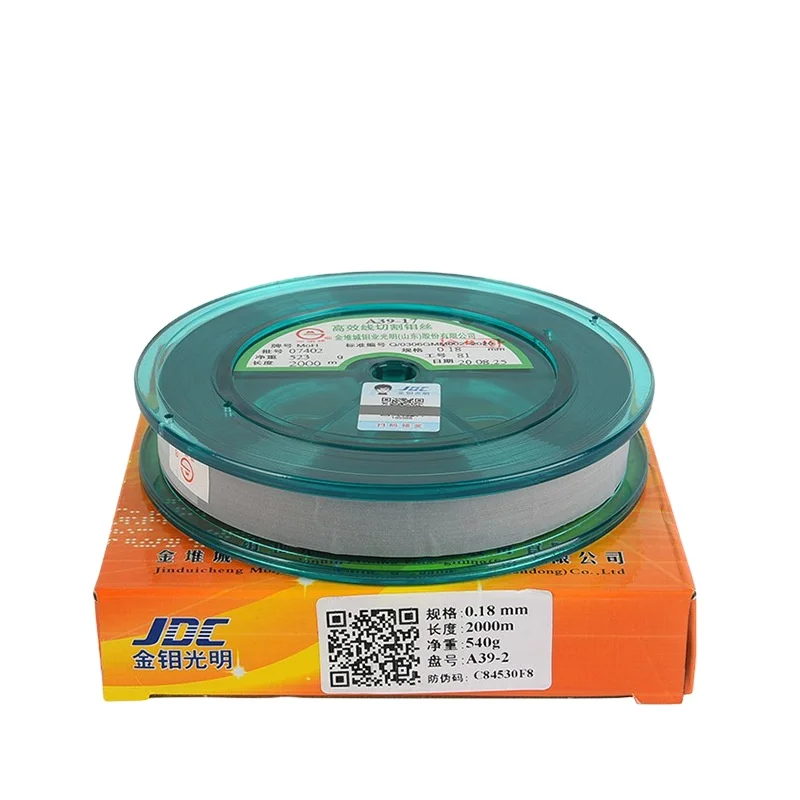

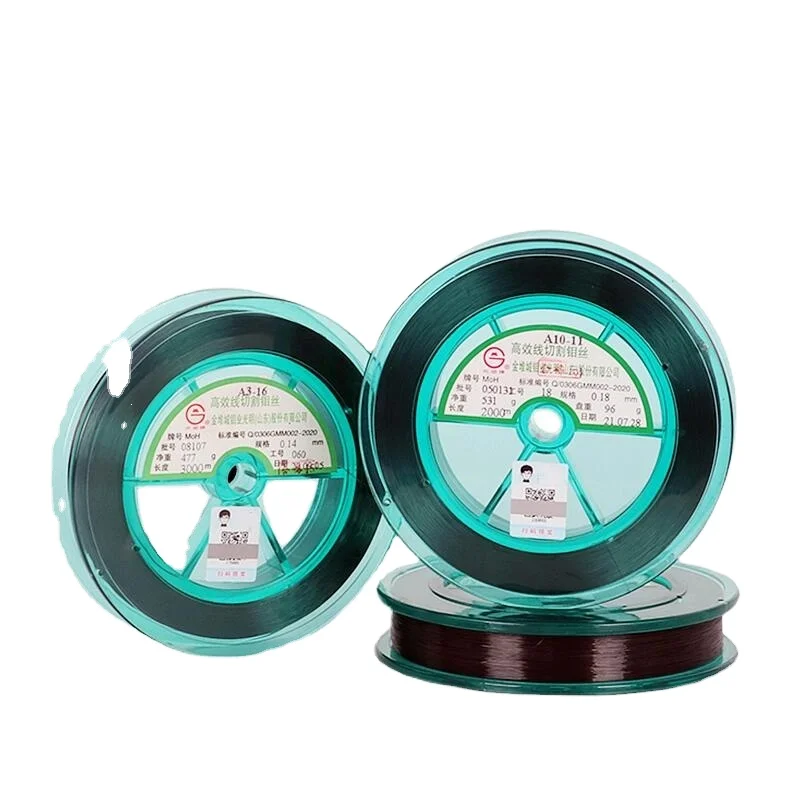

0,18 мм edm молибденовая проволока для резки металла cnc проволока для резки edm
Заводская резка молибдена высокой эффективности высокой точности молибдена измерения 0,18 мм 2000 метров 0,2 мм 0,16 мм
3 728,05 ₽

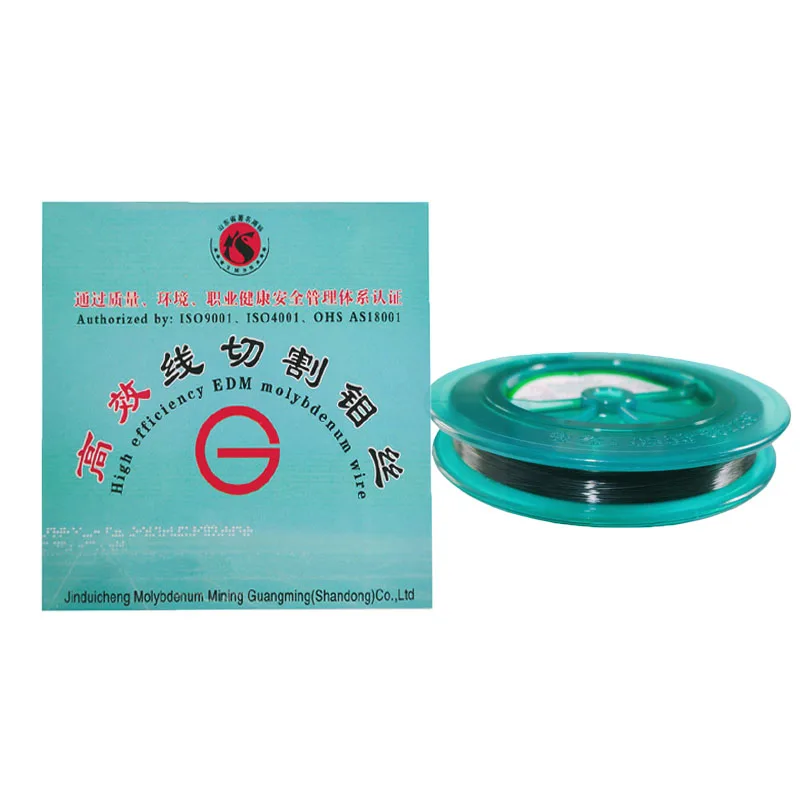

CNC Edm режущая машина 0,18 0,2 мм 2000 м молибденовая проволока высокая эффективность высокая точность
3 728,05 ₽

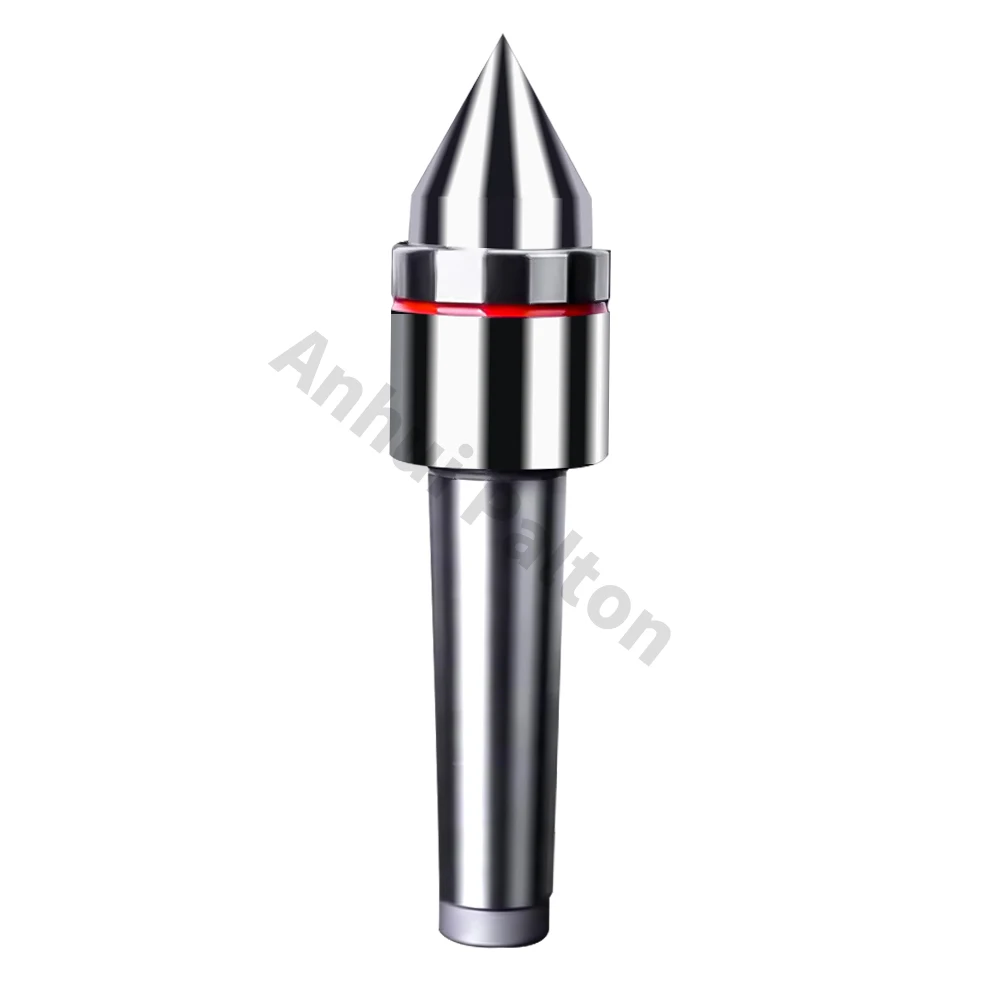

Сверхпрочные стальные конические хвостовинки для станков с ЧПУ вращающийся Вращающийся режущий центр с концевой фреза для фрезерования
1 096,49 ₽ - 6 967,06 ₽

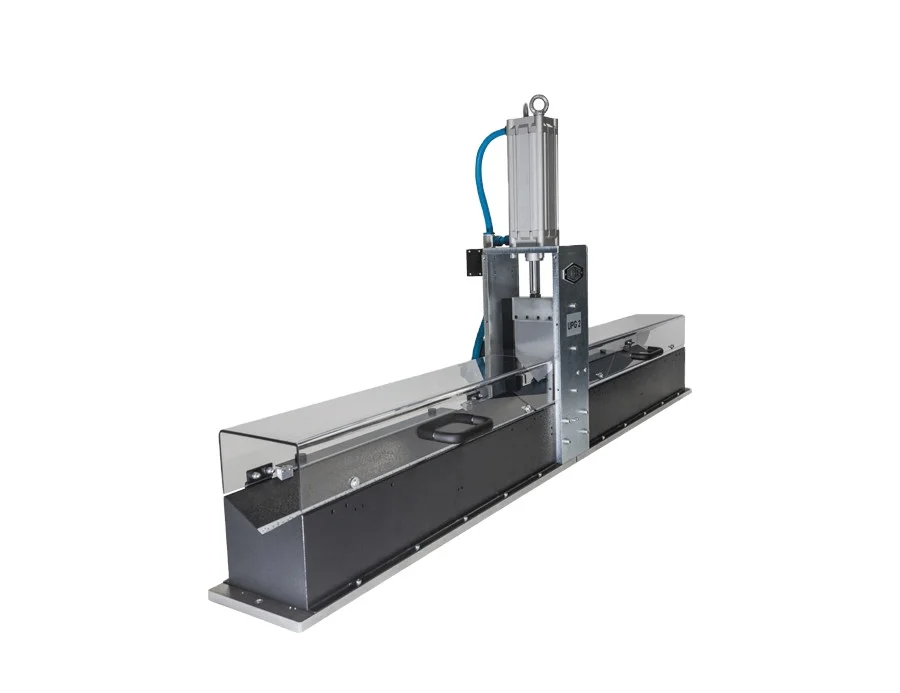

Гильотинная машина для резки-UPG 10
