Высокое качество, 25 м, 27 м, 28 м, 30 м
2 805 342,80 ₽

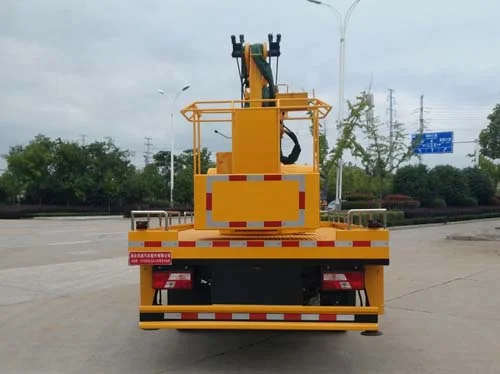

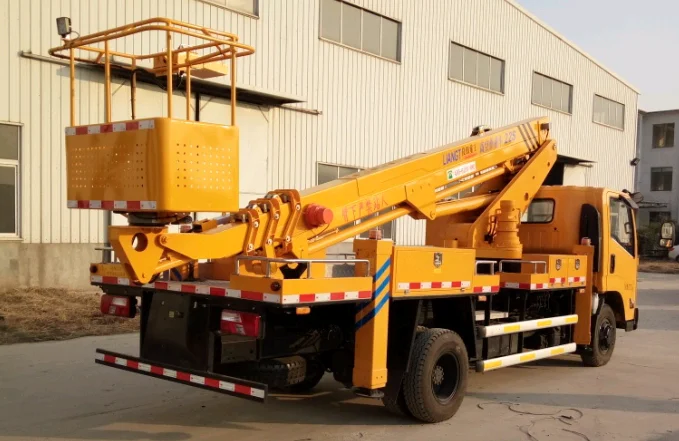

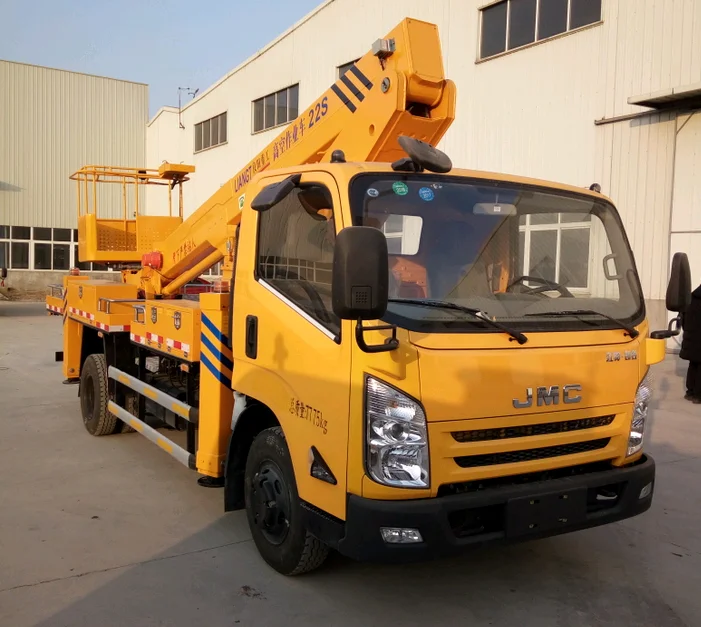

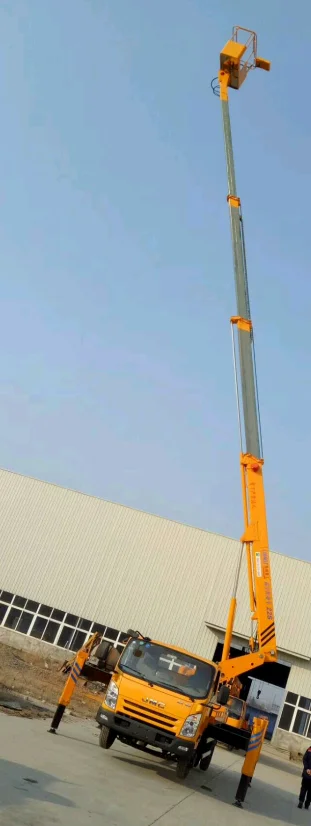

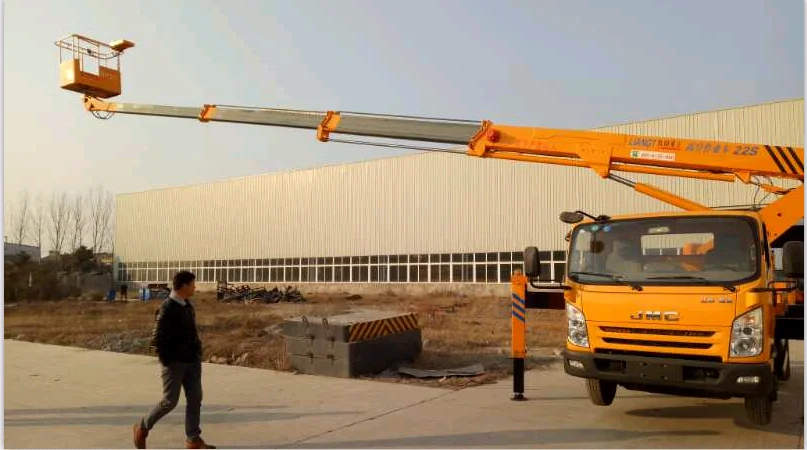

Новая конструкция безопасная устойчивая автоматическая телескопическая подъемная ножница установленная на грузовике воздушная Рабочая платформа хорошая цена
- Категория: >>>
- Поставщик: Hubei Yangxuan Special Vehicle Co. Ltd.
Сохранить в закладки 1601197807301:
Описание и отзывы
Характеристики
Product Description
Specification
class | project | unit | data | ||
Dimensions parameters | cabinet minister | mm | 7900 | ||
total width | mm | 2160 | |||
overall height | mm | 3150 | |||
mass parameter | Number of passengers (including drivers) | human being | 3 | ||
gross mass | kg | 7775 | |||
Main performance parameters | Rated load of the working platform | kg | 200 | ||
Maximum operation height | m | 18 | |||
Operating amplitude at the maximum working height | m | 4.4 | |||
Maximum operation range | m | 10.6 | |||
Working height at the maximum operation range | m | 5.1 | |||
The leg span | broadwise | mm | 4160/4200 | ||
direction | mm | 4530/4770 | |||
Arm frame amplitude change time | s | 100 | |||
Rotation speed of arm frame | s/r | 75 | |||
Stand-and-put time | s | 40 | |||
Driving parameters | front overhang | mm | 1155 | ||
rear overhang | mm | 2070 | |||
After stretching | mm | 610/300 | |||
wheel base | mm | 3815 | |||
Maximum driving speed | K m/h | 98 | |||
Minimum ground clearance | mm | 195 | |||
approach angle | . | 20 | |||
departure angle | . | 11 | |||
Part name | Brief description |
batholith | Jiang Ling |
engine | Diesel engine, the maximum power of 112KW, national three, Euro 4 5 6 |
pilothouse | Single row seat, can ride 3 people, the cab is equipped with air conditioning, direction power |
Panel and walking plate | Stainless steel fence and anti-skid walking pad |
Take force system | Pneumatic operation |
foot platform | （1000）1100/1200x700/650x1150 |
Arm frame form | Three-section hexagonal working arm, synchronous expansion |
rotator | 360 degrees of continuous rotation |
landing leg | Anterior V after type H, individually tunable |
operate | Work platform and ground remote controls for electrical operation |
navar | The electro-hydraulic proportional control system can also install the load proportional system to realize dual action synchronization and stepless speed regulation |
The leveling system | Hydraulic automatic leveling |
SCS5080JGKJX Basic function safety configuration of the aerial working vehicle: the working vehicle can realize the platform load of 200 KG, the maximum working height of 18 meters and the maximum working range of 10.6 meters. | ||
name | Brief description | |
Get on and off automatic interlocking device | To interlock on and off the car to prevent misoperation | |
Support leg detection function | When the leg is not force, intelligent limit, to protect safety, | |
Horizontal detection function | Real-time detection of whether the whole vehicle is level | |
Emergency electric emergency pump | When the engine and main pump fail, the staff can be sent back to the ground | |
Emergency stop device | For emergency stop operations | |
Night safety warning device | There are engineering strobe lights on the vehicle | |
Complete vehicle level status tester | It can detect the vehicle in both directions | |
Engine ignition and flameout | The engine can be ignited and stalled at the ground and on the platform | |
real time communication | There are wireless intercom on the platform and ground | |
Company Profile
Hubei Yangxuan Special Vehicle Co., Ltd. is located in Suizhou City which is famous as the hometown of Emperor Yan, and famous forspecial automobile indus try in China. Our company, listed in National Designated Refitting Manufacturers, is a refitting base
of Dongfeng Group and a sales branch of FAW Group. During 6 years development, we have always insisted on the business principle of "Customer-Oriented, Market-Oriented". We also make unremitting efforts to build our company as a key production base in Hubei Province.Our main products are oil tank trucks, water tank trucks, fecal sucking trucks, fire fighting trucks, garbage trucks,trucks with loading cranes, bulk cement/ powder transport trucks, van type trucks, dump trucks and semi trailers and so on. As a company specialized in special purpose trucks with CCC & ISO certificates, we can provide top quality products with perfect services. Satisfying you is our endless pursuit.
of Dongfeng Group and a sales branch of FAW Group. During 6 years development, we have always insisted on the business principle of "Customer-Oriented, Market-Oriented". We also make unremitting efforts to build our company as a key production base in Hubei Province.Our main products are oil tank trucks, water tank trucks, fecal sucking trucks, fire fighting trucks, garbage trucks,trucks with loading cranes, bulk cement/ powder transport trucks, van type trucks, dump trucks and semi trailers and so on. As a company specialized in special purpose trucks with CCC & ISO certificates, we can provide top quality products with perfect services. Satisfying you is our endless pursuit.
Manufacturing Technique
Our Service
Certifications
Customer Photos
FAQ
Q1. Are you manufacturer or trader? A:We are a manufacturer of garden machinery and construction machinery. Actually, we produce most of the parts in our own factory for better cost and quality control.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% when machine ready.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1.We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
A: T/T 30% as deposit, and 70% when machine ready.
Q3. How about your delivery time?
A: Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Sometimes we have some in stock.
Q4. Are you interested in dealership with local company?
A: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.
Q5. What is your warranty policy?
A: We can supply one year warranty or 2000h for our machines. We will provide parts as free within warranty. We can send engineer to customer place if big quality problem. We can provide internet or calling service at any time.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1.We trust "win-win situation",we never said our product is best,and maybe our price is not cheapest,but we trust we are your right choice.Because we pay attention to ensure our customers benefit ;2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Похожие товары
Телескопическая платформа
1 568 294,53 ₽ - 1 586 745,05 ₽

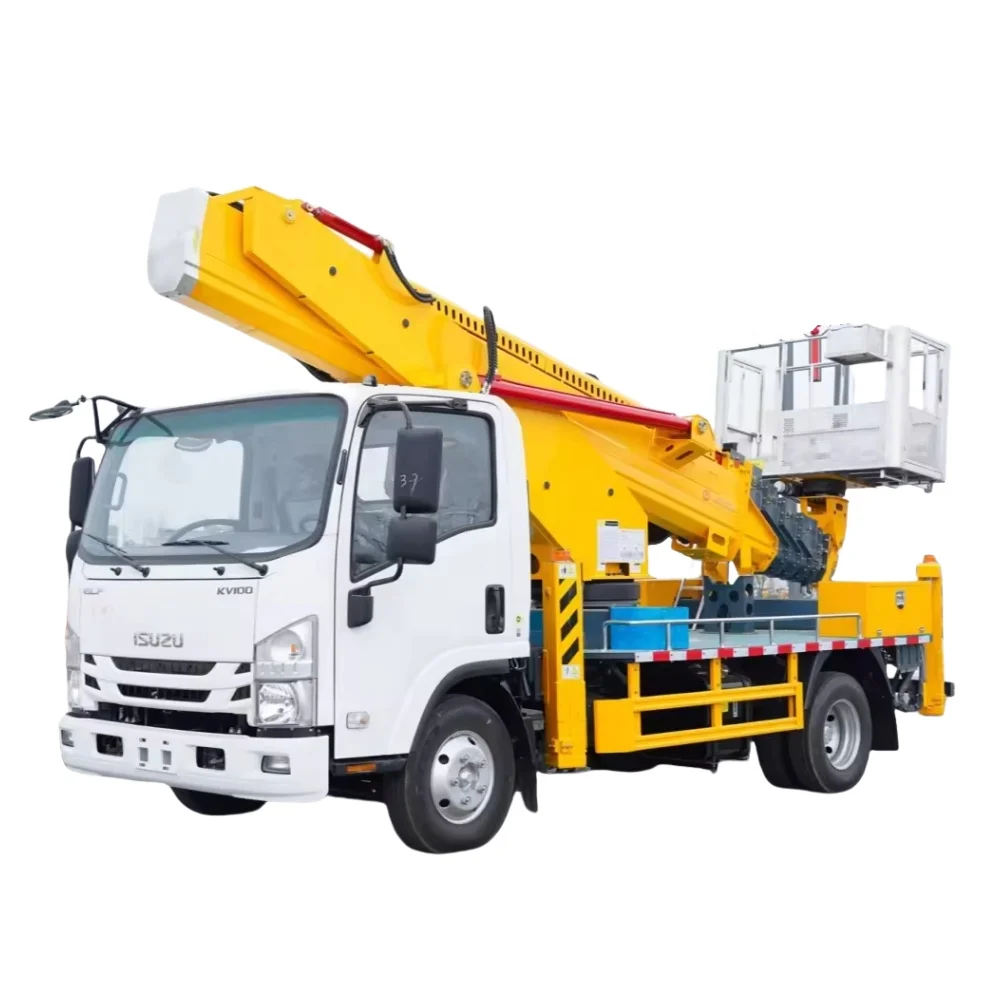

ISUZU 28-метровая телескопическая высотная Рабочая платформа грузовик 4 х2 воздушно-рабочий грузовик Заводская воздушная платформа грузовик
1 402 671,40 ₽ - 1 618 467,00 ₽
Грузовик Sinotruk howoexport, 22 м
1 650 836,34 ₽ - 1 823 472,82 ₽

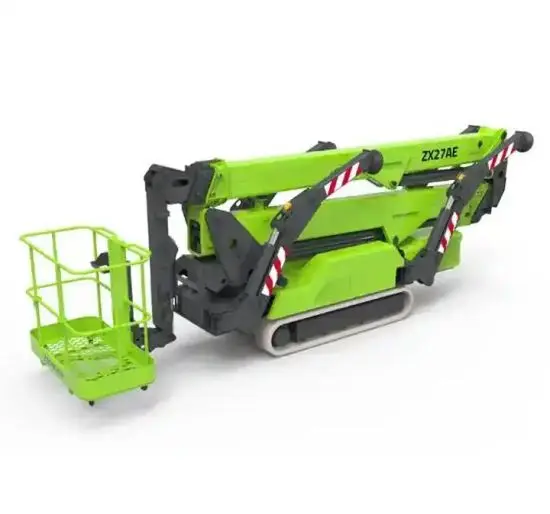

ZOOMLION, 27-метровый трап-трап, 20 м
