Китайский запас Ukrain горячая Распродажа солнечный инвертор DEYE 3 фазный SUN 12K SG04LP3 EU ВН выключающий светильник с Wi Fi для батареи низкого напряжения

Сохранить в закладки 1601198152139:


Цена:181 268,31 ₽ - 199 610,93 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

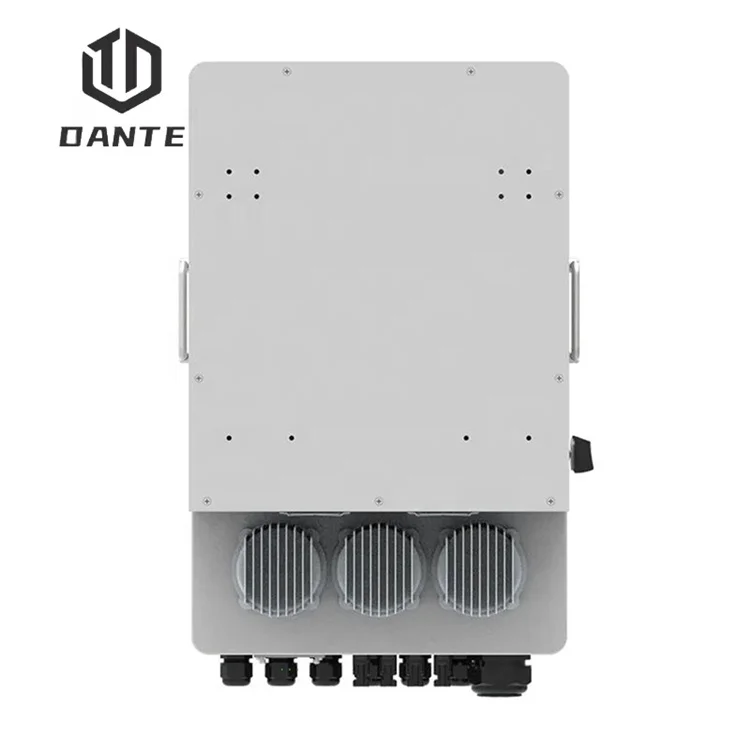

Product Description

EU stock solar inverter Deye single Phase Hybrid Solar Inverter 12KW 10kW 8KW SUN-12K-SG04LP3-EU on-off gird  wifi  inverter
























































































































































































































































































Model


SUN-8K-SG04LP3


SUN-10K-SG04LP3


SUN-12K-SG04LP3


Battery Input Data



Battery Type



Lead-acid or Li-lon




Battery Voltage Range (V)



40~60V




Max. Charging Current (A)



190A




210A




240A



Max. Discharging Current (A)



190A




210A




240A



Charging Curve



3 Stages / Equalization




External Temperature Sensor



Optional




Charging Strategy for Li-Ion Battery



Self-adaption to BMS




PV String Input Data



Max. DC Input Power (W)



10400W




13000W




15600W



PV Input Voltage (V)



550V (150V~800V)




MPPT Range (V)



200V-650V




Start-up Voltage (V)



160V




PV Input Current (A)



13A+13A




26A+13A




26A+13A



No.of MPPT Trackers



2




No.of Strings Per MPPT Tracker



1+1




2+1




2+1



AC Output Data



Rated AC Output and UPS Power(W)



8000W




10000W




12000W



Max. AC Output Power (W)



8800W




11000W




12000W



Peak Power (off grid)



2 times of rated power, 10 S




AC Output Rated Current (A)



12A




15A




18A



Max. AC Current (A)



18A




23A




27A



Max. Continuous AC Passthrough(A)



50A




Output Frequency and Voltage



50/60Hz; 230/400Vac (Three phase)




Grid Type



Current Harmonic Distortion




Current Harmonic Distortion



THD<3% (Linear load<1.5%)




Efficiency



Max. Efficiency



97.60%




Euro Efficiency



97.00%




MPPT Efficiency



99.90%




Certififications and Standards



Grid Regulation



IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1




Safety EMC / Standard



IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12




General Data



Operating Temperature Range(℃ )



-25~60℃ , >45℃ Derating




Cooling



Smart cooling




Noise (dB)



<30 dB




Communication with BMS



RS485; CAN




Weight (kg)



36.8




Size (mm)



422W×658H×281D




Protection Degree



IP65




Installation Style



Wall-mounted




Warranty



5 years









Products Series

Products Series









SUN-3/3.6/5/6K-SG04LP1




Output Power: 3-6KW Single Phase
Output Voltage: 220/230/240V

Battery Voltage: 20-30V /40-60V

Battery Type: Lead-acid or Lithium-ion









SUN-3.6/5/6K-SG03LP1-EU




Output Power: 3.6-6KW Single Phase
Output Voltage: 220/230/240V
Battery Voltage: 40-60V
Battery Type: Lead-acid or Lithium-ion









SUN-3.6/5/6/7.6/8K-SG05LP1-EU




Output Power: 3.6-8KW Single Phase

Output Voltage: 220/230/240V

Battery Voltage: 40-60V

Battery Type: Lead-acid or Lithium-ion














SUN-5/6/7.6/8K-SG01LP1-US




Output Power: 5-8KW Split Phase
Output Voltage: 120V/240V

Battery Voltage: 40-60V

Battery Type: Lead-acid or Lithium-ion









SUN-5/6/8/10/12K-SG04LP3




Output Power: 5-12KW Three Phase
Output Voltage: 230/400V
Battery Voltage: 40-60V

Battery Type: Lead-acid or Lithium-ion










SUN-12/14/16K-SG01LP1




Output Power: 12-16KW Single Phase
Output Voltage: 230/400V
Battery Voltage: 40-60V

Battery Type: Lead-acid or Lithium-ion

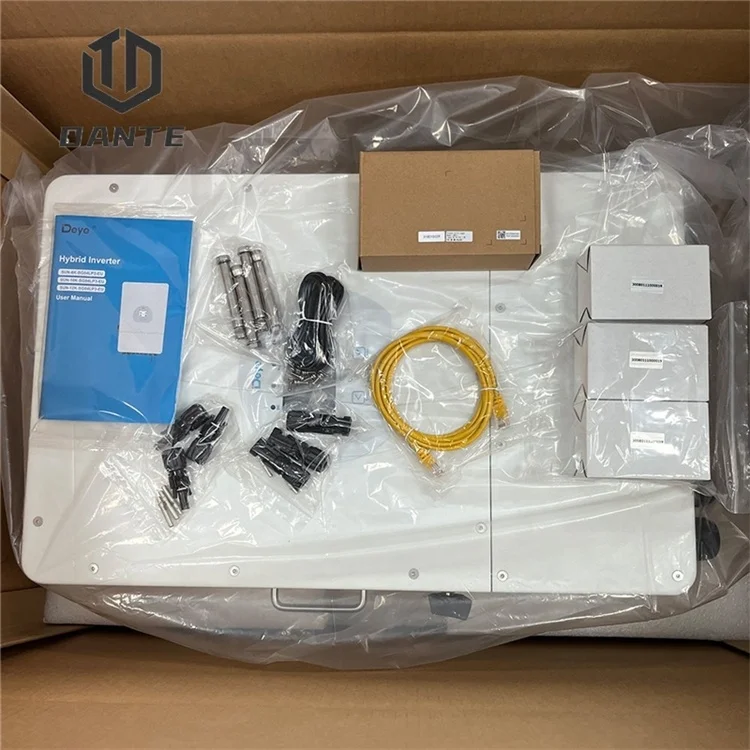

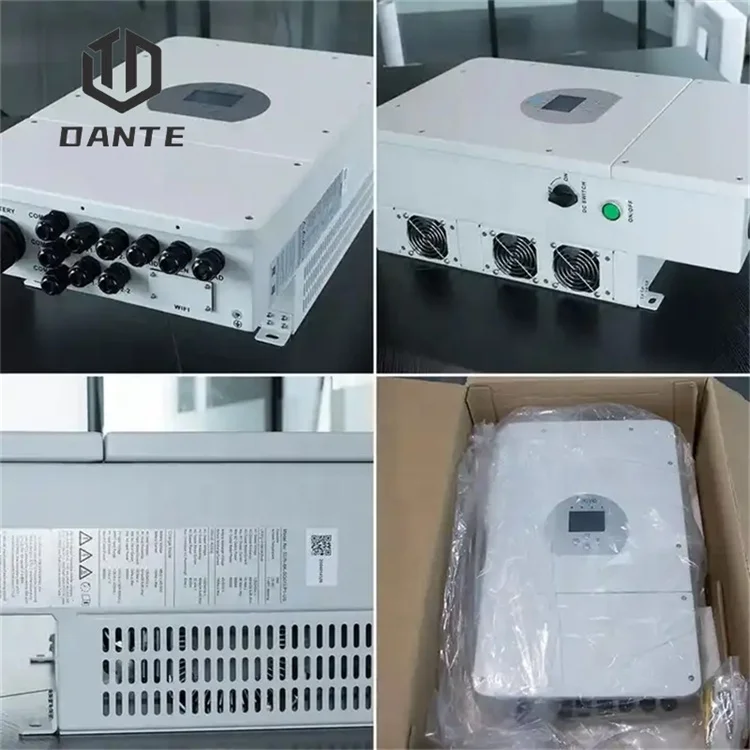

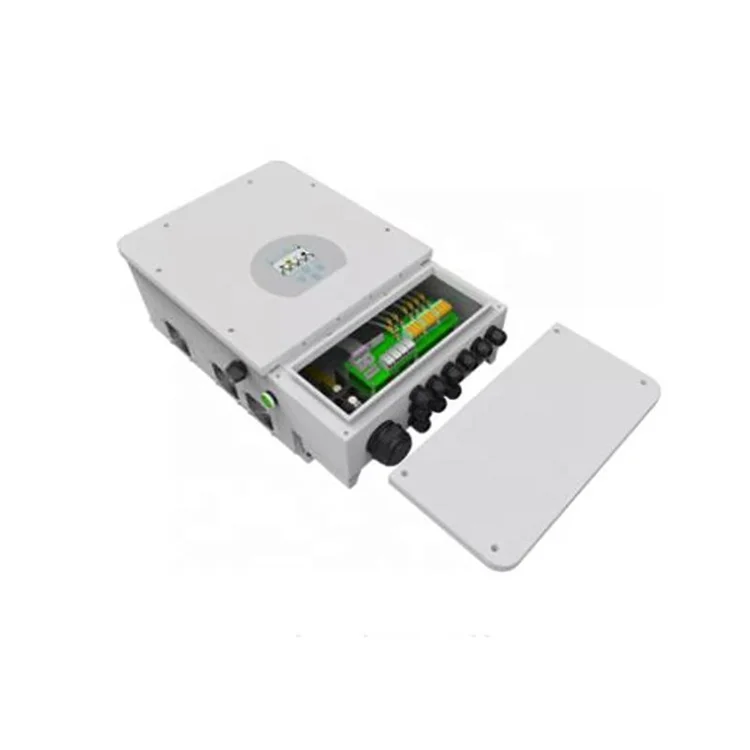

Pictures and Packages

Pictures and Packages

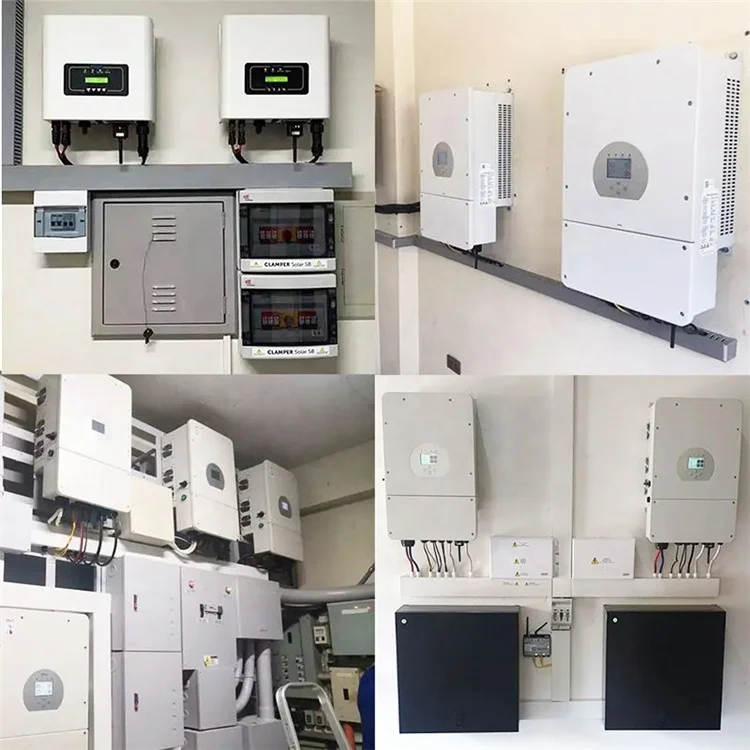

Applications
