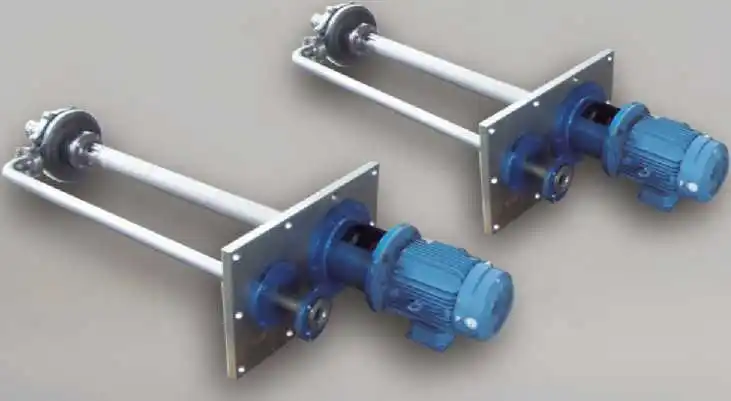

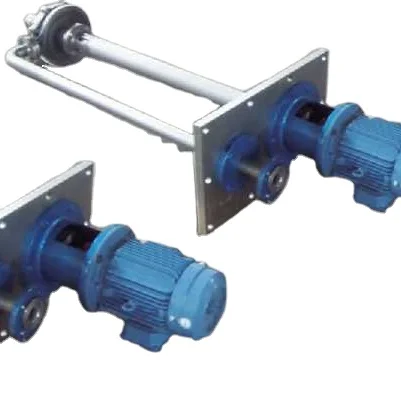

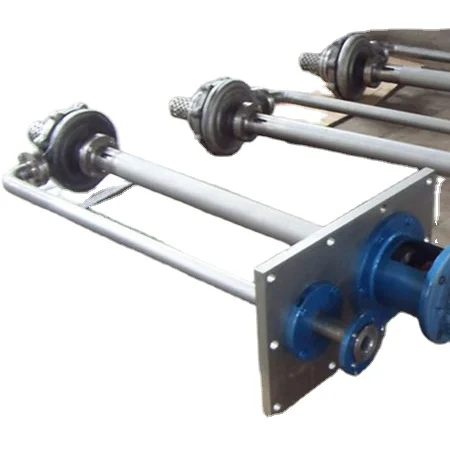

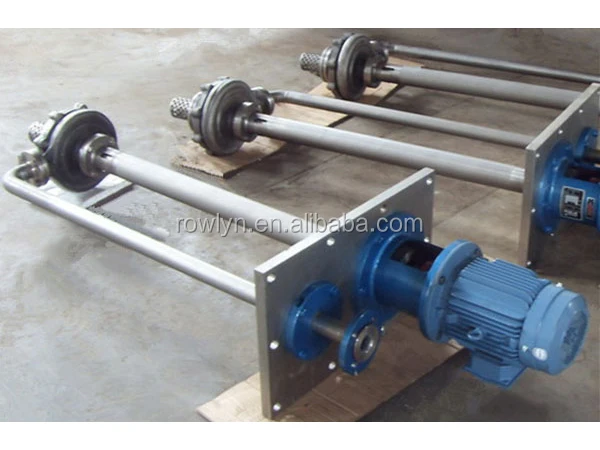

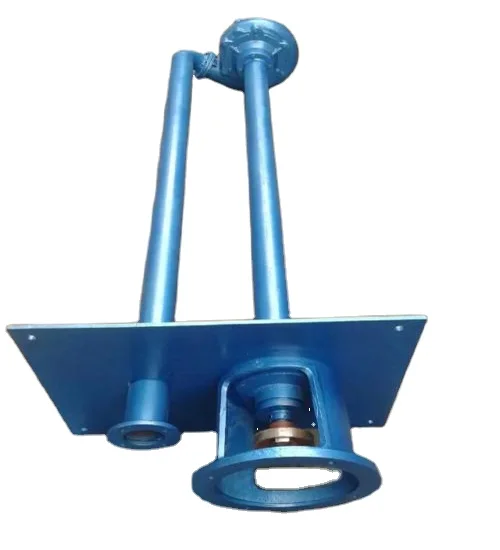

Центробежный погружной вертикальный шламовый насос

Описание и отзывы

Характеристики

YT submerged titanium pump

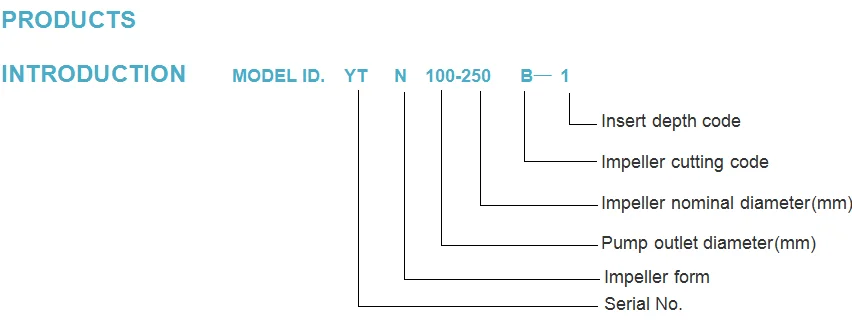

Product introduction

YT series vertical, single-stage, single-suction pump, suitable for conveying nominal sewage containing particles or fibers. When the depth of the insertion is more than 2 meters, the shaft structure is adopted, and the depth under the insertion is up to 7 meters.According to the properties and types of media, there are four types: closed impeller (VTN), semi-open impeller (YTO), open impeller (YTE) and swirl impeller (YTF).

Performance parameter

Flow:    Q:  2~500m³/h;

Lift Head: H:  5~100m;

Working Pressure: P: ~ 1.6MPa

Working Temperature: T: -20℃~+120℃

Scope of application

Power Plant, Thermal Power Plant, Chemical Plant, Sewage Treatment Plant, Steelmaking Plant, Steel Rolling Plant, Paper Mill, Fiber Plant, Cement Plant.

Design features

The shaft connection structure is designed safe and reliable

Rotor parts can be adjusted axially

Rotor parts adopt is multi-point support, pump operation is safe and reliable

Sliding bearings are lubricated externally

Adopting the shaft protective structure, the sliding bearing has a long service life

Adopt double volute pump body, (diameter 80mm) above, can balance the radial force, make the radial force on rotor parts small, shaft deflection small, sliding bearing wear small, and long service life.

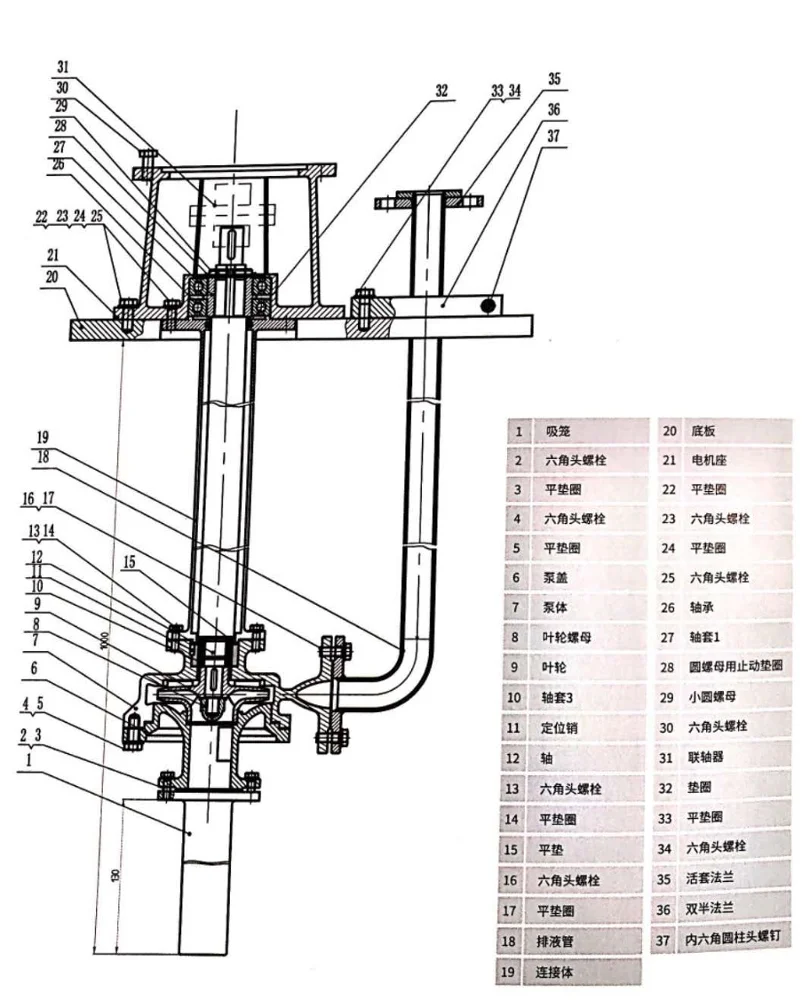

YT submerged titanium pump structural drawing

1 - suction cage 2- hexagon head bolt 3 - flat washer 4- hexagon head bolt 5 - flat washer 6 - pump cover

7 - pump body 8-impeller nut 9 - impeller 10 - collar 11- positioning pin 3 12 - shaft 13- hexagon head bolt

14 - flat washer  15 - flat mat  16- hexagon head bolt  17 - flat washer  18 drainage tube 19 connecting

20 - floor  21 - motor seat  22 - flat pad figure  23- hexagon head bolt  24 - flat washer

25- hexagonal bolt pump body 26 - bearing 27 - sleeve 1  28- stop washer for round nut

29- small nut alignment pin 30- hexagon head bolt 31 - coupling 32 - washer 33 - flat washer

34- hexagon head bolt 35- sliding flange gasket 36- Double-half flange 37-hexagon socket head screw

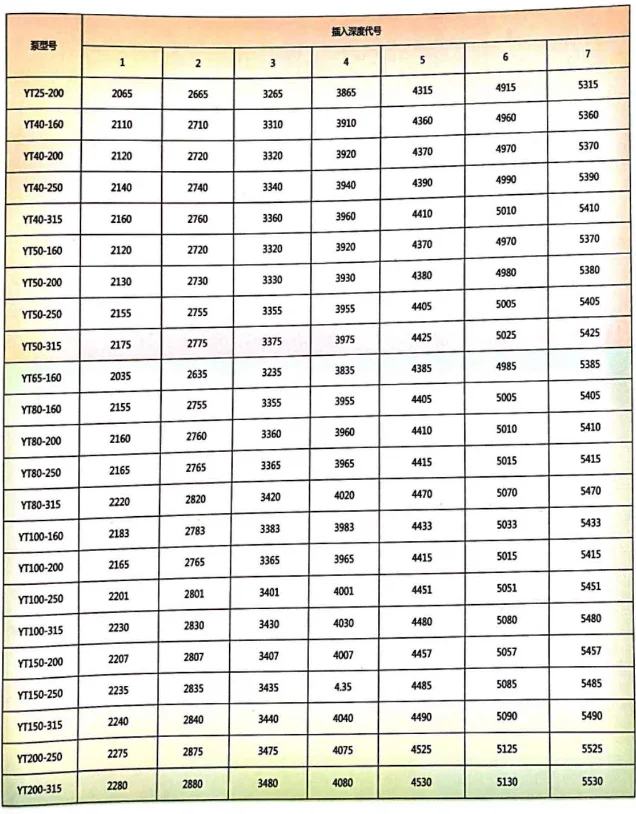

YT submerged titanium pump inserting depth

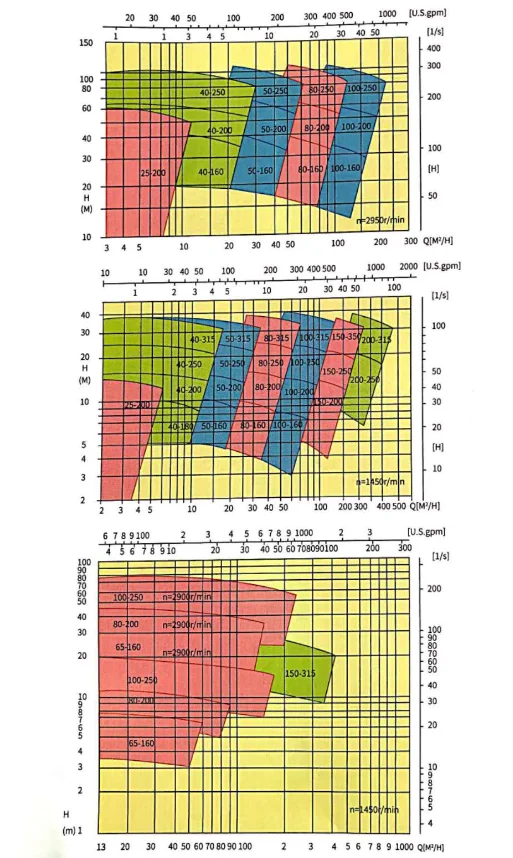

YT submerged titanium pump performance range (50HZ)  YTN

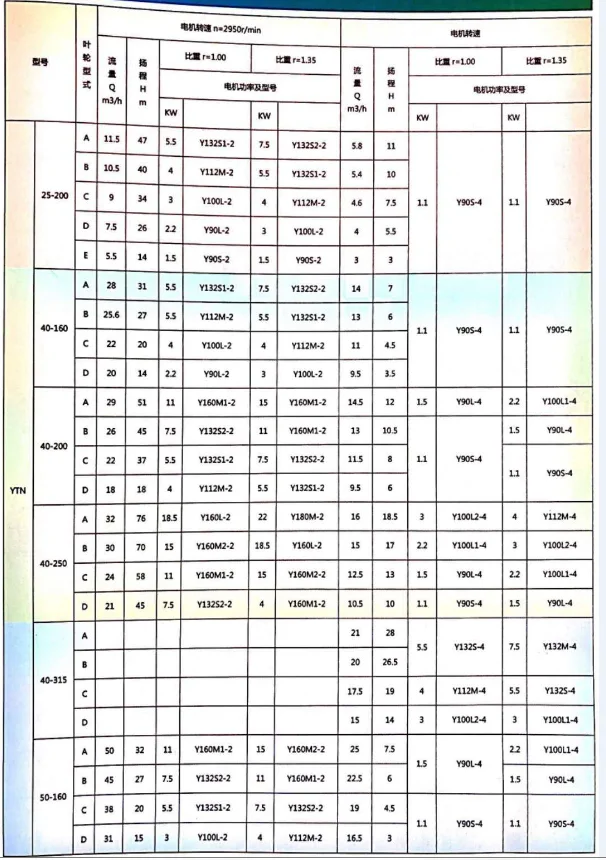

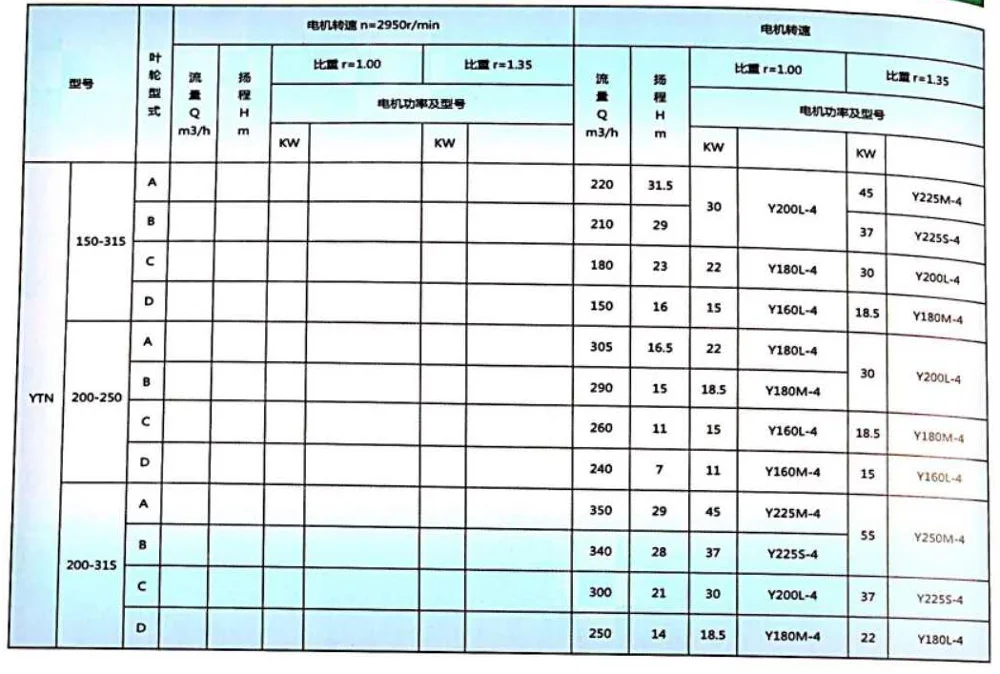

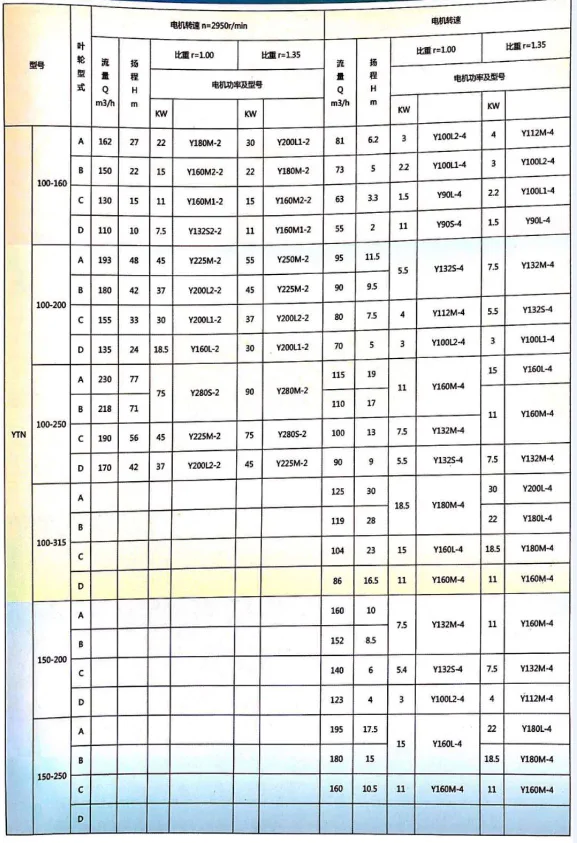

YT submerged titanium pump performance sheet
