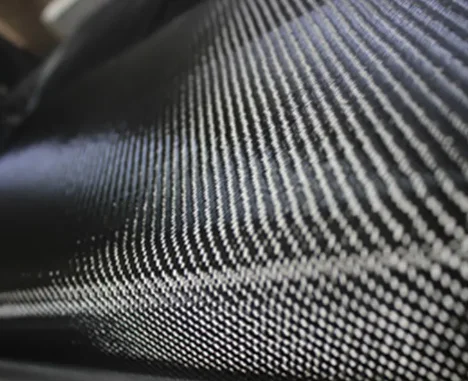

3k Углеродное волокно twl 200 Gsm ткань карбоновое Ткань

3k Углеродное волокно twl 200 Gsm ткань карбоновое Ткань

Категория: >>>
Поставщик: Haining Zhengdan Textile Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

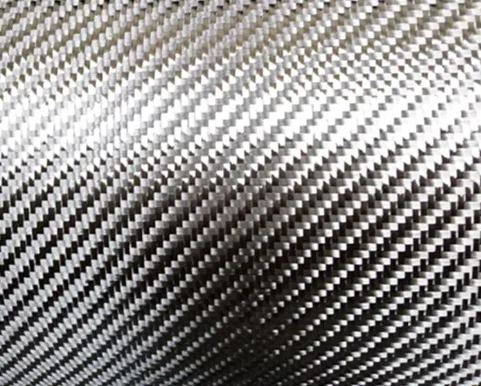

3k Carbon Fibre Twill 200 Gsm Fabric Carbonfiber Cloth

The epitome of strength and elegance. This premium fabric is crafted from 3K carbon fibers, ensuring exceptional durability and rigidity while maintaining a lightweight feel. The 200 GSM (grams per square meter) density provides optimal balance between strength and flexibility, making it perfect for a wide range of applications.
Whether you're an avid outdoorsman, a passionate sports enthusiast, or a professional in the aerospace or automotive industry, this carbon fiber cloth is your ideal choice. Its robust yet sleek design ensures durability and longevity, while its superior performance capabilities make it a must-have for any serious adventure or project.
Embrace the cutting-edge technology of 3K carbon fiber and take your performance to the next level with the 3K Carbon Fibre Twill 200 GSM Fabric Carbonfiber Cloth. Elevate your adventures, enhance your creations, and stand out from the rest with this emarkable material.

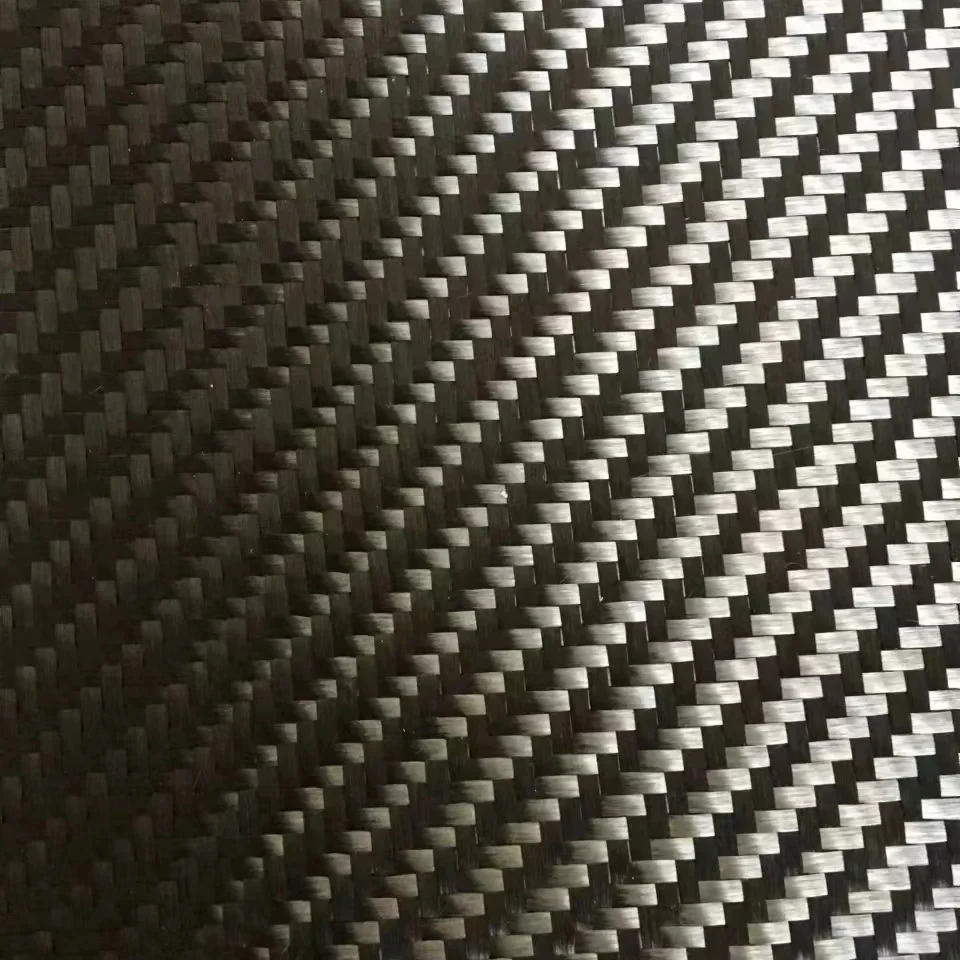

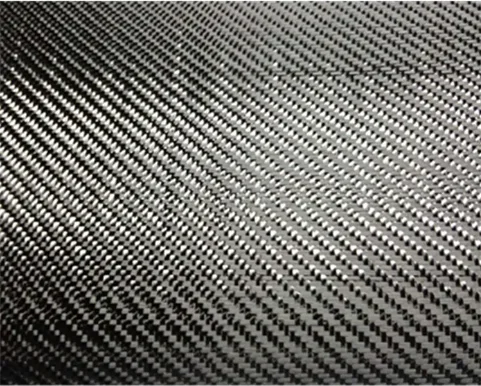

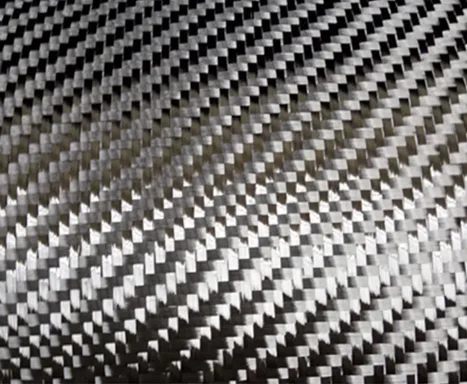

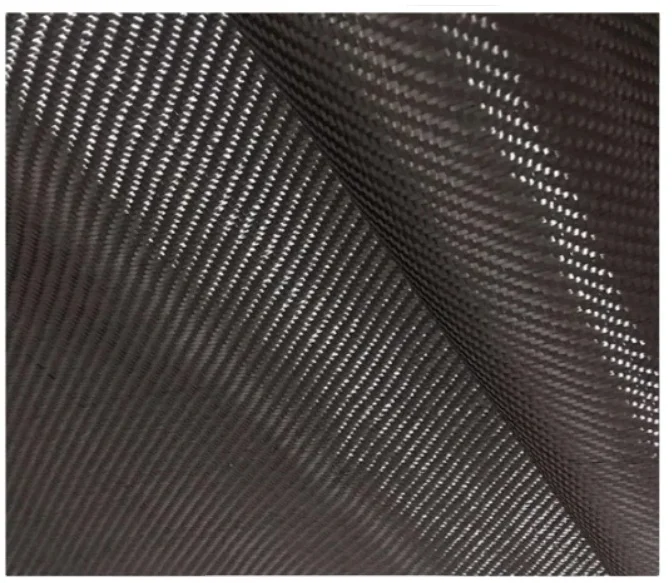

TWILL WEAVE

PLAIN WEAVE

REFLECT GREEN CARBON FIBER

3D JACQUARD WEAVE

SQUARE JACQUARD WEAVE

CAMOUFLAGE WEAVE

Specification

TYPE	REINFORCEMENT YARN			WEAVE	FIBER COUNT(10mm)			WEIGHT(g/sqm)	THICKNESS(mm)	WIDTH(mm)
TYPE		WARP YARN	WEFT YARN	WEAVE		WARP ENDS	WEFT ENDS	WEIGHT(g/sqm)	THICKNESS(mm)	WIDTH(mm)
ZD-1K-P	1K	1K	PLAIN	9	9	120	0.16	1000-1500
ZD-1K-T	1K	1K	TWILL	9	9	120	0.16	1000-1500
ZD-1K-P	1K	1K	PLAIN	10.5	10.5	140	0.17	1000-1500
ZD-1K-T	1K	1K	TWILL	10.5	10.5	140	0.17	1000-1500
ZD-3K-P	3K	3K	PLAIN	5	5	200	0.30	1000-1500
ZD-3K-T	3K	3K	TWILL	5	5	200	0.30	1000-1500
ZD-3K-P	3K	3K	PLAIN	6	6	240	0.32	1000-1500
ZD-3K-T	3K	3K	TWILL	6	6	240	0.32	1000-1500
ZD-3K-P	3K	3K	PLAIN	7	7	280	0.34	1000-1500
ZD-3K-T	3K	3K	TWILL	7	7	280	0.34	1000-1500
ZD-6K-P	6K	6K	PLAIN	4	4	320	0.38	1000-1500
ZD-6K-T	6K	6K	TWILL	4	4	320	0.38	1000-1500
ZD-6K--P	6K	6K	PLAIN	5	5	400	0.42	1000-1500
ZD-6K-T	6K	6K	TWILL	5	5	400	0.42	1000-1500
ZD-12K-P	12K	12K	PLAIN	2.5	2.5	400	0.46	1000-1500
ZD-12K-T	12K	12K	TWILL	2.5	2.5	400	0.46	1000-1500
ZD-12K-P	12K	12K	PLAIN	3	3	480	0.52	1000-1500
ZD-12K-T	12K	12K	TWILL	3	3	480	0.52	1000-1500
ZD-12K-T	12K	12K	TWILL	4	4	640	0.64	1000-1500

Application

1.Aerospace:Fuselage, Rudder.
2.Sport equipment: Automobile parts, fish pole, baseball bat, sled, speedboat, badminton racket,etc.
3.Industry: Engine component, reinforced material of concert structure, air-blower vane, driving shaft,etc.
4.Fire protection: Apply for fireproof clothing production of fire forces, steel plants, etc.

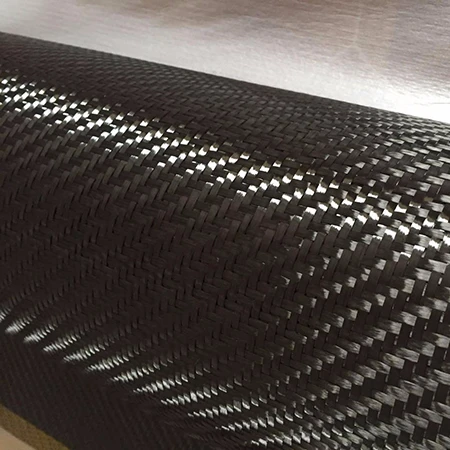

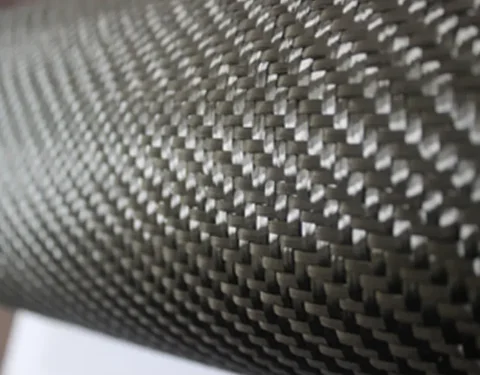

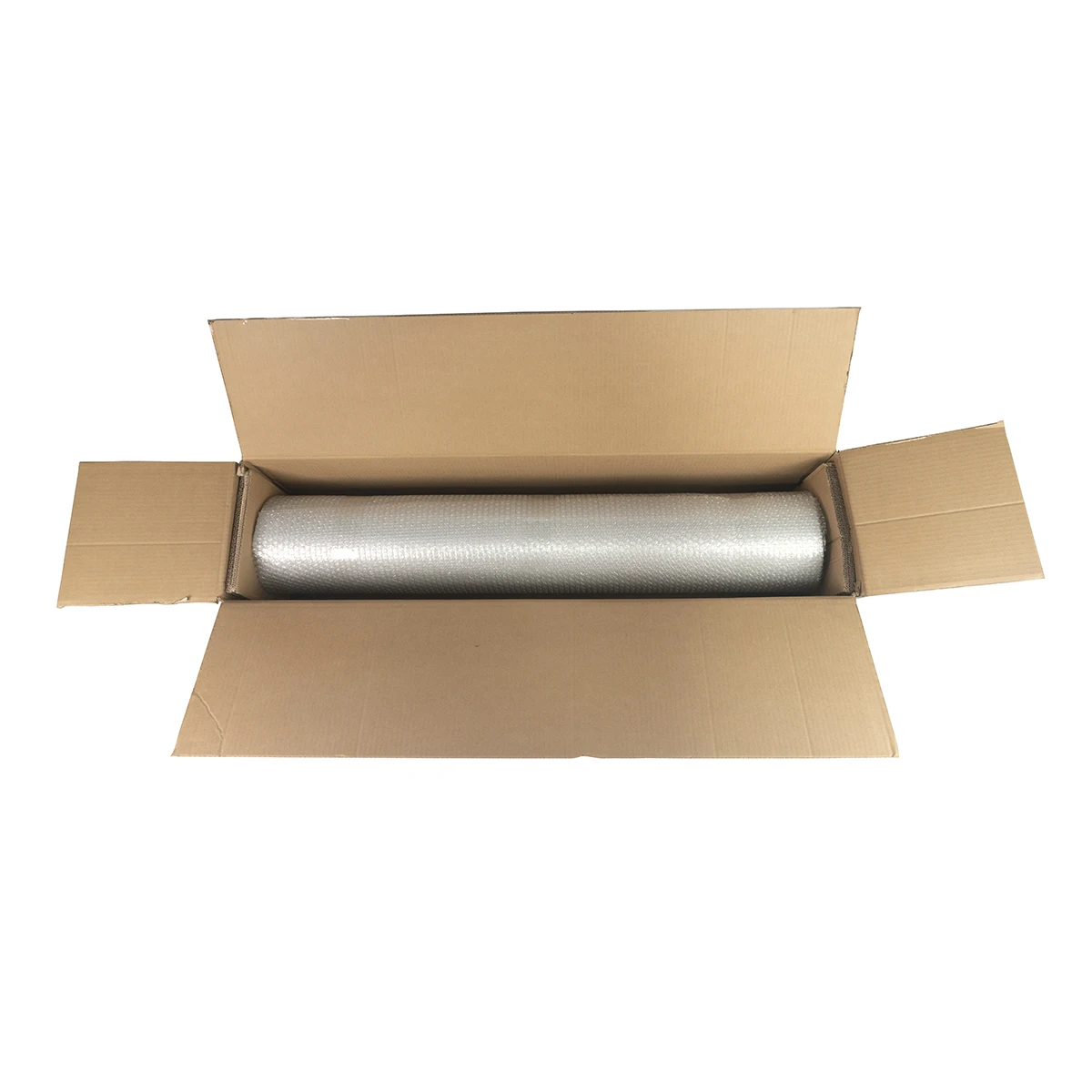

Products Show
