Hiland, раздвижные ворота, Открыватель моторной двери, умный автоматический Открыватель скользящих ворот, автоматическая система открывания ворот
12 929,40 ₽
Гибкий Высокоточный бесщеточный Серводвигатель A2 1500W для высокоскоростных дверей с технологией дистанционного управления
- Категория: >>>
- Поставщик: Wuhan Baojiu Electronics Co. Ltd.
Сохранить в закладки 1601199869239:
Описание и отзывы
Характеристики
The high-speed rolling shutter door features an integrated intelligent control system, servo-driven precision unit, and patented safety protection technology, delivering professional-grade performance in safety, stability, speed, and efficiency. Additionally, it integrates industrial aesthetics into its structural design, employing automated laser precision cutting and precision components to ensure high-performance product creation.
Built to last
User friendly
Full load testing before delivery
2 year warranty
User friendly
Full load testing before delivery
2 year warranty
Easy to install
Easy to wire
Easy to adjust
Easy to maintain
Easy to wire
Easy to adjust
Easy to maintain
Basic Parameters | A2 1500W PE500B | |
Power | 1500W | |
Power supply | 220V/380V | |

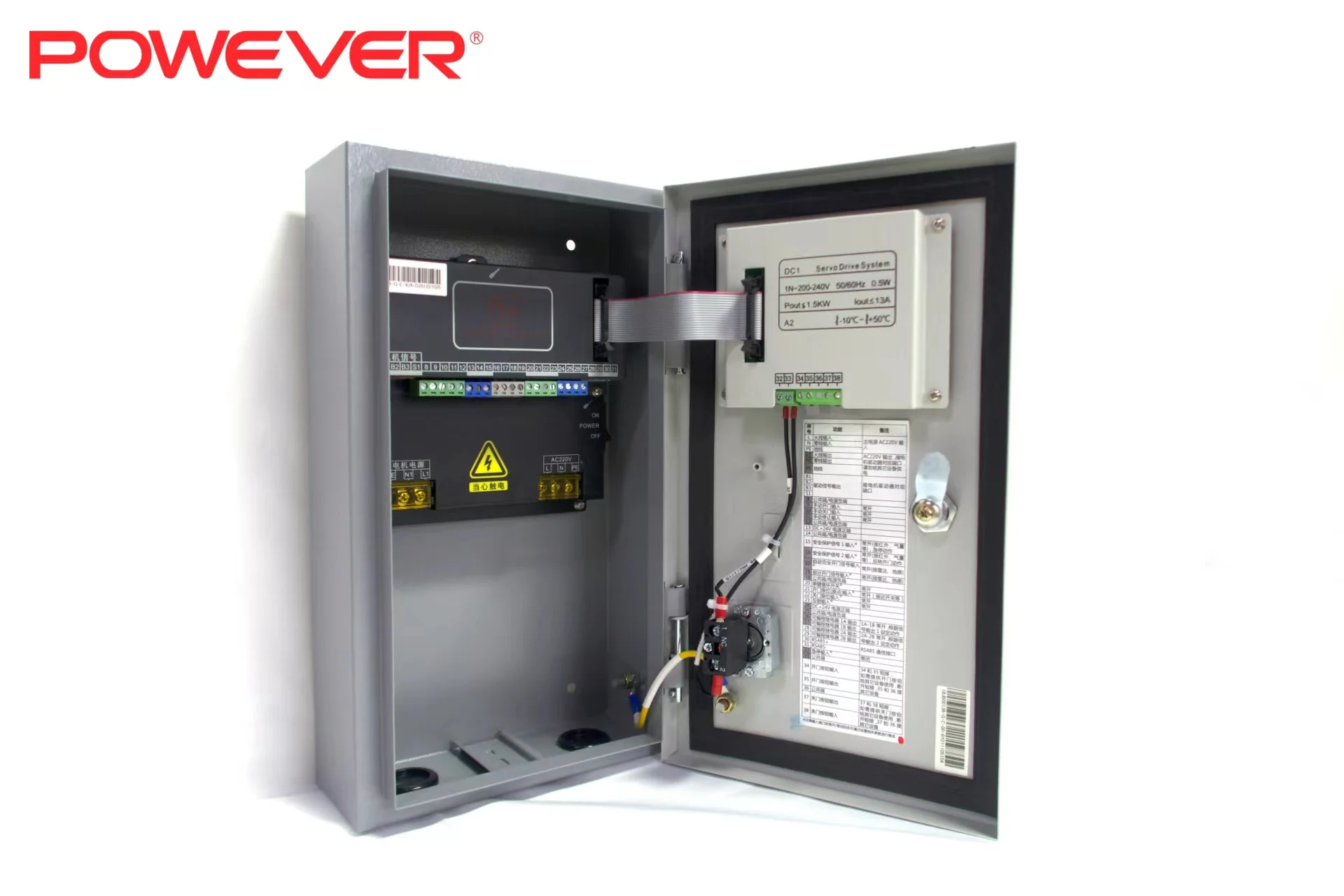

Control Cabinet Dimension | 340*195*95(125) | |

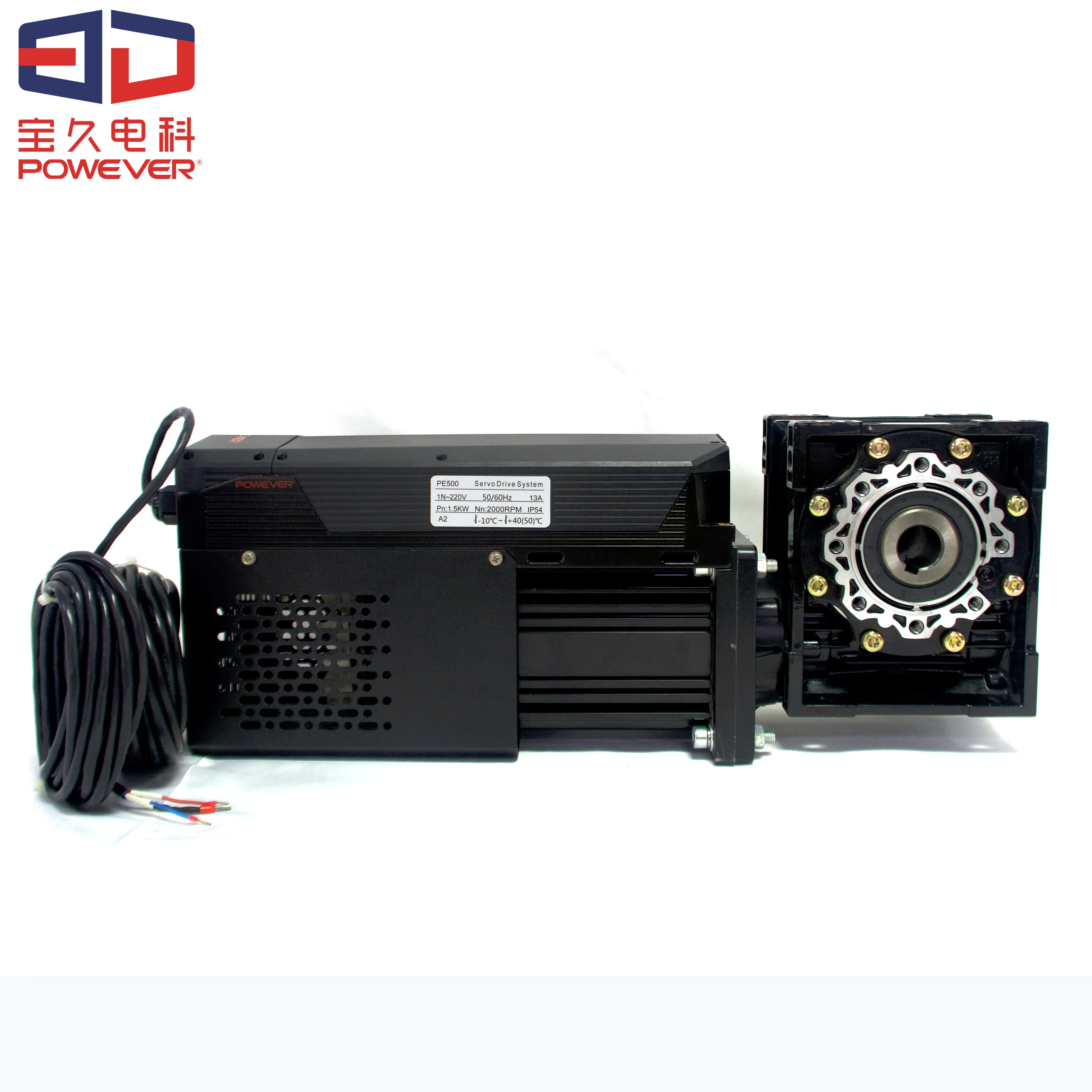

Motor Drive Unit Dimension | 522*130*200 | |
Reducer | Worm Gear Reducer(RV63） | |
Motor Operating Mode | S3 | |
Max Rated Speed | 2000 rpm | |
Rated Torque | 7.2 Nm (2times Overload) | |
Motor IP Level | IP54 | |

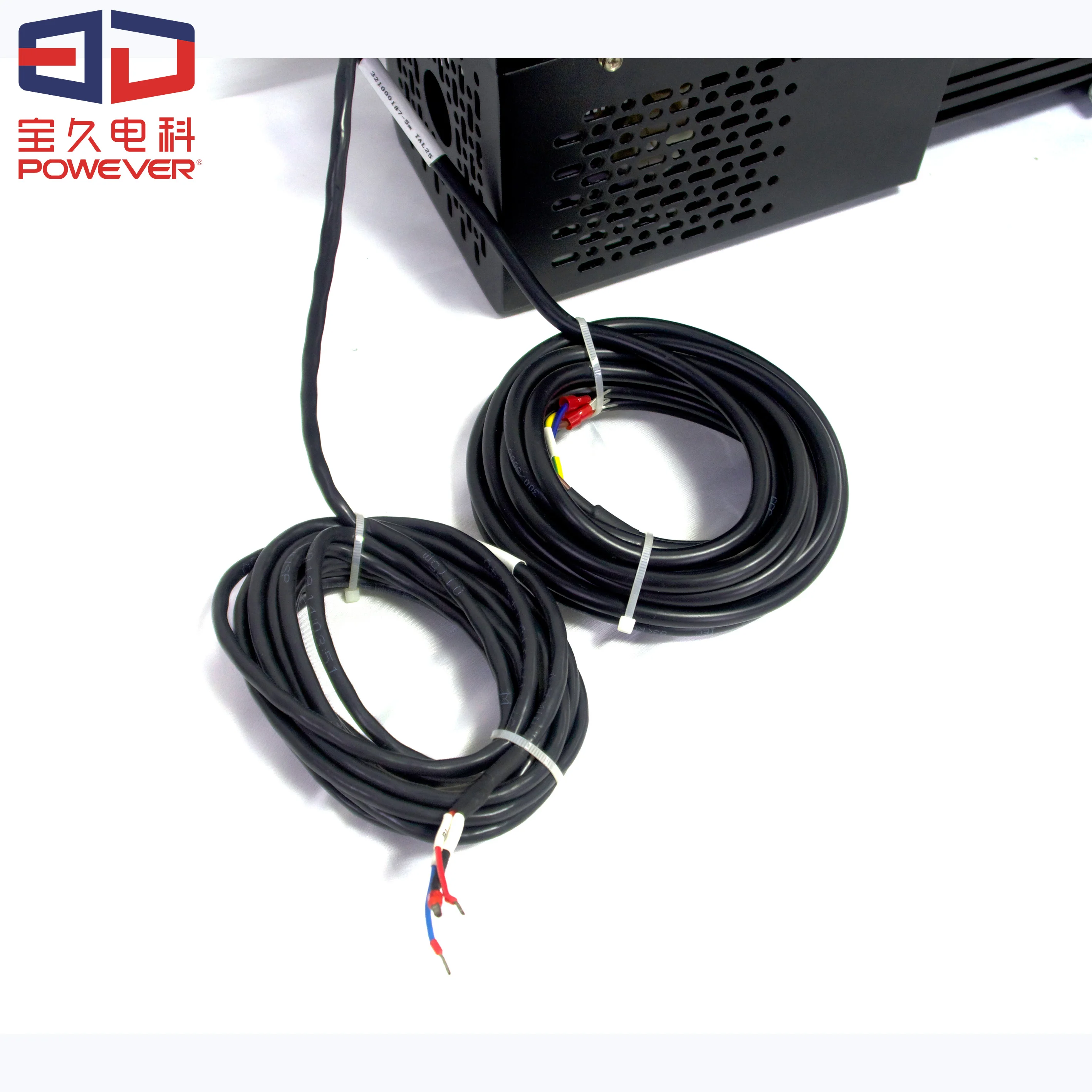

Shielding Wire Standard Length | 4m | |
Working Temperature | -10℃-40℃ | |
Limit Setting | Incremental Encodre + Absolute Encoder | |
Self Locking Method | Electronic Mechanical Brake | |
Control Panel Functions | ||
Display | LCD Monitor | |
Opening Speed Setting | Stepless Speed Regulation | |
Closing speed setting | Stepless Speed Regulation | |
Opening Deceleration Interval Setting | √ | |
Closing Deceleration Interval Setting | √ | |
Automatic Closing Time-Delay (seconds) | 0-240(0: Disable Automatic Door Closing） | |
Partial Opening Height(%) | Any Position Between the Limits | |
Running Status Display Option | √ | |
Extensions of Control Panel Functions | ||
Error Prompt | √ | |
Data Statistics | √ | |
Error Log | √ | |
Maintenance reminder | √ | |
Jogging Mode | √ | |
Motor Running Reverse | √ | |
Interface Logic Switching(NC/NO) | √ | |
Anti-Shake Function In Low Temp. | √ | |
Torque Servo Function | √ | |
Interface of Control Cabinet | ||
Networking Physical Interface | RS485 | |
Safety Protection Signal 1 Input | Emergency stop | |
Safety Protection Signal 2 Input | Reverse Opening | |
Automatic Fully Opening Signal Input | √ | |
Partial Opening Signal Input | √ | |
Single Key Circle | √ | |
Open Limit (Origin) Switch Input※ | √ | |
Close Limit Switch Input | √ | |
Interlock Input | √ | |
Programmable Relay Output | 2 Groups（Extensible） | |
Manual/Automatic Switching Inputs | √ | |
Emergency Stop Input | √ | |
Limiting Options | Incremental Encoder | |
Built in Absolute Encoder | ||
Proximity Switch | ||
1. Accurate
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
We've achieved precise control over position, speed, and torque with a fully closed-loop servo system. Our high-precision
electronic limits ensure there's no deviation during long-term operation. Also eliminating the need for climbing to set limits and ensuring operator safety.
2. Stable
Our integrated design includes EMC electromagnetic compatibility features. We continuously monitor motor output data in real-time, allowing us to assess the status of balance systems like torsion springs and tension springs, as well as detect any jamming point.
3. Efficient
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
Our system offers adjustable speeds for flexible operation. The lifting door system can reach a rated output speed of 133RMP, with a maximum lifting speed of 1.95M/s.
4. Less Impact
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
The system operates smoothly without any shaking, minimizing the impact on its mechanical structure and significantly extending its service life.
5. Security
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
Our system is equipped with various protection methods, including overvoltage, undervoltage, overcurrent, and short circuit protection. With an emergency signal response time of under 30 milliseconds, we ensure the safety of both people and objects.
6. High Frequency
Ideal for environments with ultra-frequent and fast passage needs.
7. Energy Conservation
By utilizing rare earth permanent magnet materials in our servo motors, we've doubled efficiency compared to traditional
asynchronous induction motors. This results in energy savings, lighter weight, lower temperature rise, and increased torque.
By utilizing rare earth permanent magnet materials in our servo motors, we've doubled efficiency compared to traditional
asynchronous induction motors. This results in energy savings, lighter weight, lower temperature rise, and increased torque.
Logistic Center Workshop Refrigeration Airport
Headquarter
5th Floor, Building A-l, Zone 2, Wuhan University Navigation Area, Wuhan University Science and Technology Park, East Lake Development Zone, Wuhan, Hubei Province, China
Manufacturing Base
Building C, Wuhan Land Port Center, No.100 Hanshi Highway, Xinzhou District, Wuhan, HubeiProvince, China
Contact Person ：Ms. Léa
Mobile/WhatsApp/Wechat ：+86 15926413664
Mobile/WhatsApp/Wechat ：+86 15926413664
Email ： lea@powever.com.cn
