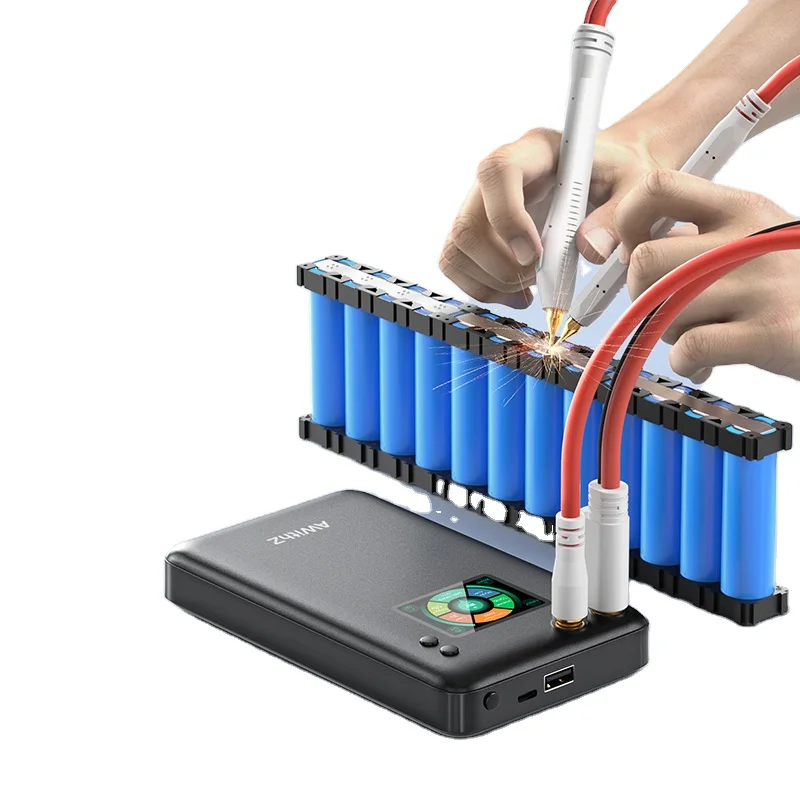

Машина для точечной сварки Awithz 11000 мАч с 0 35 мм батареей ЖК-экран 7 языков сварочного аппарата
4 077,72 ₽ - 4 243,03 ₽
Сварочный аппарат с литиевой батареей одна сторона/двойная сторона точечная сварочная электрод булавки приспособления запасные части машина для точечной сварки
- Категория: >>>
- Поставщик: Shenzhen Aitop Intelligent Equipment Co. ltd
Сохранить в закладки 1601199909560:
Описание и отзывы
Характеристики
AITOP Customized 18650 21700 Lithium Battery Pack Welding Machine One side/ Double Side Spot Welding Machine jigs fixture ，electrode welding pins spare parts spot welding machine

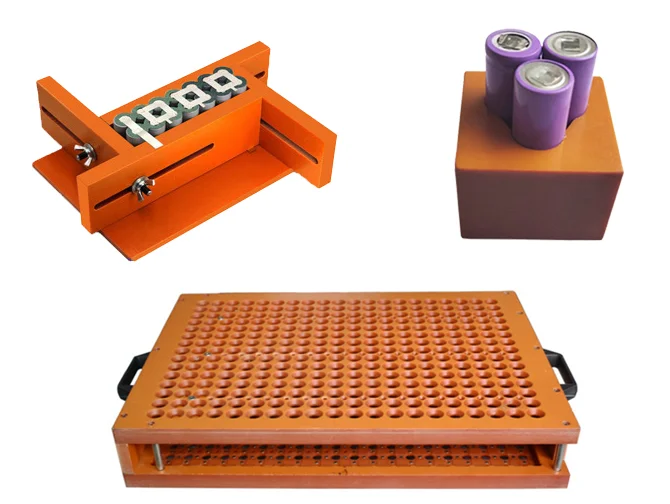

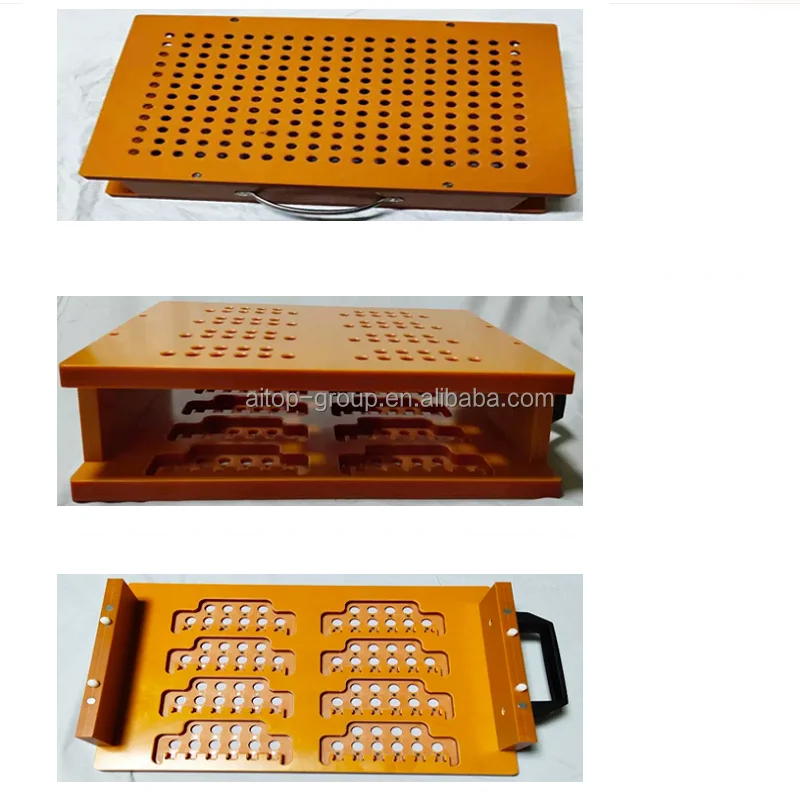

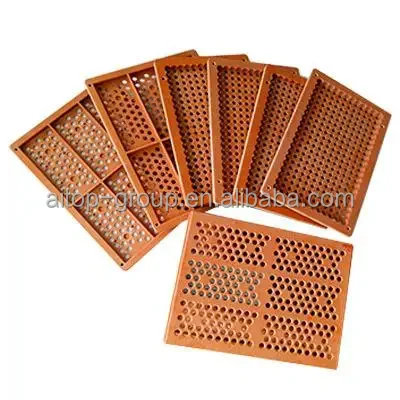

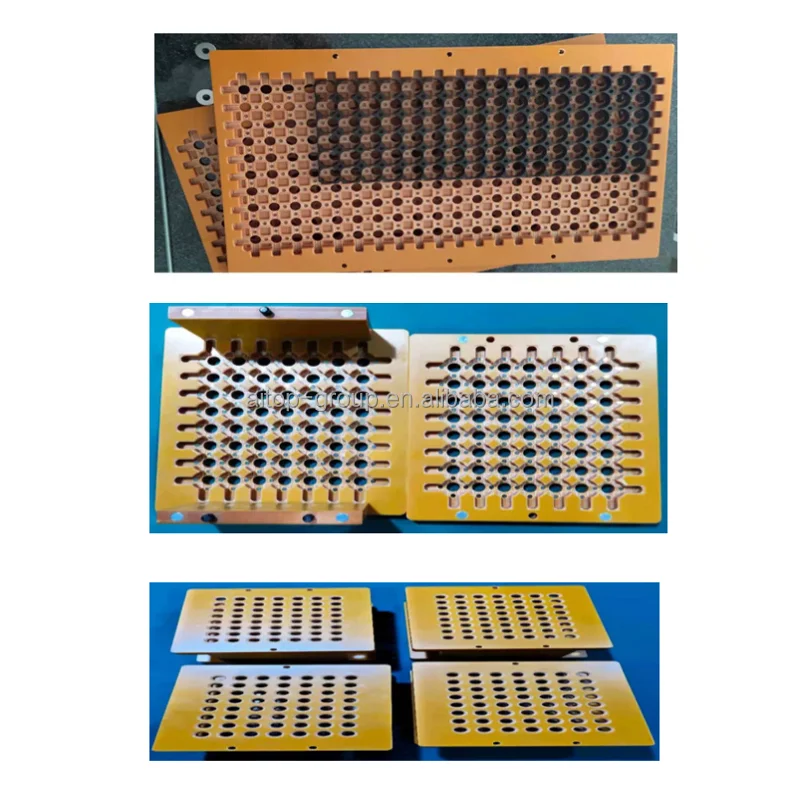

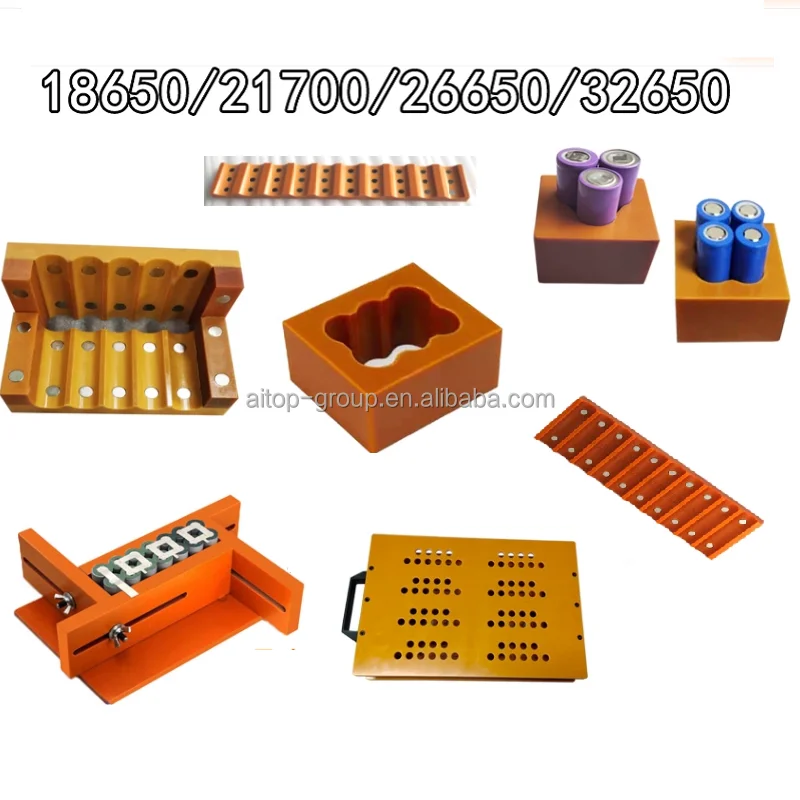

The main material of this accessory is insulated bakelite, which is in the shape of a wooden box, it is mainly composedof the box body, lid, regulator, hardware, and other parts, it is equipped with multiple iron boron magnetic steel magnetsto adsorb nickel strips for optimal welding effect.

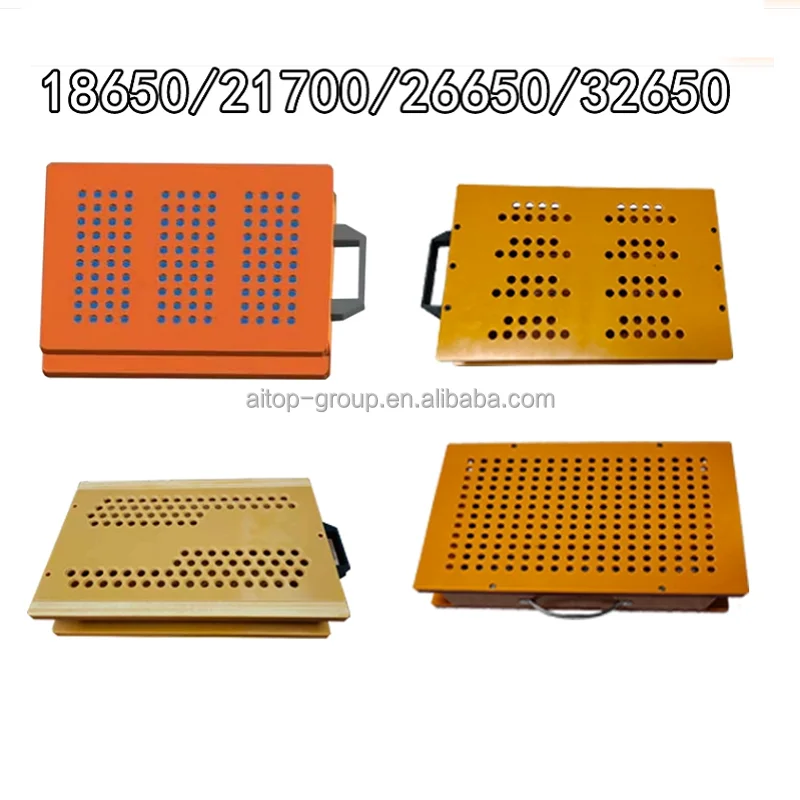

18650 26650 32650 21700 battery cell welding clamp.
Any size any shape customized.This clamp is adjustable, you could make it bigger or smaller when build different battery packs.Only Provide pictures of the battery pack and dimensions of the nickel plate holder, or CAD of the battery pack and customized fixtures
Specification
Applicable Industries | Battery Research |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2022 |
Warranty of core components | 1 years |
Core Components | Spot Welder |
Condition | New |
Place of Origin | China |
Rated Capacity | 25KVA |
Rated Duty Cycle | 60% |
Max. Welding Thickness | 0.03 - 0.3mm |
Dimensions | 470*220*320mm |
Usage | Spot Welding |
Voltage | AC 220V±10% 50Hz±2Hz |
Warranty | 1 years |
Key Selling Points | Automatic |
Power (kW) | <500w |
Weight (KG) | 65KG |
DC energy storage capacity | 6600uF |
Welding pulse number | 9 sets of pulses |
Welding voltage | 5v-330v adjustable, precision 0.5V |
welding time | 0.1ms-5.0msdjustable, precision 0.1ms |
Welding mode | Normal / continuous |
Certification | CE |
Product Description
Battery Welder Equipment For Battery Cell Tabs And Packs
Product Features:
1.Microcomputer control, large LCD screen display, graphical display of current working status, Chinese comment
2. Digitize the welding parameters, the keyboard operation is clear and clear, convenient and fast
3.Welding voltage locking technology to prevent grid pressure fluctuations from affecting welding current
4.The welding pulse width is adjustable, the welding spatter is small, and the solder joints are not discolored.
5.Can realize single pulse and double pulse and multi pulse welding
6. can store 10 welding specifications
7.With two-stage current monitoring and comparison function, the current abnormal sound and light alarm, effectively prevent the occurrence of false welding phenomenon
8.With 5-digit counter, calculate the number of successful welding, and also set the counting alarm, prompting to repair the welding pin
9.With fault self-diagnosis function, display corresponding fault points, convenient for maintenance
Product Features:
1.Microcomputer control, large LCD screen display, graphical display of current working status, Chinese comment
2. Digitize the welding parameters, the keyboard operation is clear and clear, convenient and fast
3.Welding voltage locking technology to prevent grid pressure fluctuations from affecting welding current
4.The welding pulse width is adjustable, the welding spatter is small, and the solder joints are not discolored.
5.Can realize single pulse and double pulse and multi pulse welding
6. can store 10 welding specifications
7.With two-stage current monitoring and comparison function, the current abnormal sound and light alarm, effectively prevent the occurrence of false welding phenomenon
8.With 5-digit counter, calculate the number of successful welding, and also set the counting alarm, prompting to repair the welding pin
9.With fault self-diagnosis function, display corresponding fault points, convenient for maintenance
Aitop machines for li-ion Batteries assemble are intelligent, simple to learn, easy to operate, with on line service. One-year
warranty and lifetime maintenance are our guarantee of quality .you can reach me by :
warranty and lifetime maintenance are our guarantee of quality .you can reach me by :
Shenzhen AITOP Intelligent Equipment Co.,Ltd.
sales(@)aitop-group.com
phone/whatapp wechat number:+8618098989643
sales(@)aitop-group.com
phone/whatapp wechat number:+8618098989643
The following is a typical description of the stages in a full automatic cylindrical battery pack assembly line:
1. Cell Sorting: The first stage involves sorting the cylindrical battery cells according to their specifications such as voltage,
capacity, and resistance. This is done using automated equipment that can sort hundreds or thousands of cells per hour.
2. Cell Stacking: The sorted cells are then stacked in a specific pattern to form the battery pack.
The stacking process can be done by robots that can handle and position the cells accurately and quickly.
3. Welding: Once the cells are stacked, they are welded together to form the battery pack. The welding process is
typically done using a laser welding machine or an ultrasonic welding machine. This stage is crucial as it ensures a secure and reliable connection between the cells.
4. Tab Cutting: After welding, excess material from the tabs connecting the cells is cut off to prevent short circuits.
This process is typically done by a specialized machine that can cut hundreds of tabs per minute.
5. Cell Insulation: To prevent the battery pack from short-circuiting, the cells are then covered with an insulating material.
This process is typically done using a wrapping machine that can wrap the battery pack with a heat-shrinkable film or other insulating material.
6. Battery Pack Testing: Once the battery pack is assembled, it is then tested to ensure that it meets the required specifications
such as capacity, voltage, and resistance. This process is typically done using automated equipment that can test multiple battery packs simultaneously.
7. Battery Pack Packaging: Finally, the battery packs are packaged and prepared for shipping or further processing.
This process may involve labeling, boxing, or palletizing the battery packs depending on the customer's requirements.
Overall, a full automatic cylindrical battery pack assembly line can significantly increase the speed and efficiency of the
battery pack assembly process, while also improving the quality and consistency of the final product.
Aitop machines for li-ion Batteries assemble are intelligent, simple to learn, easy to operate, with on line service.
One-year warranty and lifetime maintenance are our guarantee of quality .you can reach me by email :
Shenzhen AITOP Intelligent Equipment Co., Ltd.
sales(@)aitop-group.com
wechat number:+8618098989643
Company Profile
Packing & Delivery
Aitop machines for li-ion Batteries assemble are intelligent, simple to learn, easy to operate, with on line service. One-year
warranty and lifetime maintenance are our guarantee of quality .you can reach me by :
warranty and lifetime maintenance are our guarantee of quality .you can reach me by :
Shenzhen AITOP Intelligent EquipmentCo., Ltd.
sales(@)aitop-group.com
phone/whatapp wechat number:+8618098989643
Похожие товары
Punta Kaynak Makinesi Maquina De Soldar Por Puntos 6 мм сопротивление инвертор сварной точки точечная сварка микро аппарат для точечной сварки
55 104,20 ₽ - 77 145,88 ₽
Однобоковая чрезвычайно производительная машина для точечной сварки литий-ионных аккумуляторов с полной автоматизацией
1 487 813,40 ₽ - 1 708 230,20 ₽

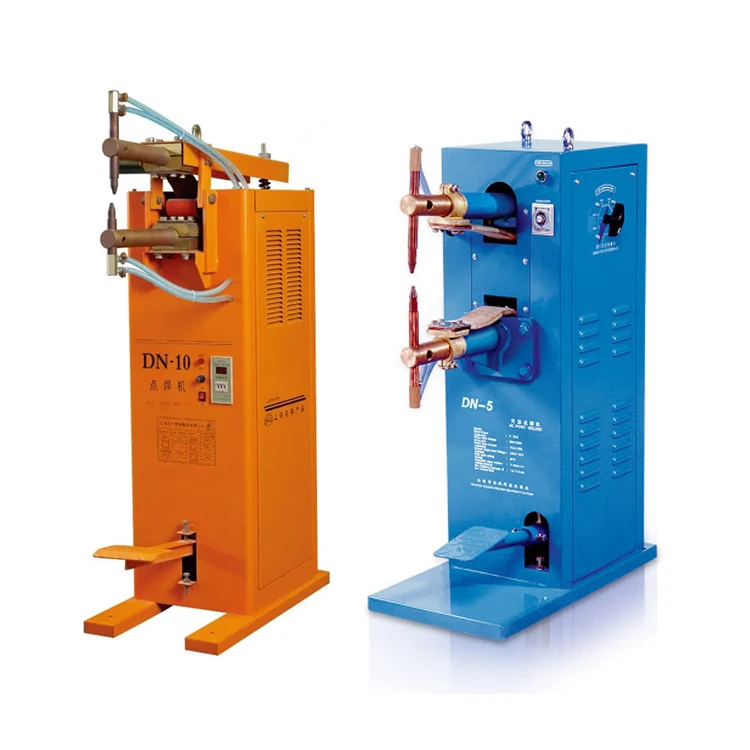

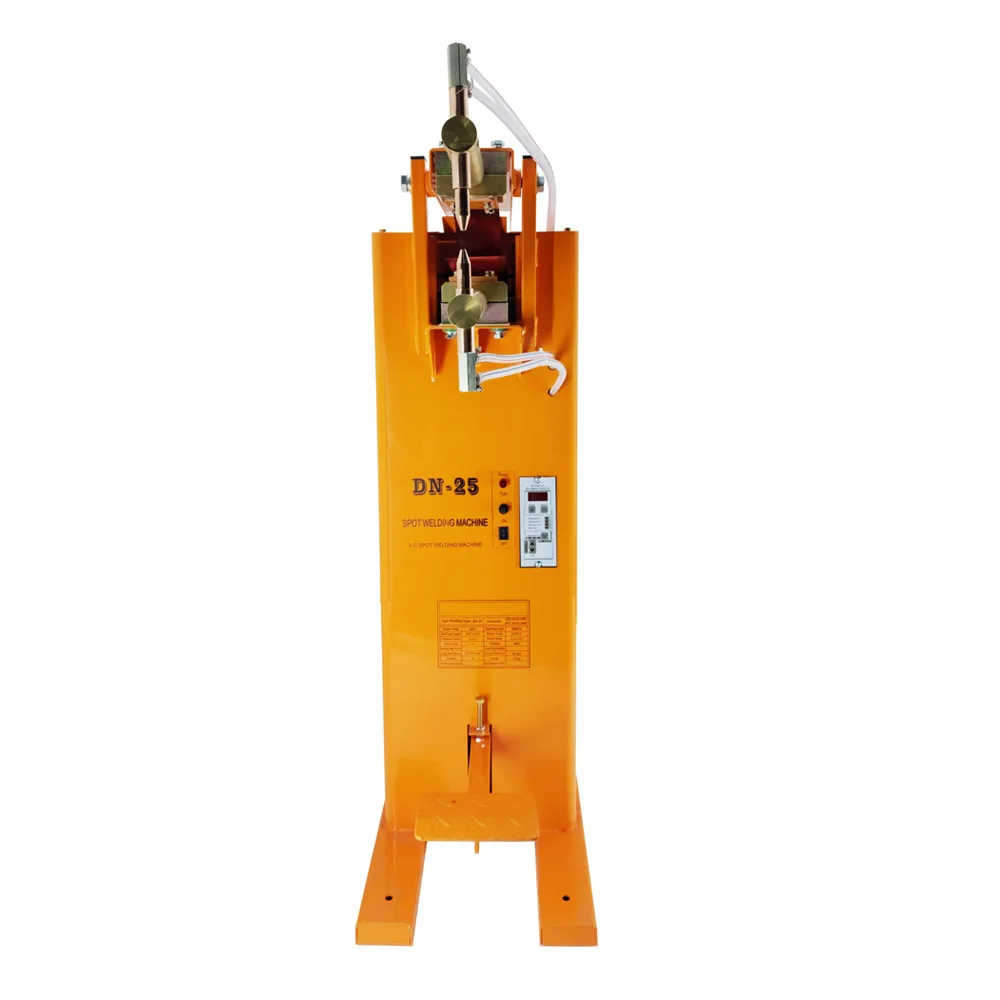

Аппарат для точечной сварки с педальным сопротивлением точечный сварочный аппарат ножным рычагом
110 208,40 ₽ - 330 625,20 ₽
Soldadora Punteadora De пьедестал для точечной сварки Ac Dc сварочный аппарат с ножной педалью
55 104,20 ₽
DIT Промежуточная частота инвертор DC точечная проекция сварочное устройство для автоматической гайки шпильки болты сварки
198 375,12 ₽ - 220 416,80 ₽
PDKJ шпилька сварочная машина предохранитель вентилятора 18650 батареи литий-ионный Аккумулятор Сварочный алюминиевый патент Сертификация точечной сварки

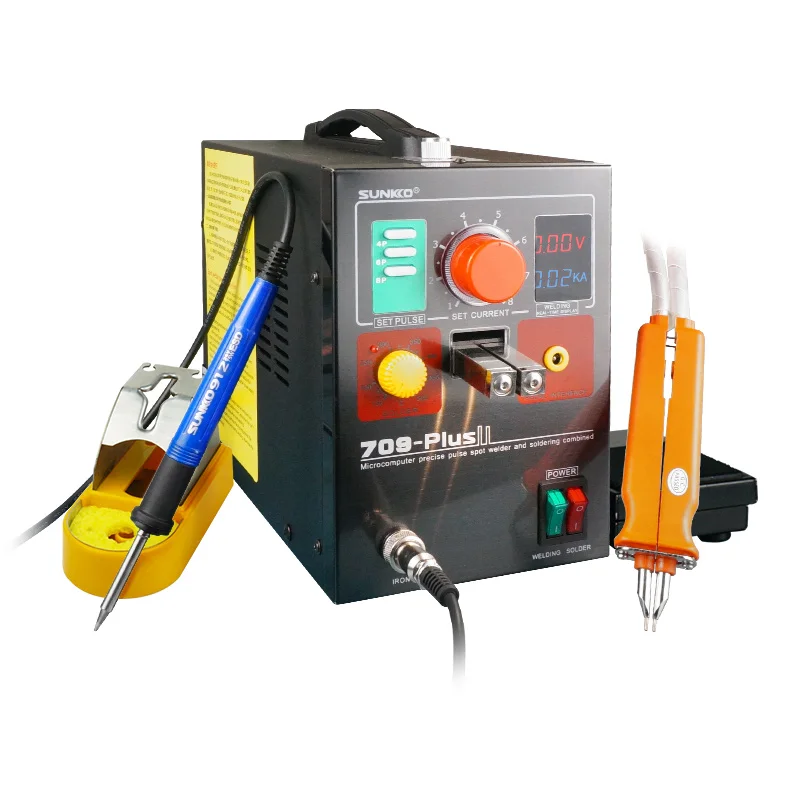

Sunkko 4 3 кВт 709 плюс точечная сварочная машина с дистанционной паяльной ручкой Электрический паяльник для сварки аккумуляторных батарей
