Водонепроницаемые теплоизоляционные материалы под заказ на открытом воздухе экологически чистые капсулы модульные мобильные дома космическая капсула
661 157,59 ₽ - 991 791,49 ₽
Оптовая продажа дешевые сборные дома космические капсулы гостиничные плоские контейнеры 20 футов
- Категория: >>>
- Поставщик: Zhongyi Zhiji (henan) Intelligent Technology Co. Ltd.
Сохранить в закладки 1601200245886:
Описание и отзывы
Характеристики
Characteristics of the flat pack container houses :
* Good ability to assemble and disassemble for several times without damage.
* Could be lifted, fixed andcombined freely.
* Heatproof and waterproof.
* Cost saving and convenient transportation (Each 8 container house can be loaded in one 40HQ container)
* Service life can reach up to 10-25 yearsTechnical Parameter of standard prefabricated house:
* Wind resistance: Grade 11(wind speed≤111.5km/h)
* Earthquake resistance: Grade 7
* Fire proof: A grade
* Wind resistance: Grade 11(wind speed≤111.5km/h)
* Earthquake resistance: Grade 7
* Fire proof: A grade
Item | Specification |
Size | L6055*W2890*H2480mm |
Design parameter | Ground live load: 2.0KN/㎡;Roof live load: 0.5KN/㎡;Wind load: 0.6KN/㎡;Seismic fortification intensity: Level 8 |
Roof form | Flat roof with organized drainage through 4 pillars |
Number of layers | ≤2 layers |
Bottom frame | 160*2.3*365mmQ235 galvanized(with "roller beam reinforcement“);Bottom beam 110*60*1.0mm "steel";Secondary beam:20*20 square tube;Flooding tank *0.6mm,5635/2690mm; |
Top frame | 170*2.3mm*465mmQ235 galvanized;Top beam: C80*40*1.0mm;Secondary beam:30*30 square tubeslope finding beam,20*20 square tubeslope finding beam' |

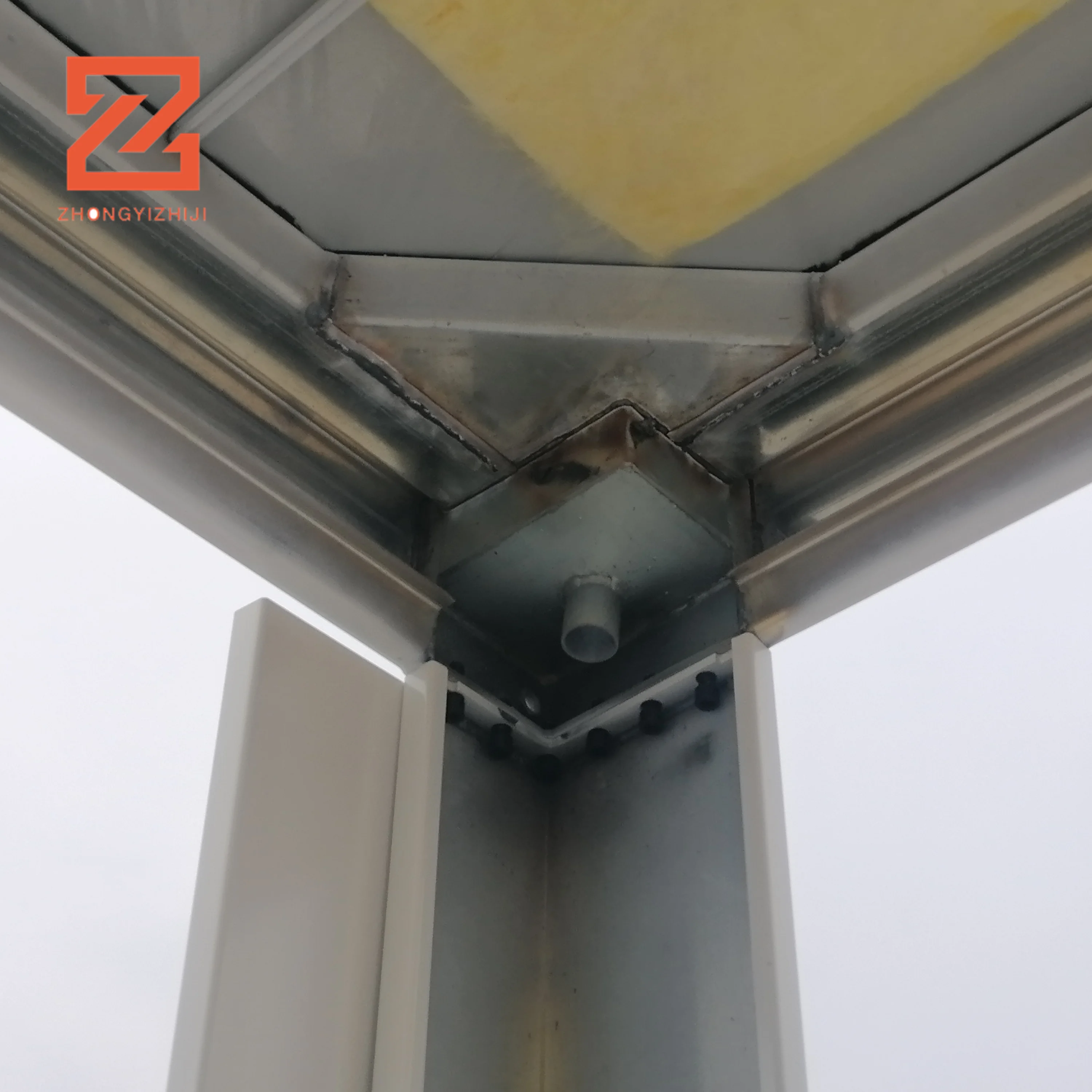

Pillar/Column | 210*150*2.3mmQ235 galvanized column;Top Corner fitting: 210*150*200*3.0mm(outer plate 3mm thick, cover plate 6mm thick);Bottom Corner fitting: 210*150*160*3.0mm (outer plate 3mm thick, cover plate 8mml) |
Stairs | 150*30 C-type steel |
Walkway Board | anticorrisive woods |
Wallboard | 950 type -50mm thick, 0.28mm/0.28mm 50kg bulk weight rock wool, double orange grain, single coated |
Roof Panel | Ceiling board:831*0.3mm new color steel integrated ceiling;Ceiling trimming: Z-type parts 30*35*55/2750mm, Angle iron 40*40/5800mm;skin:0.386mm color steel leather plate;Keep warm:75 Glass silk wadding is insulated +PE film + single-sided butyl tape + top waterproof A-class structural adhesive |
Floor | Bearing plate:18mm thick cement fiber board;Floor decoration:1.6mm plastic floor type B +" water glue "+ weld |
Window | 930*1100mm, 50 buckle double glass double push window, including screen window, anti-theft tube |
Door | 0.4mm+0.7mm frame, European standard fire lock body, size: 970*1970mm |
Lamps and lanterns | Amoeba strip lamp -60W |
Drain water | Diameter 50mmPVC downspout |
Electrical distribution | Distribution box: Delixi 32A leakage protection *1a+25A empty *2a;Power supply line 4㎡, air conditioning socket 4㎡, light line1㎡,Five-hole socket 2.5㎡ (pure national standard protection Set of line) |
Advangtage of the container homes
1) All steel parts and the size of prefab house can be made according to clients' requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
3) The material of prefab house is light and easily to installation. one 20 square meter house 4 workers 1 days finished
installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and rock wool as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
6) Support frame system of steel prefab house: Q235B China standard steel structural. Square tube, Channel steel, etc
1) All steel parts and the size of prefab house can be made according to clients' requirement.
2) The prefab house is low cost, durable structure, convenient relocation , and environment-protection.
3) The material of prefab house is light and easily to installation. one 20 square meter house 4 workers 1 days finished
installation, save manpower and time.
4) All the materials of prefab house can cycle-use, Meeting the require of environment protection in the world. Special is in the large-scale house projects in the developed region.
5) We used the high quality galvanized sheet and rock wool as the materials of the wall and roof .So the prefab house is good for fire proofing, water proofing, etc
6) Support frame system of steel prefab house: Q235B China standard steel structural. Square tube, Channel steel, etc
Office：Removable, Expandable, Reusable, 20 Years Life
Type: Flat Pack Prefab Container Office
Type: Flat Pack Prefab Container Office
Application: Temporary offices in construction sites, office built in workshops, low-cost outdoor offices.
Advantages: Short installation time, 1-15 days, depending on the project, a single container office only needs one day to complete the installation.
Advantages: Short installation time, 1-15 days, depending on the project, a single container office only needs one day to complete the installation.
Dormitory: Fast, Fully Furnished, Stable
Type: Flat Pack Prefab Container Dormitory
Application: Due to site conditions, or need to build a new dormitory in a short time.
Advantages: Short installation time, 2-15 days, depending on the project. We can provide a variety of supporting facilities including stairs, escalators, toilets, showers and so on.
Type: Flat Pack Prefab Container Dormitory
Application: Due to site conditions, or need to build a new dormitory in a short time.
Advantages: Short installation time, 2-15 days, depending on the project. We can provide a variety of supporting facilities including stairs, escalators, toilets, showers and so on.
Shopping Street: Multiple Designs, Fast, Cost-effective
Type: Flat Pack Prefab Container Shop
Application: Able to adapt to variety use cases' needs.
Advantages: Short installation time, 2-15 days, more possibilities for design, novel and fashionable. lower cost.
Type: Flat Pack Prefab Container Shop
Application: Able to adapt to variety use cases' needs.
Advantages: Short installation time, 2-15 days, more possibilities for design, novel and fashionable. lower cost.
Homestay hotel: Fast, durable and convenient
Type: Flat-pack prefabricated container Hotel
Application: free from site restrictions, economic and environmental protection, can be customized in different styles
Advantages: The installation time is short, 7-20 days, according to the request, we can provide a variety of supporting facilities, such as bed, air conditioning, table and so on.
Type: Flat-pack prefabricated container Hotel
Application: free from site restrictions, economic and environmental protection, can be customized in different styles
Advantages: The installation time is short, 7-20 days, according to the request, we can provide a variety of supporting facilities, such as bed, air conditioning, table and so on.
1. Are you a factory or trading company?
Zhongyi Zhijie (Henan) Intelligent Technology Co., Ltd. is a factory located in Suiyang district, Shangqiu, Henan province, China.
2. What's your delivery time?
Normal order delivery time is 2-30 days after receive deposit.
3. Is it difficult to build a prefab house?
Easy to install, installation video and guide book send to you showing how to fast installation. Or we can send engineer or installation team to construction site.
4. How can we guarantee quality?
We provide quality inspection reports and welcome customers to our factory to supervise
production. We will provide videos and pictures of the production process.
production. We will provide videos and pictures of the production process.
5. How can I get the quotation of the project ?
If you have drawing, we can offer quotation accordingly. If you don't have design, we will design some drawings for your confirmation, and then offer quotation.
6. How to get a fast quotation?
You tell us container house type, size, quantity, material of roof, wall, floor and other parts, we will check and fast offer you quotation. For the detachable container house and portable toilet, we can give you the price within 10 minutes after receive your specifications.
7. What can you buy from us?
Our main products can be divided into flat pack container house, detachable container house, folding container house, prefab K house, expandable container house, portable toilet and more container scenario etc.
