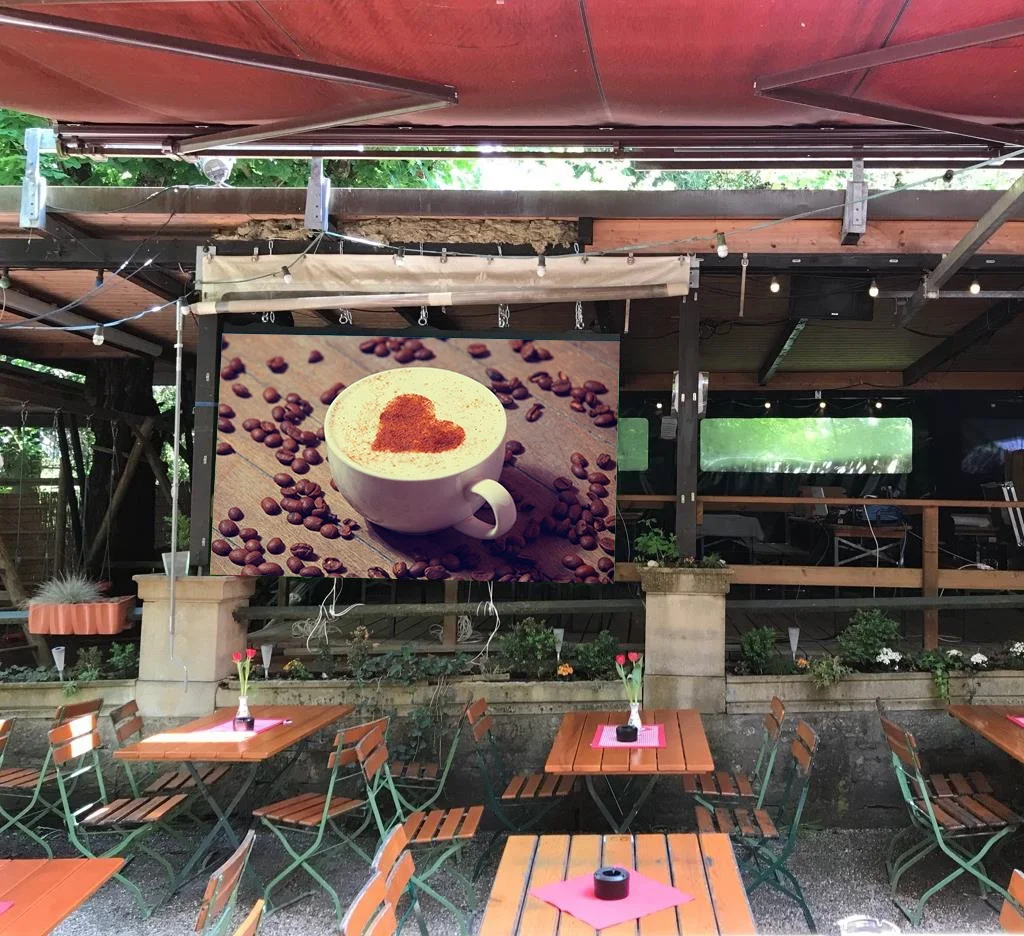

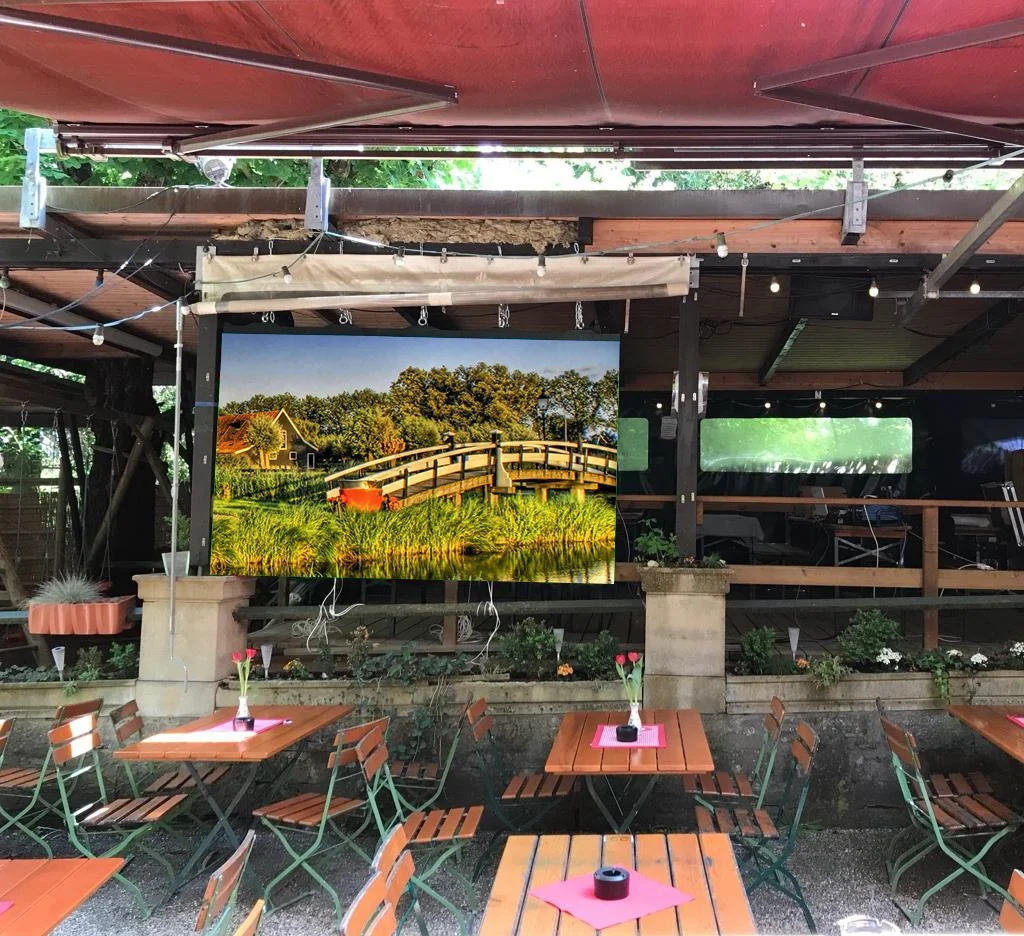

Настенная светодиодная видеопанель Nova Star P4.81 4 8 мм IP65 140

Сохранить в закладки 1601200372481:


Цена:47 148,82 ₽ - 49 341,78 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

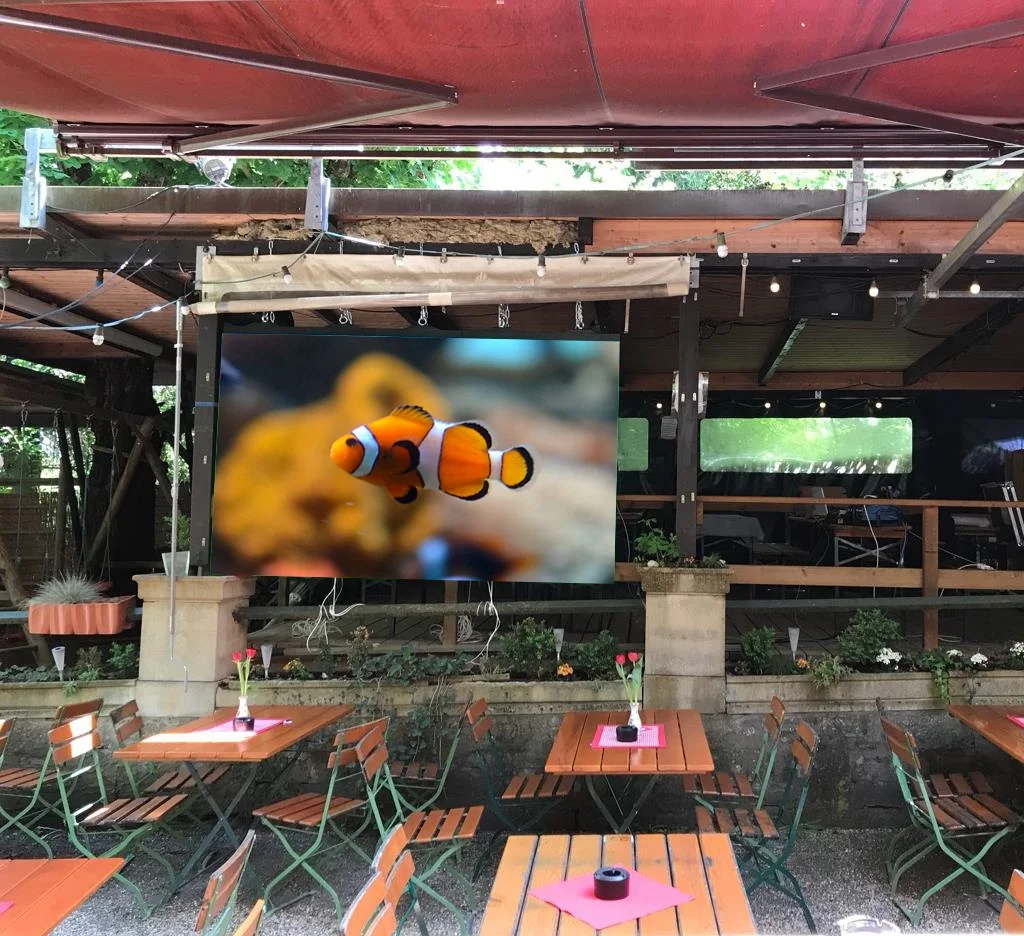

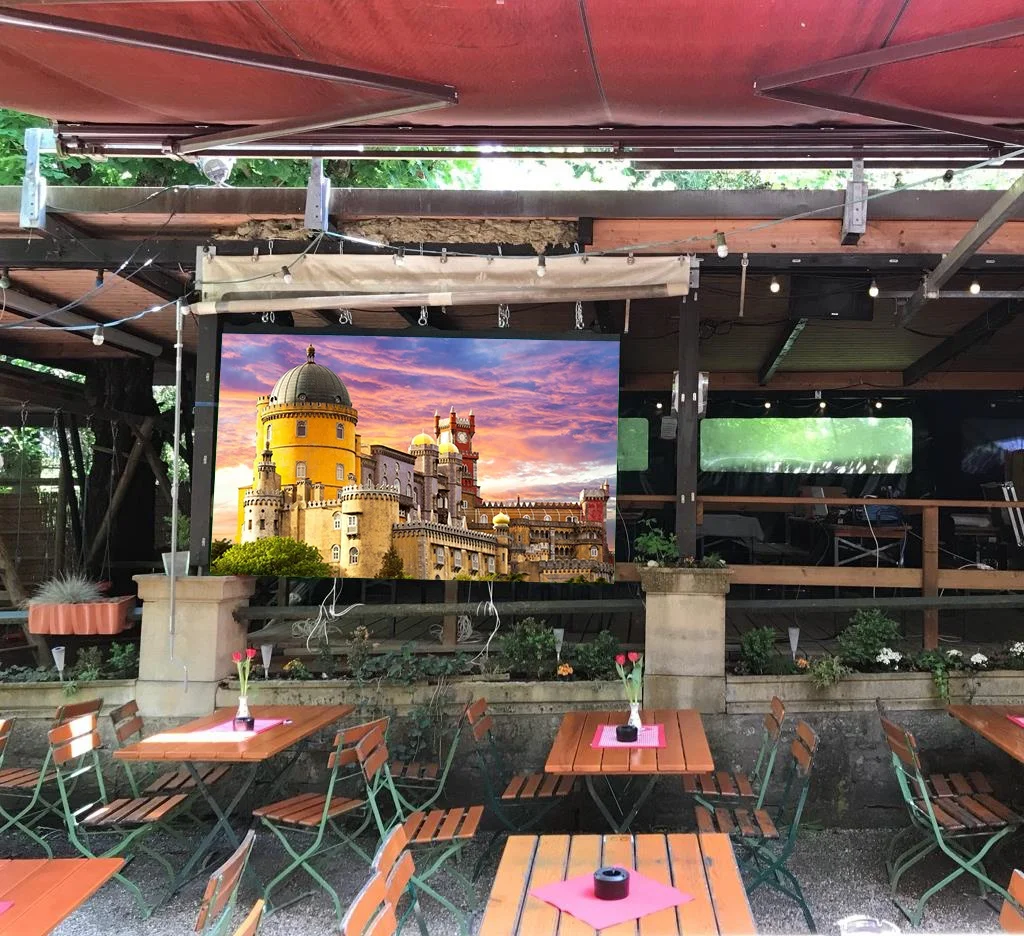

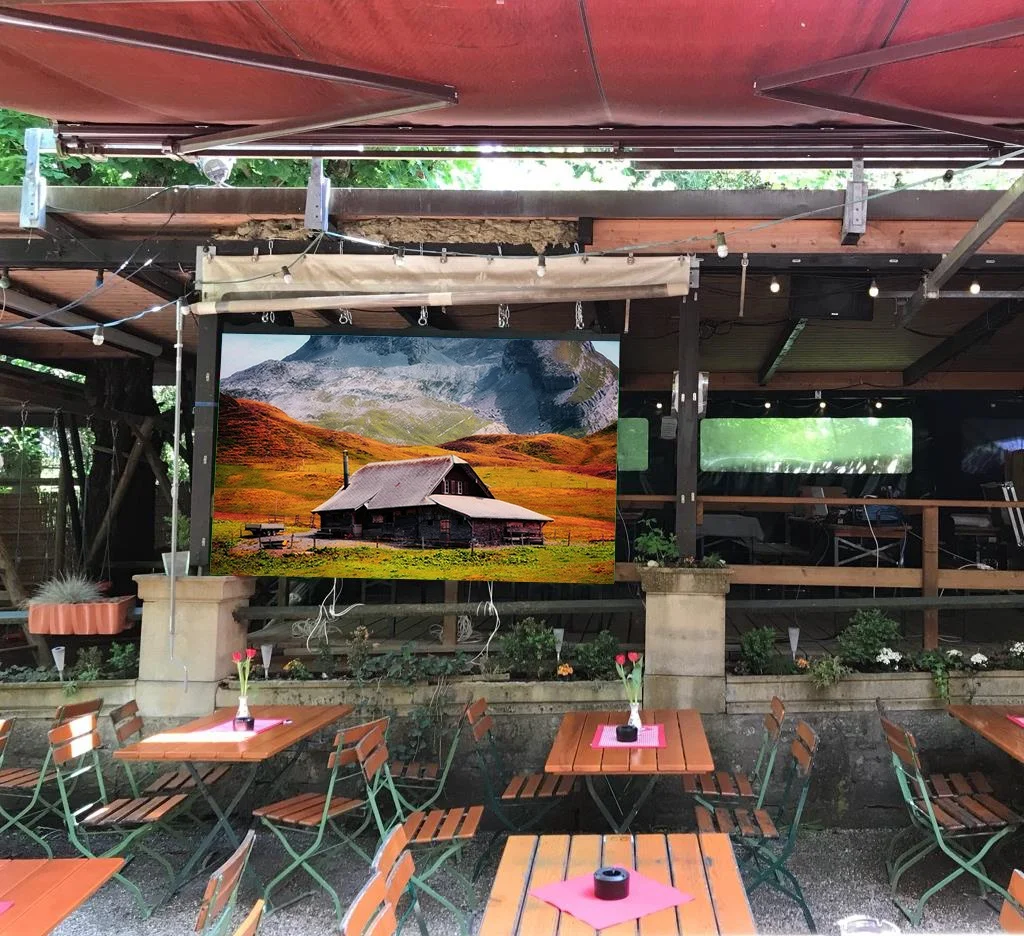

Applications








Outdoor rental LED screen features


Higher Refresh Rate
The refresh rate is up to 4K Hz. The LED screen displays smooth and stable videos and images without flicker and ghosting.
Higher Gray Scale and Higher Contrast Ratio
The LED screen has better performance on displaying colors from dark to light and shows more colors' details.


Wider viewing angle
The LED screen has wider viewing angle. It is up to 160o in horizontal direction and 120o in vertical direction. More audiences can watch messages, images, videos etc. on the LED display.
Front and rear maintenance cabinet
LED display panel is designed with magnetic front side maintenance service or back side maintenance service with screws. Front maintenance needs less area. All components are easily removed and replaced.


Seamless LED display
Accurate and solid mechanical design ensure seamless display among cabinets which is showing the perfect visual performance. The video displaying quality remains high due to better quality display material.
Waterproof and dustproof
With the special waterproof design, high protection level and special raw material, the LED screen panel has great performance and adapt to a variety of installation environments.


High Brightness VS Low Brightness
High brightness LED display has better performance than low brightness.

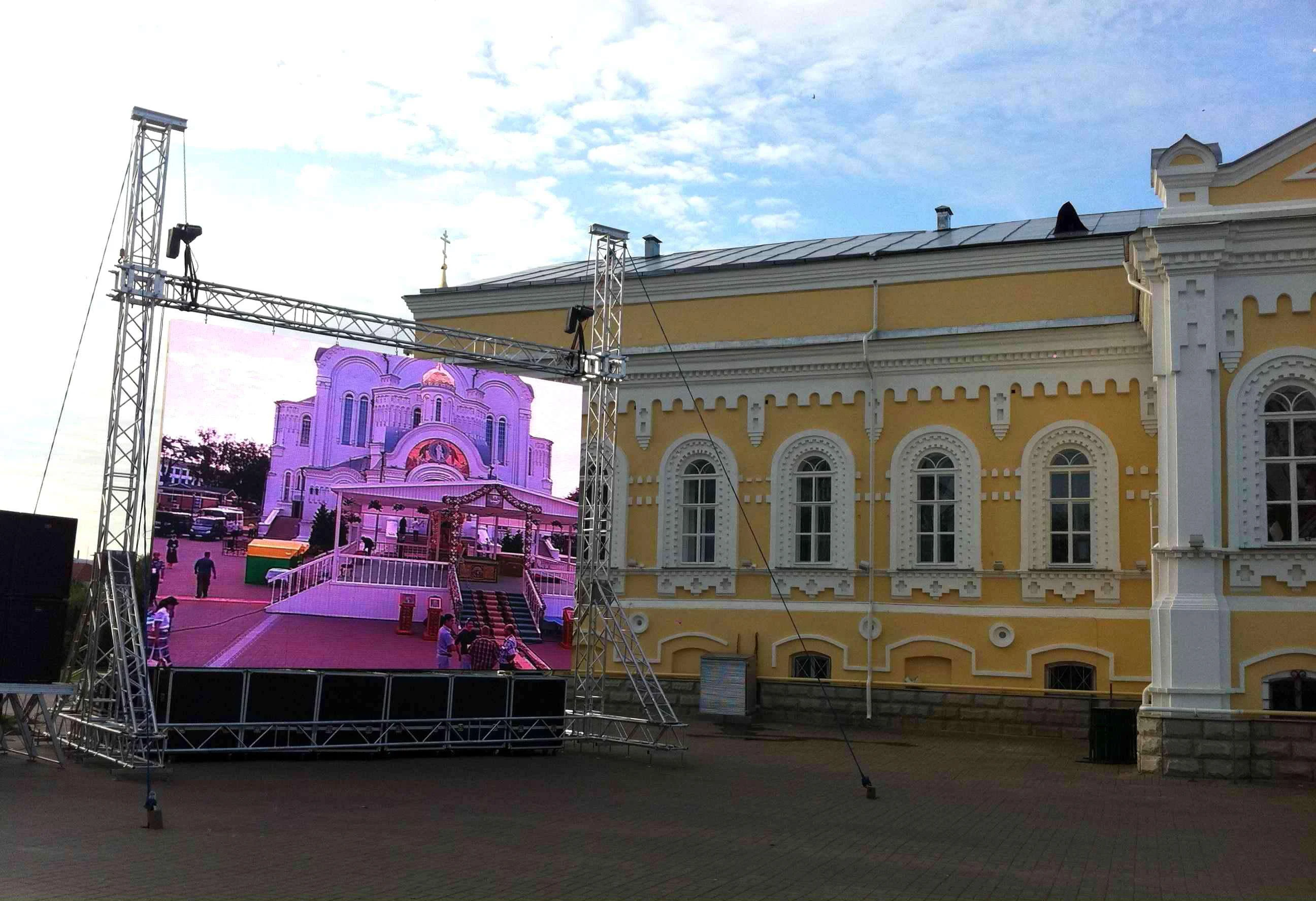

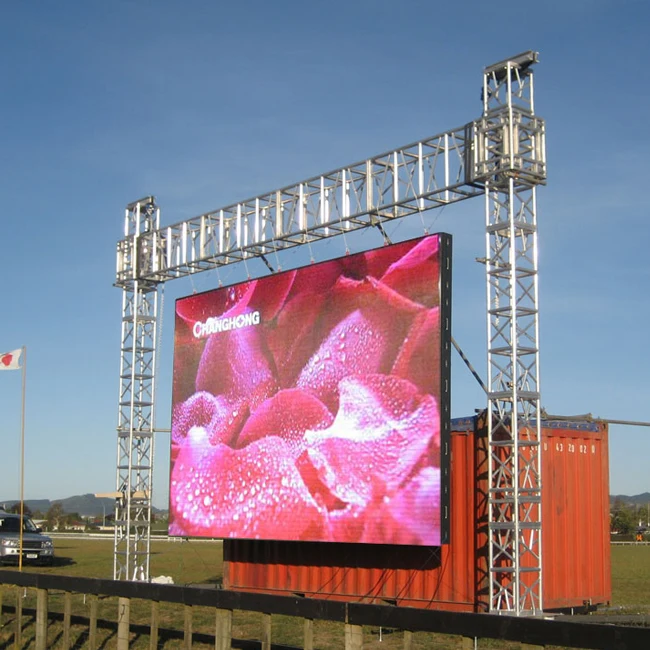

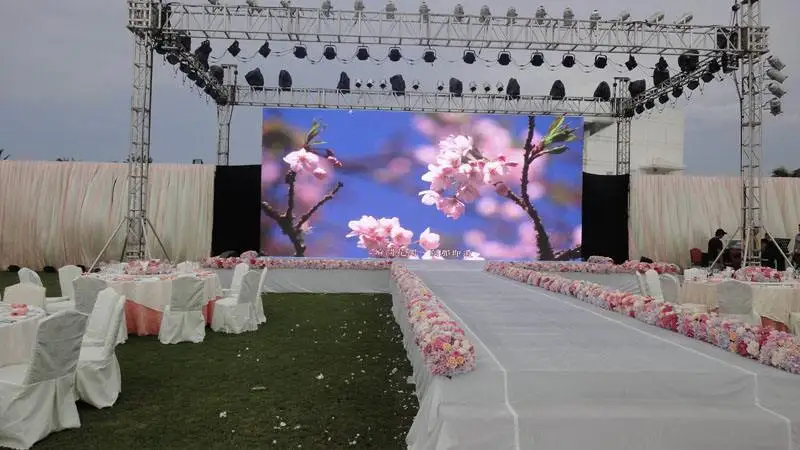

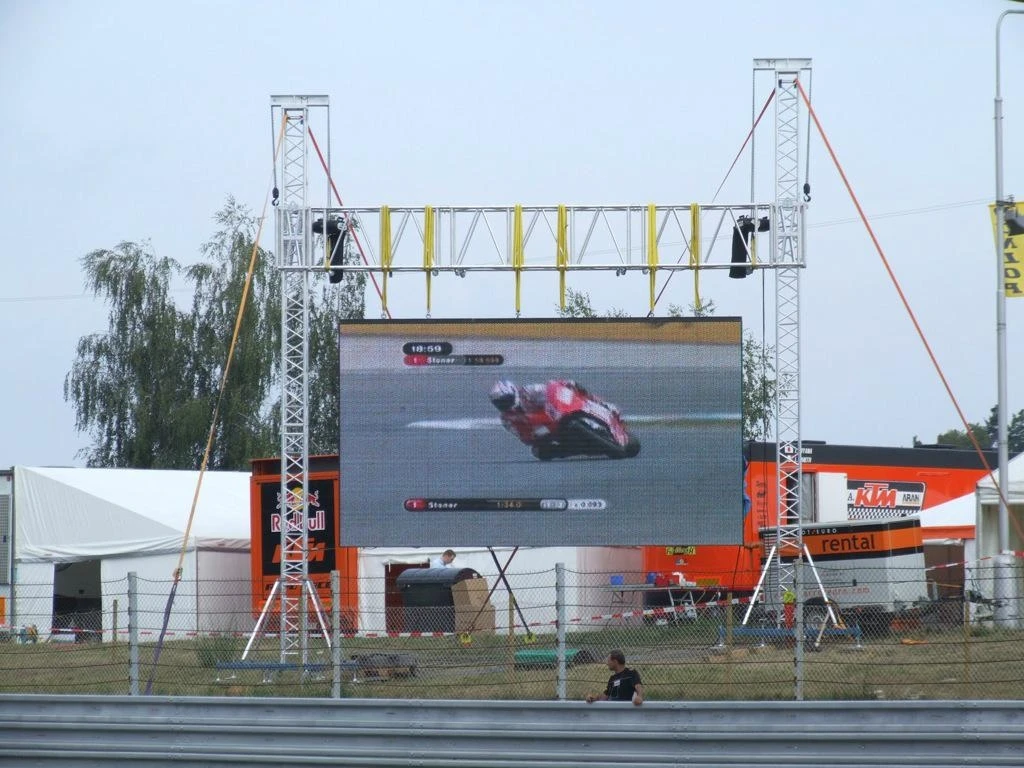

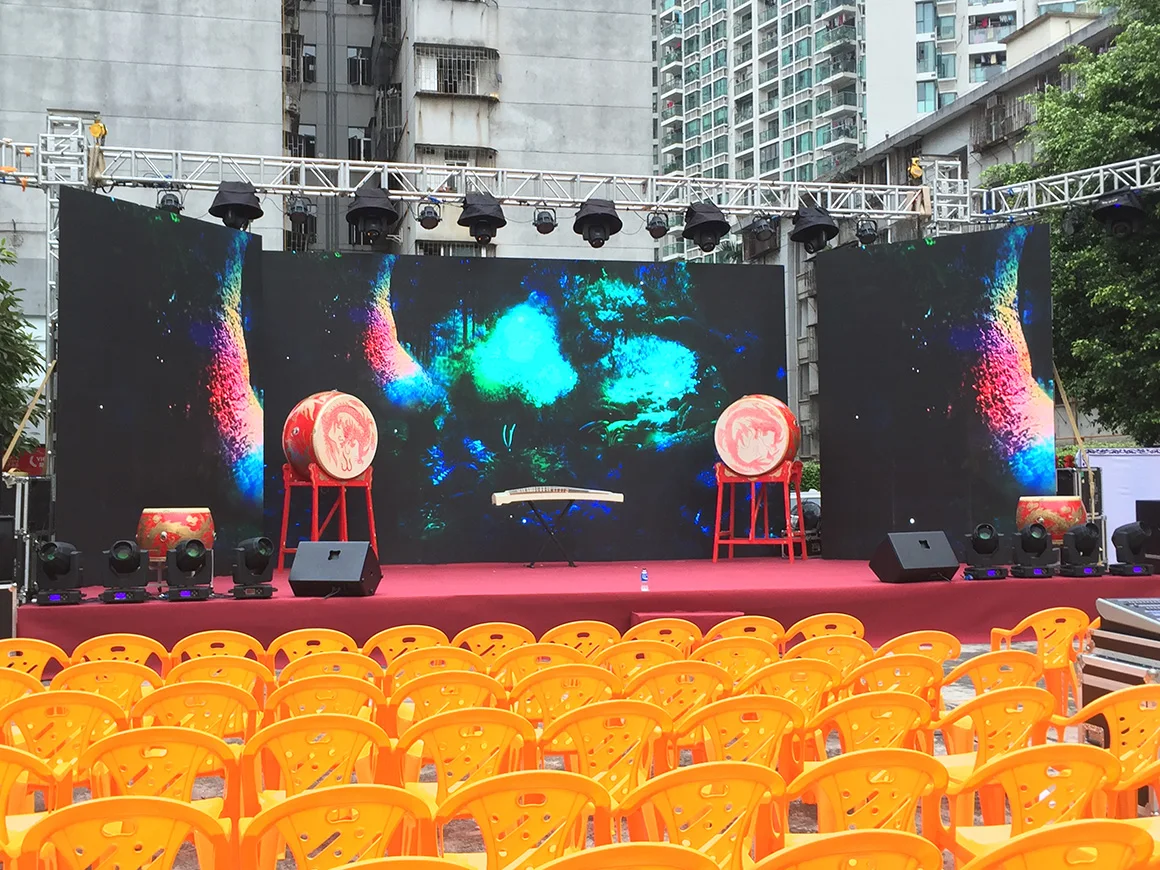

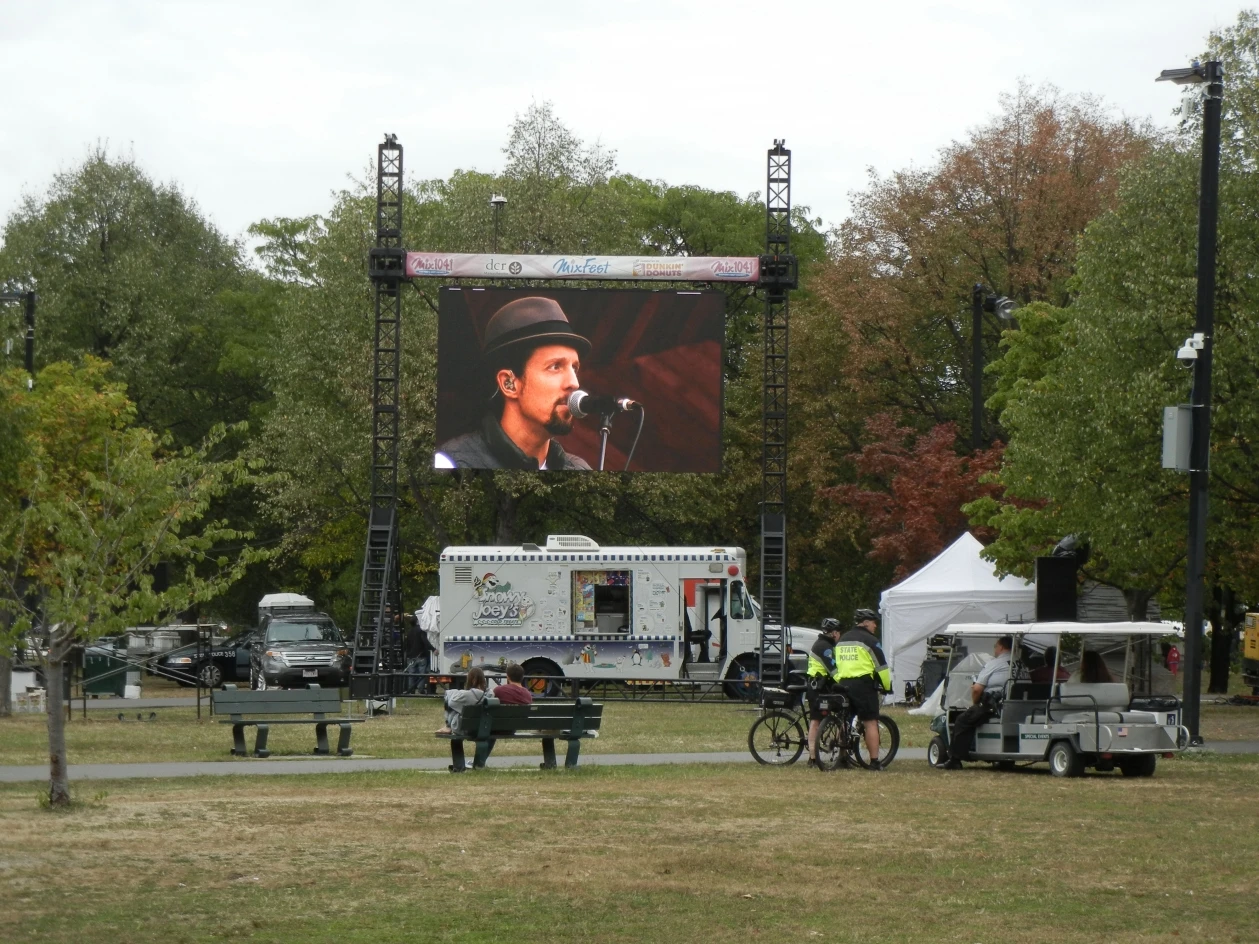

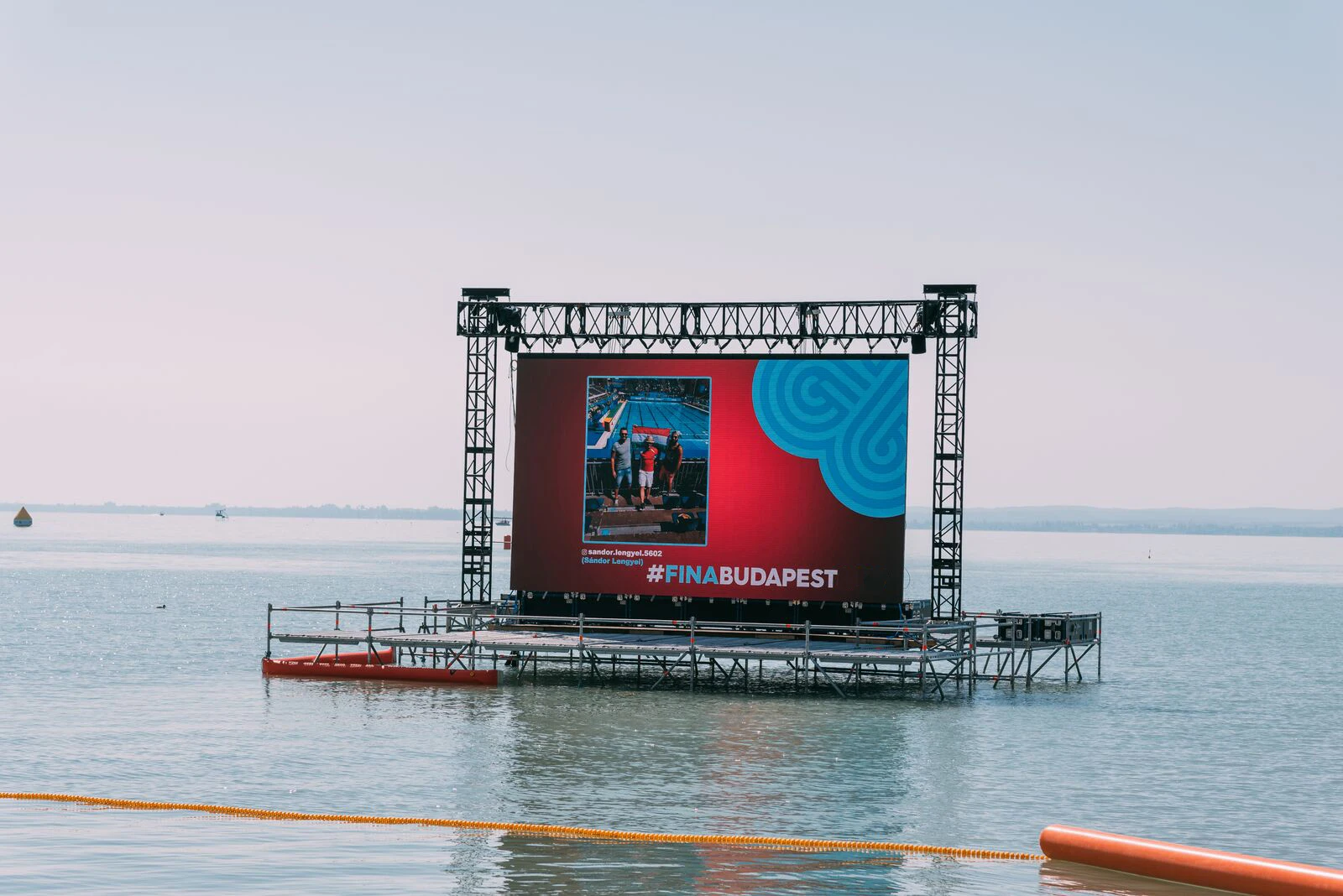

Outdoor Rental LED Display Installation
Rental LED display panel with light and slim features makes installation faster and easier.


LED display component


LED display components are LED display module, cabinet or frame, control system, video processor, power system, cables and screws.

LED display module is the most important component.



P4.81 LED display module features:
Pixel pitch:
4.81 mm
LED type:
SMD2727
LED composition:
SMD 3IN1 (1R 1G 1B)
Module size:
250 x 250 mm
Module resolution:
52 x 52 pixels
Module pixels:
2,704 pixels
Density:
43,264 pixels/m2

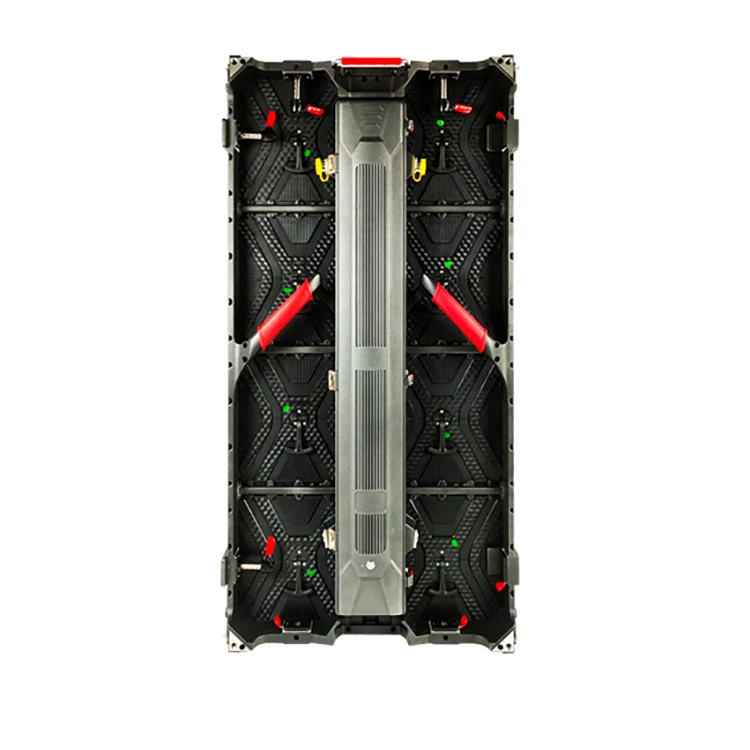

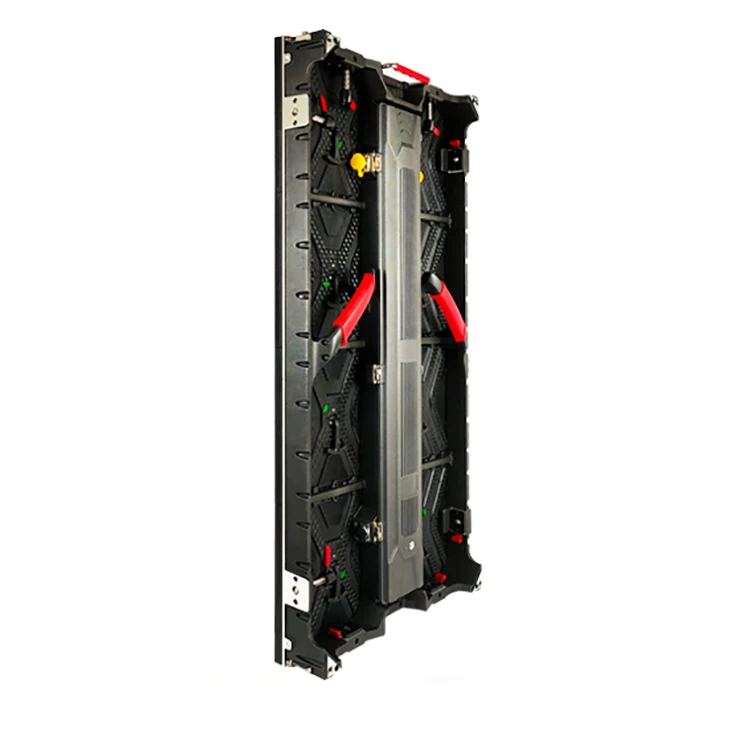

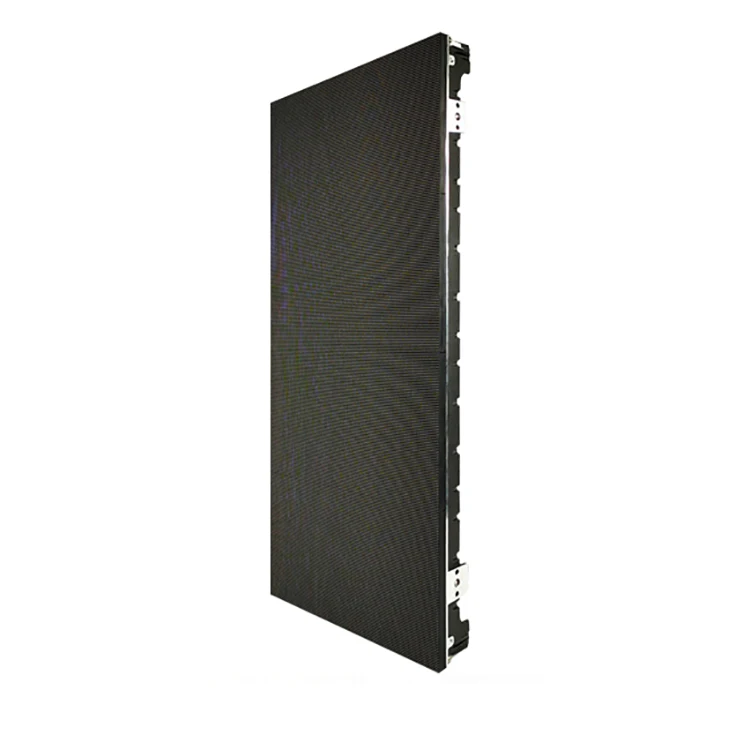

LED display cabinet features:
Size:
W 500 x H 1000 x D 90 mm
Weight:
16 KG
Material:
Die casting aluminum
Installation method:
Fixed, Hanging or Free standing
IP level:
IP65
Suitable:
P4.81 LED screen

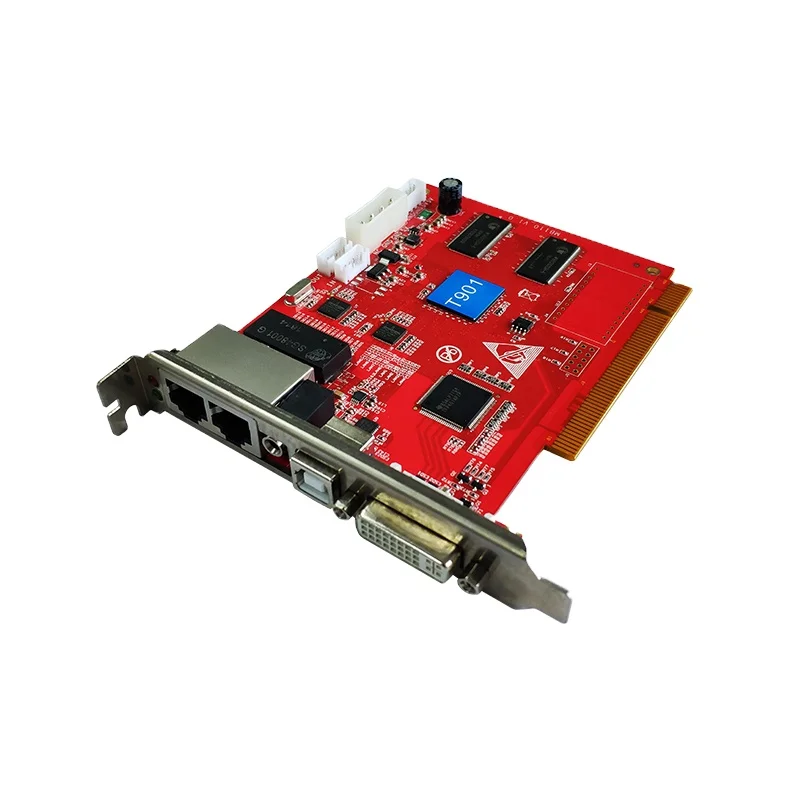

Control System
Synchronous Control and Asynchronous Control.
Brand: Novastar, Huidu, Sysolution and Linsn etc.
Video Processor
Support multi video input and video solution.
Brand: Kystar, Vdwall and Novastar etc.
Power Supply
Stable power output for LED display.
Brand: Meanwell, G-energy and Chuanglian etc.


72 Hours Aging Test


72 hours aging test is the most important in productions. During this procedure, we can check if any LEDs go wrong.
Normally it is Red color, Green color, Blue color, White color and full color videos display testing.




Waterproof Test


Waterproof test ensures that the LED display can reach IP65 level.




Factory Tour






Package and Shipment


Carton Box Package

7 layers with EPE foam inside, strong and safety for long distance shipment.

Plywood Package

One time usage, EPE foam inside, cheap and safety for long distance shipment.

Flight Case Package

Reuse, EPE foam inside, movable, expensive and safety for long distance shipment.




Air shipment and express such as DHL, Fedex, UPS, TNT are fast delivery and expensive.
Sea shipment is low cost and long time delivery.



Quick Quote


Do you need some helps and advice for LED screen project? Please fill in the form below and we will contact in no time.
