Высокое давление механическое уплотнение Гибкая плетеная графитовая упаковка
972,06 ₽ - 1 296,08 ₽
Графитовая упаковочная втулка пропитанная ПТФЭ 5 мм
- Категория: >>>
- Поставщик: Jiangsu Jintai Sealing Technology Co. Ltd.
Сохранить в закладки 1601200530494:
Описание и отзывы
Характеристики
Product introduction
Details Images
Product name | Graphite PTFE Packing | Rebound rate | 12% | ||||
size | 5-7mm | Tensile strength | |||||
Material | PTFE | Continuous working temperature | 260℃ | ||||
density | 1.65-1.75g/c㎡ | Maximum pressure | 124bar | ||||

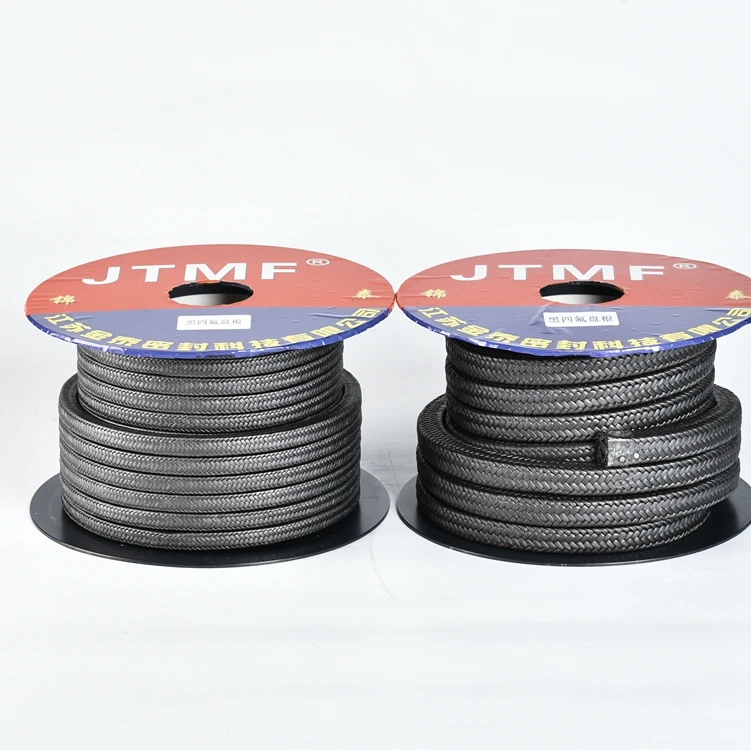

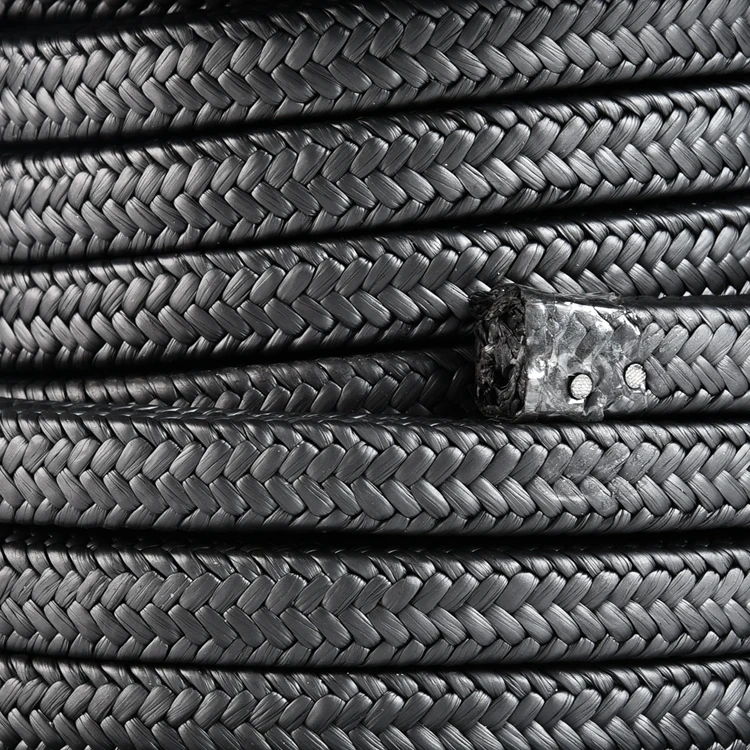

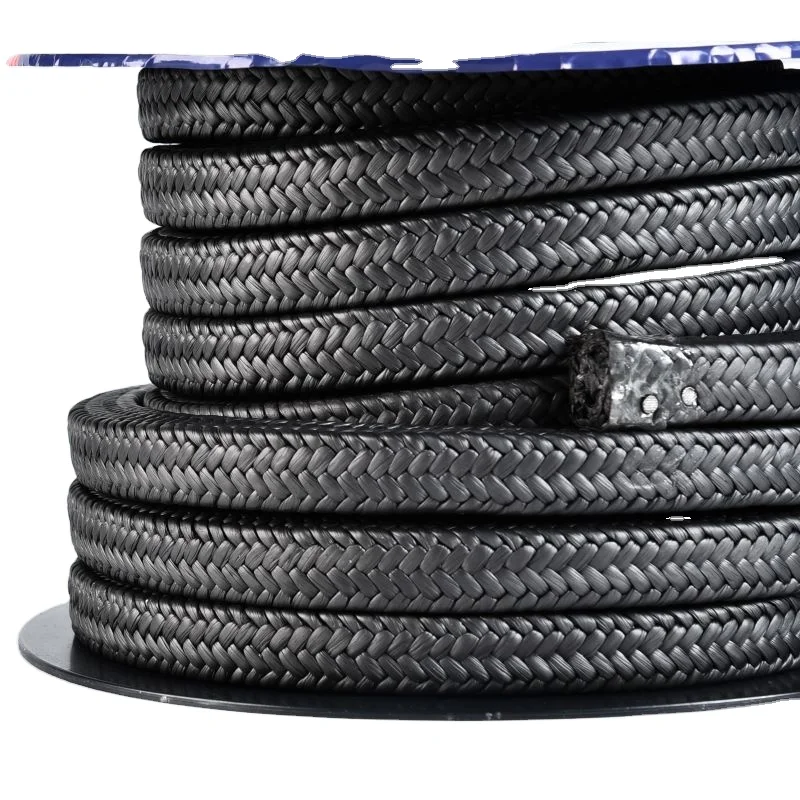

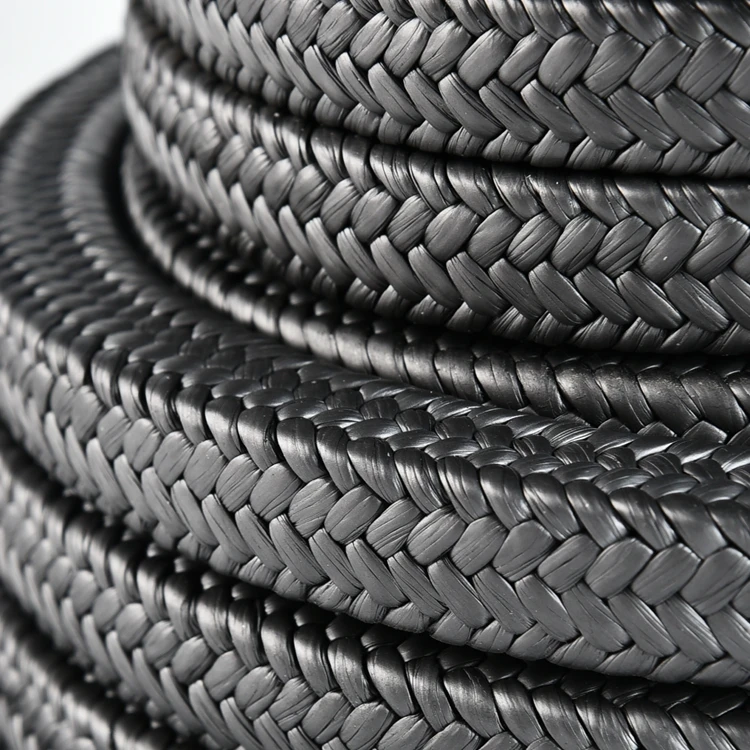

Teflon graphite packing
Polytetrafluoroethylene fiber is packed with PTFE fiber as skeleton material, then woven with polyvinyl fluoride emulsion. The filling has good chemical stability for strong corrosive medium such as acid, alkali and solvent. The temperature range is wide and the friction coefficient is low. The pump, concentrated nitric acid plunger pump has good effect, especially in Methylamine Pump with a small amount of crystal, and its service life is more than 2 times of asbestos impregnated tetraethylene packing
PANFiber Packing
PAN fiber packing high strength polypropylene composite fiber knitted, and then no polytetrafluoroethylene emulsion and high temperature lubricants, good lubricity and flexibility. Under low temperature and low pressure conditions, it is a high quality and low price sealing filler, such as adding a large number of fine graphite particles, especially for the sealing of all kinds of mixing machinery.
Ramie graphite packing
Ramie graphite packing is woven from ramie fiber after special process and high temperature lubricant treatment. It is especially suitable for sealing of ash removal pump, slurry pump, booster pump and feed pump in thermal power plant, high pressure mud pump and emulsion pump in oil field.
Expanded graphite molded packing ring
he expanded graphite packing is molded into a ring according to the size requirements. The elasticity and structure of the expanded graphite packing are not affected by the chemical properties. It can provide effective sealing without any torque loss.
It can also be used to seal hot water, high temperature, high pressure steam. Heat conversion liquid, hydrogen, ammonia, with the same solvent, hydrocarbons, low temperature liquid, etc.
It can also be used to seal hot water, high temperature, high pressure steam. Heat conversion liquid, hydrogen, ammonia, with the same solvent, hydrocarbons, low temperature liquid, etc.
Customer Photos
Manufacturing Technique
Company Profile
Jiangsu Jintai Sealing Technology Co., Ltd. (formerly Taixing Jintai sealing material factory) is located in Xingyuan Road, Yuanzhu Industrial Zone, Taixing City, Jiangsu Province. It is a comprehensive large-scale sealing technology specialized in researching, manufacturing and selling various types of seals, non asbestos environmental protection gaskets and various special rubber products, as well as parts and components insulation materials of pneumatic and hydraulic systems Industrial enterprises, perennial supporting ships; electric power; iron and steel; chemical industry; machinery; metallurgy and other industries
The project of Sealing Technology Industrial Park was built in 2012, and the first phase of the project was put into production in December 2013. The company was founded in 2004. With the accumulation of long-term production and scientific experiments, our factory has a complete quality management manual and inspection system, and always adheres to the principle of "quality first, reputation first, service first" For the purpose, our staff deeply realize that the survival and development of the enterprise must rely on the excellent quality and the development of new products, so that the enterprise can remain invincible in the current fierce market.
Qualification certificate
The product has passed the CCS quality system certification, and has been recognized as a "contract abiding and trustworthy"enterprise by the industrial and commercial department for 8 consecutive years. It participated in the World Expo in 2010, and passed the cit test, the China Academy of coal science and the National Non-metallic testing
Our Advantages
Marketing Campaign
