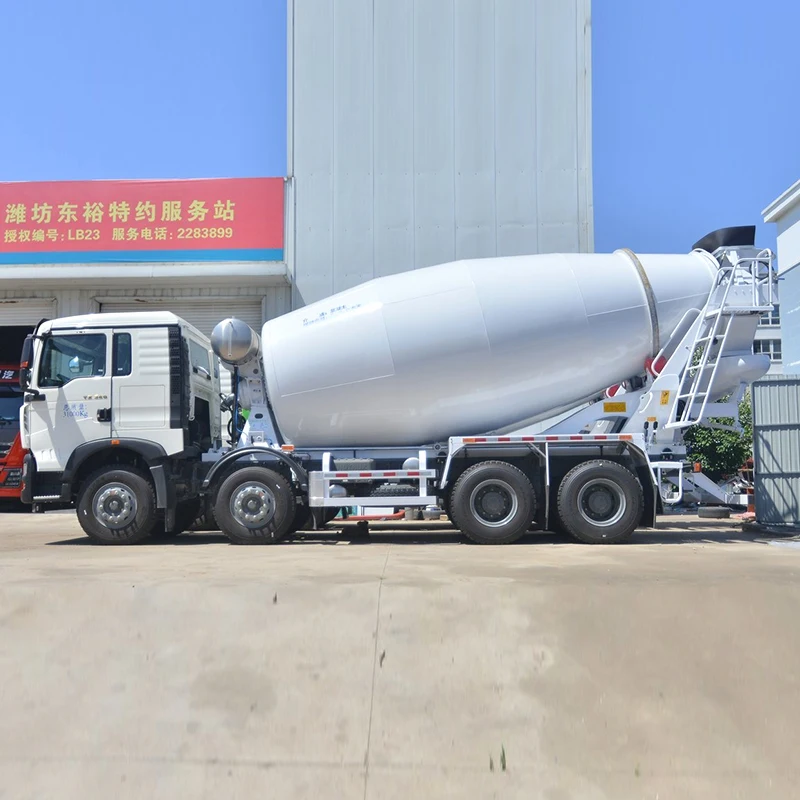

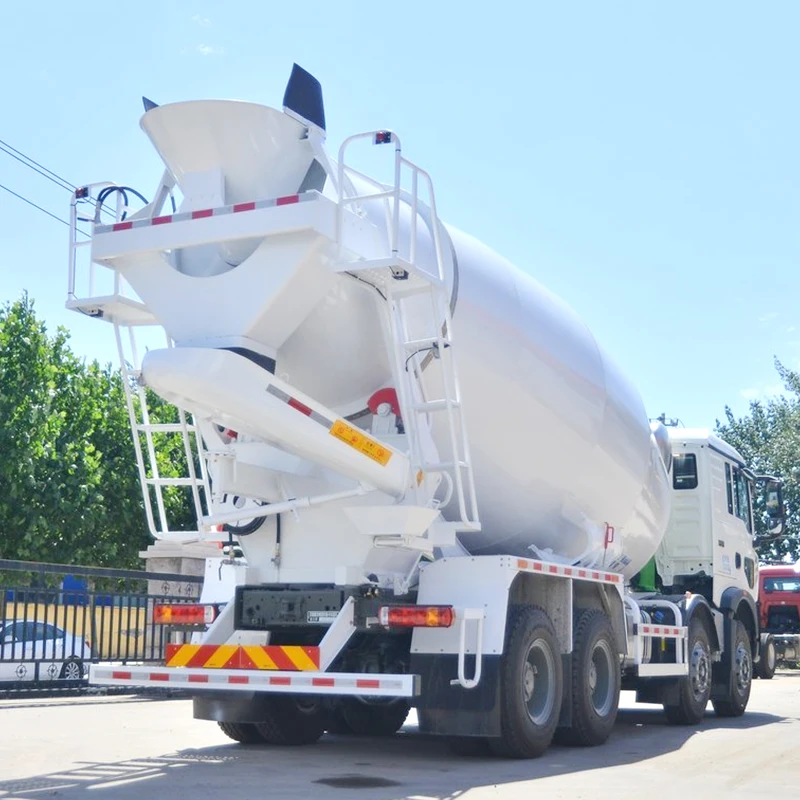

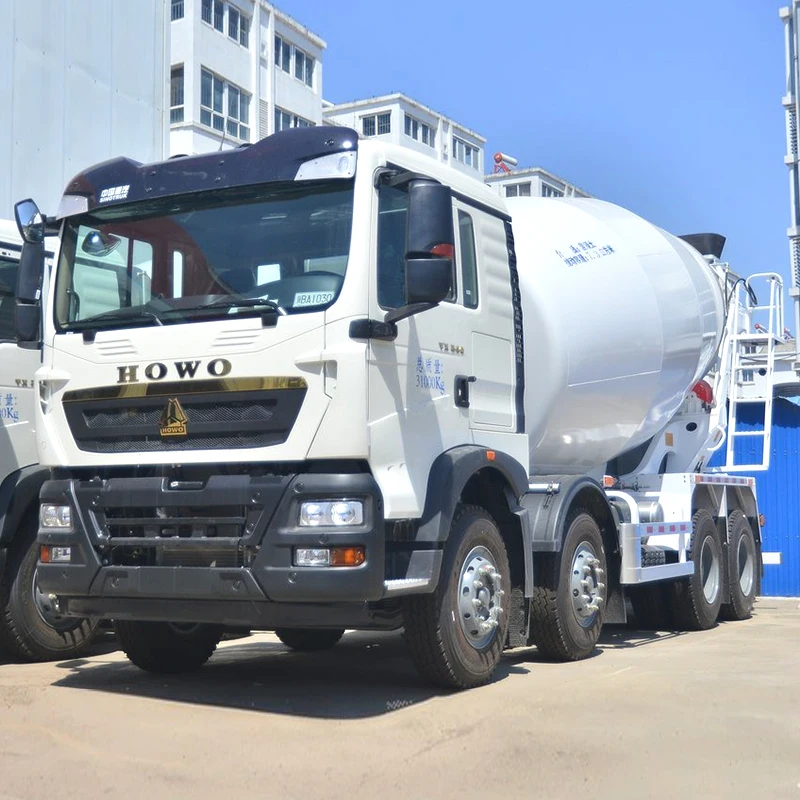

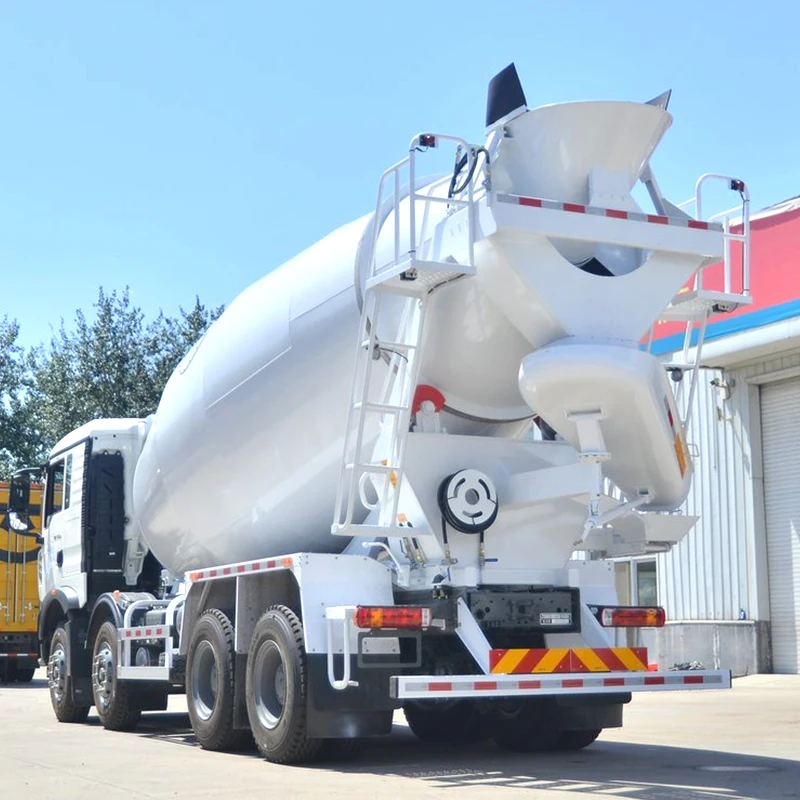

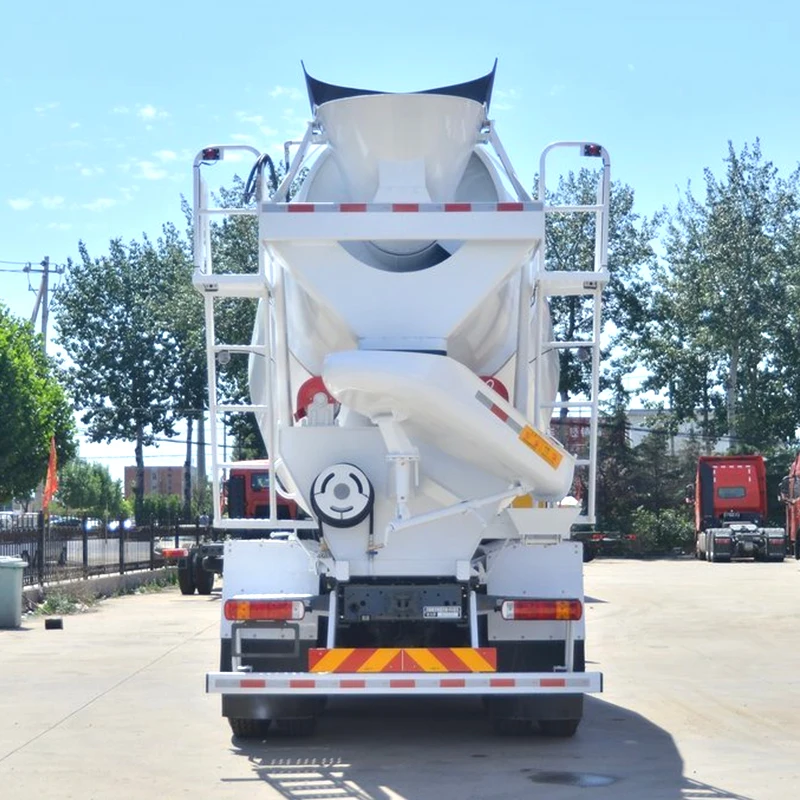

Sinotruk HOWO TX 340HP 8X4 7.5m3 concrete mixer truck
Construction & Building Machinery
Howo 6x4 8X4 Concrete Mixer Truck is a special truck used to transport concrete for construction; because of its shape, it is often called a snail truck. This type of truck is equipped with a cylindrical mixing drum to carry the mixed concrete. During transportation, the mixing drum will always be kept rotating to ensure that the carried concrete will not solidify. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from taking up space.
Products Description
Howo Concrete Truck is constructed with high-tensile steel for endurance and resistance to friction. They can handle a wide range of concrete slumps.
Advantage:
1. Wear-resistant strips are installed on the top of the blade to extend the service life
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The sub-frame adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international first-class brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.
1. Wear-resistant strips are installed on the top of the blade to extend the service life
2. Different sections of the barrel are designed with different helix angles to eliminate the dead angle between the blade and the barrel arm, which has the advantages of fast feeding and discharging speed, good concrete homogeneity, low residual rate and no material accumulation.
3. The sub-frame adopts rectangular tubes with excellent torsion resistance and bending resistance, and adds flexible diagonal braces to greatly increase the service life of the frame.
4. Adopt international first-class brand, high reliability. The hydraulic transmission parts used are the best brands in the industry, Sao, Italy, and PMP7.5 from Italy, with high reliability.
Product Paramenters
Sinotruk HOWO TX 340HP 8X4 7.5m3 concrete mixer truck | ||||||
Basic Information | ||||||
Drive type: | 8X4 | Body size: | 10.17*2.55*3.99m | |||
Front overhang/rear overhang: | 1.5/2.47 m | Wheelbase: | 1800+3050+1350mm | |||
Rated load: | 14.15 tons | Vehicle weight: | 16.36 tons | |||
Maximum speed: | 80km/h | Front track/rear track: | Front: 2022/2022mm; Rear: 1850/1850mm | |||
Engine parameters | ||||||
engine model: | Sinotruk MC07.34-50 | Fuel type: | diesel fuel | |||
Number of cylinders: | 6 cylinders | Maximum output power: | 248kW | |||
Maximum horsepower: | 340 hp | Displacement: | 6.87L | |||
Emission Standards: | National Five | Engine Type: | Inline six-cylinder, water-cooled, four-stroke, supercharged, intercooled, high-pressure common rail | |||
Upload parameters | ||||||
Vehicle announcement: | ZZ5317GJBN306GE1H | Vehicle type: | Concrete mixer truck | |||
Vehicle Origin: | Shandong Jinan | Stirring volume: | 7.5m | |||
Gearbox parameters | ||||||
Gearbox Model: | Sinotruk HW15710L | Number of gears: | 10 levels | |||
Chassis parameters | ||||||
Chassis Brand: | Sinotruk HOWO (HOWO) | Chassis Model: | ZZ1317N306GE1 | |||
Chassis series: | Howo TX | Number of springs: | 2011/11/10 | |||
tire | ||||||
Number of tires: | 12 | Tire specifications: | 11.00R20 | |||
Packing & Shipping
1) Wax: in order to prevent the body from being corroded by sea water in the process of transportation, the wax is sprayed
(2) Transportation: Well-known freight suppliers provide reliable logistics services
The transportation process is safe and timely
(2) Transportation: Well-known freight suppliers provide reliable logistics services
The transportation process is safe and timely
FAQ
Q1: Are you trader or manufacturer?
A1: We are manufacturer, we have our exhibition room, truck repair workshop, and professional workers sales.
Q2: How do you do after sale service?
A2: We will do video instruction by phone or by computer, for any use problem you can tell our salesman, we will do instruction
for you.
Q3: what is the shipping process?
A3: for the truck field, we use most is shipping service by sea.
Q4: Can I visit your factory?
A4: You are welcomed to visit our workshop, we located in Shandong, face to face talking is prefered.
Q5: What kind of payment term do you provide?
A5: We can do TT, LC.
Q6: What about the delivery?
A6: Our usual delivery time is within 15 days (will change according to the actual shipment date), if you need to order large
quantities and vehicle modification and customization, the specific delivery time is discussed separately.
Q7: What about the price?
A7: Depending on the configuration and number of years of the used car, the price will be slightly different. One car for one
price, the price is subject to customer service quotation.
A1: We are manufacturer, we have our exhibition room, truck repair workshop, and professional workers sales.
Q2: How do you do after sale service?
A2: We will do video instruction by phone or by computer, for any use problem you can tell our salesman, we will do instruction
for you.
Q3: what is the shipping process?
A3: for the truck field, we use most is shipping service by sea.
Q4: Can I visit your factory?
A4: You are welcomed to visit our workshop, we located in Shandong, face to face talking is prefered.
Q5: What kind of payment term do you provide?
A5: We can do TT, LC.
Q6: What about the delivery?
A6: Our usual delivery time is within 15 days (will change according to the actual shipment date), if you need to order large
quantities and vehicle modification and customization, the specific delivery time is discussed separately.
Q7: What about the price?
A7: Depending on the configuration and number of years of the used car, the price will be slightly different. One car for one
price, the price is subject to customer service quotation.
Похожие товары
2024 Foton Mars 9 2 0 т дизель 48 В гибридный 4 двери 5 мест 4*2 Подержанные китайские пикапы для продажи
2 402 432,92 ₽ - 2 622 959,92 ₽

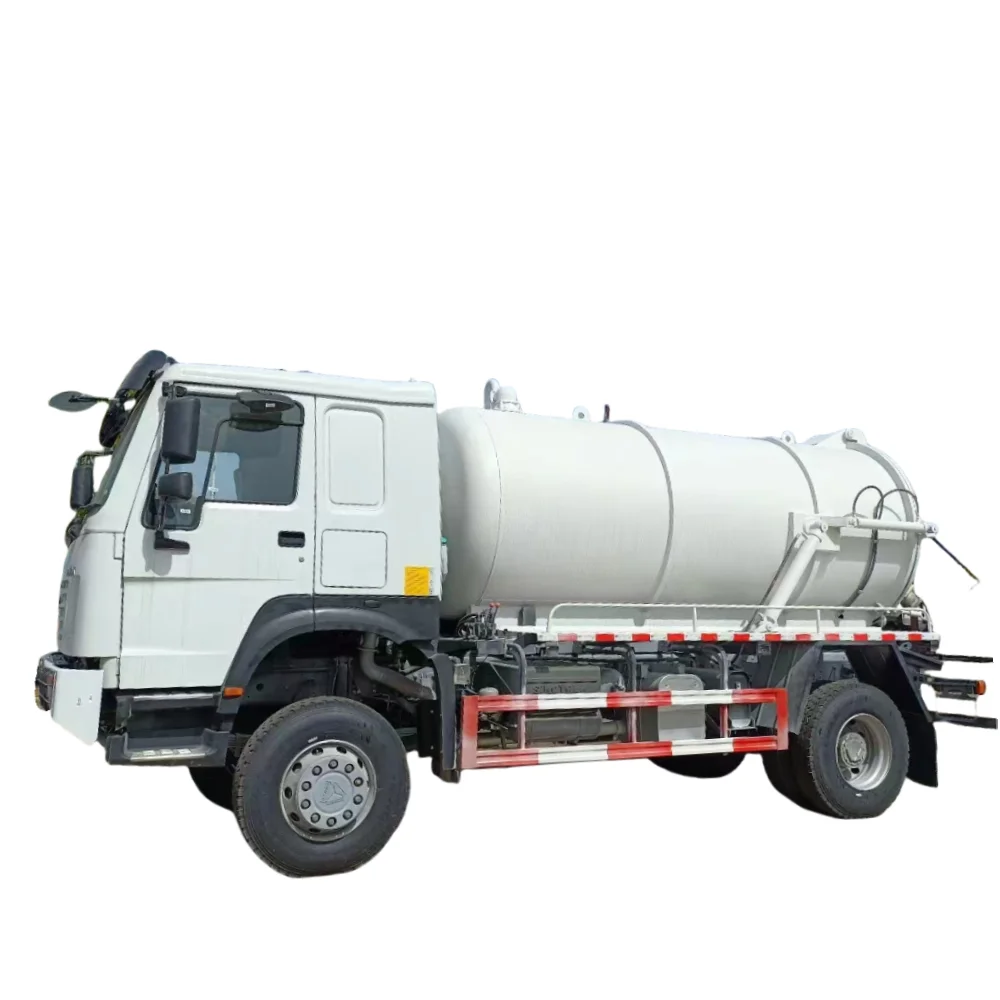

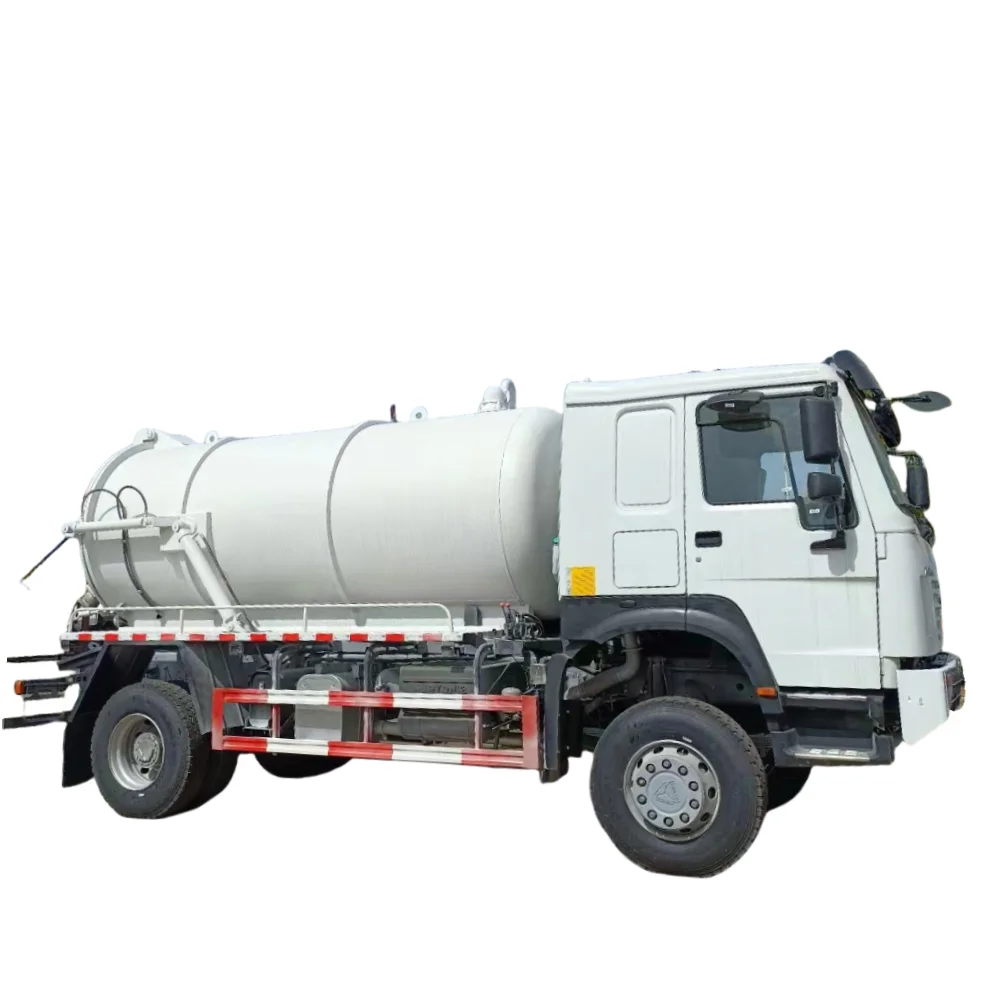

4*4 бак HOWO вакуумный насос дизельный всасывающий канализационный грузовик для водного транспорта продажи
1 432 709,20 ₽ - 1 653 126,00 ₽
12 куб. М.
1 432 709,20 ₽ - 1 653 126,00 ₽
Грузовик вакуумный HOWO DONGFENG 12 тонн
1 432 709,20 ₽ - 1 653 126,00 ₽

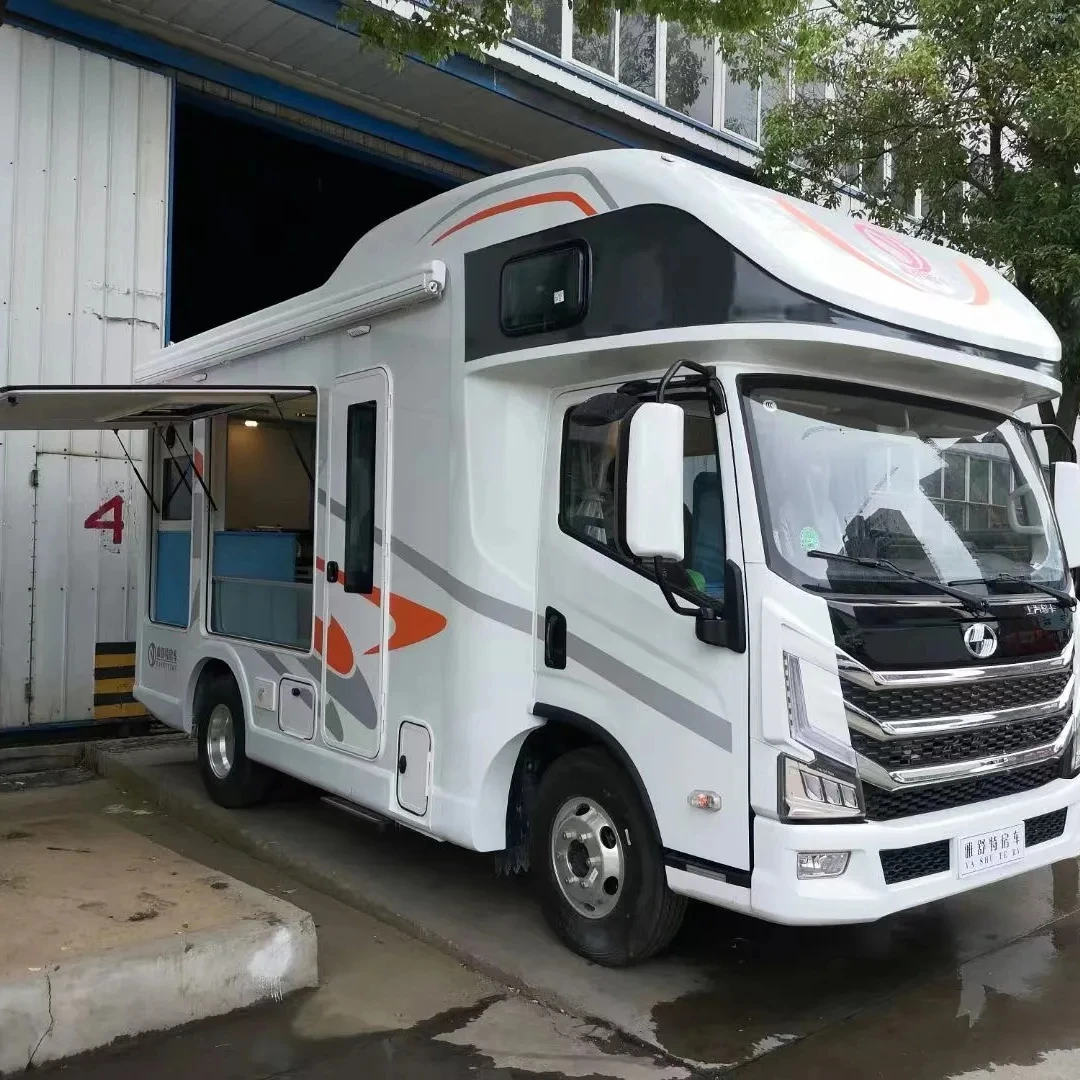

4 х2 дом быстрого питания на колесах мобильные закуски мороженое кофе пицца полностью кухонное оборудование большое пространство кондиционер LHD
4 022 606,60 ₽

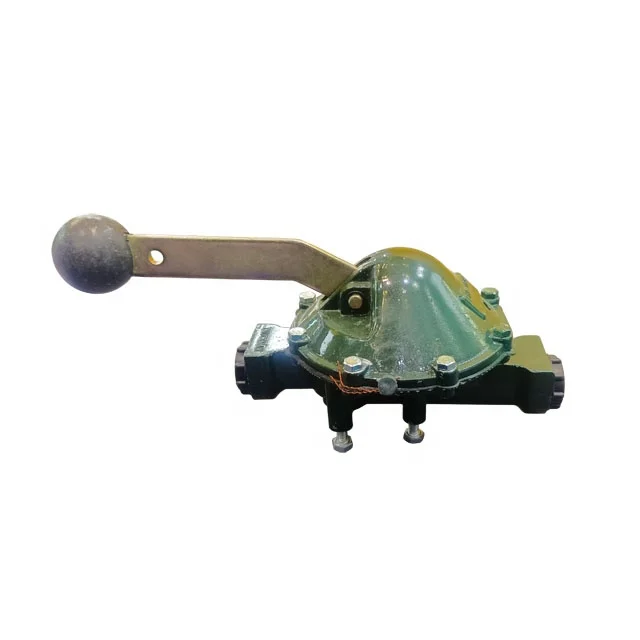

54.05.004-1 ручной дизельный насос детали топливной системы специального транспортного средства КАМАЗ
1,11 ₽ - 11,03 ₽

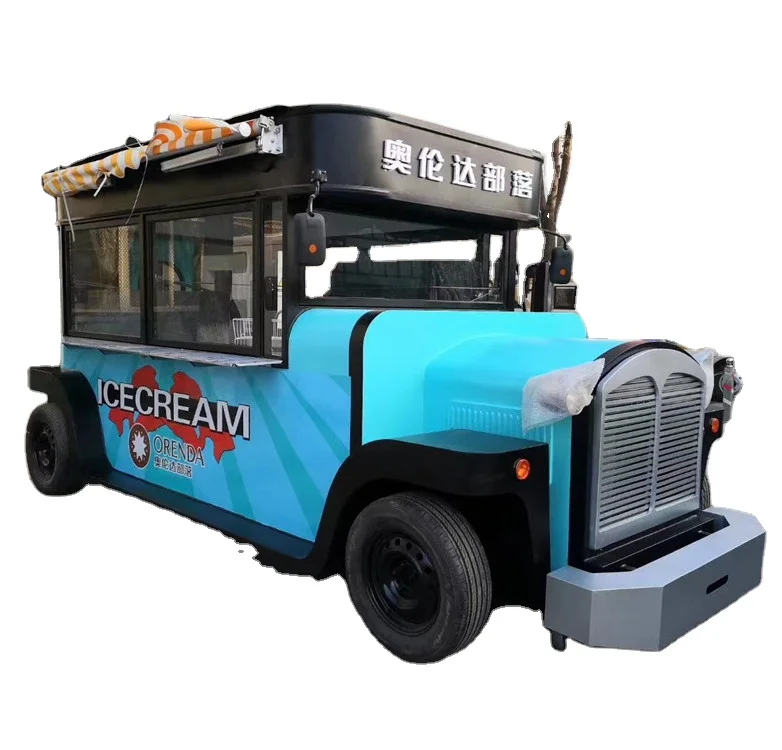

Неработающая тележка для еды и грузовик мороженого в стиле ретро
