Заводская цена конкурентоспособный Неуправляемый коммутатор PoE 8 порт с 2 SFP восходящей линии связи для IP камеры CCTV

Заводская цена конкурентоспособный Неуправляемый коммутатор PoE 8 порт с 2 SFP восходящей линии связи для IP камеры CCTV

Категория: >>>
Поставщик: Shenzhen Ewind Technology Co. Limited

Цена:29,00 $ - 40,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

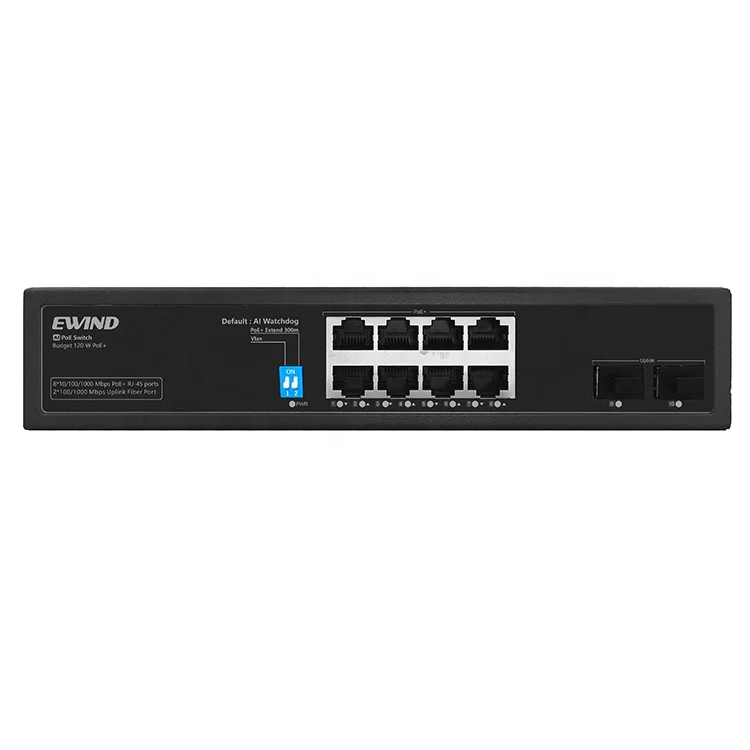

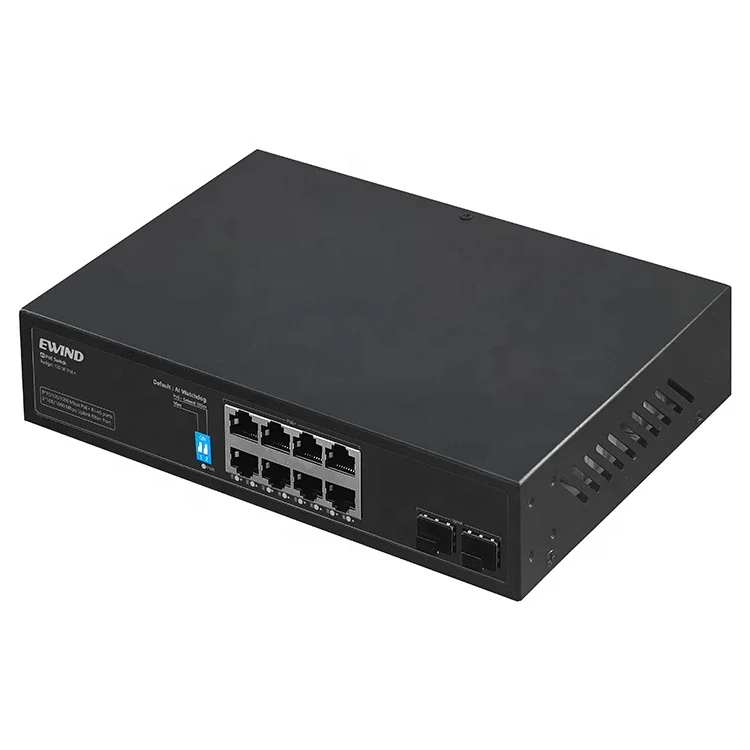

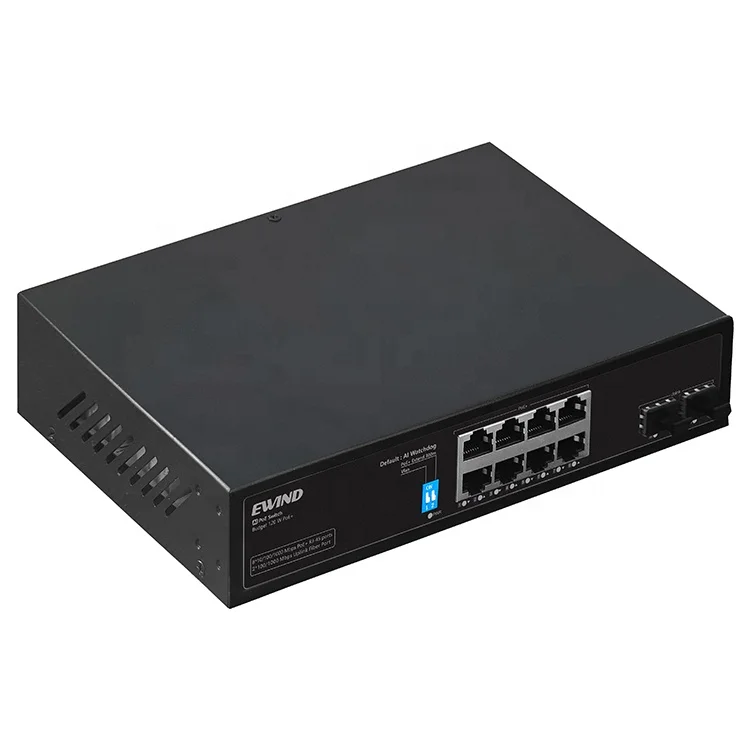

Factory Price Competitive Unmanaged PoE Switch 8Port with 2 SFP uplink for CCTV IP Camera

Products Description

Technology Specification

Model	EW-S1710FG-AP
Fixed Port	810/100/1000Base-T/TX PoE ports (Data/Power) 2100/1000Base-X Uplink SFP slot (Data)
POE Port	Port 1-8 support PoE @ IEEE802.3af/at
Feature	With the Dial code switch, support port priority by default. E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters; V: Turn on, 1-4 Port support each port Isolation & VLAN; D: Turn on, 1-4 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Network Protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000base-X; IEEE802.3x.
PoE Standard	IEEE802.3af/at
Ethernet Port Feature	10/100Base-T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Forwarding Mode	Store and Forward
Switching Capacity	20Gbps
Forwarding Rate	14.88Mpps
MAC	8K
Buffer Memory	4M
Twisted Pair Transmission	10BASE-T: Cat5 UTP (≤300 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5 or later UTP (≤100 meter)
Power Supply Pin	Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port	30W/15.4W
Total PWR / Input Voltage	120W (52VDC)
Power Consumption	Standby:<2W; Full load:<120W
LED Indicator	Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9-10(Link/Act)/ (Green)
Power Supply	Build-in power adaptor AC100~240V 50-60Hz,120W
Operation TEMP / Humidity	-20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH non condensing
Dimension	22014545mm
Net /Gross Weight	<1kg / <1.2kg
Installation Method	desktop type, wall mounted
Port lightning protection / protection level	Port lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS
Warranty	1 years, lifetime maintenance.

CONTENT	QTY	UNIT
10 Ports Full Giga PoE Switch with 2*Giga SFP (EW-S1710FG-AP)	1	SET
User Guide	1	PC
Warranty Card	1	PC

Company Profile

Why Choose Us

Package & Shipment

FAQ

1.Whats Your Main Products?

POE Switch,industrial POE Switch,Ethernet Switch,POE Injector,Media Converter,etc.

2.lt Is Safe To PayWith Alibaba ?

Yes,we Can Do The Trade Assurance On Alibaba ,Which Will Guarantee Your Products Receiving.

3.Which Payment Terms Do You Accepte?

We Can Accept The Tt，alibaba Escrow,western Union

4.How Long Can I Expect To Get The Sample ?

Usually Within 3 Days But Depends On Your Requirements .

5.How About The Shipping ?

We Will Deliver The Goods With Internation Express Like FEDEX,DHL,UPS,TNT And So On

6.How About The After-sales Services?

Professional Services Team,24 Hours On Line.

7.How Many Years Of The Warranty?

The Warranty Of The Commercial Switch Is 3 Years And The Industrial Switch Is 5 Years.
