Автокран для автокранов
148 260,63-270 427,38 ₽
Китайский монорельсовый кран автомобильный магазин легкие решения для крановых кранов легкий алюминиевый отслеживающий
- Категория: >>>
- Поставщик: KCI (HENAN) MACHINERY CO. LTDKCI LTD
Сохранить в закладки 1601201166237:
Описание и отзывы
Характеристики
MODULAR OVERHEAD CRANE SYSTEM SPECIFICATIONS
Load Capacity | 0.5-3 Ton |
Span | 1 ~ 9 m (customized) |
Lifting Height | 3~10 m |
Operation Method | Electric/Manual |
Voltage | 380v 50hz 3phase /Customized |
Working Class | A3 |
Rate load (kg) | Rail No | Max Crane Span (mm) | Beam cantilever (mm) | The distance of supports (mm) | Support width (mm) |
250 | I-N | 2500 | 600 | 1900 | 1200 |
I-N | 10000 | 600 | 9000 | 1200 | |
500 | II-N | 2500 | 600 | 1800 | 1200 |
II-N | 10000 | 600 | 9000 | 1200 | |
1000 | III-H | 3000 | 600 | 2000 | 1200 |
2000 | III-H | 9000 | 600 | 8000 | 1200 |
Simplifying Complex Problems With Our Light Workstation Crane System
By leveraging the versatility and adaptability of Modular crane system, businesses can streamline their material handling processes and overcome complex logistical hurdles with ease. This type of crane system has been embraced and utilized by companies with a fundamental focus on swift and coordinated material transportation, making it a common sight in various manufacturing facilities and warehouses.
Our pre-assembled components designed to handle a multitude of tasks, allows for customizable lifting solutions. Our range of components includes turntables, swiveling transfer points, and various other parts. Modular overhead crane can be configured as a single-girder or double-girder system, and it can be operated manually or with electric controls.
Our pre-assembled components designed to handle a multitude of tasks, allows for customizable lifting solutions. Our range of components includes turntables, swiveling transfer points, and various other parts. Modular overhead crane can be configured as a single-girder or double-girder system, and it can be operated manually or with electric controls.
FEATURES AT A GLANCE
Flexibility in Layout Design
- More options for profiles, switches, curves, and rotation
- Ability to accommodate larger spans
Short Assembly Time
- Pre-designed, assembled, and wired components
Short Assembly Time
- Pre-designed, assembled, and wired components
- Optimal suspension and connection methods
Low Maintenance Cost
- Minimal repair work
- Long lifespan and robust structure of lifting equipment
Advantages:
- Achieving flexible operations and
excellent performance through modular design.
excellent performance through modular design.
WHY CHOOSE OUR MODULAR CRANE SYSTEM
Significantly Reducing the Cost
Modular Design
Minimize Operational Noise
No Need for Workshops Changes
Precise Load Positioning
Low Failure Rate
Minimizes Equipment Idle Time
80% Energy Reduction
Maintenance-Free Track Systems
TAILOR YOUR WORKSTATION CRANE TYPE

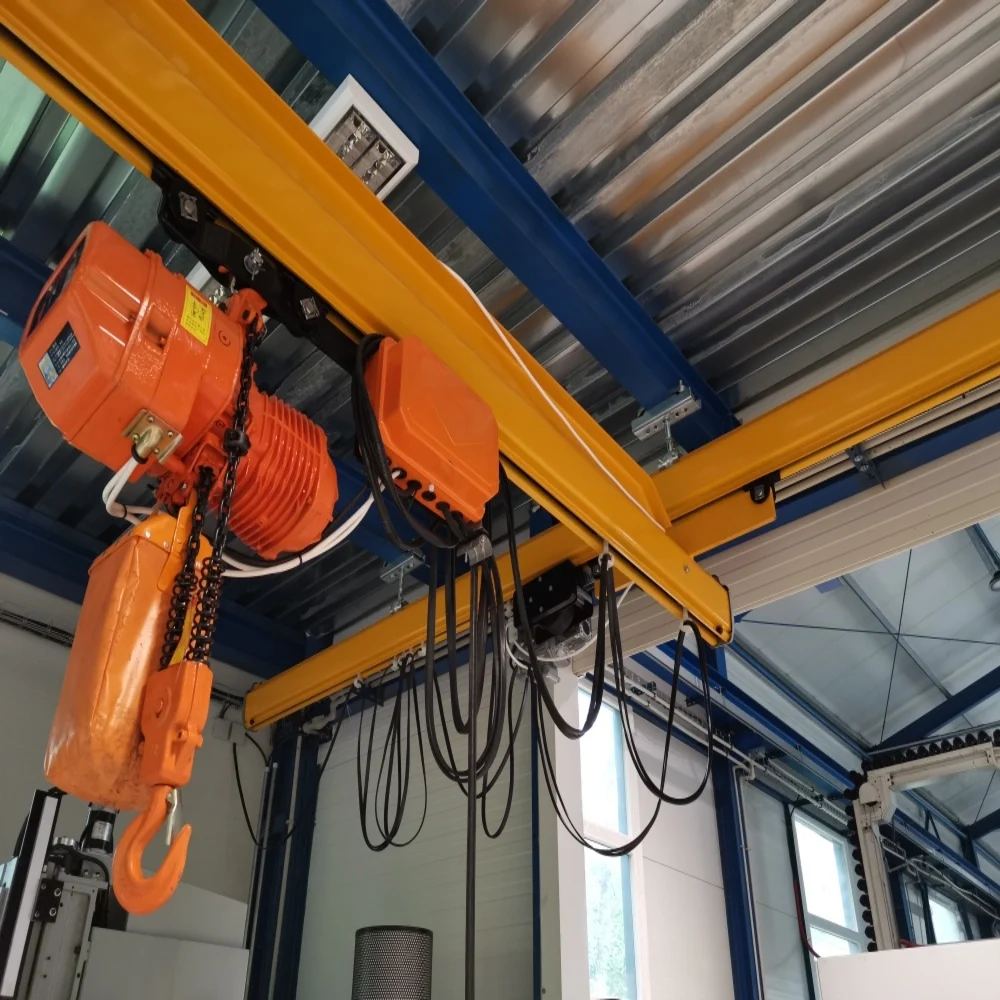

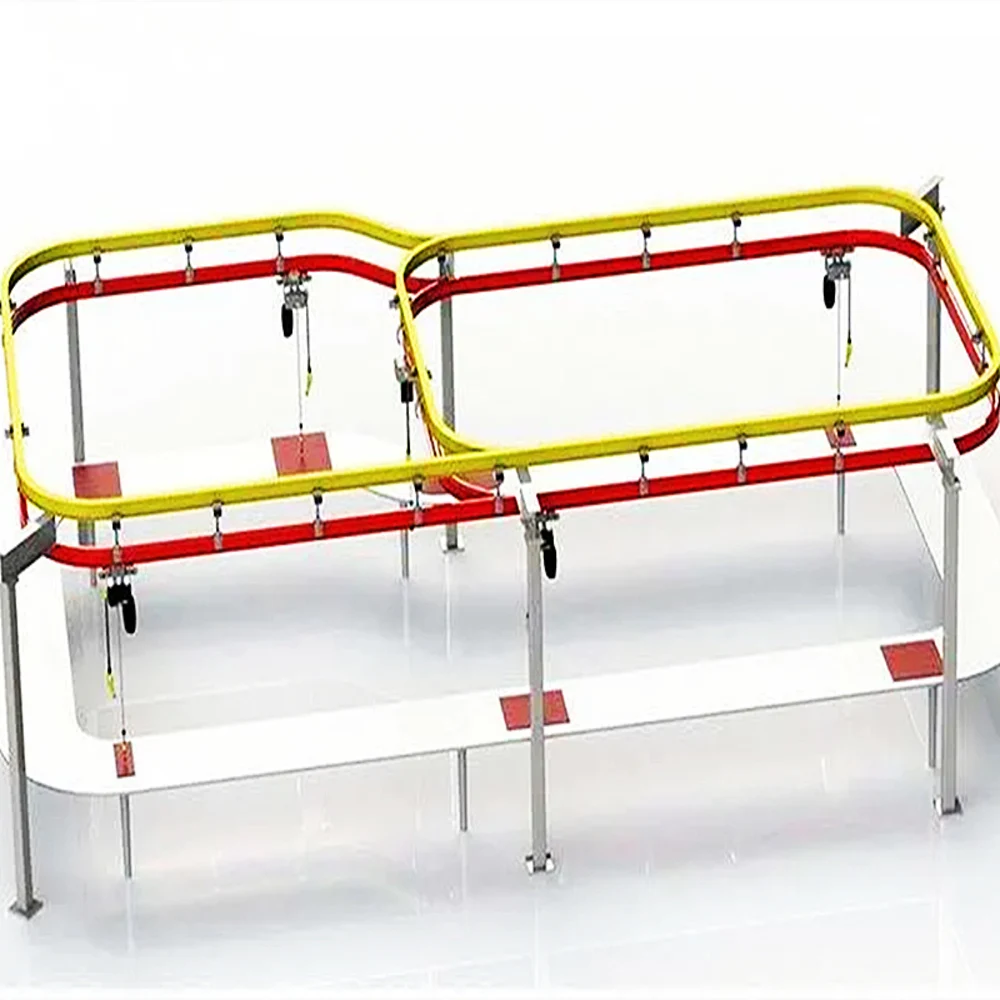

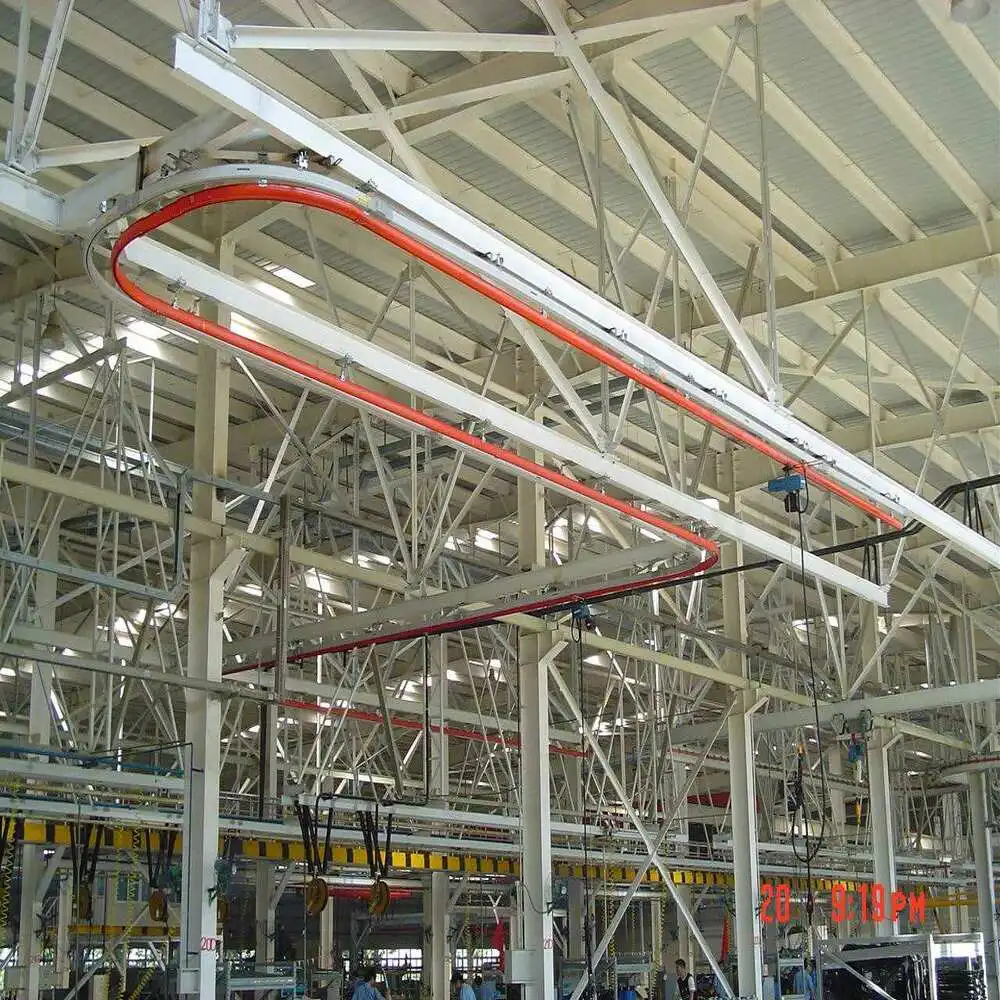

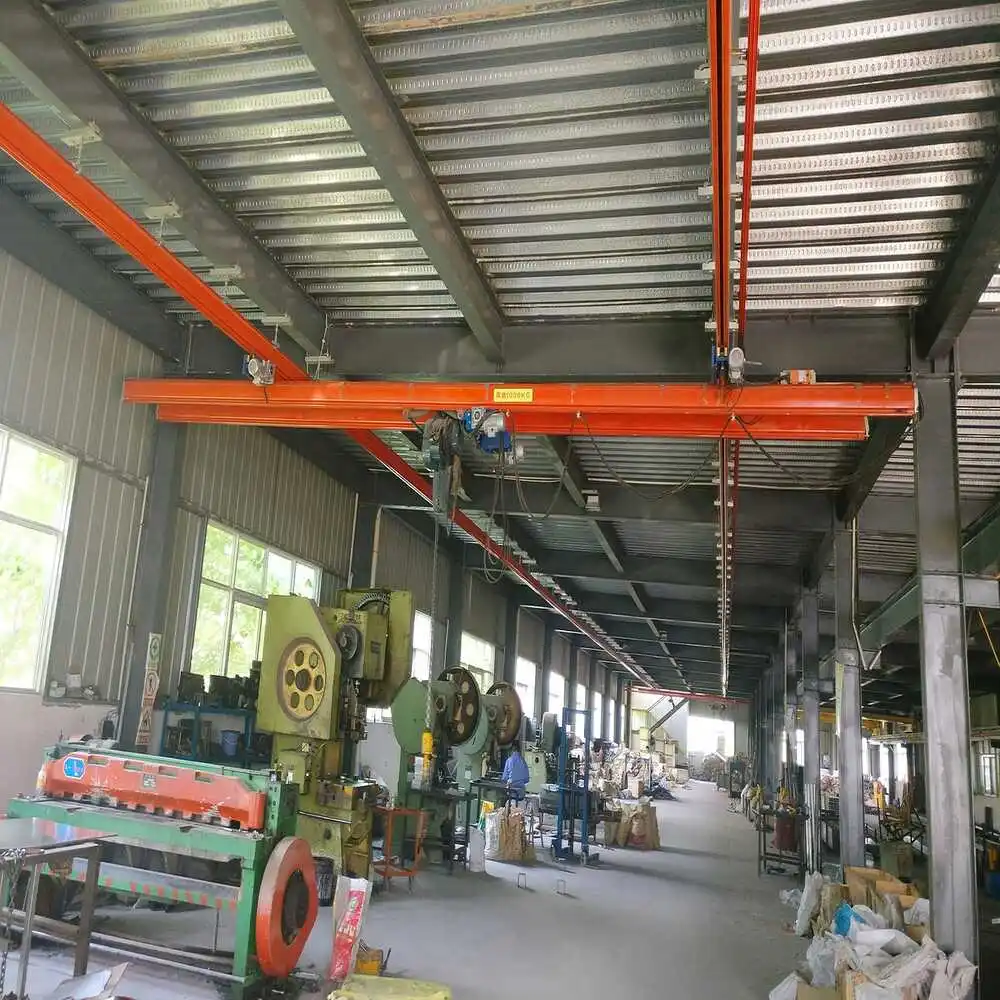

Flexible Modular Overhead Crane

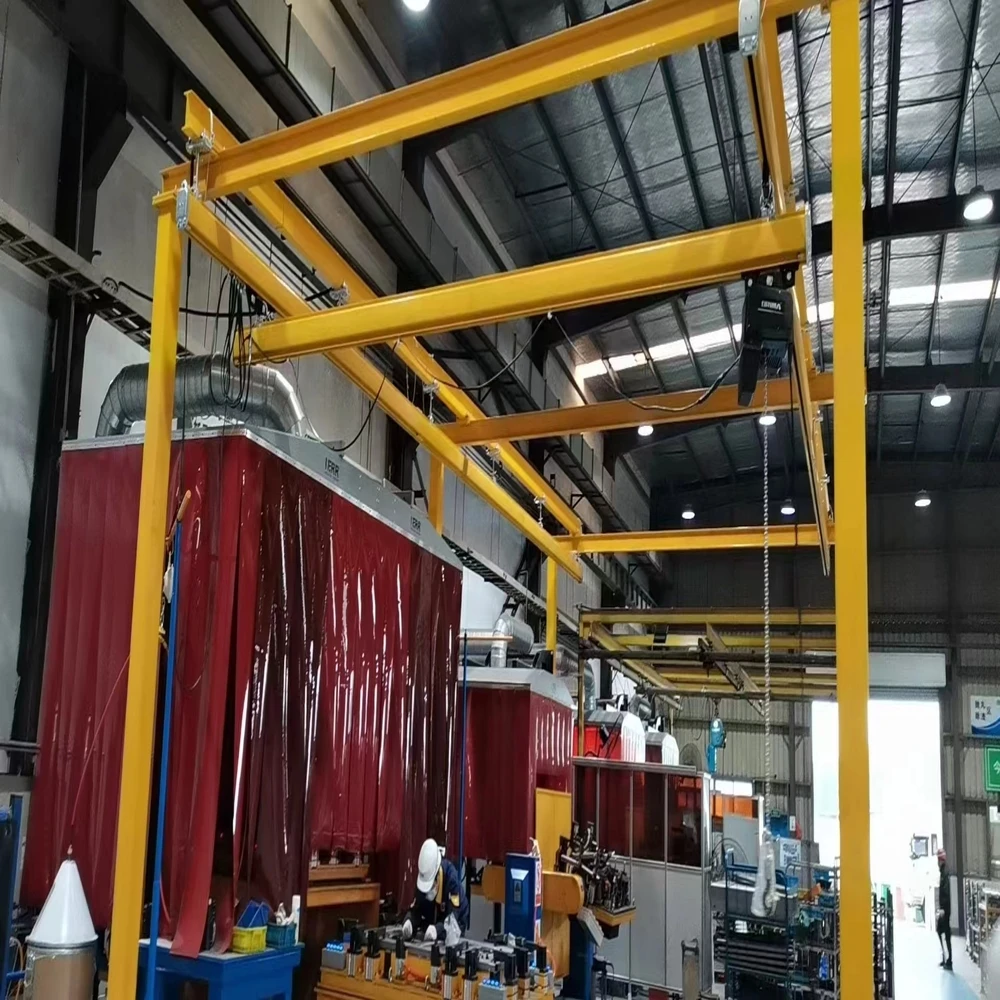

Rigid Modular Overhead Crane
Aluminum Alloy Crane System
▪ Composed of supporting columns, attached beams, running tracks, main beams, electric hoists, power supply systems, etc.
▪ Maximum load capacity of 2000kg, with a maximum main beam span of 9m.
▪ Enables quick and safe handling of various materials, with lightweight traveling mechanism and easy operation.
▪ Can be easily suspended from the roof structure without additional support columns, improving space utilization and cost-effectiveness.
▪ Maximum load capacity of 2000kg, with a maximum main beam span of 9m.
▪ Enables quick and safe handling of various materials, with lightweight traveling mechanism and easy operation.
▪ Can be easily suspended from the roof structure without additional support columns, improving space utilization and cost-effectiveness.
▪ Consists of supporting steel structure, fixed tracks, main beams, electric hoists, power supply systems, safety systems, etc.
▪ Primarily used for material conveyance between work units.
▪ Simple and reliable to use, lightweight for movement, precise positioning, and minimizes labor intensity.
▪ Modular production and assembly ensure reliable and stable quality, with a maximum lifting capacity of 2000kg and a maximum main beam span of 10m.
▪ Primarily used for material conveyance between work units.
▪ Simple and reliable to use, lightweight for movement, precise positioning, and minimizes labor intensity.
▪ Modular production and assembly ensure reliable and stable quality, with a maximum lifting capacity of 2000kg and a maximum main beam span of 10m.
▪ Track pillars and running paths do not occupy effective ground area, providing a fast, safe, and efficient aerial material handling solution.
▪ Utilizes high-strength aluminum alloy for lightweight and effortless operation, ergonomic design with various size specifications.
▪ Suitable for creating suspension devices for balanced configurations, pneumatic hoists, electric chain hoists, and assisting mechanical handling devices.
▪ Utilizes high-strength aluminum alloy for lightweight and effortless operation, ergonomic design with various size specifications.
▪ Suitable for creating suspension devices for balanced configurations, pneumatic hoists, electric chain hoists, and assisting mechanical handling devices.
KCICRANE SUCCESSFUL CASES
MAN GROUP
POLAND
700-meter track equipped with 80 lifting machines, Utilize standard components to provide personalized solutions for 70 different assembly processes.
Transferred the production preparation area away from the assembly line, the production efficiency increased by more than 25%.
Transferred the production preparation area away from the assembly line, the production efficiency increased by more than 25%.
AUDI GROUP
GERMANY
▪ Ensure safe, reliable, and convenient transportation of the painted Audi R8 body from the body manufacturing line to the assembly line.
▪ Connect material transportation between the external body warehouse and the assembly line.
▪ Protect workers from the ventilation airflow in the gate area.
▪ Connect material transportation between the external body warehouse and the assembly line.
▪ Protect workers from the ventilation airflow in the gate area.
KNOLL MASCHINENFABRIK GMBH
GERMANY
▪ Simplified positioning of welded parts
▪ Optimized staffing at welding stations
▪ Overhead handling solutions
▪ Reduced forklift traffic
AUSTRIA EMAIL GROUP AUSTRIA
▪ Automated handling, higher process reliability
▪ Significantly improved ergonomics
▪ Thanks to the optical anti-collision system, a safe distance between cars can be maintained
▪ Due to its modular design, the equipment is highly flexible and can be adjusted at any time.
Adaptation to changed production processes
▪ Production capacity increased by 25%
▪ Significantly improved ergonomics
▪ Thanks to the optical anti-collision system, a safe distance between cars can be maintained
▪ Due to its modular design, the equipment is highly flexible and can be adjusted at any time.
Adaptation to changed production processes
▪ Production capacity increased by 25%
LINDE MATERIAL HANDLING GERMANY
▪ Assembly with fixed cycle times on a circular route with several workstations
▪ Establish a flexible production structure
▪ There is no need for high additional costs when converting production lines into assembly line mode.
▪ Establish a flexible production structure
▪ There is no need for high additional costs when converting production lines into assembly line mode.
COMPANY PROFILE
ABOUT US
Henan Kcicranes Intelligent Equipment Co., Ltd. is a leading crane parts supplier of European hoists, winch trolleys, end beams, safety monitoring systems, and integrated circuit intelligent control systems.
At Kcicranes, we specialize in providing comprehensive European crane solutions and provide our partners with professional component production and manufacturing.
At Kcicranes, we specialize in providing comprehensive European crane solutions and provide our partners with professional component production and manufacturing.
SHIPMENTS
* By express DHL/UPS/TNT/FedEx for sample;
* By air freight or by sea for batch goods shipment.
Delivery time: to be delivered about 5-15 days after receiving the payment.
FAQ
Q1: What modular crane project engineering does your company provide?
Suspension monorails
Single-girder suspension cranes
Double-girder suspension cranes
Manipulator cranes
Overhung cranes
Extending cranes
Pillar-mounted slewing cranes Wall-mounted slewing jibs
Stacker cranes
Portal cranes
Crane runway support structures
Q2: How can I get more details?
Just leave your company name and phone number/email address and we will contact you.
Q3: How can I get a customized plan and accurate quote?
You only need to provide us with the following information.
1.Details of the planned installation
Weight of the load
Description of the load
2.Workshop dimensions
Width
Height
Monorail/crane runway length
3.Crane girder length
Manipulator crane outreach length
Overhung crane overhang length
Extending crane intermediate girder length Pillar-mounted crane jib length
Wall-mounted crane jib length
Required hook path
Suspension monorails
Single-girder suspension cranes
Double-girder suspension cranes
Manipulator cranes
Overhung cranes
Extending cranes
Pillar-mounted slewing cranes Wall-mounted slewing jibs
Stacker cranes
Portal cranes
Crane runway support structures
Q2: How can I get more details?
Just leave your company name and phone number/email address and we will contact you.
Q3: How can I get a customized plan and accurate quote?
You only need to provide us with the following information.
1.Details of the planned installation
Weight of the load
Description of the load
2.Workshop dimensions
Width
Height
Monorail/crane runway length
3.Crane girder length
Manipulator crane outreach length
Overhung crane overhang length
Extending crane intermediate girder length Pillar-mounted crane jib length
Wall-mounted crane jib length
Required hook path
