Product Overview

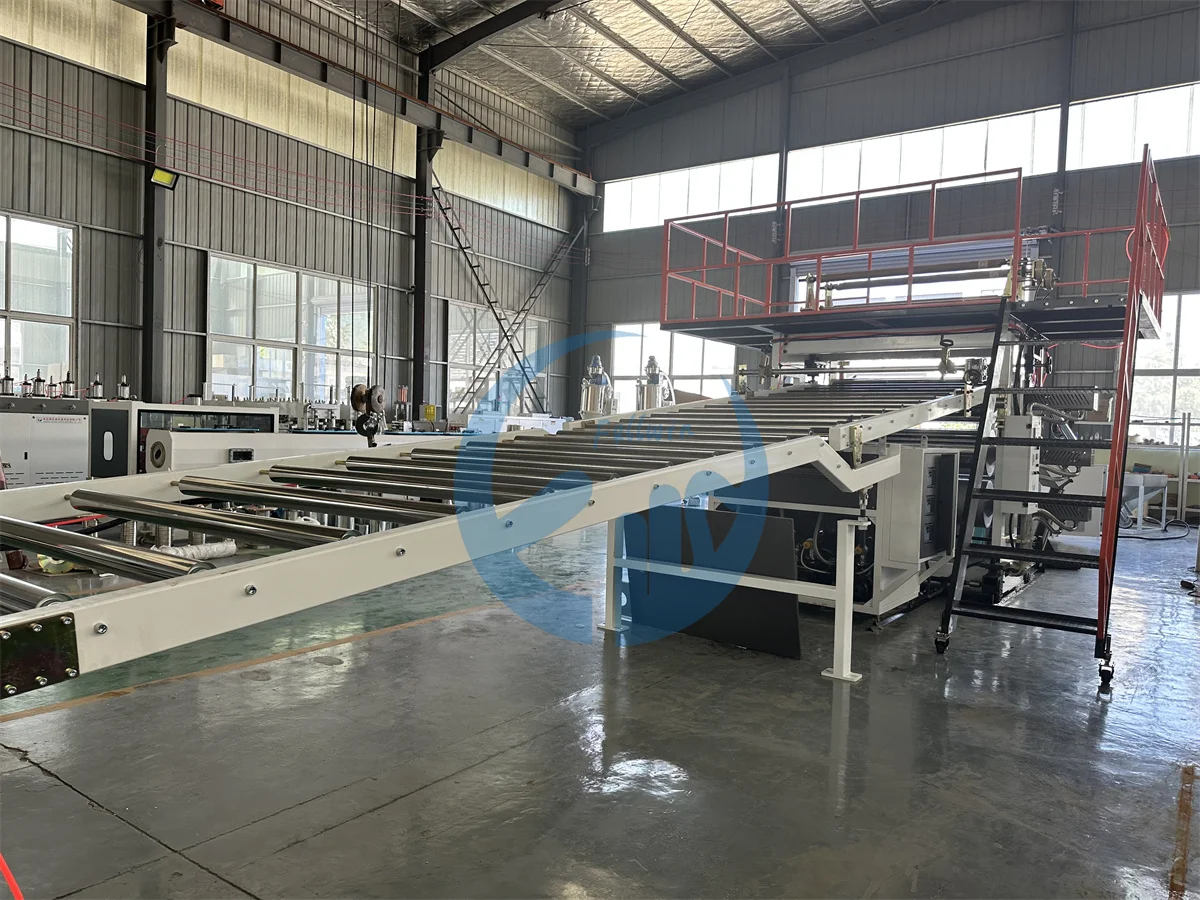

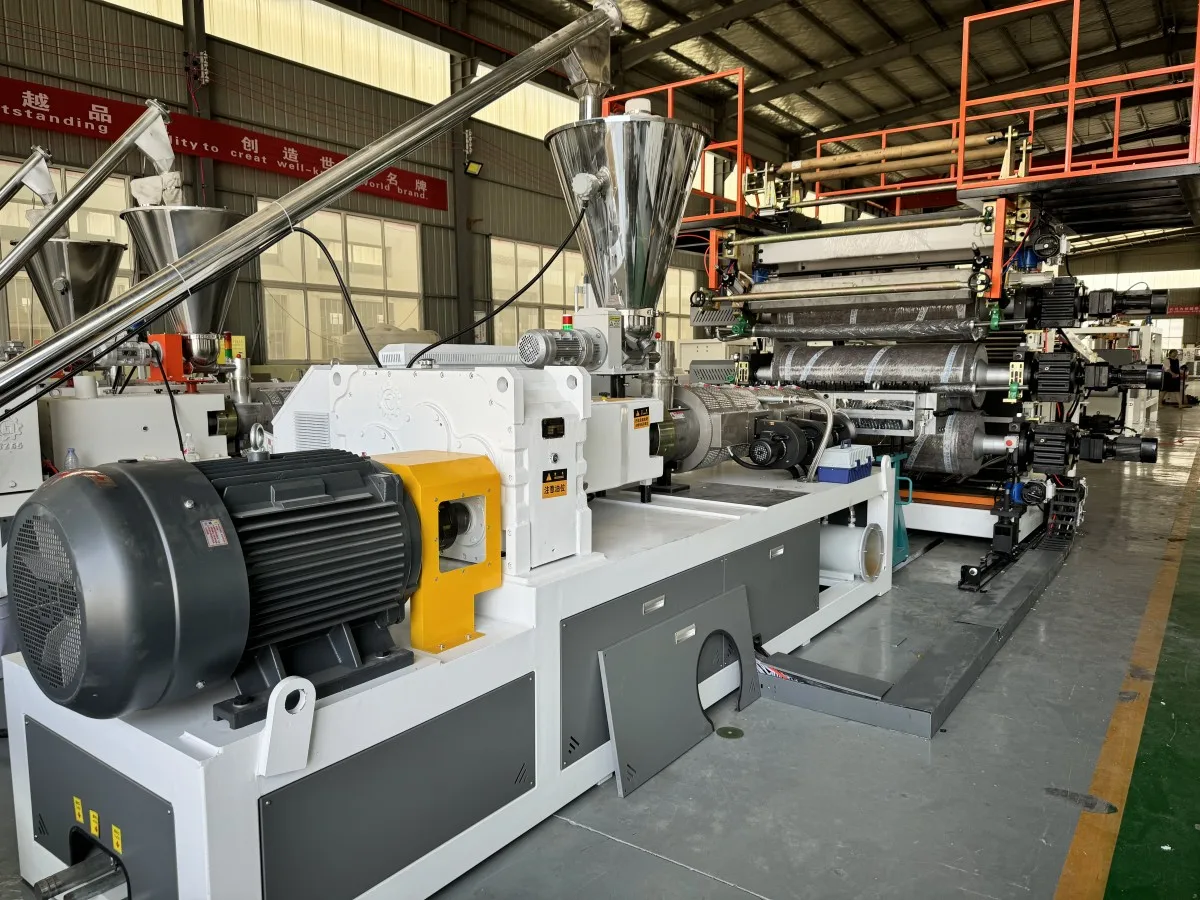

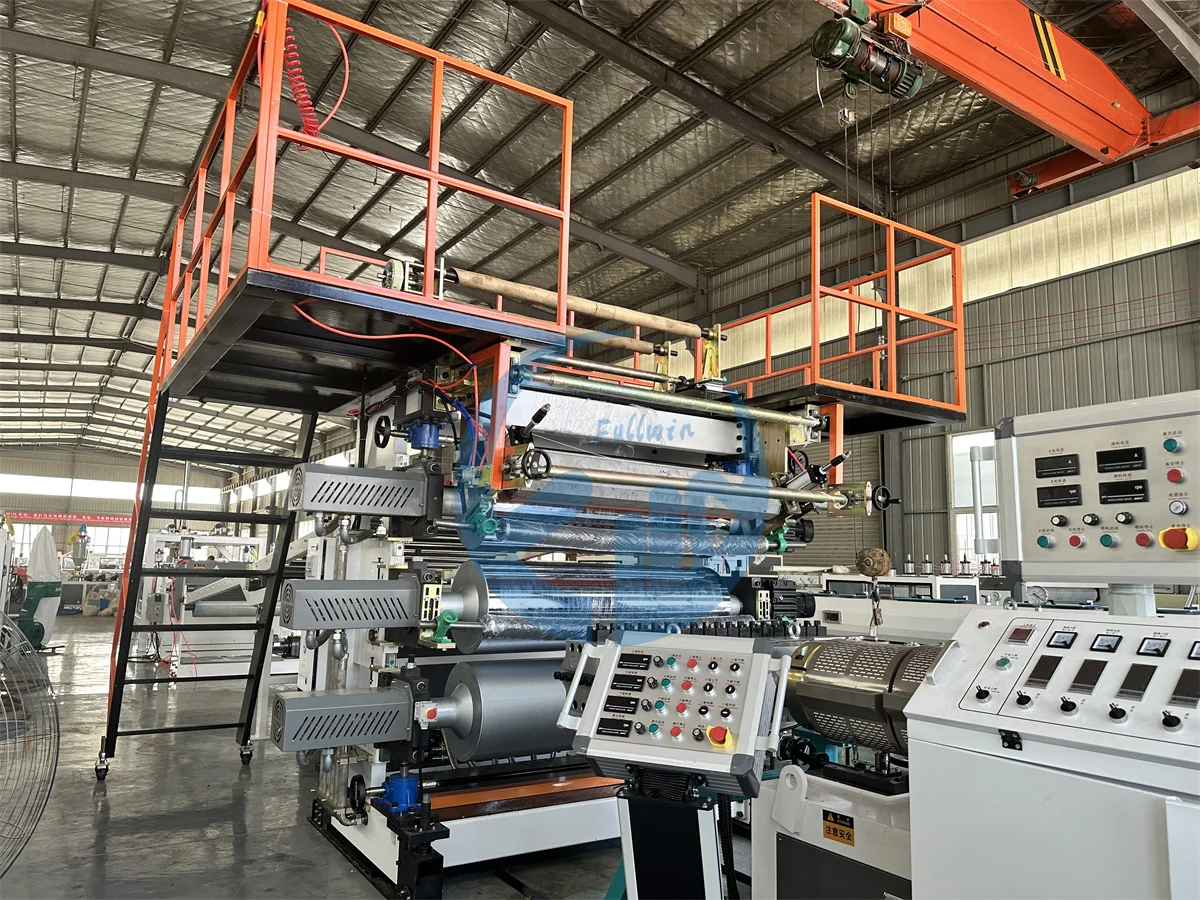

PVC marble sheet extrusion machine production line
Flame-retardant . It could be add flame retardant material to prtect from fire.
Formaldehyde-free, non-toxic, non-radiation, with mildew resistant properties
lightweight with high strength compared to natural marble stone board
Toughness the toughness is good enough to bebendable
Moisture-proofmoisture-proof and anticorrosion topreventpest erosion
Eco-friendly material Smooth and neat edges
Various designs hundreds designs can be selected
Easy to maintenance, quick and easy to install
PVC artificial marble panel are made of PVC resin, calcium carbonate, and plastic additives. The PVC marbel sheet production line machine consist of following machines, and the production line could be 0.5m-1.5m /min.
Production line process flow:
Raw material mixing → spring feeding → main machine extrusion → Mold → three roll calendering → traction → cutting device → conveying device → inspection → packaging
Production Line
NO. | Description | QTY |
1 | Conical Twin Screw Extruder | 1 set |
2 | T Type Sheet Mould | 1 set |
3 | Three- roller Calender | 1 set |
4 | Film Laminating Device | 1 set |
5 | Cooling Bracket | 1 set |
6 | Longitude Trimming Machine | 1 set |
7 | Hauling Machine | 1 set |
8 | Transversal Cutting Machine | 1 set |
9 | Manipulator | 1 set |
10 | Spare parts | 1 set |

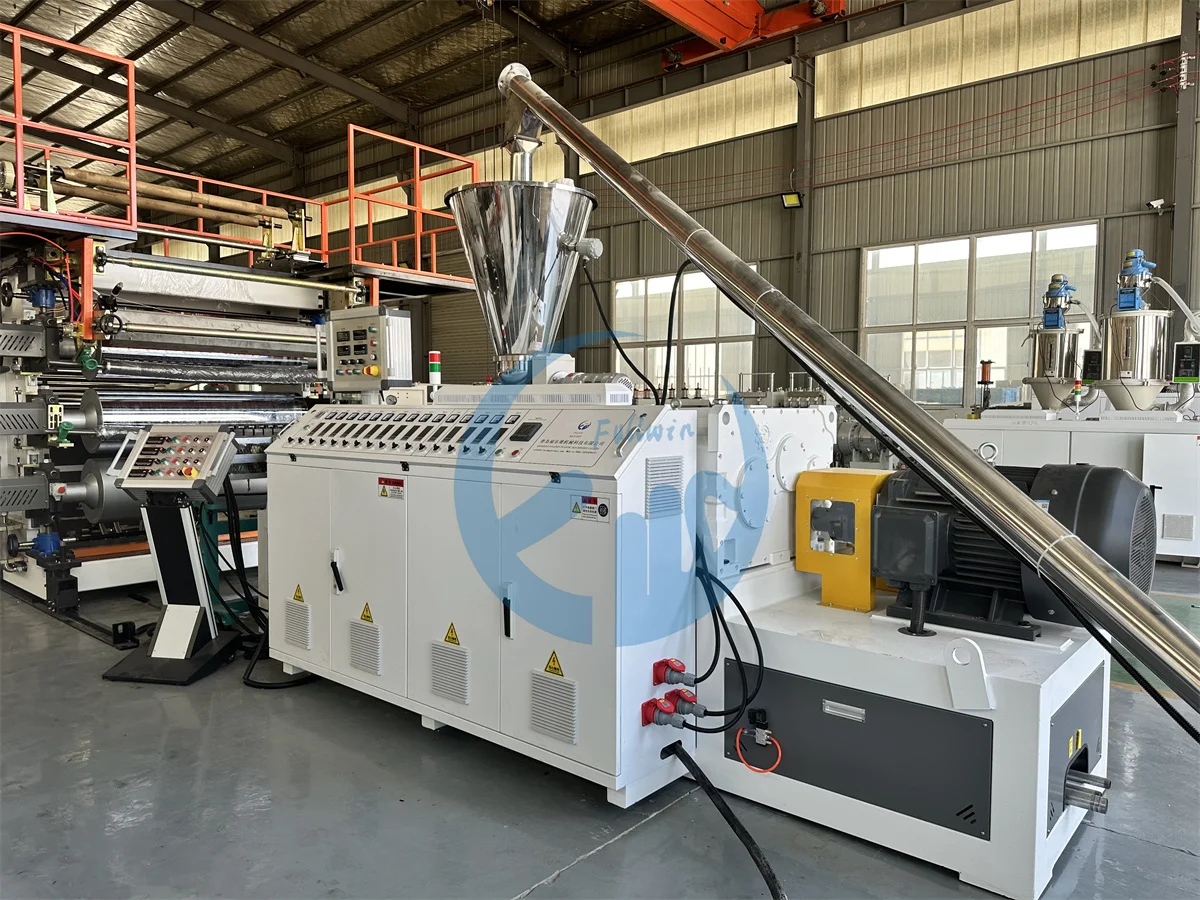

The extruder has the following advantages:
High plasticization rate, uniform melt and continuous production stability. High performance gearbox reducer. High torque, long life and low noise.
Screw barrel design:
Surface nitriding,nitriding thickness 0.4mm-0.7mm,hardneed≥940HV Nitriding is a chemical heat treatment process in which nitrogen atoms seep into the working surface at a certain temperature in a medium
After Nitriding,the product have excellent wear resistance, fatigue resistance, corrosion resistance and high temperature resistance,and more longer working life.
Surface nitriding,nitriding thickness 0.4mm-0.7mm,hardneed≥940HV Nitriding is a chemical heat treatment process in which nitrogen atoms seep into the working surface at a certain temperature in a medium
After Nitriding,the product have excellent wear resistance, fatigue resistance, corrosion resistance and high temperature resistance,and more longer working life.
—Valid mould head width : 1350MM
—Product width ：1220MM
The three-roller frame is an upright type, and the three-roller pitch adjustment mechanism is a worm gear and a worm. Screw mechanism, electric adjustment, and both ends can be adjusted simultaneously or individually, the adjustment range is 0-40mm. The motor power is 0.75kw.
The three rollers are independently driven, and the frequency conversion motor power is 1.5Kw/unit. The three rollers and the traction machine can be adjusted separately or simultaneously. The three-roller debugging reducer is the F series parallel axis helical gear series.
Three-roller temperature controller uses three thermostatic controllers to control the temperature of each roller respectively. The oil pump power is 2.2Kw/set and the heating power is 16Kw/set×3.
The forward and backward moving motor of the three rollers is a worm gear type, the motor power is 1.1kw, and the forward and backward moving distance is 1 meter.
The three rollers are independently driven, and the frequency conversion motor power is 1.5Kw/unit. The three rollers and the traction machine can be adjusted separately or simultaneously. The three-roller debugging reducer is the F series parallel axis helical gear series.
Three-roller temperature controller uses three thermostatic controllers to control the temperature of each roller respectively. The oil pump power is 2.2Kw/set and the heating power is 16Kw/set×3.
The forward and backward moving motor of the three rollers is a worm gear type, the motor power is 1.1kw, and the forward and backward moving distance is 1 meter.
Final product&Application
About us
FULLWIN PLASTIC MACHINERY CO., LTD is located in the beautiful Qingdao city, focus on plastic extrusion manufacturers. Our company has gathered first-class scientific research talents from all over the country. At present, has successfully developed a number of plastic machinery production lines and supporting equipment, including single-wall corrugated pipe production line, double-wall corrugated pipe production line, PVC, PP water supply pipe production line, profile and sheet production line, etc.
Fullwin PP building formwork template grid hollow sheet production line Machine
Exhibition
Shipping
Our service
- After all machines are delivered to customer’s factory; Buyer is responsible for all preparation work, e.g. electricity supply,
water supply, labors and cranes, etc.
water supply, labors and cranes, etc.
- Fullwin will prepare for visa application for their engineers, who are responsible for guide of machine installation and testing at the Buyer’s factory.
- The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for each engineer.
- If buyer doesn’t request installation and commissioning by Seller’s engineer in 4 months since date of bill of lading, which to be accounted all the machines has been successfully tested by buyer.
Contact us
Why Choose Us
1. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe
Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3. Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability. 2.Reasonable price with good quality and best delivey time
3.Our sales team will give prompt feedback within 24 hours . 4.Profession after sales service system,our engineer will go to customer factory.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
2.What can you buy from us?
Single Wall Corrugated Pipe Machine,Double Wall Corrugated Pipe Machine,PVC/ PP Water Supply Pipe
Machine,WPC/PVC Profile and Sheet Profile Machine,PVC Fiber Reinforced Pipe Machine
3. Why should you buy from us not from other suppliers?
1.Advanced production technology with design capability. 2.Reasonable price with good quality and best delivey time
3.Our sales team will give prompt feedback within 24 hours . 4.Profession after sales service system,our engineer will go to customer factory.
4. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,Money Gram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
Recommend Products
Похожие товары

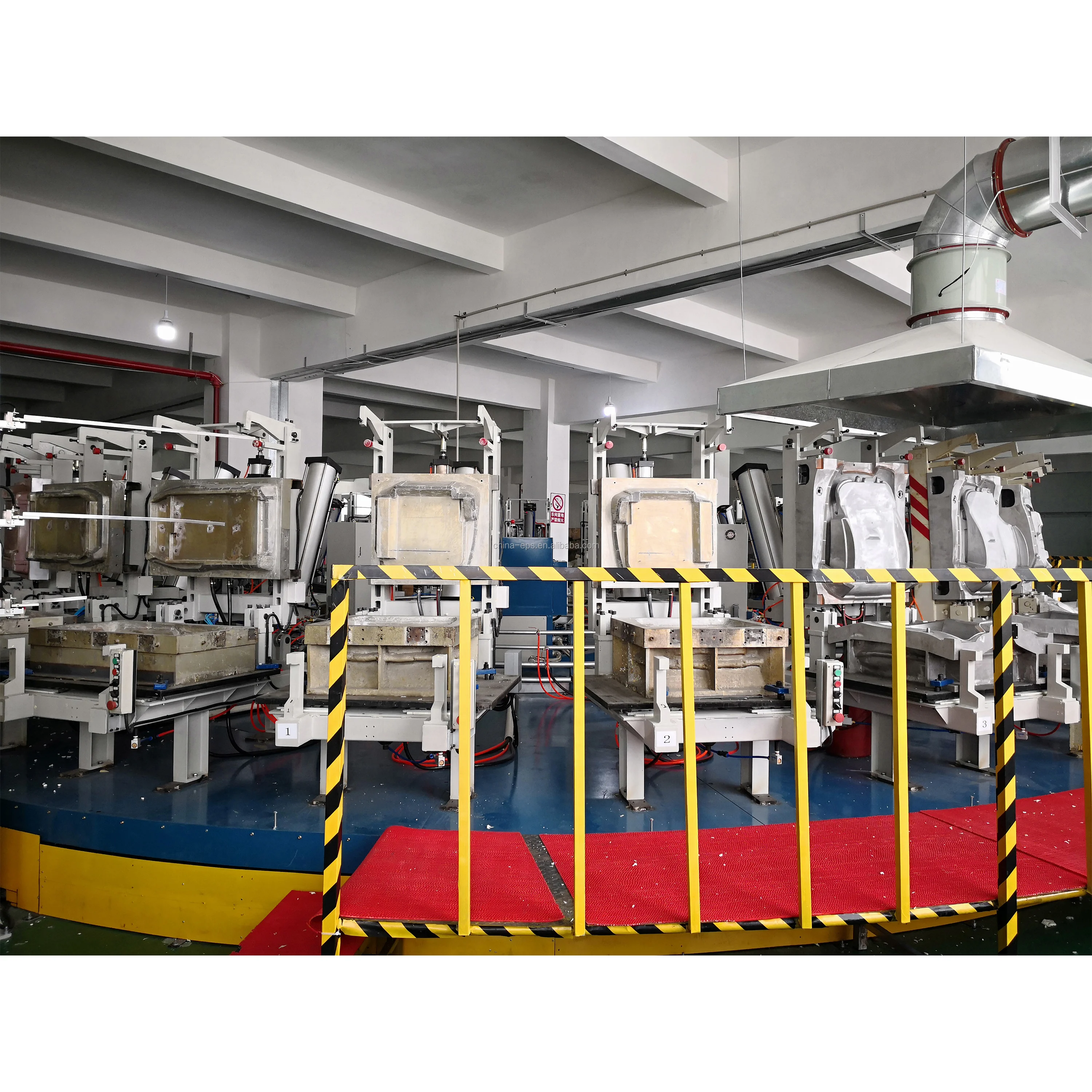

Китайские сиденья из пенополиуретана производственная линия для производства
45 000,00 $ - 50 000,00 $

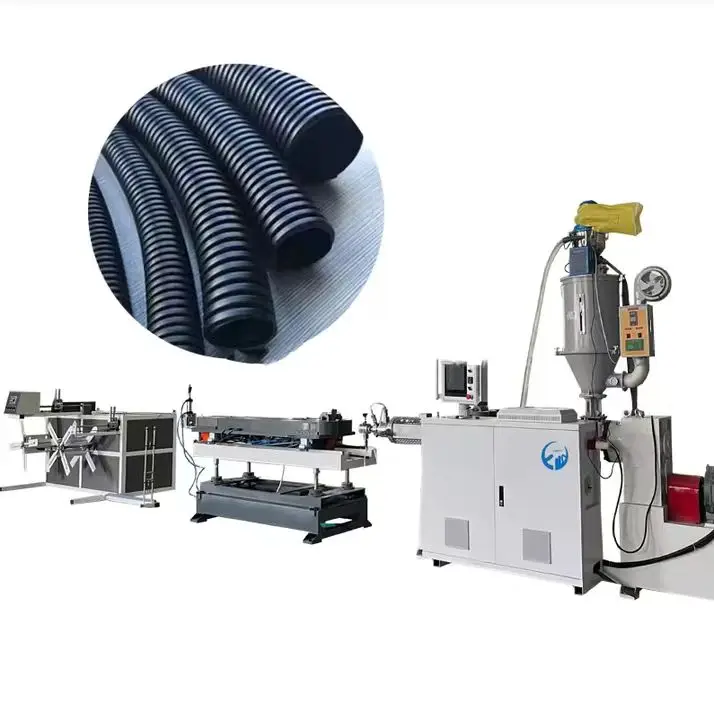

ПВХ электрическая оболочка гофрированная труба производственная линия PE PA гофрированная труба экструзионная машина

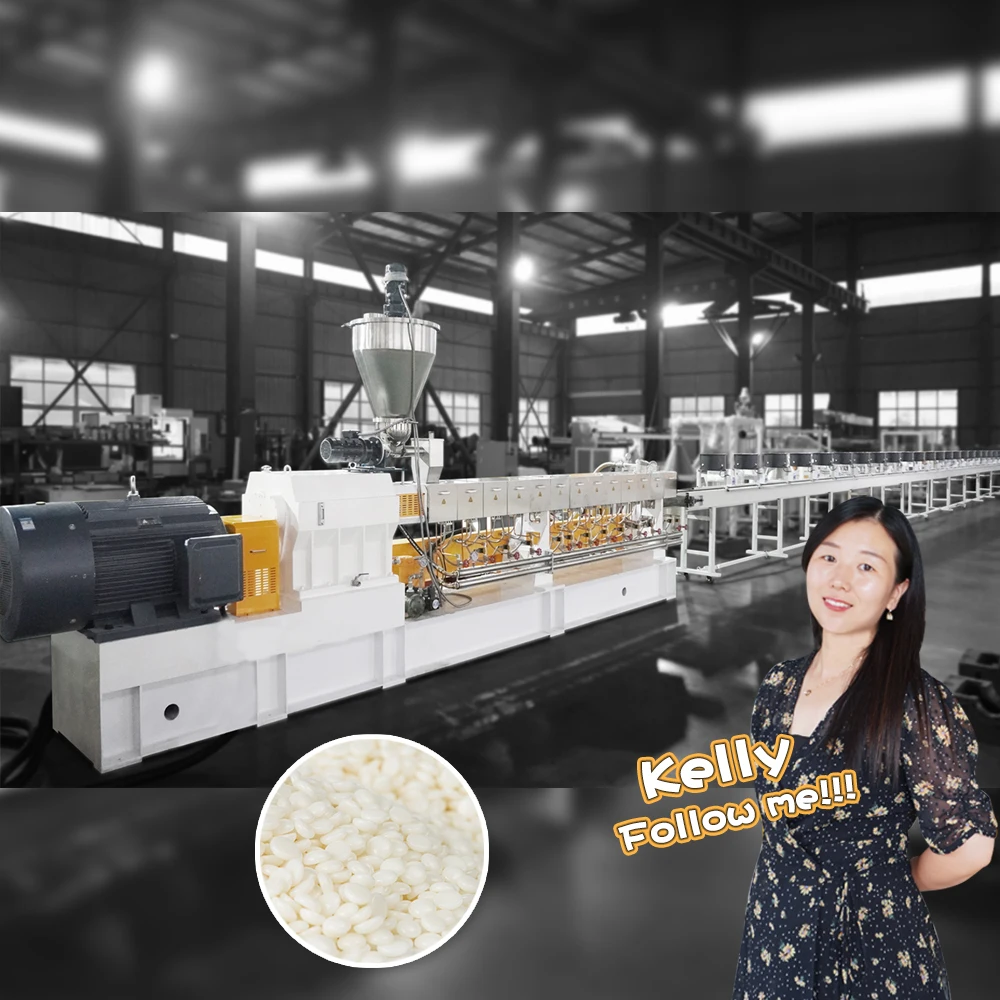

Биоразлагаемая машина для производства гранул кукурузного крахмала, биоразлагаемое пластиковое оборудование, биопластиковая машина
39 000,00 $

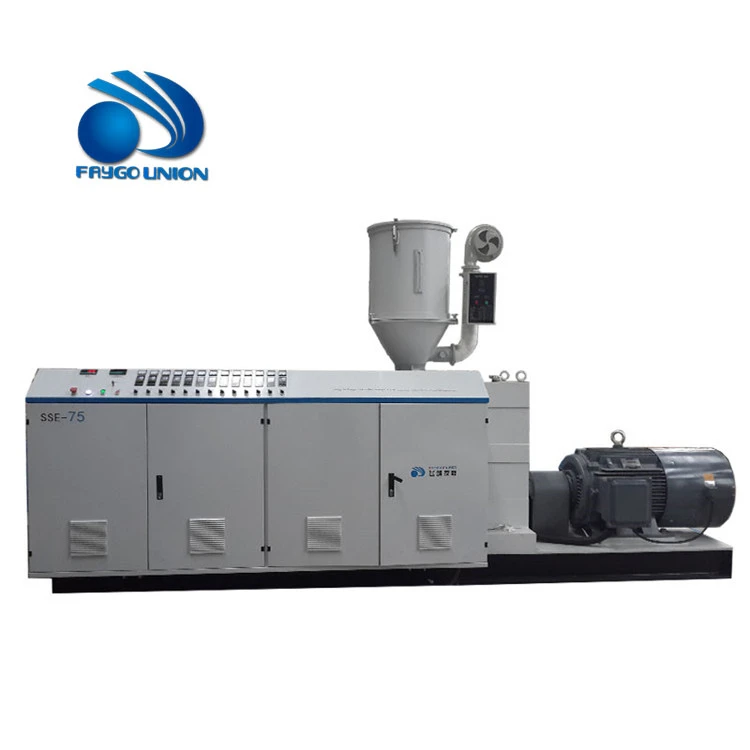

Одношнековый экструдер серии FAYGO UNION
18 000,00 $ - 20 000,00 $

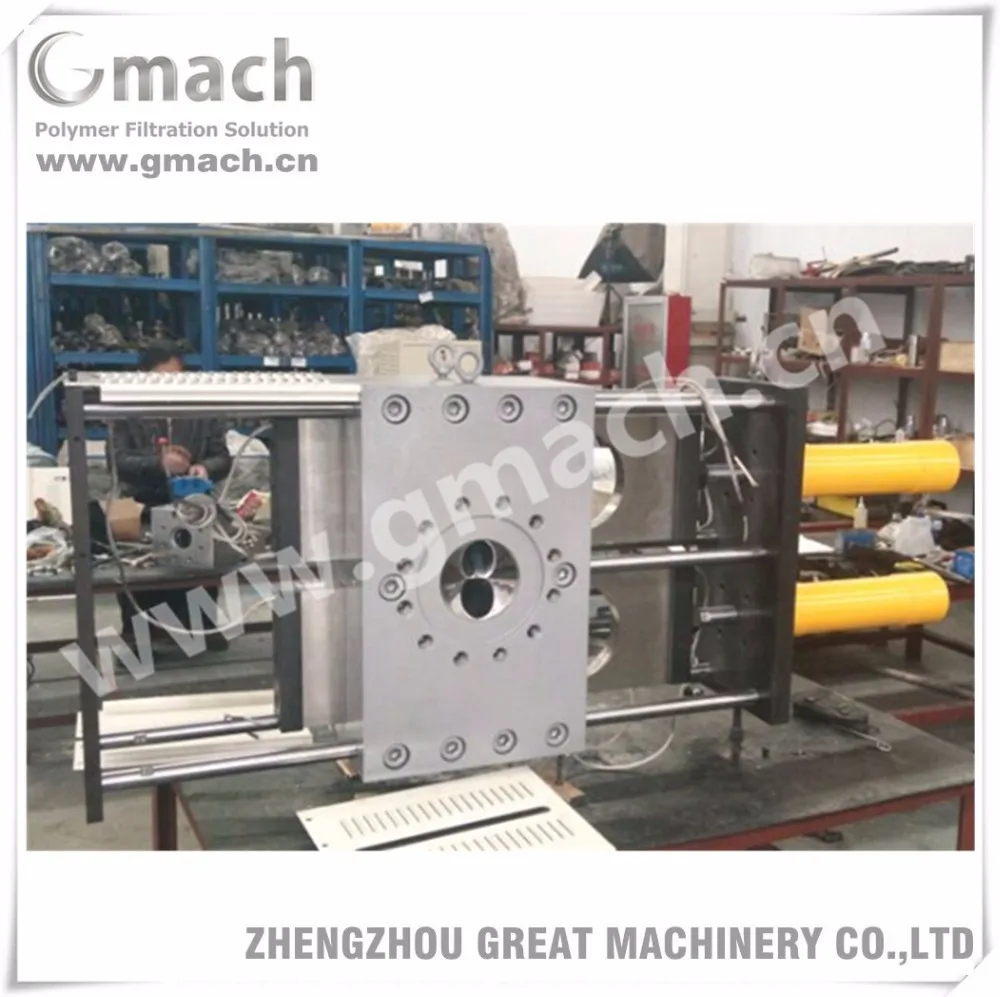

Двойной Плиты два рабочих мест непрерывной смены экрана для ПЭТ листа экструзионная машина

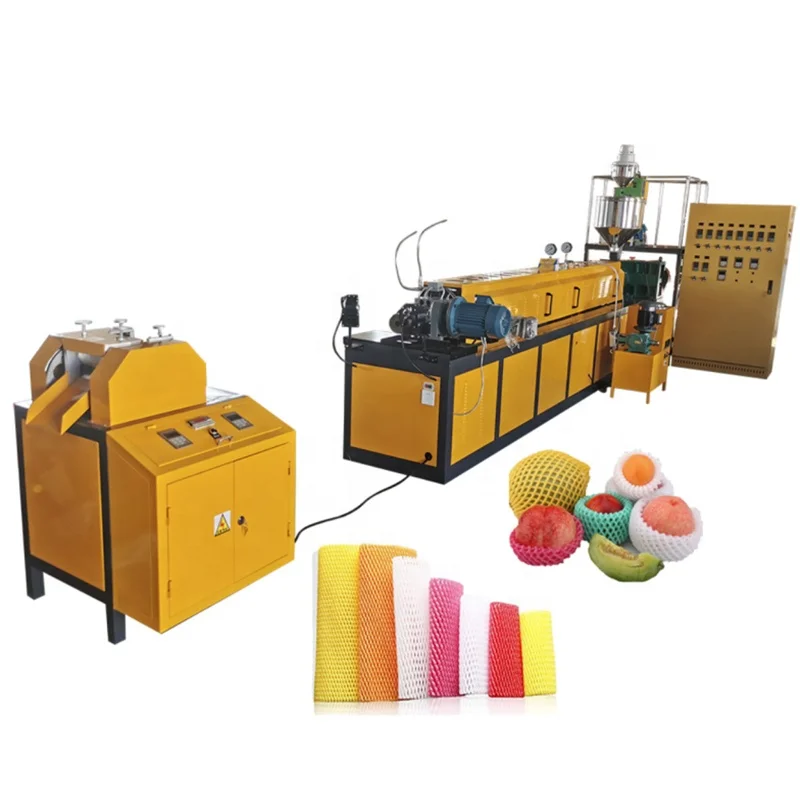

Epe пенопластовая машина для защиты фруктов производства сетки
