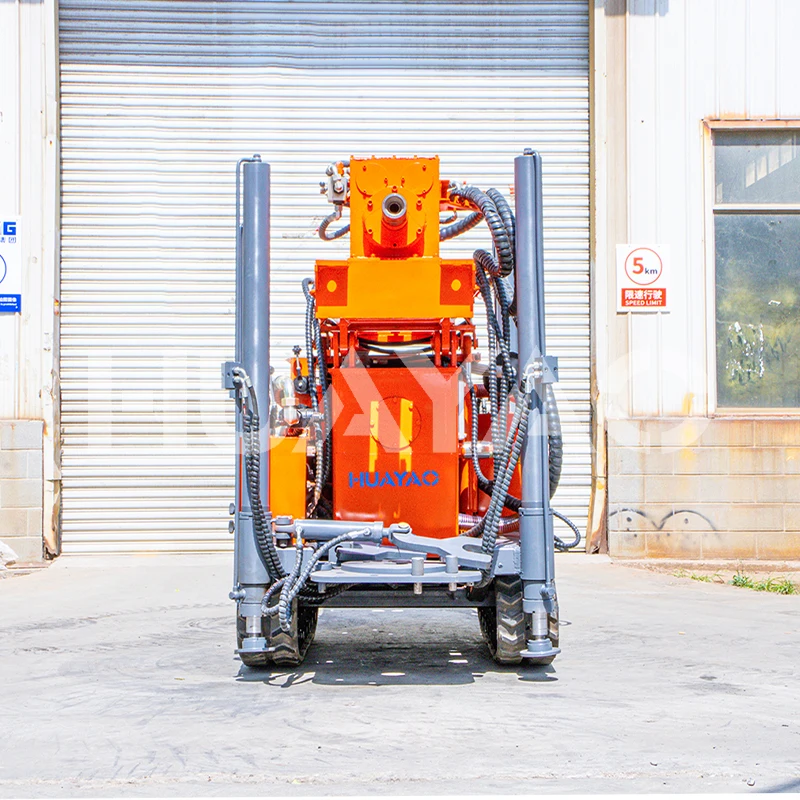

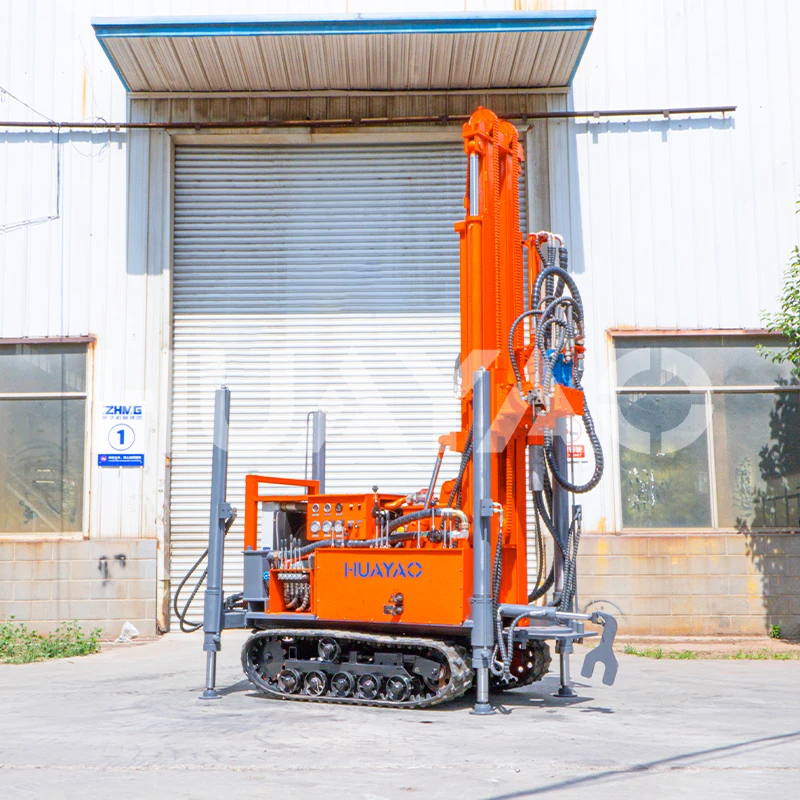

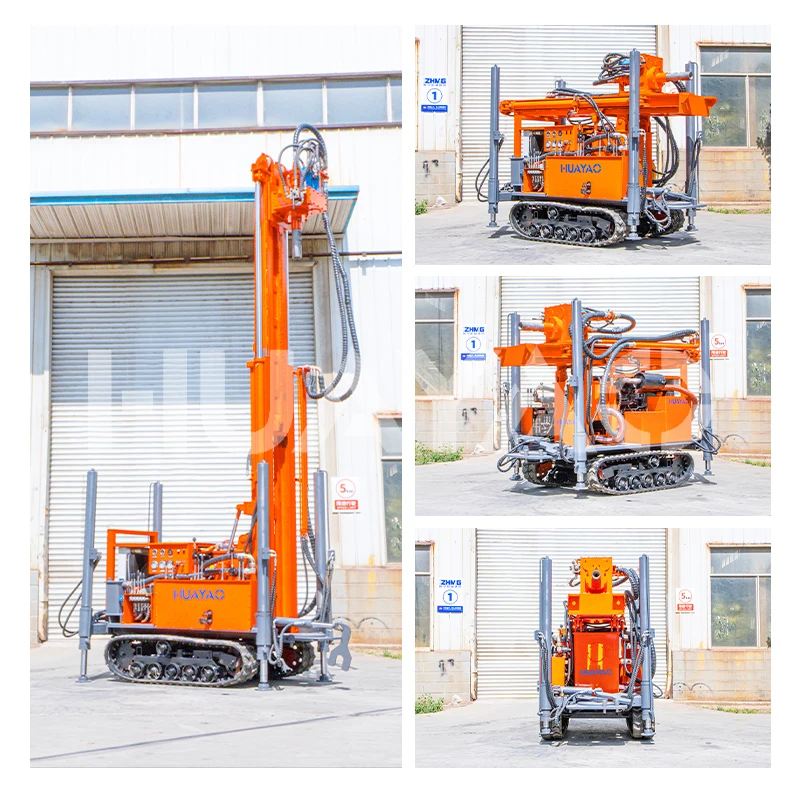

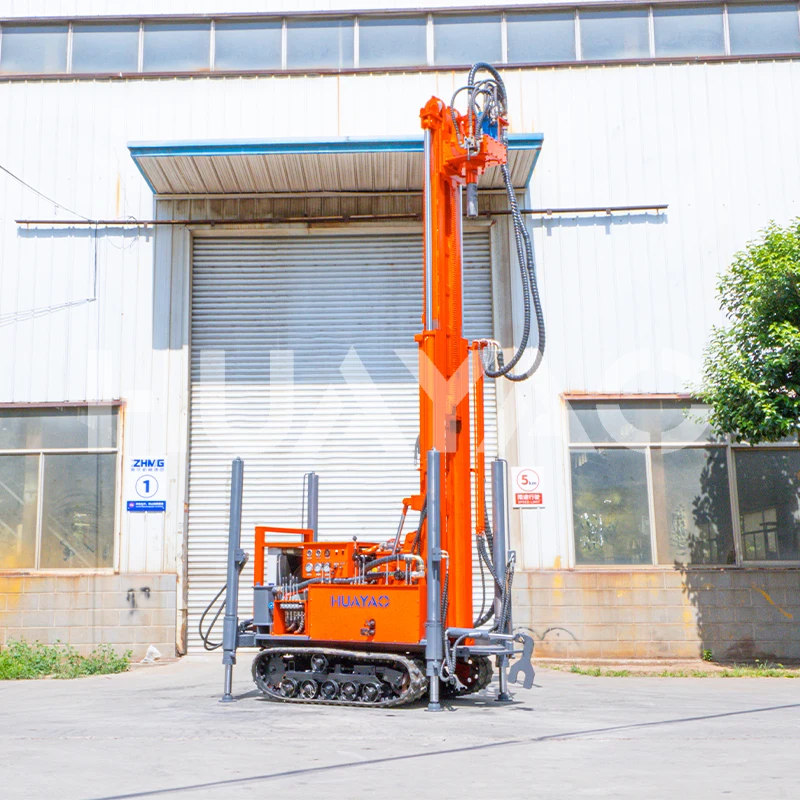

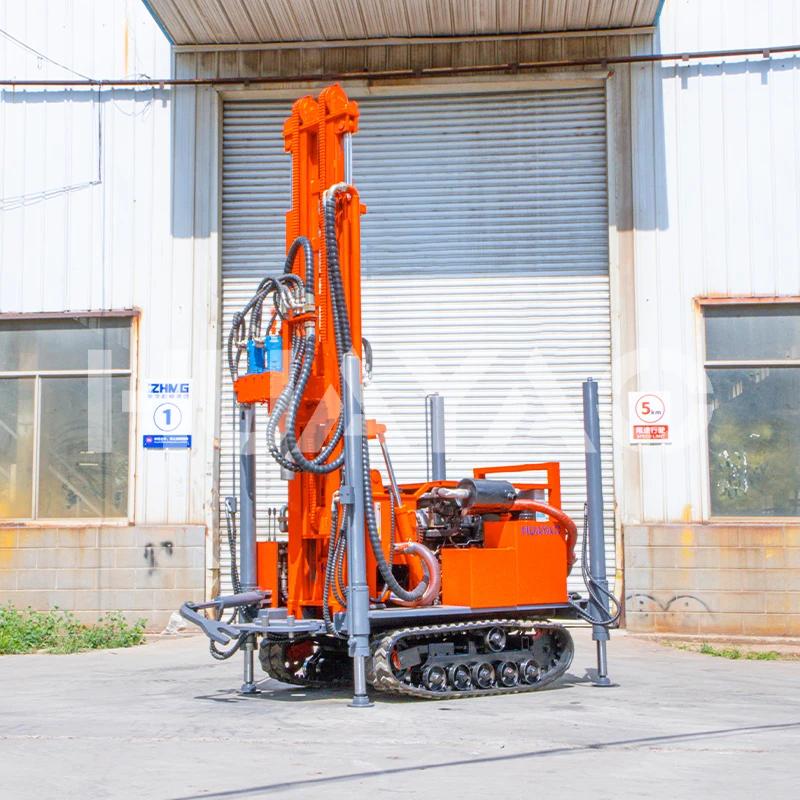

Буровой насос для впрыска воды буровая установка 160 метр гидравлическая небольшая
- Категория: >>>
- Поставщик: Shandong Huayao Construction Machinery Co. Ltd.
Сохранить в закладки 1601201306371:
Описание и отзывы
Характеристики
Mud pump water injection drilling rig 160 meter hydraulic small pneumatic drilling rig
Product Information
Note:
The listing price is just deposit price and excluding freight fee. If you want to get the specific price, please contact me orsend an inquiry, then we will send you formal quotation, thanks！Product Description:
HUAYAO Water well drilling rig is a kind of light, efficient, and multifunctional drilling equipment, which is mainly suitable forindustrial, civil, and geothermal drilling.
The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area.It is especially suitable for taking water from mountain areas and rock stratum.
HY-160 can be used in different strata, and the diameter of the drilling can reach 130-400mm.
HY-160 adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinderpropulsion.
The pneumatic drilling rigs have the advantages of compact structure, fast drilling, flexible movement, and wide application area.It is especially suitable for taking water from mountain areas and rock stratum.
HY-160 can be used in different strata, and the diameter of the drilling can reach 130-400mm.
HY-160 adopts new hydraulic technology, equipped with large torque hydraulic motor rotation and large bore hydraulic cylinderpropulsion.
HY-160 pneumatic drilling rig is an efficient and versatile drilling equipment. Mainly used for drilling
160series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to
industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexiblewide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
160series water well drilling rig is a lightweight, efficient and multifunctional drilling equipment , it is mainly applicable to
industrial and civil drilling, geothermal drilling, has the advantages of compact structure, fast advancing, mobile and flexiblewide application region etc.. It is especially suitable for water intake in mountainous and rocky strata.
Product Name | pneumatic Water Well Drilling Rig | |
Model | HY-160 | |
Overall Weight | 2600kg | |
Dimension | 2300*1200*1900mm | |
Drilling Diameter | Ф130-Ф300mm | |
Drilling Depth | 160m | |
Diameter of Drill Rod | Ф76mmФ 89mm | |
Maximum lifting force | 10-15ton | |
Working Air Pressure | 1.2-3.0mpa | |
Air Consumption | 10-25m2/min | |
Rotary Speed | 65-100r/min | |
The applicable geology is a hard rock layer. If the geology is a loose rock layer, please use follow-pipe drilling to prevent the occurrence of hole collapse. | ||
Drilling Mode | Double Hydraulic Motor Rotor Propulsion Impactor Down The Hole Hammer or Mud Drilling | |
Impactor | China Famous Brand New Diamond Middle and High Pressure Series Impactor | |
Optional Accessories | 1.1000 hours Spare Parts 2.Mud Pumps 3.Electric welding machine 4.Foam Pump | |
Please refer to the structure diagram of our pneumatic water well drilling rig as follows ：
Customer Feedback
FAQ
1.Are you manufacture?
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Yes, we are factory with more than 20 years of manufacturing experience.
2.What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
3.What is your terms of delivery?
Ans.: EXW,FOB,CFR, CIF.
4. How about your delivery time?
Generally, it will take 7-10 working days after receiving your advance payment. The specific delivery time depends on the items
and the quantity of your order.
5.What is the warranty of our machine?
Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a
new one.And we provide videos for machine install and operation.
6.What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
7.Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
8.Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.
9.How do you make our business long-term and good relationship?
aWe keep good quality and competitive price to ensure our customers benefits;
b.We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
10.Do you have any certificates for your machine?
All of our products coming with the certificates of CE, ISO9001.
Contact Way
Похожие товары
Новая конкурентоспособная Высококачественная хлопчатобумажная джинсовая ткань T400 dualfx dual core цвета индиго
Рекламные Сувенирные деревянные награды на
Новый Тип GF120 литровая дорожная машина для запечатывания шарнирных трещин дорожного
293 957,88 ₽ - 316 143,38 ₽

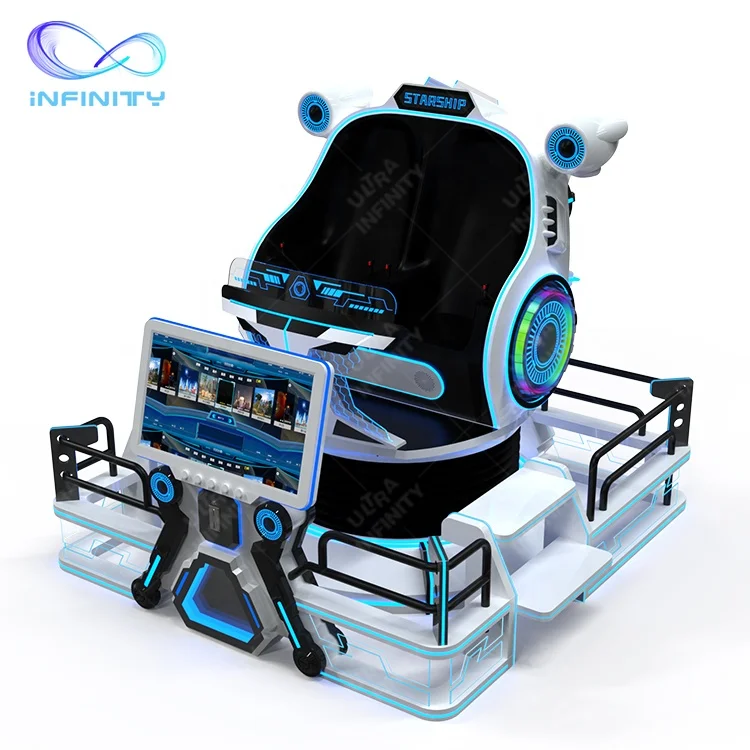

Новое поступление бизнес-товары для парка развлечений 9D Vr Cinema Shuttle Space 2-местный стул детей и
2024 комод с зеркалом для спальни современный простой маленький семейный высоким чувством света роскошный

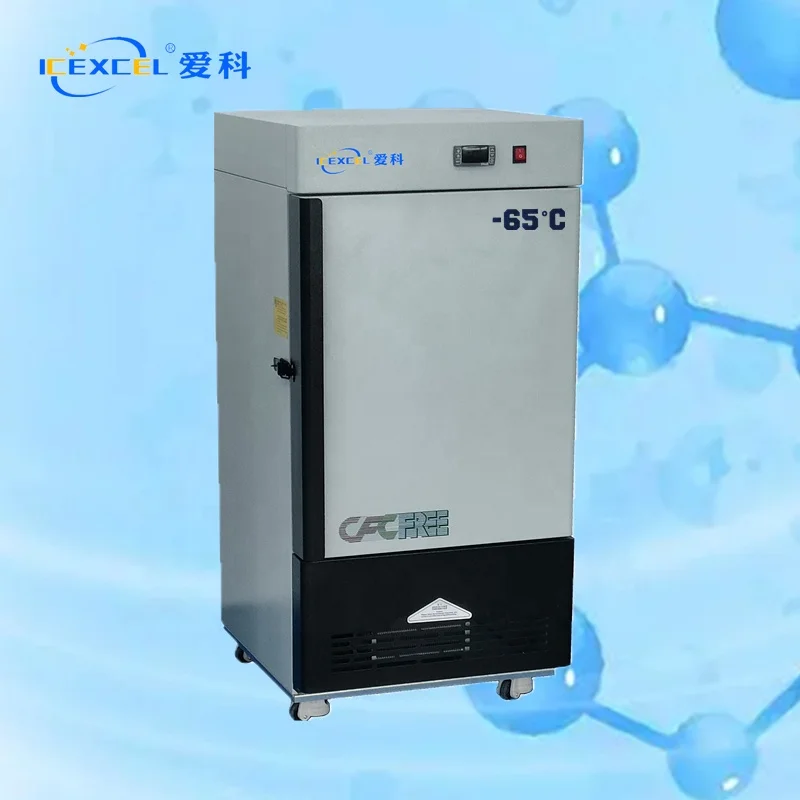

ICEXCEL минус 65 degC 50 л сверхнизкая температура морозильная камера для биологических образцов химические материалы реагент глубокие
110 927,50 ₽ - 122 020,25 ₽

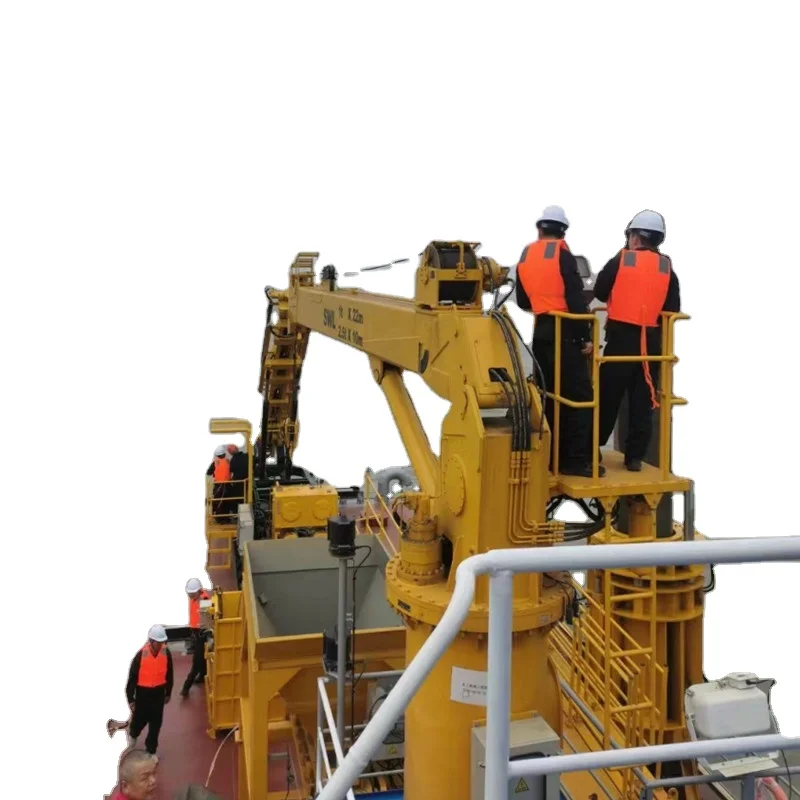

Морской палубный кран с телескопической стрелой 8 м радиус
