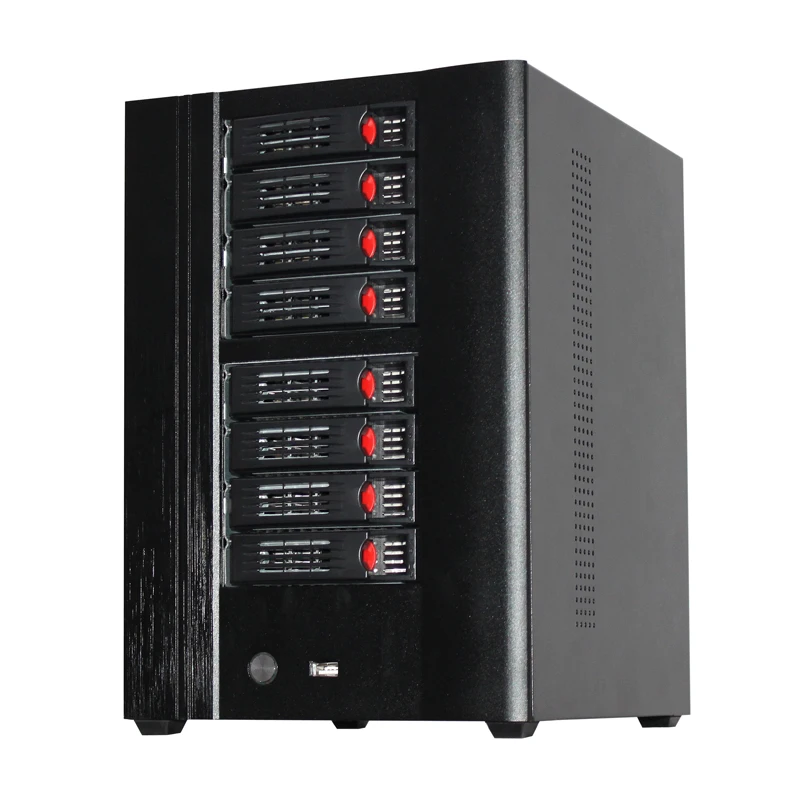

Корпус NAS 8 отсеков сетевой подключенный Серверный корпус для IPFS
440,00 $

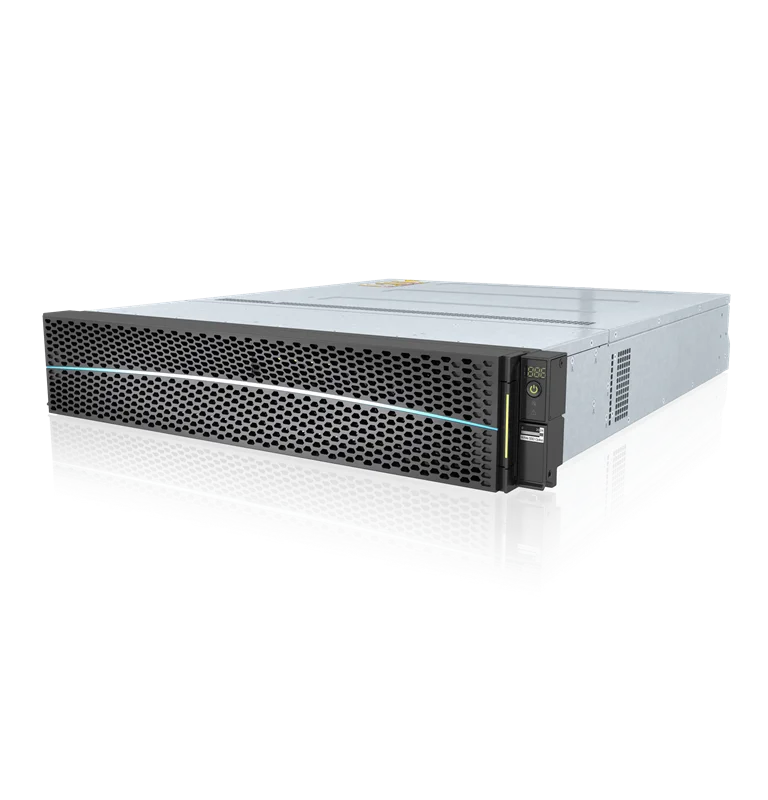

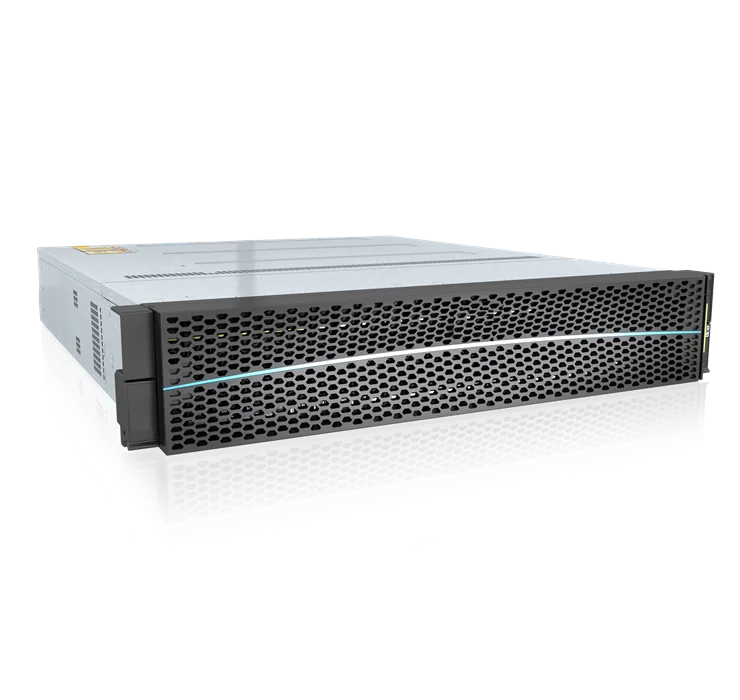

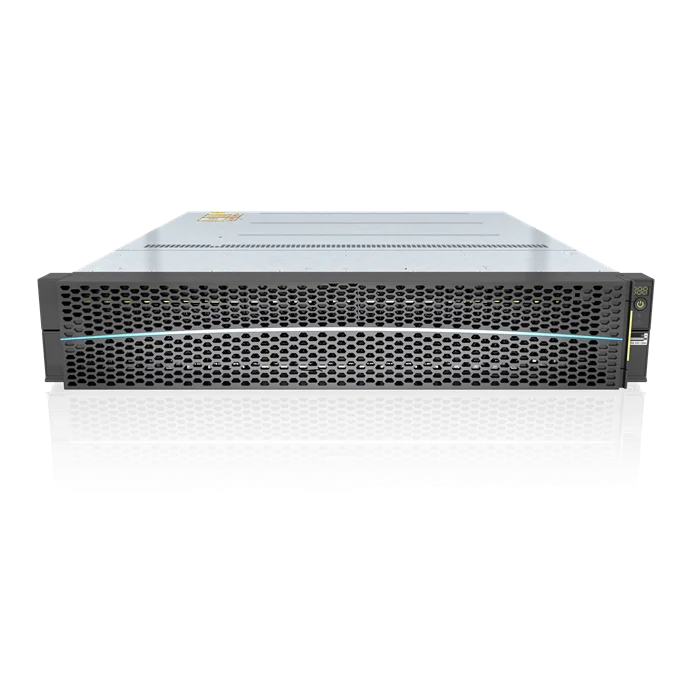

Оригинальный Новый hua wei OceanStor 5310 гибридная флэш система хранения
- Категория: >>>
- Поставщик: Combasst Industry Development (shanghai) Co. Limited
Сохранить в закладки 1601201709979:
Описание и отзывы
Характеристики
Product Description
Hua wei's New-Gen OceanStor 5310/5510/5610 Hybrid Flash Storage Systems
Hua wei's New-Gen OceanStor 5310/5510/5610 Hybrid Flash Storage Systems are designed for future data centers.
Designed to help users achieve their business goals, they adopt Huawei's proprietary algorithms to efficiently deploy data across media, fully utilizing the SSD space to accelerate mission-critical data. Their comprehensive convergence and value-added features deliver leading system efficiency and reliability, while the built-in Insight module provides intelligent prediction. The systems supercharged by the features provide diversified storage services to users, ideal for the finance, government, manufacturing, education, healthcare, energy, and media and entertainment sectors.
Designed to help users achieve their business goals, they adopt Huawei's proprietary algorithms to efficiently deploy data across media, fully utilizing the SSD space to accelerate mission-critical data. Their comprehensive convergence and value-added features deliver leading system efficiency and reliability, while the built-in Insight module provides intelligent prediction. The systems supercharged by the features provide diversified storage services to users, ideal for the finance, government, manufacturing, education, healthcare, energy, and media and entertainment sectors.
Product Features
Endless Evolution | Flash-Like Performance | Cost Effectiveness |
• A single storage system meets the diverse needs of multiple services — including block, files, container, virtualization, and more — yielding higher storage utilization and lower Total Cost of Ownership (TCO). • Gateway-free active-active deployment for Storage Area Network (SAN) and Network-Attached Storage (NAS) supports smooth upgrade to geo-redundant Three-Data-Center (3DC)/Four-Data-Center (4DC) Disaster Recovery (DR) solutions. • The ransomware protection solution features Air Gap, secure snapshots, and End to End (E2E) encryption technologies to effectively defend against ransomware attacks. | • Innovative Smart Acceleration technology uses the dynamic adaptive data layout algorithm to accelerate hot data, resulting in two times higher performance than the preceding generation. • The system supports high-density snapshots while meeting high performance and reliability service requirements. • E2E Non-Volative Memory express (NVMe) architecture slashes latency to just 0.05 ms for a premium, all-flash experience. | • Data streams flow across generations — entry-level, mid-range, and high-end storage systems — requiring no extra costs.• The system supports up to 16 controllers, creating a linear increase in system performance to support service growth. • The Data Management Engine (DME) interconnects with Ansible and mainstream Information Technology (IT) service management platforms like ServiceNow, reducing Operations and Maintenance (O&M) costs. |
Specification
Model | OceanStor 5310 | OceanStor 5510 | OceanStor 5610 | |||
Hardware Specifications | ||||||
Maximum Number of Controllers | 16 | 16 | 16 | |||
Maximum Cache (Dual Controllers, Grows with the Expansion of Controllers) | 128 GB to 2 TB | 384 GB to 4 TB | 768 GB to 8 TB | |||
Supported Storage Protocols | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP, S3* | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP, S3* | FC, iSCSI, NFS, CIFS, FC-NVMe, NVMe over RoCE, FTP*, HTTP*, NDMP, S3* | |||
Front-End Channel Port Types | 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25 Gbps NVMe over RoCE | 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25 Gbps NVMe over RoCE | 8/16/32 Gbps FC/FC-NVMe, 1/10/25/40/100 Gbps Ethernet, 25 Gbps NVMe over RoCE | |||
Back-End Channel Port Types | 100 Gbps RDMA/SAS 3.0 | 100 Gbps RDMA/SAS 3.0 | 100 Gbps RDMA/SAS 3.0 | |||
Maximum Number ofHot-Swappable I/O Modules per Controller Enclosure | 6 | 12 | 12 | |||
Maximum Number of Front-End Host Ports per Controller Enclosure | 40 | 48 | 48 | |||
Disk Types | NVMe TLC SSD, SAS TLC SSD, SAS, NL-SAS | NVMe TLC SSD, SAS TLC SSD, SAS, NL-SAS | NVMe TLC SSD, SAS TLC SSD, SAS, NL-SAS | |||
Software Specifications | ||||||
RAID Levels | RAID 10*, RAID 5, RAID 6 and RAID-TP (tolerating simultaneous failure of three disks) | RAID 10*, RAID 5, RAID 6 and RAID-TP (tolerating simultaneous failure of three disks) | RAID 10*, RAID 5, RAID 6 and RAID-TP (tolerating simultaneous failure of three disks) | |||
Value-Added Software | SmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression, SmartDedupe, SmartMigration for NAS, SmartMobility, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperDetect, HyperEncryption, HyperLink*, CloudVxLAN, CloudBackup* | SmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression, SmartDedupe, SmartMigration for NAS, SmartMobility, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperDetect, HyperEncryption, HyperLink*, CloudVxLAN, CloudBackup* | SmartAcceleration, SmartThin, SmartQuota, SmartMulti-Tenant, SmartQoS, SmartVirtualization, SmartMigration, SmartCompression, SmartDedupe, SmartMigration for NAS, SmartMobility, HyperSnap, HyperReplication, HyperClone, HyperMetro, HyperCDP, HyperLock, HyperDetect, HyperEncryption, HyperLink*, CloudVxLAN, CloudBackup* | |||
Storage Management Software | Device Manager | UltraPath | DME IQ | |||
Electrical Specifications | ||||||
Power Supply | 100V to 240V AC±10%, 192V to 288V DC, -38.4V to -75V DC | 100V to 240V AC±10%, 192V to 288V DC, -38.4V to -75V DC | 200V to 240V AC±10%, 192V to 288V DC | |||
Dimensions (H x W x D) | 2.5-inch controller enclosure: 86.1 mm x 447 mm x 520 mm 3.5-inch controller enclosure: 86.1 mm x 447 mm x 600 mm NVMe controller enclosure*:86.1 mm × 447 mm × 620 mm | 2.5-inch controller enclosure: 86.1 mm x 447 mm x 820 mm 3.5-inch controller enclosure: 86.1 mm x 447 mm x 900 mm NVMe controller enclosure*: 86.1 mm x 447 mm x 920 mm | 2.5-inch controller enclosure: 86.1 mm x 447 mm x 820 mm 3.5-inch controller enclosure: 86.1 mm x 447 mm x 900 mm NVMe controller enclosure*: 86.1 mm x 447 mm x 920 mm | |||
SAS disk enclosure: 86.1 mm × 447 mm × 410 mm NVMe disk enclosure*: 86.1 mm × 447 mm × 620 mm NL-SAS disk enclosure: 175 mm x 447 mm x 488 mm | SAS disk enclosure: 86.1 mm × 447 mm × 410 mm NVMe disk enclosure*: 86.1 mm × 447 mm × 620 mm NL-SAS disk enclosure: 175 mm x 447 mm x 488 mm | SAS disk enclosure: 86.1 mm × 447 mm × 410 mm NVMe disk enclosure*: 86.1 mm × 447 mm × 620 mm NL-SAS disk enclosure: 175 mm x 447 mm x 488 mm | ||||
Weight (Excl. Disk Units) | 2.5-inch controller enclosure: 23.75 kg 3.5-inch controller enclosure: 24.1 kg NVMe controller enclosure*: 21.25 kg | 2.5-inch controller enclosure: 38.05 kg 3.5-inch controller enclosure: 38.5 kg NVMe controller enclosure*: 40.65 kg | 2.5-inch controller enclosure: 38.05 kg 3.5-inch controller enclosure: 38.5 kg NVMe controller enclosure*: 40.65 kg | |||
2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg NVMe disk enclosure*: 24.95 kg | 2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg NVMe disk enclosure*: 24.95 kg | 2.5-inch SAS disk enclosure: 13.4 kg 3.5-inch SAS disk enclosure: 26.5 kg NVMe disk enclosure*: 24.95 kg | ||||
Operating Temperature | -60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure)1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m | -60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure)1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m | -60 m to +1800 m altitude: 5°C to 35°C (cabinet) or 40°C (enclosure)1800 m to 3000 m altitude: The maximum temperature threshold decreases by 1°C for every altitude increase of 220 m | |||
Operating Humidity | 10% to 90% RH | 10% to 90% RH | 10% to 90% RH | |||
Packing & Delivery
Packing
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
1. All products will be packed in carton, so the product can get effective protection to avoid damage.
2. Packaging according to customer requirement.
Shipping
1. We shipping via DHL / FedEx / TNT etc for samll orders. Yow can get your packages in about 3-5 days all over the world.
2. For big order, we will arrange Air cargo for your shipment, so it will be much cheaper than DHL, UPS etc.
3. You can choose your own shipping agent, we will provide good cooperation for it.
Company Profile
Combasst Industry Development Co.,Ltd.
Established in 2004, it is committed to providing customers with diversified, professional and customized ICT products, solution consulting design, and technology implementation services. At the same time, it combines the advantages of equipment from well-known global manufacturers to serve major operators and private network users as well as commercial customers.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
The company has a strong technical service and project sales team to provide customers with competitive ICT solutions and services. It has formed a technical leader in the field of communication industry, which can provide solutions for customers' different needs.
FAQ
1,Customers can contact us for any question by Telephone, Skype, Trade manager, E-mail, Whatsapp, QQ etc.
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges when the equipment and/or parts is shipped to Manufacturer/Supplier for service. COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed.
2,All products have been tested and packaged in good condition before dispatch.
3,COMBASST will be responsible for defects in workmanship & materials and product’s quality issue while the product is used properly according to the manual and in warranty.
4,We provide 3-5 year warranty and life-long technical support for all our product.
5,Any part that upon COMBASST’s examination proves defective, return or other solutions per discussion.
6,Return and Freight:
1).Under Warranty: The customer is responsible for freight & insurance charges, includes custom charges when the equipment and/or parts is shipped to Manufacturer/Supplier for service. COMBASST is responsible for the freight & insurance charges to the customer.
2).Warranty period: The customer is responsible for any freight & insurance charges.
7,We can provide detail documents and remote technology support for device installation and configuration if needed.
Похожие товары
Лучшая Скидка H PE MSA 2060 12 Гб SAS SFF хранилище
IBM TS4300 Ленточная

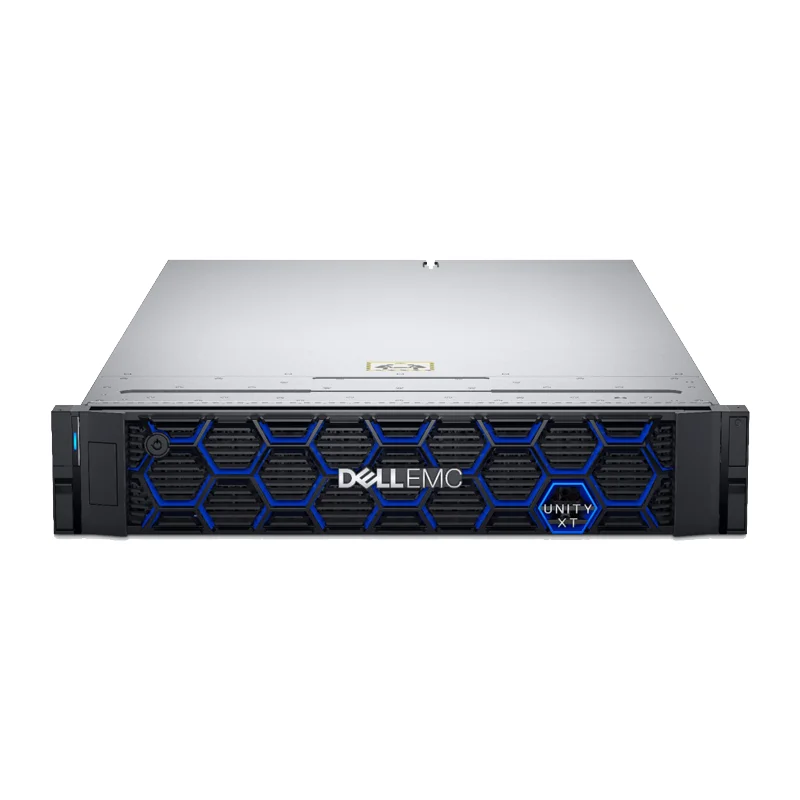

Массивы XT All-Flash (AFA) запускаются в гладком форм-факторе 2U с современной архитектурой unity xt880f
