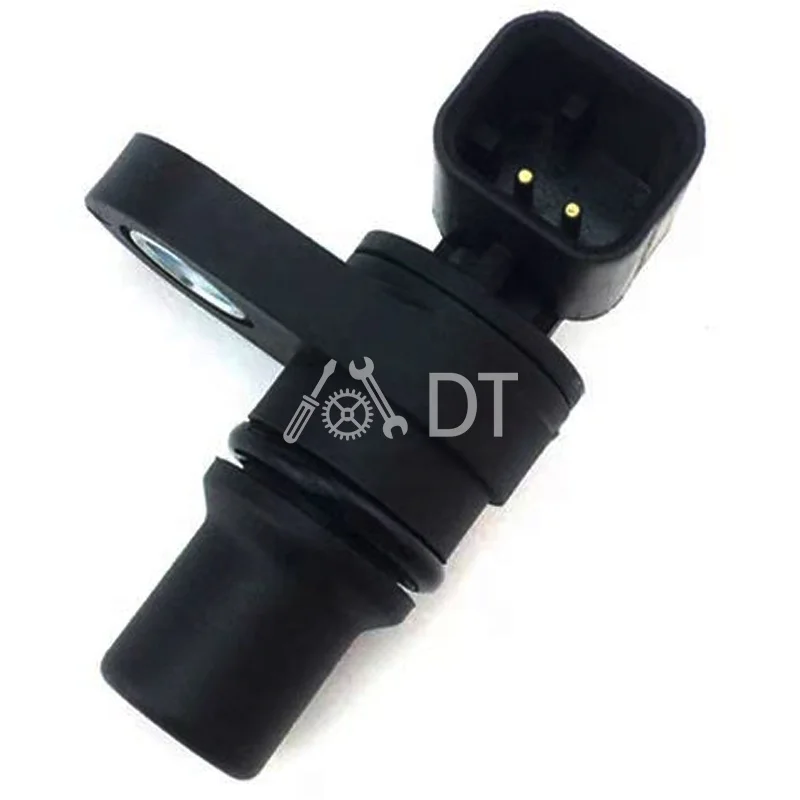

Caterpillar CAT 238-0120 датчик времени распределительного вала двигателя Датчик положения датчик скорости высокого качества
5 482,42 ₽ - 6 030,67 ₽
Запчасти для экскаватора Belparts doosan dx225lc Поворотный двигатель sg04e s160 tb145
- Категория: >>>
- Поставщик: Gz Yuexiang Engineering Machinery Ltd.
Сохранить в закладки 1601201714228:
Описание и отзывы
Характеристики
Product Description

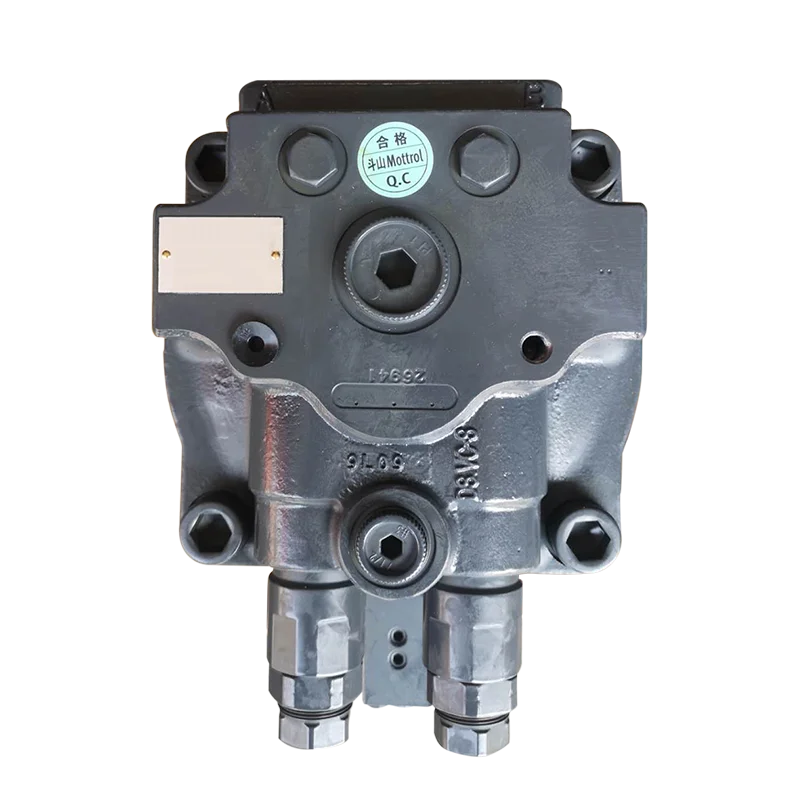

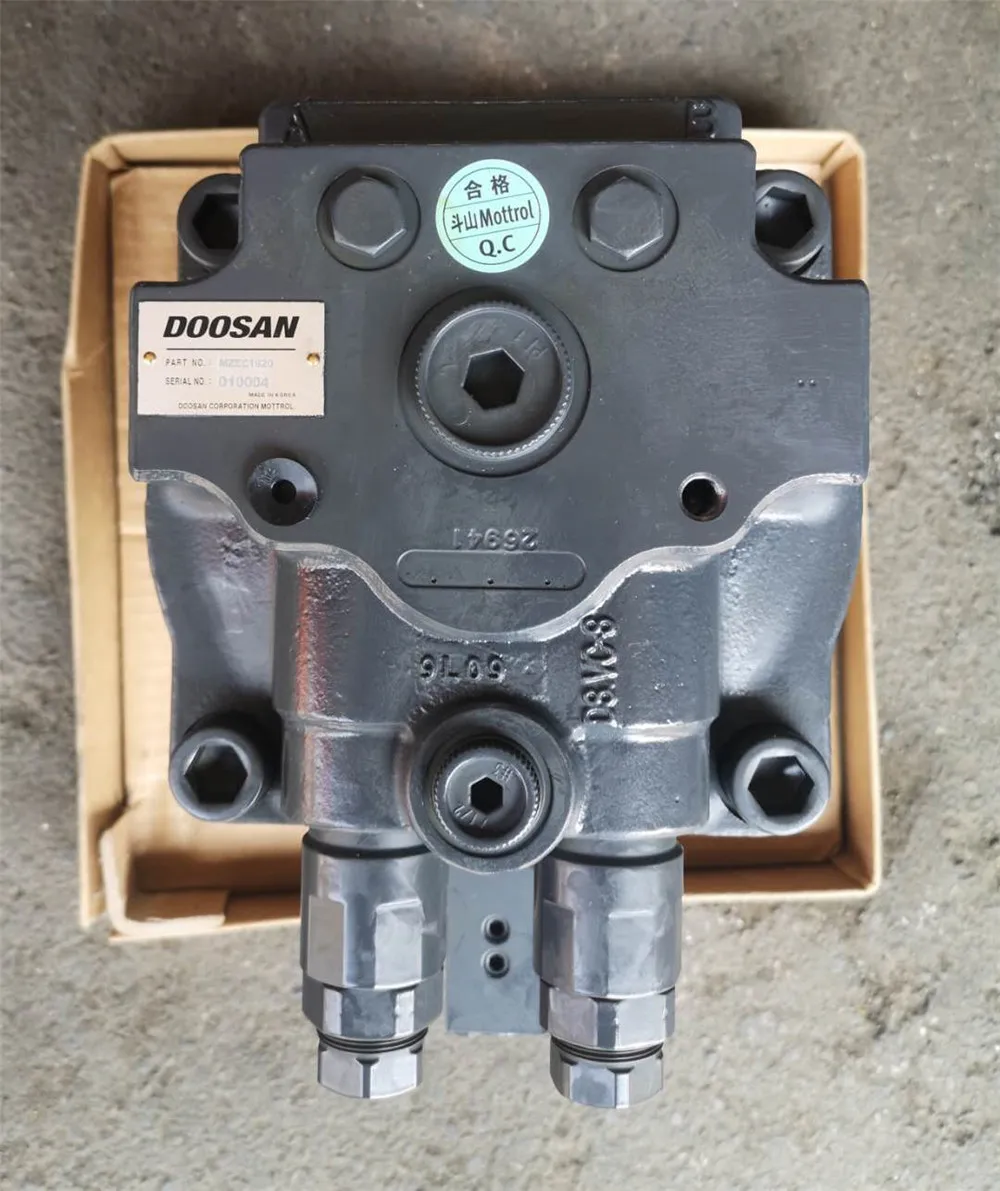

Belparts excavator parts doosan dx225lc swing motor slewing motor sg04e s160 tb145
Application | Crawler excavator |
Part name | Swing Motor |
Part number | |
Model | sg04e s160 tb145 |
Warranty | Negotiable |
Payment term | T/T, Western union, paypal, trade assurance or as required |
After sales service | Online |
# | Part No | Part Name | Qty. | Price request |
9177550 | MOTOR; OIL | 1 | ||
(9196961) | MOTOR; OIL | 1 | ||
01 | 8080152 | . CASING | 1 | |
01A | .. CASING; MOTOR | 1 | ||
01B | .. PLUNGER; ASS'Y | 1 | ||
02 | 4320490 | . SEAL; OIL | 1 | |
03 | 3085794 | . SHAFT | 1 | |
05 | 991342 | . RING; RETAINING | 1 | |
06 | 4402669 | . BRG.; ROL. | 1 | |
07 | 940144 | . RING; RETAINING | 1 | |
08 | 4396102 | . PLATE; SWASH | 1 | |
10 | 2043442 | . ROTOR | 1 | |
12 | 4413753 | . SPRING; DISC | 1 | |
13 | 4413700 | . BUSHING | 1 | |
14 | 8071556 | . PISTON | 9 | |
15 | 3081727 | . RETAINER | 1 | |
17 | 3087818 | . PLATE; FRICTION | 4 | |
19 | 3075729 | . PLATE | 4 | |
21 | 3084716 | . PISTON | 1 | |
22 | 4413765 | . O-RING | 1 | |
23 | 4413764 | . O-RING | 2 | |
24 | 4434436 | . SPRING; DISC | 1 | |
26 | 3089613 | . PLATE; VALVE | 1 | |
28 | 9177595 | . VALVE; BRAKE | 1 | |
28 | (9198979) | . VALVE; BRAKE | 1 | |
29 | 4413768 | . BRG.; NEEDLE | 1 | |
30 | 4413761 | . PIN; KNOCK | 2 | |
32 | A590916 | . WASHER; SPRING | 4 | |
34 | M341650 | . BOLT; SOCKET | 4 | |
36 | M492564 | . SCREW; DRIVE | 2 | |
37 | 3088886 | . NAME-PLATE | 1 | |
41 | 9134110 | . PLUG | 3 | |
41A | 957366 | .. O-RING | 1 | |
43 | 9134109 | . PLUG | 1 | |
43A | 4506408 | .. O-RING | 1 | |
45 | 4399892 | . POPPET | 1 | |
46 | 4398846 | . SPRING; COMPRES. | 1 | |
47 | 4452178 | . WASHER; PLANE | 1 | |
50 | 4398889 | . SPRING; COMPRES. | 1 |
Belparts Swing Motor | Swing Motor Assy Supplier | ||||
31N6-10210 | R210LC-7 | 2401-9254 A/B/G | Solar 55 | ||
31E6-12020 | R130LC3 | 170301-00126 K1016316C | DX140LC | ||
31N4-10130 | R140LC7 | 170301-00160A | DX140LC-3 | ||
31EL-12060-01 | R180LC | 170301-00009 | DX140LCR | ||
31EL-12060 | R180LC7 | 401-00462K | DX140W | ||
31Q5-10160 | R180LC9 | 170301-00088A | DX140W-3 | ||
31N6-10210 | R210LC7 | K1033400A | DX170W | ||
31EM-10120 | R220LC7 | 2401-1263A | Solar 170-3 | ||
31N7-10160 | R250LC7 | 401-00036G | Solar 170LC-V | ||
31N7-11160 | R250LC7 | 2401-1194 | Solar 170-3 | ||
31E5-12210 | R320LC-3 | K1013964A | Solar 180W-V | ||
31N8-12020 | R320LC-7 | 170301-00066 | Solar 185W-V | ||
31NA-10160 | R360LC-7 | 170301-00066B | |||
31NB-11140-01 | R450LC | 170301-00066A | |||
14550092 | EC460B | 401-00051 A/B | Solar 200W-V | ||
14625697 | EC360B | 170301-00110A | DX210W | ||
14550091 | EC210B M5X130CHB | 170301-00110B | |||
1142-00651 | M2X170CHB | K1009865C | |||
14550092 | M5X130CHB | 170301-00067 | Solar 210W-V | ||
2401-9255A | Solar 55 | 170301-0006A | |||
2401-9255B | 401-00051C | ||||
2401-9255C | 401-00051E | ||||
2401-9255E | 401-00051G | ||||
2401-9255G | 170301-00109A | DX225LC | |||
2401-9255K | 170301-00109B | ||||
2401-9255K | Solar 55W-V | K1015490 | |||
401-000062A | K1015490A | ||||
2401-9133 | Solar 130-2 | 170301-00111B | DX225LCA | ||
2401-6176B | Solar 130-3 | K1045919 | |||
2401-9102P | Solar 130W | 170301-00113 | DX225NLC | ||
2401-9139P | Solar 130W-3 | 170301-00113A | |||
37S0C006N0011 | Solar 130W-V | 2401-9099P | Solar 210LC | ||
170303-00003 | DX140LCR | 2401-1199 | Solar 210LC-3 | ||
170303-00003A | 2401-1269A | Solar 220LC-V | |||
170303-00068 | DX140W-3 | 2401-1269B | |||
170303-00041A | DX170W | 2401-1269G | |||
K1037394A | 2401-1269J | ||||
401-00086 | Solar 170LC-V | 2401-1269K | |||
2401-9159A | Solar 170W-3 | 2401-1269L | |||
170303-00048 | DX180LC | 2401-1269N | |||
170303-00049 | DX225LCA | 2401-1269E | Solar 220N-V | ||
170303-00049B | 170301-00011 | Solar 225LC-V | |||
K1045024 | 401-00375 A/B/C | Solar 225NLC-V | |||
170303-00043 | K1039373 | DX230LC | |||
2401-9099C | Solar 220lc | 170301-00028 | DX235LCR | ||
2401-9219A | Solar 220lc-3 | 401-00325G | Solar 230LC-V | ||
2401-9284 | Solar 220LC-V | 170301-00121A | DX255LC | ||
2401-9284A | 170301-00121B | ||||
401-00086A | K1010121B | ||||
401-00086B | K1010121C | ||||
K9000352 | 170301-00162B | DX255LC-3 | |||
401-00391 | 401-00125 A/B/C | Solar 250LC-V | |||
401-00391A | Solar 230LC-V | 401-00316A | Solar 255LC-V | ||
170303-00052 | DX255LC | 401-00316B | |||
170303-00052A | 2401-1166 | Solar 280LC-3 | |||
170303-00072 | DX255LC-3 | 2401-1247 | |||
401-00126A | Solar 250LC-V | 2401-1247A | |||
K1007950 | Solar 255 | 2401-1246 A/B/C | Solar 290LC-V | ||
2401-90965AP | Solar 280LC | 2401-1266A/B/C/E | Solar 330LC-V | ||
2401-9141B | Solar 280LC-3 | 401-00298B | Solar 340lc-v | ||
2401-9141C | 401-00298C | ||||
2401-9242 | Solar 290LC-V | 401-00298E | |||
2401-9242B | 2401-1273A | Solar 400LC-V | |||
170303-00064 | DX300LC-3 | 2401-1273B | |||
2401-9291 | Solar 330LC-V | 2401-1273C | |||
2401-9304A | Solar 450LC-V | 2401-1273E | |||
170303-00047A | 2401-1273G | ||||

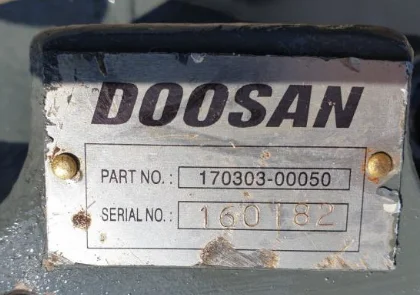

170303-00050 | DX480LC | 2401-1273H | |||
170303-00050A | 2401-1273E | Solar 420LC-V | |||
170303-00050B | 2401-1273G | ||||
401-00086A | Solar 220LC-V | 2401-1273H | |||
401-00086B | 2401-1280 | Solar 450-3 | |||
170303-00072 | DX255LC-3 | 2401-1280A | |||
2401-9141A | Solar 280LC-3 | 2401-1280B | |||
TSM195CHB | Solar 300LC | 2401-1280C | |||
2401-9291 | Solar 330LC-V | 2401-1280H | Solar 450LC-V | ||
2401-9309A | Solar 420LC-V | 2401-1280J | |||
2401-9304 | Solar 450-3 | 2401-1280K | |||
170303-00047 | Solar 470LC-V | 401-00249A | Solar 470LC-V | ||
2401-9304B | 401-00249B | ||||
14550095 | EC290B | 401-00249C | |||
1142-00930 | EC210B | 401-00249E | |||
7118-30000 | EC210B | 401-00249G | |||
14550091 | M5X130CHB | K1000757A/B | DX480LC | ||
1142-00651 | M2X170CHB | 170301-00001B | DX480LCA | ||
14550091 | EC210BLC | K1057317 | DX55 | ||
Related Products
Packing&Shipping
Packaging Details:
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
7.We support the custom-made demand for package.
1.According to orders,pack the spare parts one by one by oil paper.
2.Put them into small carton boxes one by one.
3.Put the packed small carton boxes into bigger carton boxes one by one.
4.Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.
5. Goods is packed by oil paper and plastic bags inside.
6.Using wooden case package.
7.We support the custom-made demand for package.
Company Introduction
About us
GZ Yuexiang Engineering Machinery Co., Ltd, founded in September 2013, is a foreign trade company, which is specialized in
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products
have been exported to more than 100 countries and regions.
procuring and selling excavator parts.
Our main products are excavator hydraulic pump, hydraulic parts, travel motor and gearbox, swing motor and gearbox. Our products
have been exported to more than 100 countries and regions.
MIAN PRODUCTS
We can supply excavator spare parts ( various brands )such as：
Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller, wire harness, boom/ arm / bucket cylinder, throttle motor, pedal valve, pilot valve, pusher, solenoid valve, sensor, hydraulic detector, center joint, friction plate, separate plate, turbo, water pump, oil cooler, radiator, inter cooler, breaker
Hydraulic parts, hydraulic pump, travel/swing gearbox, travel/swing motor, fan pump/motor, coupling and hub, gearpump, relief valve, control valve, regulator, floating oil seal, seal kit, bearing, swing circle, monitor, controller, wire harness, boom/ arm / bucket cylinder, throttle motor, pedal valve, pilot valve, pusher, solenoid valve, sensor, hydraulic detector, center joint, friction plate, separate plate, turbo, water pump, oil cooler, radiator, inter cooler, breaker
Exhibition
Exhibition strength
In the past few years, in order to sell our products all over the world, we have participated in many exhibitions, such as Beijing Construction Machinery Exhibition in 2017, Shanghai Bauma Exhibition in 2018, German Exhibition in 2019, and we will continue to participate in various exhibitions in the future to let our products go to the world.
Our Advantages
Strong part number database.
If you can provide the right model and part number, we can supply the right product.
If you can provide the right model and part number, we can supply the right product.
Professional and experienced salesperson.
Our founder has been into this field for more than 6 years, with rich experiences.
Our founder has been into this field for more than 6 years, with rich experiences.
Strict and complete company rules.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
We will try our best to meet customer’s delivery time. Before delivery, we must verify the part number or pictures of products one by one, to make sure that customers can receive high-quality and right-quantity goods.
Good management system.
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
No matter how big or small order, as long as customers place the order, we will provide exporting services free of charge.
Good service attitude.
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
As long as customers’ requirements are reasonable, we will endeavour to make them satisfied.
Belparts E308C E312C 312 E314D Excavator Swing Motor MFC80-015 1709893 170-9893 Motor Without Gearbox
Belparts E308C E312C 312 E314D Excavator Swing Motor MFC80-015 1709893 170-9893 Motor Without Gearbox
Belparts E308C E312C 312 E314D Excavator Swing Motor MFC80-015 1709893 170-9893 Motor Without Gearbox
Похожие товары
E320 E200B 1175046 кошачий 325 336 330Lc Cat325 Cat385C Cat322C Cat235 Cat257 Cat320 Cat336 Cat345Cl нижний гусеничный каток экскаватора
3 289,46 ₽ - 4 934,18 ₽

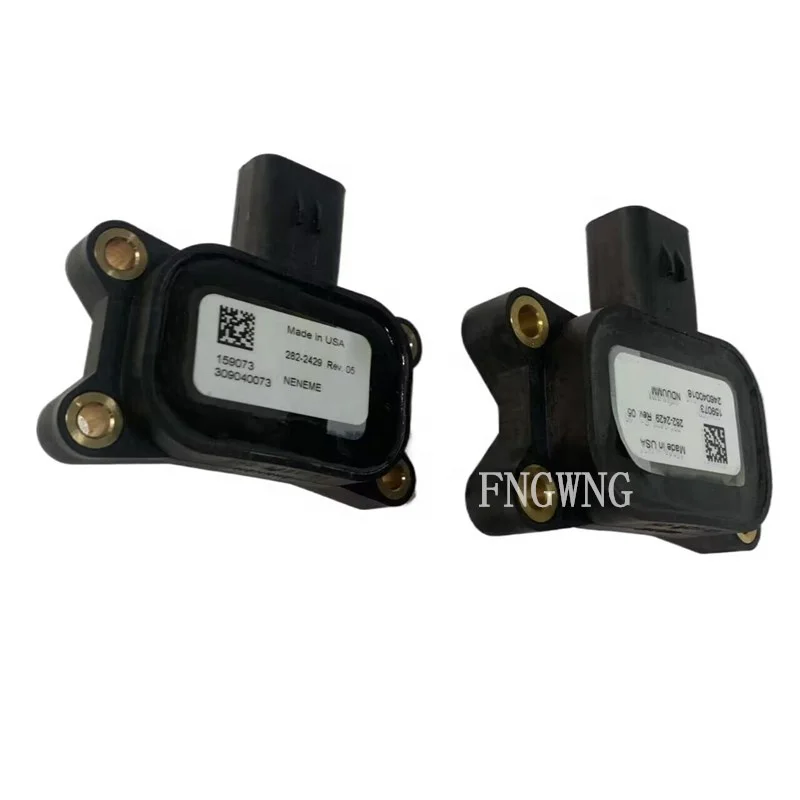

Экскаватор CAT 282-2429 датчик положения для гусеницы 966 м 972 м 966K погрузчик E336F E340F E349F E350F
51 534,75 ₽ - 52 411,94 ₽

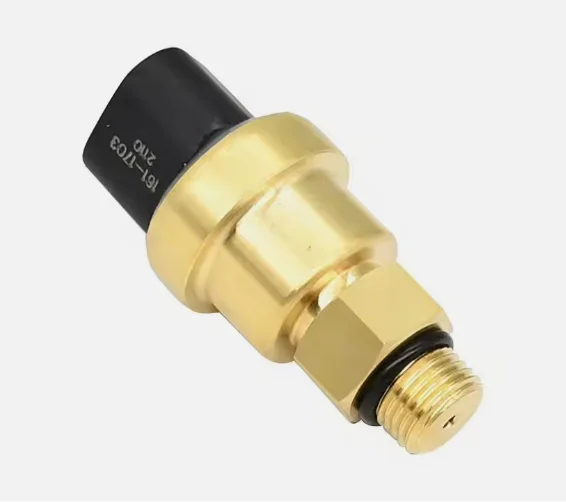

Распродажа, датчик давления масла 161-1703 1611703 подходит для CAT C7 C9 C12 C15 16 C18
1 096,49 ₽ - 2 192,97 ₽
Датчик привода кошки для гусеничного экскаватора запчасти 164-3592 1643592
1 096,49 ₽ - 2 192,97 ₽

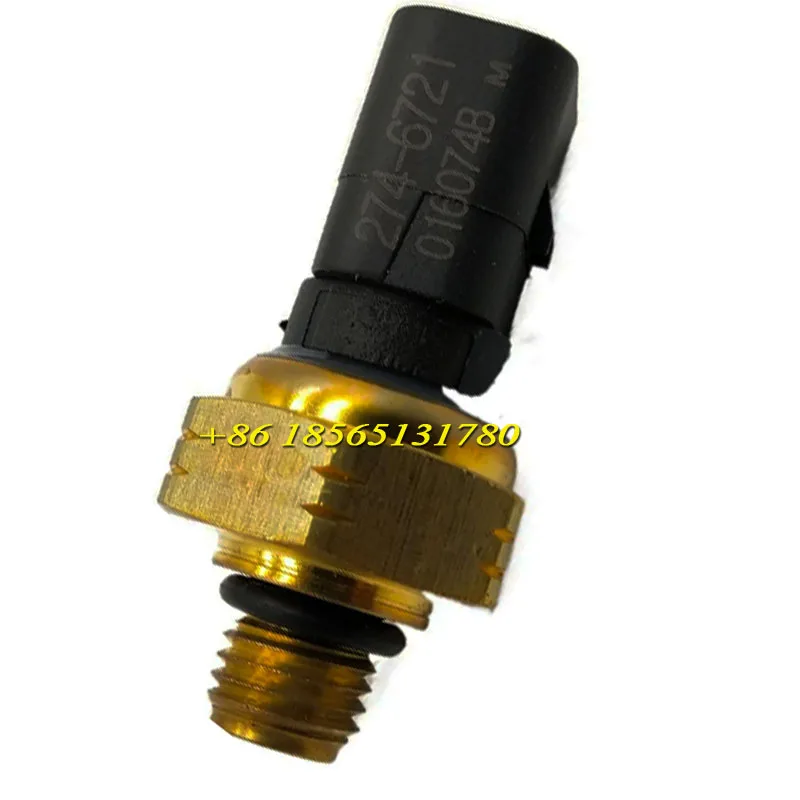

2746721 датчик давления 274-672 для гусеничного экскаватора датчик давления CAT 311D 320D 323D датчик давления масла по заводской цене
1 096,49 ₽ - 1 480,26 ₽

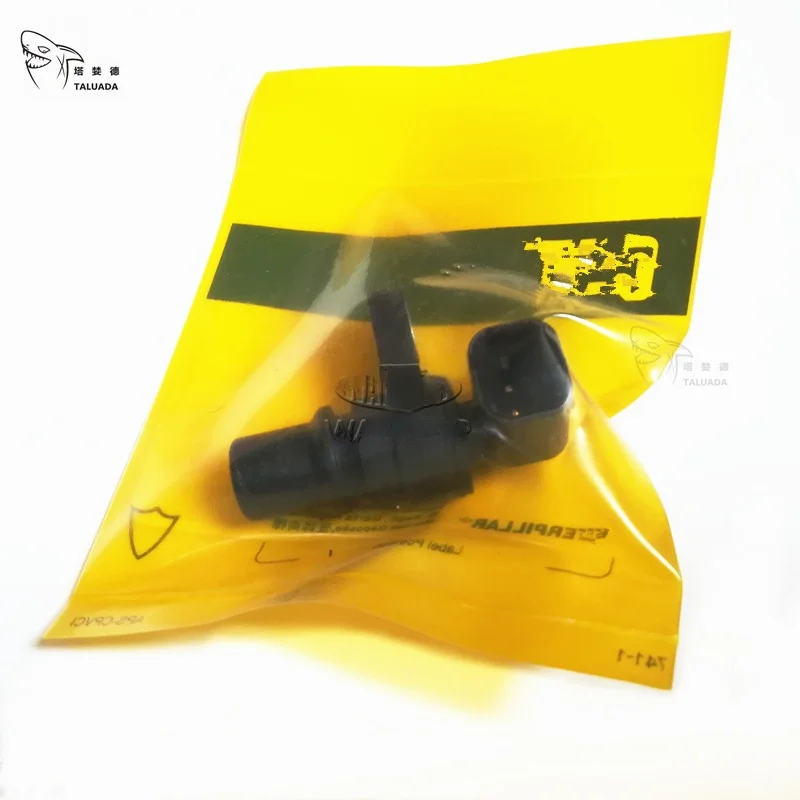

Высококачественный датчик для экскаватора TALUADA 312D 320D 320E 324E 450E новый датчик скорости D16M07Y14PR200 238-0120 2380120

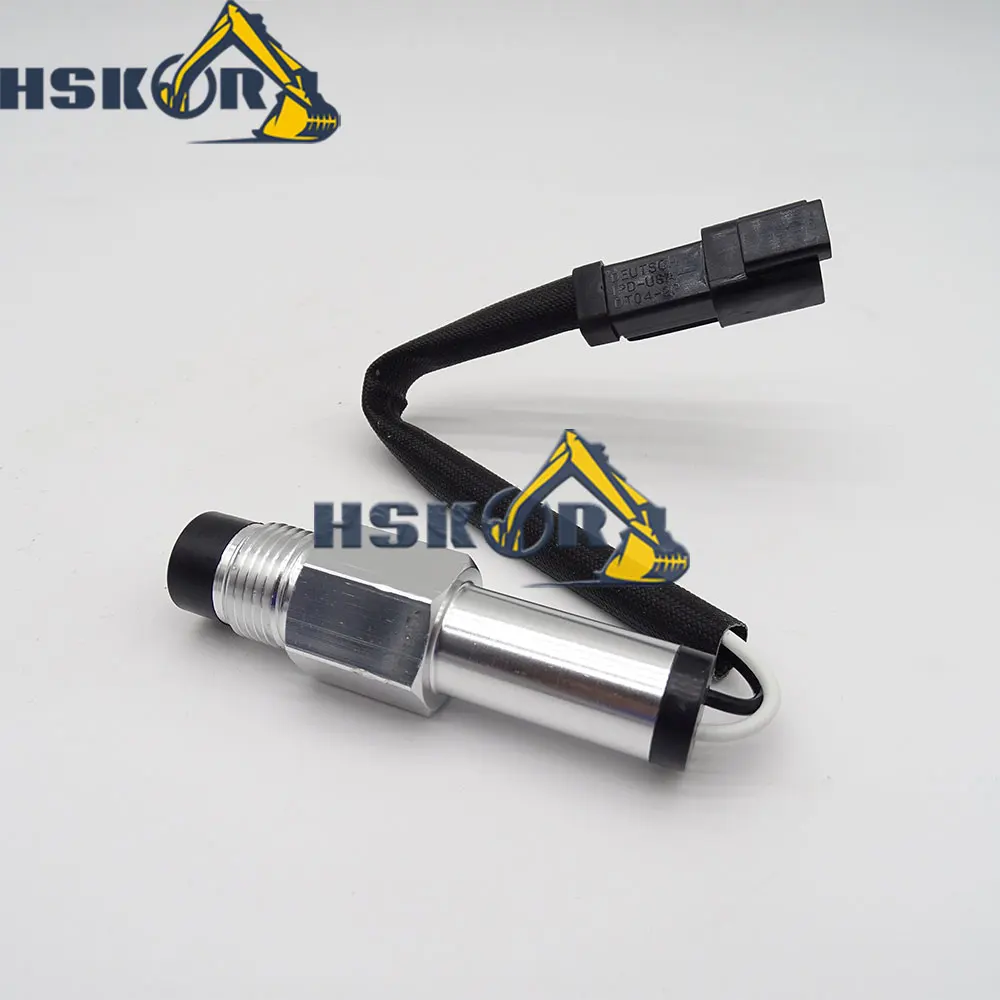

Для CAT 140H 120H 160H датчик скорости 1838597 183-8597
