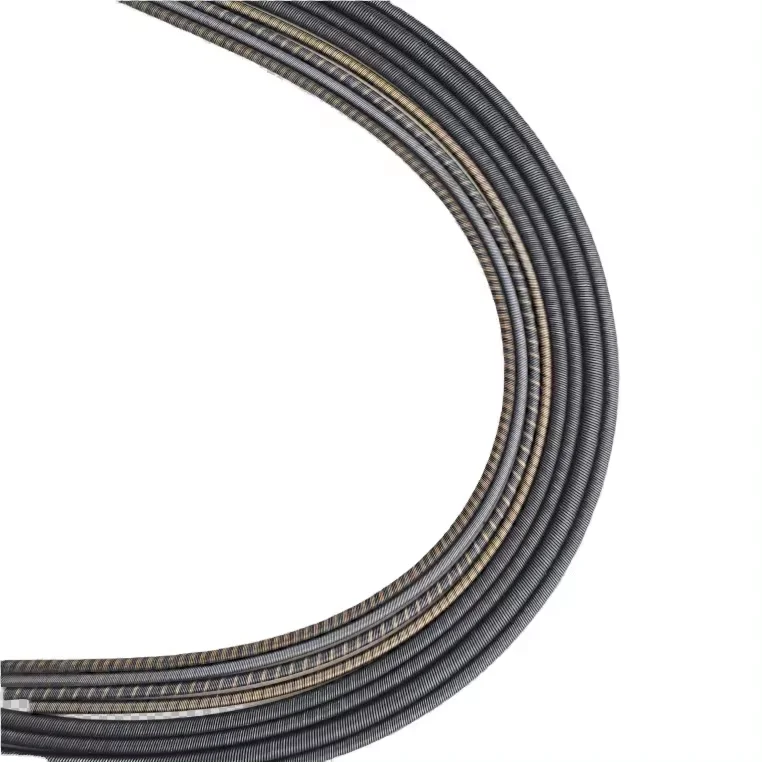

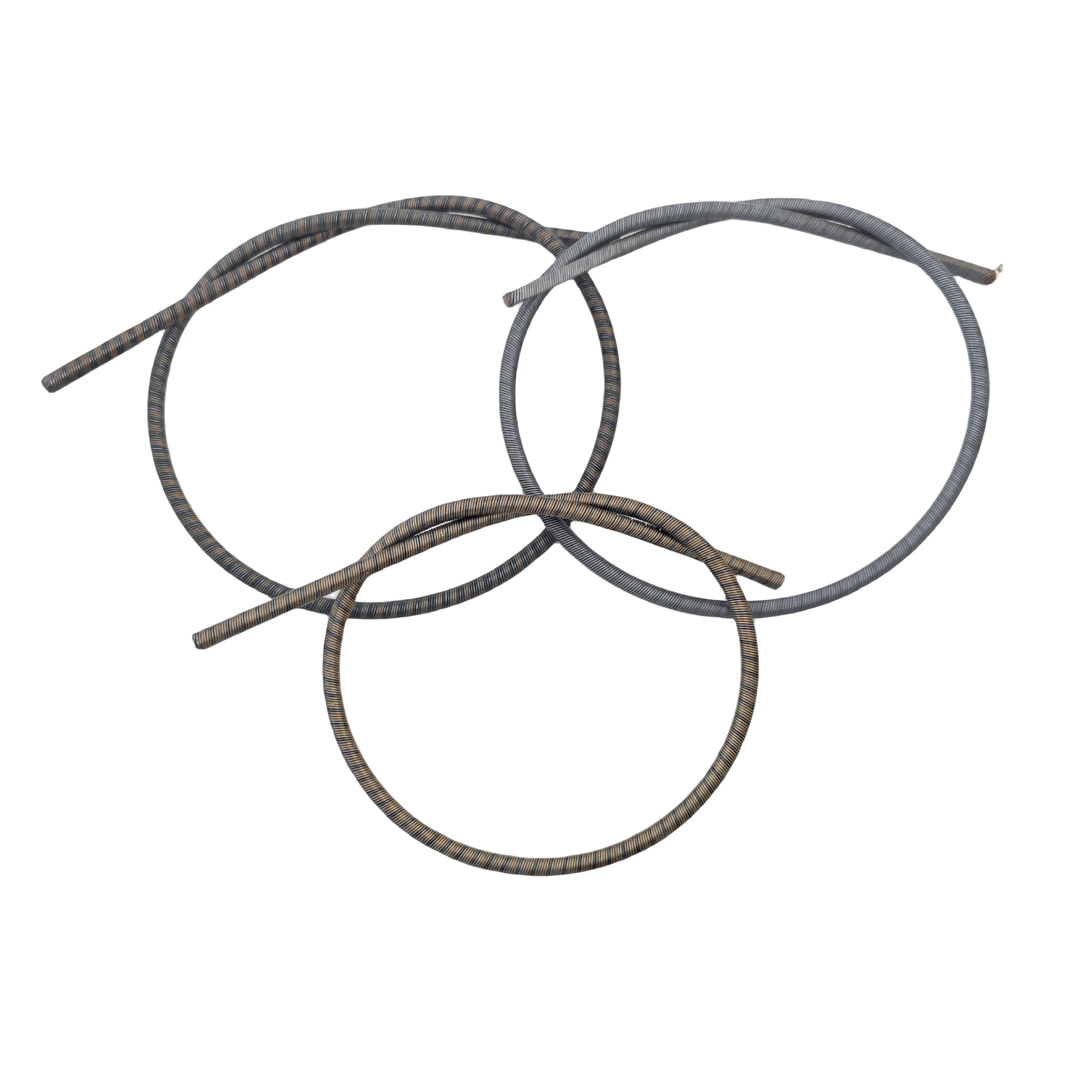

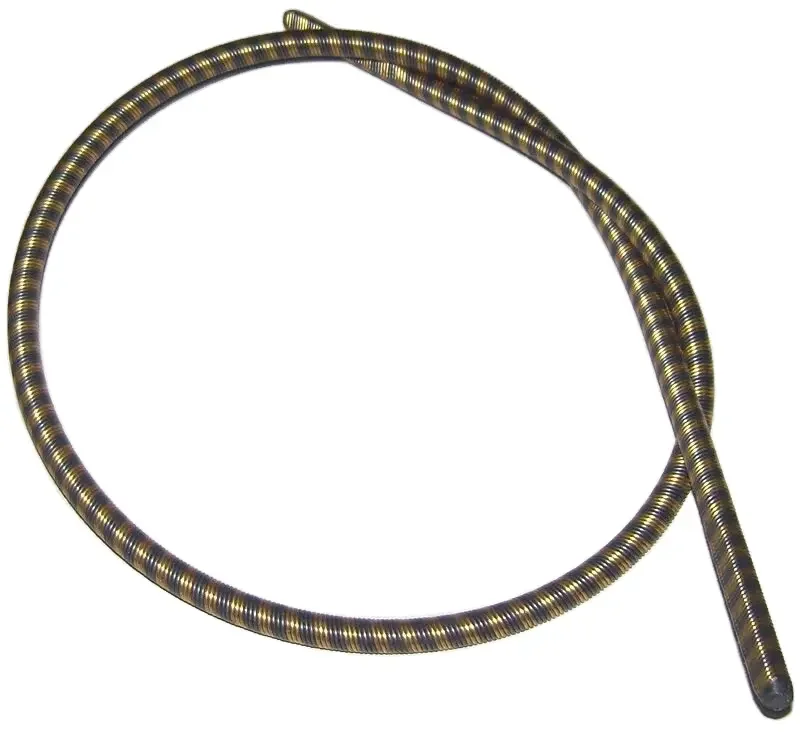

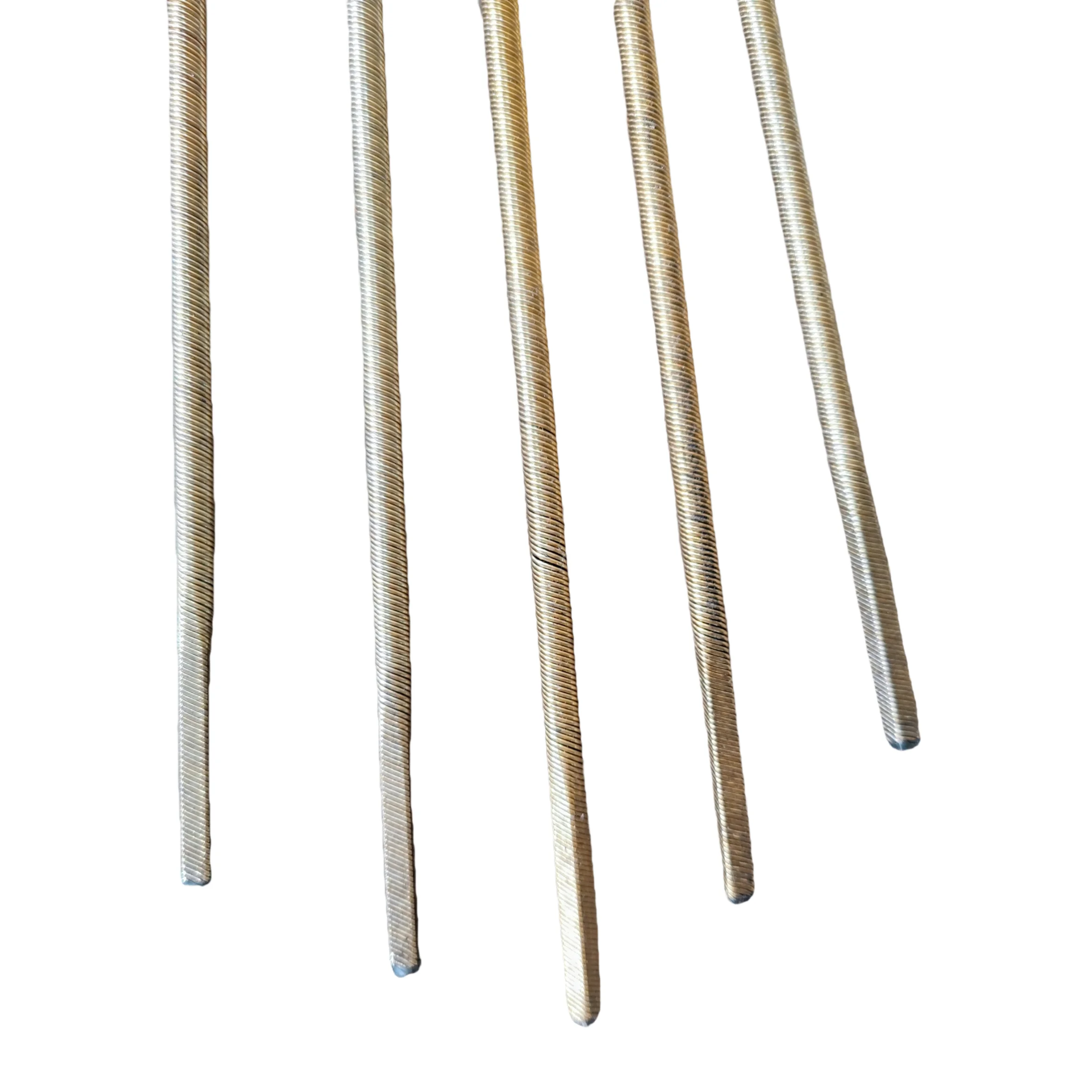

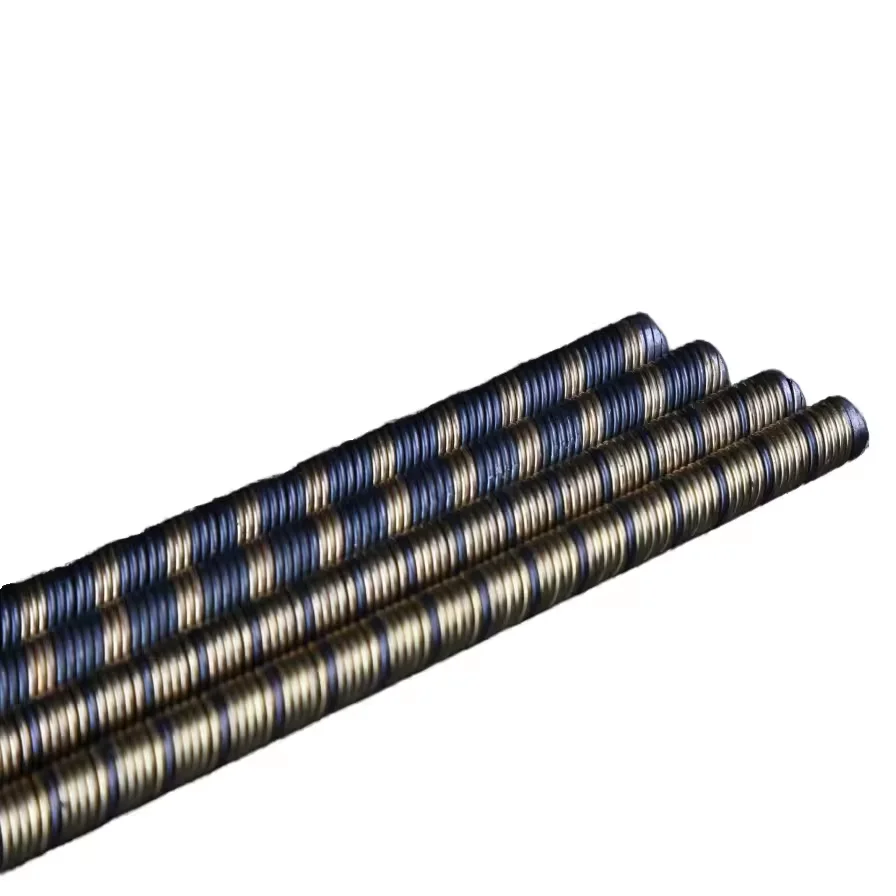

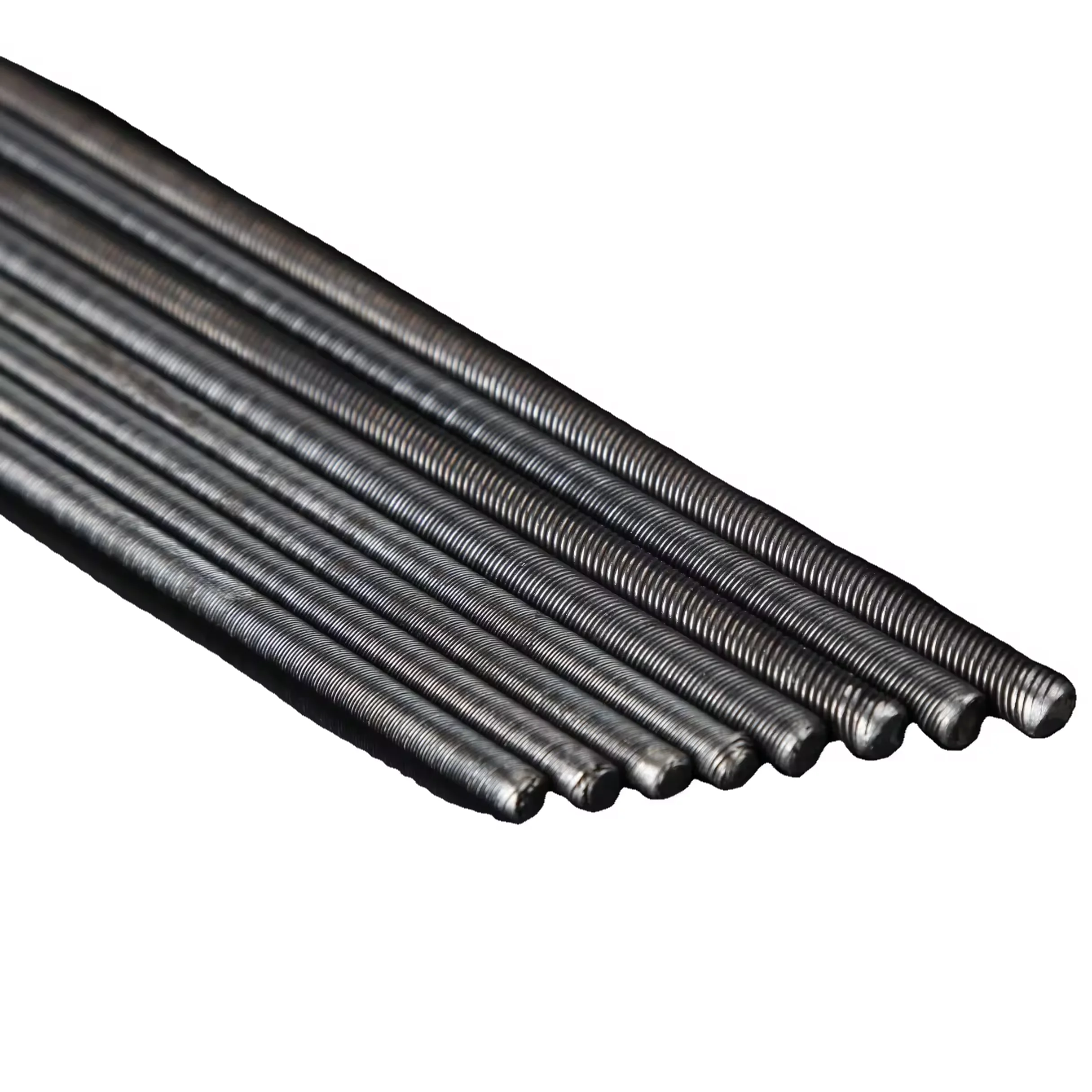

Прямая Продажа с фабрики углеродистая сталь новый гибкий стержень вала из нержавеющей стали

Сохранить в закладки 1601201815962:


Цена:114,43-445,00 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description











Specification








































































































































































































































































































PRODUCT SPECIFICATION PARAMETER FOR PART OF OUR PRODUCTS

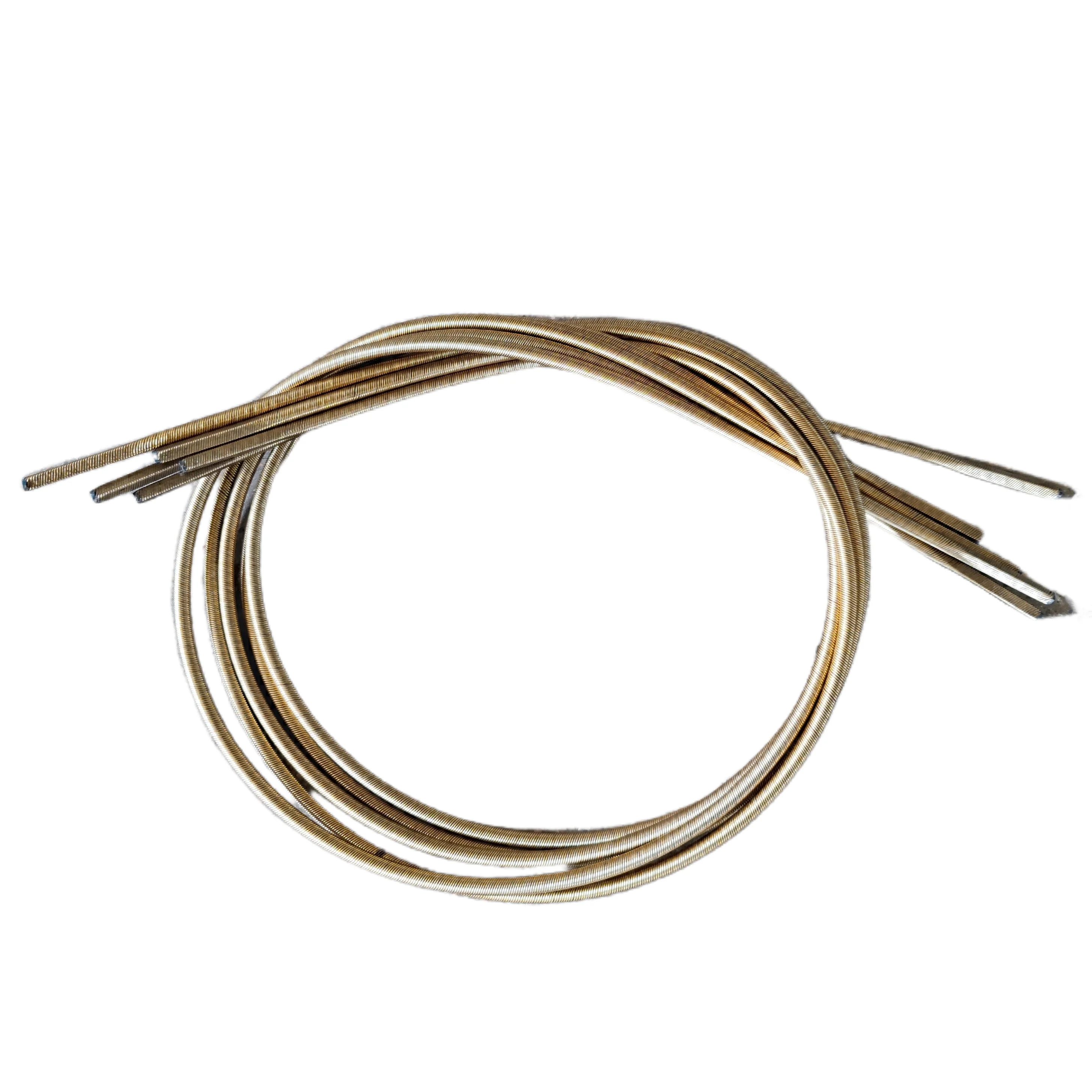

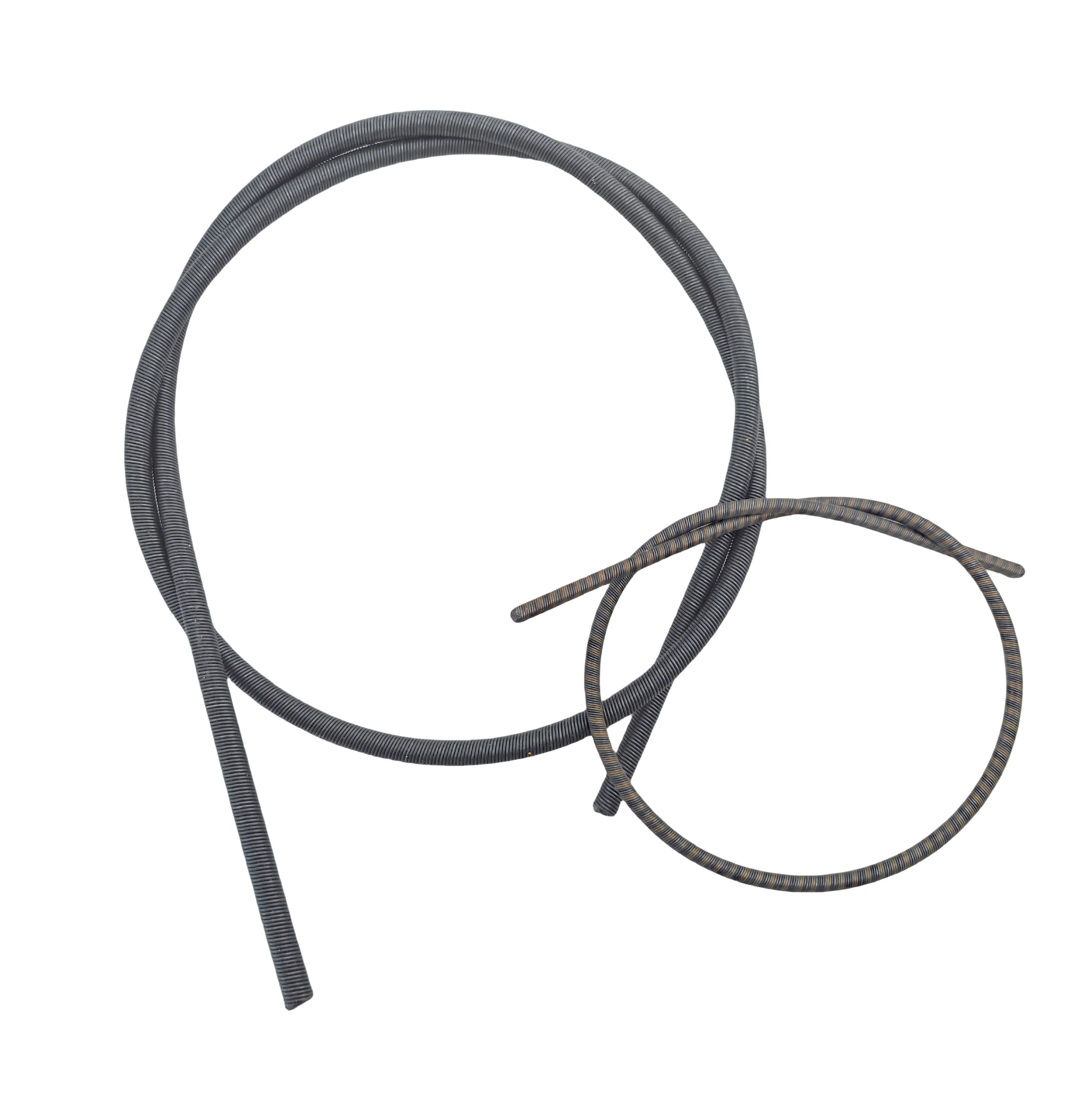

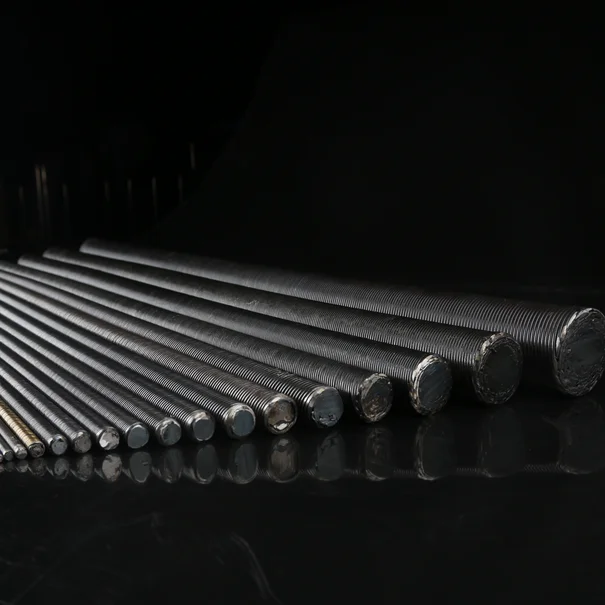

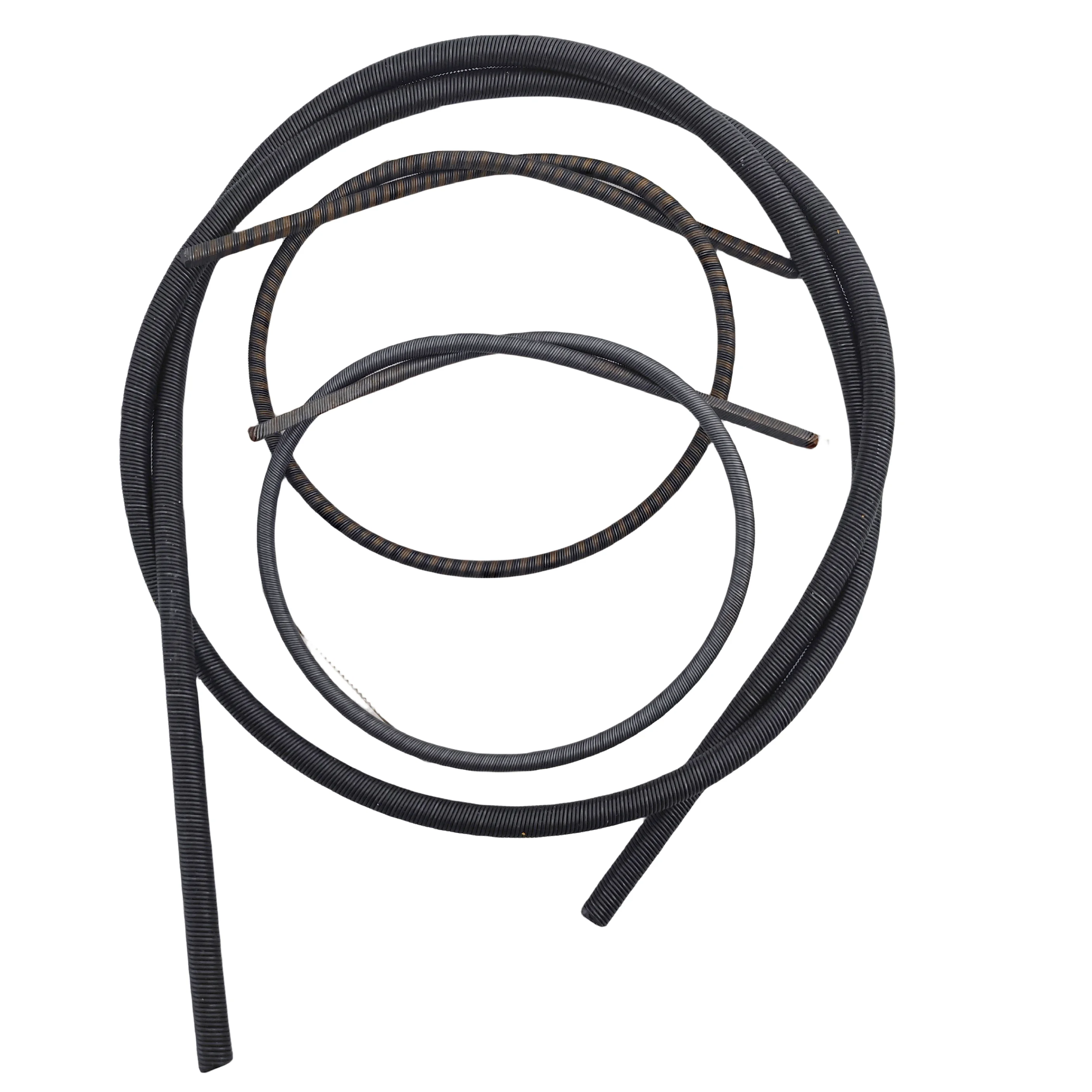

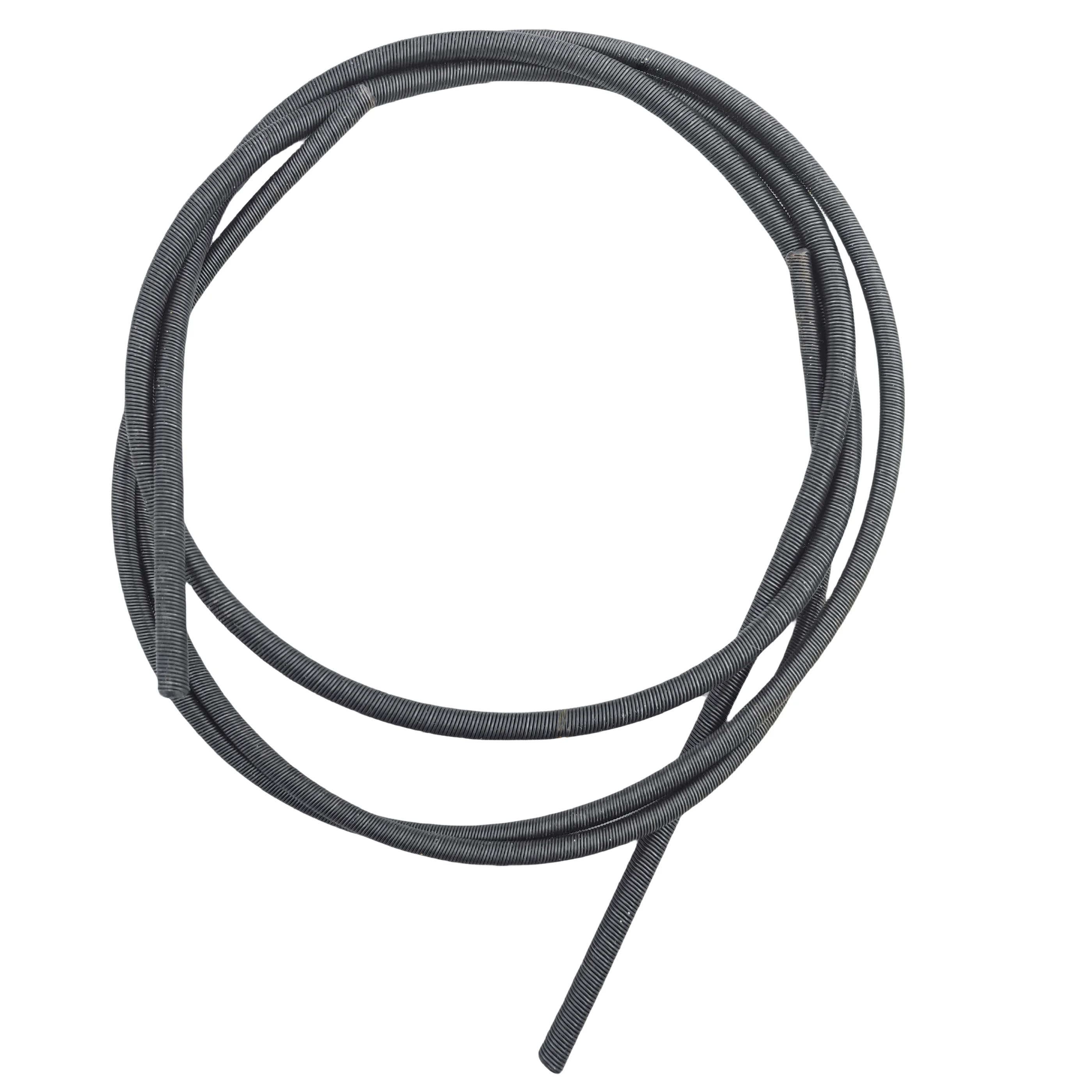

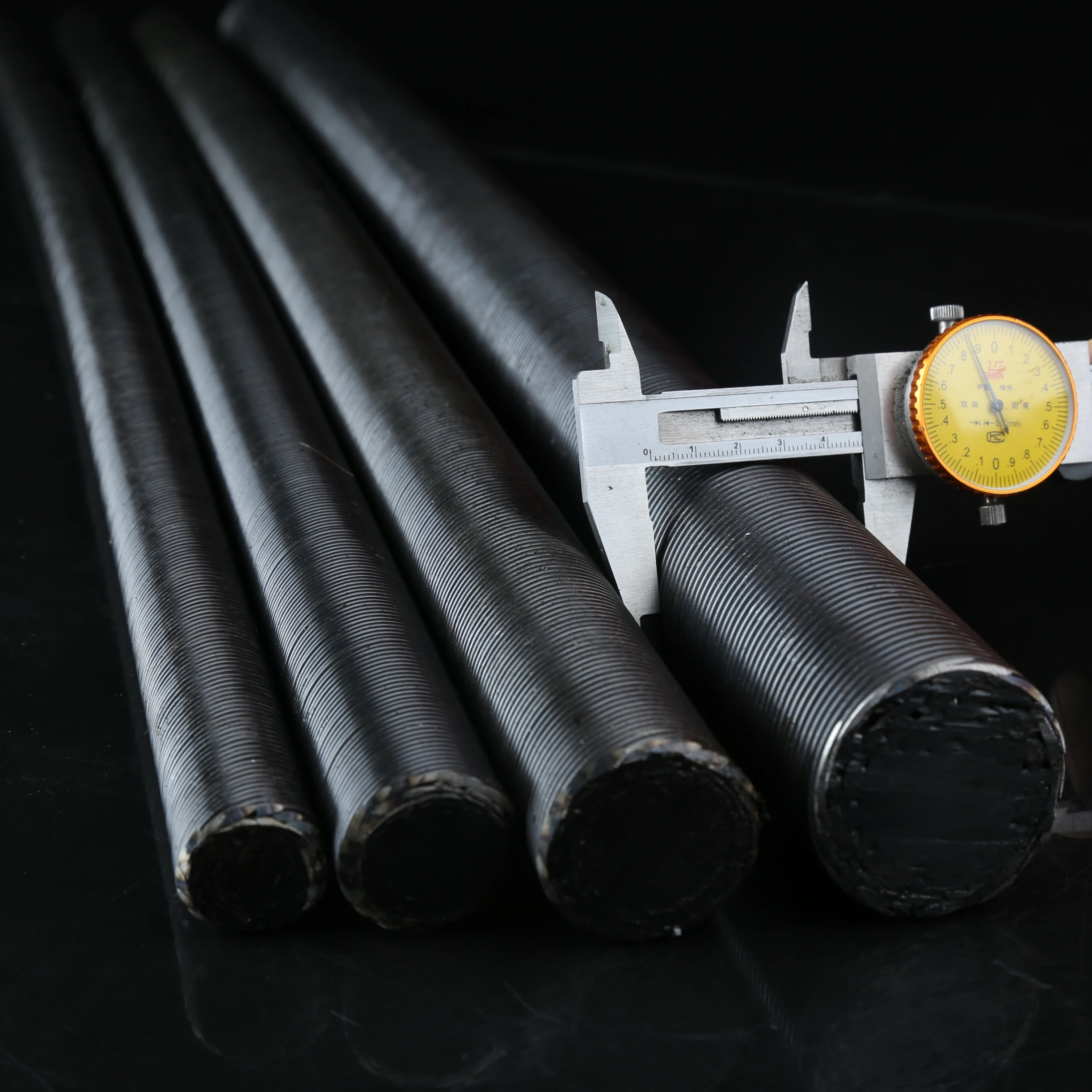

Flexible shaft
diameter(mm)
MaterialTolerance(mm)Bending Diameter (mm)LayerMax Failure Torque
(N.m)
Weight
(Kg/Meter)
0.9304 stainless steel wire(-0.05, 0)10-203 layers 1 core0.50.0036
1.5304 stainless steel wire(-0.1, 0)20-303 layers 1 core1.050.0100
2304 stainless steel wire(-0.1, 0)30-403 layers 1 core1.30.0178
3.2brass coated steel wire(-0.1, 0)40-604 layers 1 core2.80.0457
4304 stainless steel wire(-0.1, 0)60-804 layers 1 core5.20.0714
570#/65Mn(-0.12, 0)80-1004 layers 1 core6.80.1116
5.2304 stainless steel wire(-0.12, 0)80-1005 layers 1 core60.1207
6(normal)70#/65Mn(-0.15, 0)90-1106 layers 1 core6.60.1606
6.3570#/65Mn(-0.15, 0)140-1604 layers 1 core150.1799
6.5brass coated steel wire(-0.15, 0)100-1207 layers 1 core9.50.1885
7304 stainless steel wire(-0.15, 0)140-1605 layers 1 core160.2186
8(all black)70#/65Mn(-0.15, 0)100-1205 layers 1 core370.2856
8(5 brass coated
3 black)
brass coated steel wire+70#(-0.15, 0)140-1605 layers 1 core300.2856
970#/65Mn(-0.15, 0)180-2004 layers 1 core420.3614
9.15(high speed)70#/65Mn(-0.15, 0)240-2605 layers 1 core450.3736
9.5(all brass coated)brass coated steel wire+70#(-0.15, 0)150-1806 layers 1 core500.4027
10(normal)70#/65Mn(-0.18, 0)240-2604 layers 1 core500.4462
12(normal)70#/65Mn(-0.18, 0)250-2705 layers 1 core700.6425
13(normal)70#/65Mn(-0.18, 0)260-2805 layers 1 core1100.7541
14(normal)70#/65Mn(-0.18, 0)280-3005 layers 1 core900.8746
15(normal)70#/65Mn(-0.18, 0)320-3405 layers 1 core1201.0040
16(normal)70#/65Mn(-0.18, 0)340-3605 layers 1 core1801.1423
18(normal)70#/65Mn(-0.18, 0)450-4805 layers 1 core2101.4457
20(normal)70#/65Mn(-0.25, 0)650-700/1000-11005 layers 1 core3601.7848
22(normal)70#/65Mn(-0.25, 0)1000-11005 layers 1 core4002.1596
2570#/65Mn(-0.2,0.3)900-110010 layers 1 core5702.7888
2670#/65Mn(-0.3,0.3)900-11007 layers 1 core9503.0163
27(normal)70#/65Mn(-0.5,0)900-11007 layers 1 core5203.2528
32(normal)70#/65Mn(-0.5,0)1000-12009 layers 1 core6804.5691
4070#/65Mn(-0.5,0)1000-120010 layers 1 core8007.1392
4870#/65Mn(-1, 0)1000-120012 layers 1 core150010.2804




Selling Point


1.The brushcutter is a high-quality OEM product that comes with a new flexible stainless steel shaft core, offering a smooth and durable performance.


2.It is designed for various industries, including building material shops and construction works, with a robust stainless steel shaft that is suitable for various diameters, ranging from 2mm to 48mm.


3.The brushcutter is equipped with a factory direct selling system, ensuring that customers receive reliable products and a high level of customer service.


4.Additionally, the brushcutter comes with a 6-month warranty, and a variety of product options are available to suit specific needs, including different color options such as black and yellow, and the ability to apply to a range of gardening machinery and electric tools.


5.The brushcutter's flexible shaft offers high elasticity and can be used in both levorotation and dextrorotation, making it a versatile tool that can meet the needs of various applications.





Company Introduction


Liaocheng Yangfine Machinery Co., Ltd.,  is situated in the picturesque water city of Liaocheng, nestled in the northern reaches of China within the Liaocheng Economic Development Zone. This region boasts a strategic location and efficient transportation links.

The company specializes in the design and manufacture of concrete vibrators, drawing on its extensive experience of over 17 years in the production of flexible shafts, c/w rubber hoses, and other related auxiliary components. By integrating cutting-edge South Korean technology and cultivating a dedicated team of professionals, we continuously strive to innovate and improve our product performance.

Yangfine's concrete vibrators have garnered numerous patents, reflecting our commitment to ensuring security, convenience, and efficiency for our customers. Our products are widely exported to over 16 countries and regions, including the Americas, South Korea, Brazil, Jordan, South Africa, Thailand, Malaysia, and Singapore. Guided by the principles of "Innovative Drive" and "Professional Production", we are dedicated to meeting global demands for high-quality products while fostering a mutually beneficial relationship with our customers.

Today, our entire team works tirelessly to make "Yangfine" a globally recognized brand in the concrete vibrator industry.





FAQ


1. who are we?
We are based in Shandong, China, start from 2008,sell to Eastern Asia(50.00%),Domestic Market(15.00%),Mid East(12.00%),South America(8.00%),Southeast Asia(6.00%),South Asia(1.00%),North America(1.00%),Oceania(1.00%),Western Europe(1.00%),Southern Europe(1.00%),Central America(1.00%),Northern Europe(1.00%),Africa(1.00%),Eastern Europe(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Concrete Vibrator, Concrete Cutter, Plate Compactor, Submersible Pump

4. why should you buy from us not from other suppliers?
-

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency: USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken: English
