Высокомощные солнечные фотоэлектрические панели Trina установка 430 Вт 435 китайская солнечная панель прайс лист
- Категория: >>>
- Поставщик: Sunpal Power Co. Ltd.
Сохранить в закладки 1601202082387:
Описание и отзывы
Характеристики

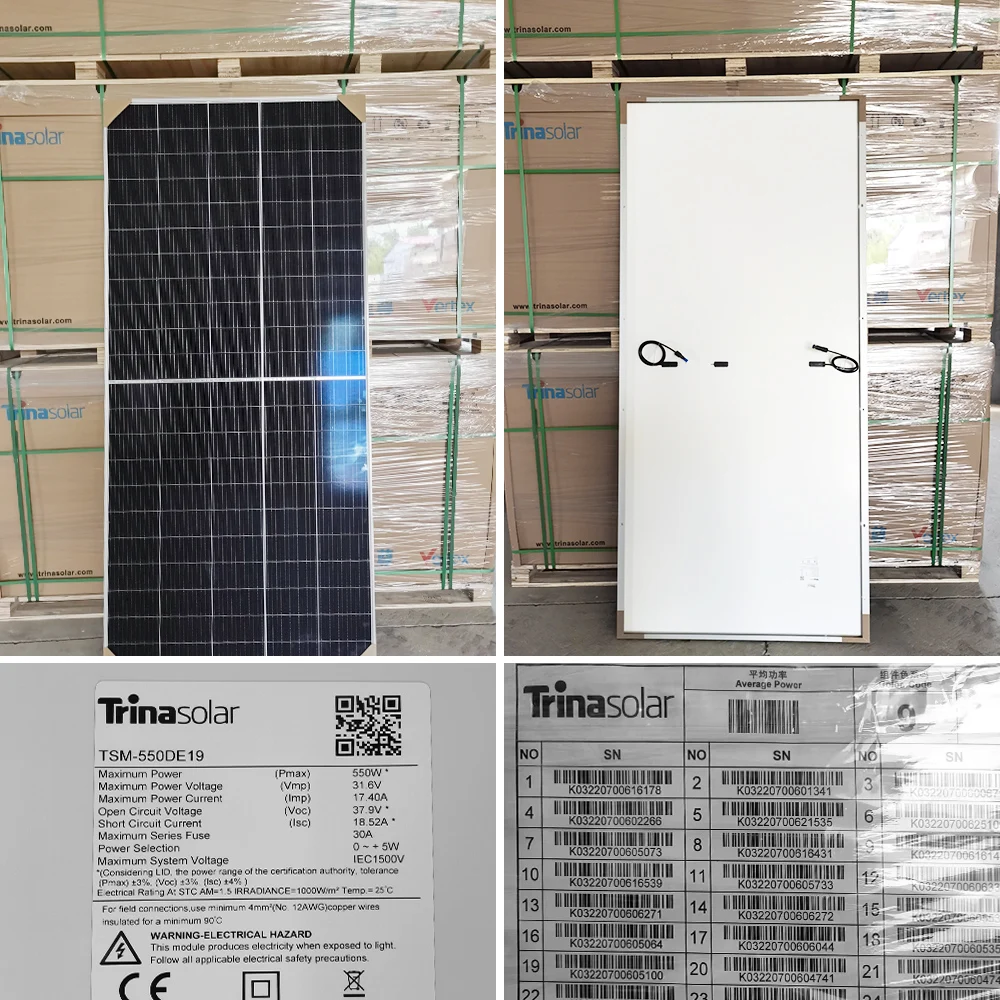

Product Description
New features of Trina NEG9R.28
-Upgraded dual glass of Vertex S, less prone to micro-cracks and scratches on the back during installation
-Excellent fire rating, weather resistance, salt spray, sand dust, ammonia performance which is fully applicable in coastal, high temperature, humidity area and harsh environment
Ultra-low Degradation, longer warranty, higher output
-First-year degradation 1 % and annual degradation at 0.4%
-Up to 15 years product warranty and 30 years power warranty
Specification
Electrial Data (STC) | ||||||||||
Peak Power Watts | 430 | 435 | 440 | 445 | 450 | |||||
Power Tolerance | 0~+5 | |||||||||
Maximum Power Voltage | 43.2 | 43.6 | 44.0 | 44.3 | 44.6 | |||||
Maximum Power Current | 9.96 | 9.99 | 10.01 | 10.05 | 10.09 | |||||
Open Circuit Voltage | 51.4 | 51.8 | 52.2 | 52.6 | 52.9 | |||||
Short Circuit Current | 10.59 | 10.64 | 10.67 | 10.71 | 10.74 | |||||
Module Efficiency | 21.5 | 21.8 | 22.0 | 22.3 | 22.5 | |||||
STC: Irrdiance 1000W/m², Cell Temperature 25℃, Air Mass AM1.5. | ||||||||||
Mechanical Data | ||||||||||
Solar Cells | Monocrystalline | |||||||||
No. of cells | 144 cells | |||||||||
Module Dimensions | 1762*1134*30mm | |||||||||
Weight | 21.0 kg | |||||||||
Front Glass | 1.6mm | |||||||||
Encapsulant material | POE/EVA | |||||||||
Back Glass | 1.6mm | |||||||||
Frame | 30mm | |||||||||
Cables | Photovoltaic Technology Cable 4.0mm² Portait: 350/280 mm Length can be customized | |||||||||
Connector | MC4 | |||||||||

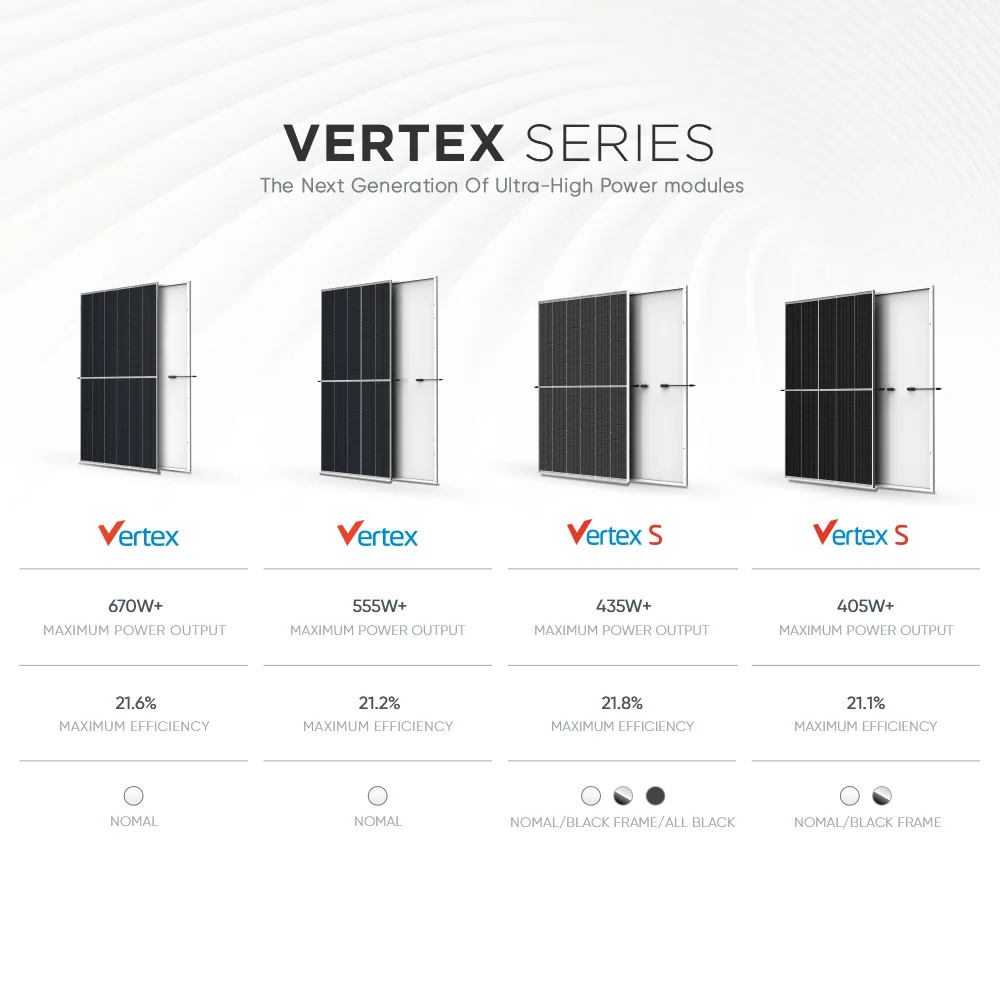

More Trina Solar Panels
Vertex S
Power Range: 415-445W
No. of Cells: 144 cells
Dimension: 1762×1134×30 mm
Weight: 21.3 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Dimension: 1762×1134×30 mm
Weight: 21.3 kg
Modules per box: 36pcs
Modules per 40' container: 936pcs
Vertex
Power Range: 645-670W
No. of Cells: 132 cells
Dimension: 2384×1303×35 mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Dimension: 2384×1303×35 mm
Weight: 33.6 kg
Modules per box: 31pcs
Modules per 40' container: 558pcs
Founded in 1997, TrinaSolar Co., Ltd. is mainly engaged in PV products, PV systems and smart energy. PV products include R&D, production and sales of PV modules. PV systems consist of power stations and system products. Smart energy mainly comprises PV power generation and operation & maintenance, smart solutions for energy storage, smart microgrid, and development and sales of multi-energy systems. We are committed to leading the way in smart solar energy solutions and facilitating the transformation of new power systems for a net-zero future.
Globalization is regarded as Trinasolar’s main corporate strategy. Trinasolar began to build up its global presence from its
inception. The Company was founded in Changzhou, Jiangsu Province, China, where its global headquarters is based. In 2022, Trinasolar established its international headquarters in Shanghai. It actively strengthened the building of global teams. In recent years, the Company has recruited international high-level management and R&D talents from more than seventy countries and regions. It has set up regional headquarters in Zurich, USA Silicon Valley, Miami, Singapore, Dubai, offices or branches in Madrid, Mexico, Sydney, Rome, etc., as well as manufacturing bases in America, Thailand, Vietnam, Indonesia, and UAE with operations in more than 170 countries and regions around the world.
Globalization is regarded as Trinasolar’s main corporate strategy. Trinasolar began to build up its global presence from its
inception. The Company was founded in Changzhou, Jiangsu Province, China, where its global headquarters is based. In 2022, Trinasolar established its international headquarters in Shanghai. It actively strengthened the building of global teams. In recent years, the Company has recruited international high-level management and R&D talents from more than seventy countries and regions. It has set up regional headquarters in Zurich, USA Silicon Valley, Miami, Singapore, Dubai, offices or branches in Madrid, Mexico, Sydney, Rome, etc., as well as manufacturing bases in America, Thailand, Vietnam, Indonesia, and UAE with operations in more than 170 countries and regions around the world.

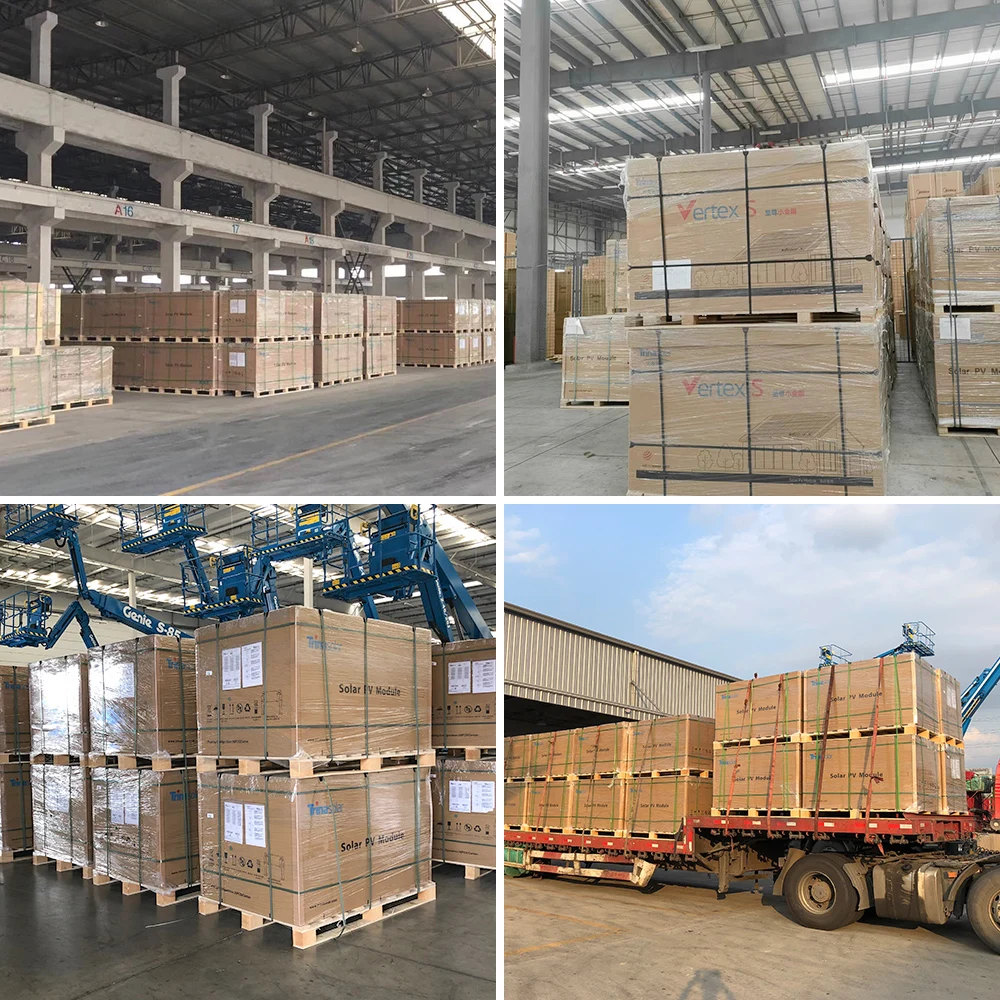

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

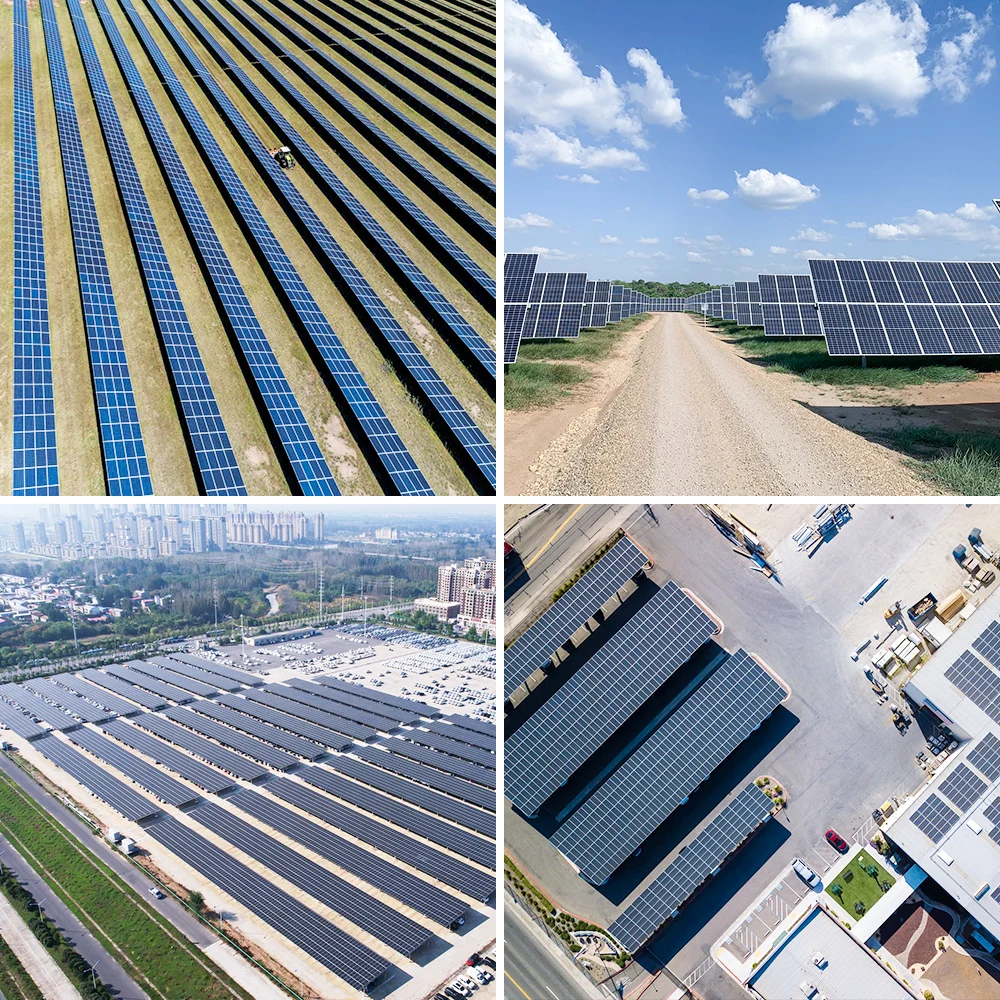

Project Case
Solar energy produces no CO2 pollution
The continued use of fossil fuels generates high levels of carbon dioxide and air pollution. The air pollution causes harmful health problems and CO2 emissions contribute to climate change. CO2 has a harmful impact on our environment by altering weather patterns, rising sea levels and increasing ecological damage.
The continued use of fossil fuels generates high levels of carbon dioxide and air pollution. The air pollution causes harmful health problems and CO2 emissions contribute to climate change. CO2 has a harmful impact on our environment by altering weather patterns, rising sea levels and increasing ecological damage.
A safe and low-impact energy source
Sunlight is free, infinite and easily accessible, unlike fossil fuels, which need to be mined, extracted and transported. These processes cause serious land and ecological degradation, and carry the risk of disasters such as oil spills.
Sunlight is free, infinite and easily accessible, unlike fossil fuels, which need to be mined, extracted and transported. These processes cause serious land and ecological degradation, and carry the risk of disasters such as oil spills.
Solar is carbon-free
As of December 31, 2020, Trina Solar’s cumulative shipments exceeded 66GW, with an annual power generation capacity of nearly 90 billion kWh, which is equivalent to saving over 29million tons of standard coal and reducing CO2 emissions by about 89 million tons. Reduce SO2 emissions over 2 million tons. As more homes and businesses switch to solar, we can collectively help reduce the harmful effects of carbon dioxide emissions and the pollution on the environment.
As of December 31, 2020, Trina Solar’s cumulative shipments exceeded 66GW, with an annual power generation capacity of nearly 90 billion kWh, which is equivalent to saving over 29million tons of standard coal and reducing CO2 emissions by about 89 million tons. Reduce SO2 emissions over 2 million tons. As more homes and businesses switch to solar, we can collectively help reduce the harmful effects of carbon dioxide emissions and the pollution on the environment.
Tier 1 Partner
What is a tier 1 solar panel?
A Tier 1 solar panel is a panel that is made by a manufacturer that has been rated as Tier 1 by a reputable independent PVindustry analyst.
Tier 1 is the highest (best) tier, and means that the analyst who ranked it believes that the module manufacturer scores well on lots of criteria including:
1. Experience
2. Financial position
3. Manufacturing scale
4. Deployment scale
5. Durability & quality
6. Technical Performance
7. Vertical integration
8. Insurance and backing
9. Service and support
FAQ
Q: What is solar panel?
A: A solar panel is a collection of photovoltaic cells designed to absorb the sun’s rays as a source of energy for generating
electricity.
electricity.
Q: How solar panels work?
A: Solar power is harnessed using Solar Photovoltaic (PV) technology that converts sunlight (Solar radiation) into electricity by using semiconductors.
Q: How much solar panels cost?
A: The cost of the solar panel depends on the capacity of solar panel, the technology on which the panel is built, variant or model of the solar PV panel, quality, the manufacturer and the brand. The price of solar panel usually varies upon the parameters shared along with similar criteria for the other components that build up for the complete solar system.
