12 тонн портативный погрузочный мост пандус подвижный погрузчик гидравлический контейнер док пандус с CE ISO
- Категория: >>>
- Поставщик: Shandong Chufeng Heavy Industry Machinery Co. Ltd.
Сохранить в закладки 1601202090639:
Описание и отзывы
Характеристики
12ton Portable Loading Bridge Yard Ramp Movable Forklift Loading Ramp Hydraulic Container Dock Ramp with CE ISO
Product Features

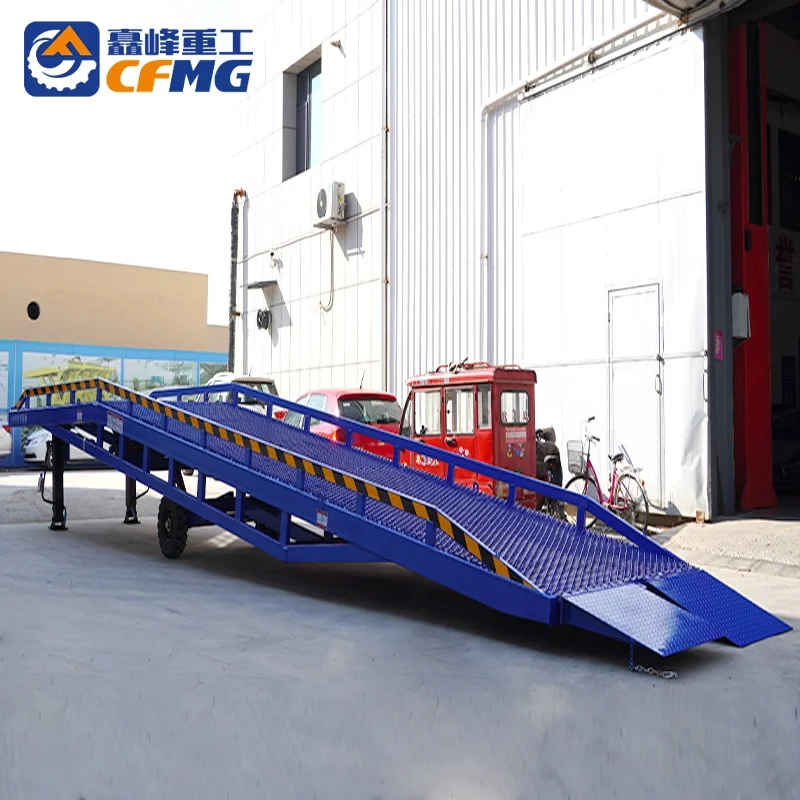

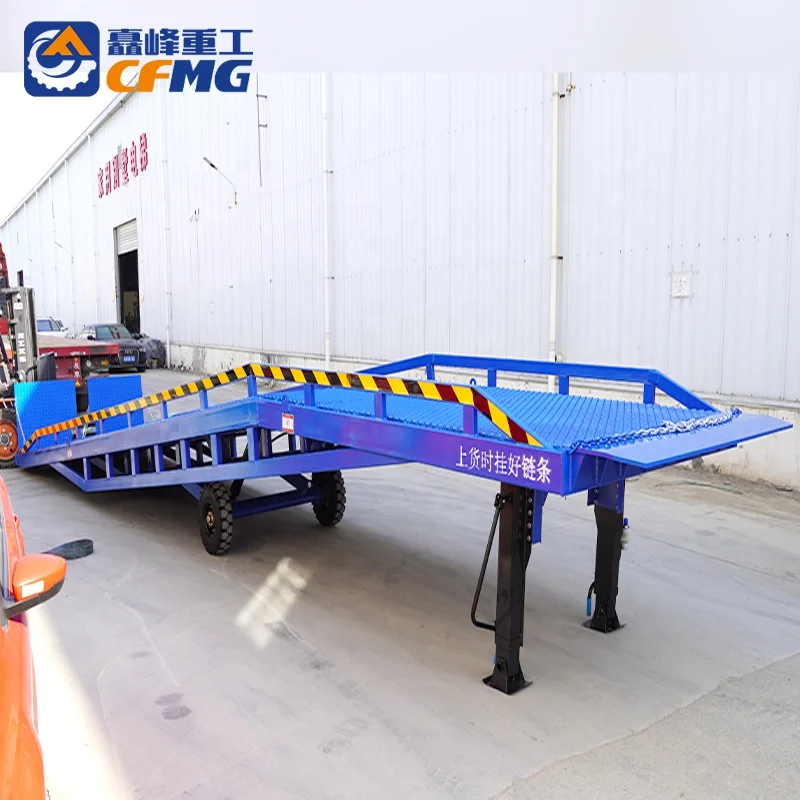

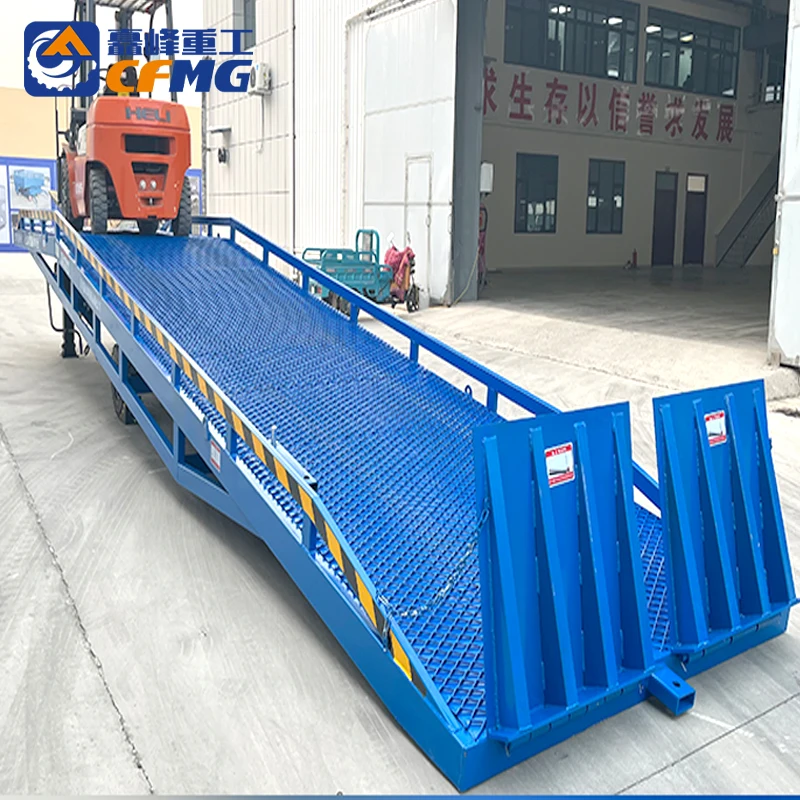

Mobile Hydraulic Dock Ramp is a special auxiliary equipment for loading and unloading of goods rapidly. Its height adjustment feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The yard ramp is mobile and controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
Specification
Model | Capacity (t) | Adjustable Range (m) | Overall Dimension (mm) | Main beam | Lip plate | Net weight (kg) |
DCQY-6 | 6 | 1.1-1.8 | 11300*2100*1100 | 160*80*4(4) | 14mm | 2200 |
DCQY-8 | 8 | 1.1-1.8 | 11300*2100*1100 | 160*80*4(5) | 14mm | 2400 |
DCQY-10 | 10 | 1.1-1.8 | 11300*2100*1100 | 160*80*4(5) | 14mm | 2600 |
DCQY-12 | 12 | 1.1-1.8 | 11300*2200*1100 | 100*200*5(2) | 16mm | 3300 |
DCQY-15 | 15 | 1.1-1.8 | 11300*2300*1100 | 100*200*5(5) | 16mm | 4000 |
Product Details
1.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
2.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
3.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
4.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

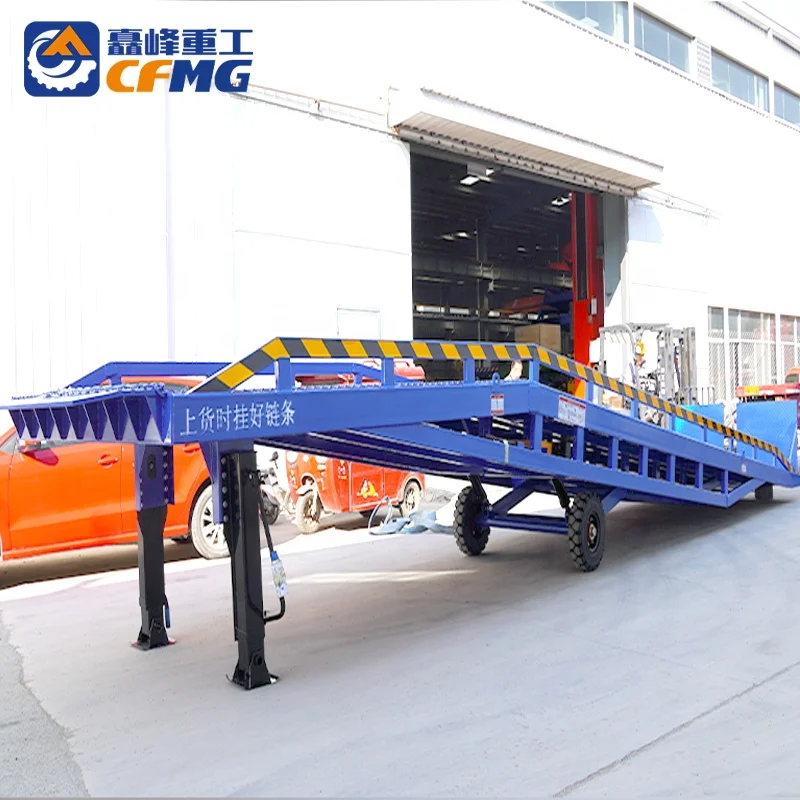

5.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.

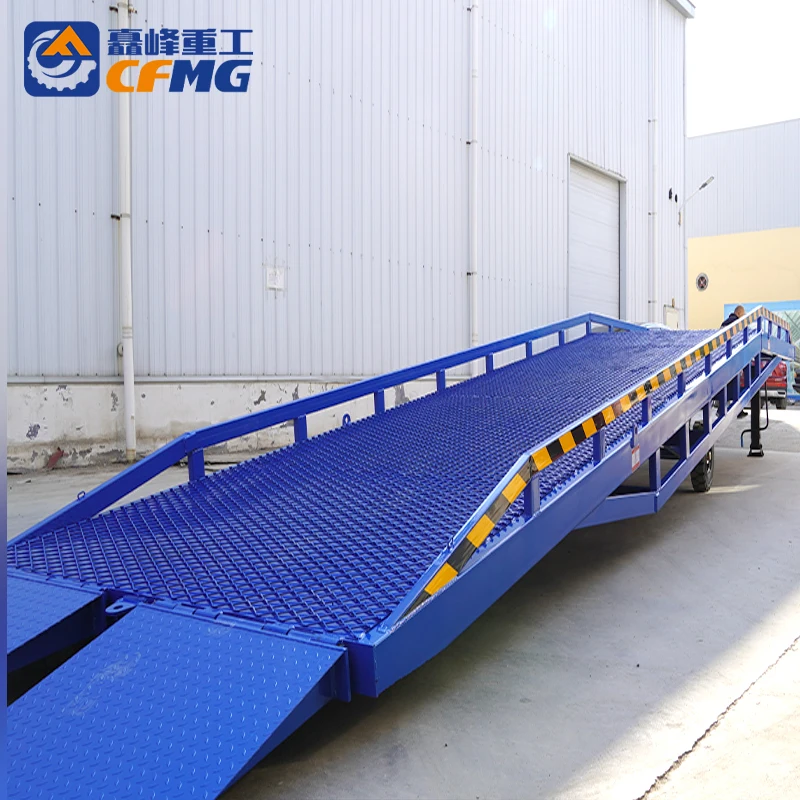

7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
2.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
3.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
4.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
5.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.
7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
Application
Our company
Shandong Chufeng Heavy Industry Machinery Co., Ltd.
Over the years, CFMG has been providing strong expertise in the manufacturing of aerial work platforms in Jinan, where the origin and biggest production base of lifting industry initialized as early as 1972.
CFMG has achieved a reputation as being a reliable partner within the international market place for aerial work platforms. Our product range varies from scissor lifts, boom lifts, aluminum alloy lifts, car lifts, dock leveler, to wheelchair lift, etc., totally more than 20 types.
CFMG is ISO9001 and CE certified. Extra-special attention is paid to quality, service and reliability at each step of the process from engineering, purchasing, and assembly, to the testing and final approval.
Over the years, CFMG has been providing strong expertise in the manufacturing of aerial work platforms in Jinan, where the origin and biggest production base of lifting industry initialized as early as 1972.
CFMG has achieved a reputation as being a reliable partner within the international market place for aerial work platforms. Our product range varies from scissor lifts, boom lifts, aluminum alloy lifts, car lifts, dock leveler, to wheelchair lift, etc., totally more than 20 types.
CFMG is ISO9001 and CE certified. Extra-special attention is paid to quality, service and reliability at each step of the process from engineering, purchasing, and assembly, to the testing and final approval.
Our advantage
1.Competitive price
We are the manufacturer,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material.The thickness of the material is 32mm,and the material anti-skid density space is 30*25mm which make the whole machine more steady and durable.
b.Ramp platform. We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used.We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 1 hours.
We assure you 24 mouth quality warranty time.
4.Keep innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
We are the manufacturer,and have lots of orders from domestic and foreign each year,so we can purchase the raw material with much cheaper price which will directly effects the price of the lifting machines.
2.Reliable quality
a.Material.The thickness of the material is 32mm,and the material anti-skid density space is 30*25mm which make the whole machine more steady and durable.
b.Ramp platform. We use anti-skid steel grate plate which is durable,not easy to be ponding,and not easy to deformation.
c.Tyre used.We use solid Tyre instead of pneumatic Tyre which can adapt to variety of road conditions.
3.Good service
We assure you reply the email within 1 hours.
We assure you 24 mouth quality warranty time.
4.Keep innovations
We welcome every recommendation and opinion from you and make progress together with you.
We can design a new machine as your requirements,until to your satisfaction.
