Q924 цифровое ТВ головное оборудование 1080p h.265 mpge4 avc кодер 6 модулей в корпусе 1 RU

Q924 digital TV headend equipment 1080p h.265 mpge4 avc encoder 6 modules in 1 RU case

Q9 video platform, digital systems demand powerful, flexible, multipurpose video processing and compact solutions that allow the service provider to support new network architectures.

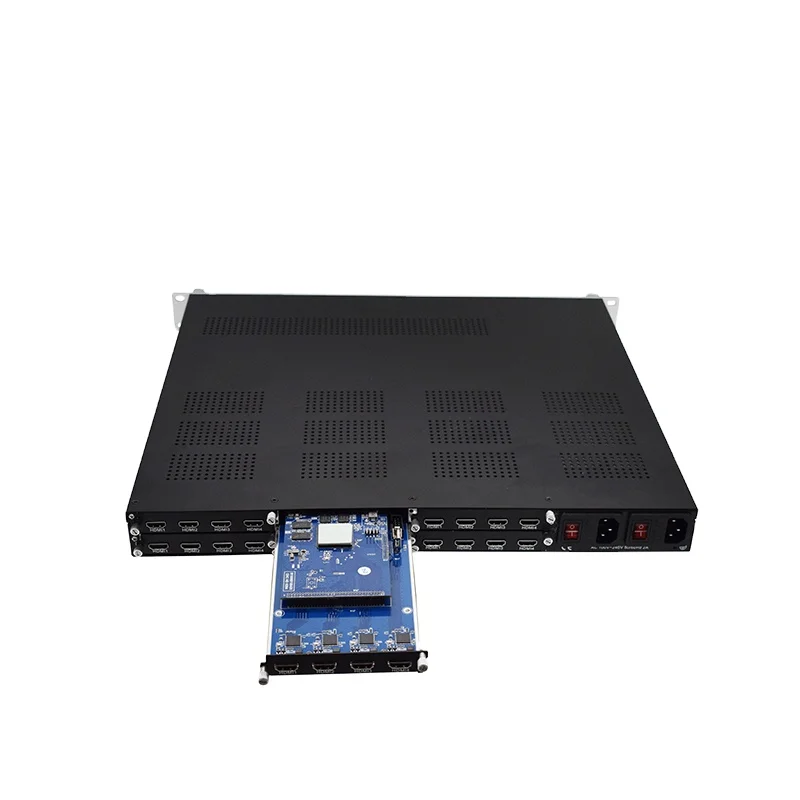

This 1RU case comes with 6 independent hot-swappable module slots, each module can be configured individually based on the applications including encoding, modulating processing and the combination of all these functions. Built in modulation board, Q9 support DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation.

Its pluggable and Hot-swappable module, flexible configuration is making it extremely scalable, reliable with high performance. Q9 is an efficient, low-cost digital TV headend device, which can be used in public place such as metro, market hall, theatre, hotels, resorts for advertising. It also can be used for monitoring, training and educating in company, campus, hospital.

• 6 independent hot-swappable module, 4* HD-MI per module


• flexible encoding&modulating board combination


• Optional DVB-C (QAM), DVB-T (COFDM), ATSC-T, ISDB-T, DTMB Modulation, 4*Carrier RF Out, 8/16*carrier RF out (option) (16/32*carriers DVBC QAM output optional)


• H.264/H.265 video encoding


• Two separate ASI input for External TS Multiplexing


• Simultaneously 8*MPTS and 512*SPTS over UDP/RTP IP out in modulation mode


• Simultaneously 8*MPTS and 512*SPTS over UDP/RTP IP out in encoder mode


• 8/16 separate multiplexing and Up-converter modulating adjacent carrier out


• support multiplexing function: multiplex any input to RF or MPTS output


• Audio encoding: MPEG-1 Layer 2, AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS), AC3 (H.265 version)


• Selectable the Value of PCR PID same as Video PID


• Non adjacent-frequency supported


• Support TTL editing


• PSI/SI editing & inserting


• PID Remapping & Filtering


• Selectable LOGO,QR code,OSD insertion for every, All or Each module of local channel


• Support PCR correct and PCR interval adjusting


• Easy-to-Use System Management via Web


• Redundancy Power Supply


• dual power supply


• Remote WEB reboot supported

TECHNICAL SPECIFICATIONS

Independent hot-swappable module Encoder Part

HD-MI H.264/H.265(optional) encode Module

Numbers of Boards: 4 HD- MI ports per module

Up to 6 independent hot-swappable module in Back panel

Numbers of Ports:  8; 12; 16; 20; 24 Channels

HD- MI 1.4a HDCP

Video Processing

Encoding:  HEVC, H.265(optional)/H.264

Bit-rate 1Mbps~13Mbps

Rate Control: :  CBR

GOP Structure : IPPPP (P Frame adjustment, without B Frame )

Select to configure Logo, Caption and QR Coder in any Position of Video Picture

Audio Processing

Encoding:  MPEG-1 Layer 2 , Optional: AAC-LC, AAC-HE v1(SBR), AAC-HE v2(SBR+PS),

Sampling rate:  48KHz

Resolution : 24-bit

Bit-rate:  64kbps, 128Kbps, 192kbps, 224kbps,256kbps, 320kbps, 384K(mpeg-1 layer 2)

Audio Gain :  0-255

Built-in Modulation Part

Connector :  1 Port,  F-Type, 75

Output Return Loss :    14 dB

MER:   ≥40dB

RF output level:   -24 ~ 0dbm, 1db step

RF frequency :  50 ~ 960Mhz, 1KHz step

separate control Frequency difference range :  (0-40M)

Numbers of RF Channel : 8 carrier by default, 16 carrier Max.DVB-C:16 carrier, 32 carrier optional

Modulation Mode: DVB-C, DVB-T, ATSC, ISDB-T, DTMB

DVB-T Standard EN300744

FFT mode:   2K, 8K (4 RF mode only support 2K)

Bandwidth:   6M, 7M, 8M

Constellation :  QPSK, 16QAM, 64QAM

Guard Interval :  1/4, 1/8, 1/16, 1/32

FEC :  1/2, 2/3, 3/4, 5/6, 7/8

DVB-C Standard    J83.A (DVB-C, J83.B, J83.C)

ISDB-T Standard  ARIB STD-B31

Constellation:   DQPSK, QPSK, 16QAM, 64QAM

Guard Interval:   1/32, 1/16, 1/8, 1/4

Transmission Mode:   2K, 4K,  8K (4 RF mode only support 2K)

Guard Interval:   1/32, 1/16, 1/8, 1/4

Code rate :  1/2, 3/4, 5/6, 7/8

BandWidth :   6Mhz

ATSC Standard :  ATSC A/53

Constellation :  8 VSB

DTMB Standard            GB20600-2006

Constellation:   4QAM, 16QAM, 32QAM, 64QAM

Code rate :  0.4, 0.6, 0.8

Guard Interval :    420, 595, 945

Stream Input/Output

DVB-ASI  outputs

2 Separate ASI (Select from modulation Channels or MPTS  channel), 75ohm, BNC, 188Bytes

MPEG TS over DVB-ASI (EN 50083-9)

Total Bitrate: 1-200Mbps

DVB-ASI  inputs

Connector : 2*BNC female, 75Ω

Number of Input Ports: Dual separate ASI ports

Signal Level: 200-800mVp-p

Packet Length : 188 bytes

Maximum bit-rate per port:  ≤100Mbps

IP inputs/outputs

Number of port 3*100/1000M GbE Port

2*RJ45 port (input):  128*IP for each port

1*RJ45 port  (output):  Simultaneously 8*MPTS and 512*SPTS over UDP/RTP IP out

MPEG TS over UDP, unicast, and multicast streaming

MPEG TS over RTP/RTSP

Configurable packet size(2-7)x188Bytes

Filter Null Packet

Multiplexing

Maximum EIT Remapping 180 input per channel

EIT remapping by automatically or manually

PSI/SI :  SDT/PMT/TOT/PAT/BAT/CAT/TDT/NIT

Accurate PCR adjusting

System

Local interface:  LCD + control buttons

Remote management Web/NMS

NMS interface:  RJ45, 100M

Language:  English

Environment

Voltage range: 100 to 240V AC ; 50/60Hz

Power consumption:  60W

Operation Temperature:  0 ~ 45℃

Storage  Temperature:   -20 ~ 80℃

Dimensions:  482mm (L) * 380mm (W) * 44mm (H)

Weight :  4.5 kg
