RSBM гидравлический буровой шнек для экскаватора

RSBM гидравлический буровой шнек для экскаватора

Категория: >>>
Поставщик: Xuzhou Ransun Machinery Co. Limited

Цена:198 380,34 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

PRODUCTS DESCRIPTION

Oil Folw			Max Torque			Pressure			Rotary Speed	Carrier	Oil Hose	Drill Dia.
gal./min	I/min	Lbf·Ft	N·M	Psi	Bar	Rpm	T	Inch	mm
6-14	23-53	2537	1871	3000	205	40-92	1-2.5	1-2	100-400
8-16	30-61	3297	2432	3000	205	40-82	1.5-3	1-2	100-500
8-16	30-61	3900	2877	3500	240	40-81	2-3.5	1-2	100-600
8-18	30-68	4900	3614	3500	240	32-72	2.5-4.5	1-2	100-750
10-20	38-76	5719	4218	3500	240	32-64	3-5	1-2	100-900
10-20	38-76	6855	5056	3500	240	29-58	4.5-7	1-2	150-600
12-22	45-83	8012	5910	3500	240	28-50	5-7	1-2	150-750
12-28	45-106	8338	6150	3500	240	34-80	6-8	3-4	150-900
16-32	61-121	9397	6931	3500	240	37-72	7-10	3-4	150-900
16-36	61-136	10911	8048	3500	240	29-64	8-12	3-4	150-900
18-36	70-136	14612	10778	3500	240	26-45	10-13	3-4	150-900
21-37	80-140	16236	11976	3500	240	22-43	13-17	1	150-900
21-40	80-151	20399	15046	3500	240	20-39	13-17	1	150-1200
21-45	80-170	25812	19039	3500	240	17-34	13-20	1	150-1200
24-48	90-180	33825	24949	3500	240	16-30	15-23	1	150-1200
26-74	100-280	68052	50195	4000	280	11-30	21-50	1	300-2400

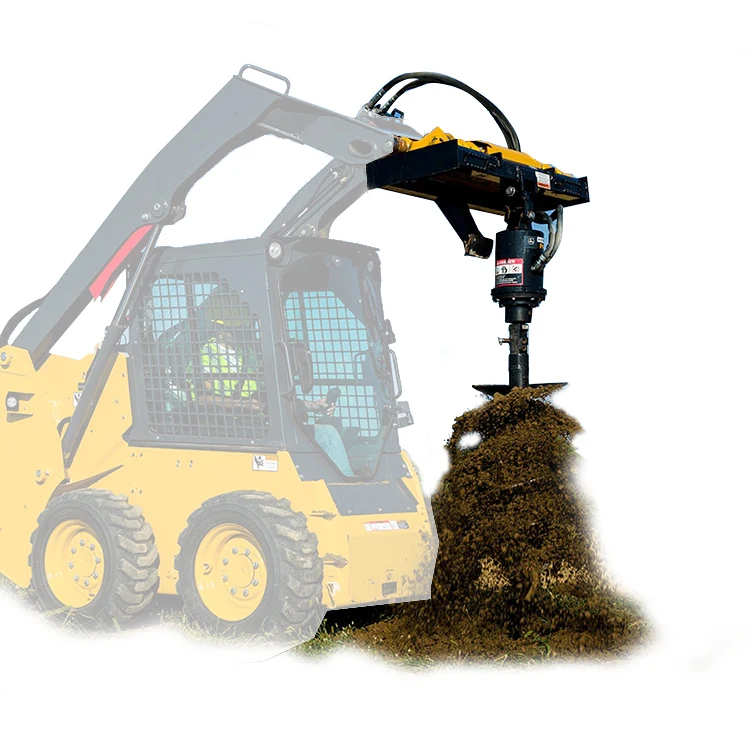

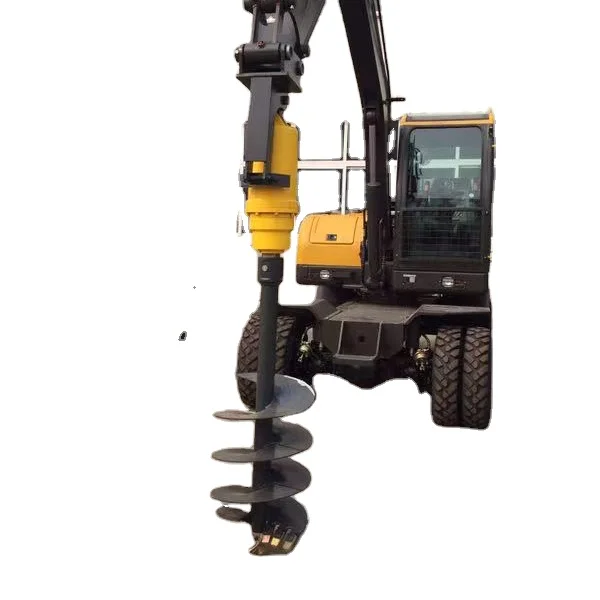

Ransun earth auger is highly durable and which can be operated more easily. And it can be used for all brands of excavator.

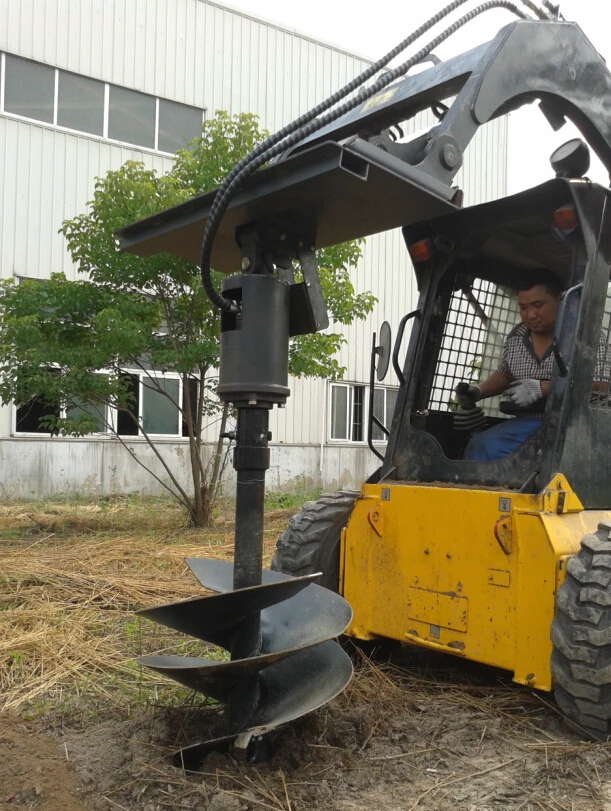

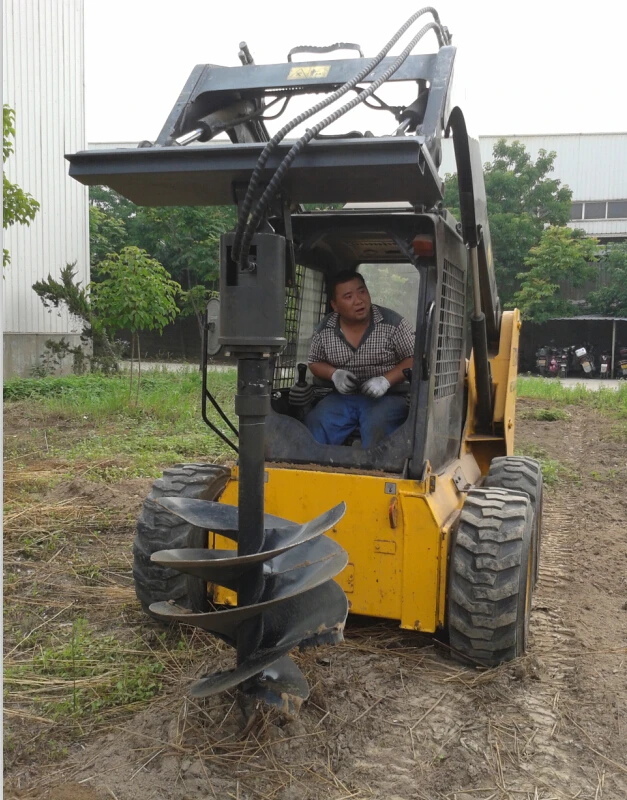

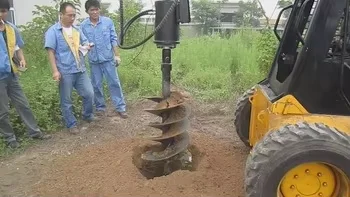

Application Field:Tree planting, Pole and Mast Installations, Landscaping, Well boring, Foundation piles, Screw pile
installations, Ground source heat pumps etc.

Auger Drill:
1,Auger drill can be flexibly selected, S4, S5, S6,PA,four types are available.
2,Auger drill have different lengths of extension rods and the length of the auger drill can be set according to customer
requirements (size within a certain range).
3,Rock auger drill: It fit to rock, pitch or a lot of gravel land.
Tungsten auger drill: It fit to clay, snady land or a little gravel. Digging the soil land very easily.Sharp auger drill: It fit
to rock, concrete, cement, asphalt and so on.
