Product Description
This machine can produce pellets for direct extrusion machines,film blowing machine,injection molding machine,and also can be feed into extruder granulating.The agglomeration machine can be used for a wide range of raw materials,such as plastic PE film, HDPE foil, LDPE film,PE bags,PP woven bags,PP non-woven,PP raffia,plastic sheet,flakes,fiber,PS,EPS and other soft plastics.
plastic PE film HDPE foil PP woven bags LDPE film
Agglomerator/high-speed granulator is a kind of equipment for direct granulation of discarded thermoplastic thin Peng and products with wall thickness less than 2 mm, which can agglomerate the waste products or films of soft polyvinyl chloride, high and low pressure polyethylene, polystyrene, polypropylene and other thermoplastics, and can also granulate the waste products of expanded polystyrene.
And moves to the center of the pot body from all around, due to the friction between the material itself and the friction with the pot wall and the blade at high speed, a large amount of friction heat is generated, so that the temperature of the material rises rapidly to a semi-plasticized state, and sticks to each other into small pieces.
Before the material is about to agglomerate, all the quantitative water prepared in advance is sprayed into the material, and the cold water meets the hot material, which is quickly vaporized and takes away the surface heat of the materialIn this way, the surface of the material is cooled sharply to prevent agglomeration.
And then it is shredded into granules (irregular granules of irregular size) through the crushing action between the rotating
knife edge and the fixed knife edge. During the shredding process, appropriate pigments can also be added for coloring as
required.
knife edge and the fixed knife edge. During the shredding process, appropriate pigments can also be added for coloring as
required.
Machine structure description

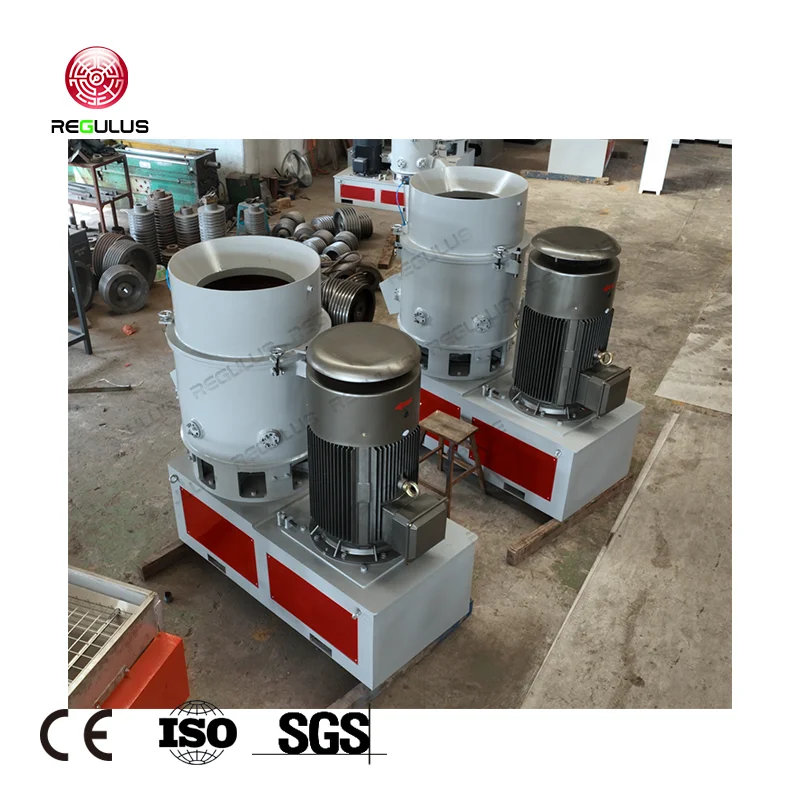

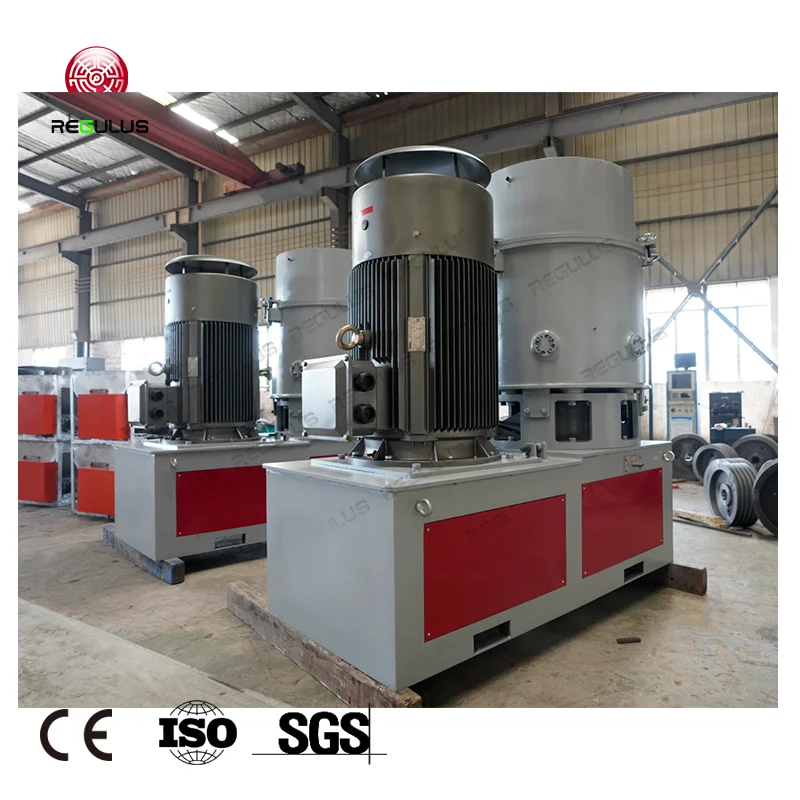

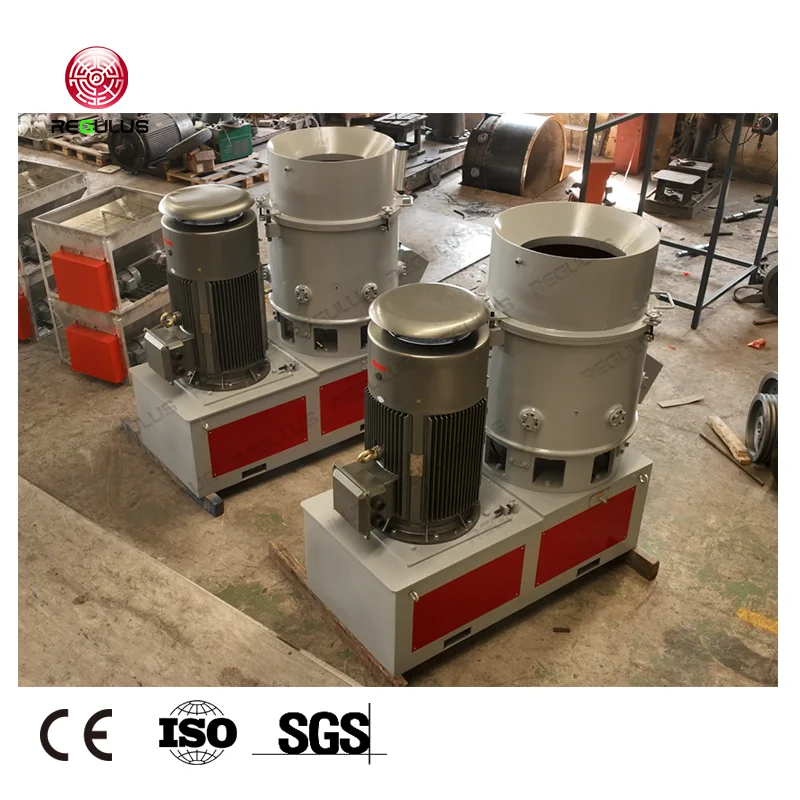

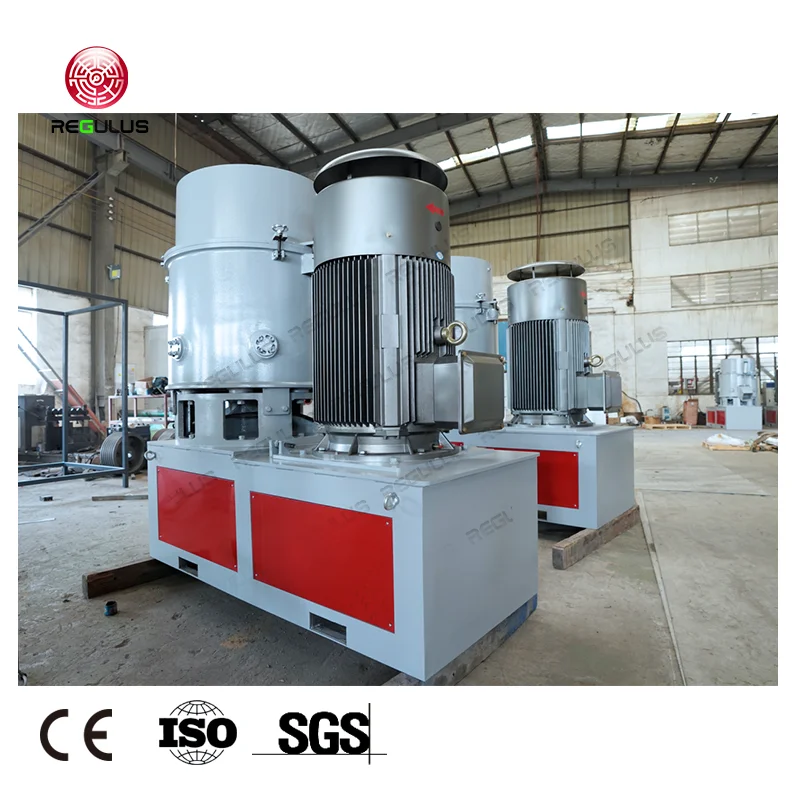

The whole machine is divided into base parts, transmission parts, outlet parts, pot parts, electrical instrument control cabinet and other parts.
1 | Base parts: | The base is the foundation of the machine, it is welded and processed by steel plates, which is used to bear the weight of the whole machine, and the base is fixed on the cement foundation with four M18*630 anchor bolts. |
2 | Transmission parts: | The transmission parts (except for the main motor) are installed in the pot seat and base under the pot body. It is composed of the main motor, large and small pulleys, spindle, bearing, rotor and so on. |

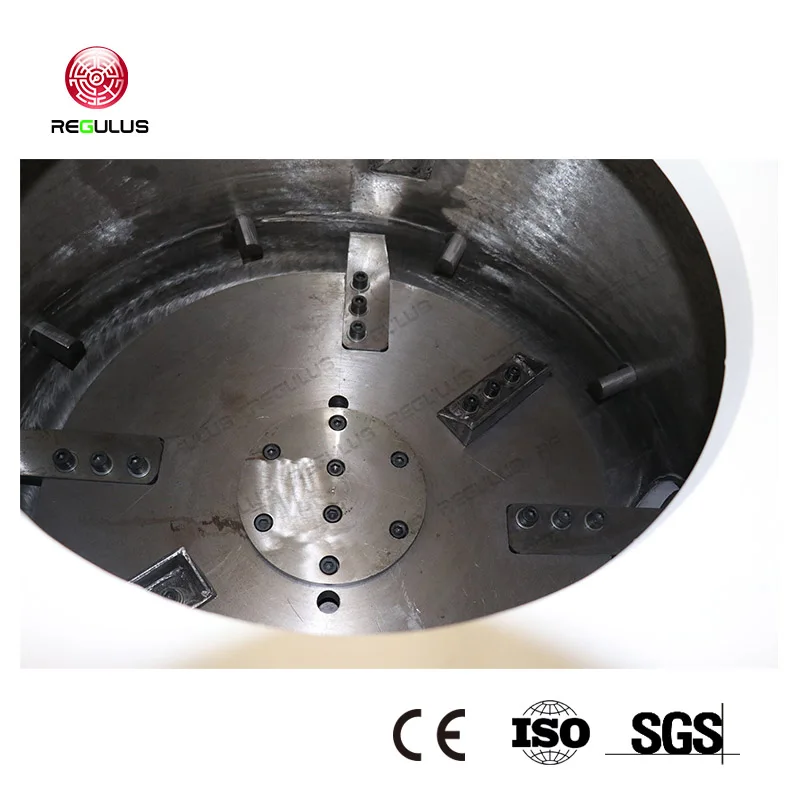

3 | Pot body parts: | The pot body is a welded structure, the pot body and the bottom of the pot are made of stainless steel, the inner surface is finely polished to ensure that the material does not stick to the material, and effectively prevent corrosion, the internal volume of the pot body is 100L, and the amount of material added is about 20kg. |
The pellets made by this machine can be directly used by extruders, granulation lines, and injection machines, and can also be used after granulation by extrusion granulators for products with stricter requirements.
GSL SMALL AGGLOMERATOR MACHINE
MODEL | 100L | 200L | 300L |
Dimension L*W*H(mm) | 2000*950*1500 | 2000*1050*1500 | 2200*1050*1600 |
Agglomerating Chamber A*B(mm) | 680*800 | 760*800 | 800*860 |
Discharge port height C(mm) | 660 | 660 | 660 |
Main shaft speed(r/min) | 1050 | 1050 | 950 |
Rotor-knives(PCS) | 2 | 2 | 2 |
Stator-knives(PCS) | 6 | 6 | 6 |
Main motor power(KW) | 37 | 45 | 55 |
Weight(kg) | 1000 | 1200 | 1800 |
AGGLOMERATION MACHINE
MODEL | 500L | 600L | 800L | 1000L | 1500L |
Dimension L*W*H(mm) | 2400*1060*2040 | 2400*1060*2100 | 2500*1300*2100 | 2600*1400*2180 | 2750*1500*2340 |
Agglomerating Chamber A*B(mm) | 960*960 | 990*1000 | 1230*1000 | 1300*1100 | 1400*1260 |
Discharge port height C(mm) | 660 | 660 | 660 | 660 | 660 |
Main shaft speed(r/min) | 850 | 750 | 650 | 650 | 650 |
Rotor-knives(PCS) | 4 | 4 | 4 | 4 | 4 |
stator-knives(PCS) | 8 | 8 | 8 | 8 | 9 |
Main motor power(KW) | 75 | 110 | 132 | 160 | 250 |
Weight(kg) | 3500 | 3850 | 4500 | 4950 | 5500 |
https://regulumachinery.en.alibaba.com/productgrouplist-919430714/3_Agglomerator_Squeezer_Dryer.html?spm=a2700.shop_index.88.23
FAQ
1 | What should I do if the machine is shut down for a short period of time after it is put into use? |
Carefully wipe the inner wall of the pot and the blades. | |
2 | How should the spindle bearing of the granulator be lubricated? |
There are two grease nozzles on the pot seat, and there are refueling marks, and the refueling cycle (actual running time) is refueling once after 2-4 hours of operation, and the grease model is sodium-based grease ZN-4. | |
3 | How should the main motor bearing be lubricated? |
The refueling cycle is once a month, and the grease model is the same as above. | |
4 | How often is the blade sharpened? |
The knife should be sharpened after one week of cumulative work, and if necessary, it can be sharpened at any time according to the situation. | |
5 | When will the whole machine be overhauled? |
After half a year of operation, the whole machine will be overhauled (8 hours a day) (1) Check the tightening of the fixed knife, and check the cutting edge for sharpening if necessary; (2) Check other fasteners, and do not allow loosening. |
