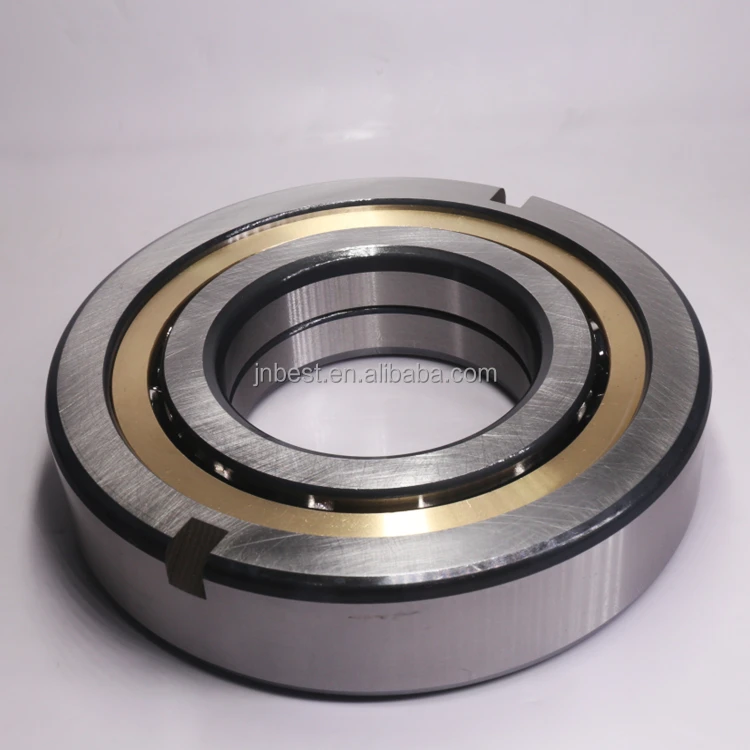

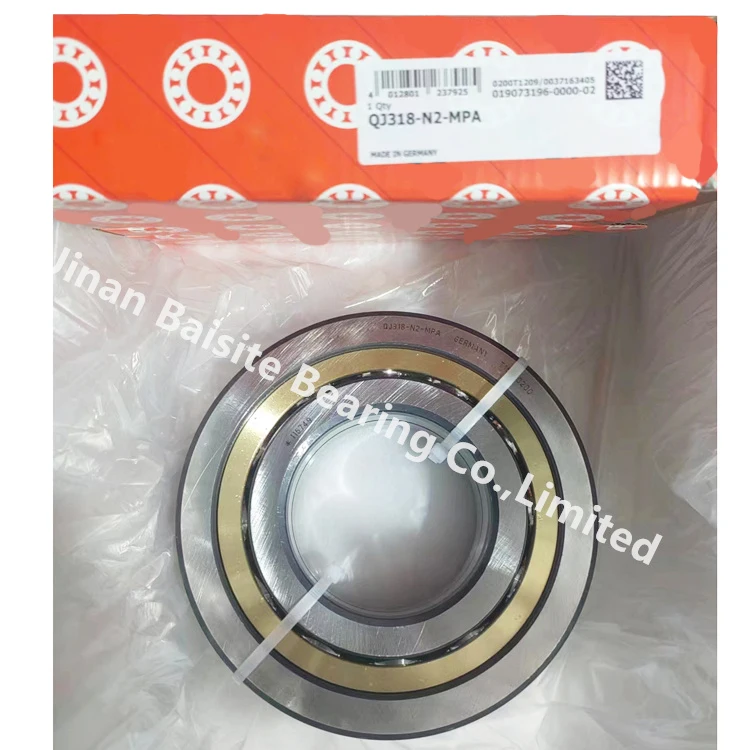

Оригинальный Германия QJ318 N2 MPA C3 четырехточечный Угловой шаровой подшипник QJ318 подшипники

The description Angular Contact Ball Bearing

Angular contact ball bearing:

Angular contact ball bearings are particularly suitable for carrying combined (axial and radial) loads. Sometimes, they also can carry pure axial load and operate in higher speed. Under radial load, axial component force will be produced which must be counteracted. So the bearings are normally adjust against a second bearing.

Main specifications

• Item NumberQJ318-N2-MPA-C3


• Also known as0167426210030



• EAN4012801268356


• CategoryFour Point Contact Ball Bearing

Weight and Dimensions

• Inner (d) MM90


• Outer (D) MM190


• Width (B) MM43


• Weight (kg)6.3

Product Properties

• SealNo Seal


• Cage TypeMA - Brass Cage, Centered on Outer Ring


• External ModificationN2 - 2 Locking Groove in Outer Ring


• Radial Internal PlayC3 Internal Play (Higher than Cn)


• PrecisionStandard Precision


• Heat StabilizationNo Heat Stabilization - Temperatures up to 120 °C


• Split Innering / OuterringSplit innerring

Data from Schaeffler (medias)

• Radial Static Load Rating C0r (N)285000


• Radial Dynamic Load Rating Cr (N)265000


• ECLASS number23-05-08-03


• ECLASS2 number23-05-08-03


• Medias descriptionFour-point contact bearing QJ3..-N2-MPA, inner ring split

Suffix description

• N2Two Locating Slots (Notches) 180° Apart In One Outer Ring Side Face Or Housing Washer


• MPAWindow-Type Machined Brass Cage; Guidance By The Outer Ring (Housing)


• C3Internal Clearance Larger Than Normal

Four-point contact bearings are radial single row angular contact bearings with raceways designed to support axial loads in either direction whilst accommodating only minor radial loads

Four-point contact bearings are single-row angular contact ball bearings and therefore require significantly less space in an axial direction than double-row designs.
·Can be dismantled

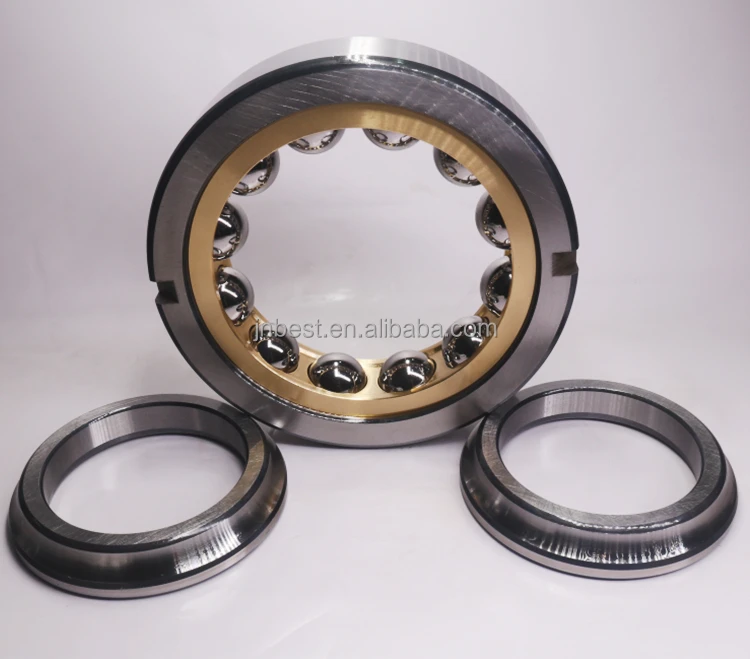

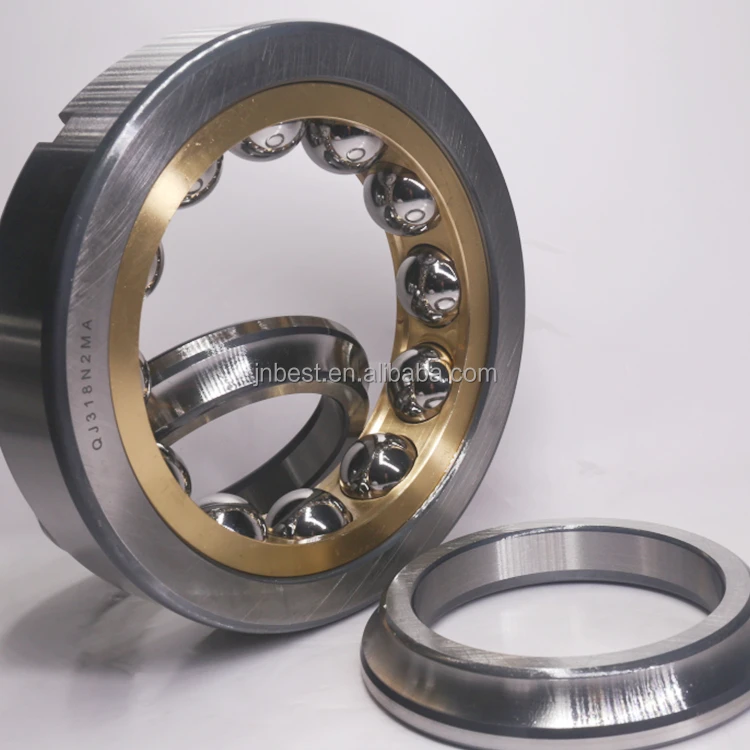

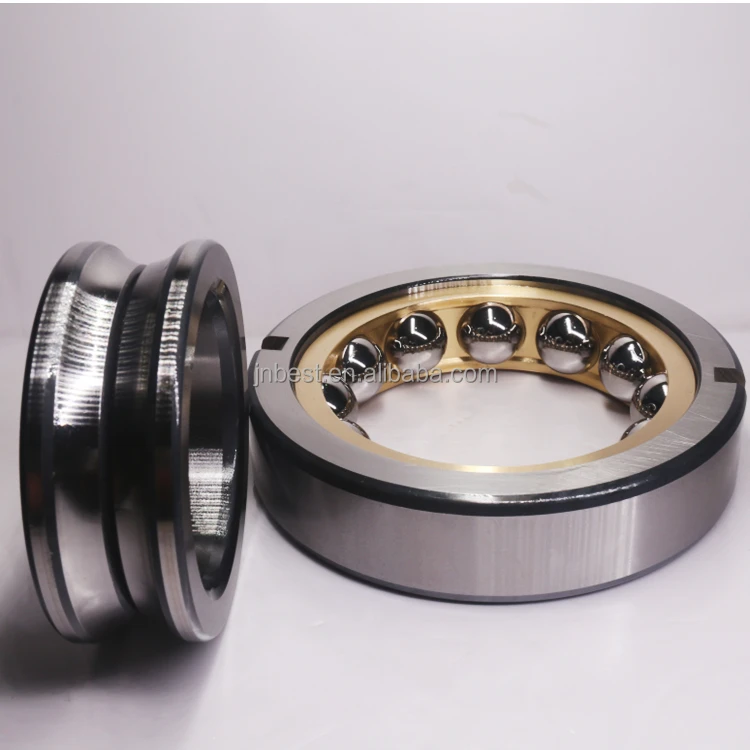

·With split inner ring
