Product Overview

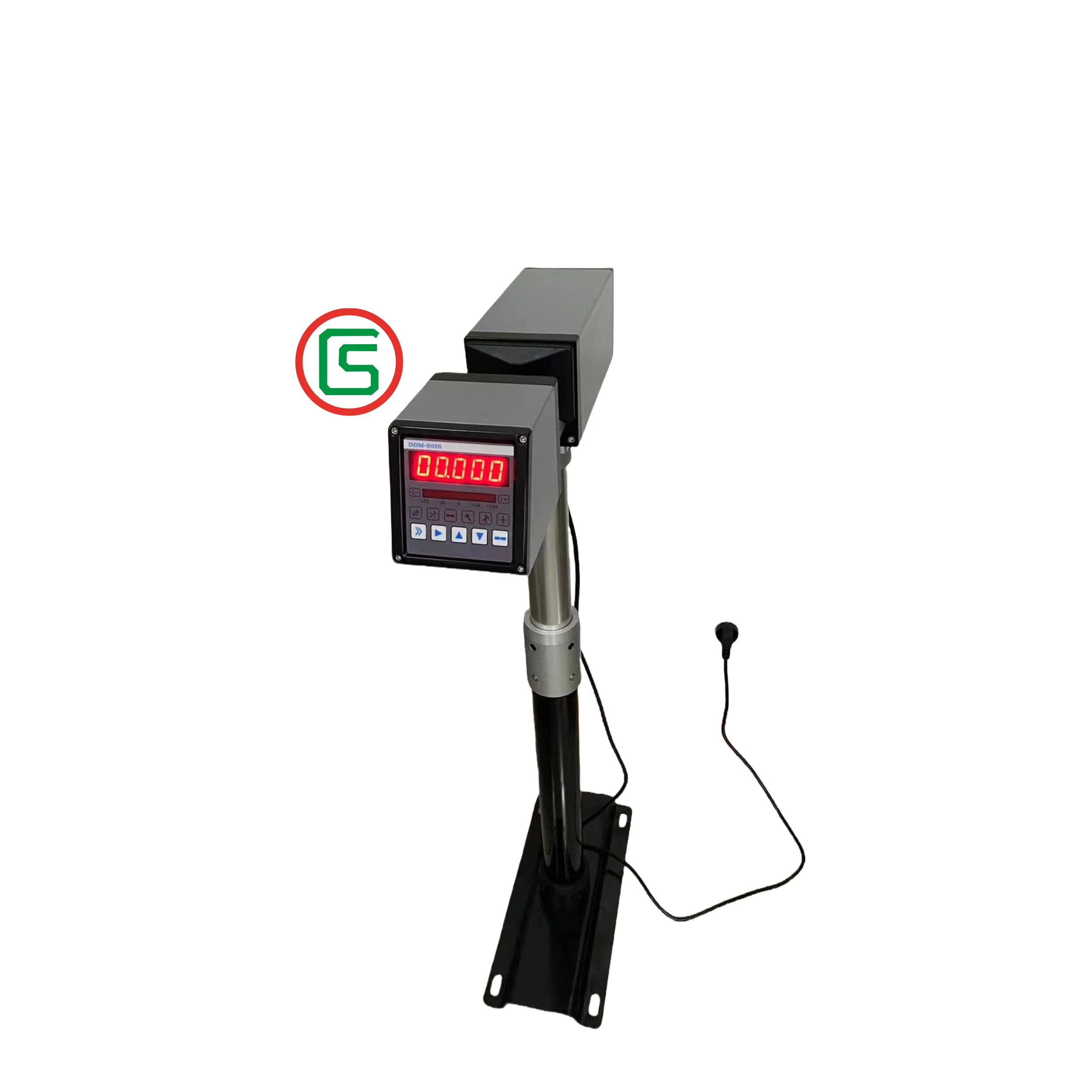

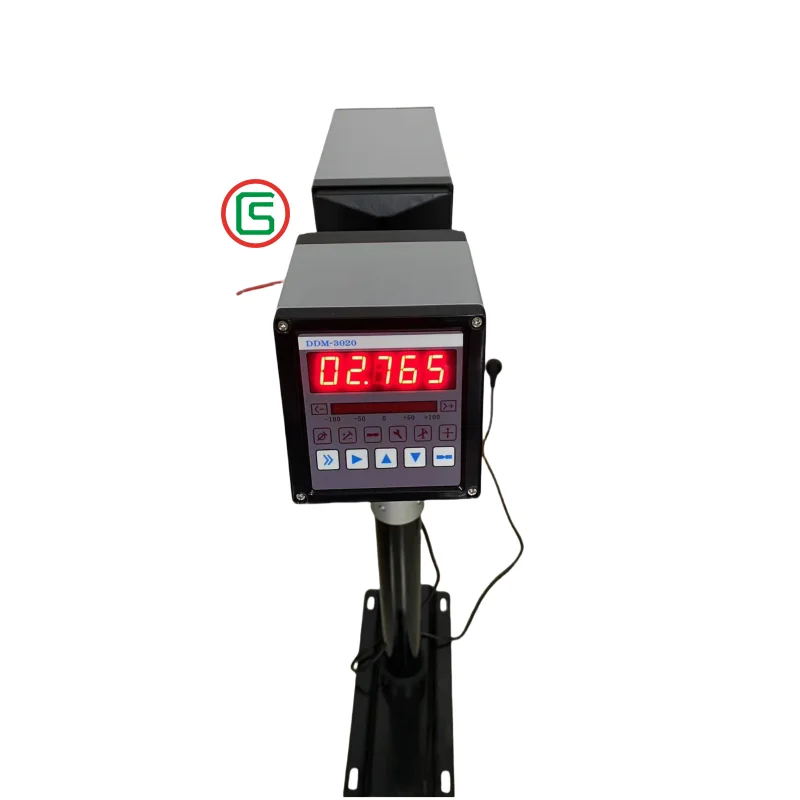

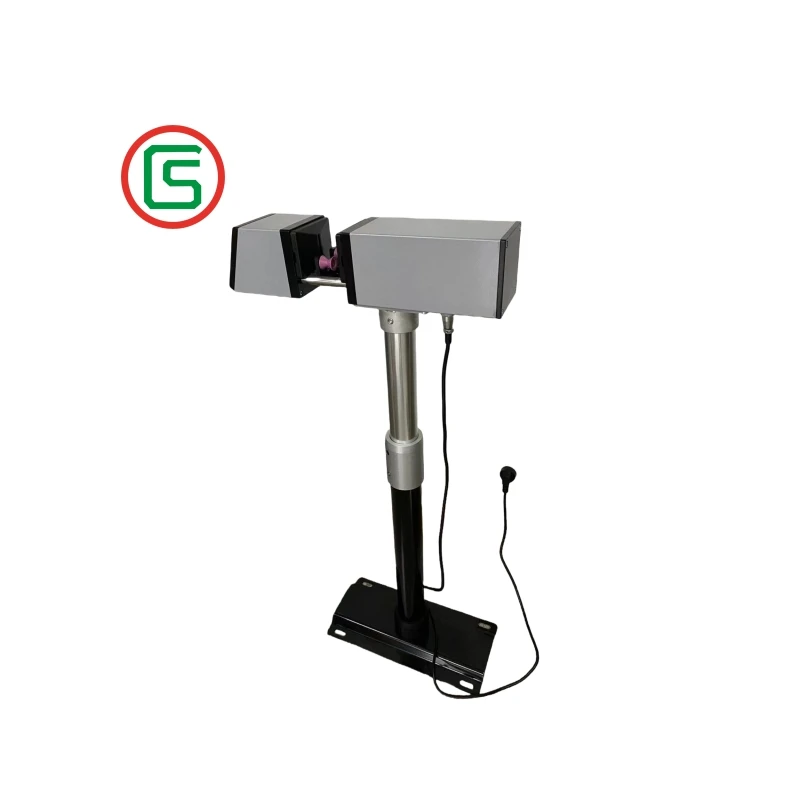

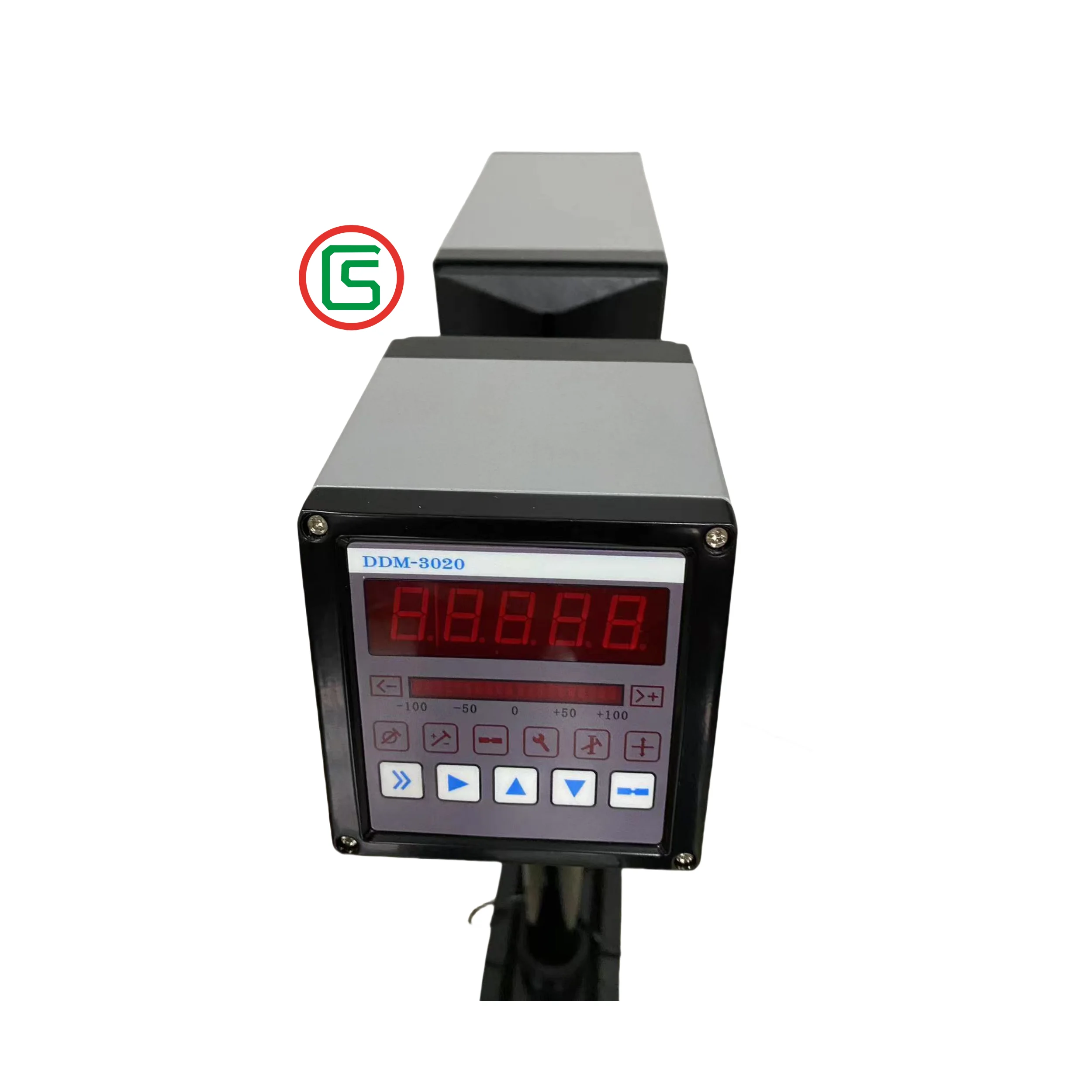

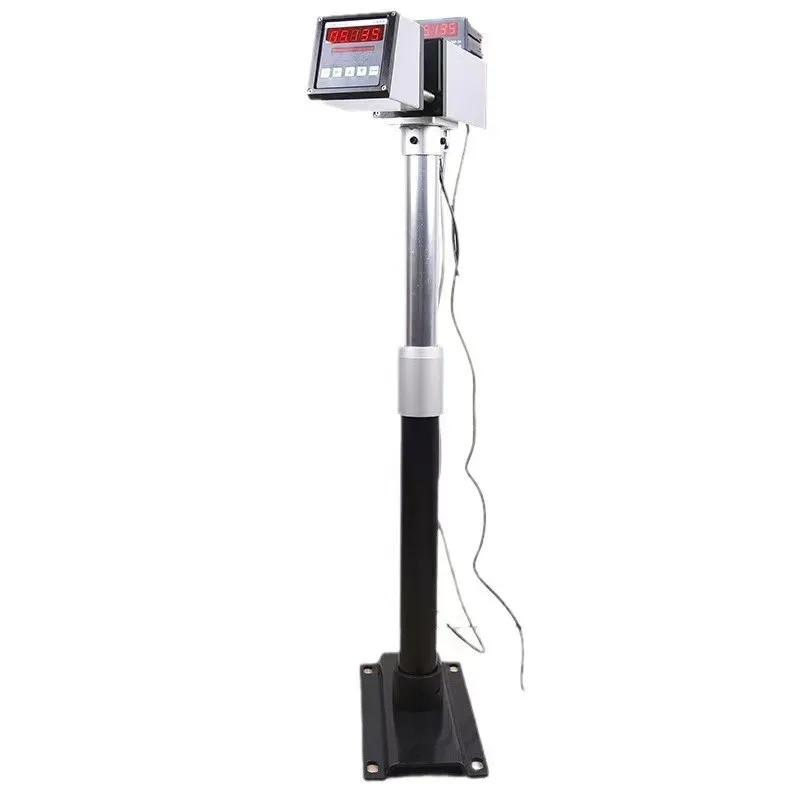

3020 wire and cable diameter measured tool laser and Infrared measuring instruments
Product Application:
All kinds of glass tubes, glass rods and other transparent, translucent objects
Local area Network (LAN) cable
Coaxial cable
Optical fiber, flat cable
Frequency cable, communication cable
Power cable, pipe, wire
Product Parameters | ||||||
Model | 3020 | 3040 | 70/90/100/140 | |||
diameter range | 0.1-20mm | 1-40mm | 1-70/120/140mm | |||
measurement accuracy | ±0.002mm | ±0.003mm | ±0.004mm | |||
Resolution ratio | 0.001mm | 0.001mm | 0.001mm | |||
Size | 290*66*170mm | 400*68*175mm | 504*84*230mm | |||
Weight | 12kg | 14kg | 18kg | |||
Products Description
product description
The outer diameter measuring and controlling instrument can be installed either before or after the cooling tank. When installed
in front of the sink, because the measuring head is close to the extruder, the feedback control is timely, and the best control
effect can be obtained, but the plastic has not been cured, and the nominal value set should be corrected appropriately. When
installed in the sink, the measured value is the actual value of the outer diameter of the cable, which is more accurate and
reliable, but the control lag is large, and the control effect is slightly worse. In addition, it should be noted that the cable
to be measured should be blown dry, otherwise the water film outside the cable will affect the measurement accuracy, and the
nominal value should be appropriately increased according to the degree of water with the measured object in actual use.
in front of the sink, because the measuring head is close to the extruder, the feedback control is timely, and the best control
effect can be obtained, but the plastic has not been cured, and the nominal value set should be corrected appropriately. When
installed in the sink, the measured value is the actual value of the outer diameter of the cable, which is more accurate and
reliable, but the control lag is large, and the control effect is slightly worse. In addition, it should be noted that the cable
to be measured should be blown dry, otherwise the water film outside the cable will affect the measurement accuracy, and the
nominal value should be appropriately increased according to the degree of water with the measured object in actual use.
PRODUCT SPECIFICATIONS
Please choose the model according your material and diameter .
Please also provide us:
SALES AND SERVICE NETWORK
Our Advantages
Suzhou Maiduobao Machinery Technology Co., Ltd has its own factory, strong production capacity，Delivery time is short. And has its Technically professional design team, workers have rich production experience. Can provide support for OEM&ODM projects.
3020 wire and cable diameter measured tool laser and Infrared measuring instruments
Recommend Products
Certifications
FAQ
Q1: Are you a factory or trading company?
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We will ship machine from
Shanghai or Ningbo port.
Q2: How does the factory ensure products quality?
With Nearly 20ears experience in manufacturing winding machine, we have our own technology develop department and testing
department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers
to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will take you picture for the machine after we finish. We will ship small machines by UPS, DHL, FedEx or sea shipment. ship big machines by air or by sea We will provide you shipping number after we ship machine
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We will ship machine from
Shanghai or Ningbo port.
Q2: How does the factory ensure products quality?
With Nearly 20ears experience in manufacturing winding machine, we have our own technology develop department and testing
department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers
to assemble and test machine.
Q3:How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will take you picture for the machine after we finish. We will ship small machines by UPS, DHL, FedEx or sea shipment. ship big machines by air or by sea We will provide you shipping number after we ship machine
3020 wire and cable diameter measured tool laser and Infrared measuring instruments
Похожие товары

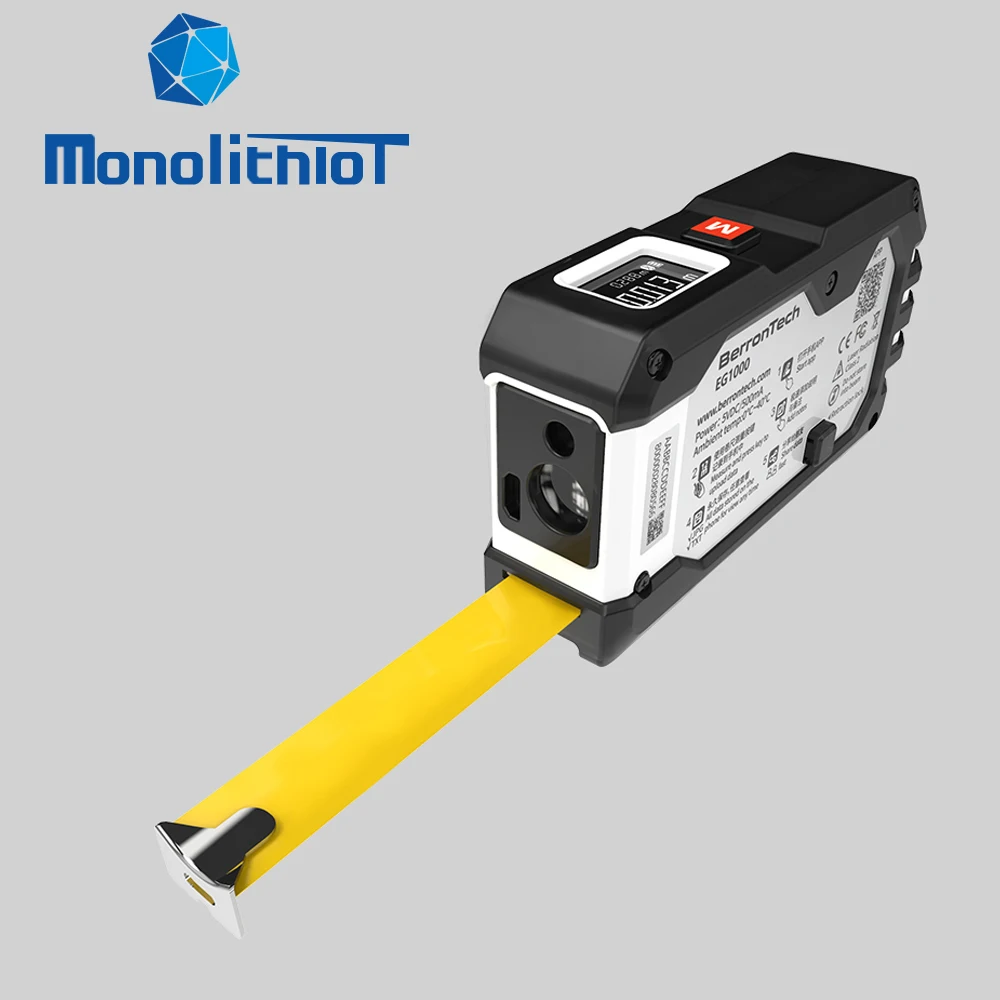

Лазерная измерительная лента, 60 м, 3 в 1, 5 м
1 403,50 ₽ - 2 192,97 ₽

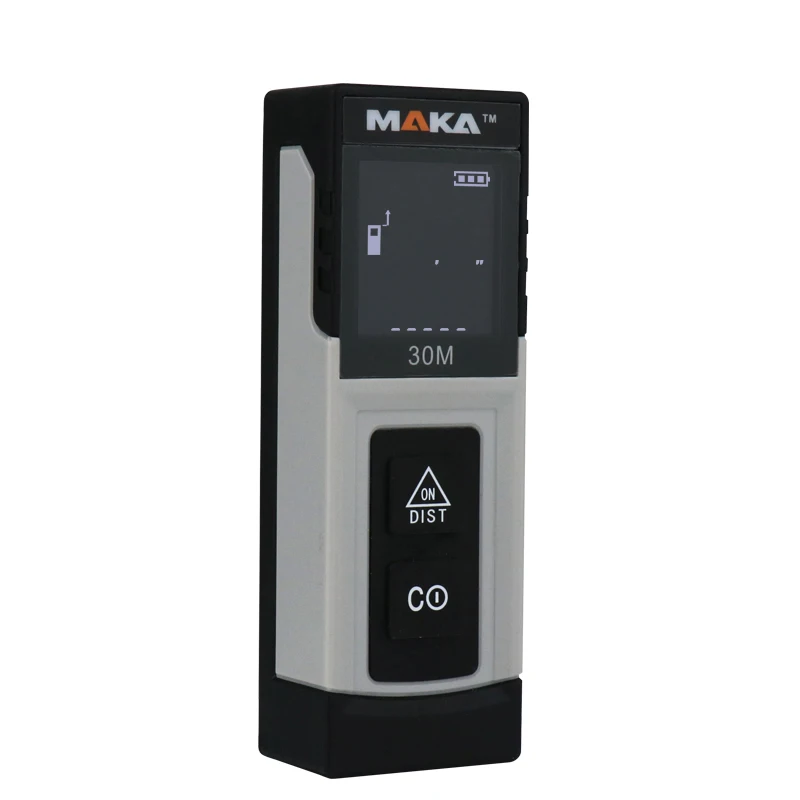

Мака, лазерный дальномер, дальномер, инструменты для измерения подключения к мобильному телефону с синим зубом
1 425,43 ₽ - 2 083,32 ₽

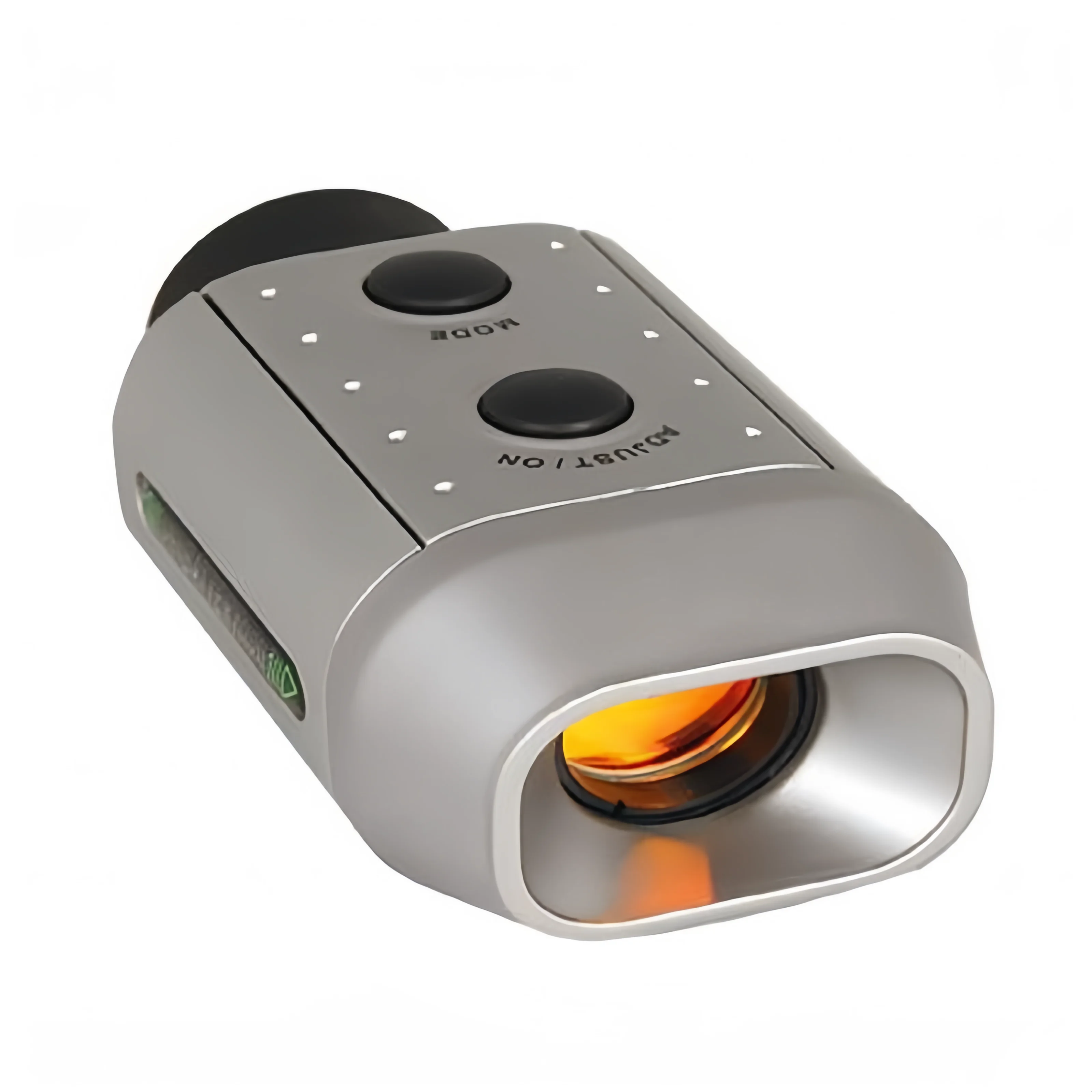

Цифровой оптический электронный дальномер монокулярный измерительный прибор охотничий лазерный дальномер
13,80 $

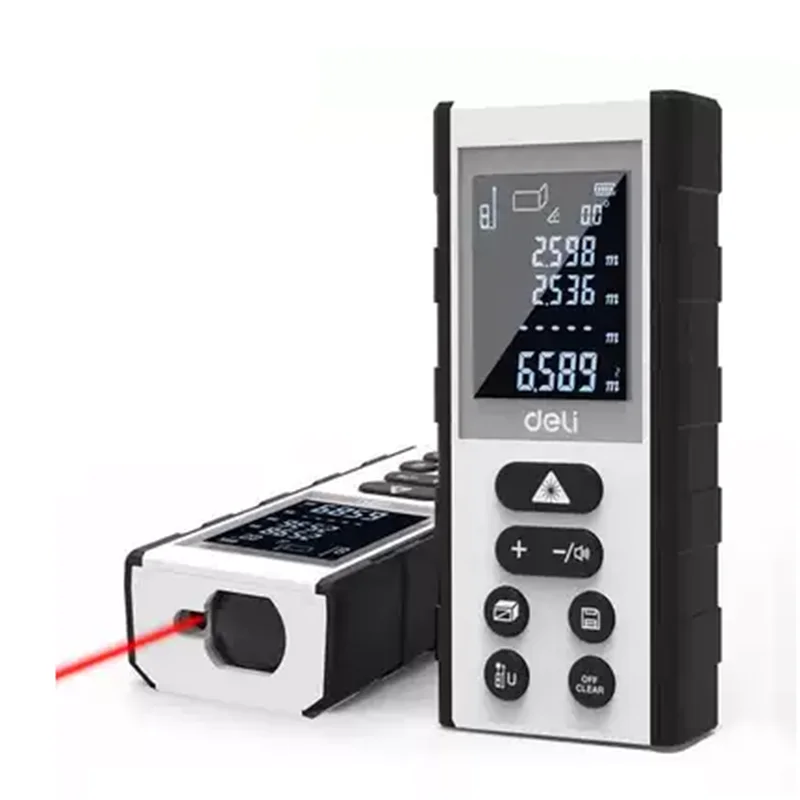

GAIDE USB зарядка зеленая линия цифровой лазерный измеритель расстояния
13,00 $ - 14,00 $

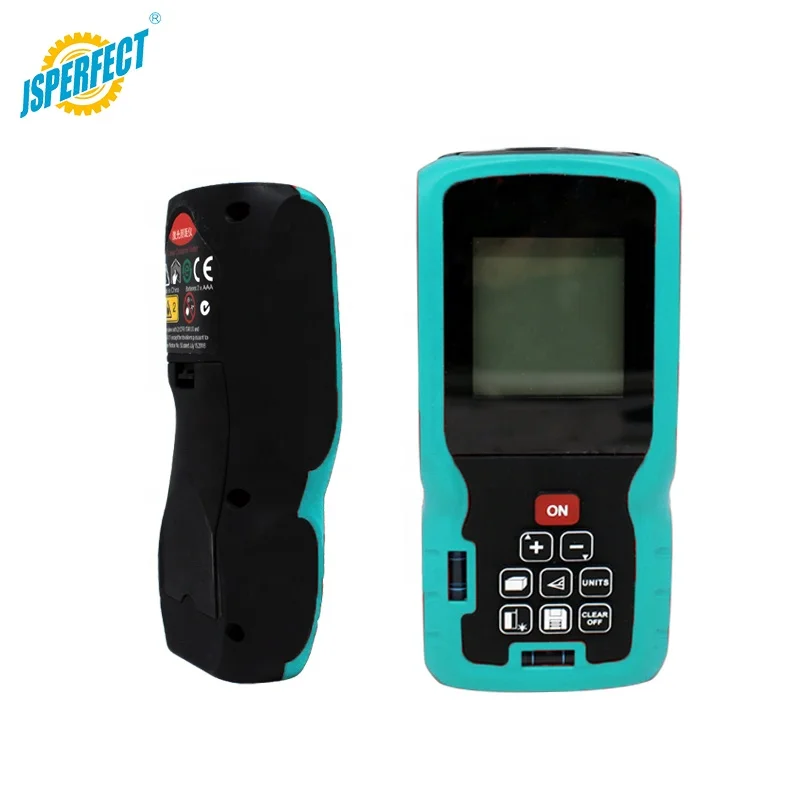

Высокоточный лазерный дальномер
29,26 $

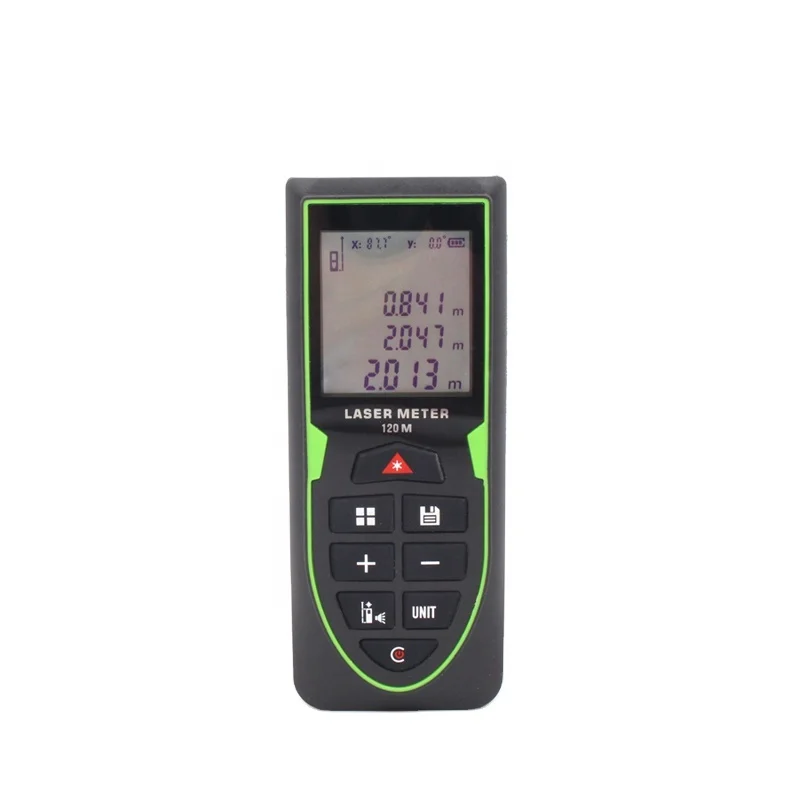

Оптовая цена, портативный смарт-дальномер 80 м, дальномер, лазерный измеритель расстояния
14,00 $ - 16,50 $

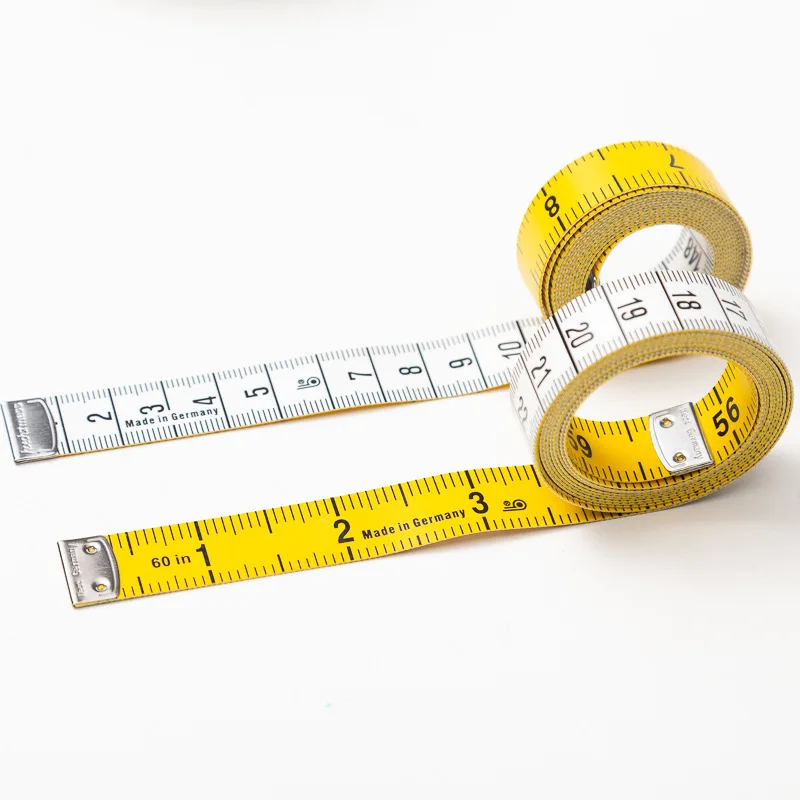

Хорошее качество, небольшая рулетка разных цветов, швейная измерительная линейка, портновская тканевая рулетка, рулетка для тела
