PRODUCT SPECIFICATIONS

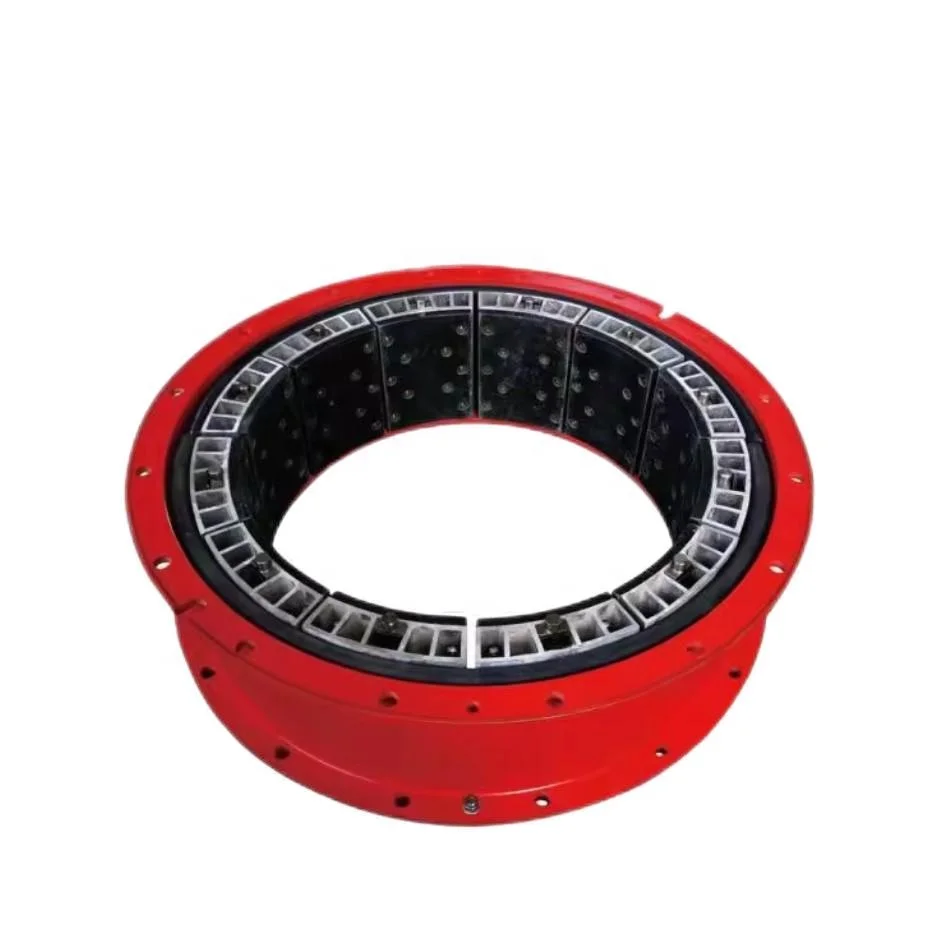

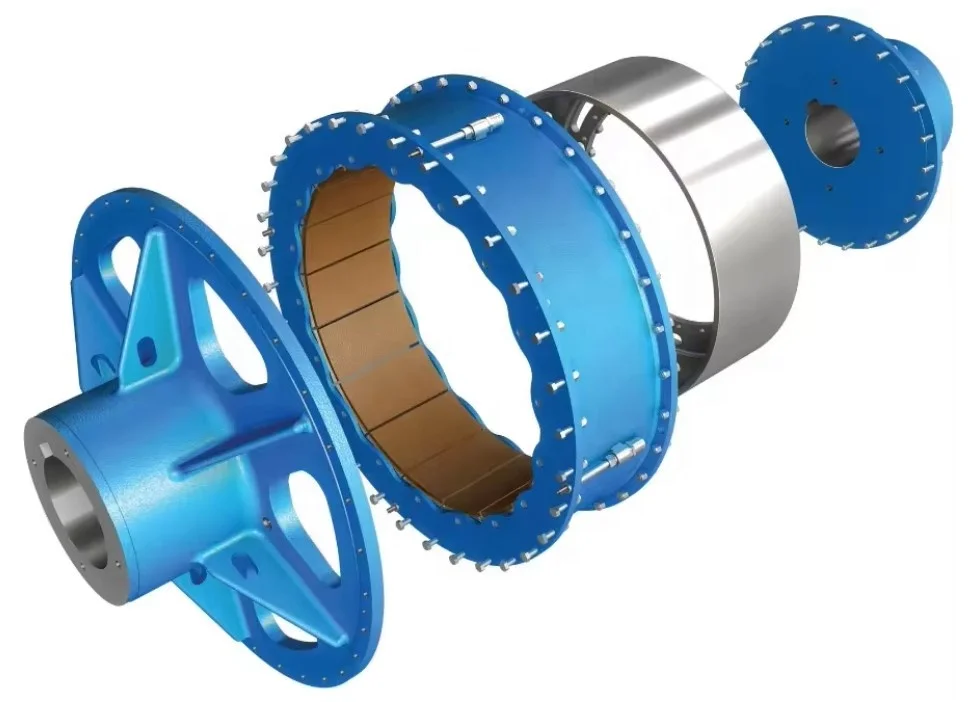

1.Pneumatic tire clutch can be divided into radial type and axial type according to the installation
position of pneumatic tire and friction plate. Among them, the radial pneumatic tire can be configured into a single exhaust tire and a double exhaust tire.
2.The tire expands when it is filled with Compressed air, and the air pressure is evenly distributed over the Friction Pad
Assembly, which is then pushed to hold the drum on the driven shaft. The friction tile assembly is riveted by aluminum backing plate and friction plate, and is guided by a Torque bar fixed on the side plate.
* Description of application effect
Clutch: Ventilated pneumatic clutch is a kind of pneumatic clutch with excellent performance developed on the basis of common pneumatic clutch. It has good ventilation and heat dissipation, the pneumatic tire does not bear torque, and it is stable to hang and detach, thus it has higher working performance and service life than the common type.
position of pneumatic tire and friction plate. Among them, the radial pneumatic tire can be configured into a single exhaust tire and a double exhaust tire.
2.The tire expands when it is filled with Compressed air, and the air pressure is evenly distributed over the Friction Pad
Assembly, which is then pushed to hold the drum on the driven shaft. The friction tile assembly is riveted by aluminum backing plate and friction plate, and is guided by a Torque bar fixed on the side plate.
* Description of application effect
Clutch: Ventilated pneumatic clutch is a kind of pneumatic clutch with excellent performance developed on the basis of common pneumatic clutch. It has good ventilation and heat dissipation, the pneumatic tire does not bear torque, and it is stable to hang and detach, thus it has higher working performance and service life than the common type.
Model | Rotate speed r/min | Torque N.m | Working pressure Mpa | Pneumatic | ||||
Limited | Rated | Limited | Rated | volumetric | ||||
LT500/200 | 1312-1578 | 758-912 | 17110-24970 | 11406-16646 | 0.7-1.0 | 3*2 | ||
LT500/250 | 1586-1701 | 916-983 | 23390-26900 | 15590-17930 | 0.7-0.8 | 3*5 | ||
LT600/250 | 1281-1544 | 740-892 | 32200-46710 | 21466-31140 | 0.7-1.0 | 4*2 | ||
LT700/250 | 1181-1344 | 660-793 | 48200-69910 | 32100-47300 | 0.7-1.0 | 4.2*2 | ||
DY700/135 | 1569-1890 | 907-1092 | 24560-35360 | 16170-23750 | 0.7-1.0 | 4 | ||
LT800/250 | 1016-1224 | 587-707 | 54240-78660 | 36160-52440 | 0.7-1.0 | 4.66*2 | ||
LT900/250 | 903-1087 | 522-628 | 68000-98930 | 45467-65953 | 0.7-1.0 | 3*2 | ||
LT1070/200 | 932-1123 | 539-668 | 84600-122670 | 56400-81790 | 0.7-1.0 | 3.0 | ||
LT1170/250 | 765-820 | 442-474 | 117740-134130 | 78490-89420 | 0.7-0.8 | 5.7 | ||
LT1120/300 | ---- | ---- | 184500-263250 | 123000-175500 | 0.7-1.0 | 3.96*2 | ||
LT1250/300 | ---- | ---- | 229500-327000 | 153000-218000 | 0.7-1.0 | 4.4*2 | ||
LT965*305 | 782-957 | 452-563 | 99680-142800 | 78145-96755 | 0.7-0.9 | 6.0 | ||
LT1168*305 | 739-890 | 435-524 | 108390-147700 | 88332-99700 | 0.7-0.9 | 11 | ||
