Распродажа сеток для сварки
11,50 $ - 12,35 $
Квадратная сетчатая сетка квадратная проволочная 20x20 квадратное отверстие
- Категория: >>>
- Поставщик: Hebei Tiedi International Trade Co. Ltd.
Сохранить в закладки 1601203762921:
Описание и отзывы
Характеристики

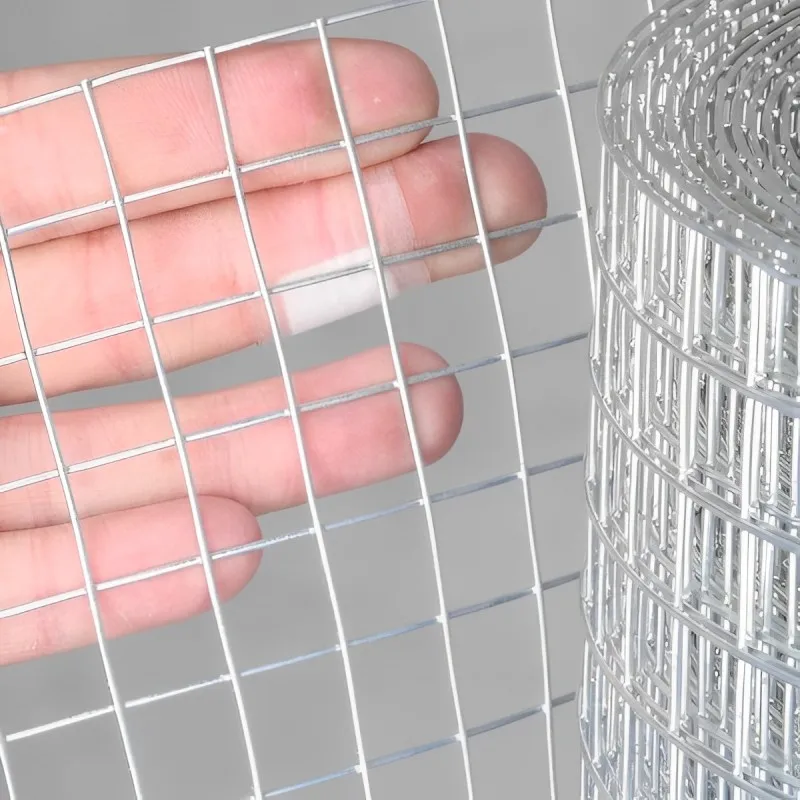

Welded wire mesh
Tiedi Metal is a professional manufacturer and exporter of welded wire mesh. With the latest technology and advanced machines, we supply all ranges of welded wire mesh products and further welded wire meshes.
Common Specifications:
●Opening:1/4",3/8",1/2",5/8",3/4",1x1",2x2",
1x1/2",1x2",2x3",2x4",4x4"customized.
●Wire Diamter: 0.37mm-5mm
●Hole Shape: Rectangle, Square
●Roll Width: 0.4m to 2.5m(Galvanized),0.3m to 2.0m(Pvc Coated)
●Roll Length: 5m to 100m
●Packing:Waterproof Paper,Stretch Plastic Film,Shrink Plastic Film In Bulk,On Pallets or In Wooden Box
According to the materials:
1.Zinc-coated welded wire mesh
2.Stainless steel welded wire mesh
3.Black welded wire mesh
4.Low carbon steel welded wire mesh
According to the surface treatment:
1.Hot-dipped galvanized welded wire mesh
2.Electro galvanized welded wire mesh
3.PVC coated welded wire mesh
According to the application:
4.welded wire containers
Galvanized Welded Wire Mesh
Specification of Galvanized Welded Wire Mesh | ||||||||
Opening | Wire Diameter | |||||||
In inch | In metric unit(mm) | BWG | MM | |||||
1/4"x1/4" | 6.4x6.4mm | BWG24-22 | 0.56-0.71mm | |||||
3/8"x3/8" | 10.6x10.6mm | BWG27-18 | 0.40-1.24mm | |||||
1/2"x1/2" | 12.7x12.7mm | BWG27-16 | 0.40-1.65mm | |||||
5/8"x5/8" | 16x16mm | BWG27-18 | 0.40-1.24mm | |||||
3/4"x3/4" | 19.1x19.1mm | BWG27-16 | 0.40-1.65mm | |||||
1"x1" | 25.4x25.4mm | BWG22-14 | 0.71-2.10mm | |||||
1"x1/2" | 25.4x12.7mm | BWG23-16 | 0.63-1.65mm | |||||
1"x2" | 25.4x50.8mm | BWG18-14 | 1.24-2.10mm | |||||
2"x2" | 50.8x50.8mm | BWG18-8 | 1.24-4.00mm | |||||
2"x3" | 50.8x75mm | BWG18-8 | 1.24-4.00mm | |||||
3"x3" | 75x75mm | BWG18-8 | 1.24-4.00mm | |||||
2” x 4" | 50.8x101.6mm | BWG18-8 | 1.24-4.00mm | |||||
4"x4" | 101.6x101.6mm | BWG18-8 | 1.24-4.00mm | |||||
Galvanizing Types | ||||||
Type | Zinc Coated | Price | Quality | |||
Electro-galvanized before welded | 10-20g/sqm | Lowest | Average | |||
Electro-galvanized after welded | 20-30g/sqm | Lower | Middle | |||
Hot dipped galvanized before welded | 50-80g/sqm or more | Middle | Middle | |||
Hot dipped galvanized after welded | Over 200g/sqm | Highest | Best | |||
Pvc Coated Welded Wire Mesh
Green Welded Mesh
Black Welded Mesh
Heavy Gauge Welded Mesh
Specification of Pvc Coated Welded Wire Mesh | ||||||||
Mesh size | Wire Dia before & after Pvc coated | |||||||
MM | In inch | Before coated | After coated | |||||
6.4x6.4 | 1/4"x1/4" | 0.56-0.71 | 0.90-1.05 | |||||
9.5x9.5 | 3/8"x3/8" | 0.64-1.07 | 1.00-1.52 | |||||
12.7x12.7 | 1/2"x1/2" | 0.71-1.65 | 1.10-2.20 | |||||
15.9x15.9 | 5/8"x5/8" | 0.81-1.65 | 1.22-2.30 | |||||
19x19 | 3/4"x3/4" | 0.81-1.65 | 1.24-2.40 | |||||
12.7x25.4 | 1"×1/2" | 0.81-1.65 | 1.24-2.42 | |||||
25.4x25.4 | 1"x1" | 0.81-2.11 | 1.28-2.90 | |||||
38.1x38.1 | 1½"x1½ " | 1.07-2.11 | 1.57-2.92 | |||||
25.4x50.8 | 1"× 2" | 1.47-2.11 | 2.00-2.95 | |||||
50.8x50.8 | 2x2" | 1.65-2.77 | 2.20-3.61 | |||||
76.2x76.2 | 2"x3" | 1.90-3.50 | 2.50-4.36 | |||||
101.6x101.6 | 4"x4" | 2.20-4.00 | 2.85-4.88 | |||||
Colors: | Green, black, yellow, blue, white or other colors as customers request | |||||||
Stainless Steel Welded Wire Mesh
Specification of stainless steel Welded Wire Mesh | ||||||||
Opening | Wire Diameter | |||||||
In inch | In metric unit(mm) | BWG | MM | |||||
1/4"x1/4" | 6.4x6.4mm | BWG24-22 | 0.56-0.71mm | |||||
3/8"x3/8" | 10.6x10.6mm | BWG27-18 | 0.40-1.24mm | |||||
1/2"x1/2" | 12.7x12.7mm | BWG27-16 | 0.40-1.65mm | |||||
5/8"x5/8" | 16x16mm | BWG27-18 | 0.40-1.24mm | |||||
3/4"x3/4" | 19.1x19.1mm | BWG27-16 | 0.40-1.65mm | |||||
1"x1" | 25.4x25.4mm | BWG22-14 | 0.71-2.10mm | |||||
1"x1/2" | 25.4x12.7mm | BWG23-16 | 0.63-1.65mm | |||||
1"x2" | 25.4x50.8mm | BWG18-14 | 1.24-2.10mm | |||||
2"x2" | 50.8x50.8mm | BWG18-12 | 1.24-2.76mm | |||||
Material: SS201 SS304 SS316 | ||||||||
Product Advantages
High quality raw materials
High quality raw materials can improve the strength and durability of welded wire mesh.Tiedi Metal chooses high quality low carbon steel wire, which are very strong and toughness. Each batch of TIEDI raw materials is subject to tensile strength test, which ensures that our products maintain the high level in the metal materials industry.
Advanced equipment
Tiedi Metal uses the specially improved welding machines to ensure opening uniform, welding firmness and flatness. And it not only can improve production efficiency to ensure delivery time of your order, but also reduce production cost to enhance your market competitiveness.
Precise control of welding parameters
During the welding process, strictly control welding parameters such as welding current, voltage, speed, pressure, etc. Ensure weld quality and consistency for each solder joint, avoiding defects or fluctuations in quality. And evaluate the strength and reliability of the product through methods such as tensile test, bending test and fracture test.
Regular maintenance of electrodes
We choose appropriate electrodes with good conductivity, thermal conductivity, wear resistance, and stability, and regularly sand down the notches or grooves generated during work. This can improve welding quality, reduce welding defects, and improve production efficiency.
Increase employee training
Train production workers to ensure they possess competent operational skills and quality awareness， Deal with the problems or defects found in a timely manner.
Applications
Trees guards
Outdoor fence
Plastering mesh
Rabbit cage
Chicken cage
Packing&Shipping
Packing
1, Moisture resistance paper.
2, Stretch plastic film.
3, Shrink plastic film.
4, In bulk or on pallets or in wooden box.
Shipping
We will look for a professional transportation agent to deliver the products, so we are capable of delivery products to most ports all over the world.
Company Profile
Hebei Tiedi International Trade Co., Ltd is the export company of Anping Tiedi Metal Products Factory. Our factory has been a leading manufacturer of metal wire mesh since 2000.We committed to providing high-quality products at competitive prices, and excellent customer service. Equipped with 50 sets of modern machinery that have advanced technology, we use certified raw materials from reputable manufacturers to produce a wide range of wire mesh products, including welded wire mesh, expanded metal mesh, perforated metal mesh, steel grating, concertina razor wire, stainless steel wire mesh, and other quality products. We are committed to building long-term relationships with our customers. Our commitment to quality and customer satisfaction has led to our success. We invite you to experience the difference that comes from working with a dedicated and experienced supplier.
FAQ
Q1: Who are we?
For 23 years, our company has been dedicated to manufacture wire mesh products, which brings about rich experience. We have manufacturer Anping Tiedi Metal Products Factory and export company Hebei Tiedi International Trade Co., Ltd
Q2: What are your advantages compared with others?
1.With our own factory to manufacture the products, we can ensure timely products delivery.
2.Owned factory, the same quality product, the best price.
3.We have Professional staffs, let you enjoy comfortable and effective communication.
4.More efficient management in every process.
5.We never cheat customers.
Q3: How to order your products?
In order to quote you accurate price, please inform us the detail specification such as Mesh size, wire diameter, width and length, quantity, packing, delivery time and place....
Q4: How do you control your quality?
1.Selecting good steel material and producing follow the standard.
2.100% finished product test.
3.ISO Quality Management System.
4.We accept inspection of products.
Q5: How do you deal with product quality?
Your products will be tested for quality before delivery. We will be responsible for the loss of our customers due to product quality problems.
For 23 years, our company has been dedicated to manufacture wire mesh products, which brings about rich experience. We have manufacturer Anping Tiedi Metal Products Factory and export company Hebei Tiedi International Trade Co., Ltd
Q2: What are your advantages compared with others?
1.With our own factory to manufacture the products, we can ensure timely products delivery.
2.Owned factory, the same quality product, the best price.
3.We have Professional staffs, let you enjoy comfortable and effective communication.
4.More efficient management in every process.
5.We never cheat customers.
Q3: How to order your products?
In order to quote you accurate price, please inform us the detail specification such as Mesh size, wire diameter, width and length, quantity, packing, delivery time and place....
Q4: How do you control your quality?
1.Selecting good steel material and producing follow the standard.
2.100% finished product test.
3.ISO Quality Management System.
4.We accept inspection of products.
Q5: How do you deal with product quality?
Your products will be tested for quality before delivery. We will be responsible for the loss of our customers due to product quality problems.
