2024 новый дизайн ЧПУ алюминиевый Торцевой фрезерный станок для алюминия
374 718,42 ₽ - 385 739,55 ₽

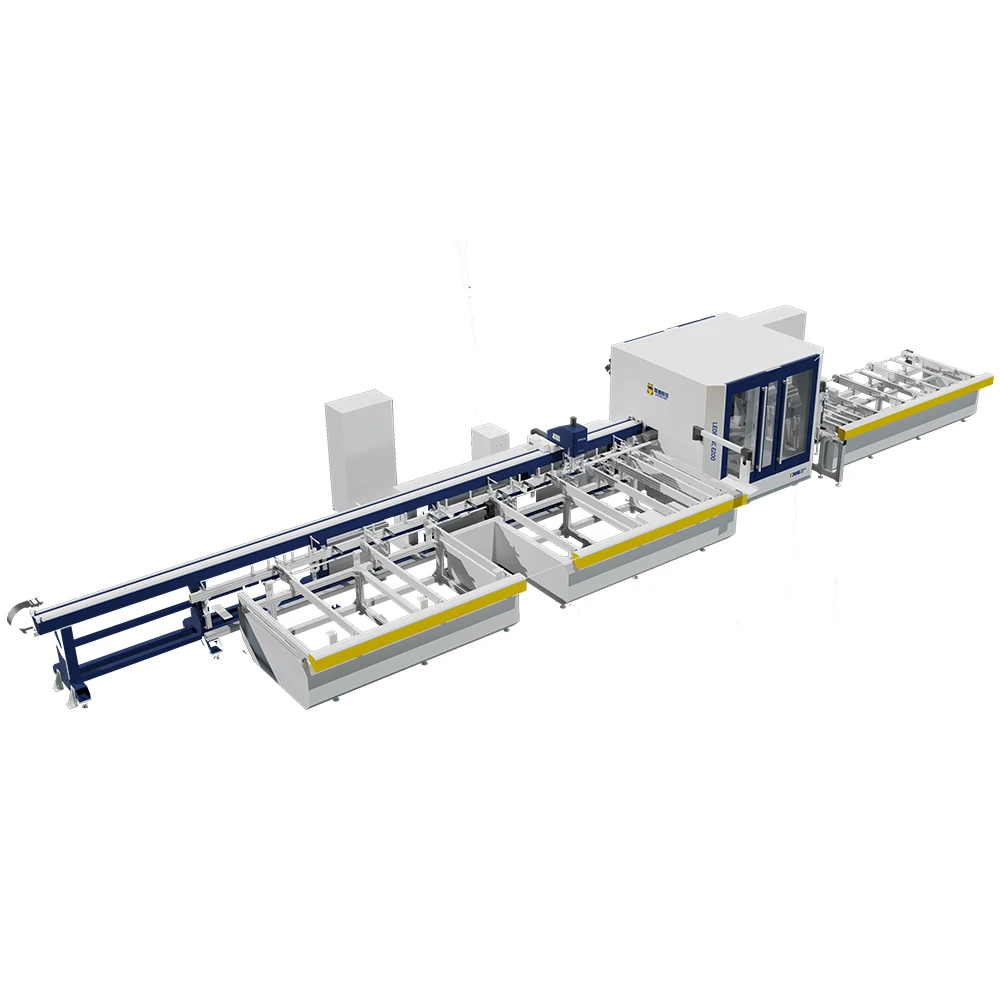

LEDE CNC интеллектуальный лазерный сверлильный 5 осевой профиль фрезерный Алюминиевый оконный дверной станок
- Категория: >>>
- Поставщик: Shandong LEAD CNC Machinery Co. Ltd
Сохранить в закладки 1601204445072:
Описание и отзывы
Характеристики
Features
● Professionally used for cutting, milling, laser drilling and marking of aluminum profiles. The milling cutters are processed simultaneously.
Take the lock as an example - when processing the three-hole handle hole and lock box, two milling cutters mill the hole slots in two directions at the same time.
● High efficiency: 3 fixed-angle saw blades, saw blade servo feed, high smoothness and high efficiency.
● High speed and high precision: magnetic levitation high-speed feeding + independent synchronous processing of milling cutters + full closed-loop data feedback of feeding length.
● Large range: 300-7000mm, profile width 150mm, height 150mm.
● Strong function: combined sawing and milling.
3 saw blades: fixed angle + high power 3KW + mirror cutting.
High-speed dual laser: rear laser drilling and marking + front laser marking.
High-speed electric spindle milling: Equipped with four electric spindles, it can process simultaneously, upper, lower, front and rear surfaces + front inclined surface milling (the front milling cutter rotates and tilts for drilling and milling, suitable for processing special holes and grooves such as hidden drainage channels).
● High power: Equipped with a 3KW direct-coupled motor, the efficiency of cutting profiles with insulation materials is 30% higher than that of 2.2KW.
● High precision: integral cast cutting mechanism, 3 fixed angles: 2 45° + 1 90°, cutting length error 0.1mm, cutting surface flatness ≤ 0.10mm, cutting angle error 5′.
● High laser processing efficiency: The rear side is equipped with a laser cutting device, the power can be automatically adjusted according to the wall thickness of the profile, and the cutting quality is good. Automatically switch the engraving or cutting state to perform engraving or cutting according to process requirements. Laser marking can be performed on both sides at the same time, with accurate positioning and high efficiency.
● Fool-like operation: no need for skilled workers, no need to adjust the manipulator (it can automatically rotate and clamp special-shaped materials), no need to consider the profile section (Z-shaped fans and conversion frames are no problem, as shown below:), no need to customize the prototype, no need to consider the profile high.
● High degree of automation: A general worker can operate it, place 7 profiles at a time, and automatically complete feeding, cutting, and discharging.
● Intelligent: The feeding system is fully servo controlled, intelligently identifies profile data (height, wall thickness), and intelligently adjusts processing parameters (feed speed, feed position)
● 0 errors: The device has its own error-proofing mechanism.
● Data import method:
1. Software docking: online with ERP software, such as: Klaes, Jopps, Mendaoyun, Zaoyi, Xinger, etc.;
2. Network/USB import: just follow the factory’s existing blanking order format;
3. Manual input.
● Equipped with automatic chip removal machine (material head) and automatic dust collection device (aluminum chips) to reduce cleaning frequency and improve work efficiency.
● The cutting chamber has double-layer protection, low noise, safety and environmental protection.
● Safety: pneumatic and electrical protection devices, mechanical protection devices to ensure safe production.
● Standard tool life management system, automatic reminder when saw blade needs to be repaired or replaced.
● The standard automatic maintenance reminder function eliminates equipment hazards in advance and improves equipment utilization.
● Standard production capacity statistics, equipment status and time statistics, real-time monitoring, controllable delivery time, reduced inventory, and improved capital flow utilization.
● Equipped with remote service functions (maintenance, maintenance, training), saving service time, reducing downtime, and reducing the factory's dependence on skilled workers.
Take the lock as an example - when processing the three-hole handle hole and lock box, two milling cutters mill the hole slots in two directions at the same time.
● High efficiency: 3 fixed-angle saw blades, saw blade servo feed, high smoothness and high efficiency.
● High speed and high precision: magnetic levitation high-speed feeding + independent synchronous processing of milling cutters + full closed-loop data feedback of feeding length.
● Large range: 300-7000mm, profile width 150mm, height 150mm.
● Strong function: combined sawing and milling.
3 saw blades: fixed angle + high power 3KW + mirror cutting.
High-speed dual laser: rear laser drilling and marking + front laser marking.
High-speed electric spindle milling: Equipped with four electric spindles, it can process simultaneously, upper, lower, front and rear surfaces + front inclined surface milling (the front milling cutter rotates and tilts for drilling and milling, suitable for processing special holes and grooves such as hidden drainage channels).
● High power: Equipped with a 3KW direct-coupled motor, the efficiency of cutting profiles with insulation materials is 30% higher than that of 2.2KW.
● High precision: integral cast cutting mechanism, 3 fixed angles: 2 45° + 1 90°, cutting length error 0.1mm, cutting surface flatness ≤ 0.10mm, cutting angle error 5′.
● High laser processing efficiency: The rear side is equipped with a laser cutting device, the power can be automatically adjusted according to the wall thickness of the profile, and the cutting quality is good. Automatically switch the engraving or cutting state to perform engraving or cutting according to process requirements. Laser marking can be performed on both sides at the same time, with accurate positioning and high efficiency.
● Fool-like operation: no need for skilled workers, no need to adjust the manipulator (it can automatically rotate and clamp special-shaped materials), no need to consider the profile section (Z-shaped fans and conversion frames are no problem, as shown below:), no need to customize the prototype, no need to consider the profile high.
● High degree of automation: A general worker can operate it, place 7 profiles at a time, and automatically complete feeding, cutting, and discharging.
● Intelligent: The feeding system is fully servo controlled, intelligently identifies profile data (height, wall thickness), and intelligently adjusts processing parameters (feed speed, feed position)
● 0 errors: The device has its own error-proofing mechanism.
● Data import method:
1. Software docking: online with ERP software, such as: Klaes, Jopps, Mendaoyun, Zaoyi, Xinger, etc.;
2. Network/USB import: just follow the factory’s existing blanking order format;
3. Manual input.
● Equipped with automatic chip removal machine (material head) and automatic dust collection device (aluminum chips) to reduce cleaning frequency and improve work efficiency.
● The cutting chamber has double-layer protection, low noise, safety and environmental protection.
● Safety: pneumatic and electrical protection devices, mechanical protection devices to ensure safe production.
● Standard tool life management system, automatic reminder when saw blade needs to be repaired or replaced.
● The standard automatic maintenance reminder function eliminates equipment hazards in advance and improves equipment utilization.
● Standard production capacity statistics, equipment status and time statistics, real-time monitoring, controllable delivery time, reduced inventory, and improved capital flow utilization.
● Equipped with remote service functions (maintenance, maintenance, training), saving service time, reducing downtime, and reducing the factory's dependence on skilled workers.
Specification
Power | 380V/50Hz |
Rated consume | 25KW |
Maximum consume | 39KW |
Air pressure | 0.5~0.8Mpa |
Air consumption | 120L/min |
Motor | 3.0KW |
Motor speed | 2800r/min |
Saw blade specifications | φ550×φ30×4.4, Z=120 |
Sawing length | 300~7000mm |
Sawing width | 150mm |
Sawing height | 150mm |
Maximum speed of manipulator | 100m/min |
Cutting accuracy | ±0.1mm |
Sawing angle | 45°90° |
Robot maximum speed | 180m/min |
Milling accuracy | ±0.05mm |
Cutting surface flatness | ≤0.10mm |
Milling accuracy | ±0.05mm |
Machine size (including two side workbenches) | 17500×5500×2500mm |
Weight | 8900kg |
Configuration of main components
Electrical element | Brand | Remark | ||
Control system | PA | Germany | ||
Servo motor | Mitsubishi | Japan | ||
Servo motor driver | Mitsubishi | Japan | ||
Reduction gear | APEX | Taiwan | ||
Push button switch | Muller | Germany | ||
Travel switch | OMRON | Japan | ||
Terminal block | WEIDMULLER | Germany | ||
Saw blade motor | GMT | China | ||
Cylinder | AIRTAK | Taiwan | ||
Guide rail | HIWIN | Taiwan | ||
Screw | PMI | Taiwan | ||
Linear axis reducer | APEX | Taiwan | ||
Rack | APEX | Taiwan | ||
Ball screw | PMI | Taiwan | ||
Laser (complete set)- Line cutting | 30W- CHUANGXIN | China | ||
Fiber laser - Punching | 1500W- CHUANGXIN | China | ||
Note: In case of insufficient supply, other brands of products will be used as substitutes, but there will be no difference in quality and grade | ||||
Похожие товары
Фрезерный станок с ЧПУ для алюминиевого профиля
2 094 014,70 ₽
2024 новый дизайн окна cnc сверлильный и фрезерный станок алюминиевый профиль оконный дверной

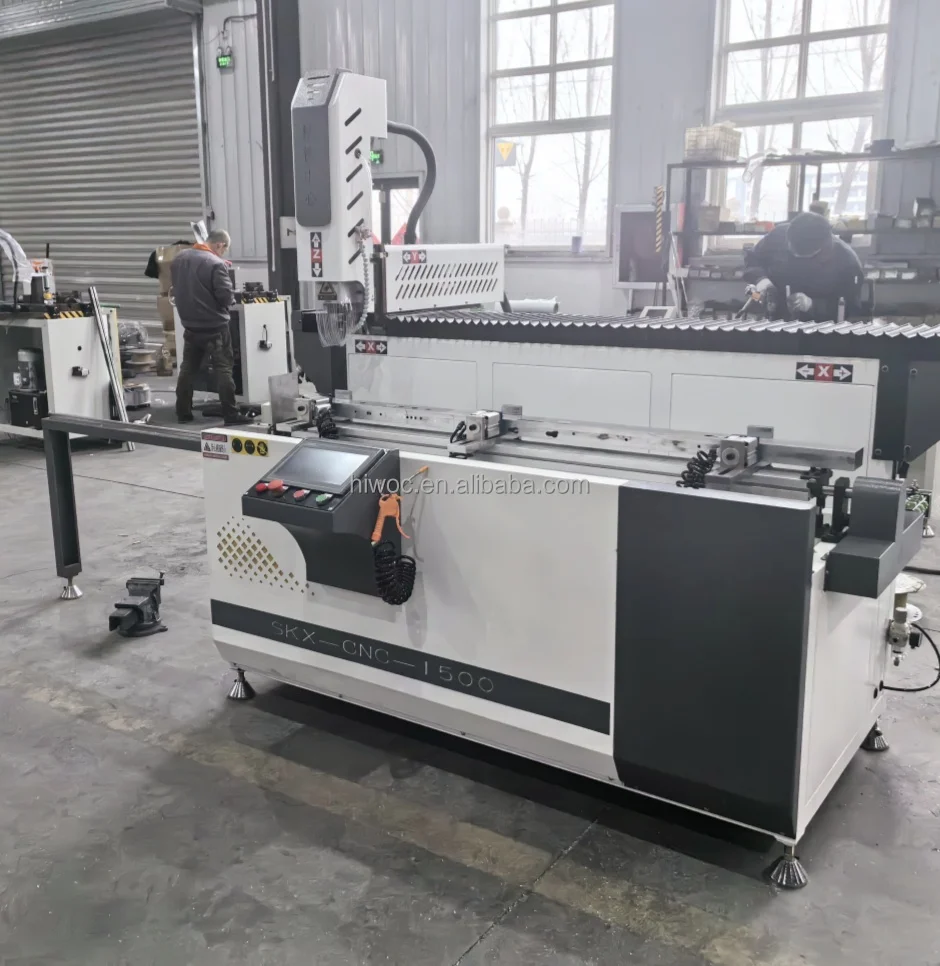

Сверлильный станок с ЧПУ SKX2000 Многофункциональный сверлильный и фрезерный алюминиевый профиль
