Высоконапорный промышленный HGM трехрулонный Золотой бентонитовый кварцевый песчаный камень известняк 4R 5R ультратонкие шлифовальные мельницы
- Категория: >>>
- Поставщик: Henan Ruida Machinery Equipment Co. Ltd.
Сохранить в закладки 1601204793221:
Описание и отзывы
Характеристики

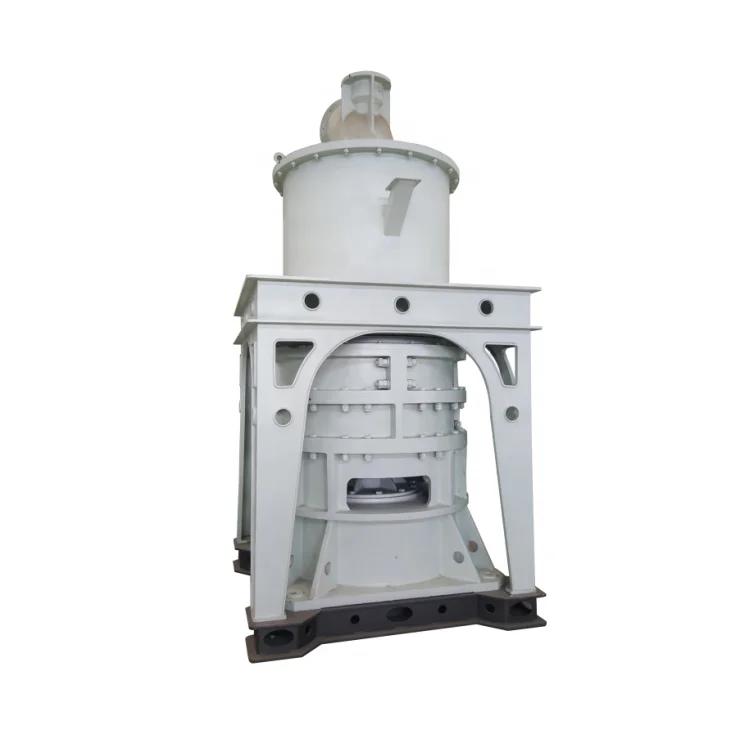

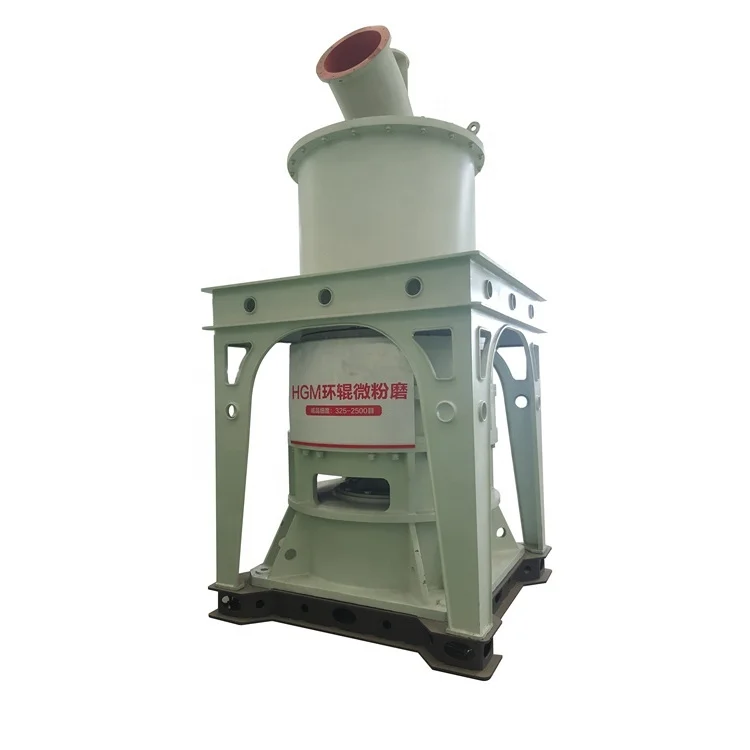

High Pressure Industrial HGM Three Roll Gold Bentonite Silica Sand Stone Limestone 4R 5R
Ultra Fine Grinding Mills
My WhatsApp or Wechat:0086-1553 7188 625
1.Multi-track:The equipment adopts the innovative comminution structure of multi-layer and multi grinding channel.
2.Durable Parts:Forged by special material, the ring and roller can be used for about one year while grinding calcium carbonate.3.More stable:The damping spring and sealing belt can reduce the vibration and noise and avoid the resonance between mill and classifier.
4.More efficiency:The damping spring and sealing belt can reduce the vibration and noise and avoid the resonance between mill and classifier.
Capacity
0.5-25t/h(the exactly capacity base on the user’s local site and production environment)
Application fields
non flammable and explosive brittle materials with Mohs hardness less than grade6
Work Principle

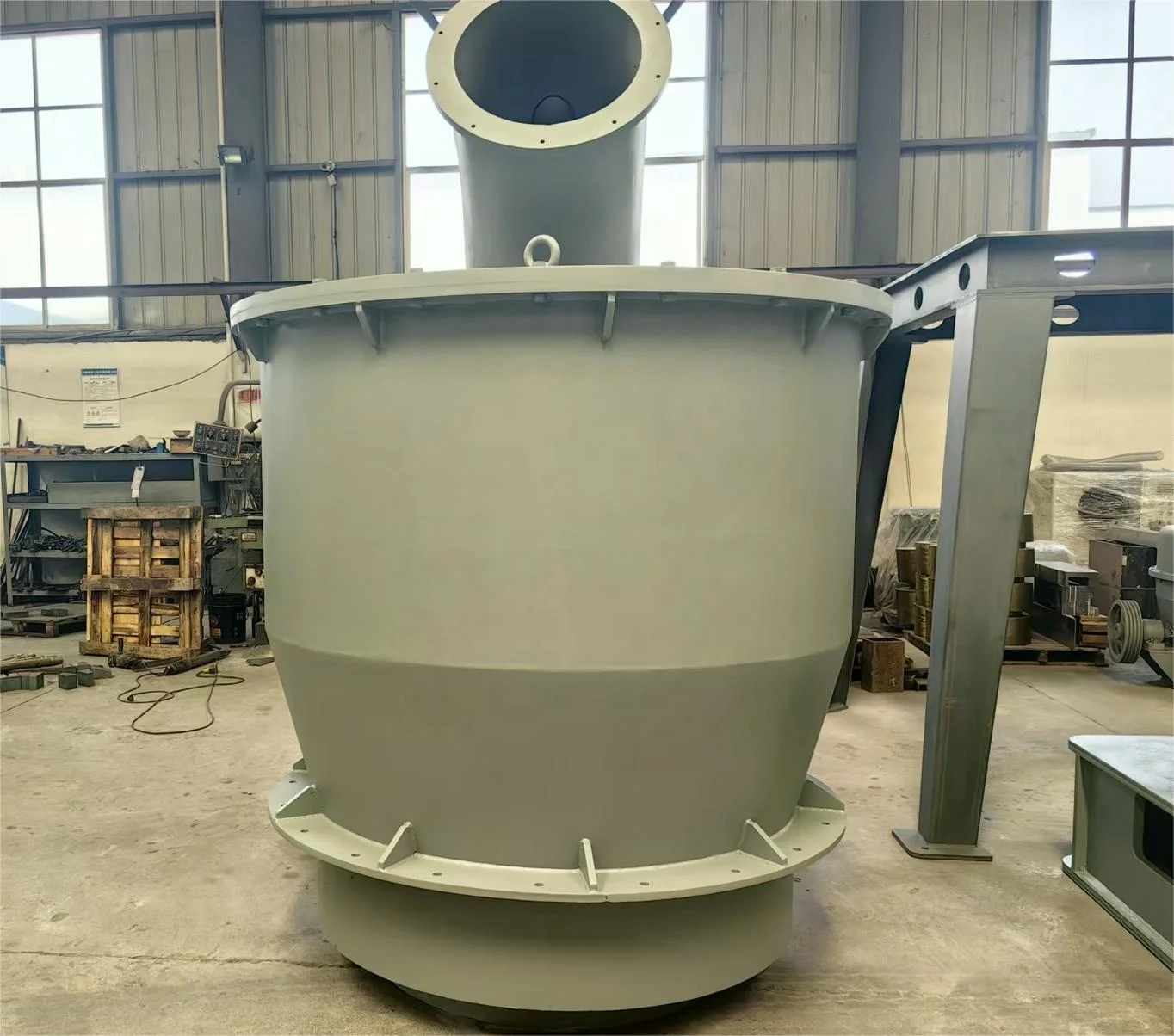

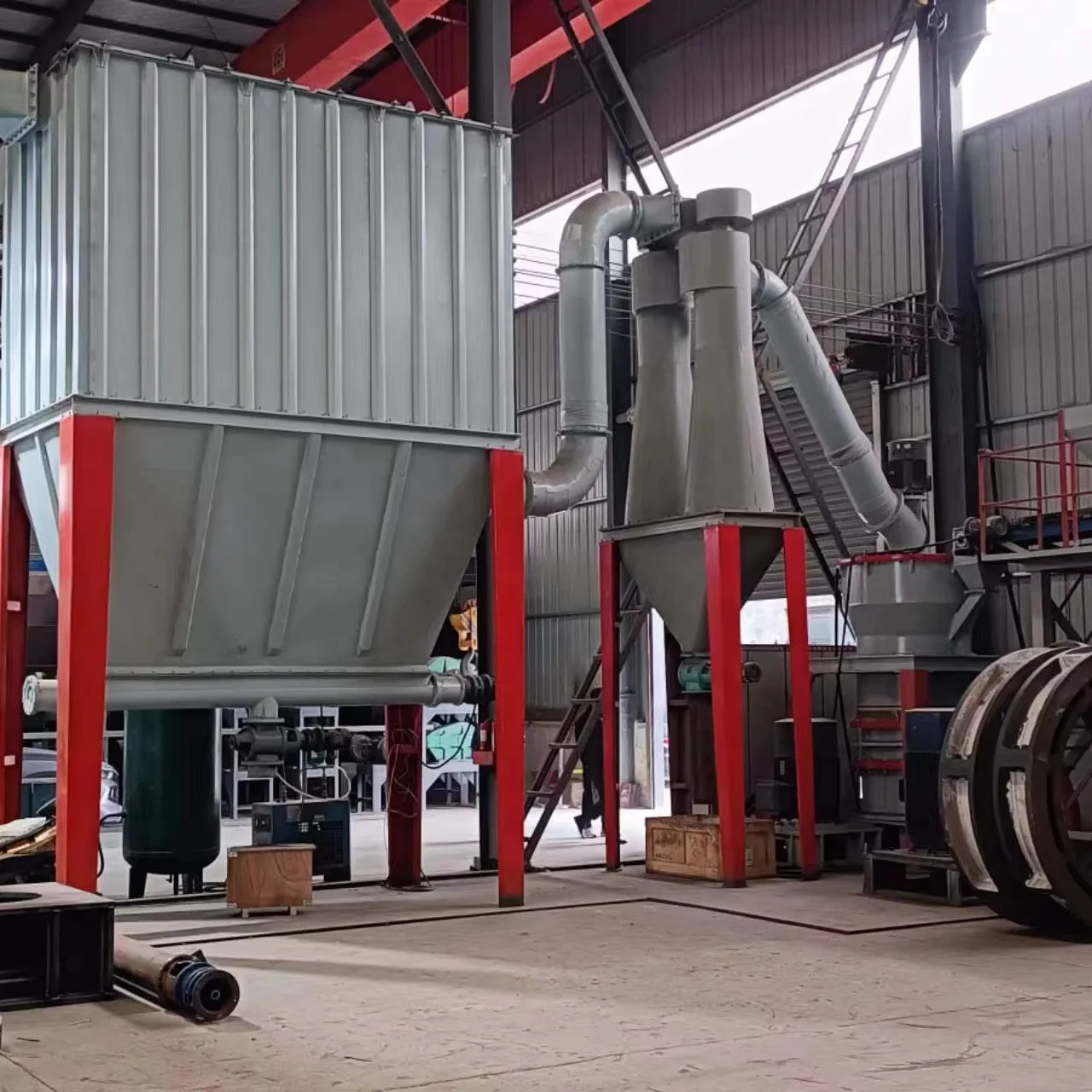

The main motor of HGM Three-rings Medium-Speed Micro-powder Grinder drivers spindle and every layer turntable rotating by reducer, through studs, turntable drive dozens of ring roller grinding rolling and rotating in grinding ring roll away. Bulk material was crushed into small particles by hammer crusher, then enter into storage silo by elevator, evenly to the material is sent into the middle of upper turntable by electromagnetic vibrating feeder. Material is scatter to the peripheral edge under the effect of centrifugal force, and fall into the grinding ring roll away, stamping, roll grinding, polishing and crushing by ring rolling. The material is crushed in the first layer then falls into the second and third layer. The pumping action of high pressure centrifugal fan sucked the external air into the machine, and send crushed coarse powder into powder separator through the third layer. The vortex generated by the rotating turbine of powder separator make coarse particulate material down regrinding, powder along with the air go into the cyclone powder collector, and discharge from lower discharge valve, that is finished product, but airflow along with a small amount of fine dust, is purified through pulse dust collector and then discharged from the fan and muffler.

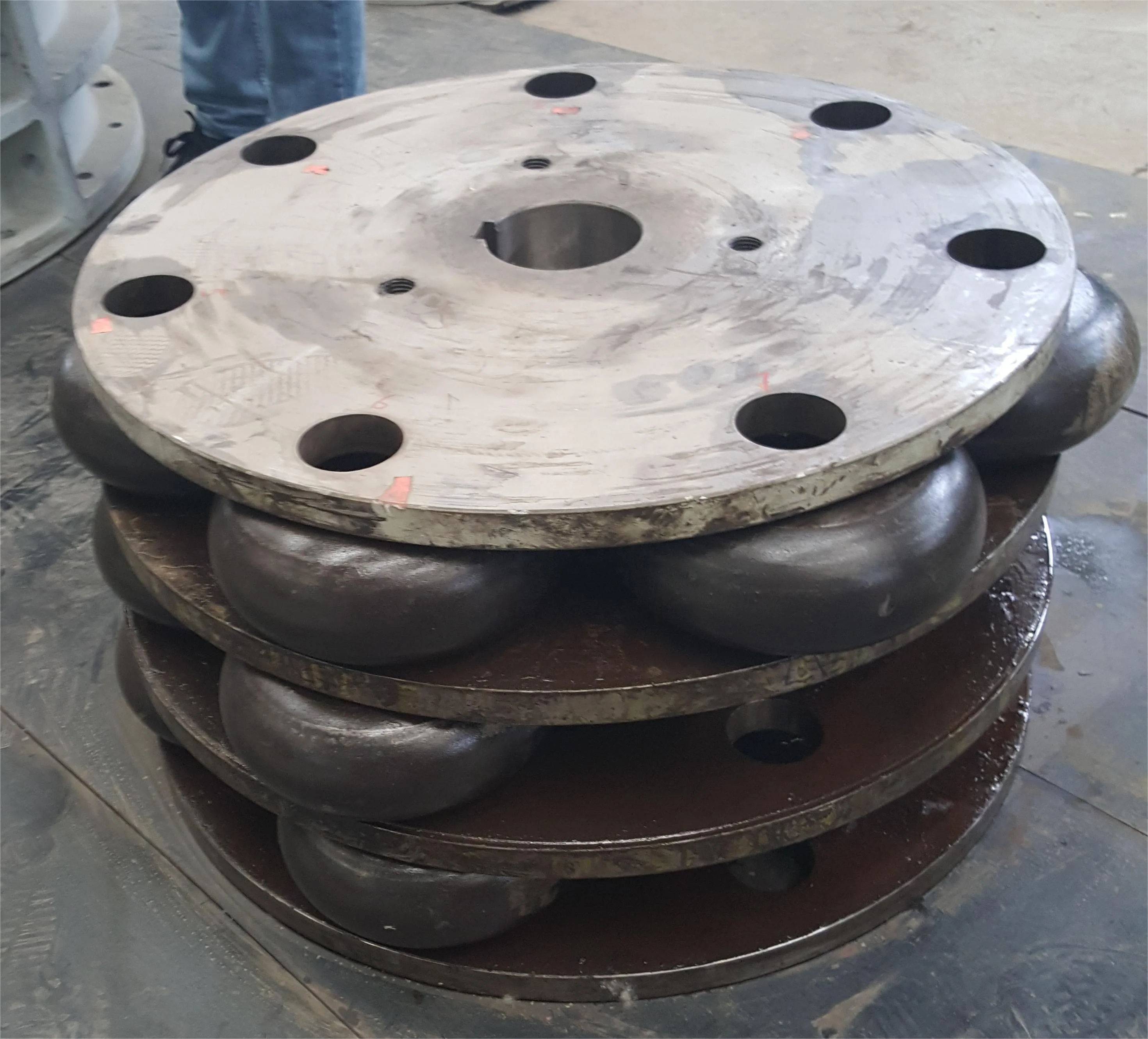

Spare Parts of Micro Powder Grinding Mill
Technical Parameters
Model | HGM80 | HGM100 | HGM125 | HGM168 | |||||
No.of Roller and Ring | No.of Roller(PCS) | 21 | 36 | 40-44 | 30-40 | ||||
No.of Ring(PCS) | 3 | 4 | 4 | 4 | |||||
The Feeding Size(mm) | ≤20 | ||||||||
Capacity(kg/h) | 500-5000 | 1000-8500 | 1500-12000 | 5000-25000 | |||||
The Final Size | Micron | 45-3 | |||||||
Mesh | 3250-325 | ||||||||
Motor Power(KW) | Main Mill | 55 | 100 | 160 | 315 | ||||
Classifier | 18.5 | 37 | 45 | 18.5x5 | |||||
Air Blower | 45 | 75 | 2x55 | 90x2 | |||||
Screw Conveyor | 3 | 3 | 2-4 | 2 | |||||
Discharge Valve | 2x0.75 | 2x0.75x1.1 | 4x1.1 | 1.5x20.75x2 | |||||
Air Compressor | 7.5 | 15 | 2x15 | 55 | |||||
Overall Dimension(M) | 13.9x4x6.2 | 18x4.6x8.6 | 14x9x10.25 | 26.3x7.5x11.9 | |||||
Delivery of Micro Powder Grinding Mill
Henan Ruida Machinery Equipment Co., Ltd. was founded in 2006. it is a technology innovation enterprise that mainly produces crushing,grinding and drying equipment and integrates R&D,production and sales. The company is located in the hinterland of China, Zhengzhou City, which is the national transportation hub and the geographical position is superior. Our products are widely used in mining, metallurgy, chemical industry, building materials, refractory and other industries. What users need is exactly what we strive to create; Customer satisfaction is what we always pursue. The company has always believed that products are the core competitiveness of enterprises, quality is the eternal lifeline of enterprises, and service is the second vitality of enterprises.
Maybe you are interested in MORE+
Maybe you are interested in MORE+
1. Are you manufacture or trading company?
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
We are factory, established in 2006.
2.why should you buy from us not from other suppliers?
>>> factory sell directly
>>> 20+ years experience, professional
>>> Sales market all over the world
>>> good pre-sales and after sales serive
3. How long is the warranty? Does your company supply the spare parts?
12 months.Spare parts for you at lowest cost.
4.what can you buy from us?
Raymond Mill,High Pressure Grinding Mill,Ultrafine Mill,Ball Mill,Jaw Crusher,Hammer Crusher
5.If I need the complete grinding plant can you help us to build it?
Yes, we can help you set up a complete production line and give you related professional advice.
Похожие товары

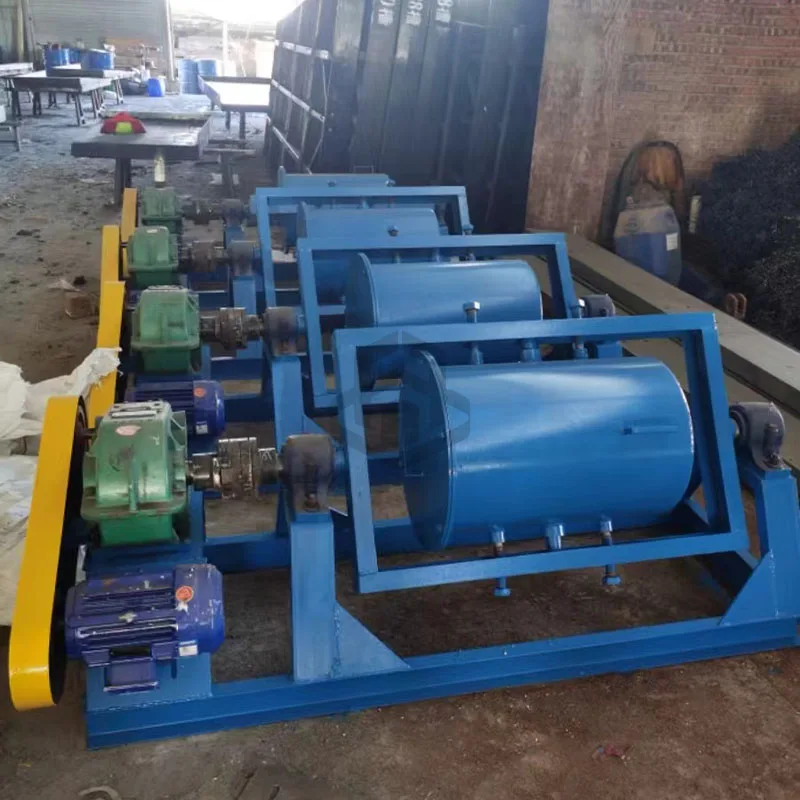

Шаровая мельница для добычи золота с сертификатом Iso измельчитель песка из бентонита шлифовальный станок
337 215,67 ₽

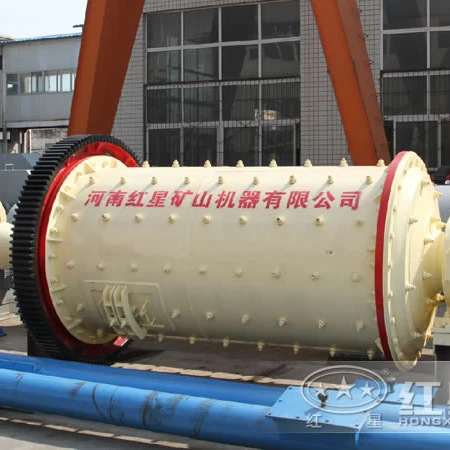

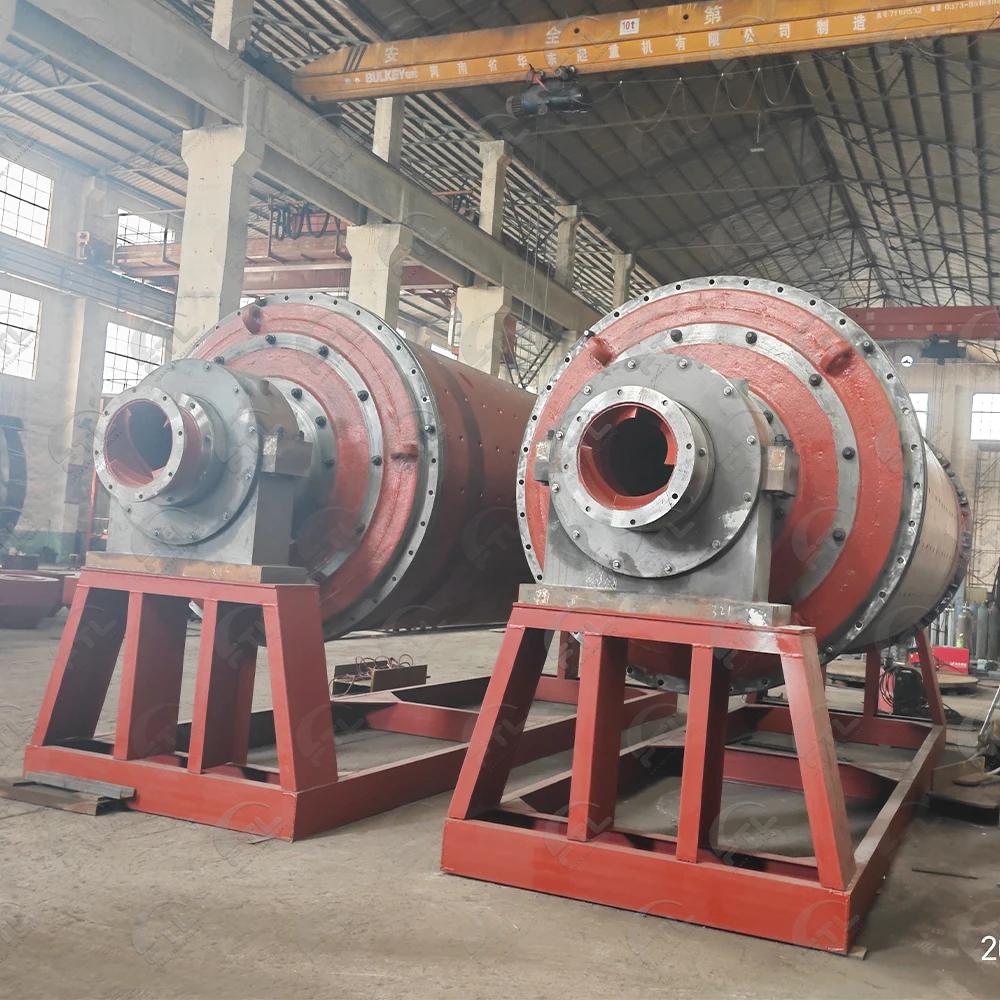

Шаровая мельница для добычи золотого рудного камня
551 042,00 ₽
Промышленная золотодобывающая известняк бентонитовая и керамическая Порошковая шаровая мельница для продажи шаровой мельницы шлифовальный станок
771 458,80 ₽ - 986 365,18 ₽
Керамическая шаровая мельница для добычи золота бентонита циркония шлифовальная машина
165 312,60 ₽ - 220 416,80 ₽
Быстрая доставка Золотая Руда бентонитовая циркониевая алюминиевая шаровая мельница для извести каолина в Танцании
1 322 500,80 ₽

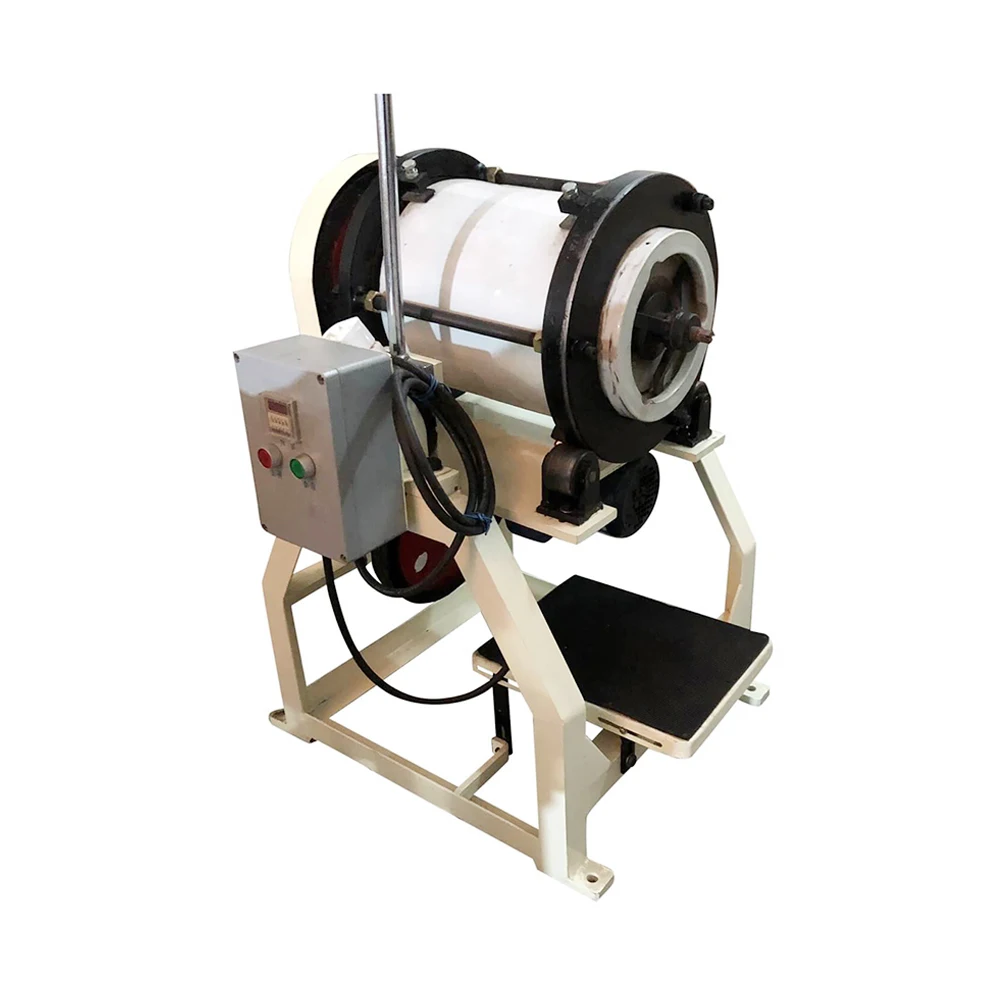

Небольшая непрерывная шаровая мельница для продажи Лабораторная
