Машина для очистки труб оборудование цементного пирса газовый первичный охладитель
247 794,87 ₽ - 248 150,89 ₽
Вакуумная машина для плазменной очистки машины Шлака воздуха
- Категория: >>>
- Поставщик: Xiamen Crtop Machine Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1601205032000:
Описание и отзывы
Характеристики

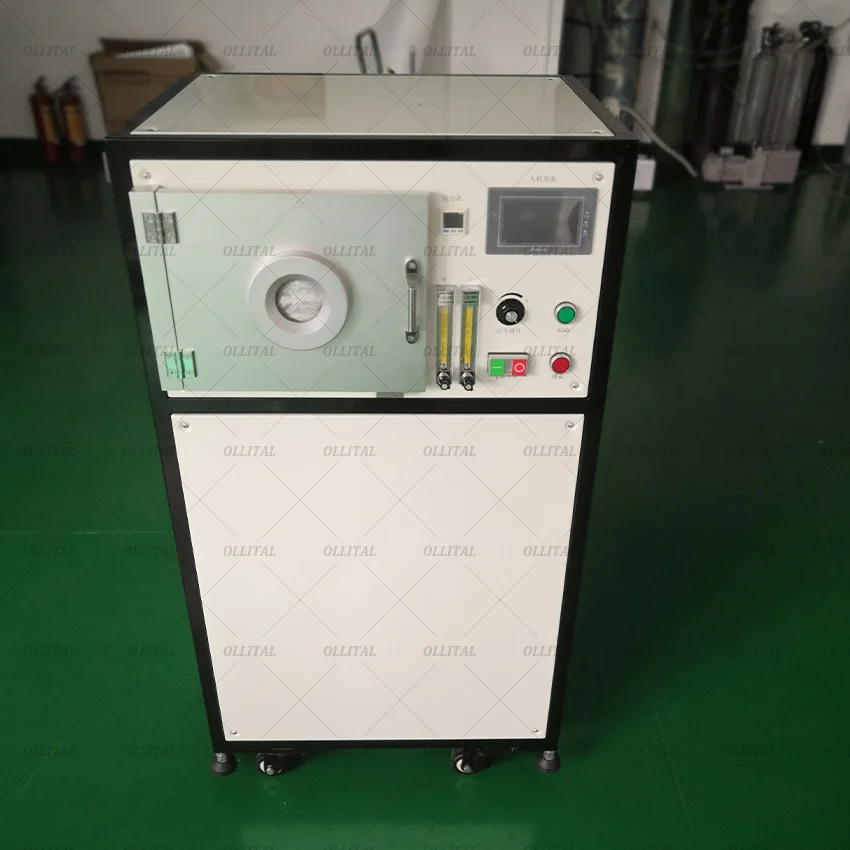

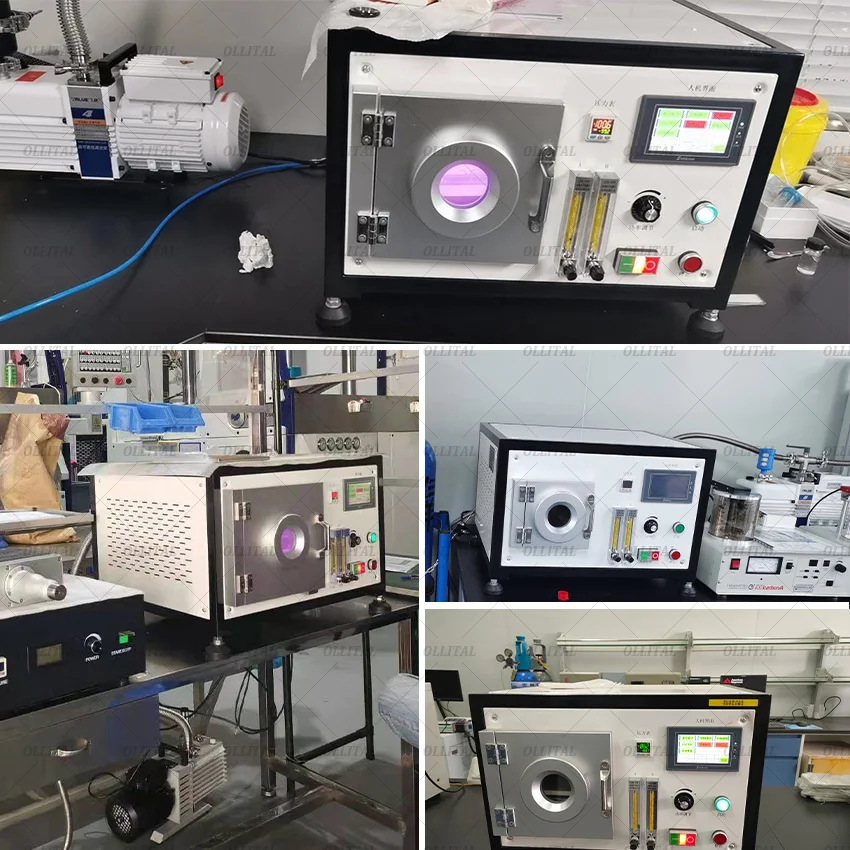

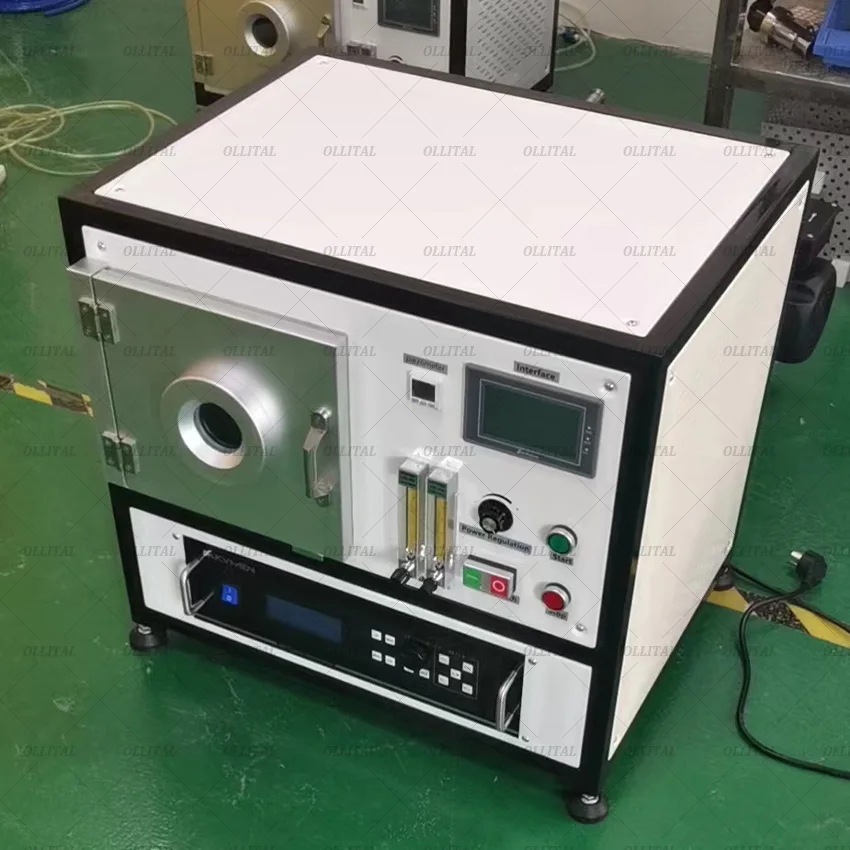

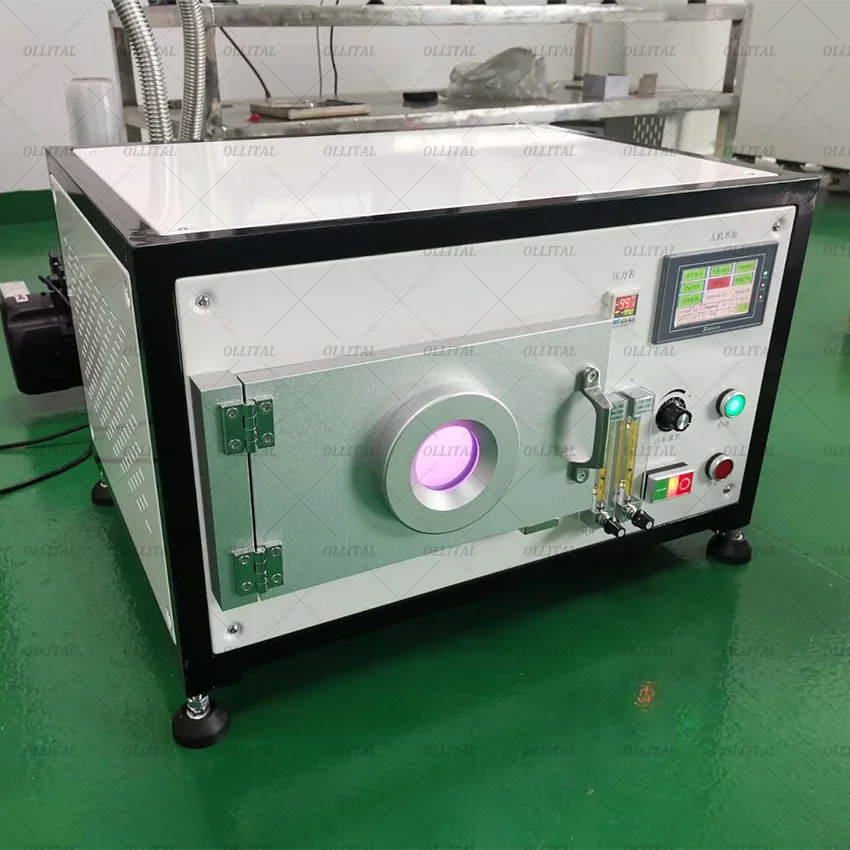

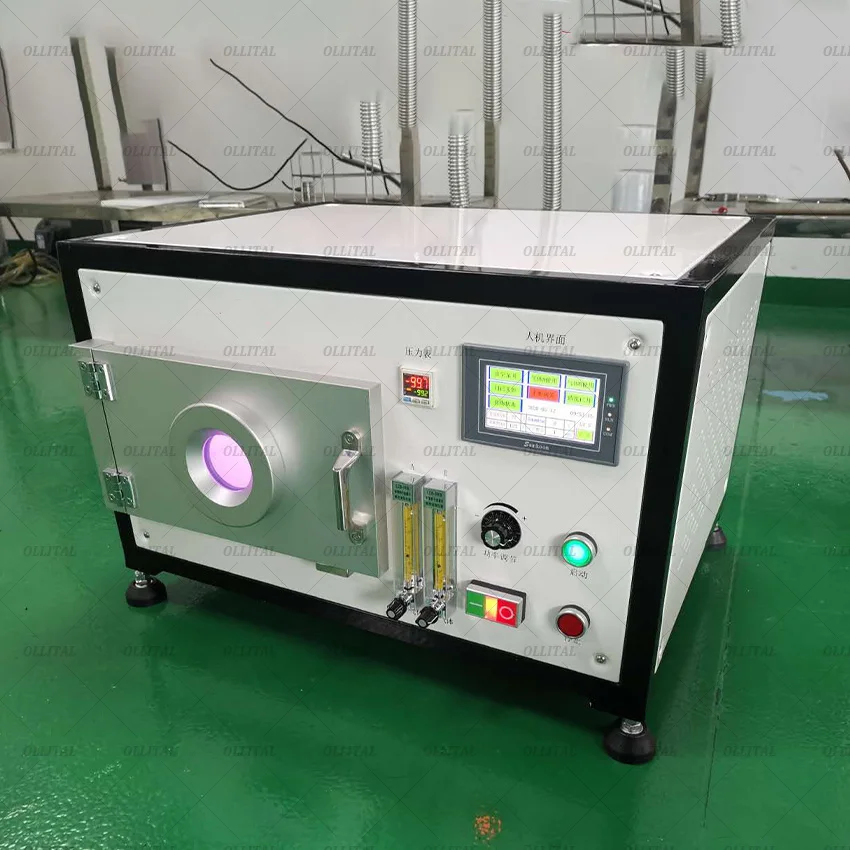

Plasma Cleaner is a device that uses plasma to clean and treat surfaces. Plasma is a mixture of charged particles (electrons and ions), neutral particles, excited atoms and molecules with high energy. Plasma Cleaner excites gases (such as argon, oxygen,
nitrogen, etc.) in a vacuum environment to form plasma, and uses these high-energy particles to chemically react or physically
collide with the surface of the material to remove surface pollutants or perform surface modification.
- Surface cleaning: remove organic pollutants, oxides and other impurities on the surface of materials, commonly used in semiconductors, electronic devices, medical devices and other industries.nitrogen, etc.) in a vacuum environment to form plasma, and uses these high-energy particles to chemically react or physically
collide with the surface of the material to remove surface pollutants or perform surface modification.
- Surface modification: change the chemical and physical properties of the material surface through plasma treatment, such as improving the surface hydrophilicity, adhesion and corrosion resistance.
- Surface etching: use plasma to etch the microstructure of the material, commonly used in microelectronics manufacturing, nanotechnology and other fields.
- Surface coating: form a thin film or coating on the surface of the material through plasma deposition to improve the performance of the material, such as waterproof, oil-proof, wear-resistant, etc.
Power supply | AC220V | AC220V | AC220V | ||
RF power | 0-300W adjustable | 0-300W/ 0-600W | 0-300W | ||
RF frequency | 40KHZ (offset less than 0.2KHz) | ||||
Frequency offset | Less than 0.2KHz | Less than 0.2KHz | Less than 0.2KHz | ||
Characteristic impedance | 50 ohms, automatic matching | 50 ohms, automatic matching | 50 ohms, automatic matching | ||
Vacuum degree | 1pa-30Pa | 30Pa-100Pa | 10Pa-1000Pa | ||
Gas flow rate | 10—160ml/min (adjustable) | 10-160ml/min (adjustable) | 10-160ml/min (adjustable) | ||
Process control | PLC human-machine interface automatic and manual mode | MCU automatic and manual mode | MCU automatic and manual mode | ||
Cleaning time | 1-99999 seconds adjustable | 1-99999 seconds adjustable | 1-100 minutes adjustable | ||
Power size | 10%-100% adjustable | 10%-100% adjustable | 10%-100% adjustable | ||
Dimensions | 650 ×550×440mm | PT-15S type_580×600×480 | PT-5S type_560x540x410 | ||
Vacuum pump | 2XZ-4 (pumping speed 4L/S) | VRD-8 (including oil mist filter) | 2XZ-4 | ||
Vacuum chamber temperature | ＜30°C | ＜65°C | ＜65°C | ||
Cooling method | Forced air cooling | Forced cold air | Forced air cooling | ||
* All models can be customized. Contact an engineer to find the best solution for you today, or view additional models.
1, Are you trading company or manufacturer?
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment .but we also accept other way like L/C , we tern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q3. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good .
We are manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment .but we also accept other way like L/C , we tern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q3. if the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good .
Official website：www.crtopmachine.com
Add：No. 39, Xinchang Road, Haicang District, Xiamen City, China
This is the product you need!
"Contact an engineer" immediately to provide you with the most suitable solution!
Похожие товары
Промышленный дорожный однодисковый очиститель с аккумуляторами
76 996,80 ₽ - 88 864,37 ₽
Подзарядка электрическая Механическая подметальная машина
1 637 724,66 ₽

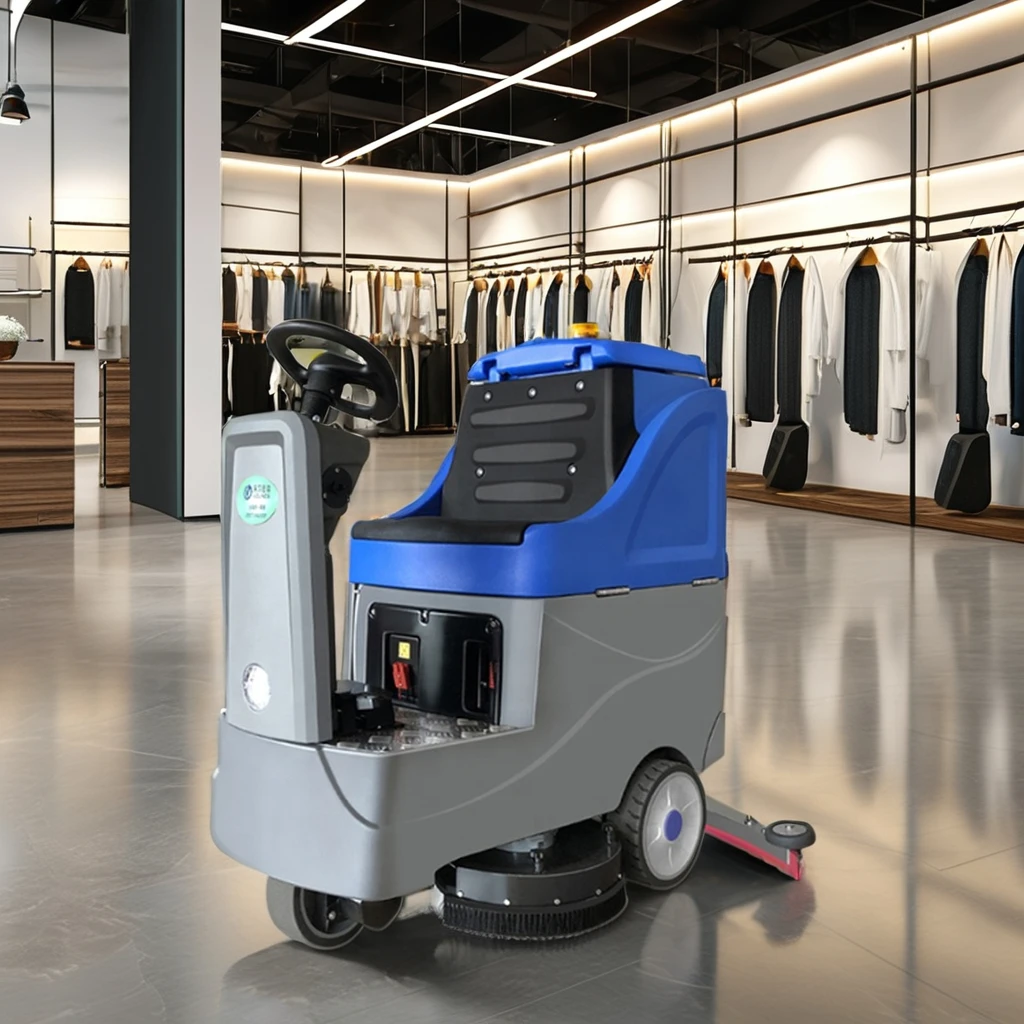

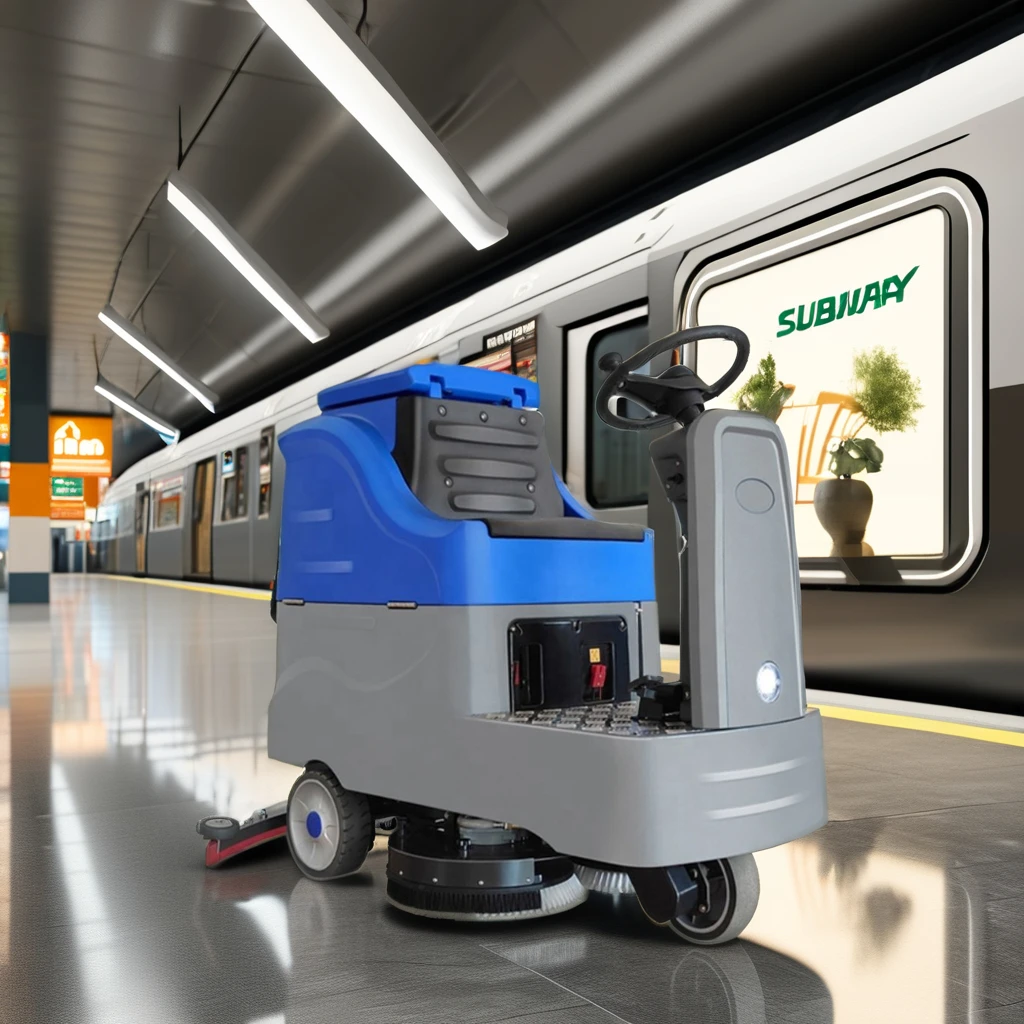

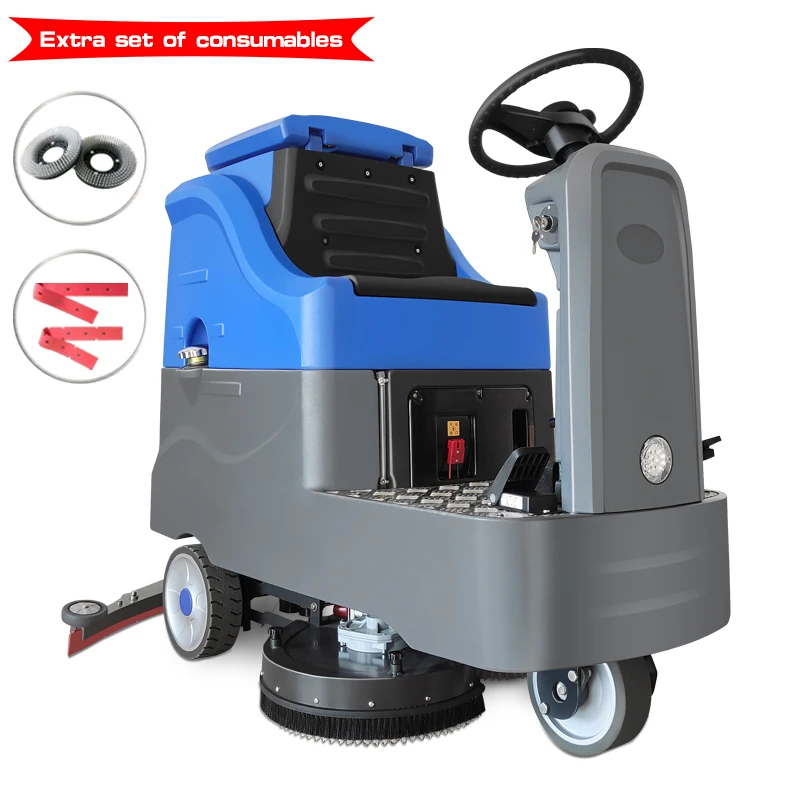

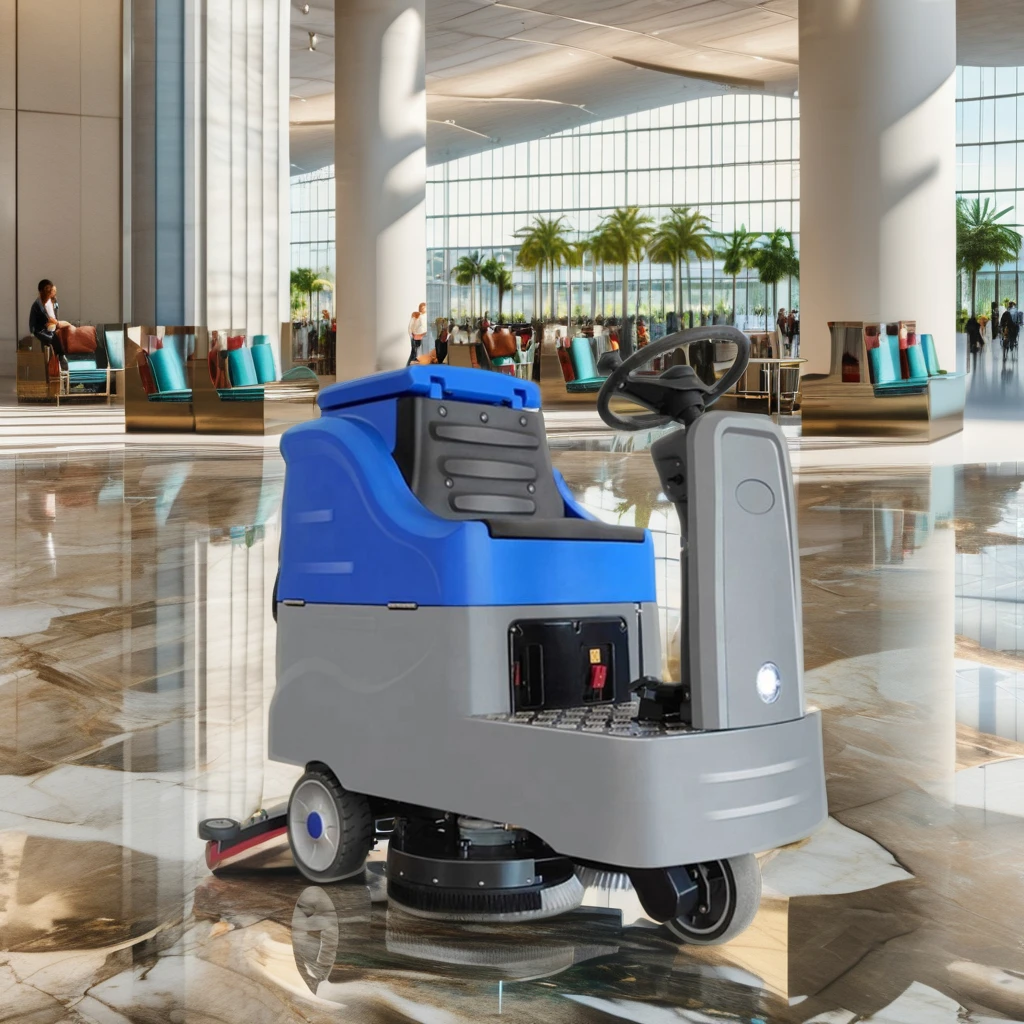

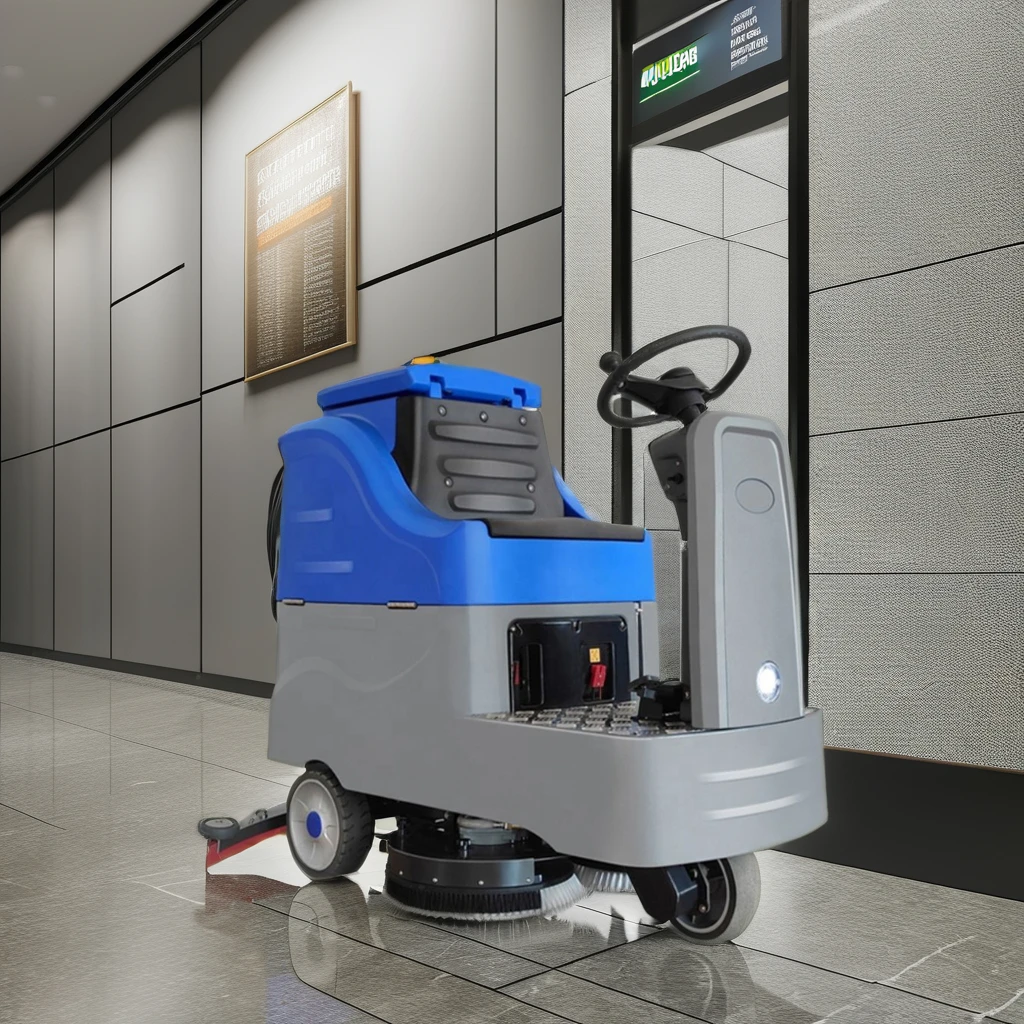

Заводская цена машины для очистки плитки коммерческий автономный скруббер пола
