Машина для производства гофрированного листового листа
5 546 375,00 ₽ - 7 210 287,50 ₽
Машина для производства строительных материалов автоматическая линия сэндвич панелей
- Категория: >>>
- Поставщик: Hebei Guangxing Machinery Technology Co. Ltd.
Сохранить в закладки 1601205373007:
Описание и отзывы
Характеристики
Building Material Machine Automatic Cold Room PIR Sandwich Panel Machine Production Line
Item | Parameter | ||
Material | Type | Color steel sheet;galvanized sheet;Aluminum sheet | |
Thickness(mm) | 0.3-0.8 | ||
Width(Mpa) | ≤1250 | ||
Suitable size of panel | Length(mm) | 2000-18000 | |
Width(mm) | 500-1200 | ||
Thickness((mm) | 30-250(Not including height of corrugation) | ||
Production speed(m/min) | (Adjustable)3-15 | ||
Valid length of double belt conveyor(mm) | 12000-42000 | ||
Work pressure on pouring foam(Bar) | 150-200 | ||
Total power(kw) | 660kw/300kw | ||
Total size(Length×Width×Height) | 130000×15000×6000 | ||

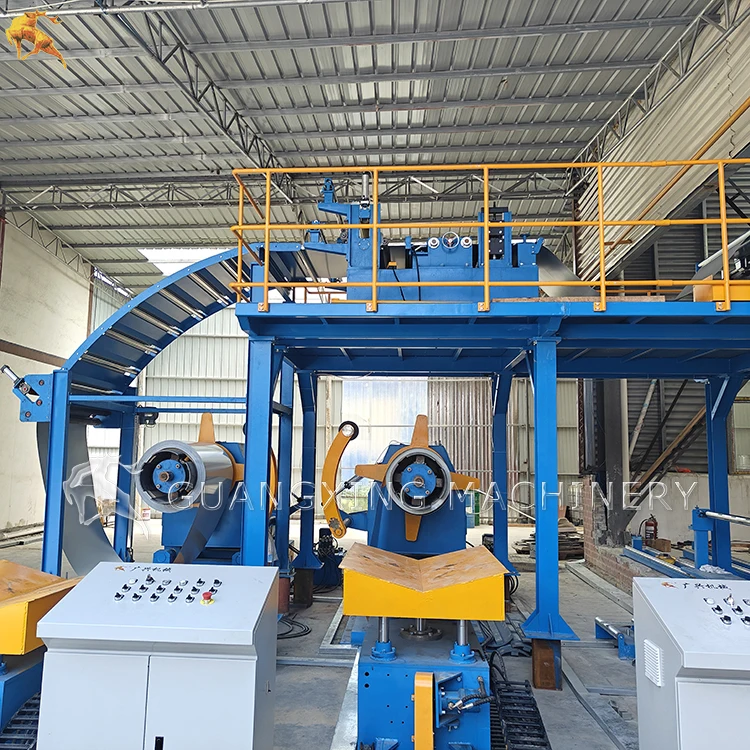

AUTOMATIC DECOILERS
Continuous feeding system ensures continuous high-speed operation.

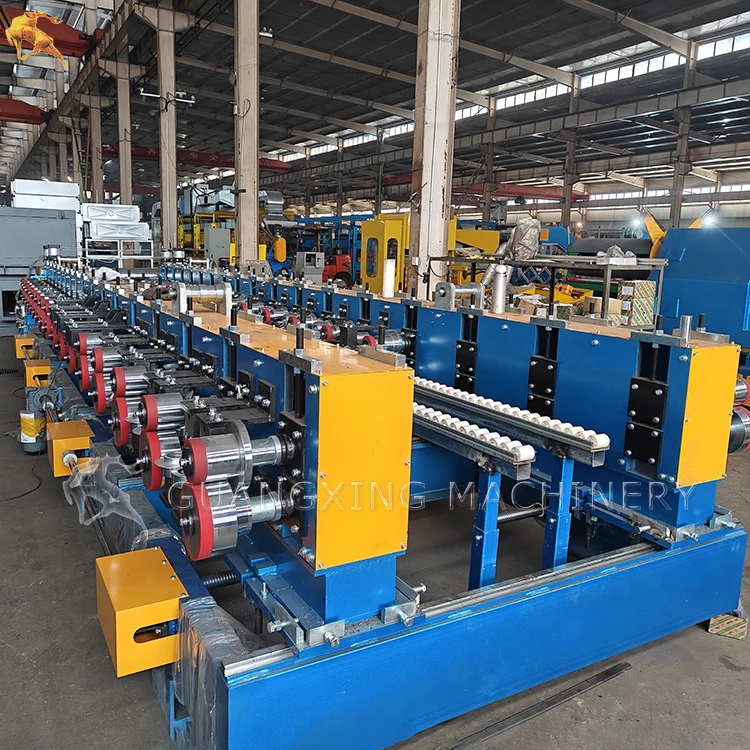

ROLL FORMING SYSTEM
The top plate is formed using a through-shaft roll forming machine, while the wall plate is formed using a cantilever roll forming machine.(One roll forming machine can produce two types of panels,and the width is adjustable.)
MULTI COMPONENTS HIGH PRESSURE PU vs PIR FOAMING SYSTEM
Key components such as metering pumps,flow meters, pressure sensors, high-pressure mixing heads, and control systems are all sourced from imported brands to ensureflow accuracy and foam quality.

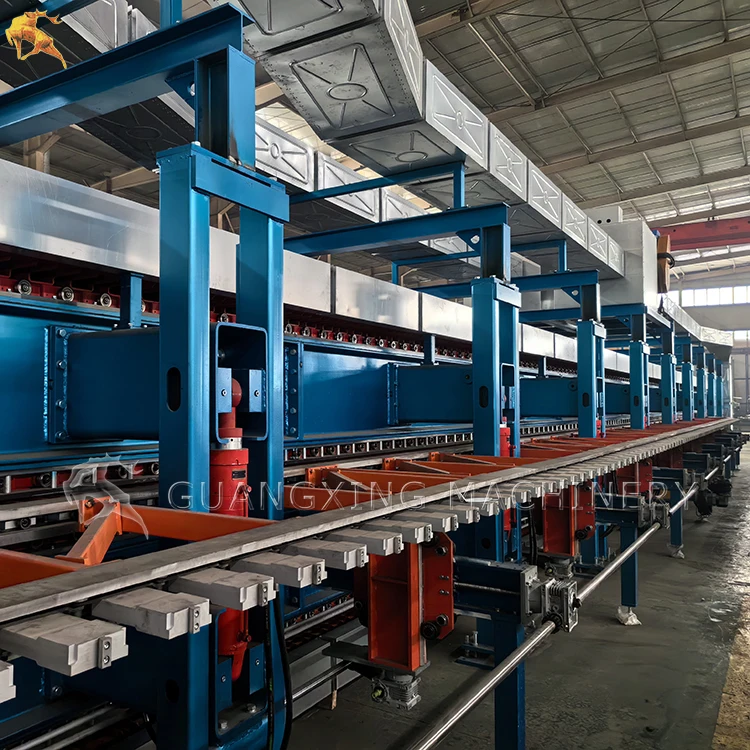

The geometry of the panel is formed duringmovement in the press, as a result of thereaction between chemical componentsand restrictions on foam expansion. Thehorizontal planes of the press consist ofperfectly flat steel plates, which ensurea fixed thickness of sandwich panels.The profile lock formation is providedby a system of side limiters.

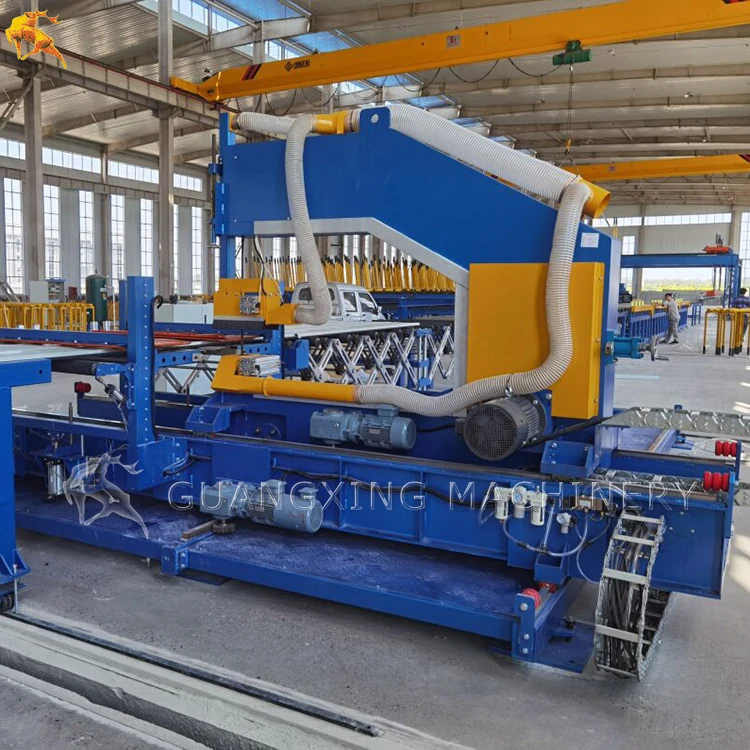

The cutting section with a disk saw isequipped with a chip removal system.The saw speed is synchronized withthe line speed, allowing sandwich panels to be cut at maximum speed,even panels up to 2 meters long.
Widely used for steel structure workshop, roofs of simple and easy movable houses, wall body, suspended ceilings of air purification room, and separation. The rigid polyurethane foam has been recognized as the best building thermal insulation material by international world today. It has low heat conductivity, and high bending resistance capacity. This rigid polyurethane foam doesn’t absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance, and large scope of heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high temperature
polyurethane with coating steel panel, thus compact forming is achieved.
polyurethane with coating steel panel, thus compact forming is achieved.
PU sandwich panel line is an automatic production line, which is consisting of decoiler, film coating, pre-cutting equipment,roll forming machine system, preheating, foaming, solidification, band saw cuttinig, cooling, stacking and packing. The whole line integtates technologies of mechanics, chemistry, eletrical control, hydraulic pressure pneumatic and temperature control.
Company Profile
Hebei Guangxing Machinery Technology Co., Ltd. was founded in 1987. It is a professional manufacturer of exterior wall insulation equipment and composite panel equipment. It is the largest and most competitive enterprise in the same industry in China.
The rock wool production line, polyurethane rock wool color steel composite panel production line and EPS phenolic foam production line developed by our company have all reached the international advanced level and have passed ISO9001 quality management system certification. The products sell well in more than 30 provinces, cities and autonomous regions, and are exported to Europe, Central Asia and Southeast Asia. With first-class technology and first-class products, the company provides customers with high-quality services from product design, research and development, production, installation training to after-sales. It is regarded by the majority of users as an excellent enterprise that "keeps its promise and values service", and has been awarded the famous brand product of Hebei Province. welcome experts, friends, new and old customers from all walks of life to patronize and communicate with us to create brilliance and win-win future together.
Customer Photos
Shipping
FAQ
Q: Where is the factory located?
A: We are located in Xinji, Hebei Province, near Beijing airport. You could fly to Beijing Airport, we could pick you there.
Q: Do you accept on-site inspection to check your machine and your factory?
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during
trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
A: Before shipment, every equipment will be trail tested in our factory, we invite all the client to do on-site inspection during
trail testing.
Q:What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q: What payment terms do you prefer?
A: T/T, L/C, West Union, Cash etc.
Q:How long is the validity of quotation?
A:Generally, our price is valid within one month from the date of quotation . The price will be adjusted appropriately according to the price fluctuation of raw materials and changes in market .
Q:What is your delivery time?
A:Usually, we make merchandise inventory, if we have the products in stock, the delivery time is 5-10 days after receiving the deposit. If we don't have the products in stock, we will arrange the production right now, the delivery time will be 1-3
month,It depend on the order quantity.
Q:Do you provide OEM/ODM Service?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets.
Q:How can we ensure quality?
A:The final inspection is always carried out before shipment.
Q:How to install the equipment after purchasing?
A:We will provide a professional installation video to illustrate.Also provide a manual.
Q:Do you offer a guarantee?
A:Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Q:What is your MOQ?
A:1Sets
